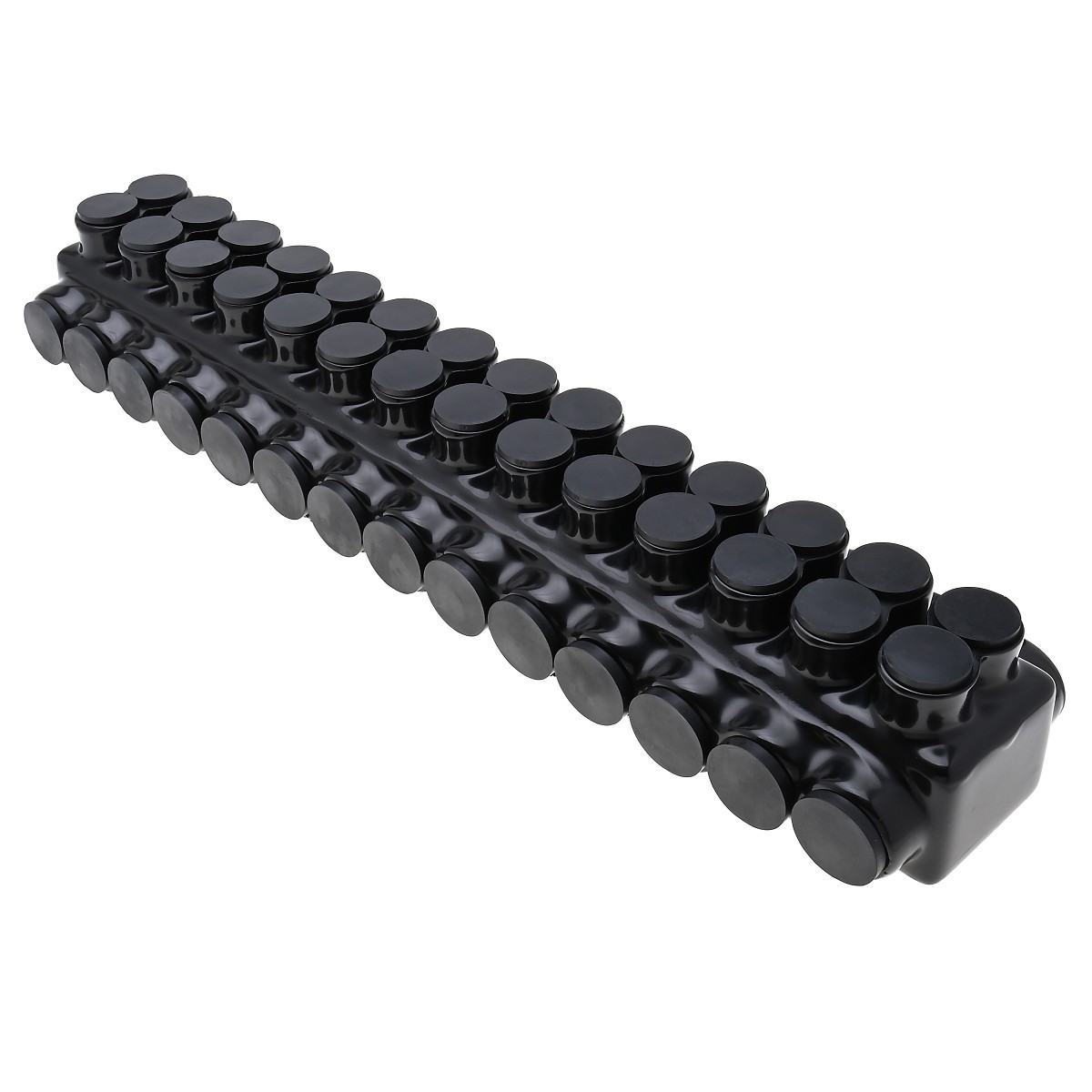

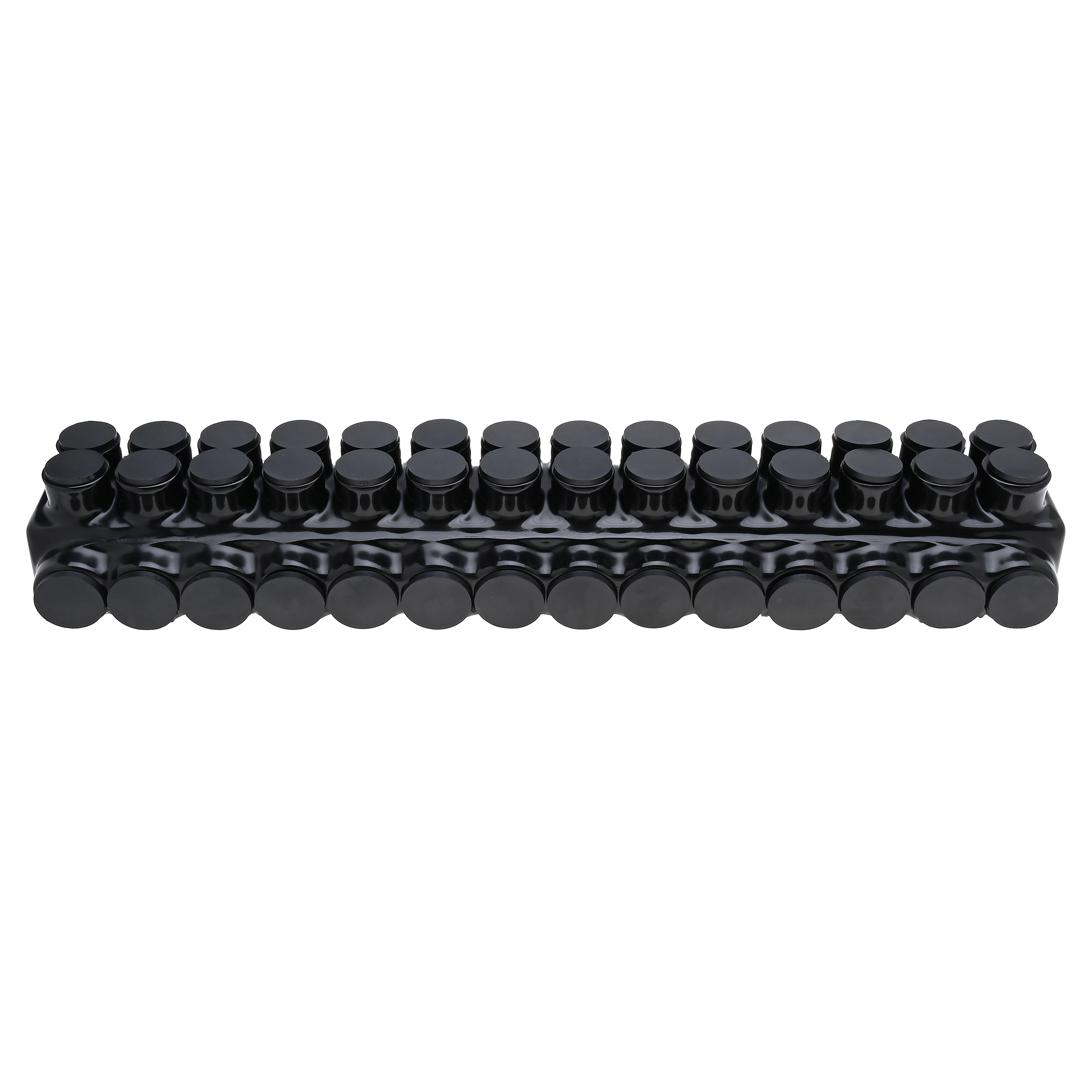

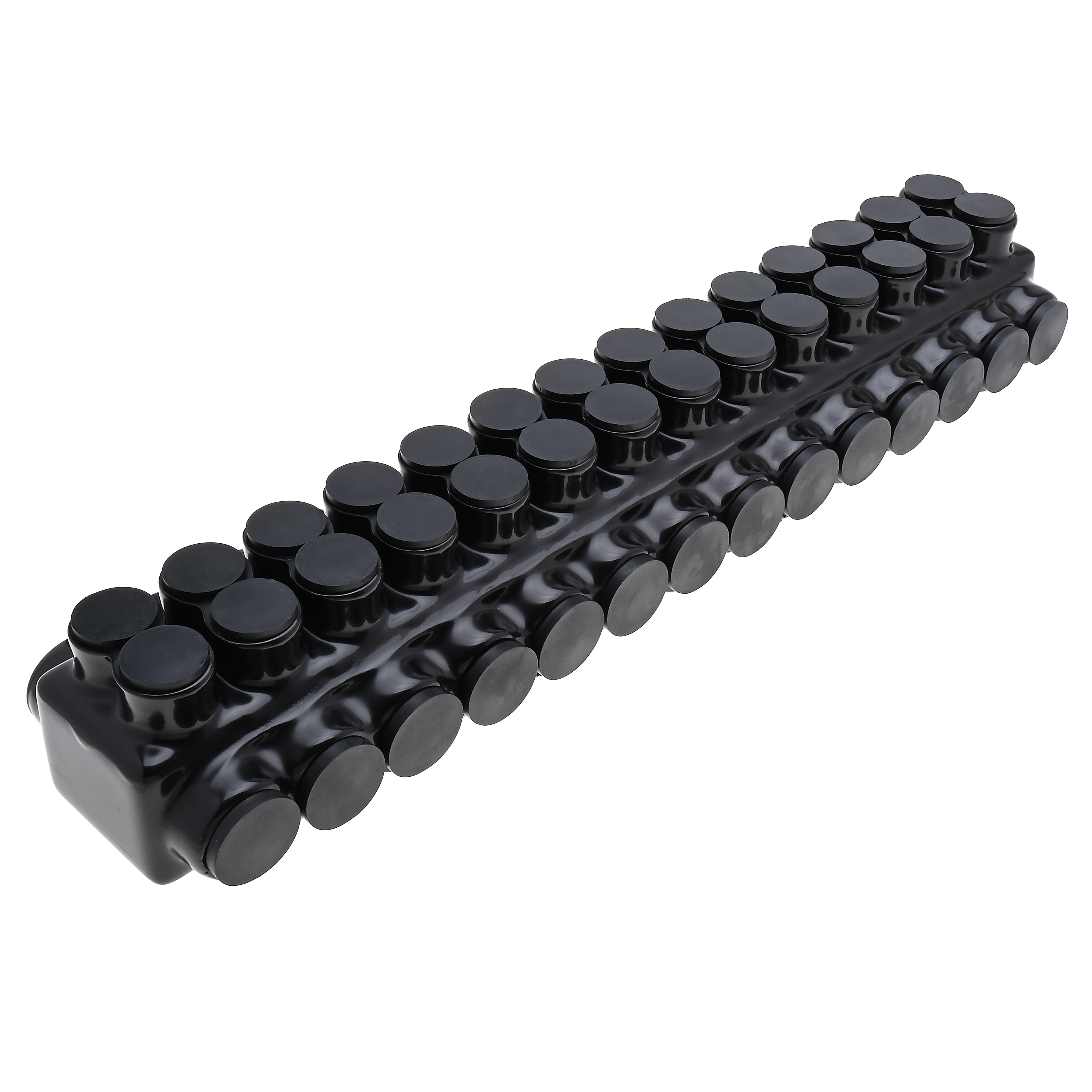

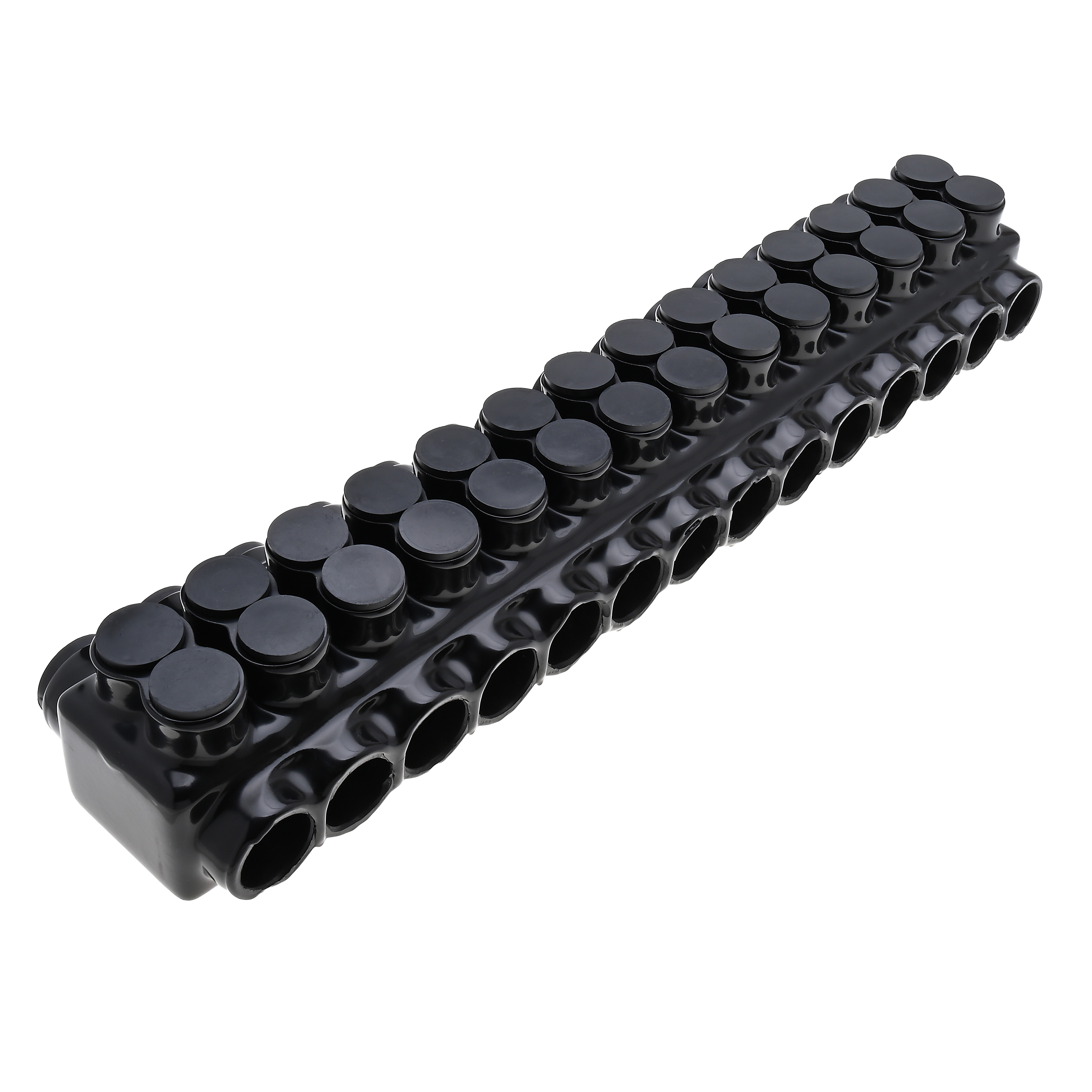

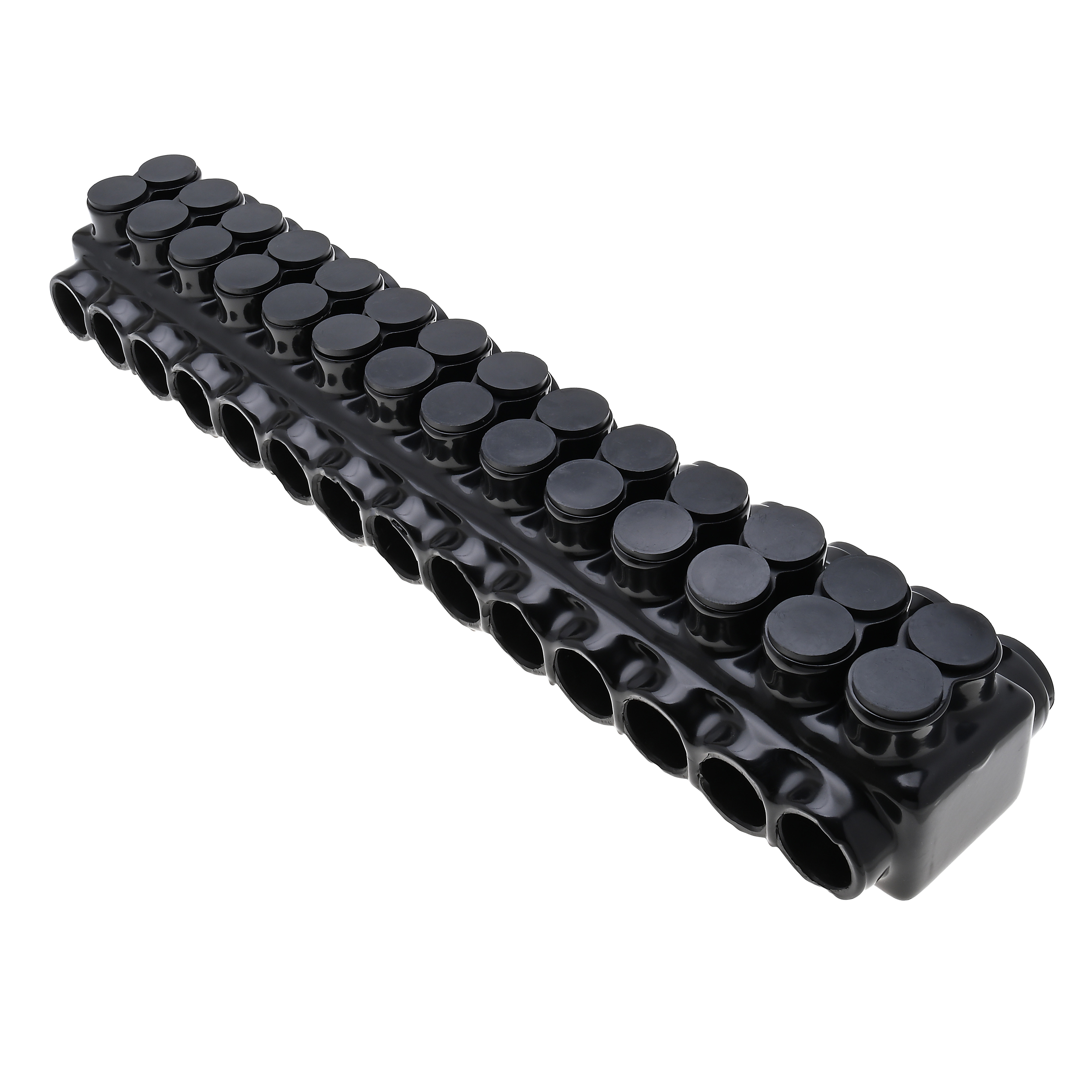

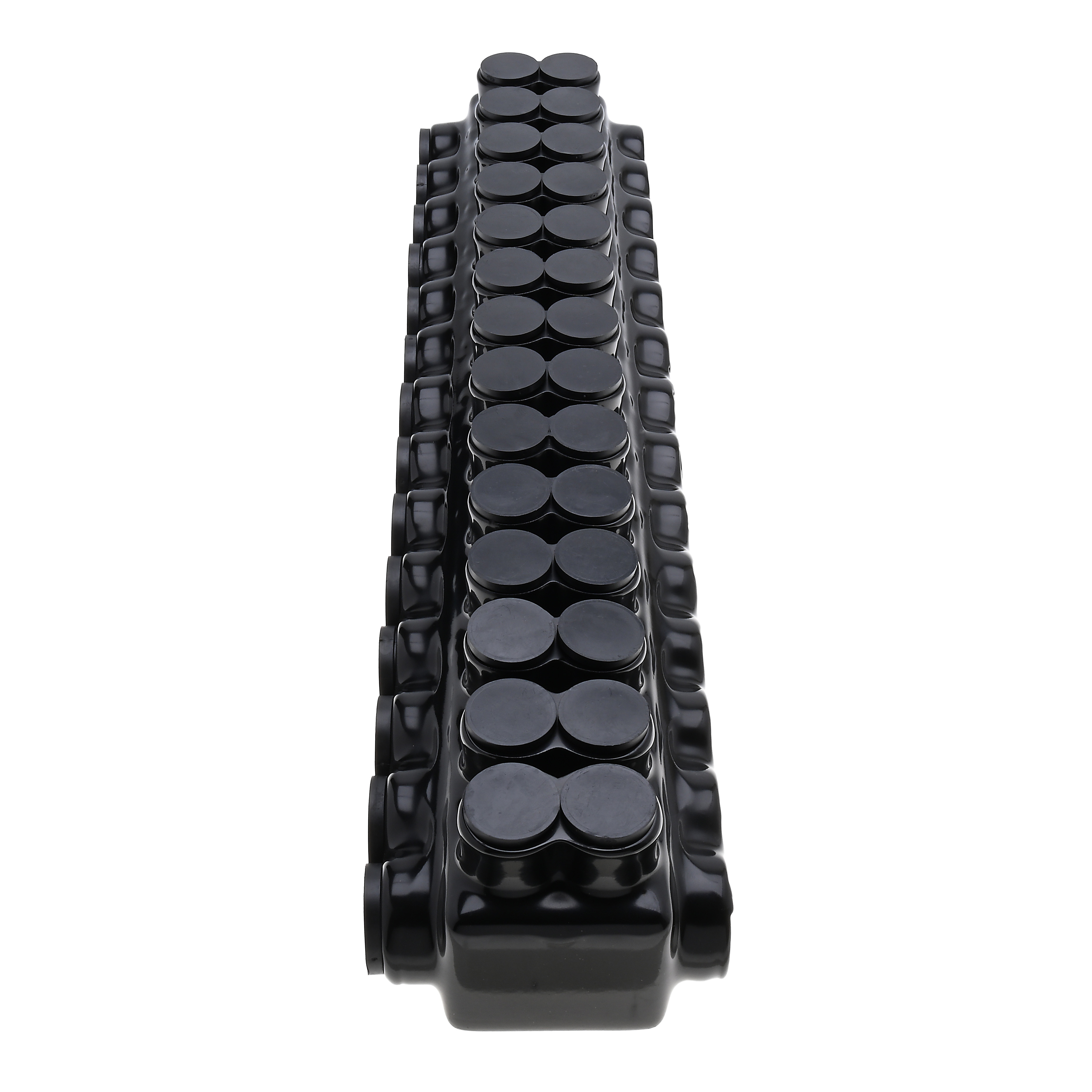

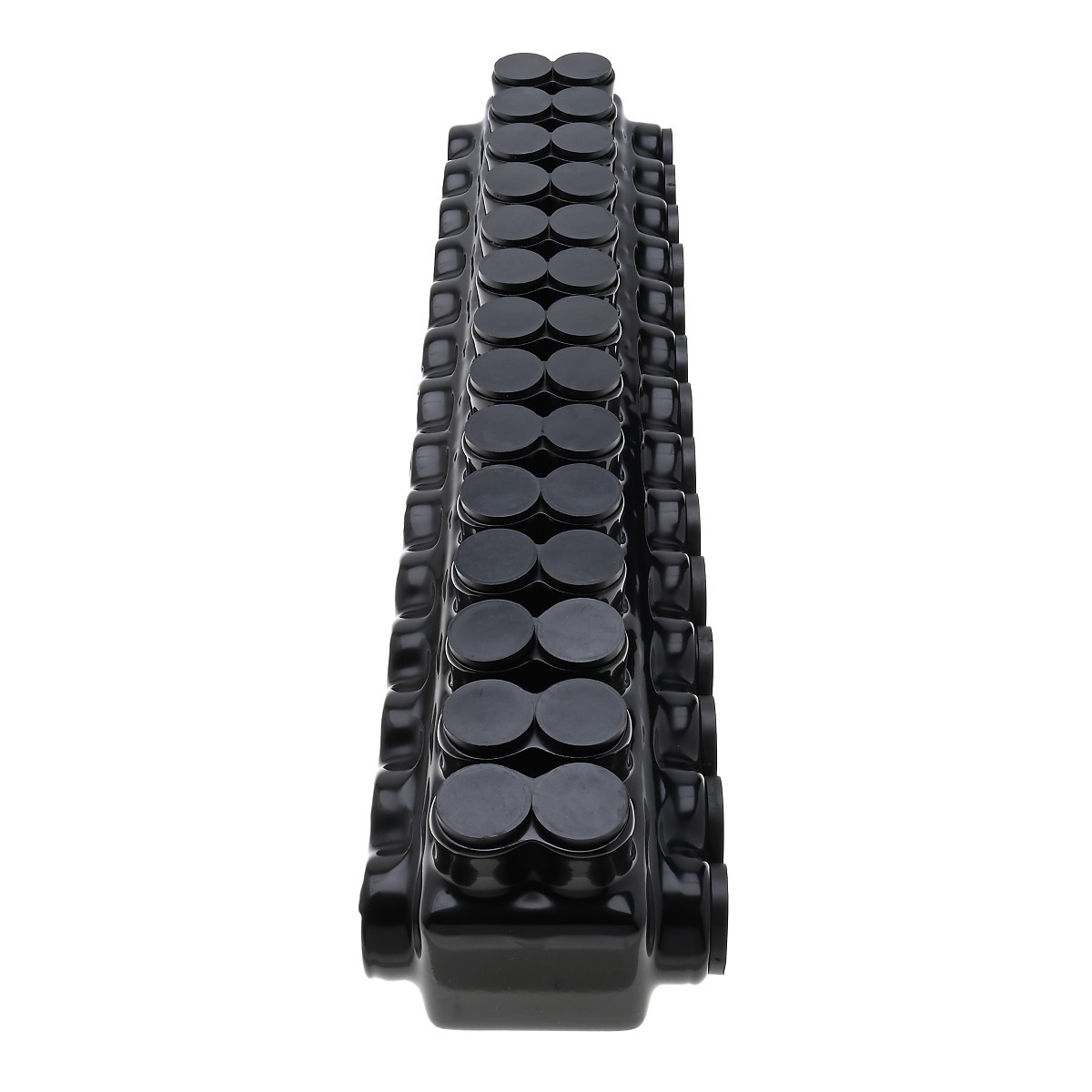

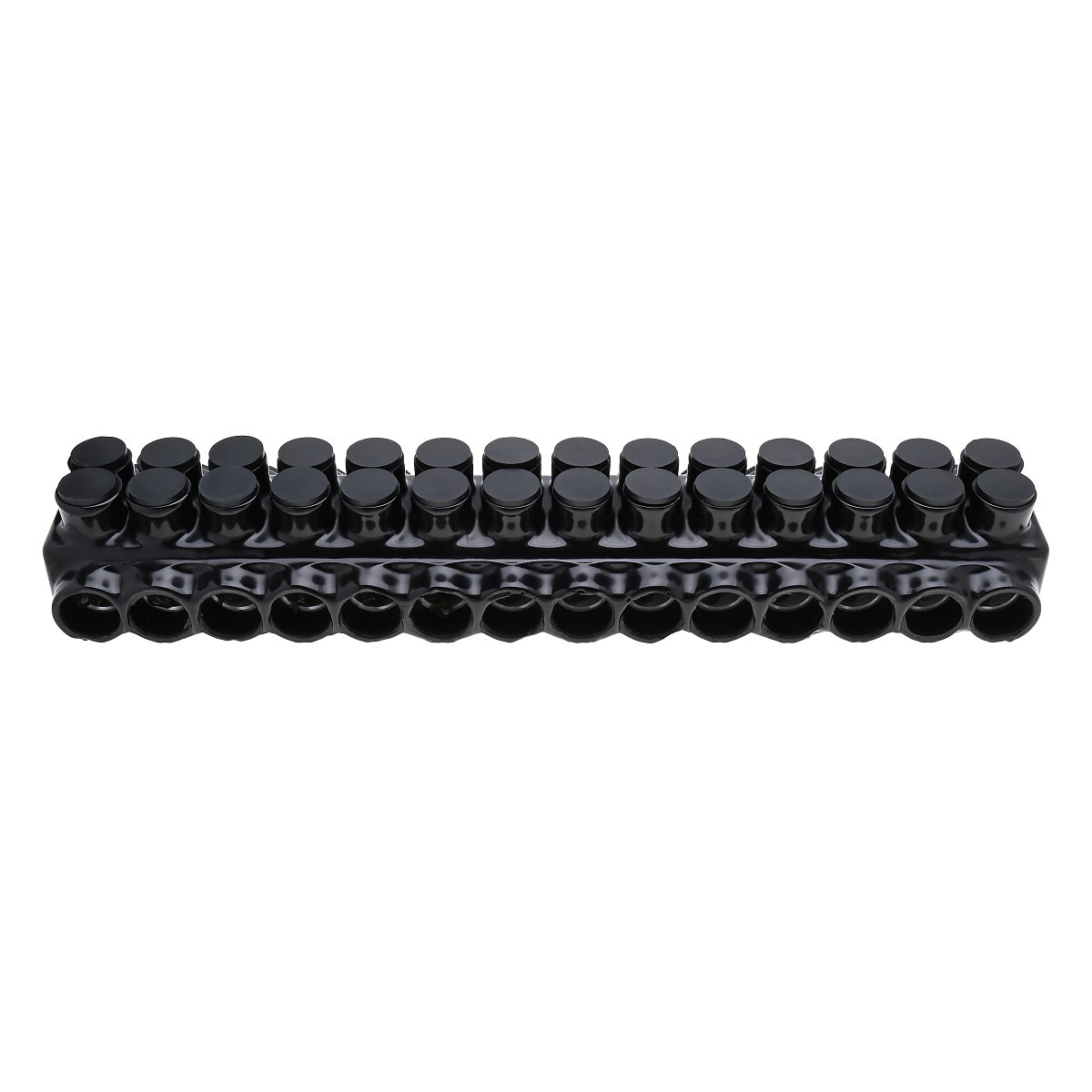

14-Port Black Heavy-Duty Pre-Insulated Connector, 750 MCM – 1/0 AWG


Polaris Black Heavy-Duty Multi-Tap Connectors form secure connections between multiple conductors with a rounded design and UV-resistant insulation coating. Installs with a hex key and torque wrench, with no need for cover and taping.

  • Dual-Sided Wire Entry: Form secure connections between 14 conductors quickly using the double-side entry ports sized for wires between 750 MCM - 1/0 AWG. Suitable for use on the line side of the service equipment as per the NEC article 230.46 requirement.
  • Heavy-Duty Performance: Wider and stronger connector blocks feature two pressure screws for each cable to ensure a secure connection in demanding applications
  • Ergonomic Design: Rounded corners and a smooth exterior finish over the abrasion-resistant plastisol insulation make Polaris connectors comfortable to grip
  • Removable Plugs: Each port and set screw comes with a secure plug to prevent debris from entering the insulated connector
  • Parallel Rated: This connector is specifically designed and rated for parallel installation, providing a safe and secure way to handle larger projects

Product Information

Voltage Rating 600 V
Material Aluminum
Finish Plastisol Insulated
Color Black
Pack Qty 1
GTIN 662381369222
UPC 662381369222
EAN 662381369222
UNSPSC 39121409
Certifications cULus, Meets NEC 230.46 Suitable for Line Side of Service
Ul Standard UL 486A/B
Ul File No E186991
Wire Cable Class Class B, Class C
Al Conductor Max Amp 1860 (Based on 8 ports) -++ See Note
Cu Conductor Max Amp 2356 (based on 8 ports) – ++ See Note
Conductor Cu Size Range 750 MCM-1/0 AWG
Conductor Al Size Range 750 MCM-1/0 AWG
Conductor Type Copper, Aluminum
Temp Rating 90C, AL9CU
Conductors Count 14
Hex Wrench Size 5/16
Env Temp Cold Temperature rated to -45C
Assortment Black UV Coated Pre-Insulated Connectors
Max Torque 550
