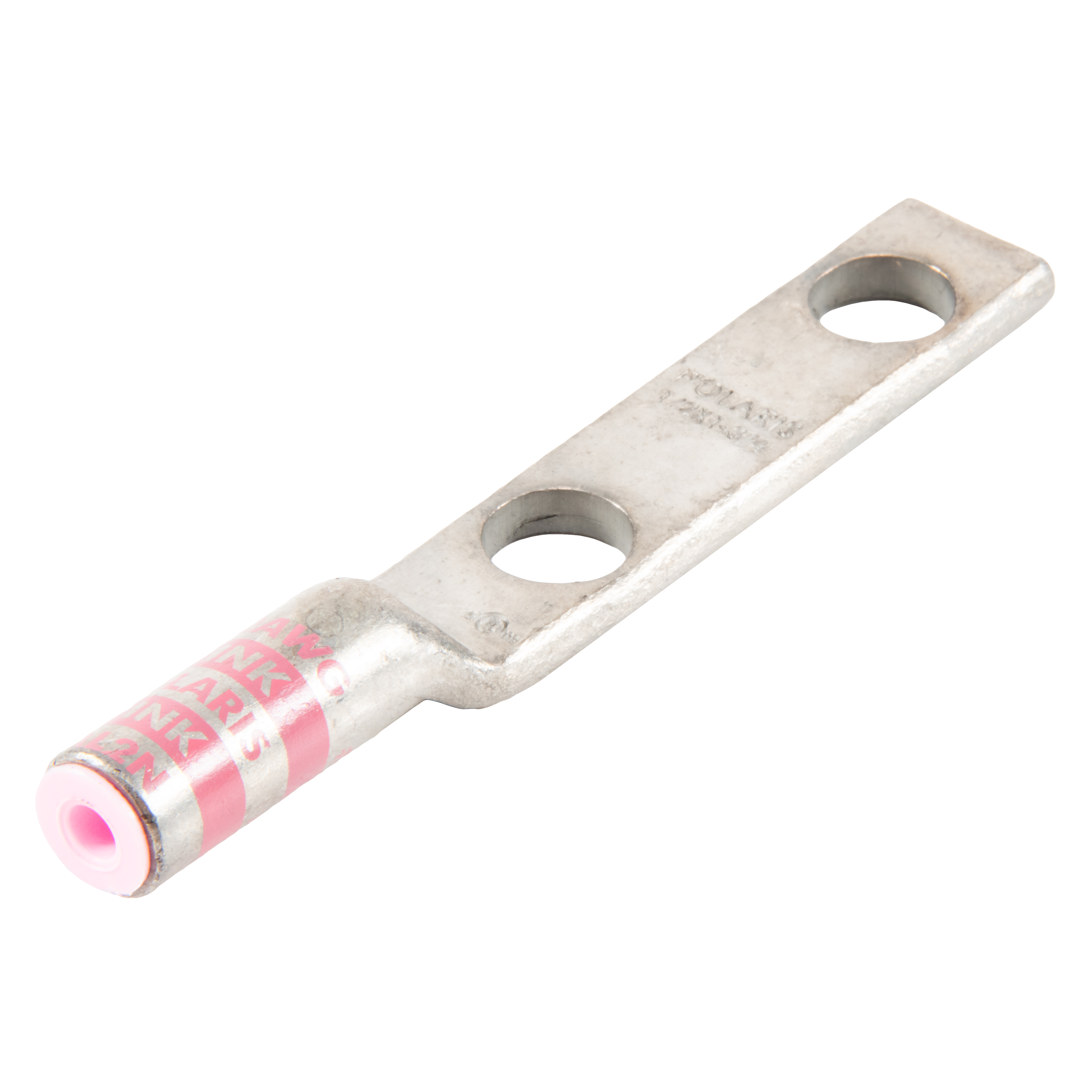

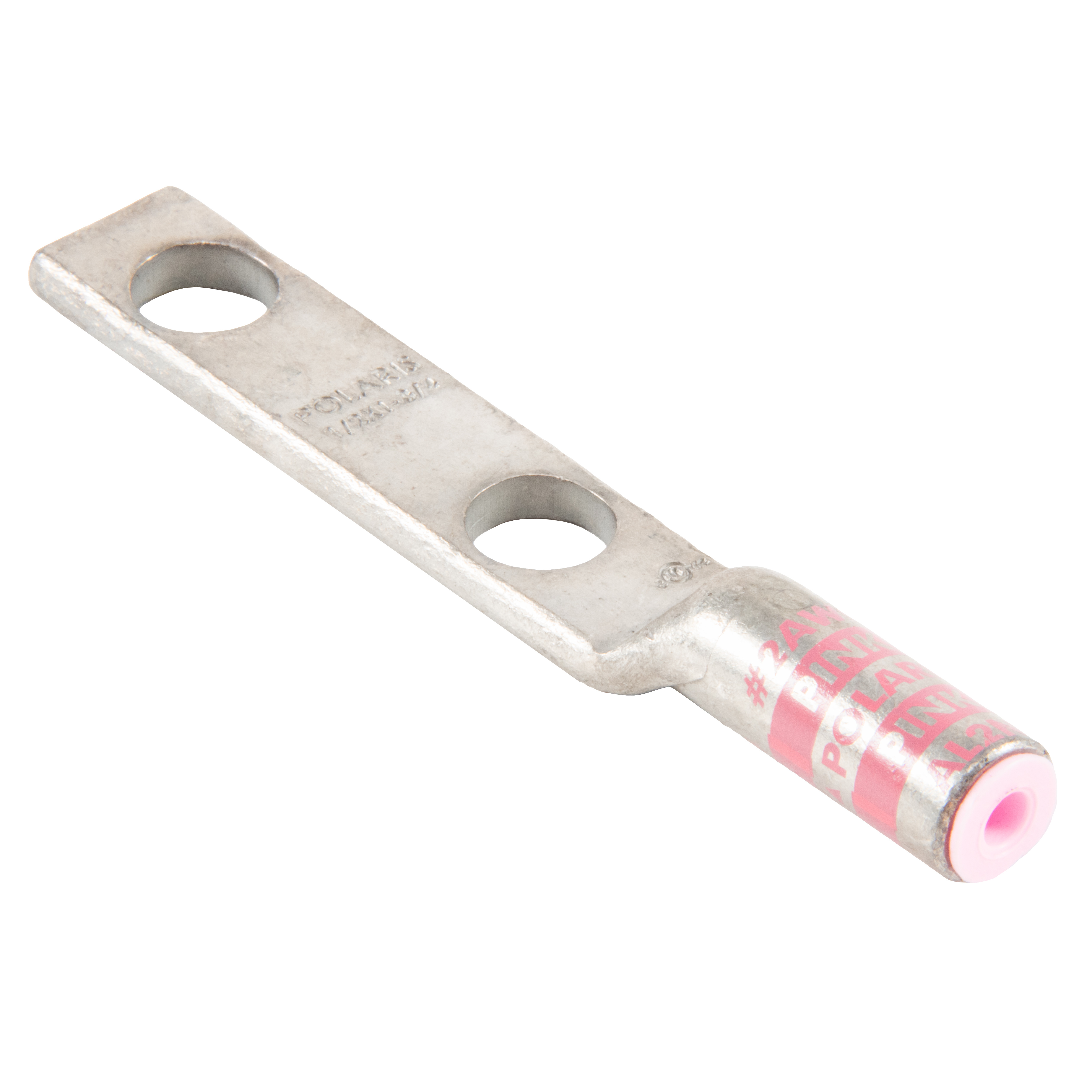

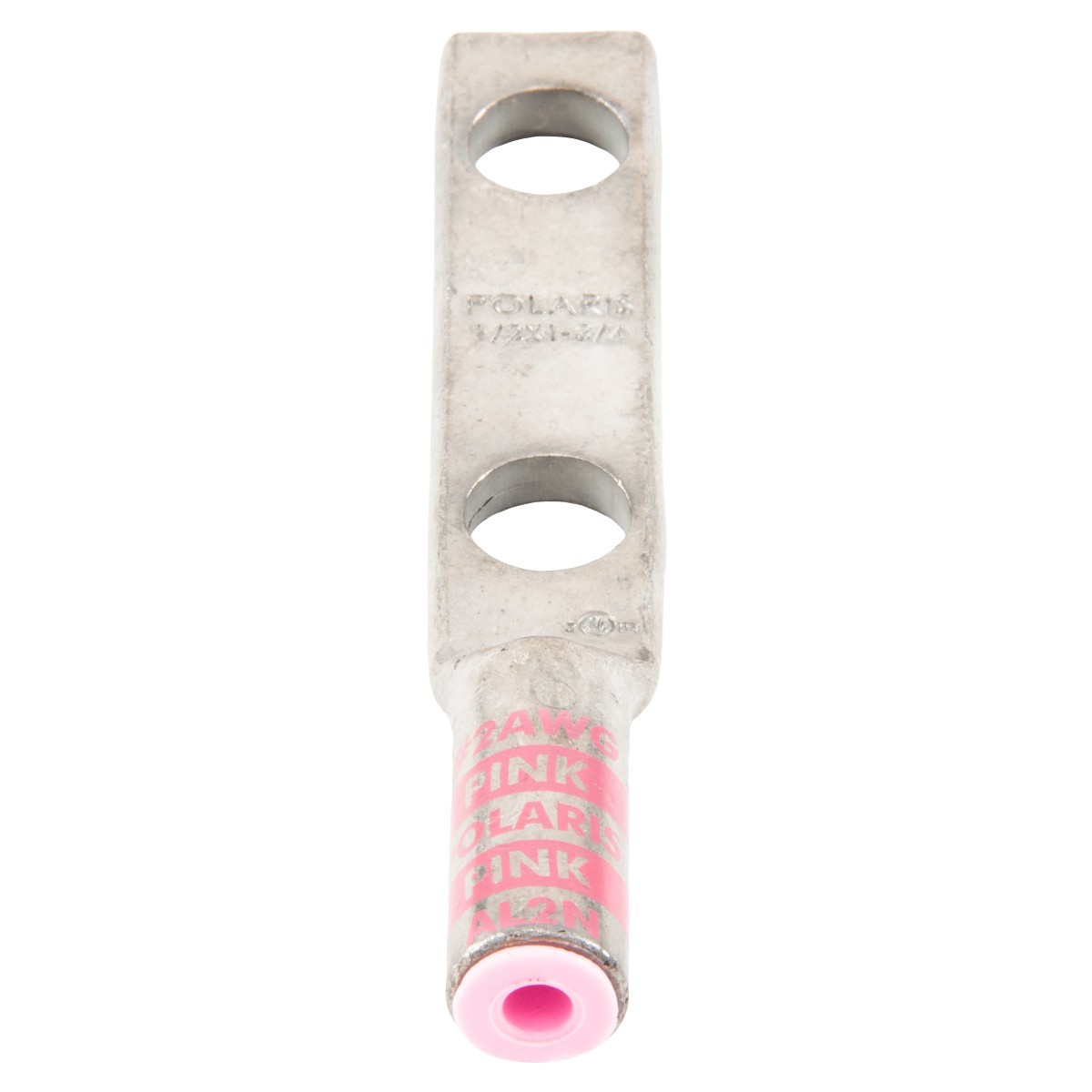

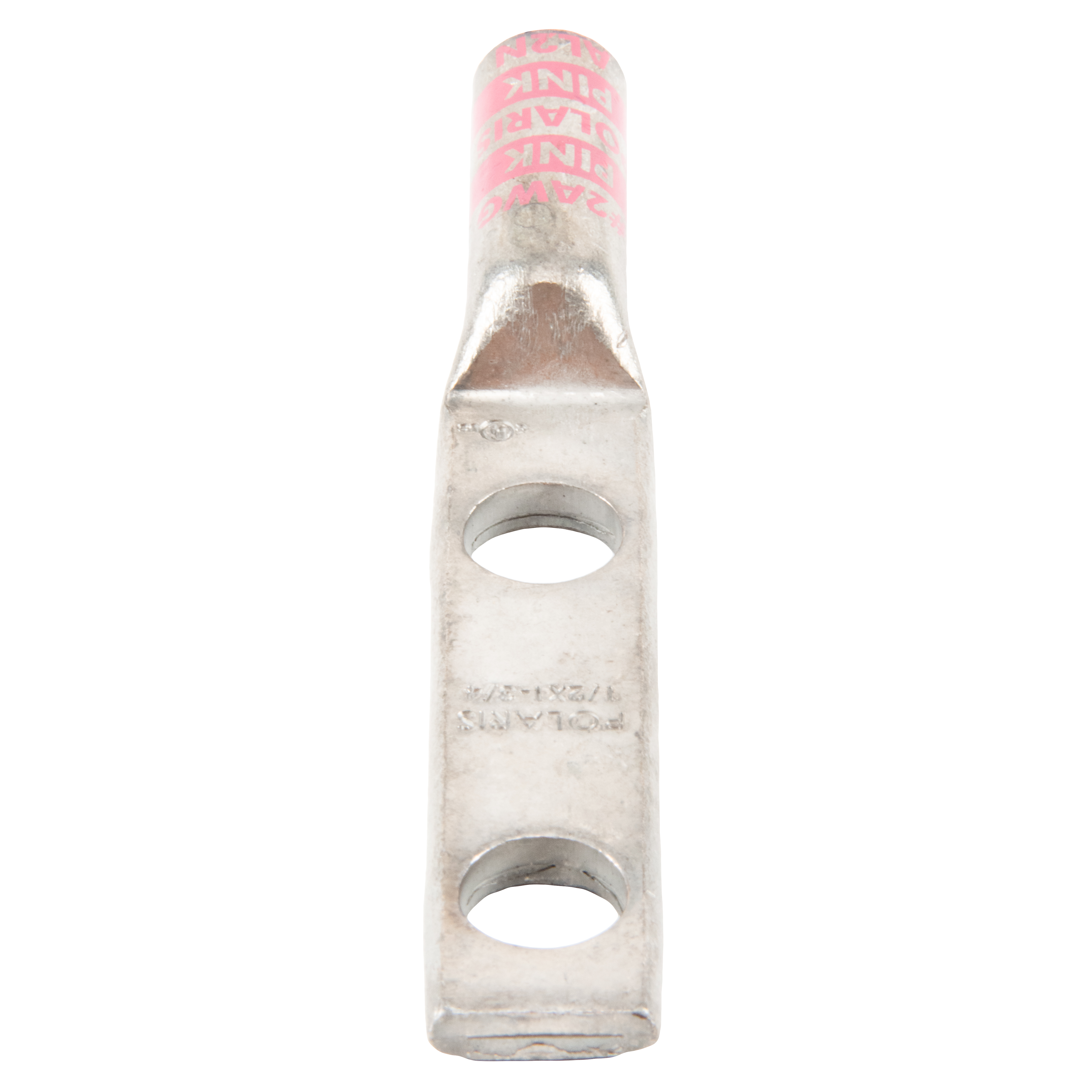

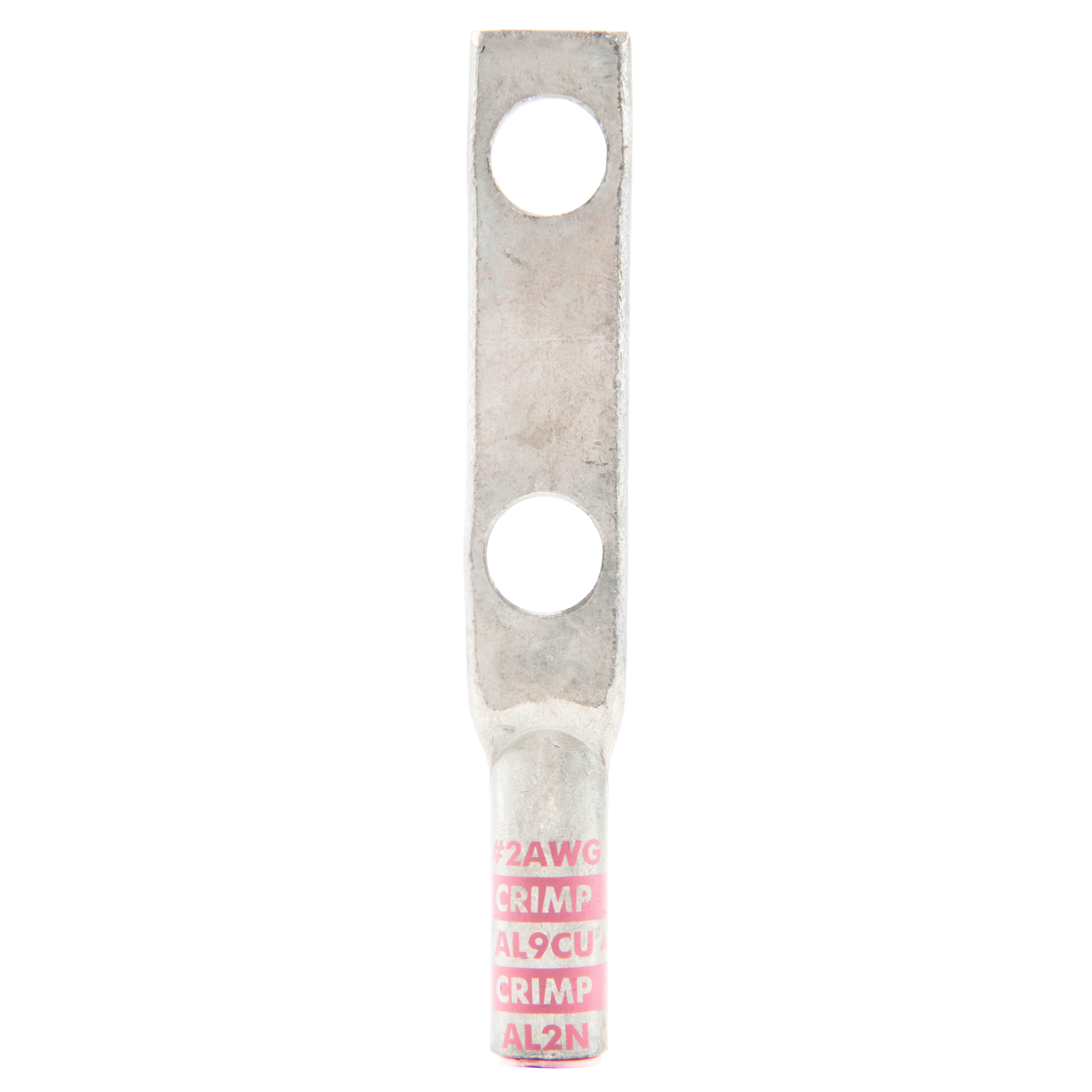

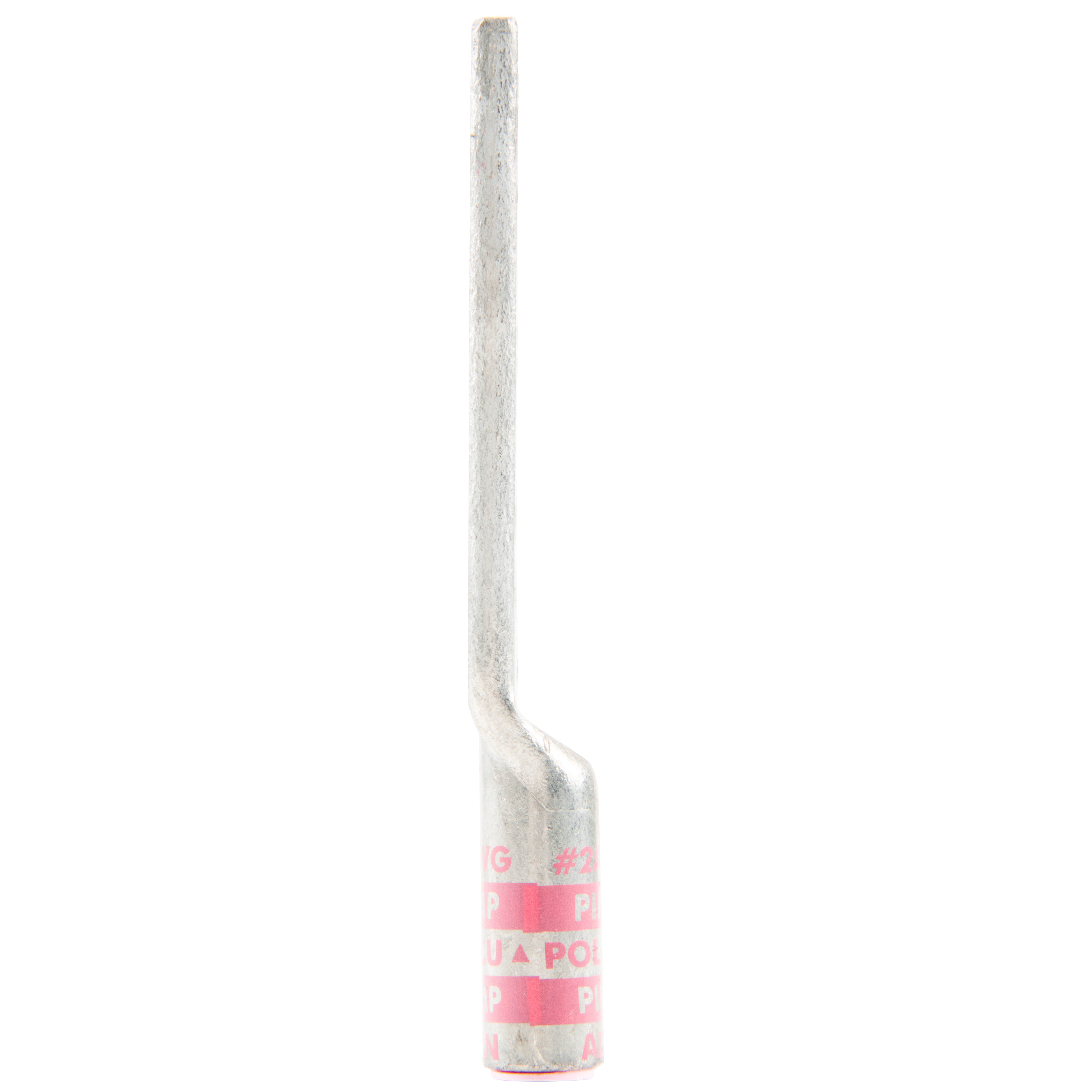

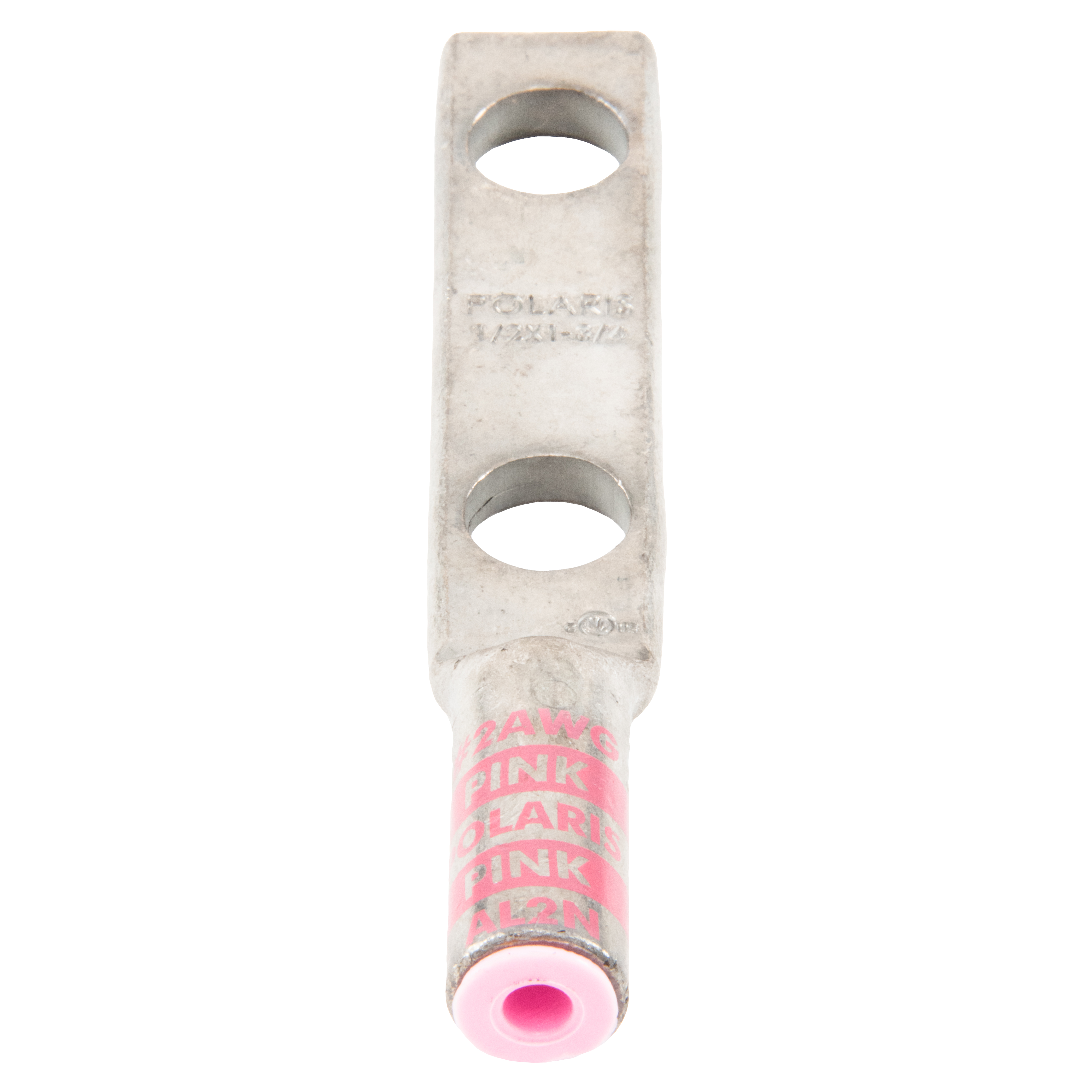

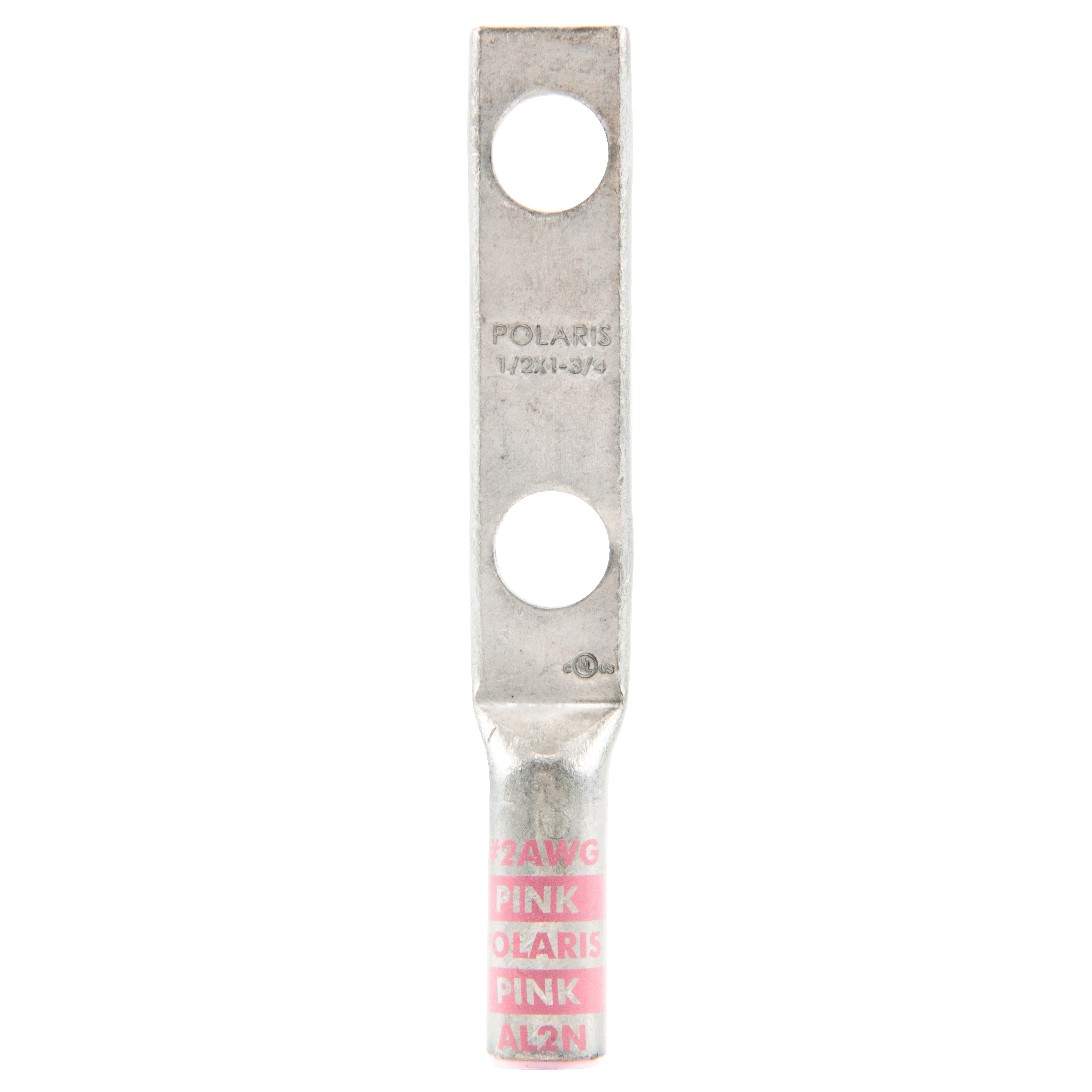

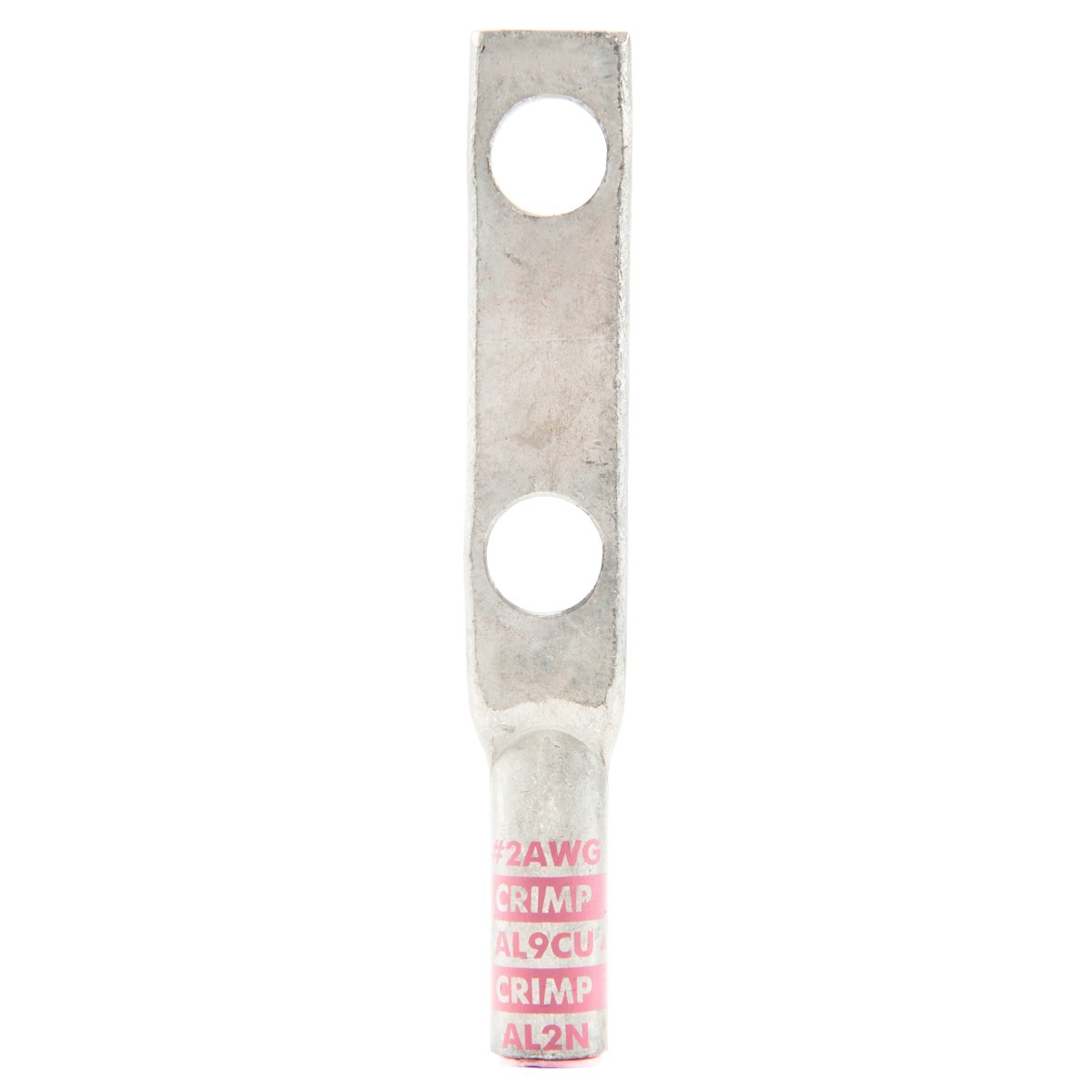

Polaris AL2N 2 AWG Al Compression Lug, 1/2 IN 2 Hole, 1-3/4 IN Spacing
#AL2N
Provides reliable termination for copper code or aluminum conductors in switchgear, panelboards, and power distribution equipment. Two mounting holes with NEMA spacing provide secure mounting and alignment.
- High conductivity aluminum tubing and corrosive resistant tin-plated finish
- Marked with die index and color coded
- Pre-filled with oxide inhibitor and capped with color coded cap
- UL listed to 35kV when properly installed to cable manufacturer’s specifications,
Product Information
| Mounting-bolt-size-in | 1/2 |
|---|---|
| Barrel Length | 1.2000 |
| Conductor Al Size Range | 2 AWG |
| Die Color Code | Pink |
| Assortment | Aluminum Compression Terminations |
| Material | Aluminum |
| Finish | Tin-Plated |
| Tang Length | 3 |
| Tang-thickness-in | 0.22 |
| Voltage Rating | 35kV |
| Conductor Type | Aluminum |
| Conductor Cu Size Range | 2 AWG (Code) |
| Expanded Wire Range | 2 AWG – 6 AWG |
| Prop 65 Flag | Yes |
| UPC | 662381999122 |
