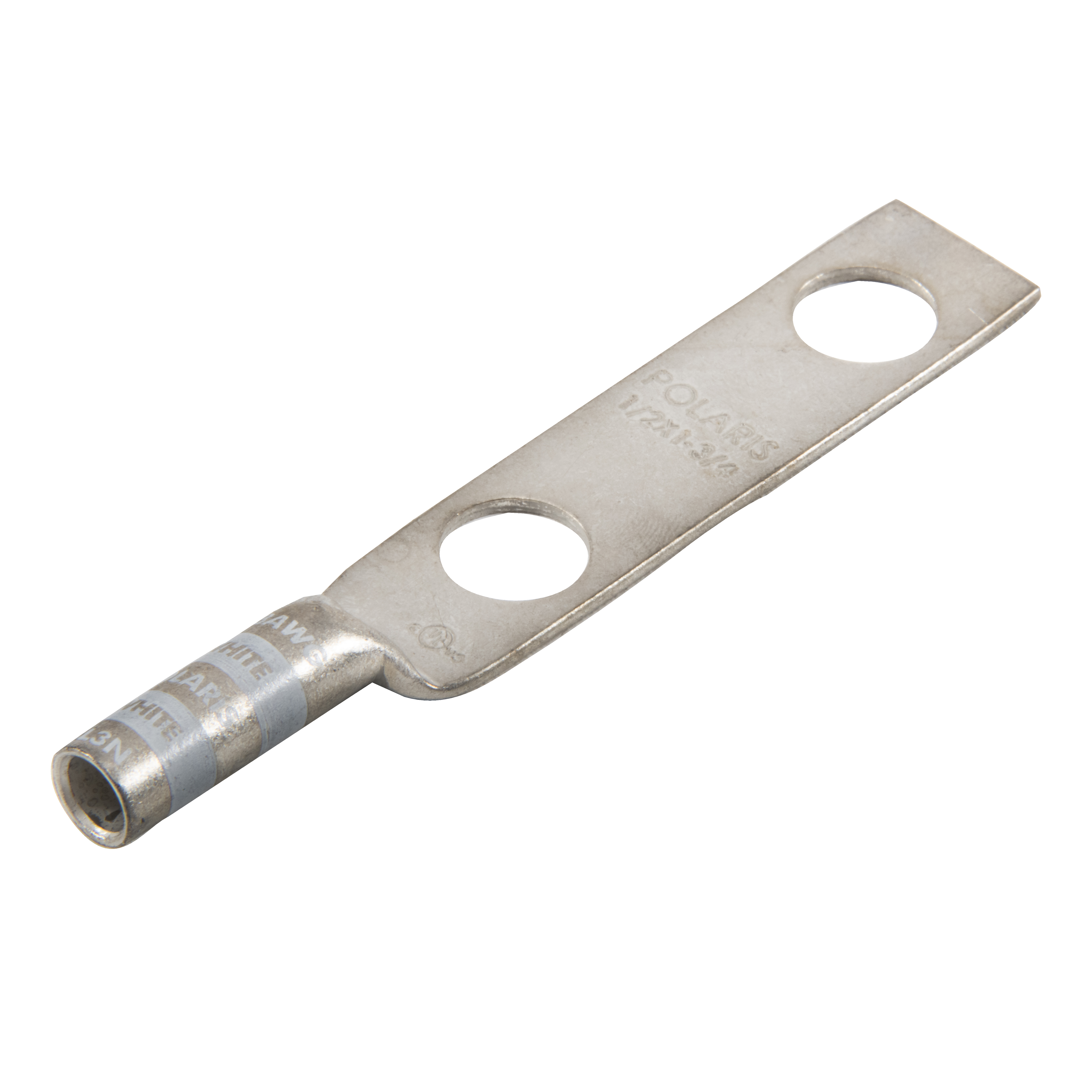

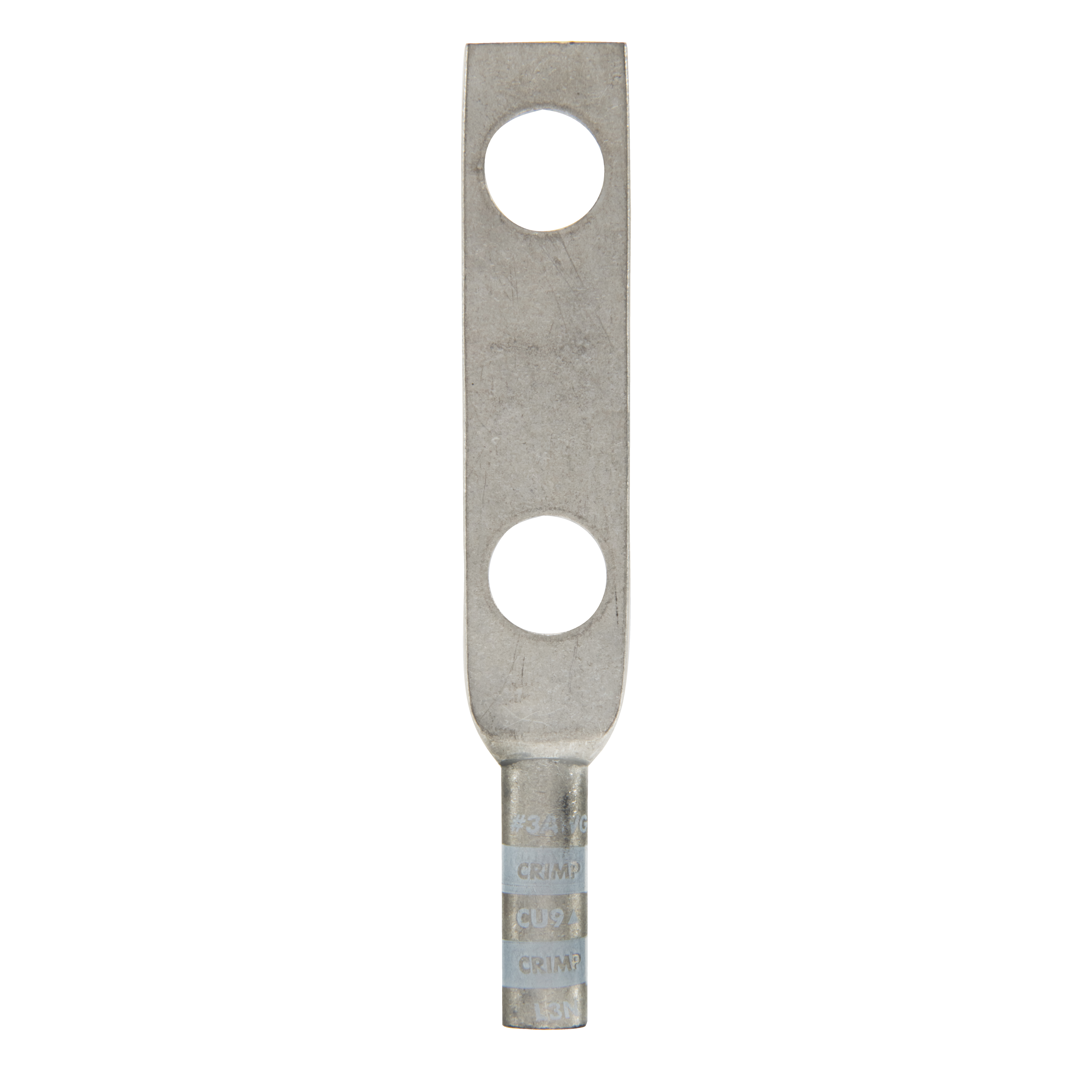

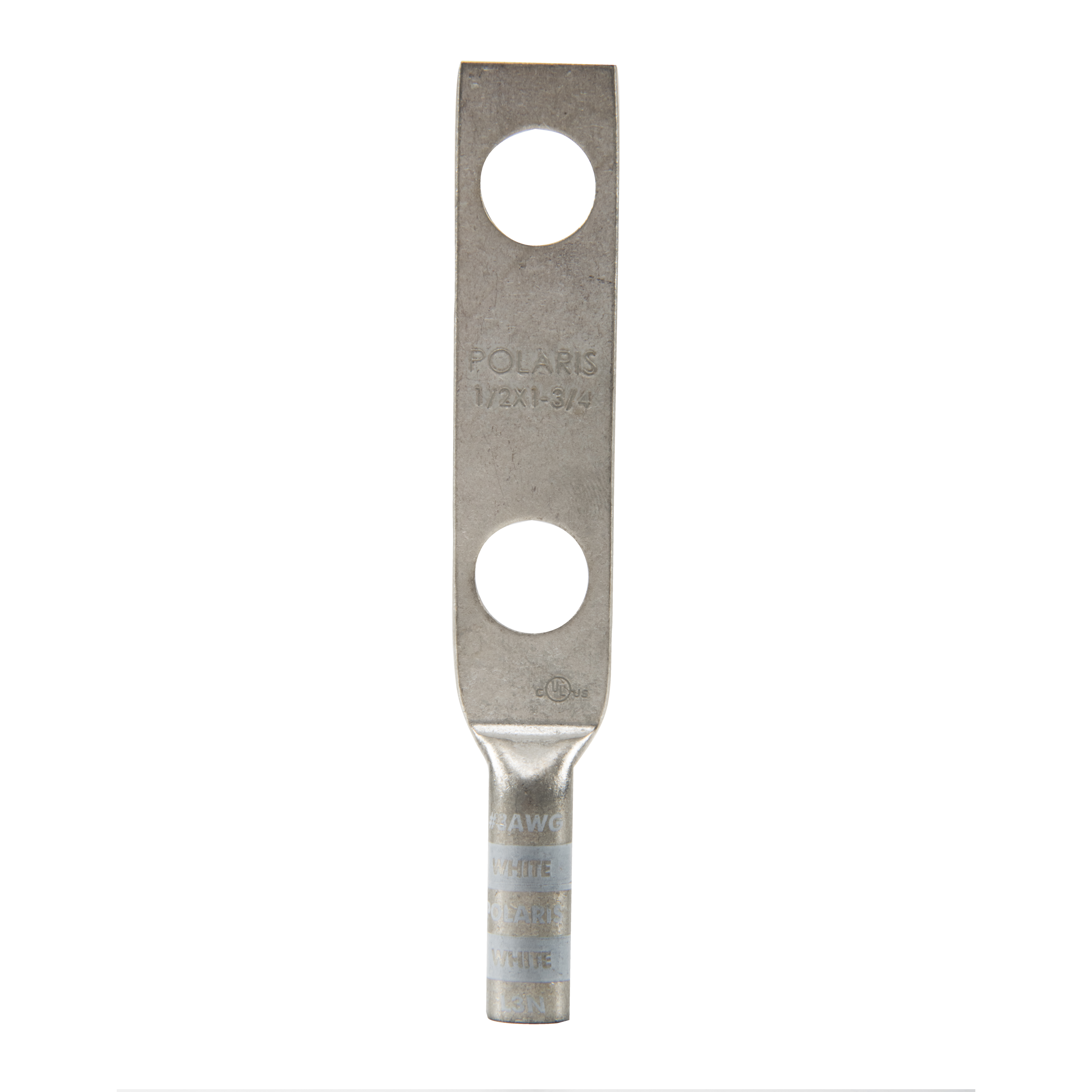

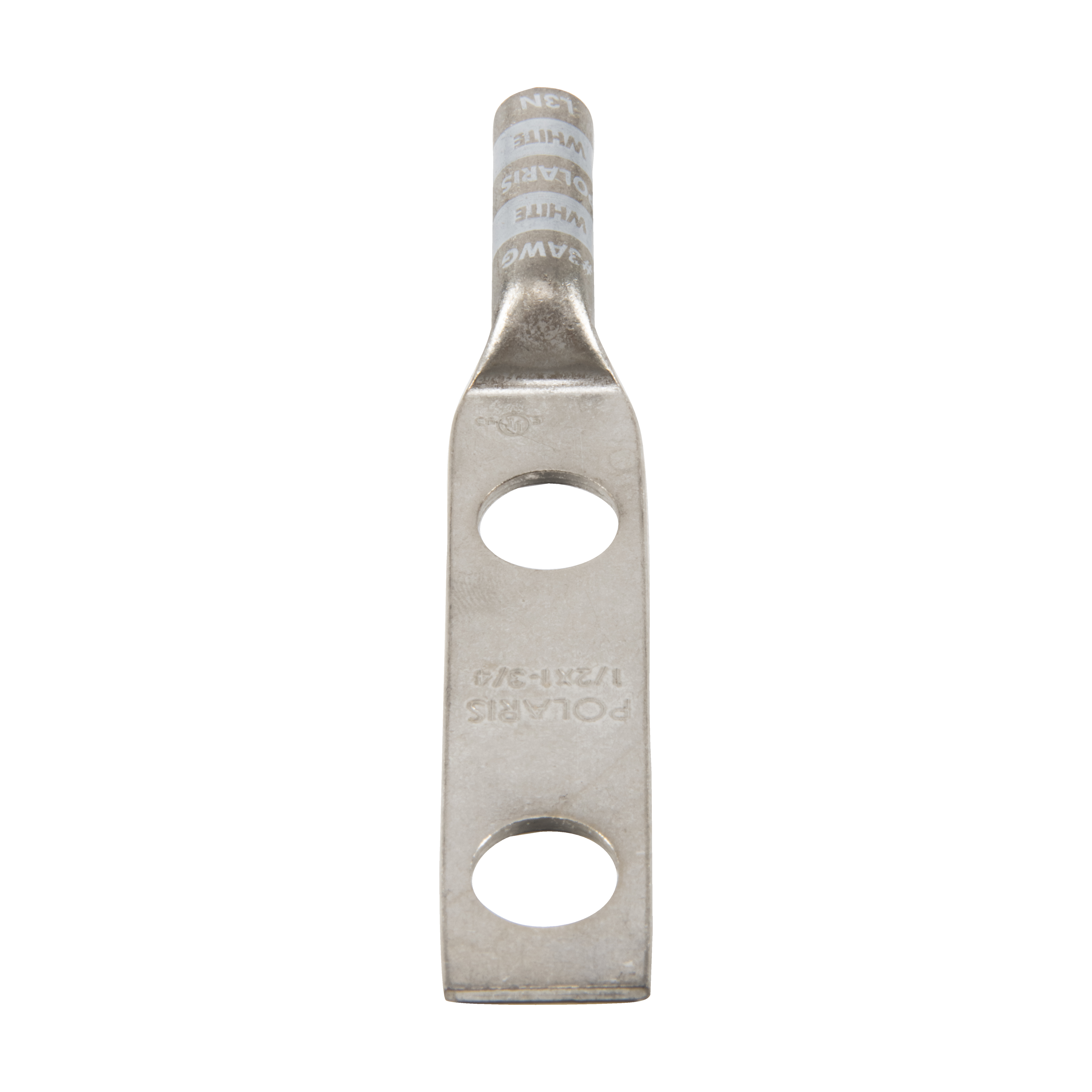

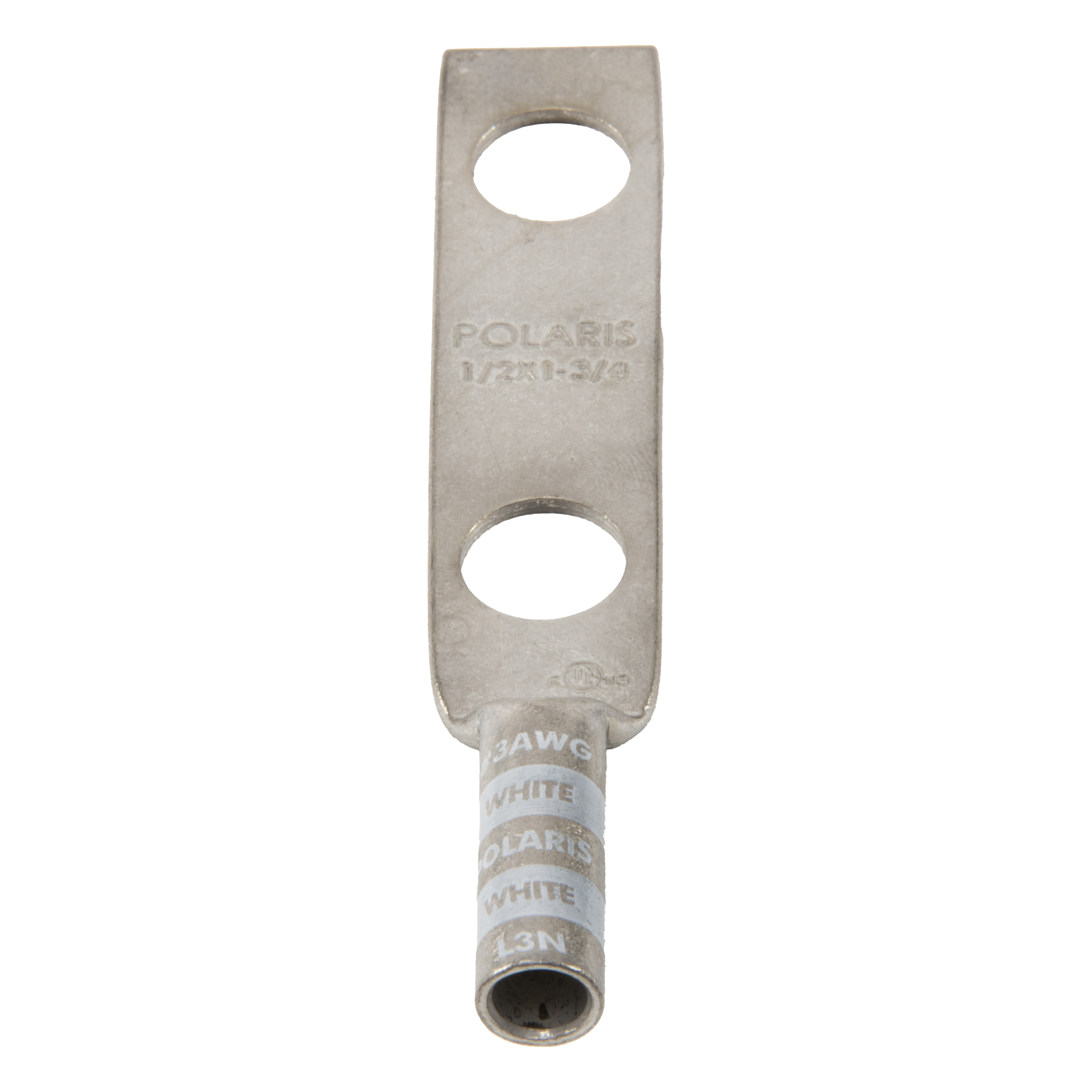

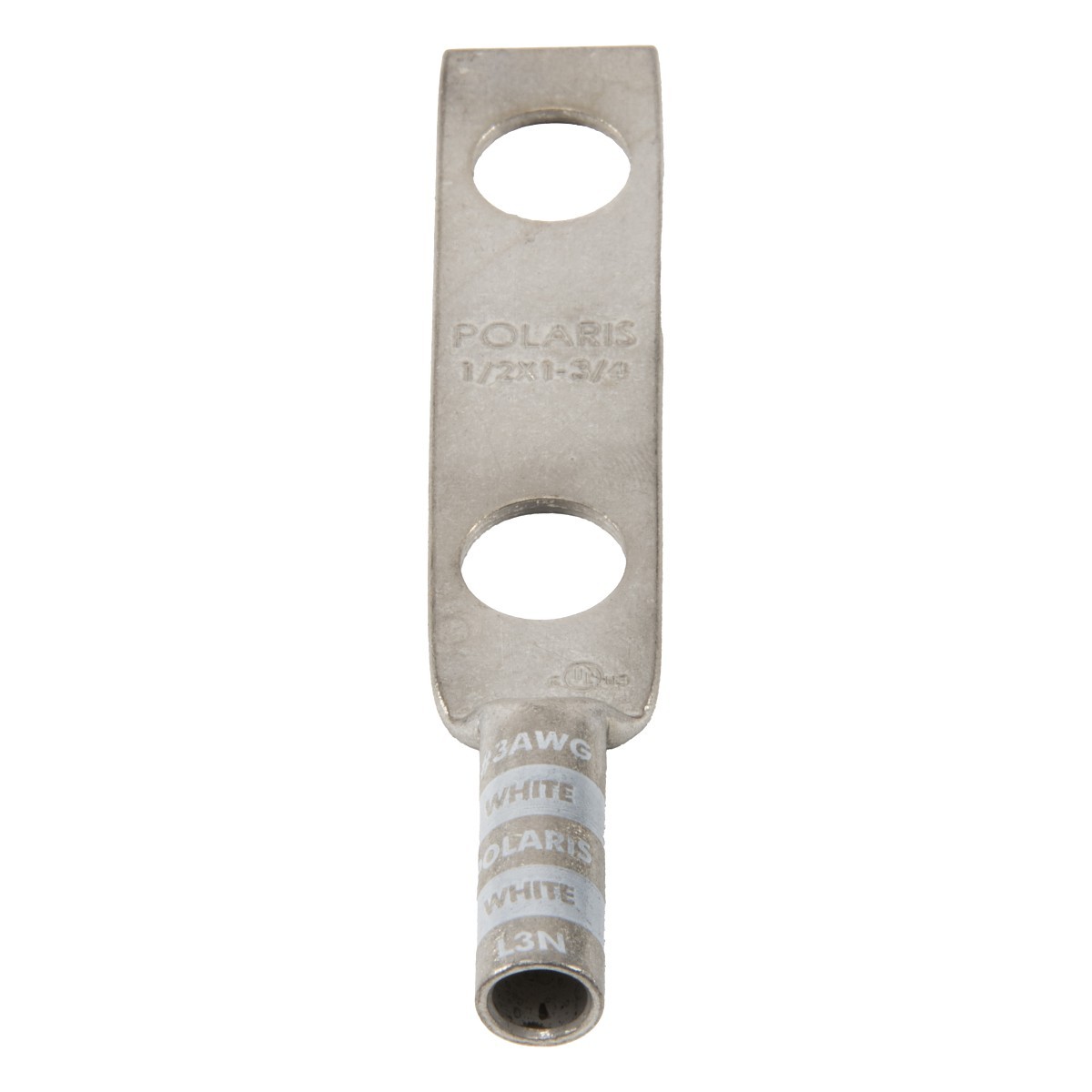

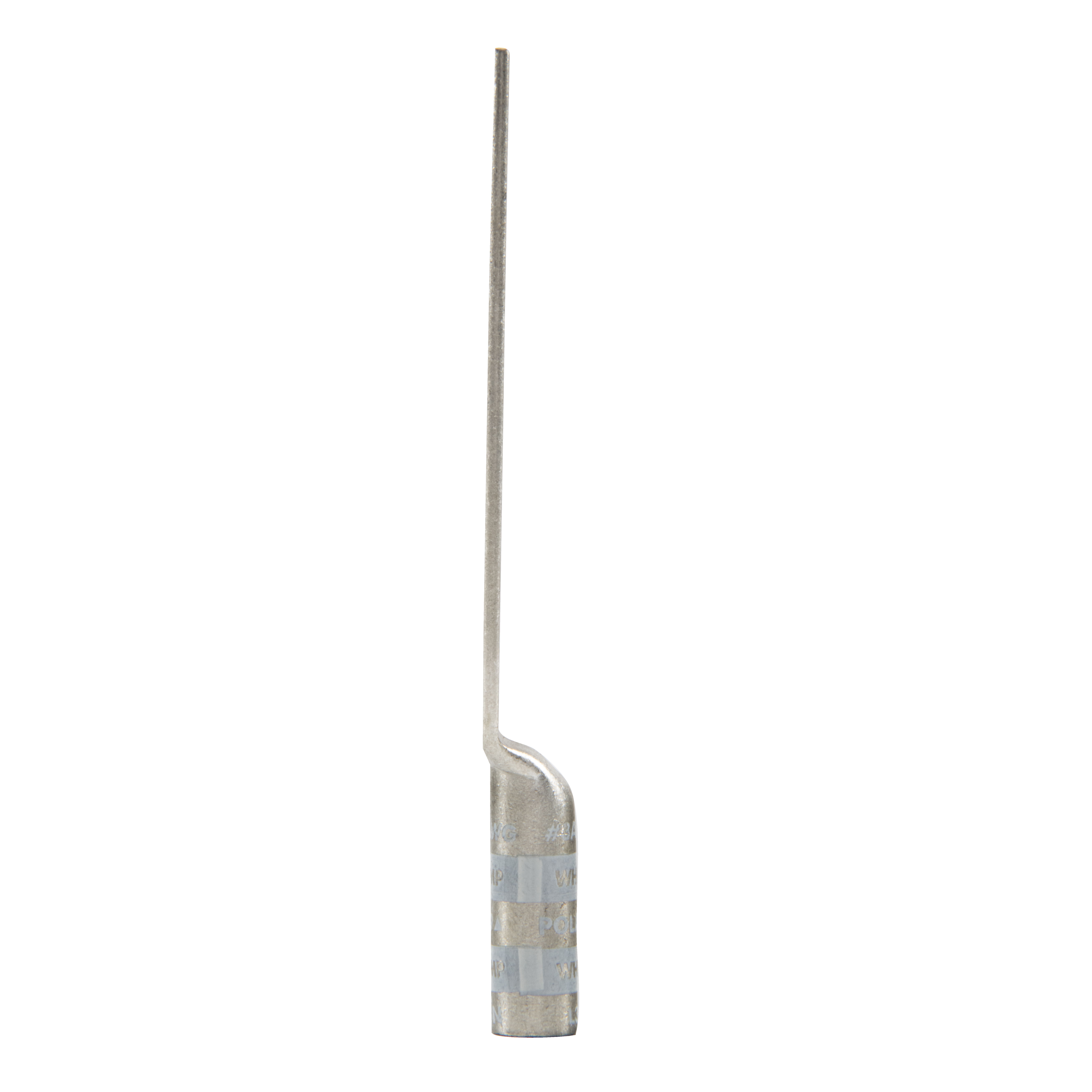

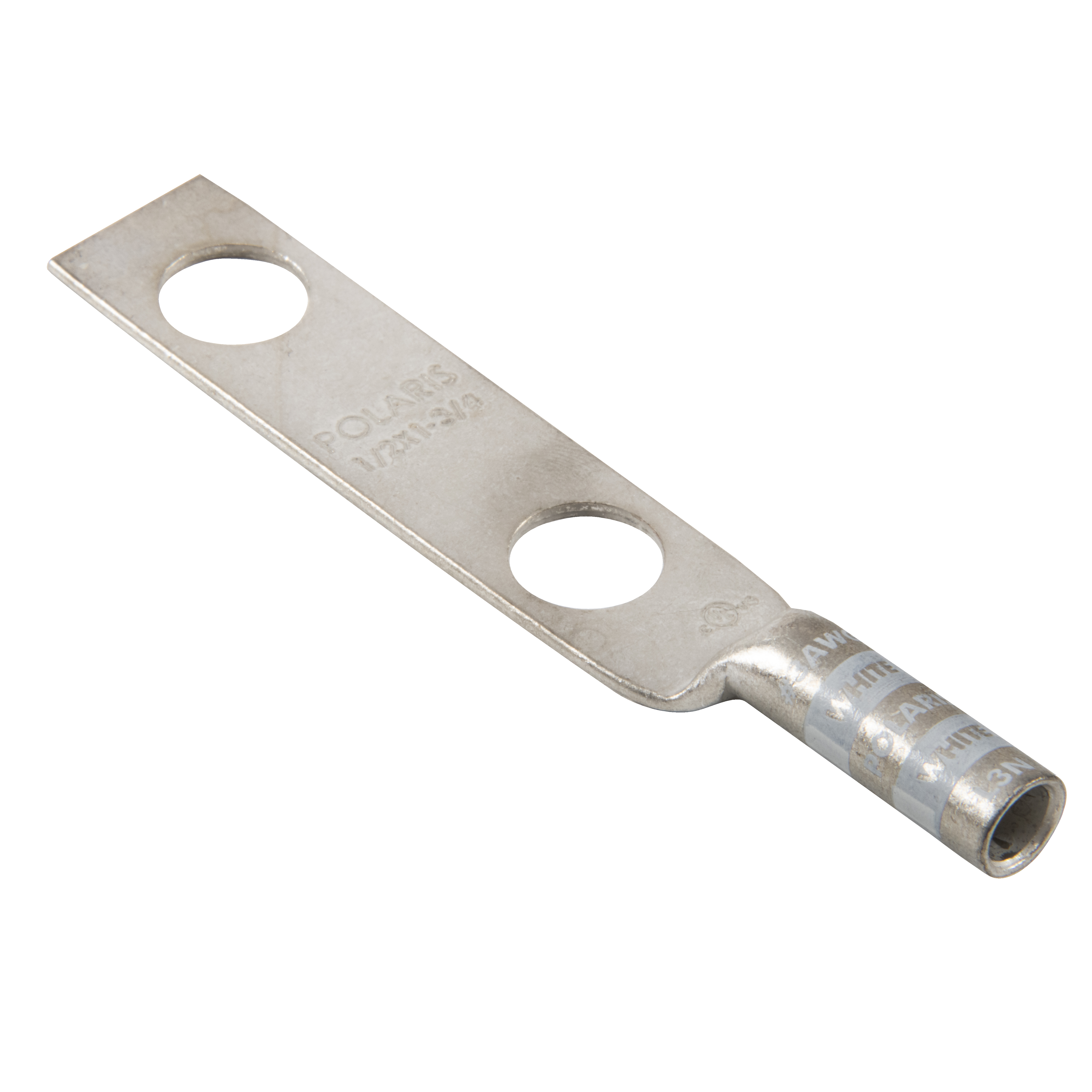

Polaris L3N 3 AWG Cu Compression Lug, 1/2 IN 2 Hole, 1-3/4 IN Spacing
#L3N
Provides reliable termination for copper conductors in switchgear, panelboards, and power distribution equipment. Two mounting holes with NEMA spacing provide secure mounting and alignment.
- High conductivity copper tubing and corrosive resistant tin-plated finish
- Marked with die index and color coded
- Flex rated , see product sheet for details
- For applications greater than 2000V, install to cable manufacturer voltage stress relief instructions.
- UL listed to 35kV when properly installed to cable manufacturer’s specifications
Product Information
| Mounting-bolt-size-in | 1/2 |
|---|---|
| Barrel Length | 1.1000 |
| Expanded Wire Range | 3 AWG |
| Die Color Code | White |
| Assortment | Copper Compression Terminations |
| Material | Copper |
| Finish | Tin-Plated |
| Voltage Rating | 35kV |
| Conductor Type | Copper |
| Conductor Cu Size Range | 3 AWG (Code), 4 AWG (Flex) |
| Prop 65 Flag | Yes |
| UPC | 662381999283 |
