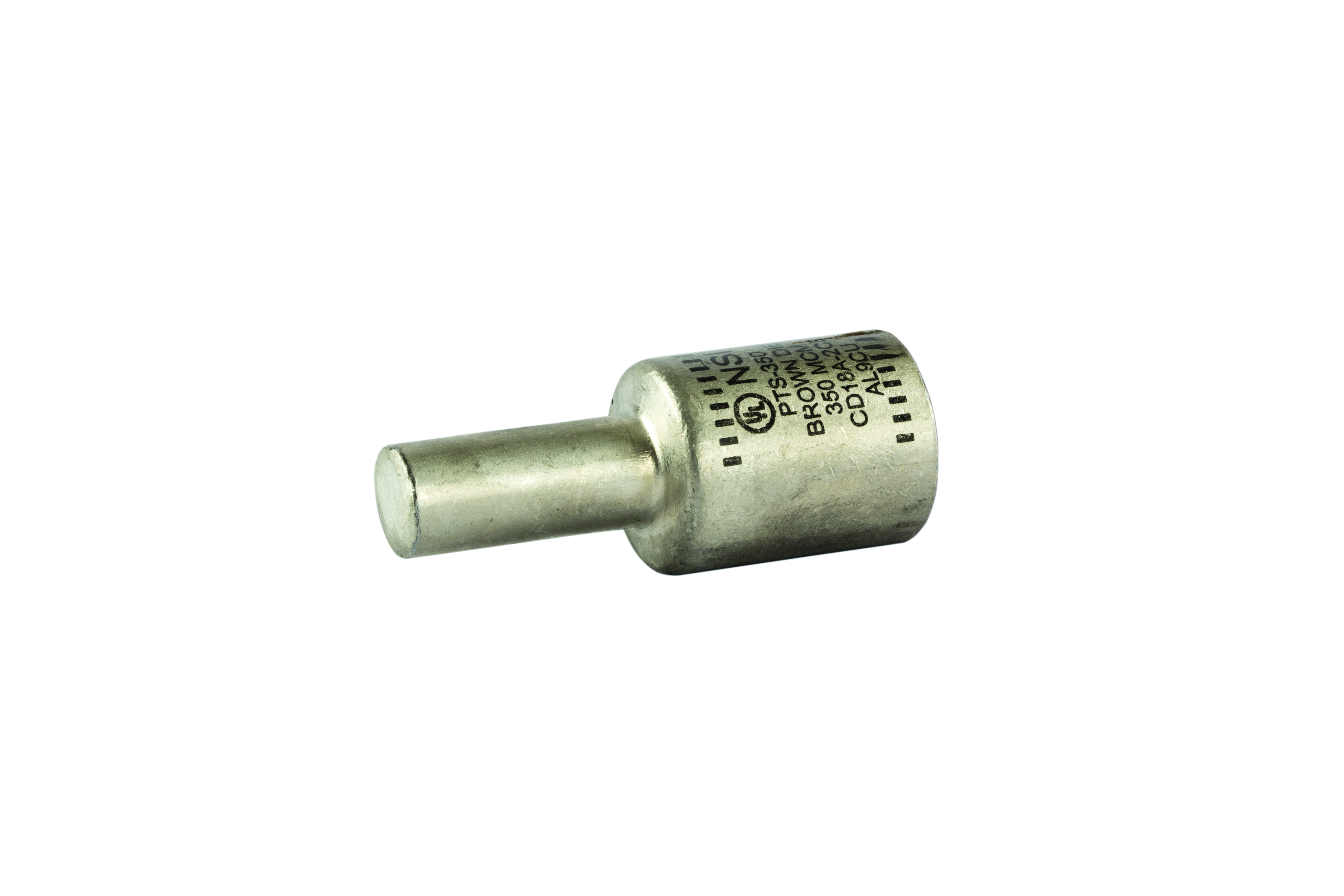

Polaris PTS350 Aluminum, Tin Plated Pin Terminal, 350 Mcm Wire Size, 250 Mcm Solid Pin (Al/Cu)

#PTS350

All-aluminum pin terminal designed for termination of both aluminum and copper conductors. The pin is solid aluminum. The connector is tin plated to provide low contact resistance and oxidation protection. Connector is pre-filled with Oxide Inhibitor and capped with color coded cap indicating color of die to use. A cover is provided for quick installation.

  • Dual rated for both aluminum and copper conductors
  • Solid aluminum, tin plated pin providing high conductivity and corrosion resistance
  • Cover provided for quick installation
  • Prefilled with with oxide inhibitor
  • Marked with die index and color coded

Product Information

Die Color Code Brown
Assortment Pin Terminals
Material Aluminum
Ul Standard UL 486A-486B
Finish Tin Plated
Barrel Length 1.4100
Pin Diameter 0.57
Pin Length 1.34
Pin Size 250 MCM
Voltage Rating 35kV
Conductor Type Copper,Aluminum
Wire Cable Class Class B,Class C
UNSPSC 39121432
EAN/UCC-13 6.62381E+11
GTIN 6.62381E+11
Prop 65 Flag Yes
UPC 662381033604

Resources

Documents

  • POL_PIN-TERMINALS_CMP_PRODINSTALL_Digital.pdf Download
  • POL_PTS350_CMP_ProDraw_DIGITAL.pdf Download
  • POL_Compression_CMP_CatBro_DIGITAL.pdf Download
  • POL_PinSplTap_CMP_ProdSheet_DIGITAL.pdf Download
  • POL_AL-CUInstallQR_CMP_ProdInstall_DIGITAL.pdf Download
