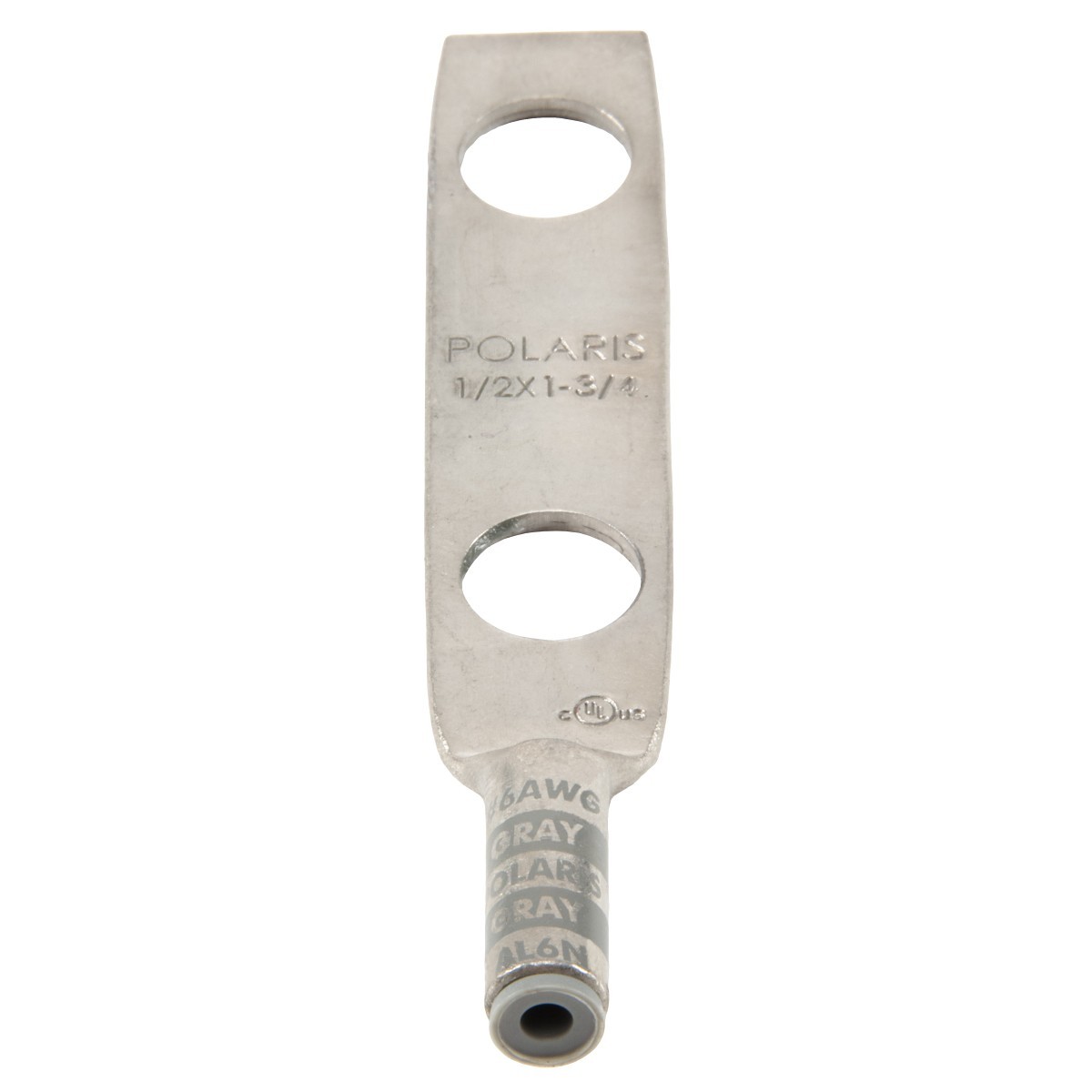

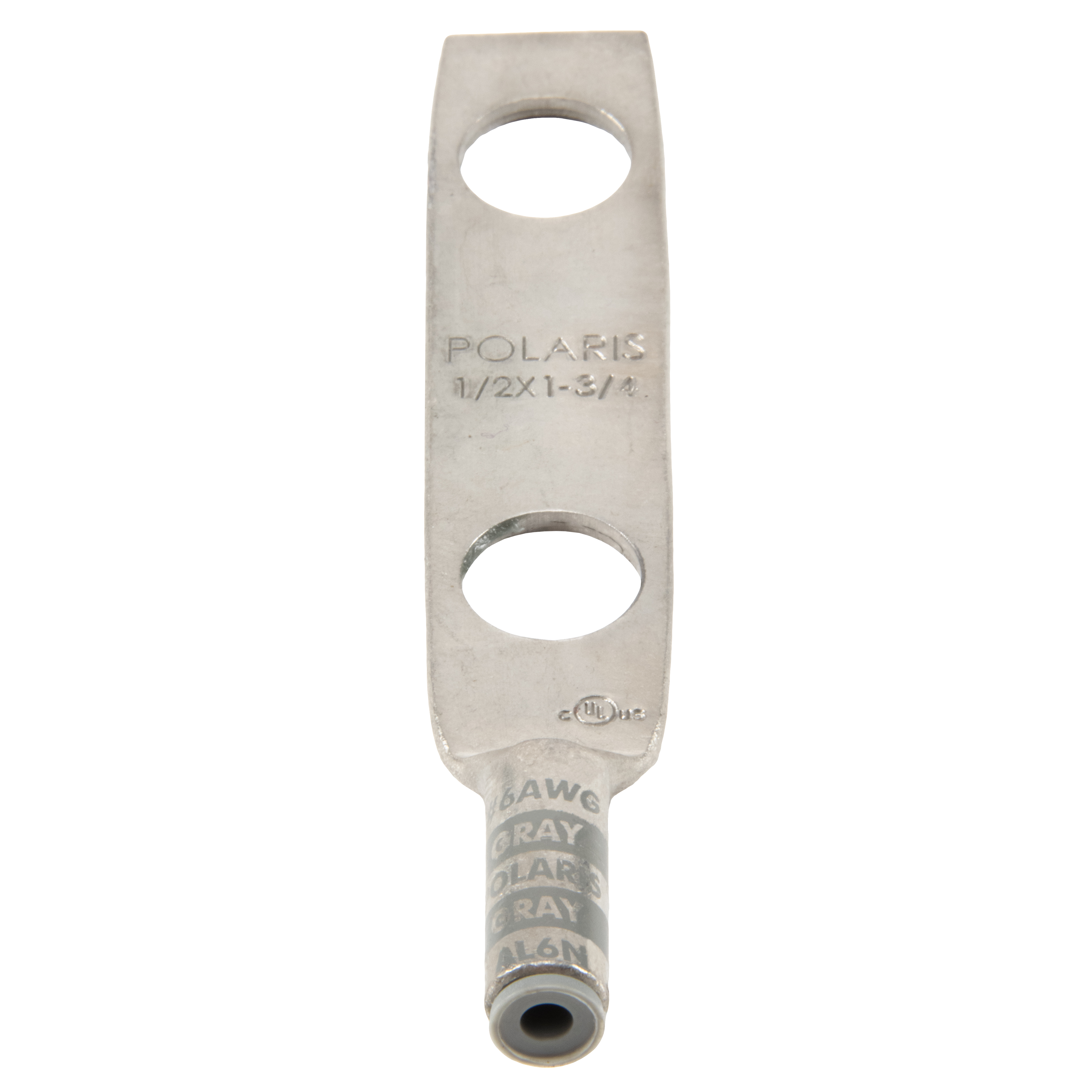

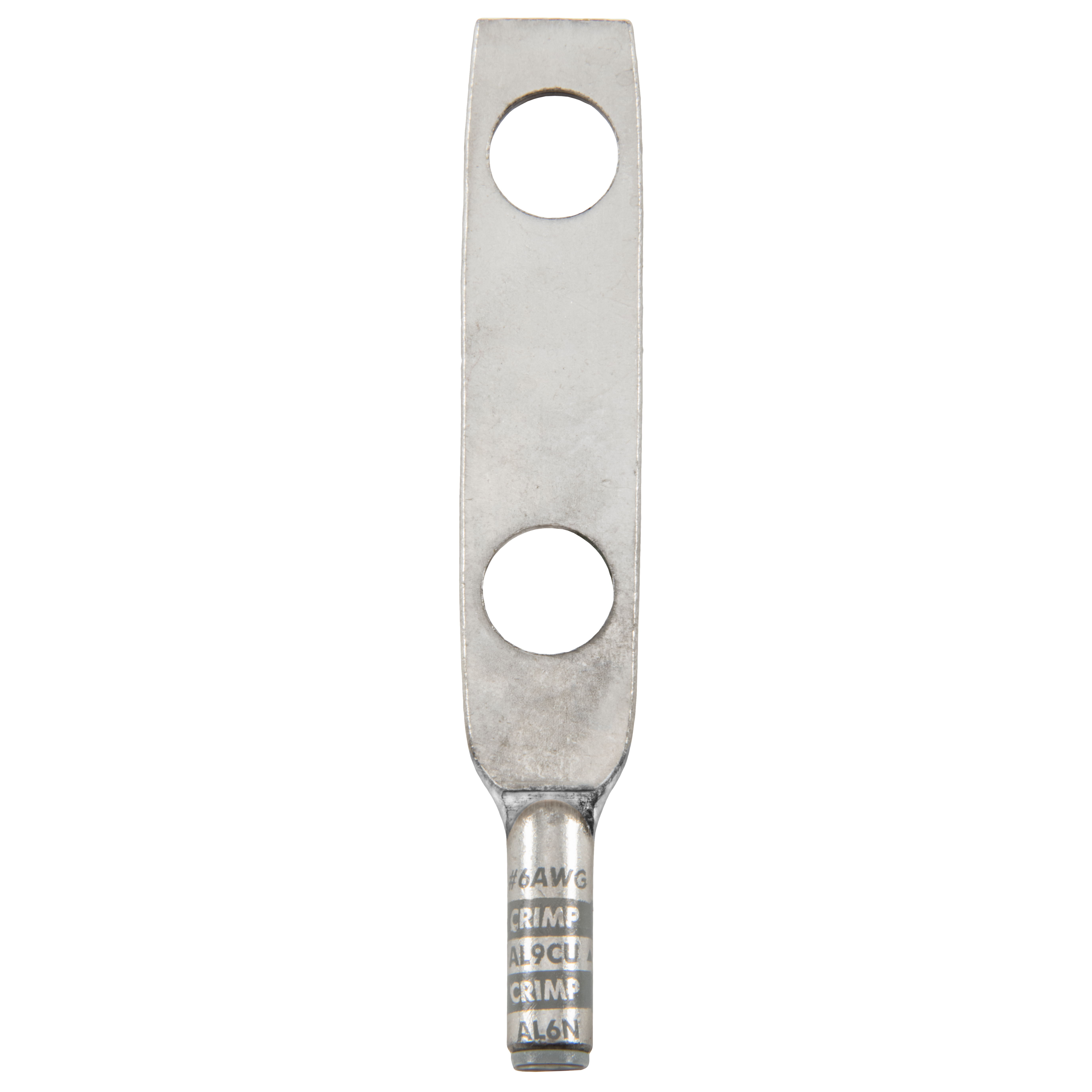

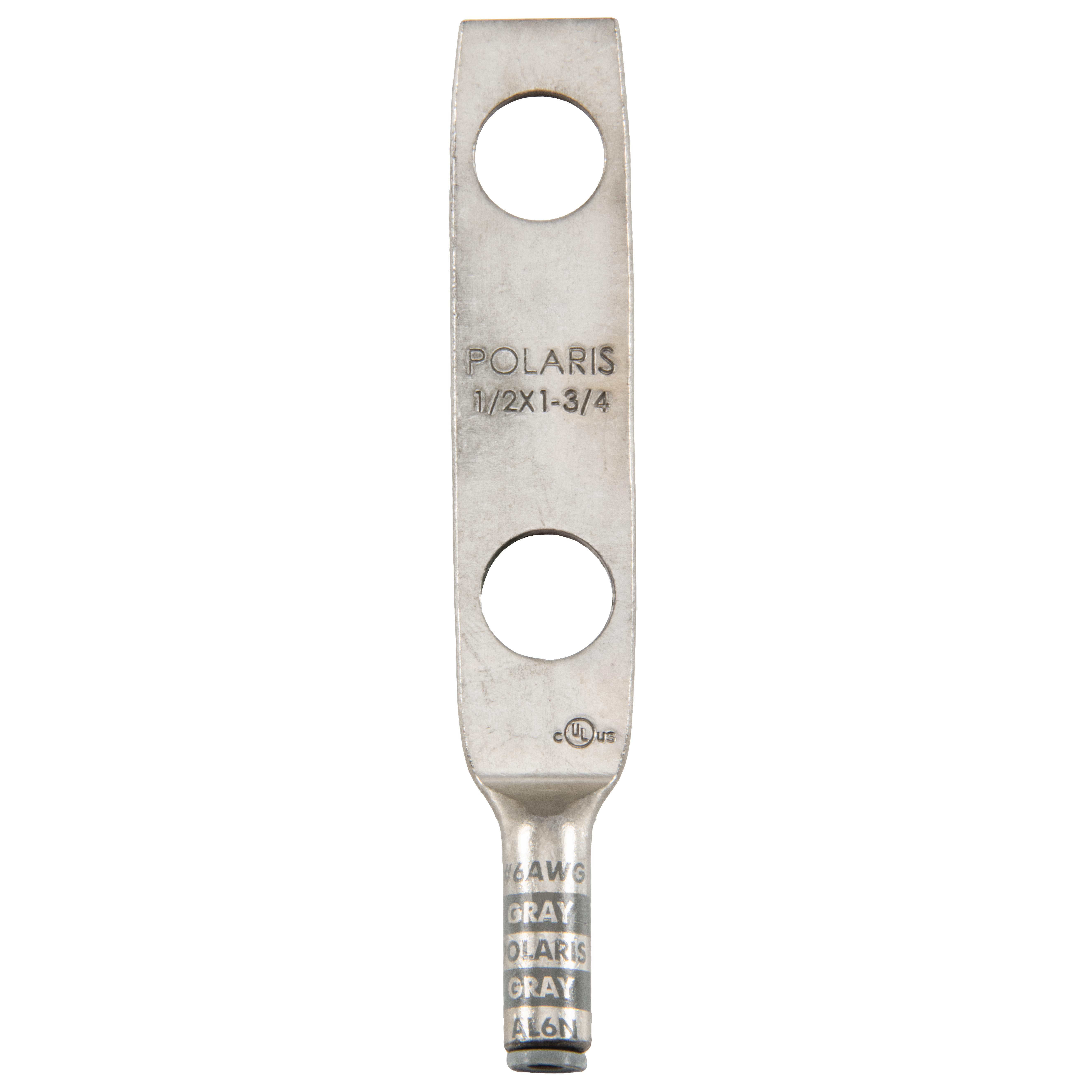

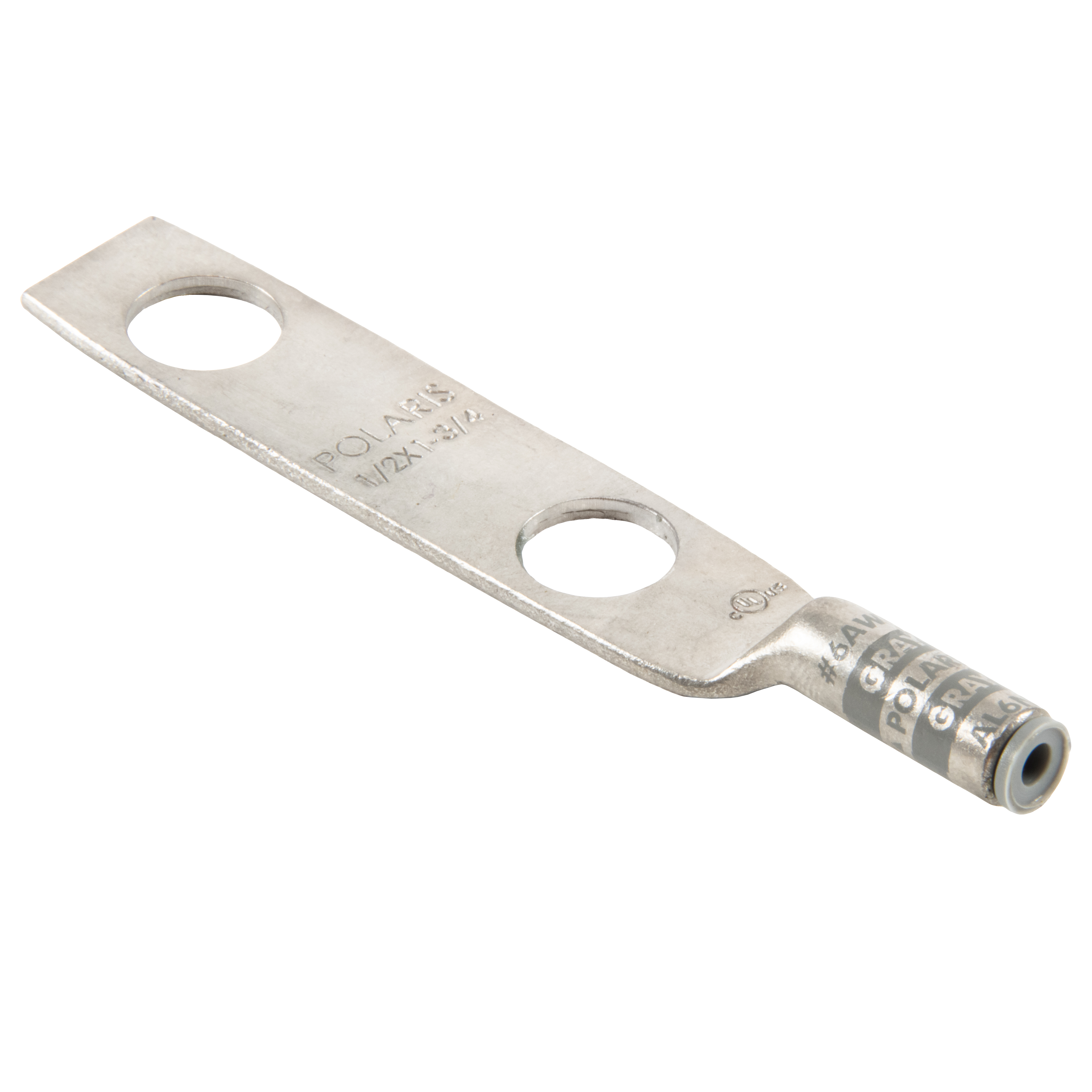

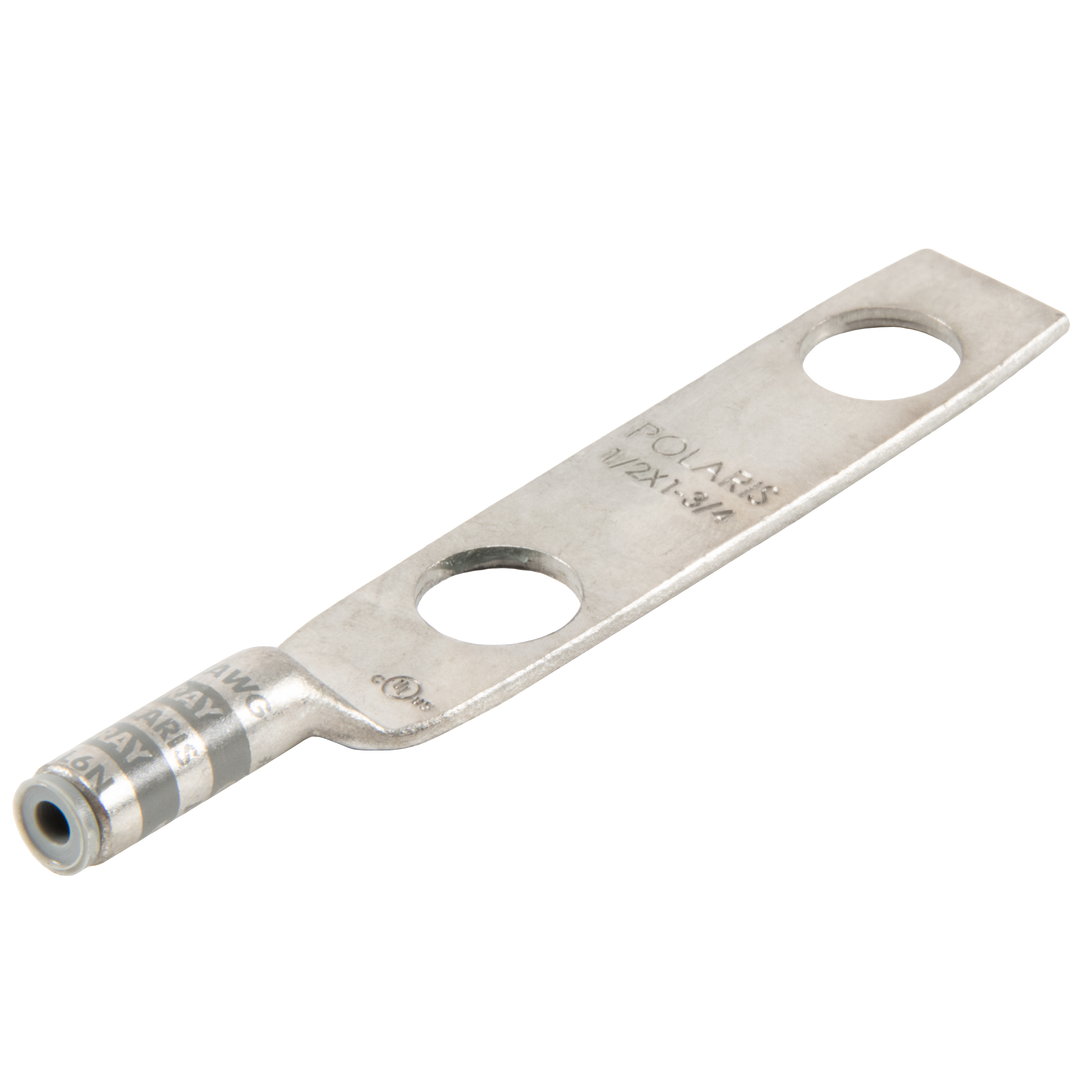

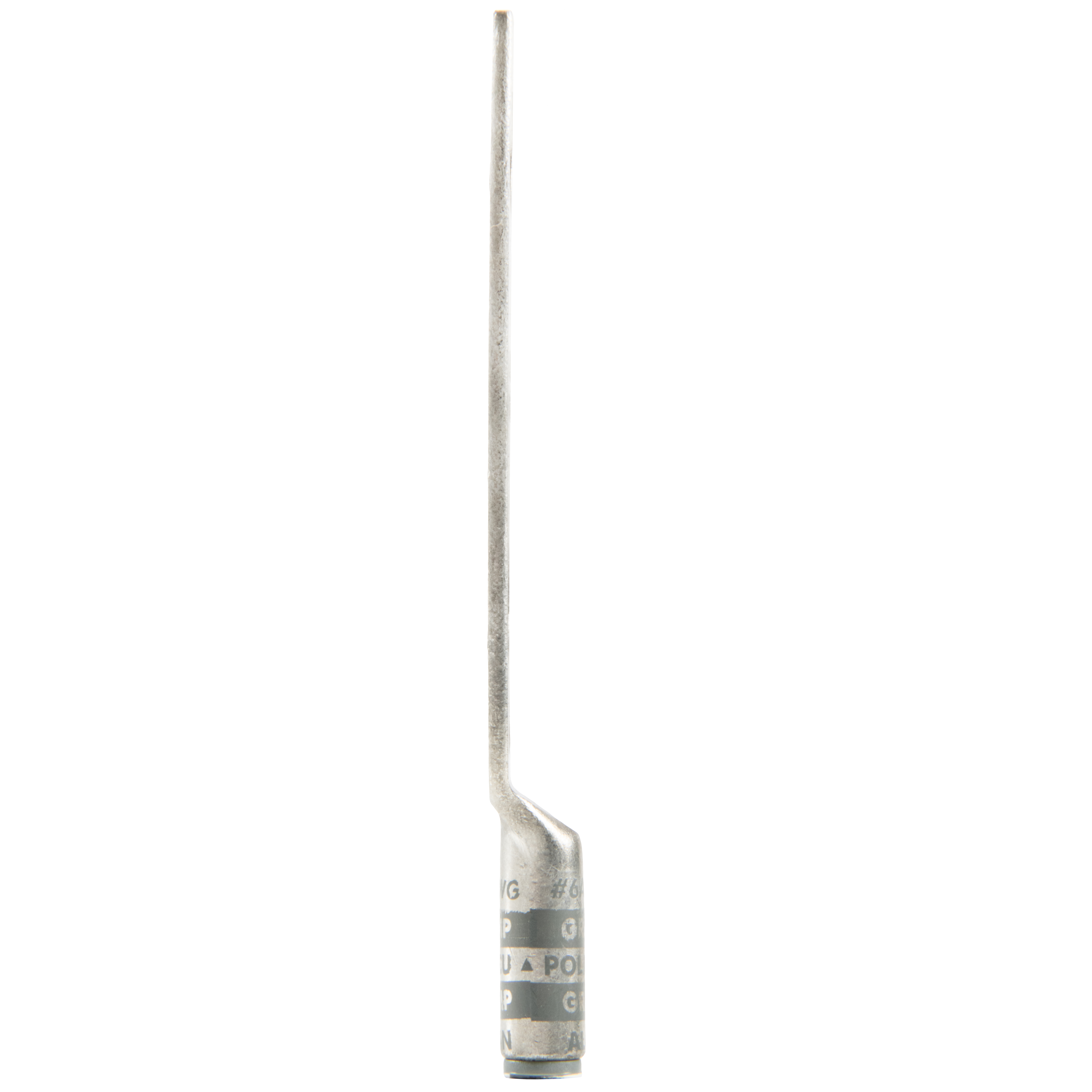

Polaris AL6N 6 AWG Al Compression Lug, 1/2 IN 2 Hole, 1-3/4 IN Spacing

Name: Polaris AL6N 6 AWG Al Compression Lug, 1/2 IN 2 Hole, 1-3/4 IN Spacing
Brand: Polaris
SKU: AL6N

Compression Connectors

#AL6N

Provides reliable termination for copper code or aluminum conductors in switchgear, panelboards, and power distribution equipment. Two mounting holes with NEMA spacing provide secure mounting and alignment.

High conductivity aluminum tubing and corrosive resistant tin-plated finish
Marked with die index and color coded
Pre-filled with oxide inhibitor and capped with color coded cap
UL listed to 35kV when properly installed to cable manufacturer’s specifications,

Product Information

Mounting-bolt-size-in	1/2
Barrel Length	0.8600
Conductor Al Size Range	6 AWG
Die Color Code	Gray
Assortment	Aluminum Compression Terminations
Material	Aluminum
Finish	Tin-Plated
Tang Length	3
Tang-thickness-in	0.08
Voltage Rating	35kV
Conductor Type	Aluminum
Conductor Cu Size Range	6 AWG (Code)
Expanded Wire Range	6 AWG – 8 AWG
Prop 65 Flag	Yes
UPC	662381999191
