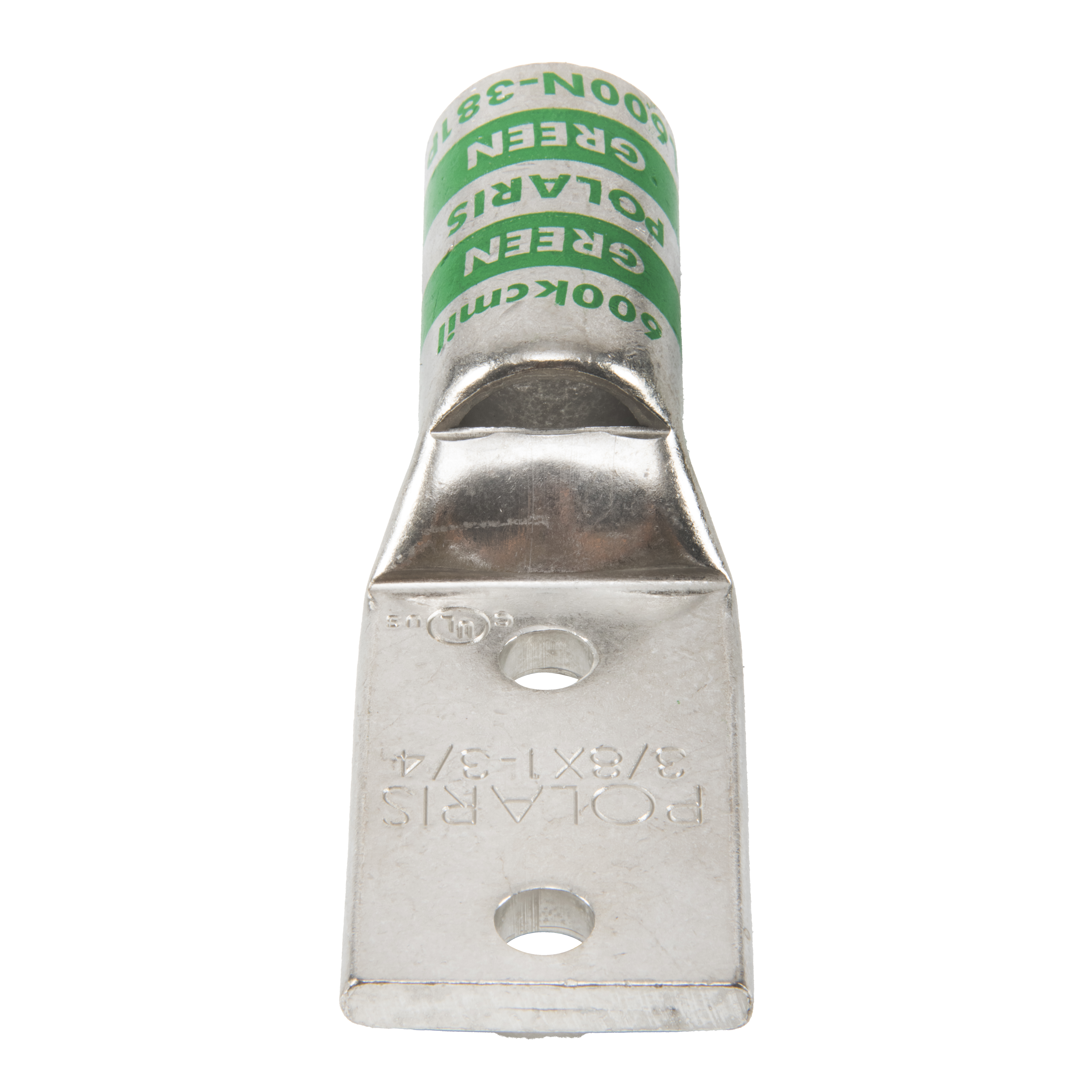

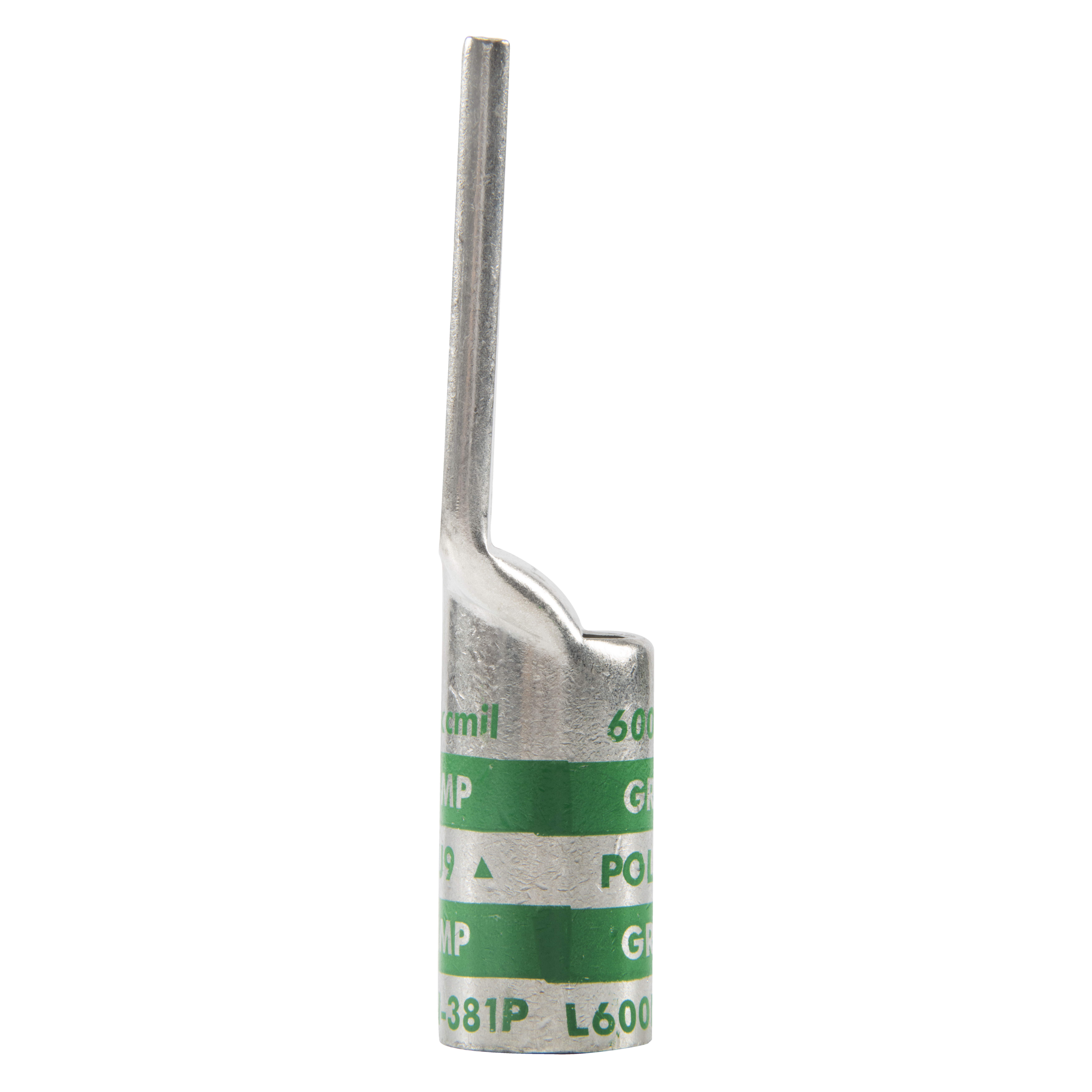

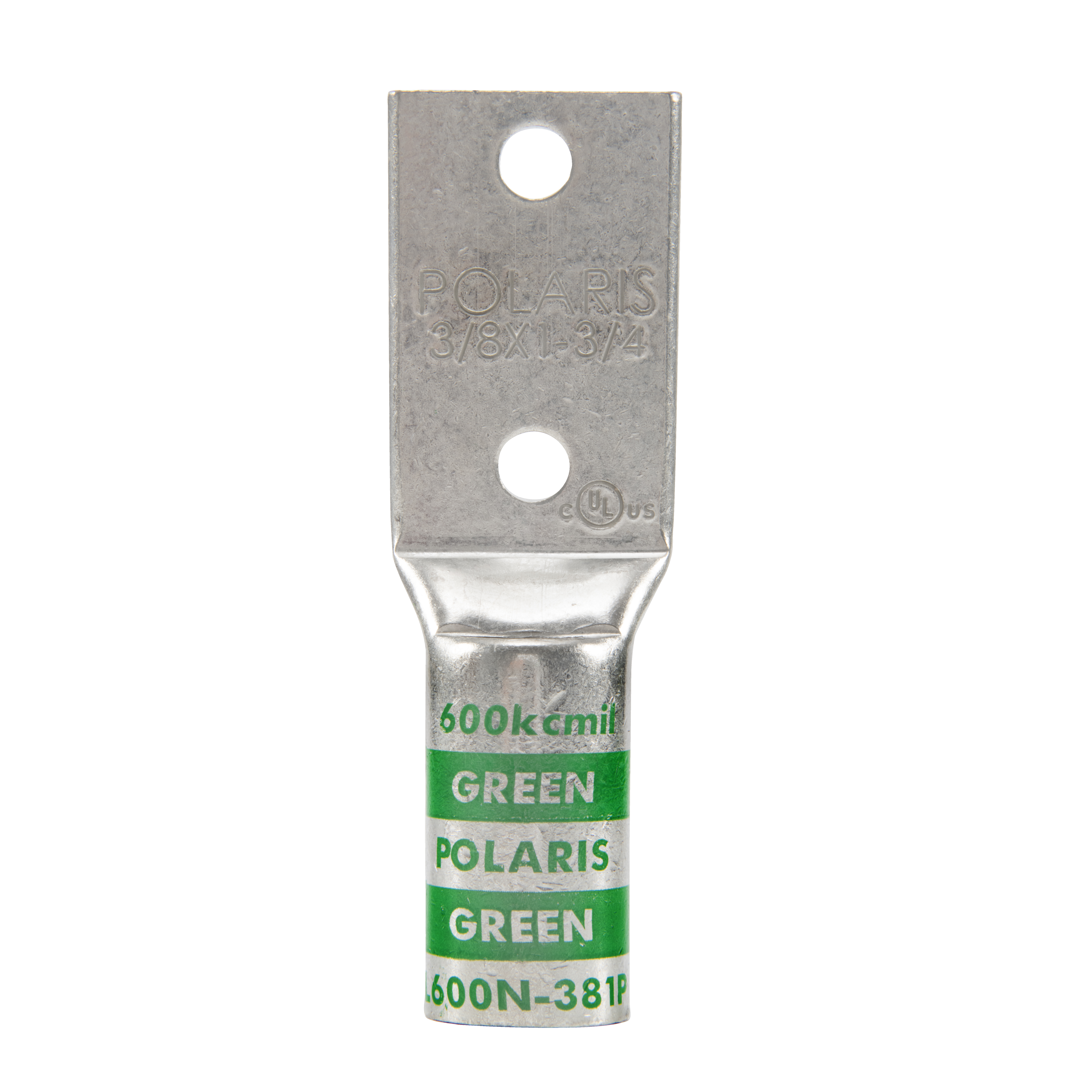

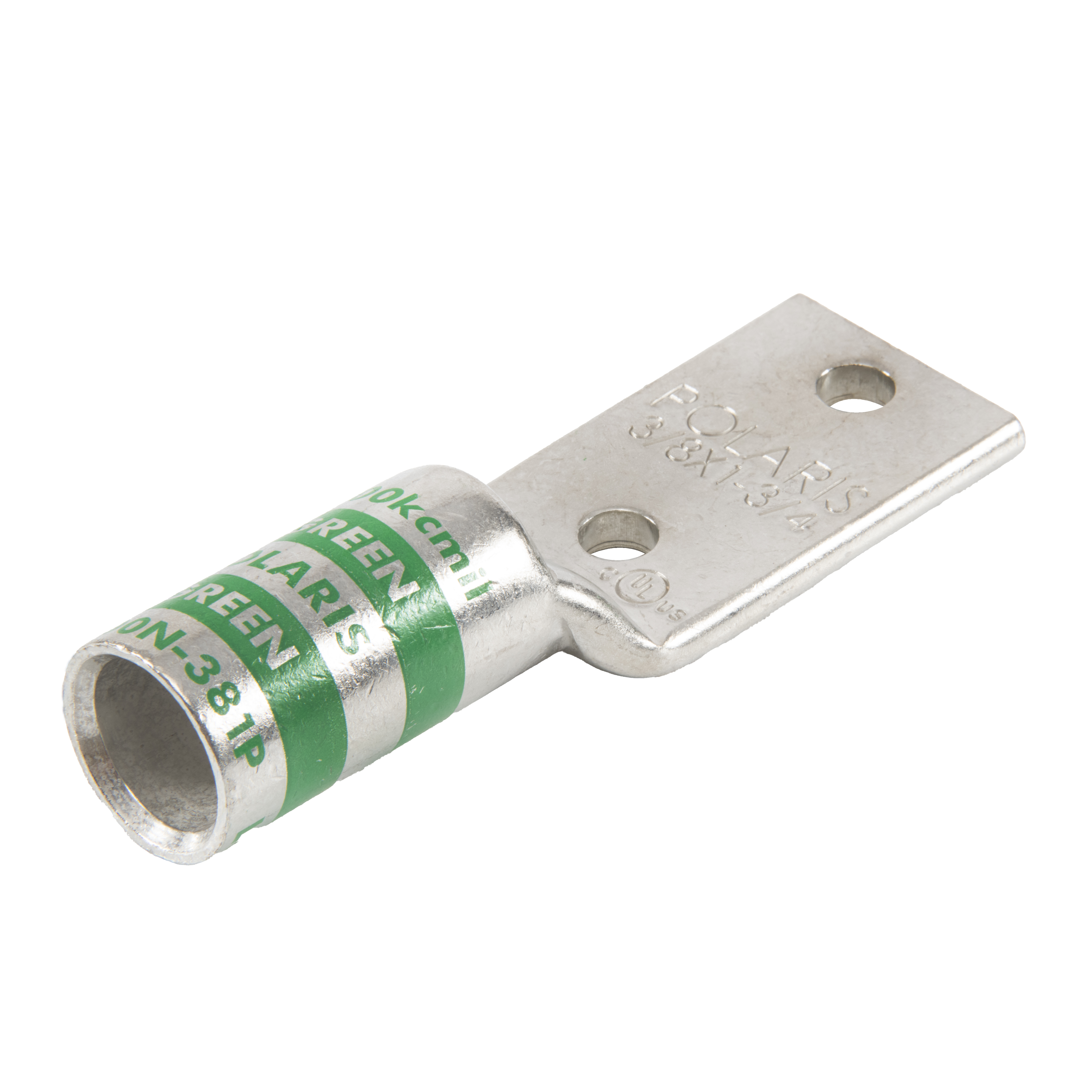

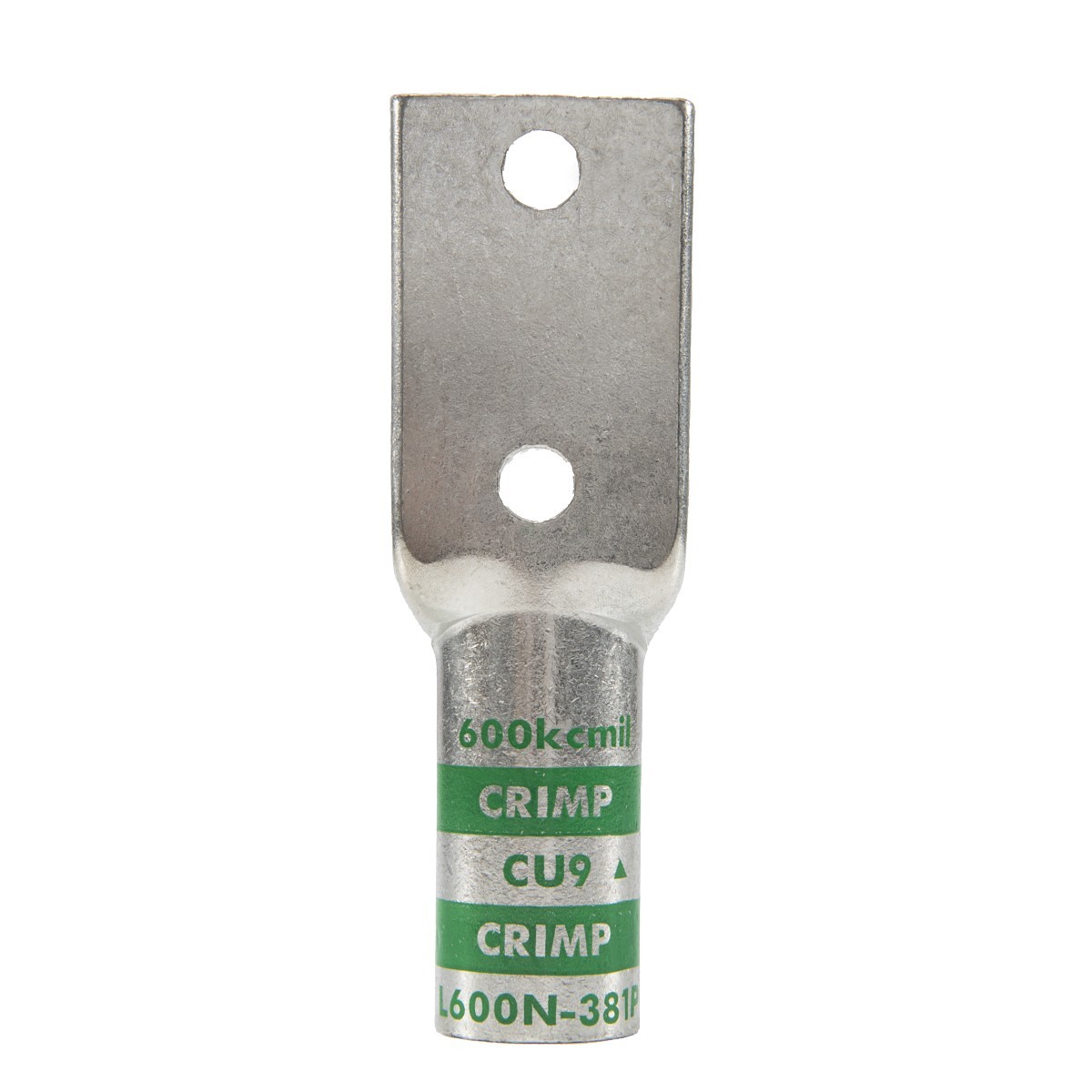

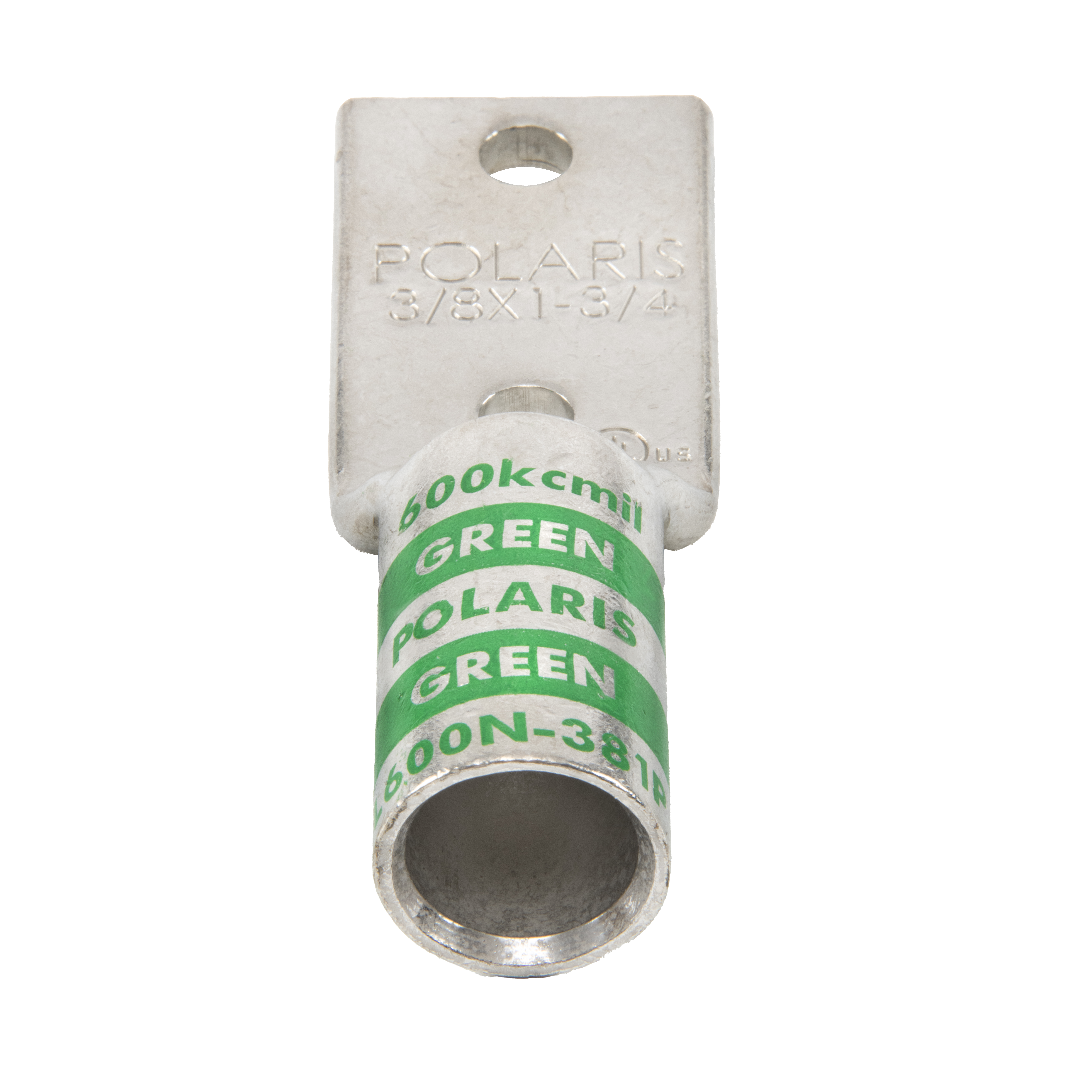

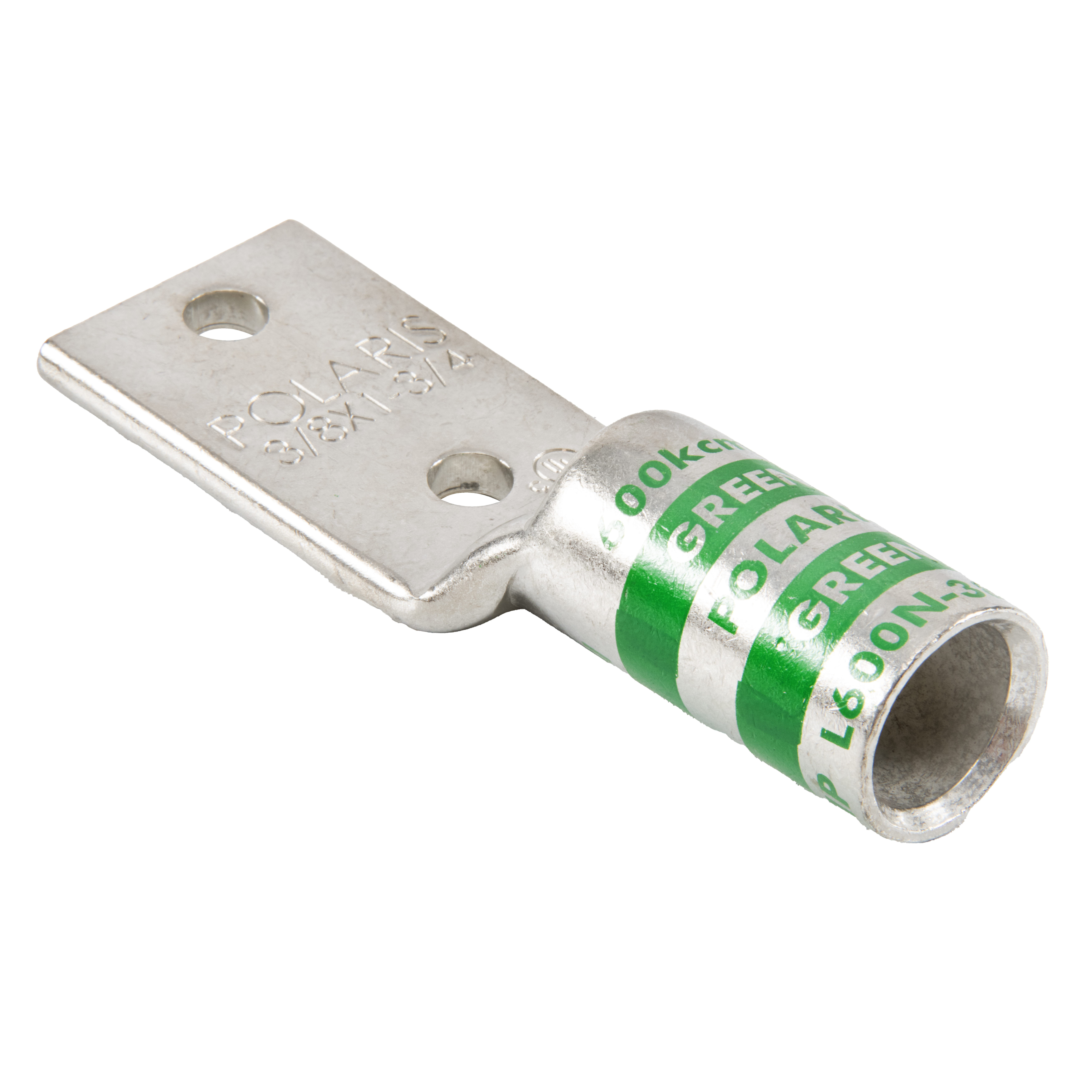

Polaris L600N-381P 600 MCM Cu Compression Lug, 3/8 IN 2 Hole, 1-3/4 IN Spacing, Inspection Window
#L600N-381P
Provides reliable termination for copper conductors in switchgear, panelboards, and power distribution equipment. Inspection window allows visual confirmation of conductor insertion before crimping. Two mounting holes provide secure mounting and alignment.
- High conductivity copper tubing and corrosive resistant tin-plated finish
- Marked with die index and color coded
- Flex rated , see product sheet for details
- For applications greater than 2000V, install to cable manufacturer voltage stress relief instructions.
- UL listed to 35kV when properly installed to cable manufacturer’s specifications
Product Information
| Mounting-bolt-size-in | 3/8 |
|---|---|
| Barrel Length | 2.2400 |
| Expanded Wire Range | 600 MCM |
| Die Color Code | Green |
| Assortment | Copper Compression Terminations |
| Material | Copper |
| Finish | Tin-Plated |
| Voltage Rating | 35kV |
| Conductor Type | Copper |
| Conductor Cu Size Range | 600 MCM (Code), 444 MCM (Flex) |
| Prop 65 Flag | Yes |
| UPC | 662381999351 |
