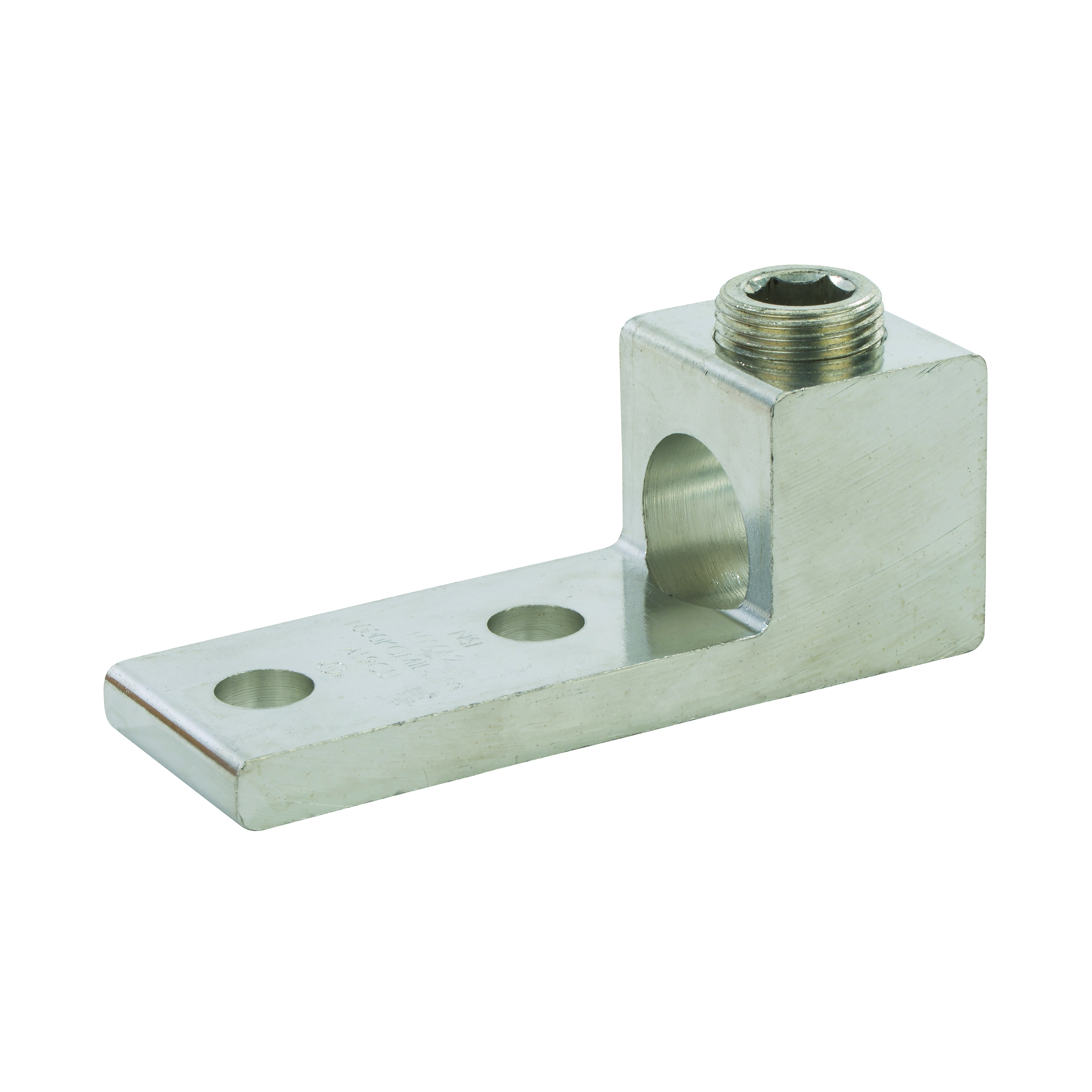

Nema Panel Lug 1000-500


Nema Panel Lug Al/Cu 1000-500

  • Panelboard style for multi-conductor with NEMA mounting hole spacing for turn-prevent and secureness
  • Made of 6061T-6 aluminum alloy
  • Electro-tin plated for low contact resistance
  • For use with copper or aluminum conductors
  • All hole spacing is NEMA standard of 1.750 inch

Product Information

Voltage Rating 600 V
Material 6061T-6 Aluminum Alloy
Finish Tin Plated
Pack Qty 4
GTIN 662381001344
UPC 662381001344
EAN 662381001344
UNSPSC 39121466
Origin Country US
Certifications cULus, UL Listed
Ul Standard UL 486A-486B
Conductor Type Copper, Aluminum
Hex Wrench Size 9/16
Wire Range 1000 MCM – 500 MCM
Assortment Aluminum Mechanical Terminations
