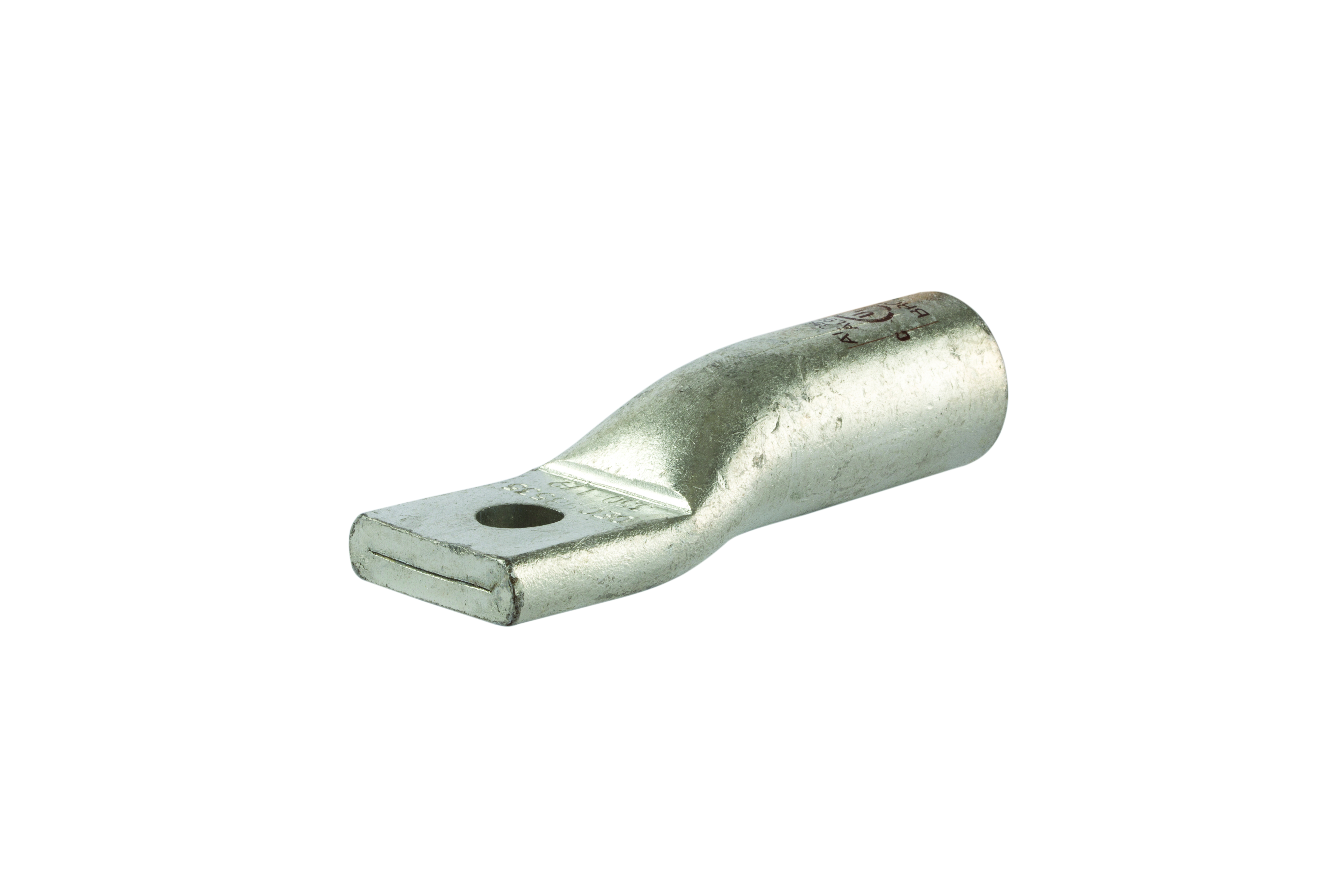

Polaris AL1000-58 1000 Mcm Al Compression Lug, 5/8 Bolt Size (Al/Cu)

#AL1000-58

Terminate with confidence using Polaris lugs in a wide range of applications, including power distribution, grounding and data transmission. Each connector is clearly color-coded and can be affixed with any standard crimp tool.

  • High conductivity aluminum tubing and corrosive resistant tin-plated finish
  • Die color-coded identification
  • Dual rated for both copper and aluminum conductors
  • UL listed to 35kV when properly installed to cable manufacturer’s specifications.
  • UL/cULus listed and rated for B/C class wire

Product Information

Die Color Code Brown
Material Aluminum
Finish Tin Plated
Mounting-bolt-size-in 5/8
Ul Standard UL 486A-486B
Assortment Aluminum Compression Terminations
Tang Length 2.5
Tang-thickness-in 0.59
Barrel Length 3.2000
Voltage Rating 35kV
Conductor Type Copper,Aluminum
Expanded Wire Range 1000 MCM – 750 MCM
Wire Cable Class Class B,Class C
UNSPSC 39121405
Wire Range 1000 MCM
EAN/UCC-13 0662381030221
GTIN 662381030221
Prop 65 Flag Yes
UPC 662381030221

Resources

Documents

  • POL_TermLugs_CMP_ProdSheet_DIGITAL.pdf Download
  • POL_AL1000-58_CMP_ProDraw_DIGITAL.pdf Download
  • POL_Compression_CMP_CatBro_DIGITAL.pdf Download
  • POL_AL-SERIES_CMP_ProDraw.pdf Download
