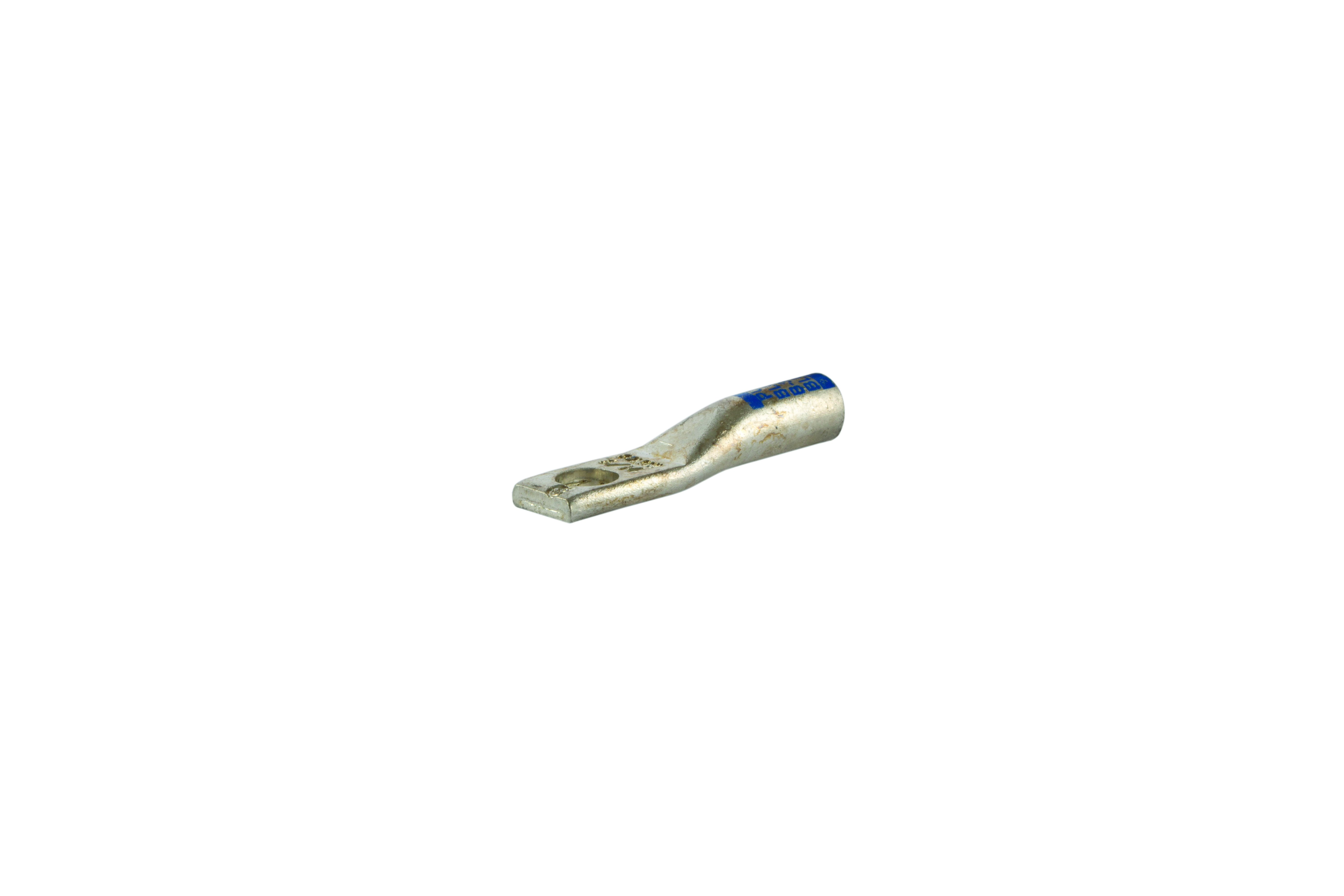

Polaris AL300-48 300 Mcm Alum Compression Lug, 1/2 Bolt Size (Al/Cu)
#AL300-48
Terminate with confidence using Polaris lugs in a wide range of applications, including power distribution, grounding and data transmission. Each connector is clearly color-coded and can be affixed with any standard crimp tool.
- High conductivity aluminum tubing and corrosive resistant tin-plated finish
- Die color-coded identification
- Dual rated for both copper and aluminum conductors
- UL listed to 35kV when properly installed to cable manufacturer’s specifications.
- UL/cULus listed and rated for B/C class wire
Product Information
| Die Color Code | Blue |
|---|---|
| Assortment | Aluminum Compression Terminations |
| Material | Aluminum |
| Finish | Tin Plated |
| Mounting-bolt-size-in | 1/2 |
| Ul Standard | UL 486A-486B |
| Tang-thickness-in | 0.35 |
| Barrel Length | 1.6000 |
| Tang Length | 1.5 |
| Voltage Rating | 35kV |
| Conductor Type | Copper,Aluminum |
| Expanded Wire Range | 300 MCM – 2/0 AWG |
| Wire Cable Class | Class B,Class C |
| UNSPSC | 39121405 |
| Wire Range | 300 MCM |
| EAN/UCC-13 | 0662381030139 |
| GTIN | 662381030139 |
| Prop 65 Flag | Yes |
| UPC | 662381030139 |
