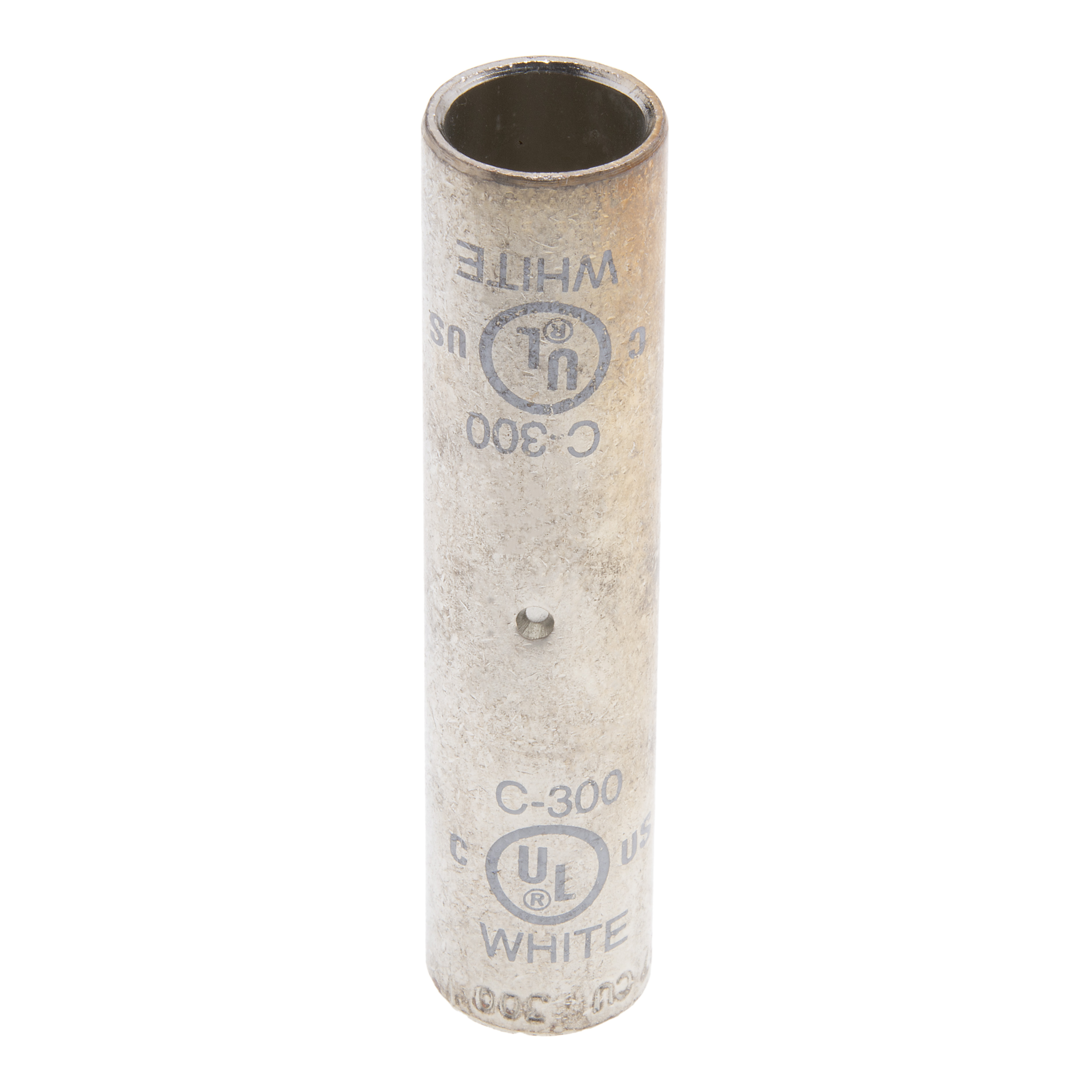

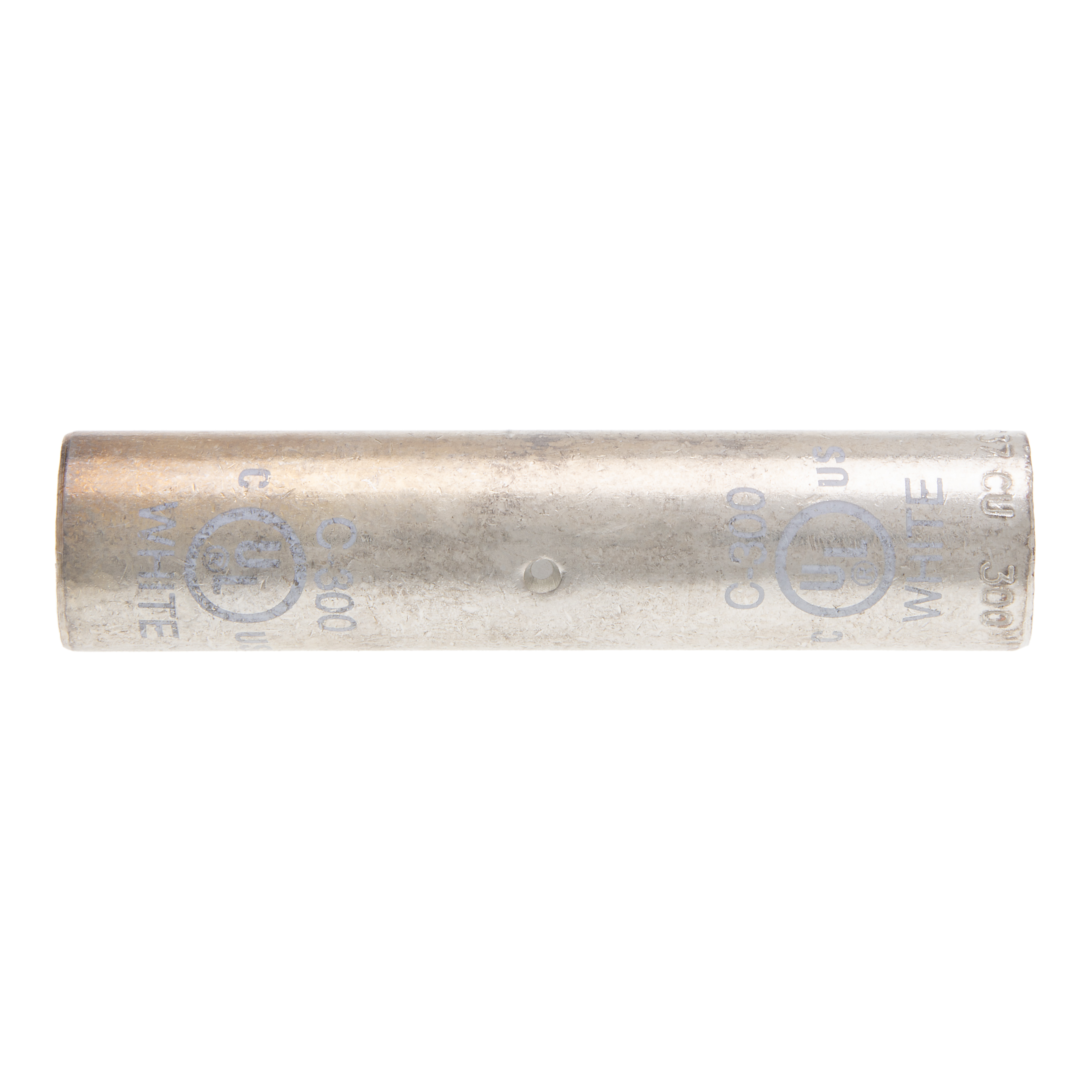

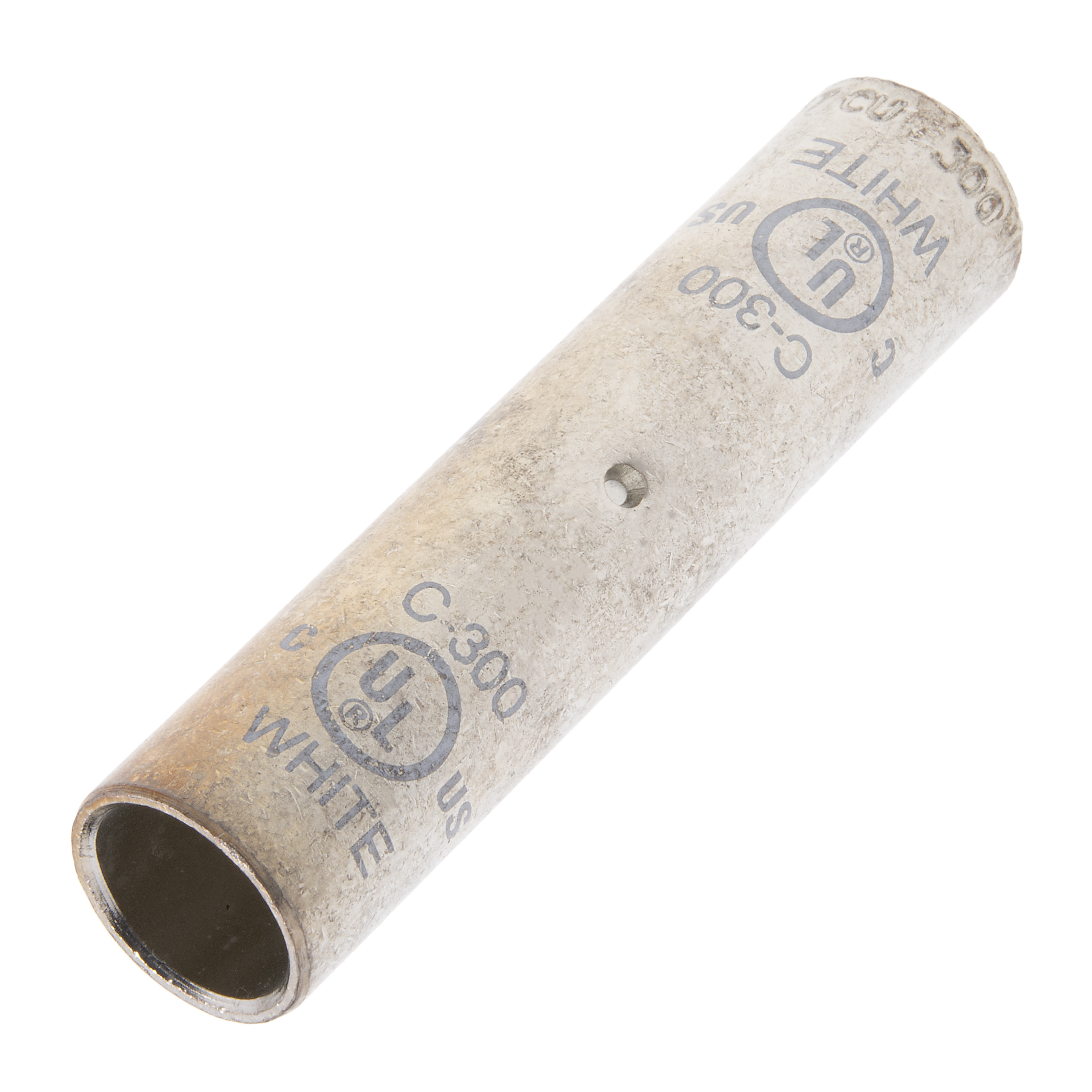

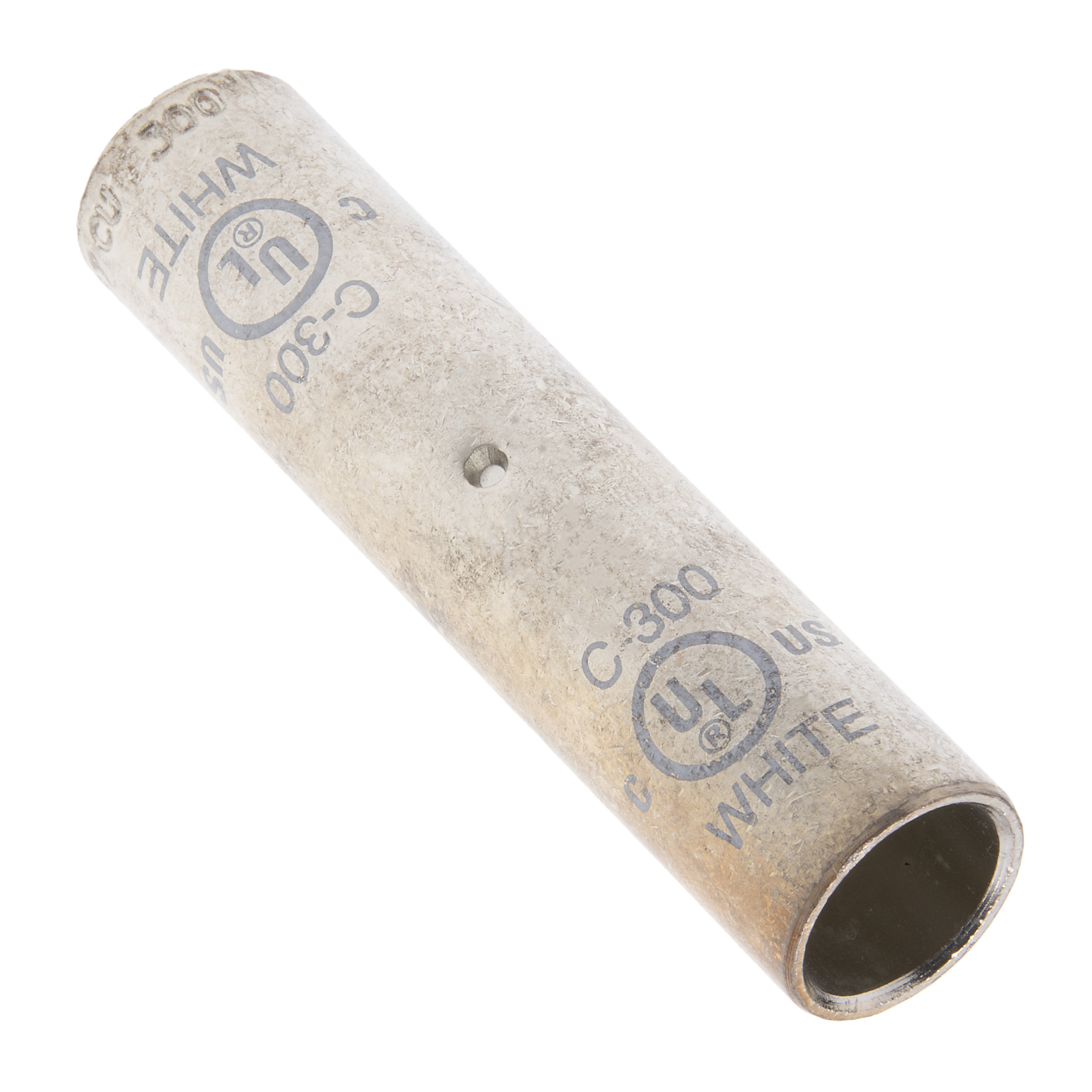

Polaris C-300 Tinned Copper Splice- Long Barrel, 300 Mcm
#C-300
Splicing conductors are the professional’s choice for making quick in-line connections and repairing damaged wiring. Use POLARIS splice connectors for bonding solid or fine stranded UL-listed wires in harsh environments.
- High conductivity copper tubing and corrosion resistant tin-plated finish
- Serrations indicate proper crimp locations
- Die cast color-coded identification
- Pre-filled with oxide inhibitor and capped with color coded cap
- Flex rated for use with K, H, G, I, M and DLO cable
Product Information
| Max Torque Value | 360.0 |
|---|---|
| Assortment | Copper Compression Splices |
| Material | Copper |
| Finish | Tin Plated |
| Ul Standard | UL 486A |
| Barrel Length | 3.5000 |
| Voltage Rating | 600V |
| Conductor Type | Copper |
| Conductor Cu Size Range | 250 MCM – 6 AWG |
| Conductor Al Size Range | 250 MCM – 6 AWG |
| Expanded Wire Range | 300 MCM – 2/0 AWG |
| Wire Cable Class | Class B,Class C |
| Die Color Code | White |
| UNSPSC | 39121449 |
| Wire Range | 300 MCM |
| EAN/UCC-13 | 6.62381E+11 |
| GTIN | 6.62381E+11 |
| Prop 65 Flag | Yes |
| UPC | 662381037602 |
