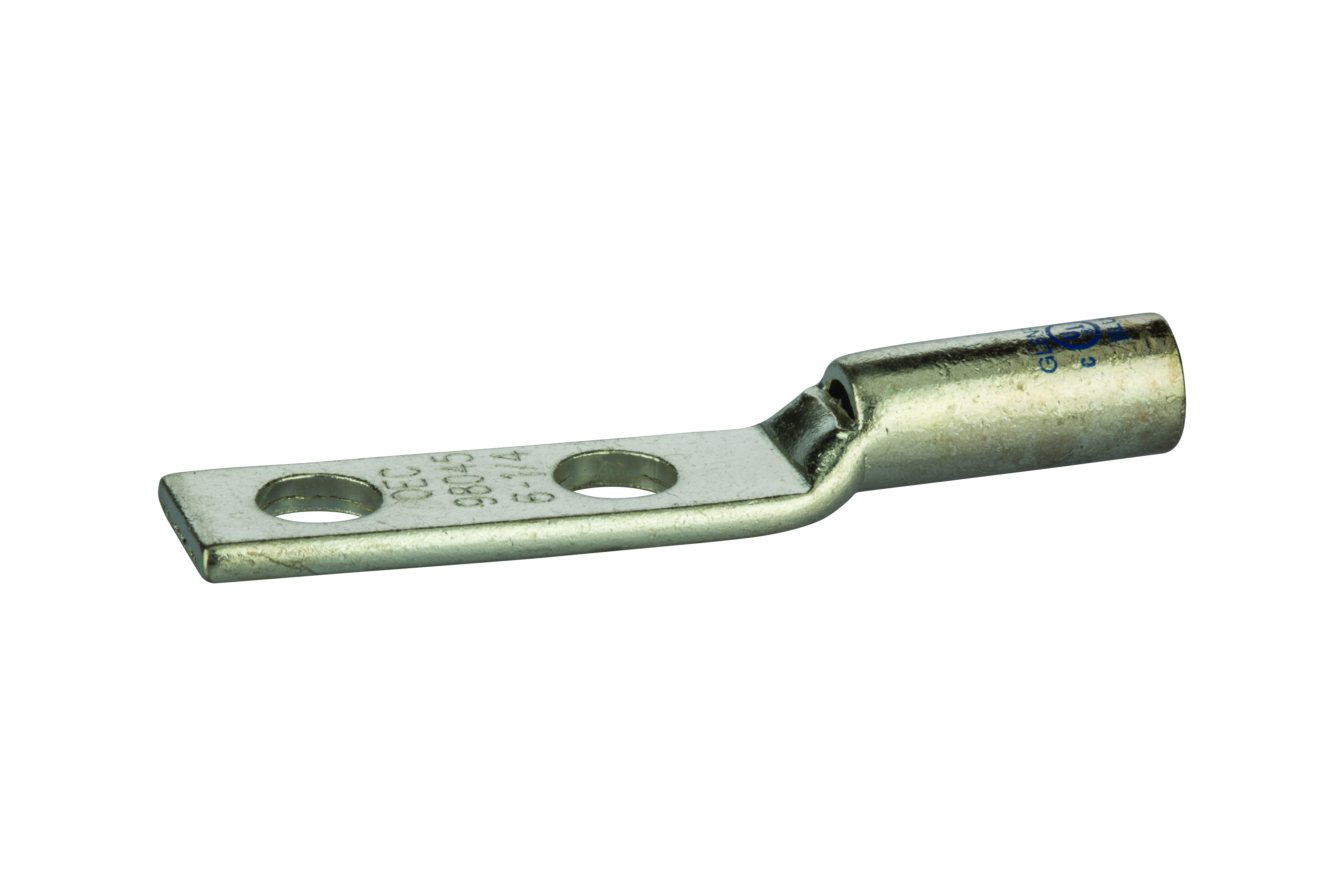

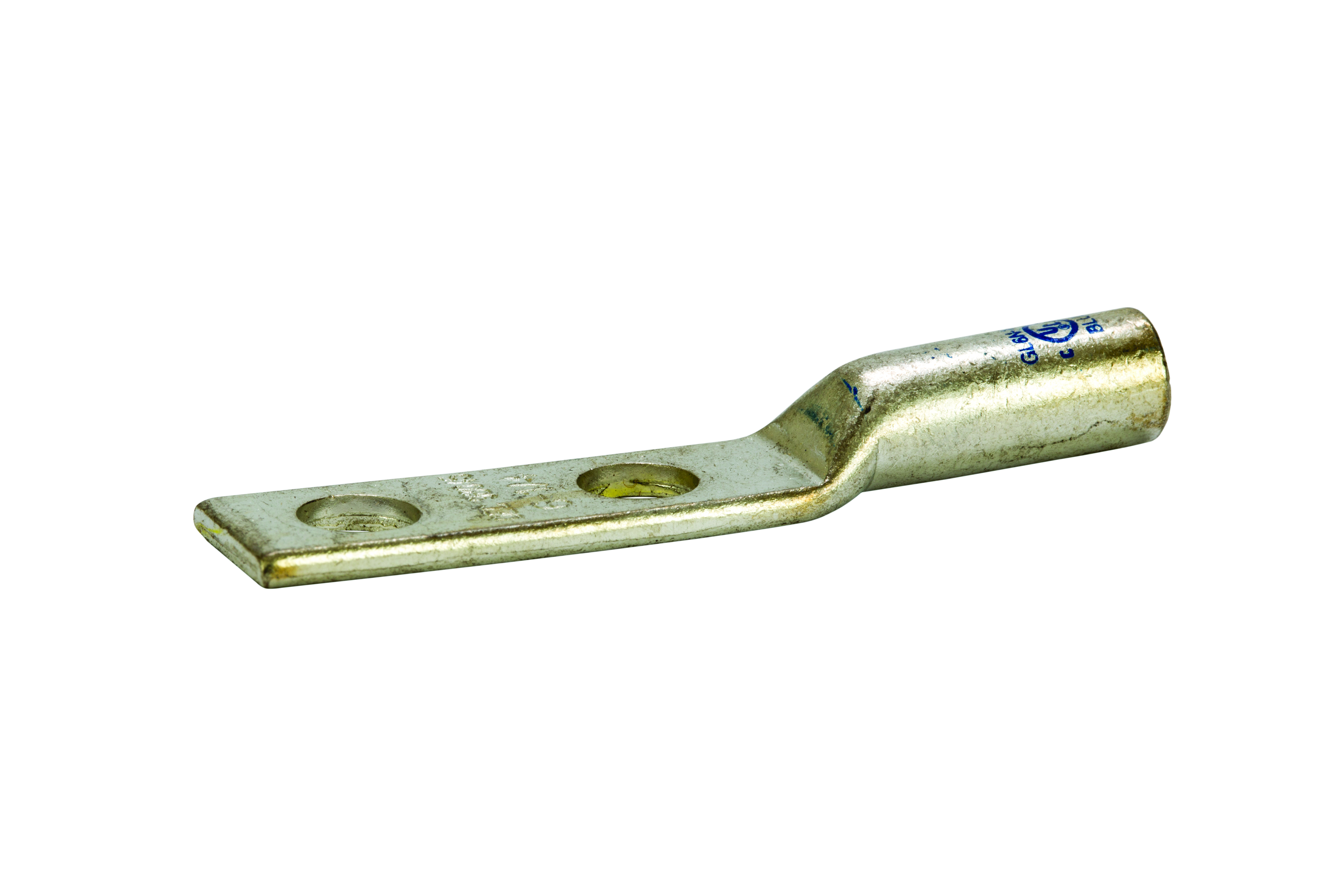

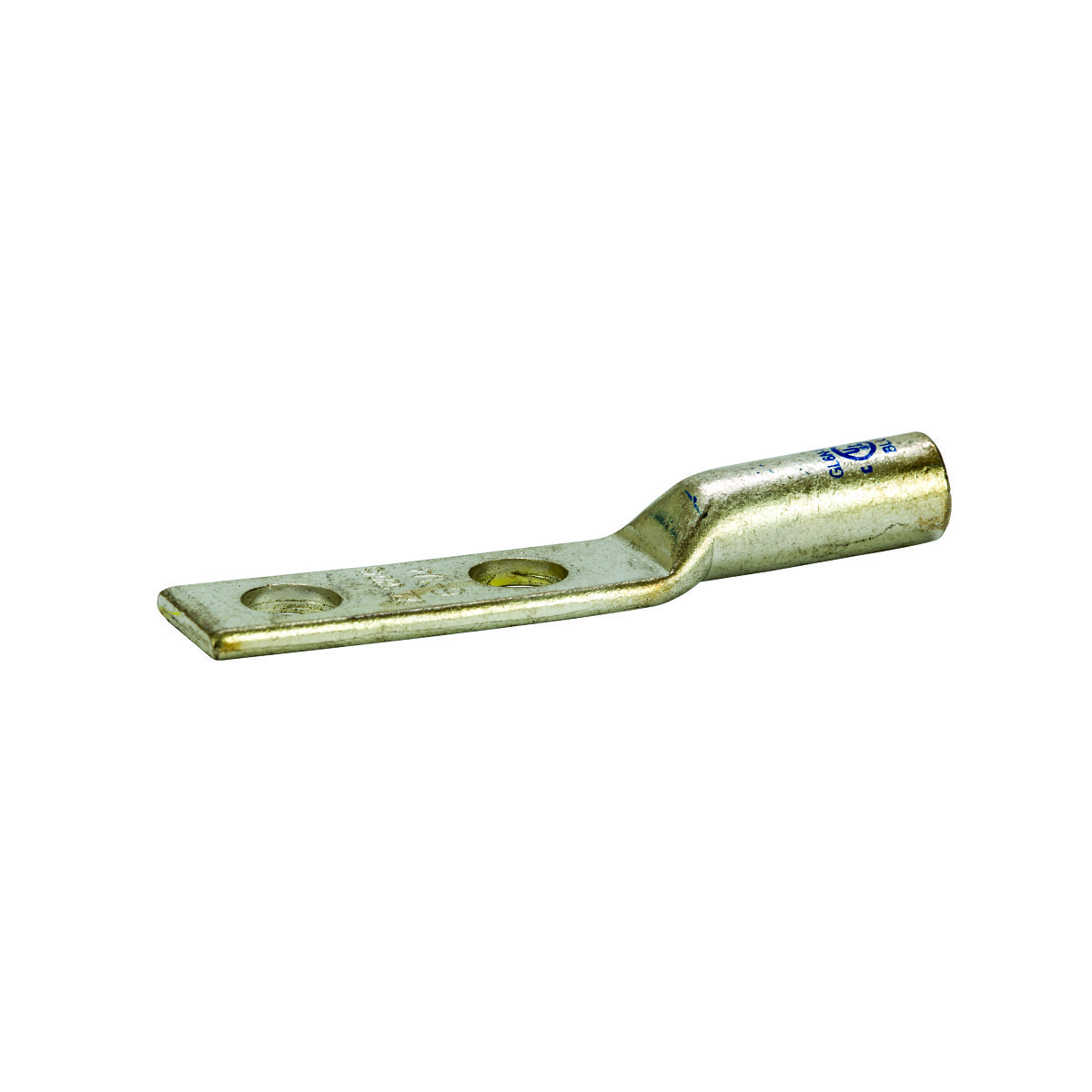

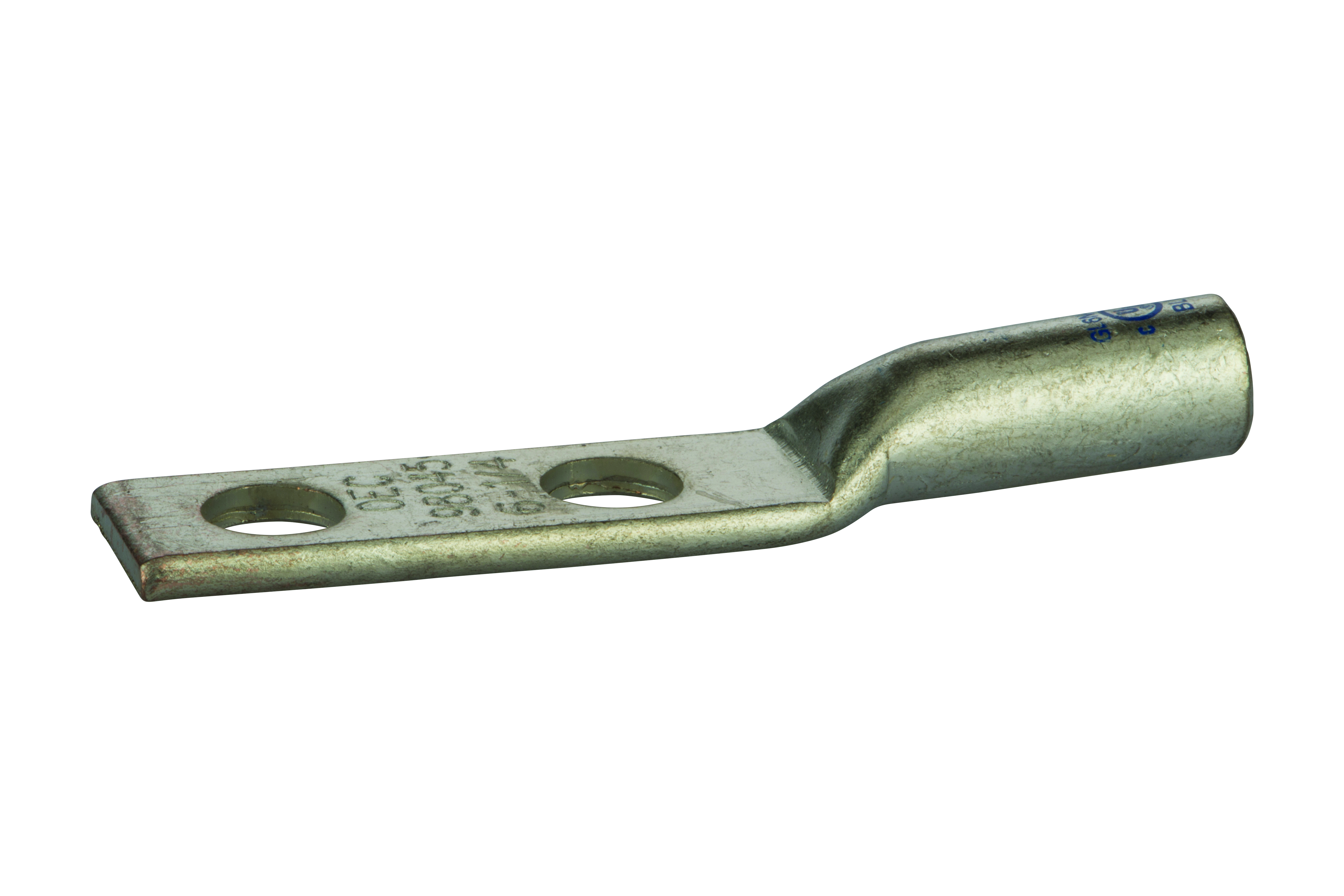

Polaris GL6N-141 CMP Lug Cu Sht 6 AWG 1/4 Blt 5/8 Spc
#GL6N-141
The POLARIS compression design creates a permanent, vibration-resistant connection that you can rely on with low contact resistance. Suitable for a wide range of applications, including power distribution, grounding and data transmission.
- High conductivity copper tubing and corrosion resistant tin-plated finish
- Peep hole allows easy inspection of the termination
- Marked with die index and color coded
- Flex rated for use with K, H, G, I, M and DLO cable
- Easy Inspection: Peephole allows easy inspection of the termination to assure complete cable insertion
Product Information
| Die Color Code | Blue |
|---|---|
| Material | Copper |
| Finish | Tin Plated |
| Ul Standard | UL 486A-486B,UL467 |
| Assortment | Copper Compression Terminations |
| Mounting-bolt-size-in | 1/4 |
| Barrel Length | 1.0000 |
| Tang Length | 1.26 |
| Tang-thickness-in | 0.08 |
| Voltage Rating | 35kV |
| Conductor Type | Copper |
| Expanded Wire Range | 6 AWG – 8 AWG |
| Wire Cable Class | Class B,Class C |
| UNSPSC | 39121405 |
| Wire Range | 6 AWG |
| EAN/UCC-13 | 0662381338006 |
| GTIN | 662381338006 |
| Prop 65 Flag | Yes |
| UPC | 662381338006 |
Resources
Video resources
- POL_Compression15s-BOTH_CMP_Video.mp4 View video
