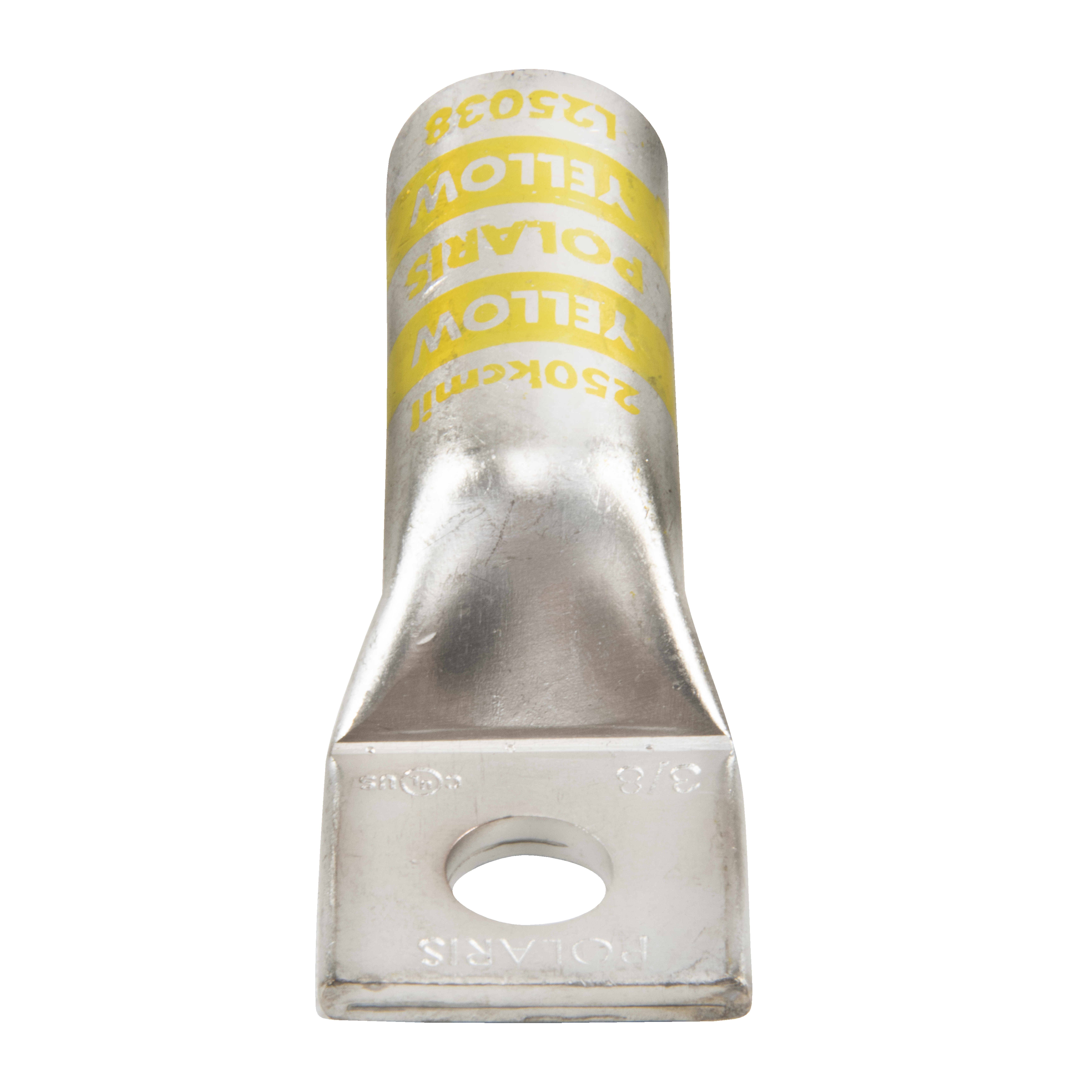

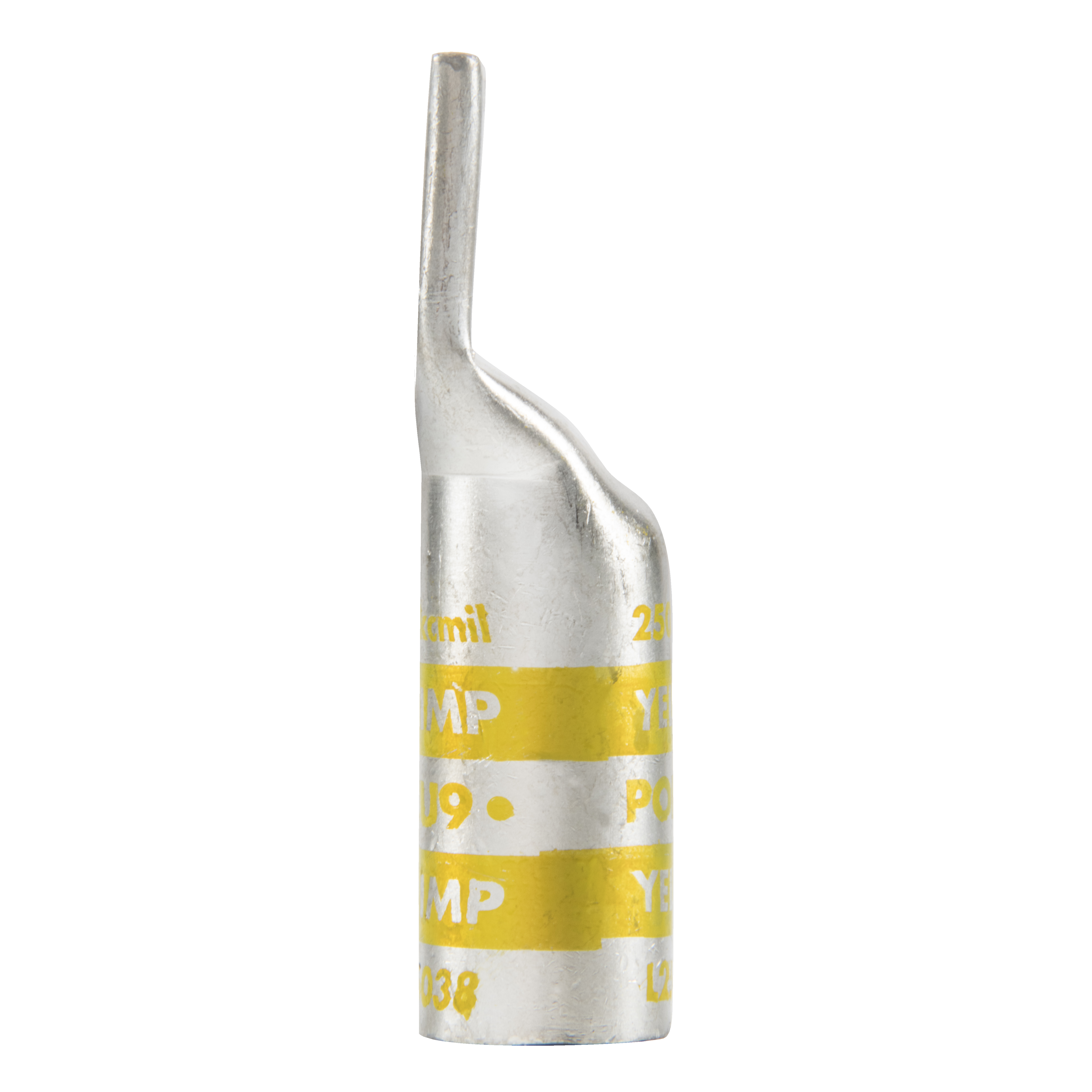

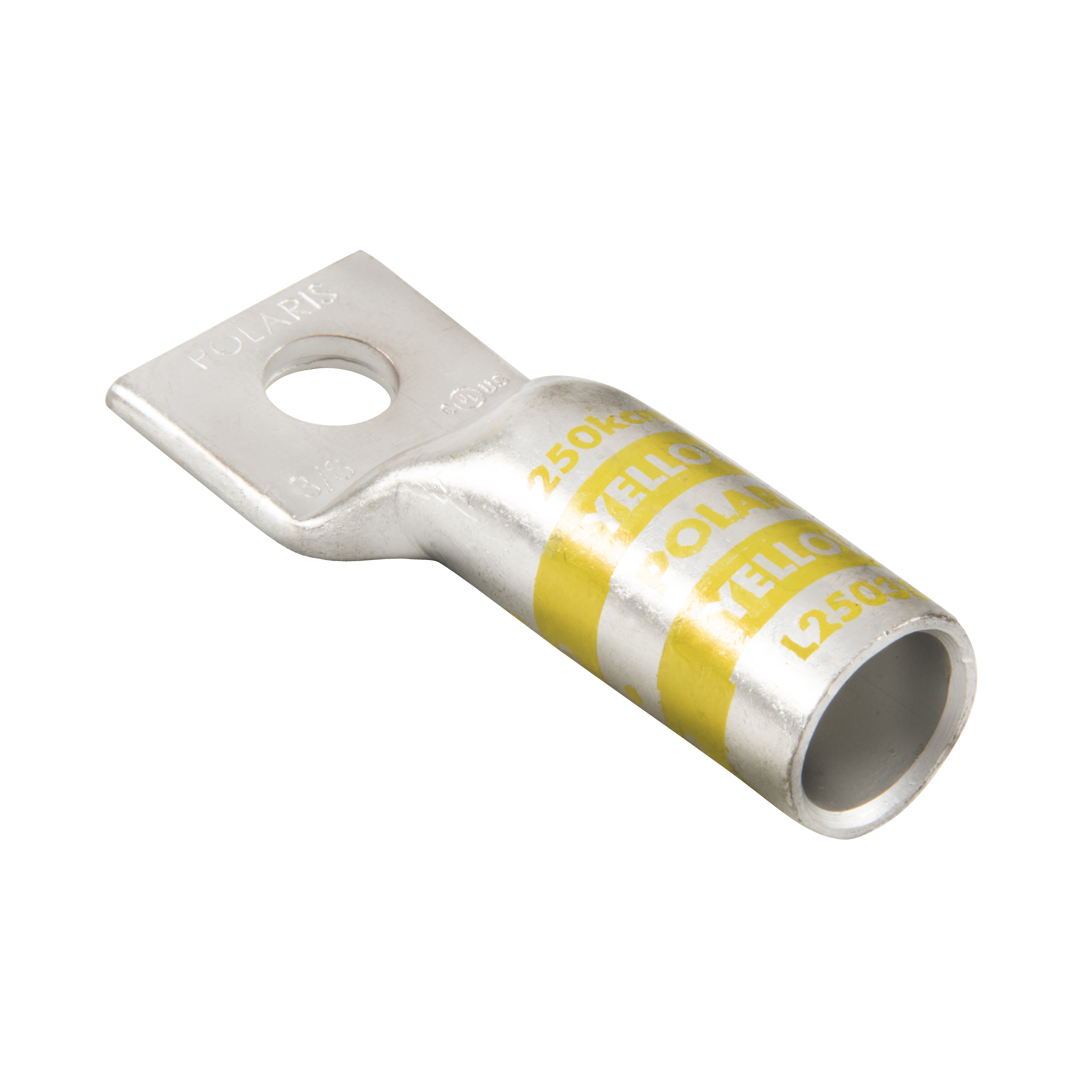

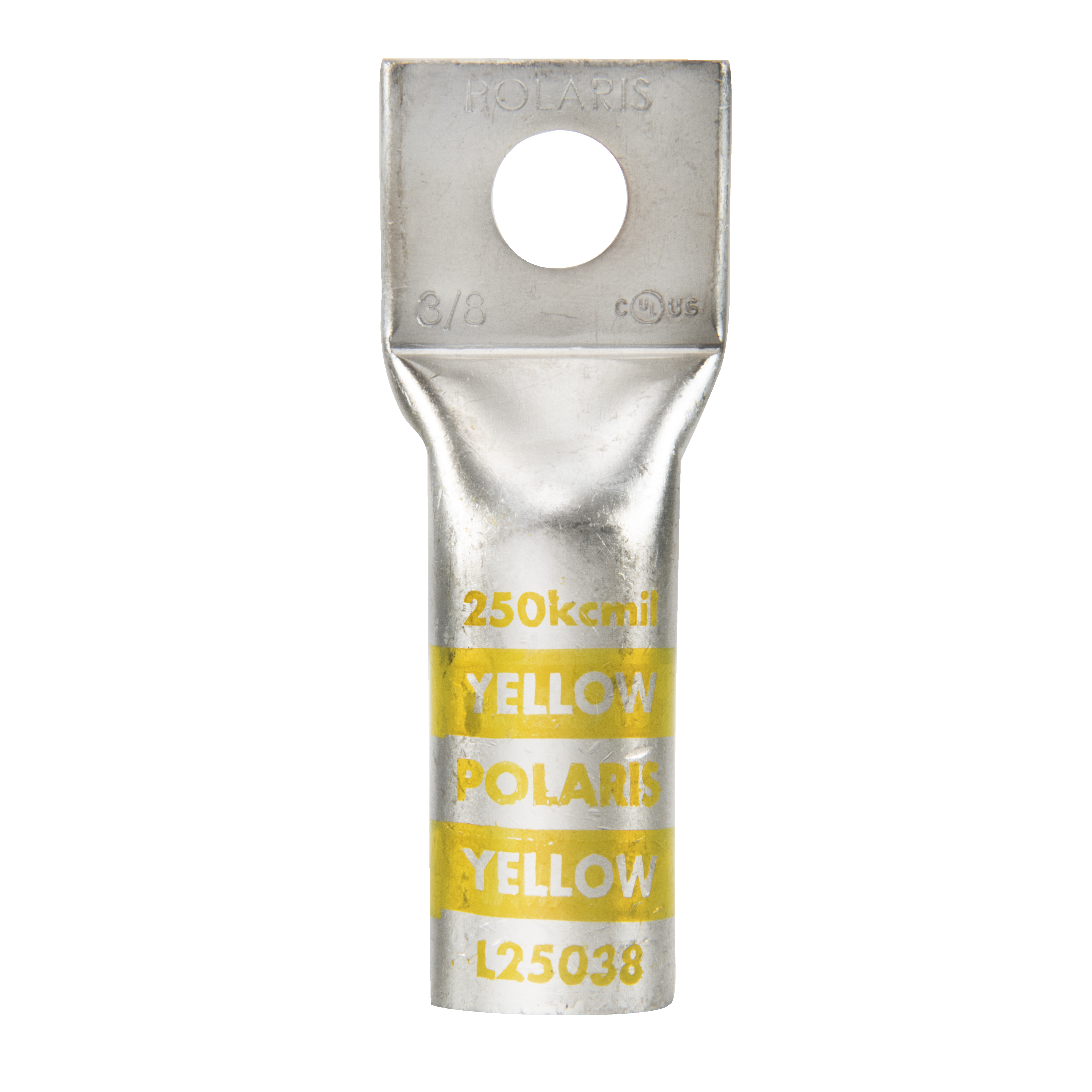

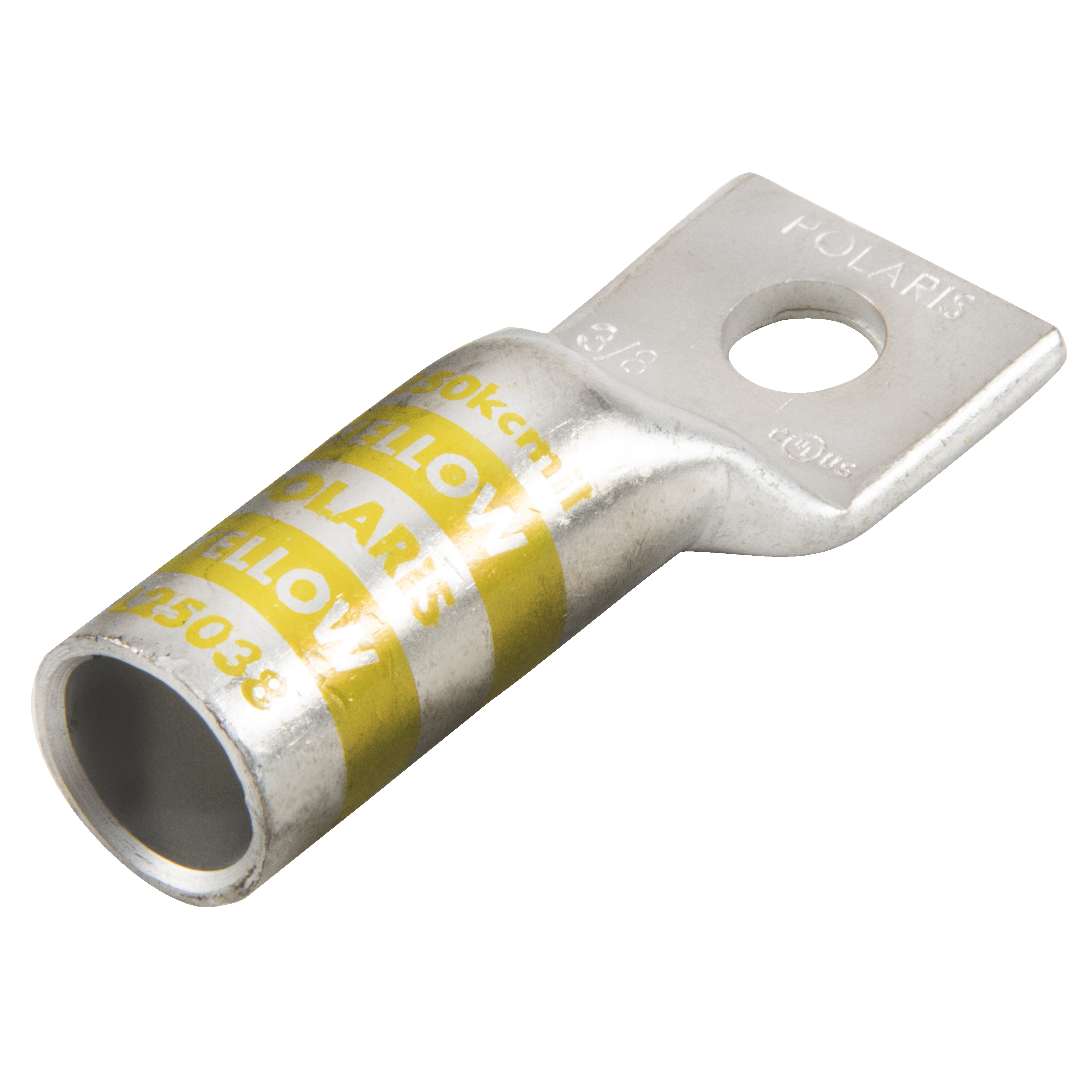

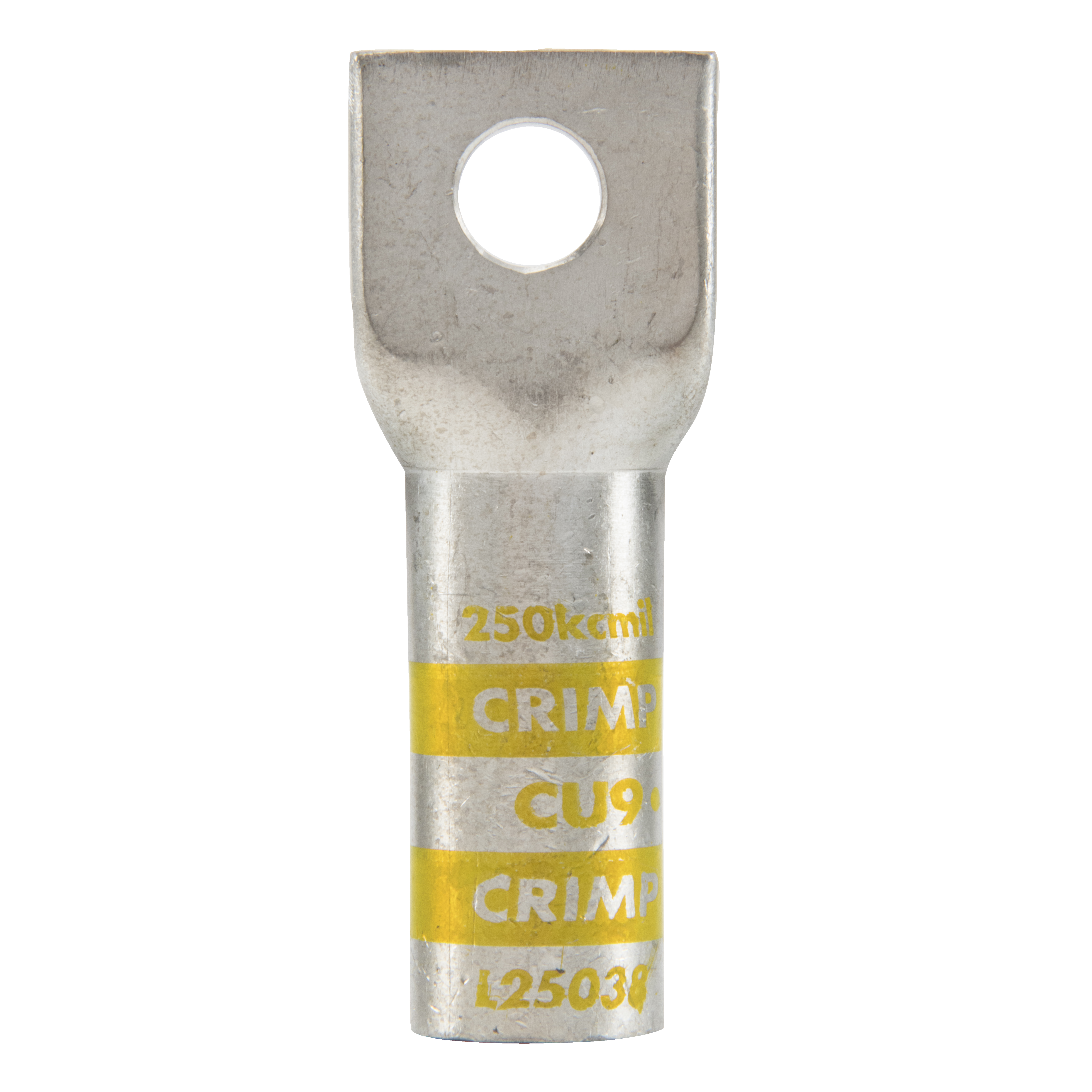

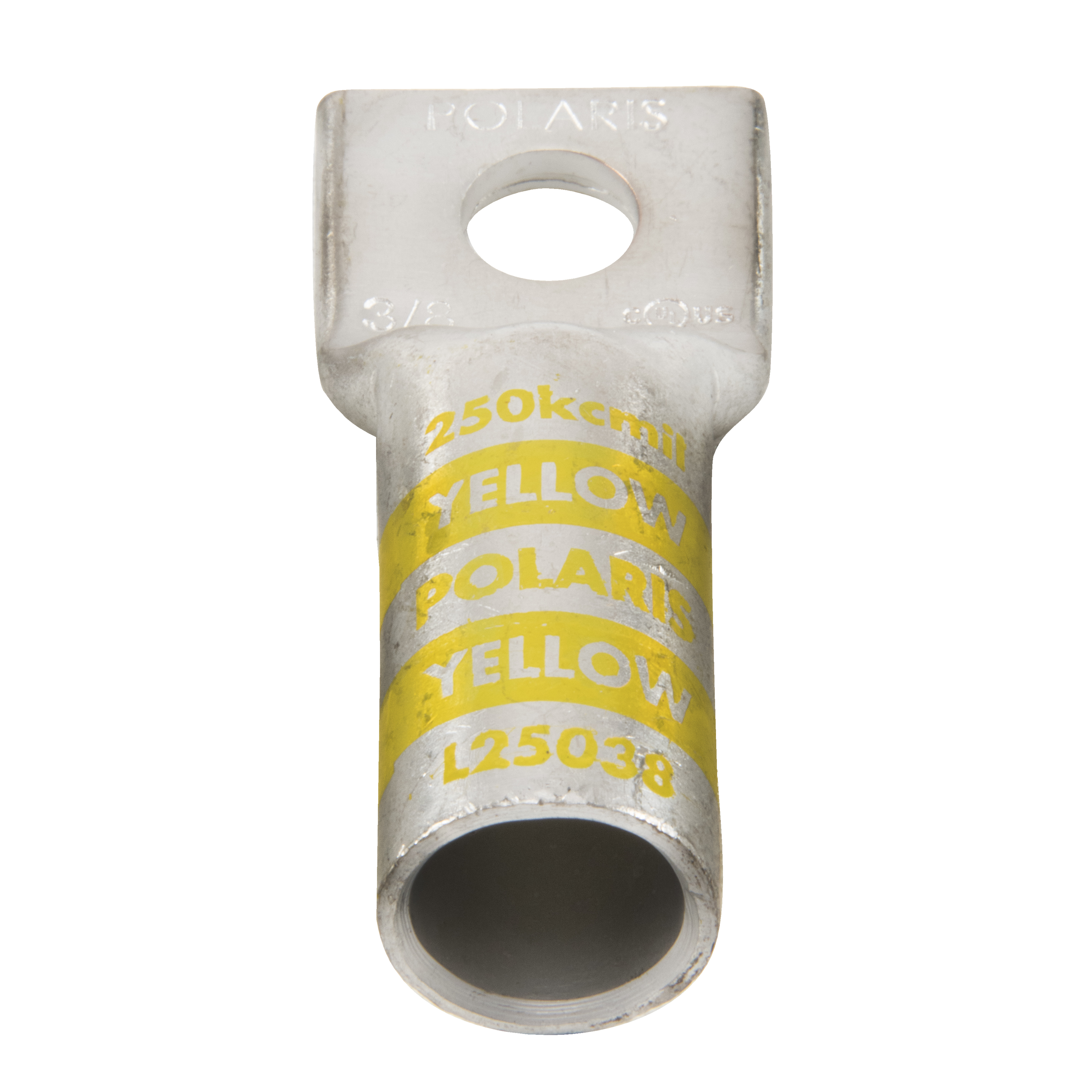

Polaris L25038 250 MCM Cu Compression Lug, 3/8 IN 1 Hole
#L25038
Provides reliable termination for copper code and flex conductors in switchgear, panelboards, and power distribution equipment.
- High conductivity copper tubing and corrosive resistant tin-plated finish
- Marked with die index and color coded
- Flex rated , see product sheet for details
- For applications greater than 2000V, install to cable manufacturer voltage stress relief instructions.
- UL listed to 35kV when properly installed to cable manufacturer’s specifications
Product Information
| Die Color Code | Yellow |
|---|---|
| Assortment | Copper Compression Terminations |
| Material | Copper |
| Finish | Tin-Plated |
| Mounting-bolt-size-in | 3/8 |
| Barrel Length | 1.6100 |
| Tang Length | 0.88 |
| Tang-thickness-in | 0.15 |
| Voltage Rating | 35kV |
| Conductor Type | Copper |
| Expanded Wire Range | 250 MCM – 1/0 AWG |
| Wire Cable Class | Class B,Class C,Class G,Class H,Class I,Class K,Class M,Class DLO |
| Conductor Cu Size Range | 250 MCM (Code), 4/0 AWG (Flex) |
| GTIN | 0066238103029 |
| Prop 65 Flag | Yes |
| UPC | 662381030290 |
