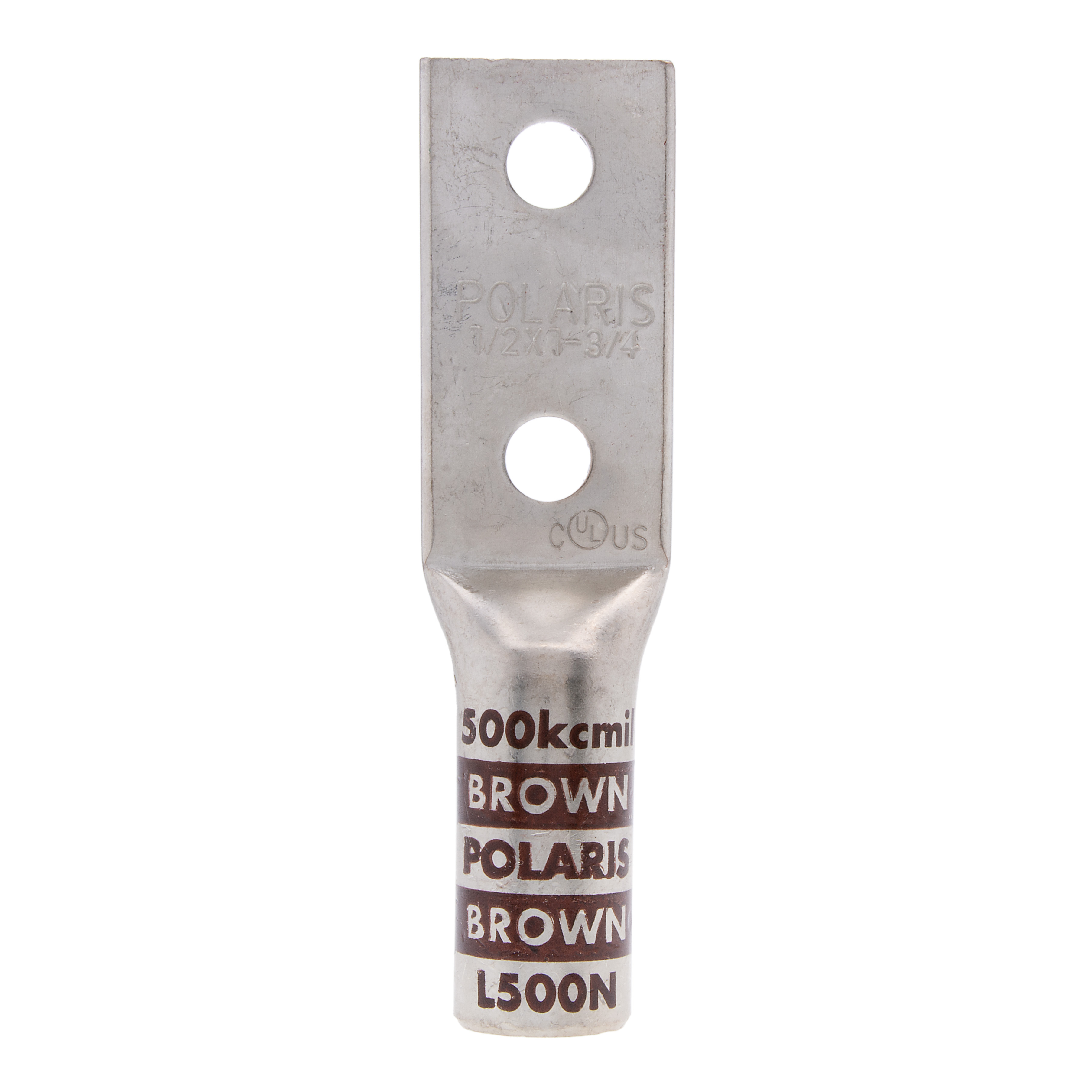

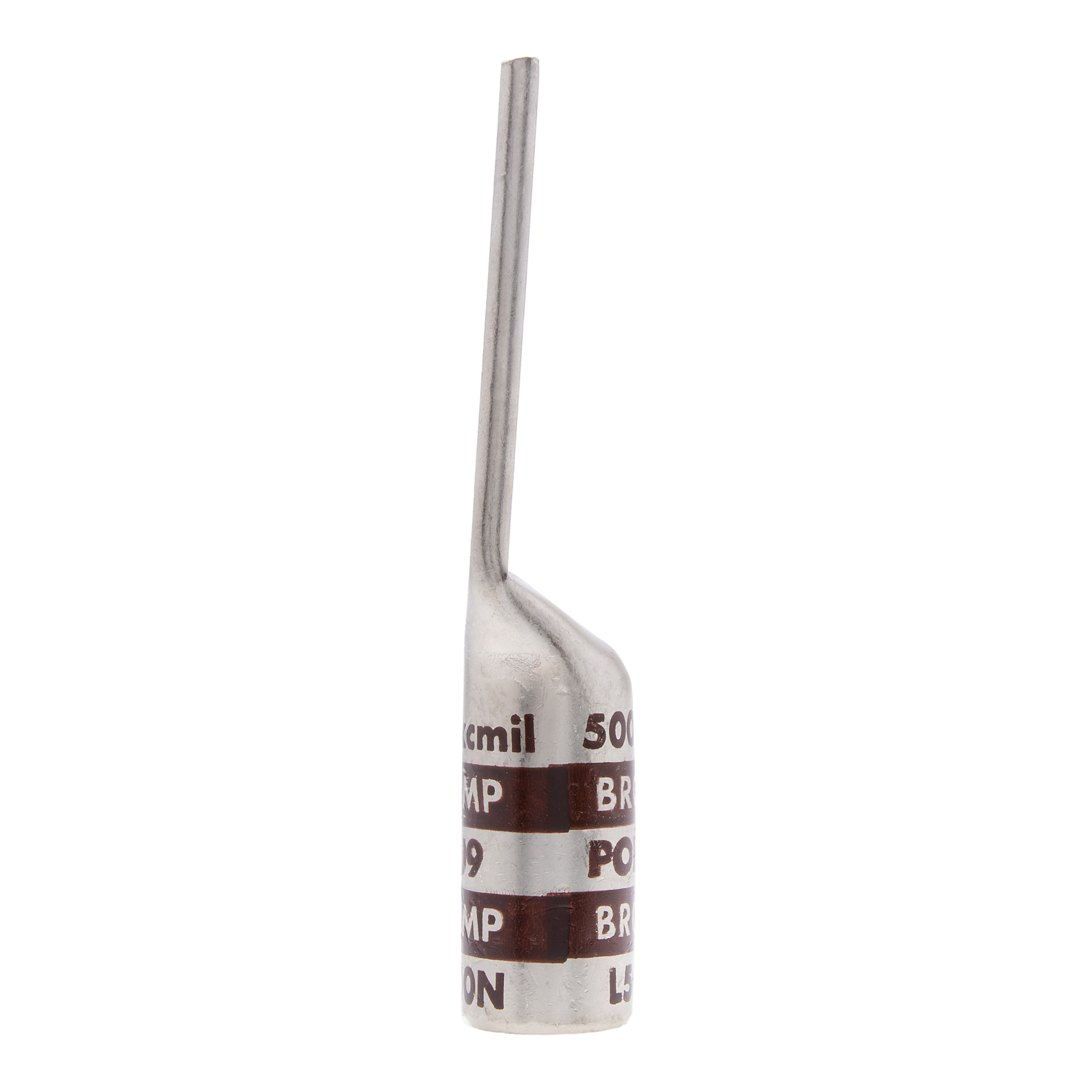

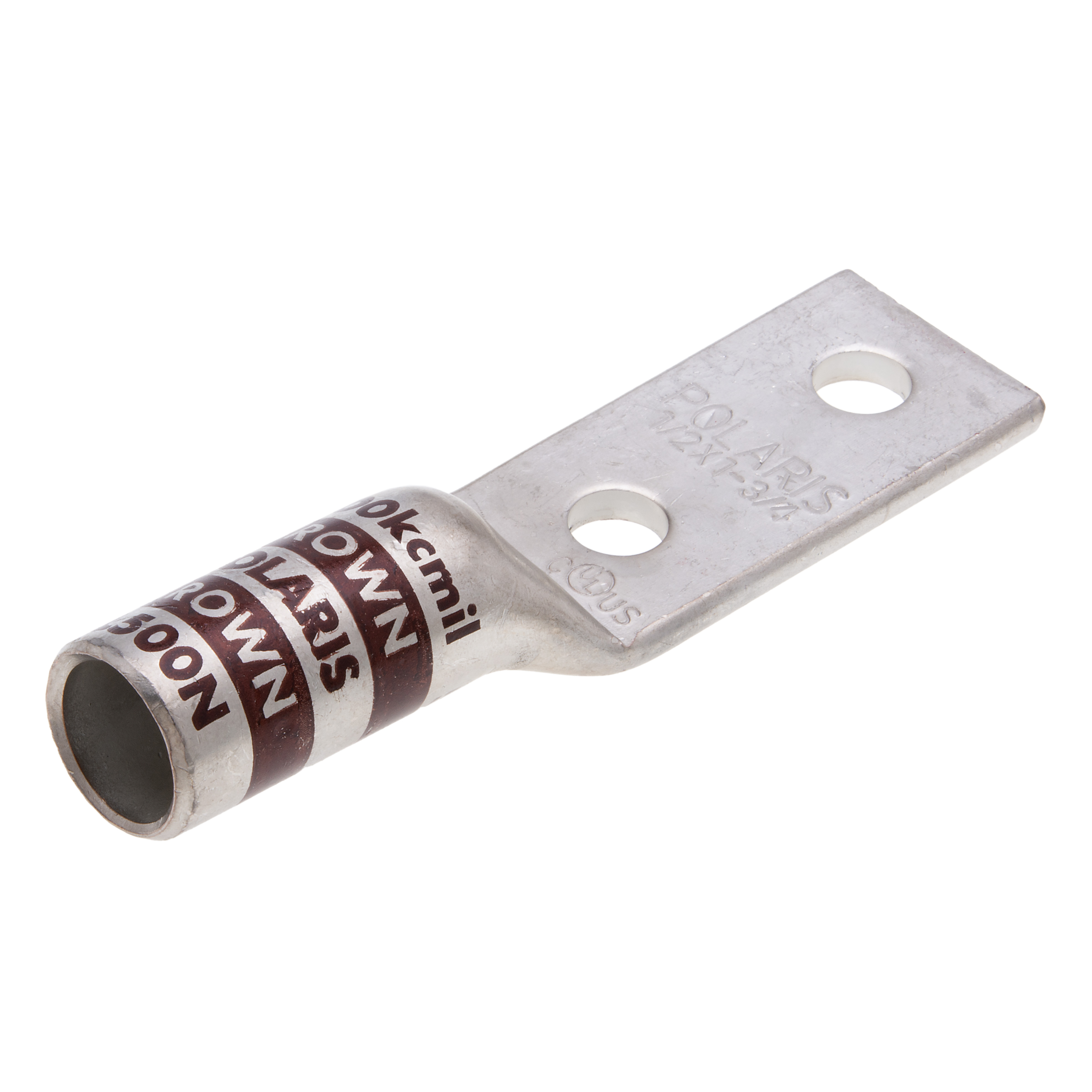

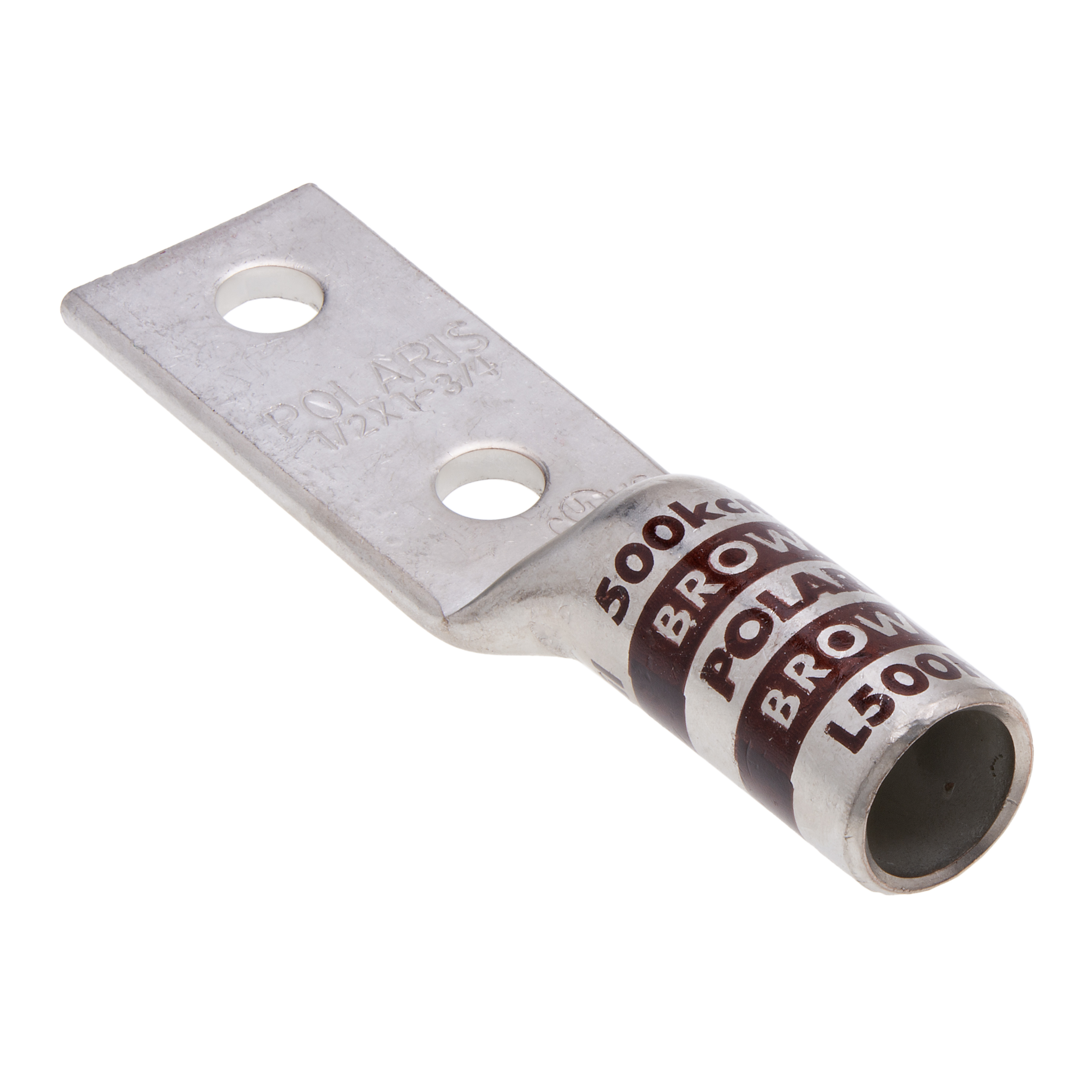

Polaris L500N CMP Lug Cu Long 500 MCM Nema Mtg Spac
#L500N
The POLARIS compression design creates a permanent, vibration-resistant connection that you can rely on with low contact resistance. Suitable for a wide range of applications, including power distribution, grounding and data transmission.
- High conductivity copper tubing and corrosion resistant tin-plated finish
- Marked with die index and color coded
- Flex rated for use with K, H, G, I, M and DLO cable
- UL/cULus listed and rated for B/C class wire
- UL listed to 35kV when properly installed to cable manufacturer’s specifications.
Product Information
| Die Color Code | Brown |
|---|---|
| Assortment | Copper Compression Terminations |
| Material | Copper |
| Finish | Tin Plated |
| Mounting-bolt-size-in | 1/2 |
| Ul Standard | UL 486A-486B |
| Tang-thickness-in | 0.22 |
| Barrel Length | 2.0000 |
| Tang Length | 2.992 |
| Voltage Rating | 35kV |
| Conductor Type | Copper |
| Expanded Wire Range | 500 MCM – 250 MCM |
| Wire Cable Class | Class B,Class C |
| UNSPSC | 39121405 |
| Wire Range | 500 MCM |
| EAN/UCC-13 | 0662381035172 |
| GTIN | 662381035172 |
| Prop 65 Flag | Yes |
| UPC | 662381035172 |
Resources
Video resources
- POL_Compression30s-BOTH_CMP_Video.mp4 View video
