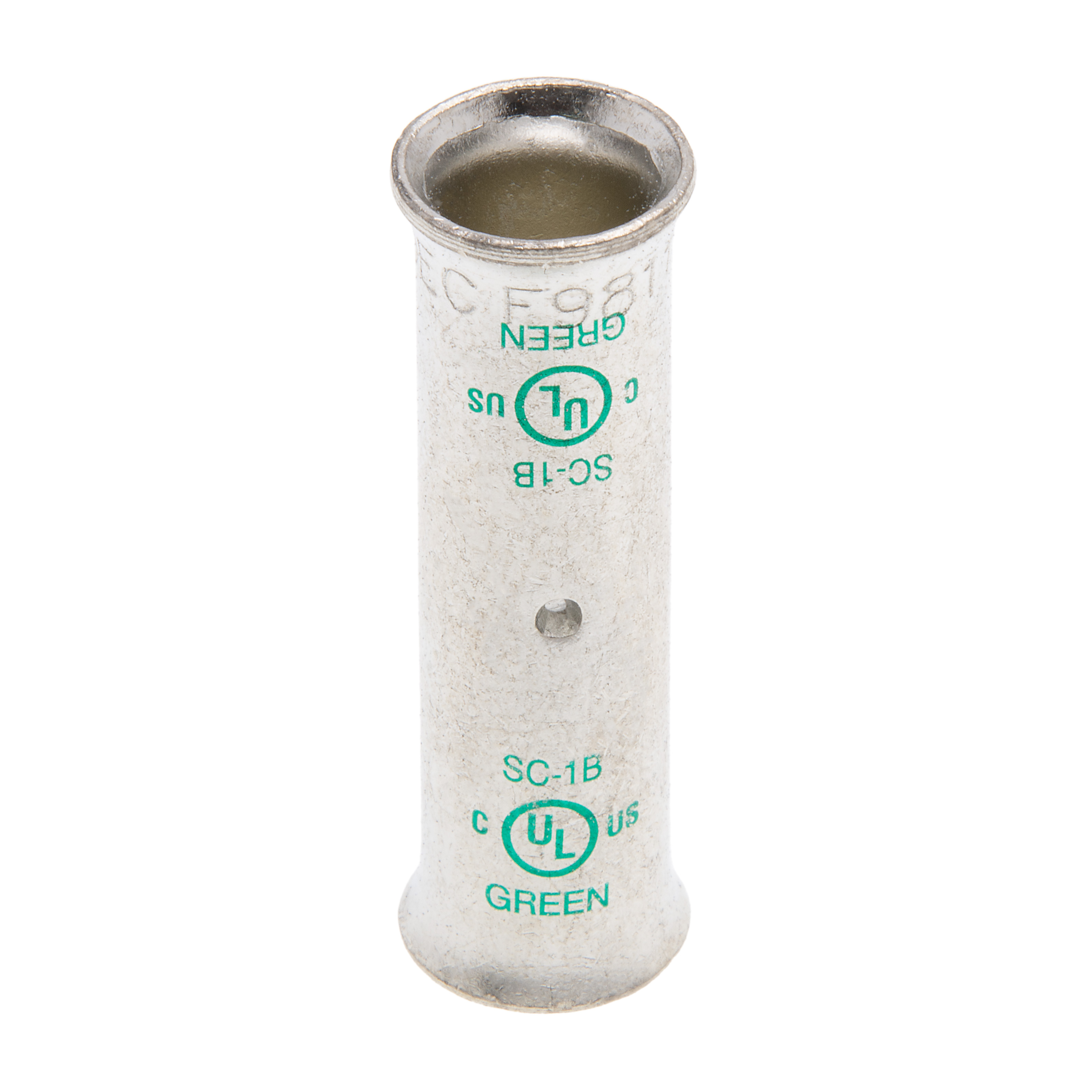

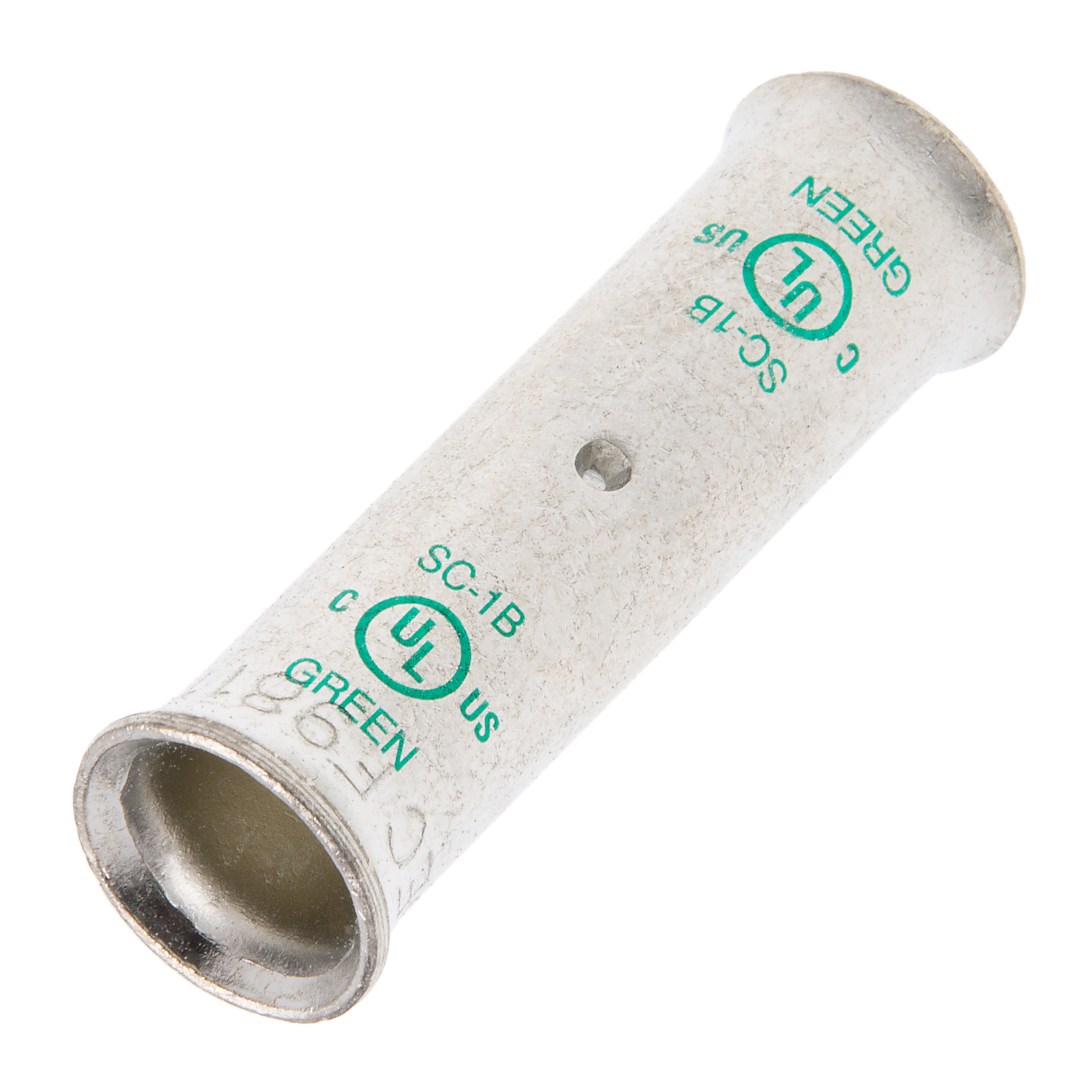

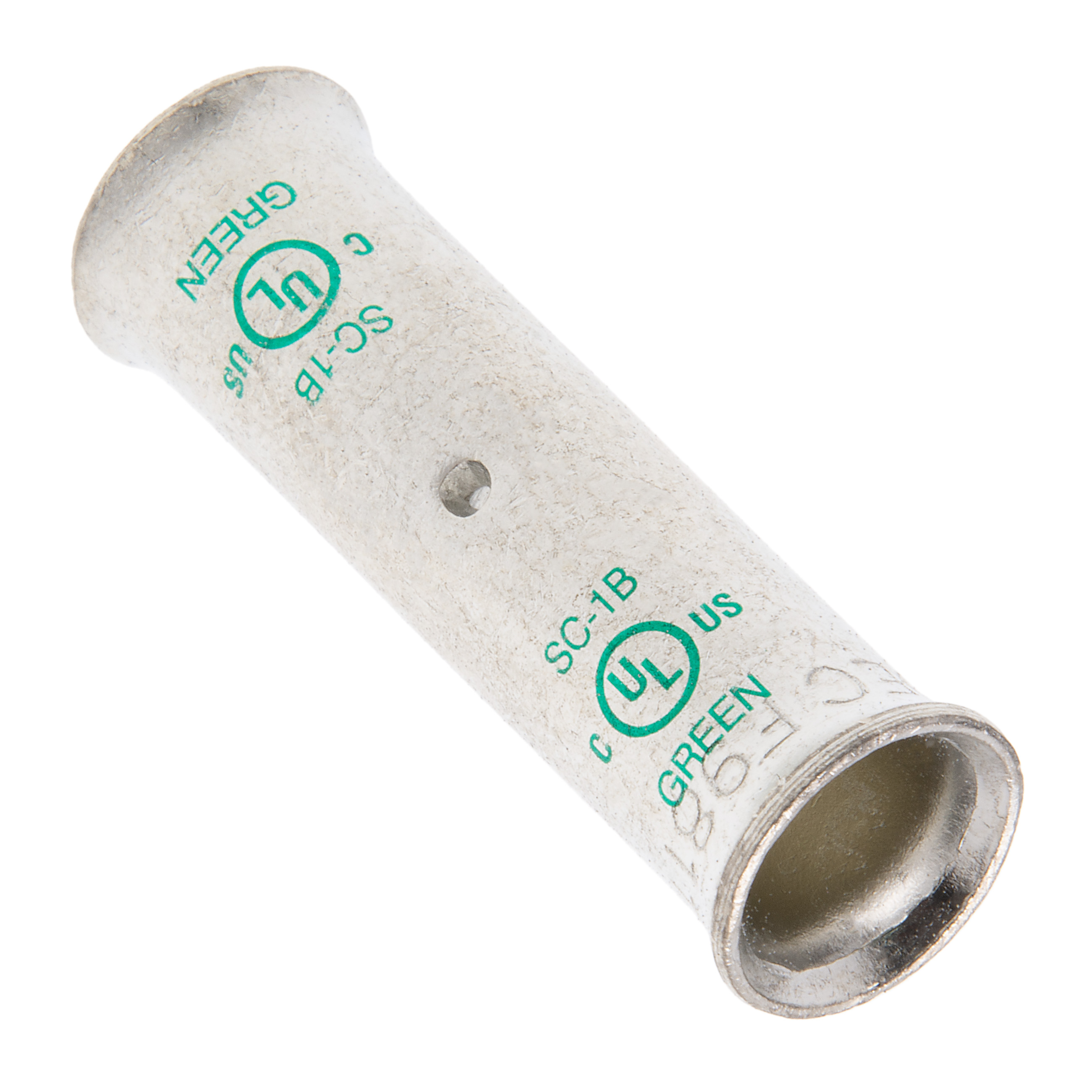

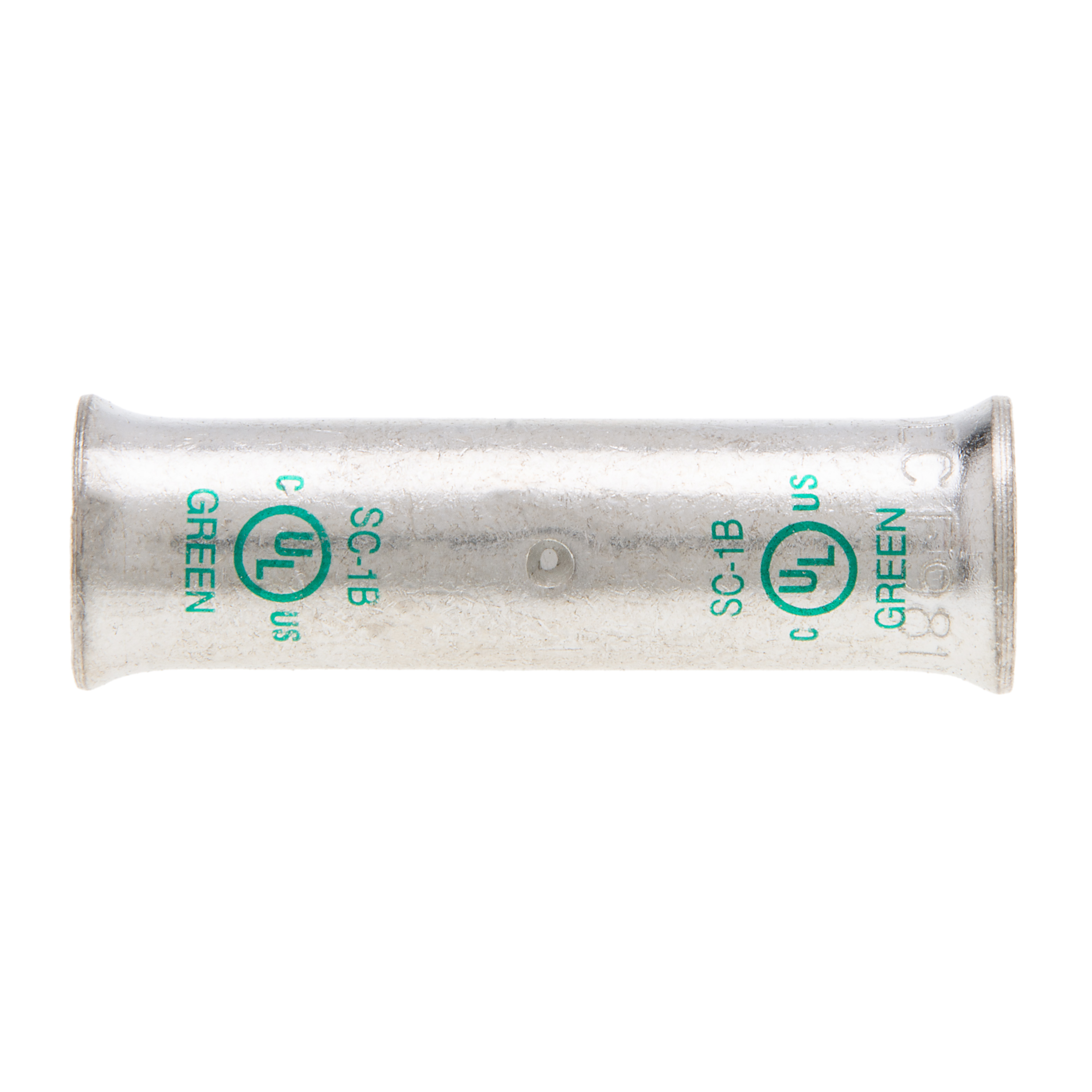

Polaris SC-1B CMP Splice Copper Short 1 AWG-Bell
#SC-1B
The POLARIS compression design creates a permanent, vibration-resistant connection that you can rely on with low contact resistance. Suitable for a wide range of applications, including power distribution, grounding and data transmission.
- High conductivity copper tubing and corrosion resistant tin-plated finish
- Positive center stop
- Flared openings at both ends to ensure ease of cable insertion
- Marked with die index and color coded
- UL486A Listed Wire Connector, cULus Listed 155027
Product Information
| Max Torque Value | 360.0 |
|---|---|
| Material | Copper |
| Finish | Tin Plated |
| Barrel Length | 1.7900 |
| Ul Standard | UL 486A |
| Assortment | Copper Compression Splices |
| Conductor Type | Copper |
| Conductor Cu Size Range | 250 MCM – 6 AWG |
| Voltage Rating | 600V |
| Conductor Al Size Range | 250 MCM – 6 AWG |
| Expanded Wire Range | 1 AWG – 6 AWG |
| Wire Cable Class | Class B,Class C |
| Die Color Code | Green |
| UNSPSC | 39121449 |
| Wire Range | 1 AWG |
| EAN/UCC-13 | 6.62381E+11 |
| GTIN | 6.62381E+11 |
| Prop 65 Flag | Yes |
| UPC | 662381336804 |
