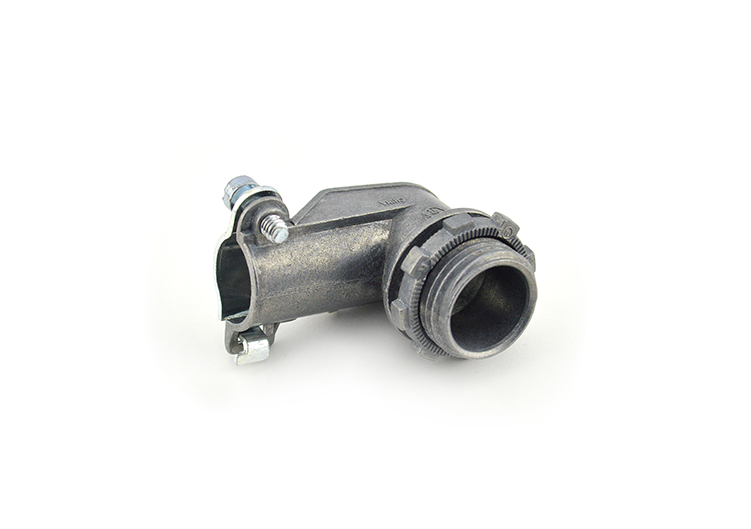

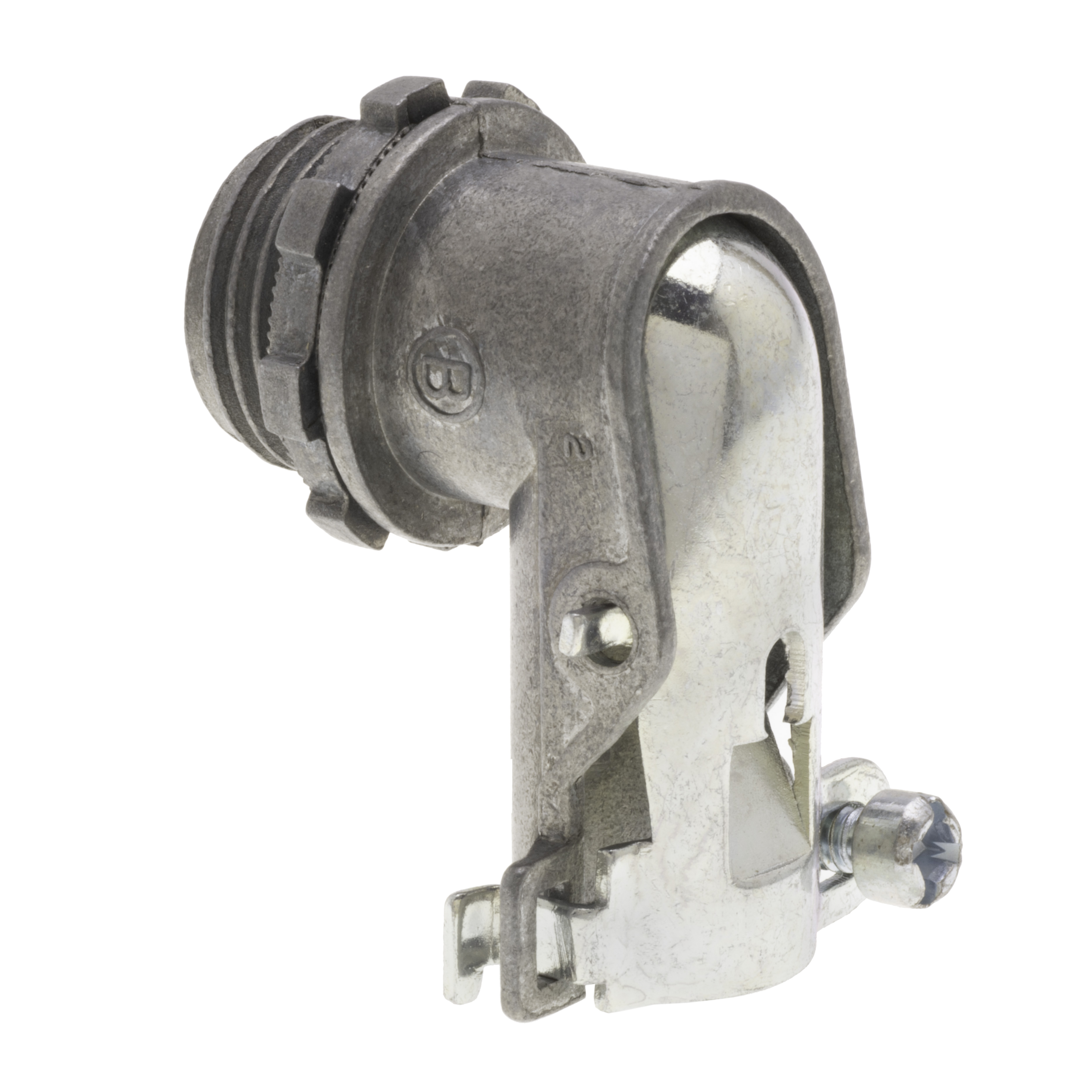

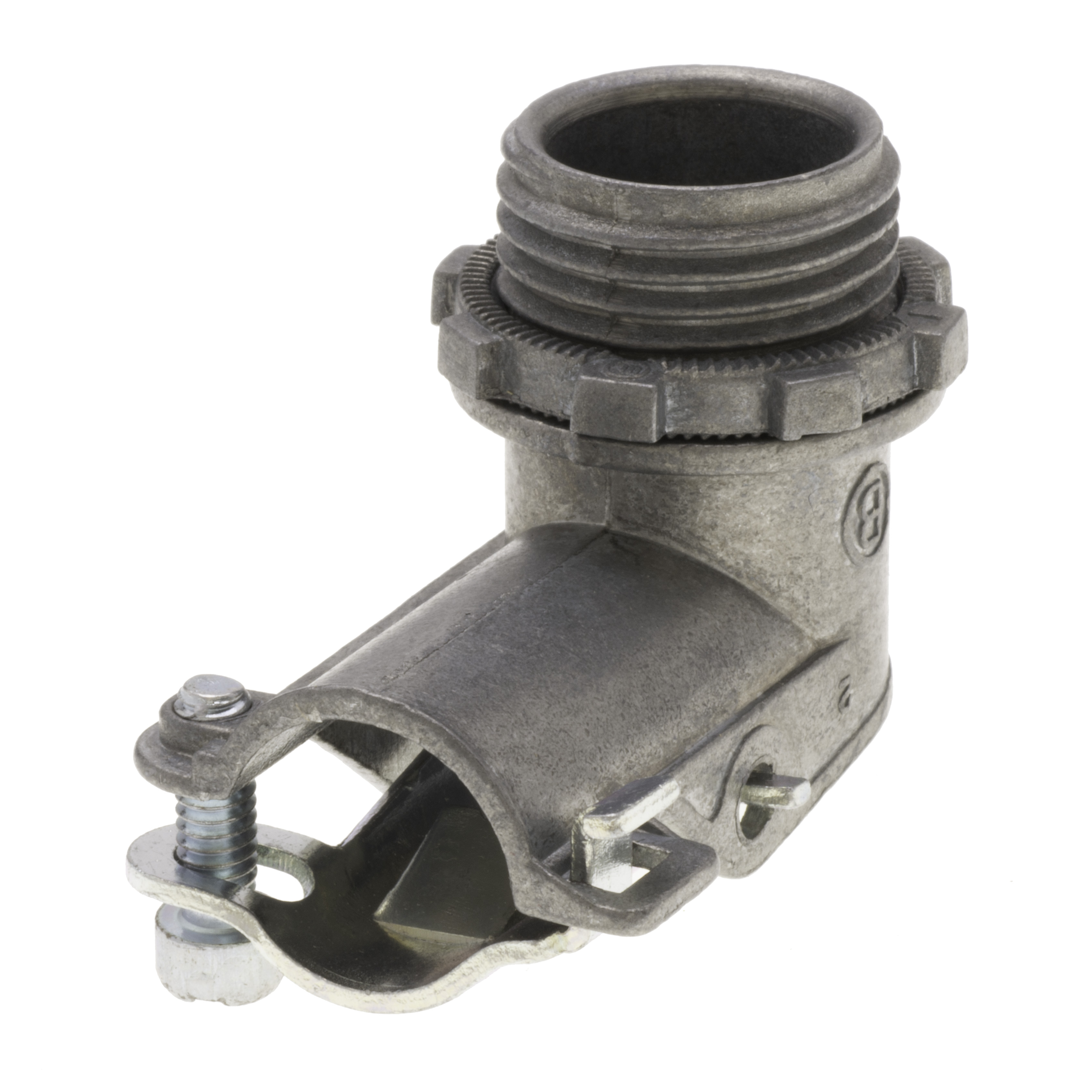

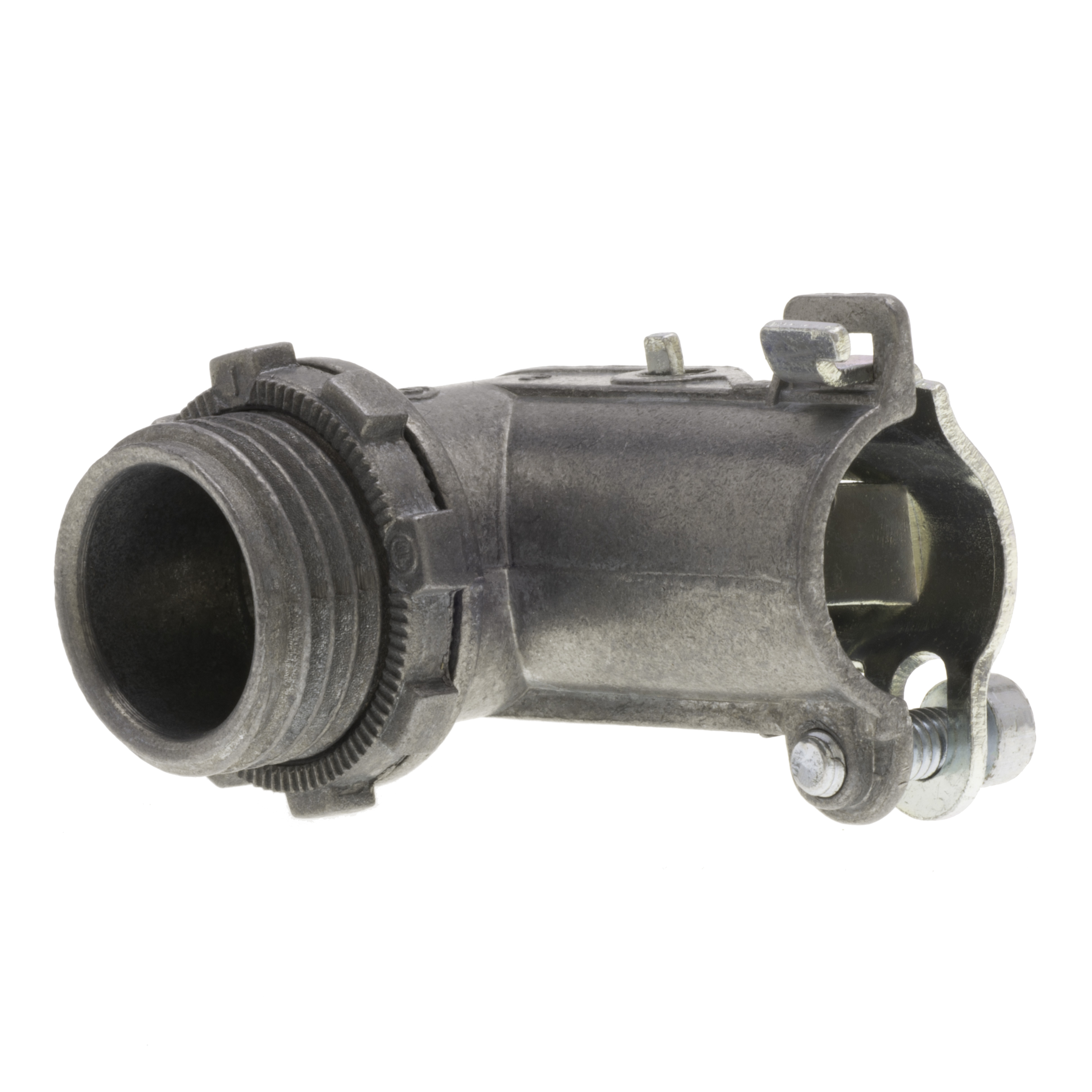

Single Screw 90 Degree MCI-A Cable Connector 3/8″, Die Cast Zinc

#802-MCIA2

Use Bridgeport 90 degree fittings to connect MCI-A cable to an electrical box or enclosure at a 90 degree angle. Using only a single screw, this fitting saves you time and money during installation.

  • Quick Installation: The single-screw strap design allows for a quicker installation than two-screw strap type fittings when installing MCI-A cable
  • 90 Degree Connections: Connector allows you to connect MCI-A cable to an electrical box or enclosure when approaching the knockout from a perpendicular direction
  • Zinc Body: Corrosion resistant die cast zinc connectors feature a precise fit and finish for a trouble-free performance, ease of assembly and excellent corrosion resistance
  • Professional Performance: All Bridgeport fittings are NRTL listed and meet the stringent bonding and grounding requirements of UL-514B
  • Buy American: When you buy Bridgeport, you buy from an American manufacturing company

Product Information

Material Zinc Die Cast, Steel Cover
Pack Qty 250
GTIN 00781747758026
UPC 781747758026
EAN 0781747758026
UNSPSC 39121419
Origin Country CN
Ul Standard UL-514B
Ul File No E202876
Application Single screw 90 degree locknut connector. Designed for use with 14/4 (.42 min) to 10/3 (.55 max) diameter MCI-A and Aluminum MCI-A Cable.

Resources

Documents

  • BPT_MCPRODUCTS_CCF_PRODBRO_Digital.pdf Download
  • BPT_802-MCIA2_ProDraw.pdf Download
