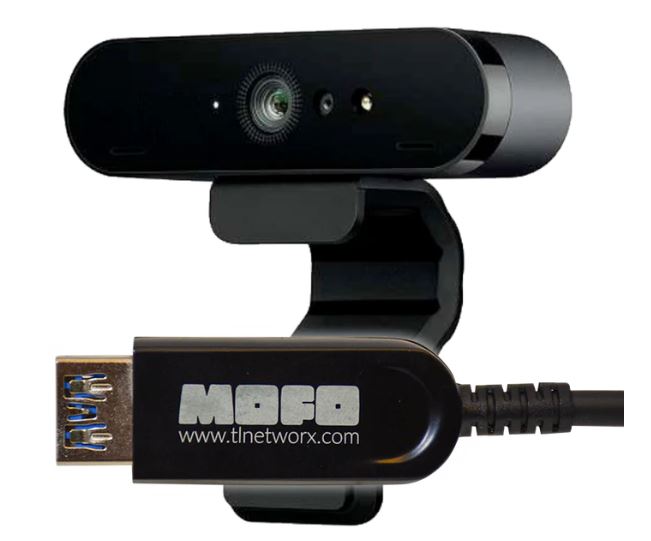

Extend USB Camera Distance with MOFO™ Cables
Length matters, especially when connecting video cameras and other USB devices. High-speed (USB 2.0) and full-speed (USB 1.1) devices feature a normal maximum cable length of 5m and SuperSpeed (USB 3.0) devices feature a normal cable length of 3m. That leaves many applications short — especially with the proliferation of video conferencing, huddle rooms and wall-mounted cameras.
Media over Fiber Optic™ USB cables extend the length of SuperSpeed USB 3.0 signals up to 30m (100 feet). No drivers or power is required — the cable is completely powered from the USB connection.
MOFO™ cables feature a male USB connector on the host side (typically a PC) and a female USB connector on the client side (typically the camera).
Plus, MOFO™ cables are built with four strands of re-terminable multimode fiber allowing cable runs to be upgraded and re-purposed in the future. Simply cut the cable and re-terminate using standard fiber optic tools and connectors.
Download the spec sheet and brochure.
USB 3.0
| Specifications | |
| USB Version | USB 3.0 / SuperSpeed |
| Max Bandwidth | 5G |
| Construction | 4 Strand multimode OM3 + 8 conductor copper Plenum rated jacket / black color 4mm jacket diameter Kevlar strength member |
| Power | 5V (4.75 min – 5.25 max) |
| Min Bend Rating | 48mm / 1.8 inches |
| Max Pull-Strength | 70 lbs. |
| Environmental | 0 degrees C to 50 degrees C 85% humidity (non-condensing) |
Features
- Fiber-based USB cable
- Male Type A USB connector to Female Type A USB connector
- Compatible with USB 3.0 (SuperSpeed) devices
- Not compatible with USB 1.1 (Full-speed) or USB 2.0 (High Speed) devices
- No power required (completely powered by USB bus)
- Plug-and-play – no drivers required
- Directional operation – clearly marked source and display headshells
- Interference-free performance
- Four strand multimode OM3 construction – supports re-termination in the field
