Pass-Through RJ45 Connectors Designed for 10G, PoE+ & Video
Pass-through RJ45 connectors have a bad reputation thanks to early designs that didn’t support HDBaseT video or PoE voltage. Platinum Tools’ patented ezEX RJ45 connectors solve the design limitations that plague other pass-throughs, ensuring fast and reliable terminations, clean voltage delivery and high data bandwidth on every installation.
Most pass-through RJ45 connectors have two fatal flaws that render them problematic in the field. First, traditional connectors rely on a straight alignment RJ45 conductor path. This isn’t a problem with the small conductors inside Cat5 and Cat6 cables; however, voltage crosstalk can occur within the thicker conductors in Cat6A, Cat7 and most other shielded RJ45s.

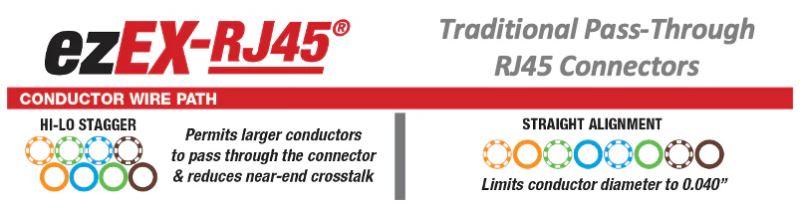

ezEX connectors solve this problem by staggering the conductor wire path in a patented Hi-Lo pattern.

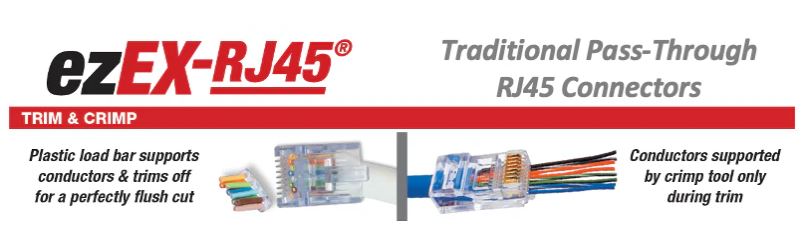

Second, the connector and crimp tool design for traditional pass-through RJ45s doesn’t always trim the conductors flush during termination, allowing for voltage bleed across strands. ezEX connectors solve this problem with a patented internal support system, ensuring perfectly flush cuts and signal integrity.

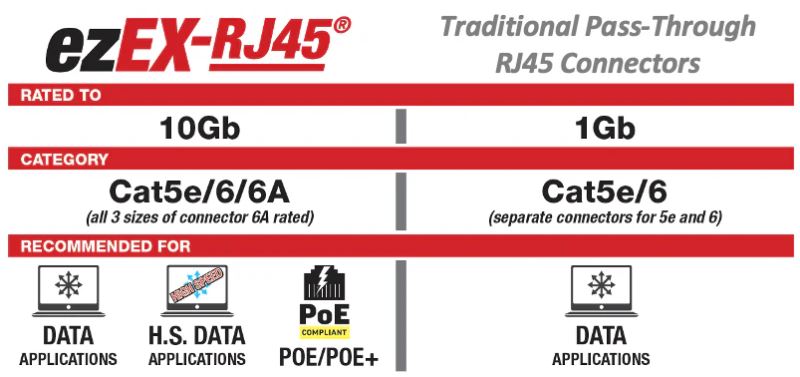

Conductor installation integrity is paramount for 10G bandwidth and PoE/PoE+ voltage delivery, which includes HDBaseT and Video over IP electronics. media converters, network switchers and twisted pair extenders all benefit from Platinum Tools’ ezEX connectors.
ezEX Features
- Hi-Lo stagger to isolate each conductor
- Simple one piece/pass through design
- 50 micron gold plated contacts
- Options for UTP and STP (both internal and external grounds)
- Solid or Stranded 24-22 AWG
- TIA, TAA, RoHS, UL & FCC compliant
- Made in the USA
- US Patents 9,543,729 B2; 10,116,082 B2; & 10,573,990 B2. Foreign patents.
