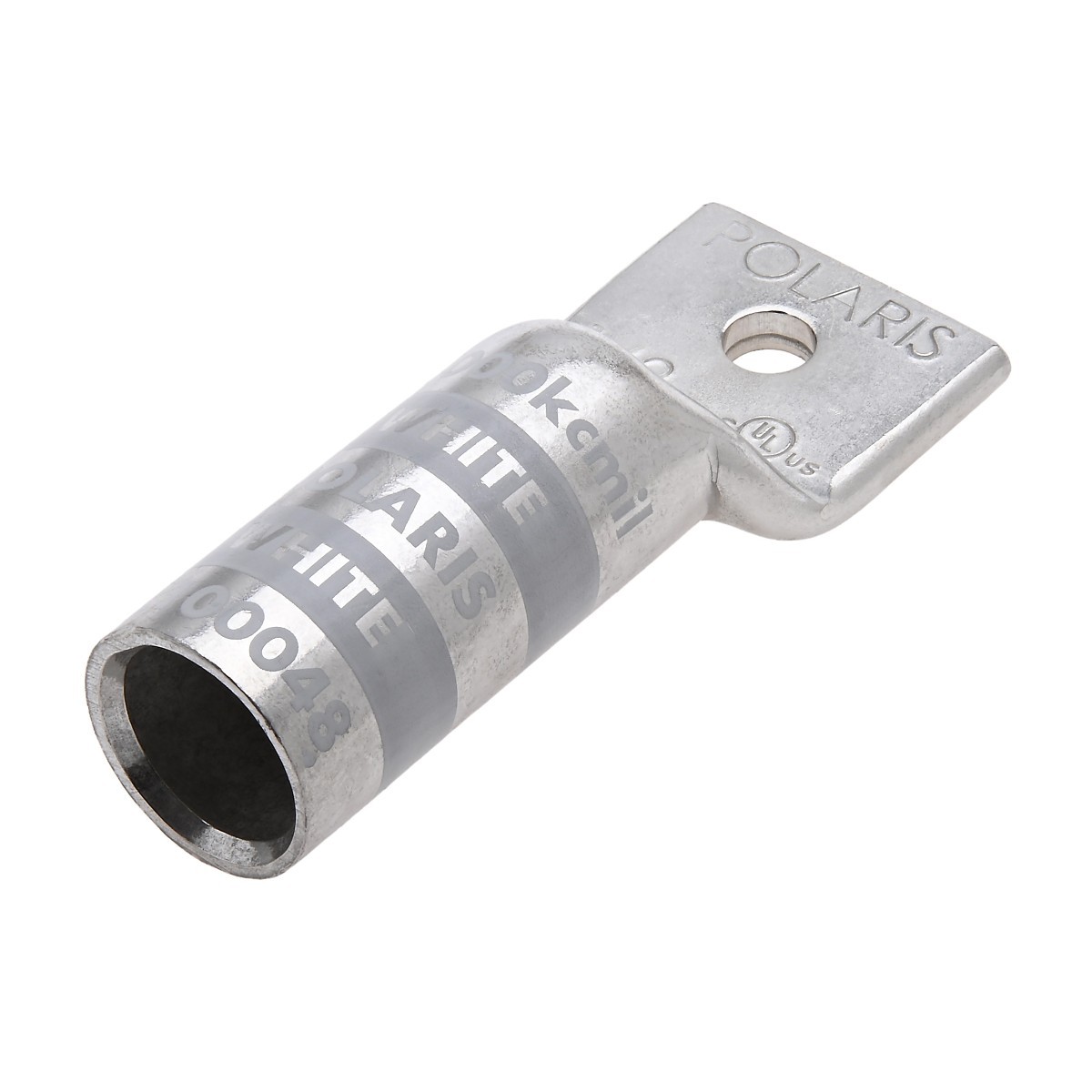

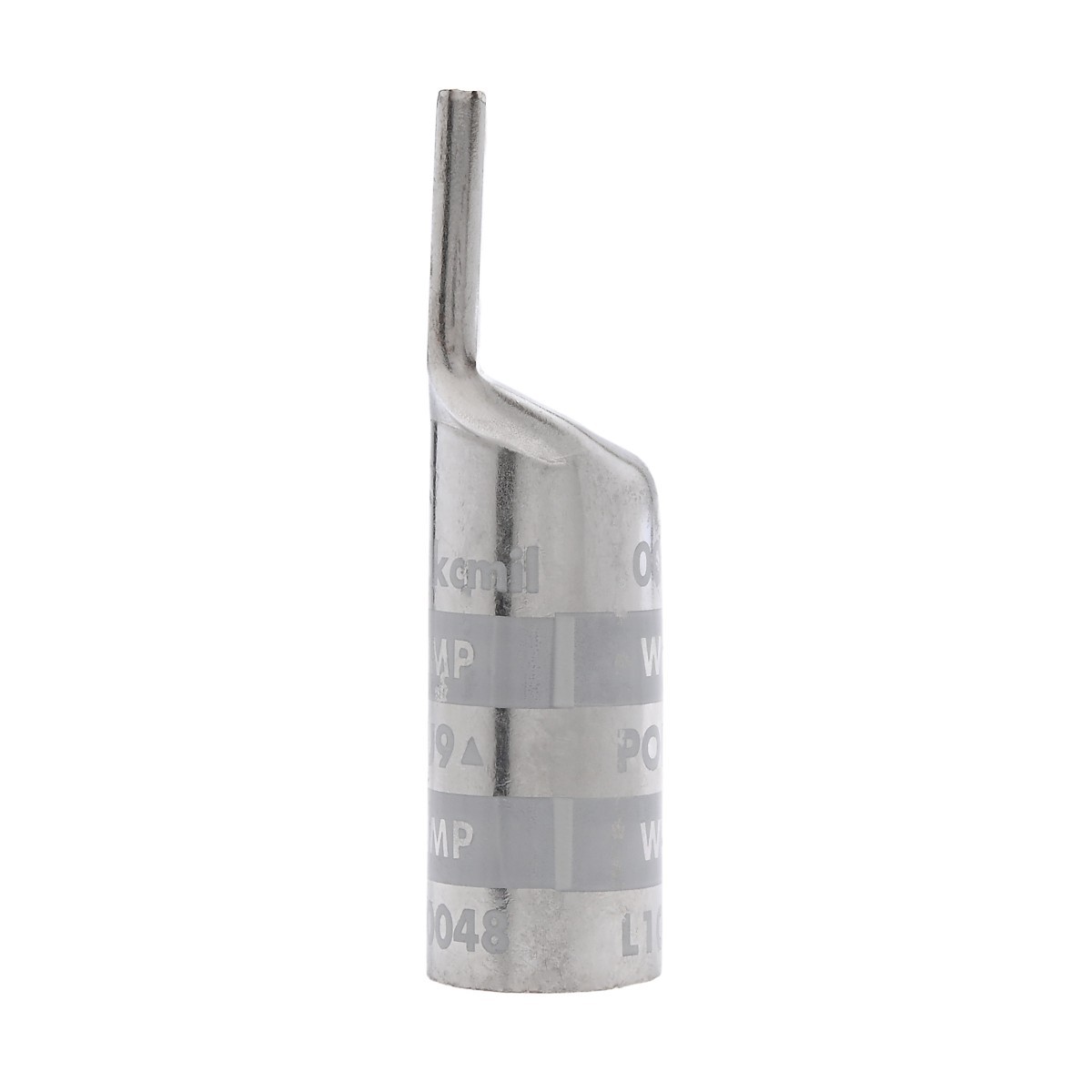

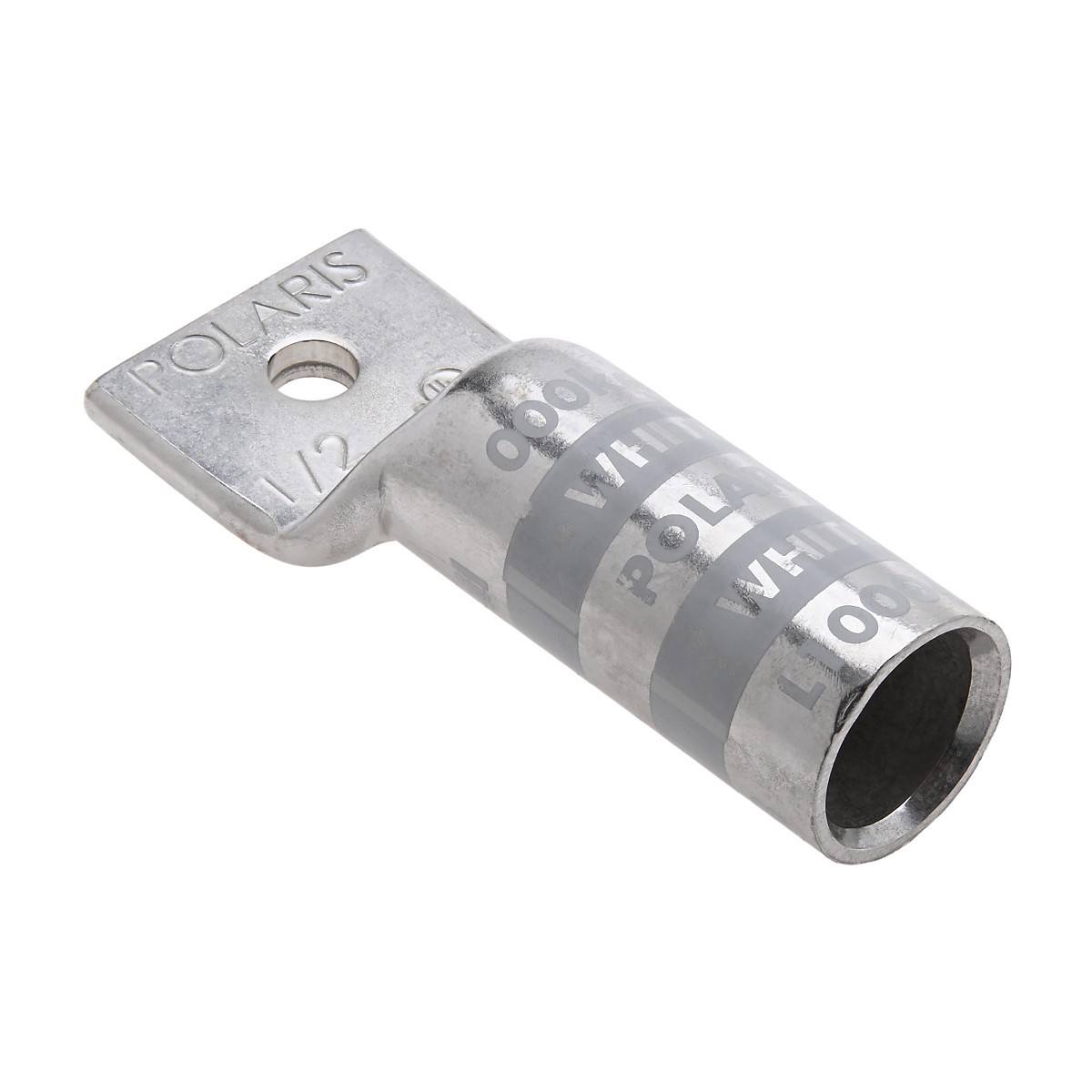

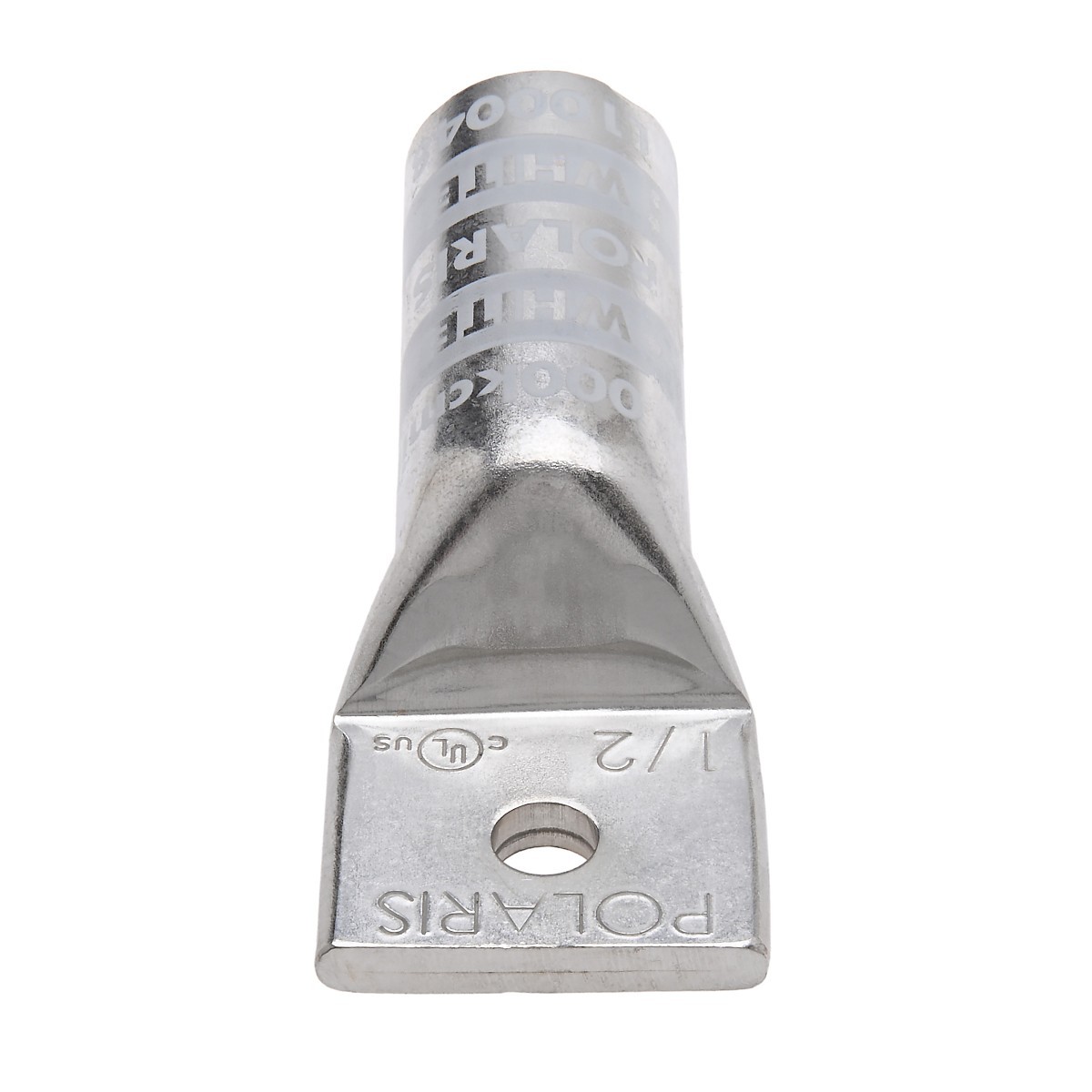

Polaris L100048 1000 MCM Cu Compression Lug, 1/2 IN 1 Hole
#L100048
Terminate with confidence using Polaris lugs in a wide range of applications, including power distribution, grounding and data transmission. Each connector is clearly color-coded and can be affixed with any standard crimp tool.
- High conductivity aluminum tubing and corrosive resistant tin-plated finish
- Marked with die index and color coded
- Flex rated for use with K, H, G, I, M and DLO cable
- UL/cULus listed and rated for B/C class wire
- UL listed to 35kV when properly installed to cable manufacturer’s specifications,
Product Information
| Die Color Code | White |
|---|---|
| Assortment | Copper Compression Terminations |
| Material | Copper |
| Finish | Tin-Plated |
| Mounting-bolt-size-in | 1/2 |
| Barrel Length | 3.1500 |
| Tang Length | 1.65 |
| Tang-thickness-in | 0.33 |
| Voltage Rating | 35kV |
| Conductor Type | Copper |
| Expanded Wire Range | 1000 MCM – 750 MCM |
| Wire Cable Class | Class B,Class C,Class K,Class G,Class H,Class I,Class M,Class DLO |
| Prop 65 Flag | Yes |
| UPC | 662381998866 |
