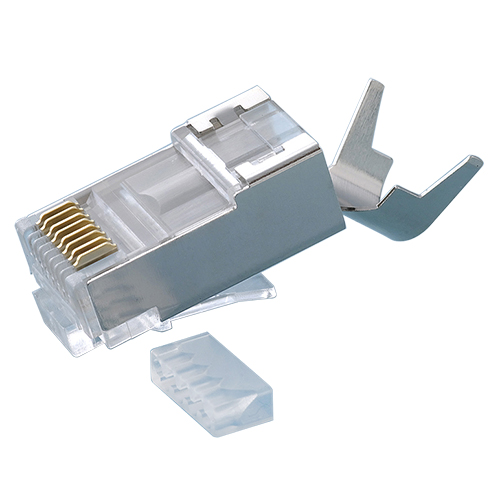

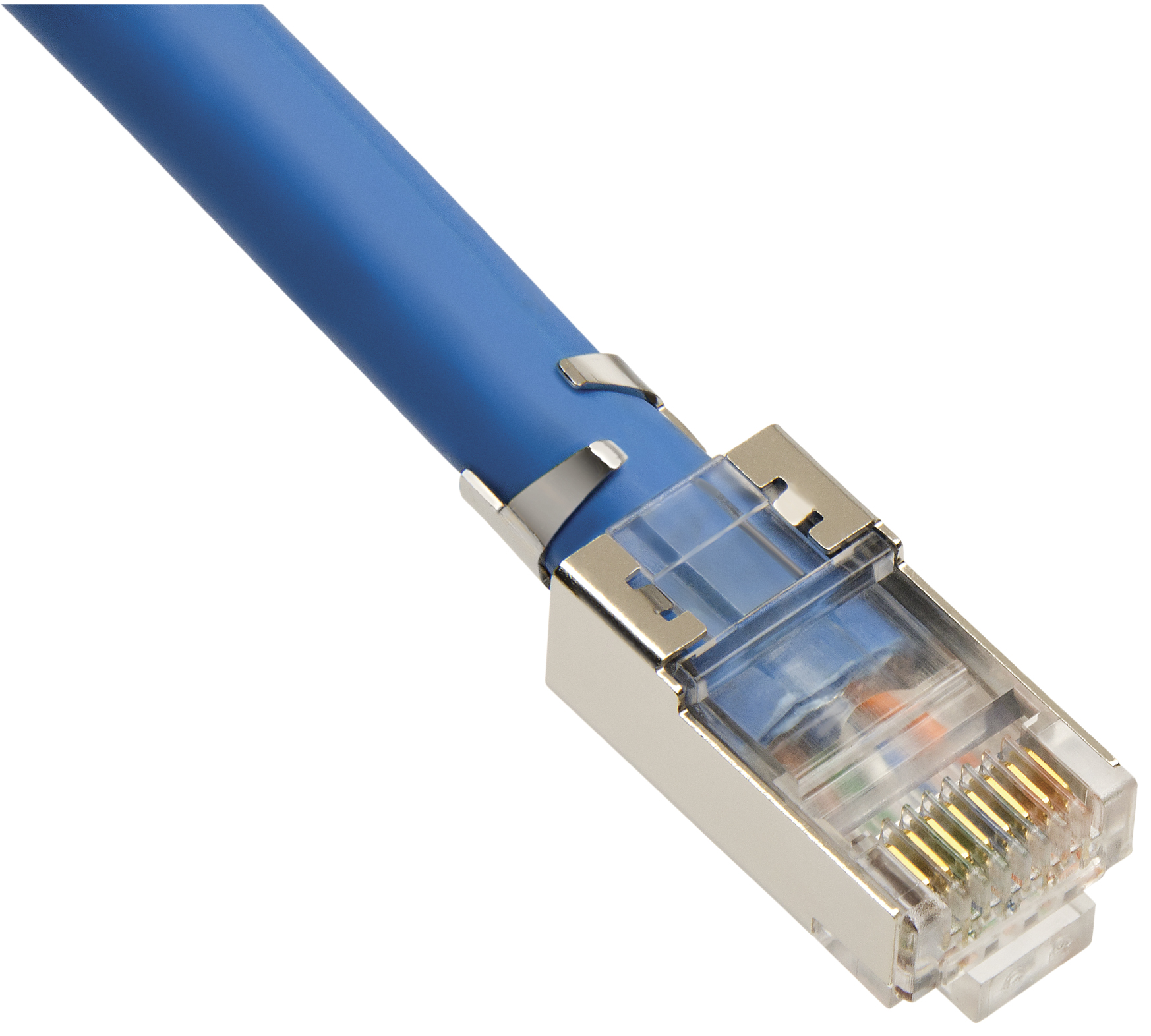

10G RJ45 CAT6A Modular Plug, 8P8C, Shielded with External Ground, Round Stranded Cable — 100pcs in Bulk Bag

#106195

10G RJ45 CAT6A Modular Plug, 8P8C, Shielded with External Ground, Round Stranded Cable — 100pcs in Bulk Bag

  • RJ45 CAT6A modular plug for use with round stranded cable
  • Shielded with external ground
  • Designed for and compatible with both shielded and unshielded cabling
  • 2-piece system with plug and liner
  • 3 prong contact design
  • Maximum cable jacket outer diameter of 0.335" (8.5mm)
  • Maximum conductor outer diameter of 0.053" (1.35mm)
  • Individual conductor outer diameter range of 0.042” - 0.053” (1.07mm-1.35mm)
  • Rated for wire guages from 24 - 22AWG
  • Gold plated contacts provide reliable performance and long life
  • UL94V-2 flammability rating
  • RoHS compliant
  • Recommended crimp tools: 12516 or 12515
  • Spare liners and spacers available (106194)

Product Information

Color Metal
GTIN 00849160008354
UPC 849160008354
UNSPSC 39121444
Origin Country TW
Certifications RoHS and UL
Cable Type CAT6A
Connector Style Shielded
Connector Termination Crimp
Connector Type RJ45
POE 30W

Resources

Documents

  • 15253901301495582997RJ45-Cat6A-10Gig-Shielded-Product-20Flyer_v5-2.pdf Download
