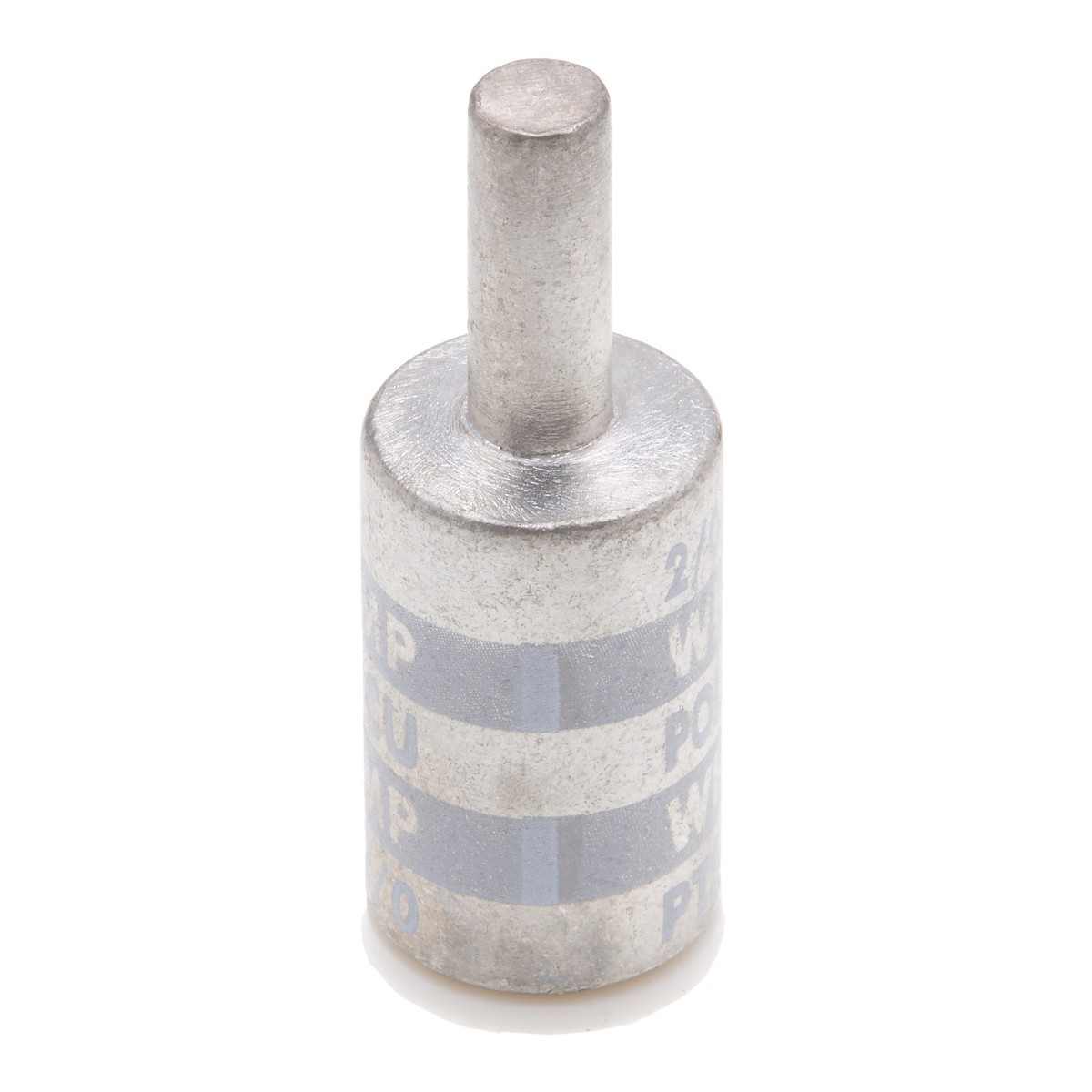

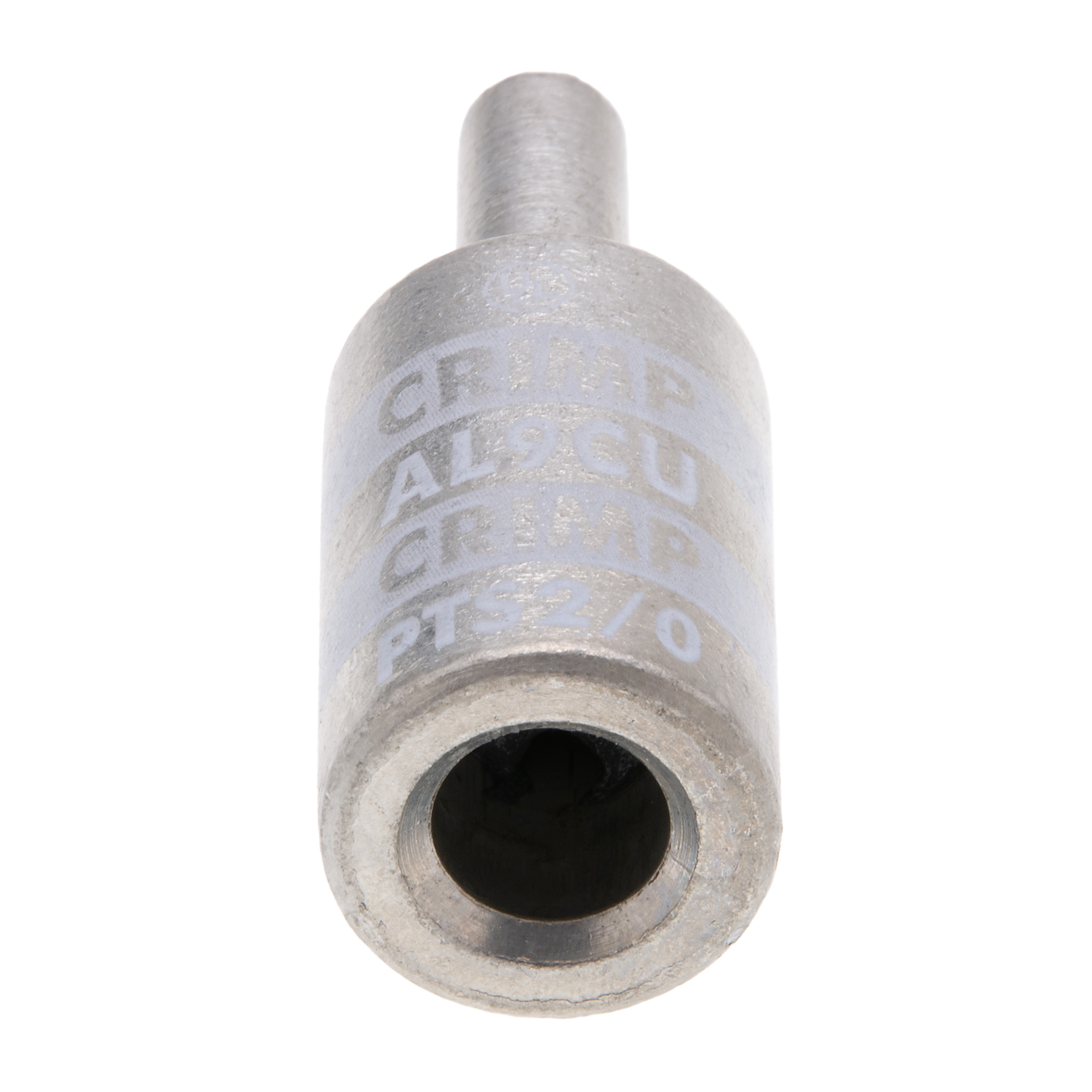

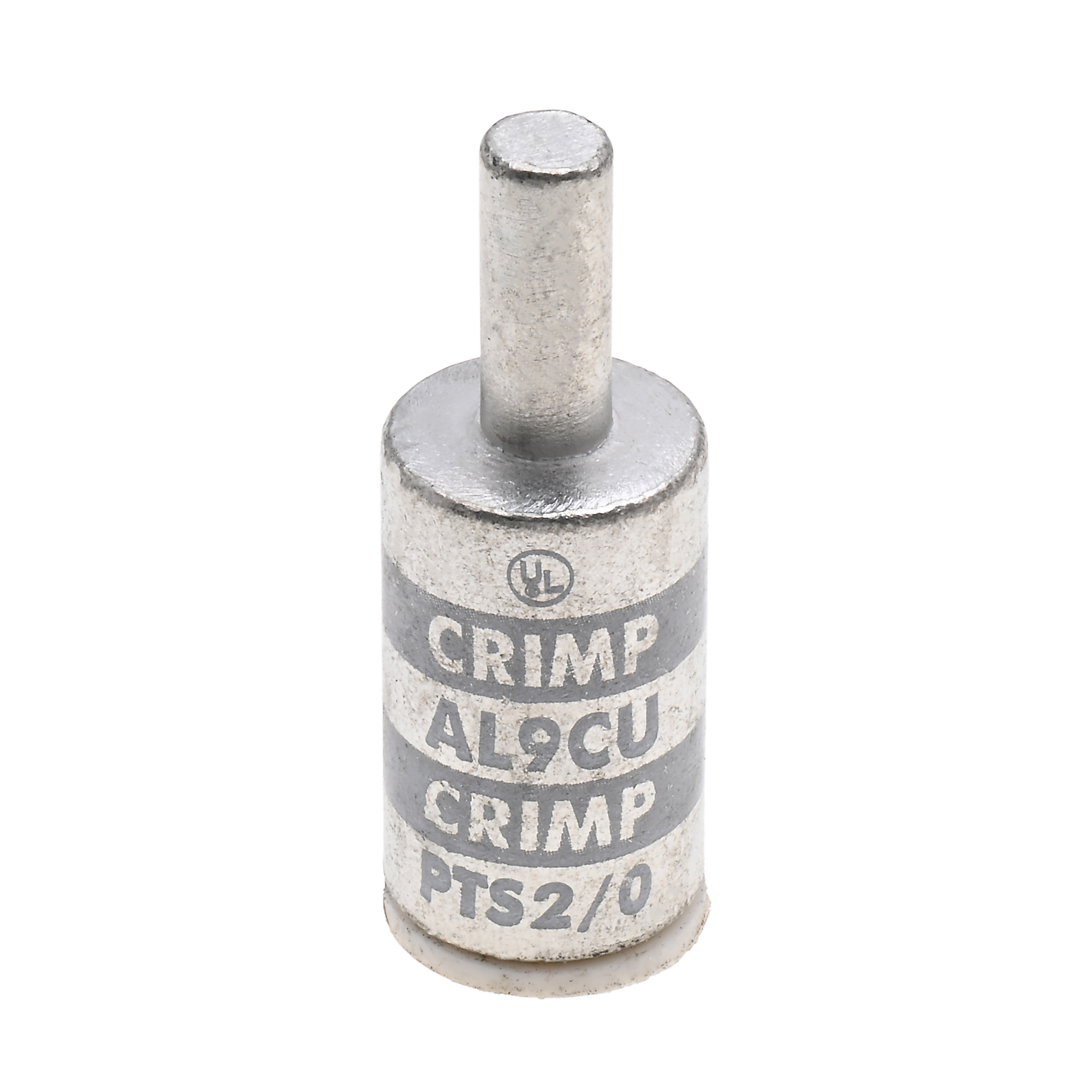

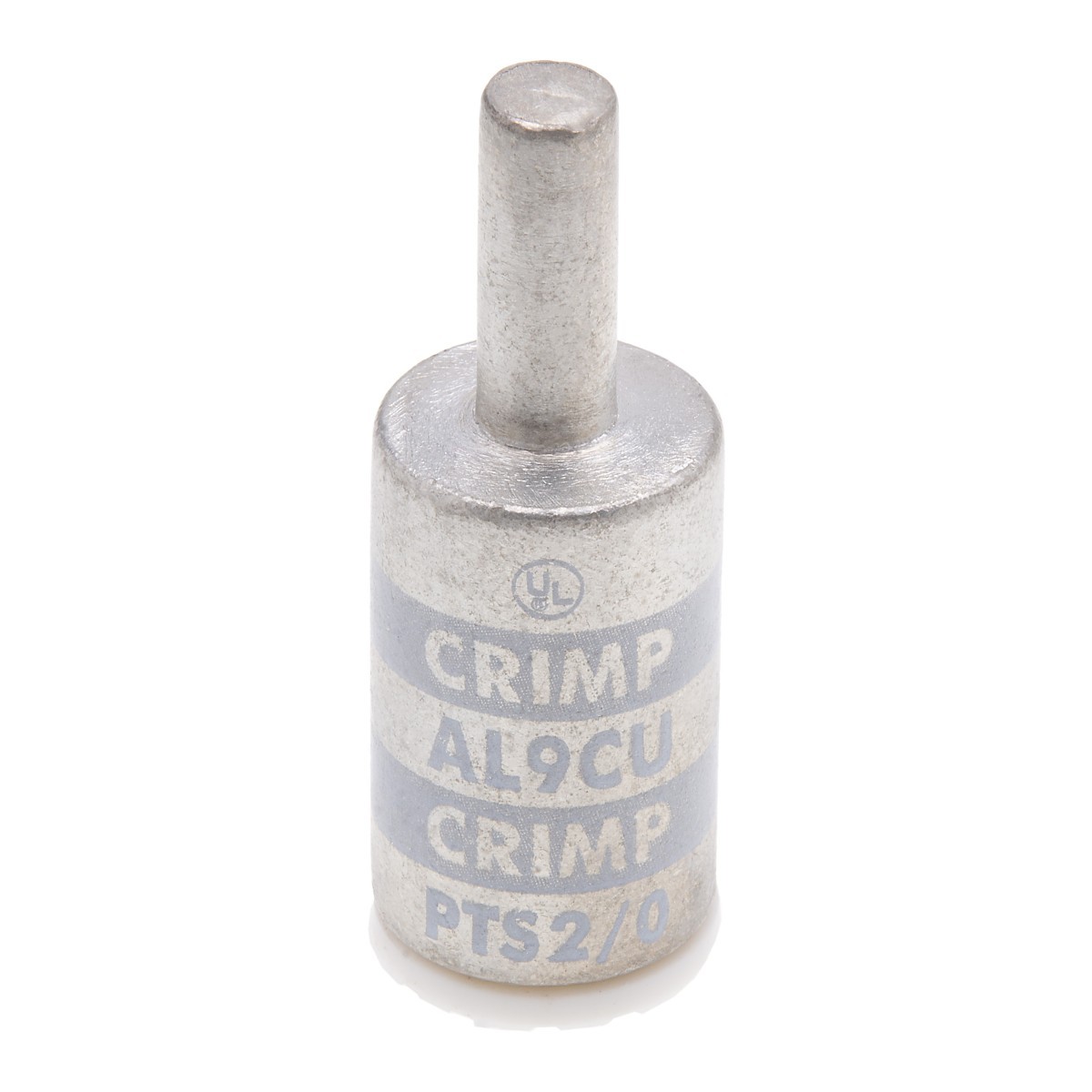

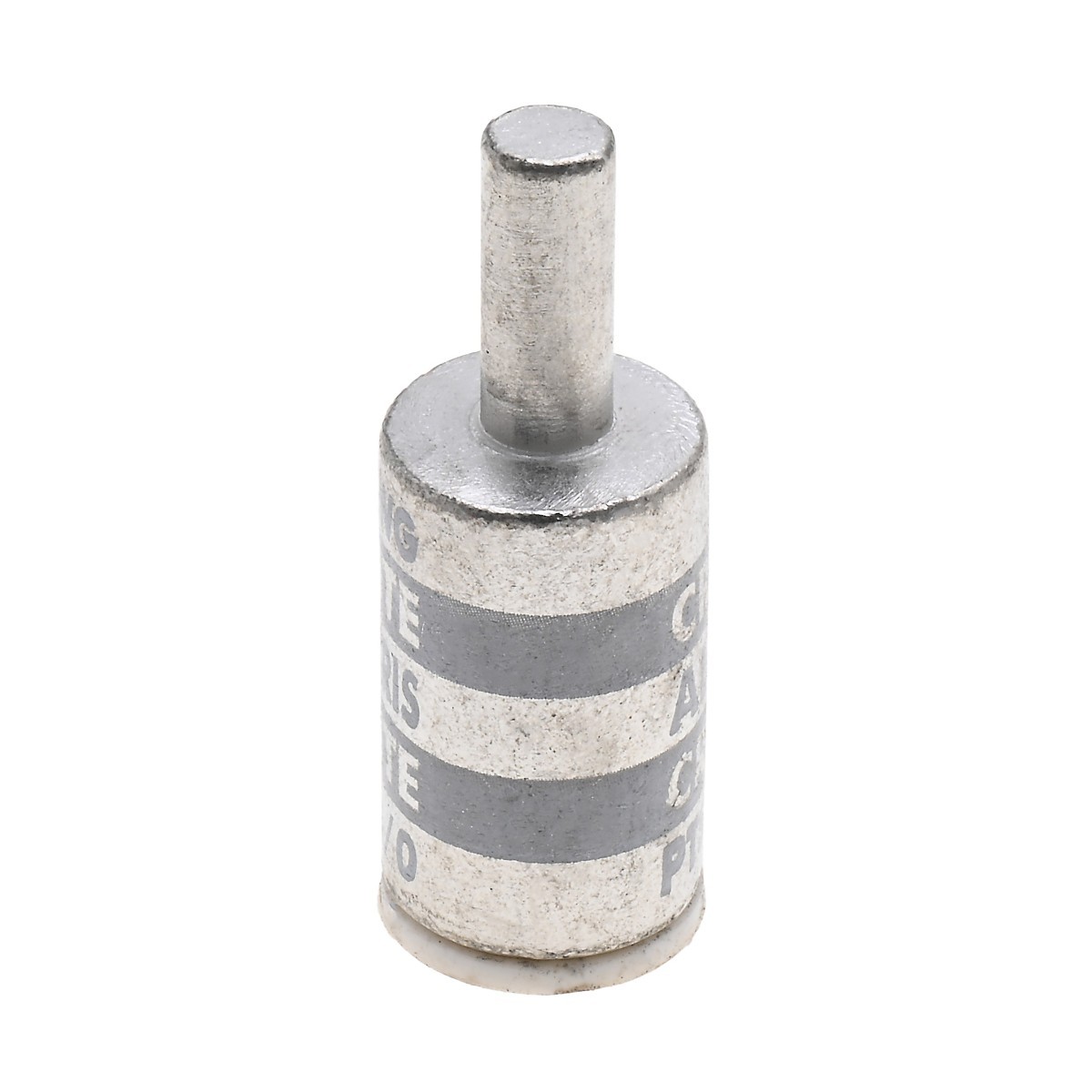

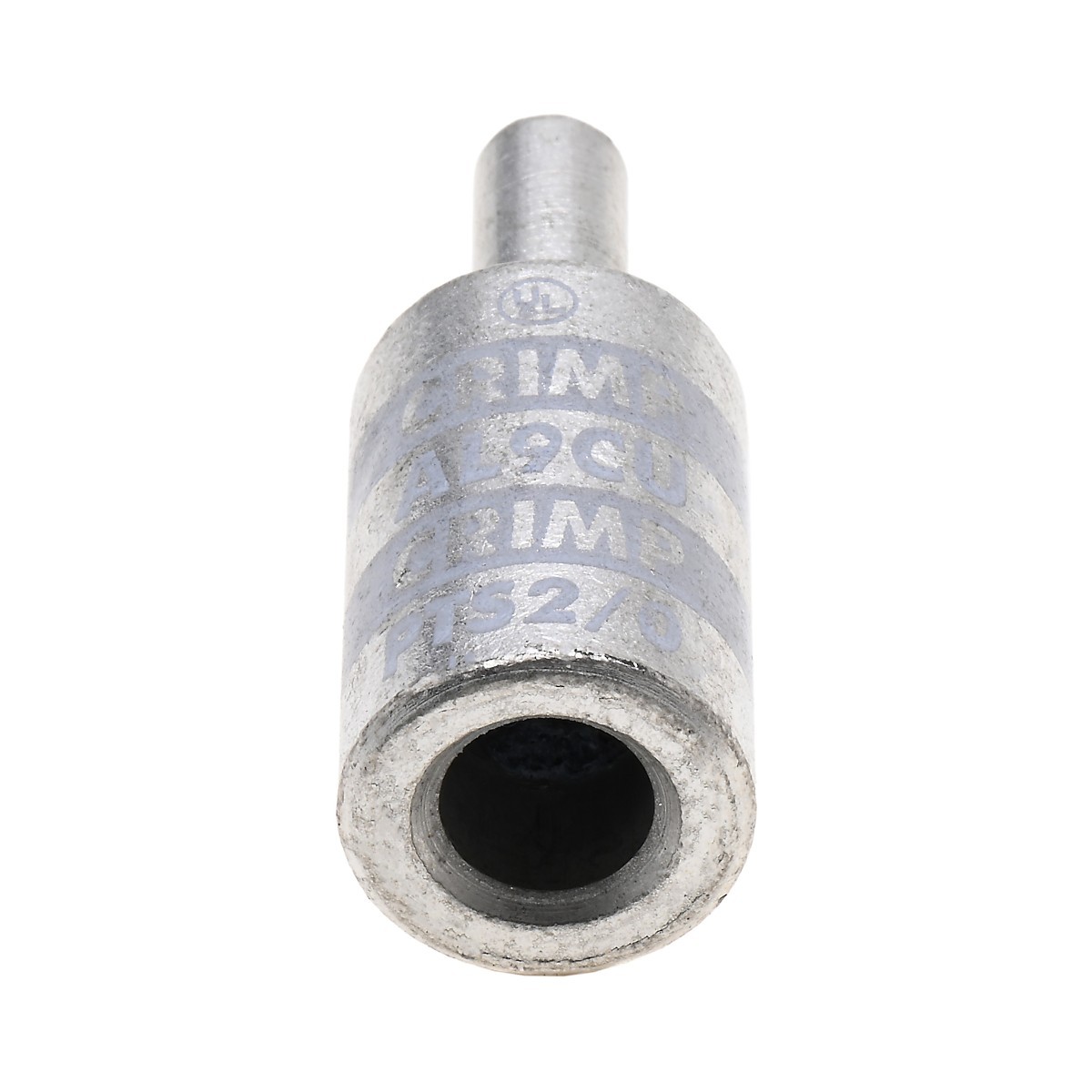

Polaris PTS2/0 Aluminum, Tin Plated Pin Terminal, 2/0 Awg Wire Size, 1 Awg Solid Pin (Al/Cu)
#PTS2/0
These center aluminum pin terminals are designed to facilitate termination of both aluminum and copper conductors. The POLARIS compression design creates a permanent, vibration-resistant connection that you can rely on with low contact resistance.
- Dual rated for both aluminum and copper conductors
- Solid aluminum, tin plated pin providing high conductivity and corrosion resistance

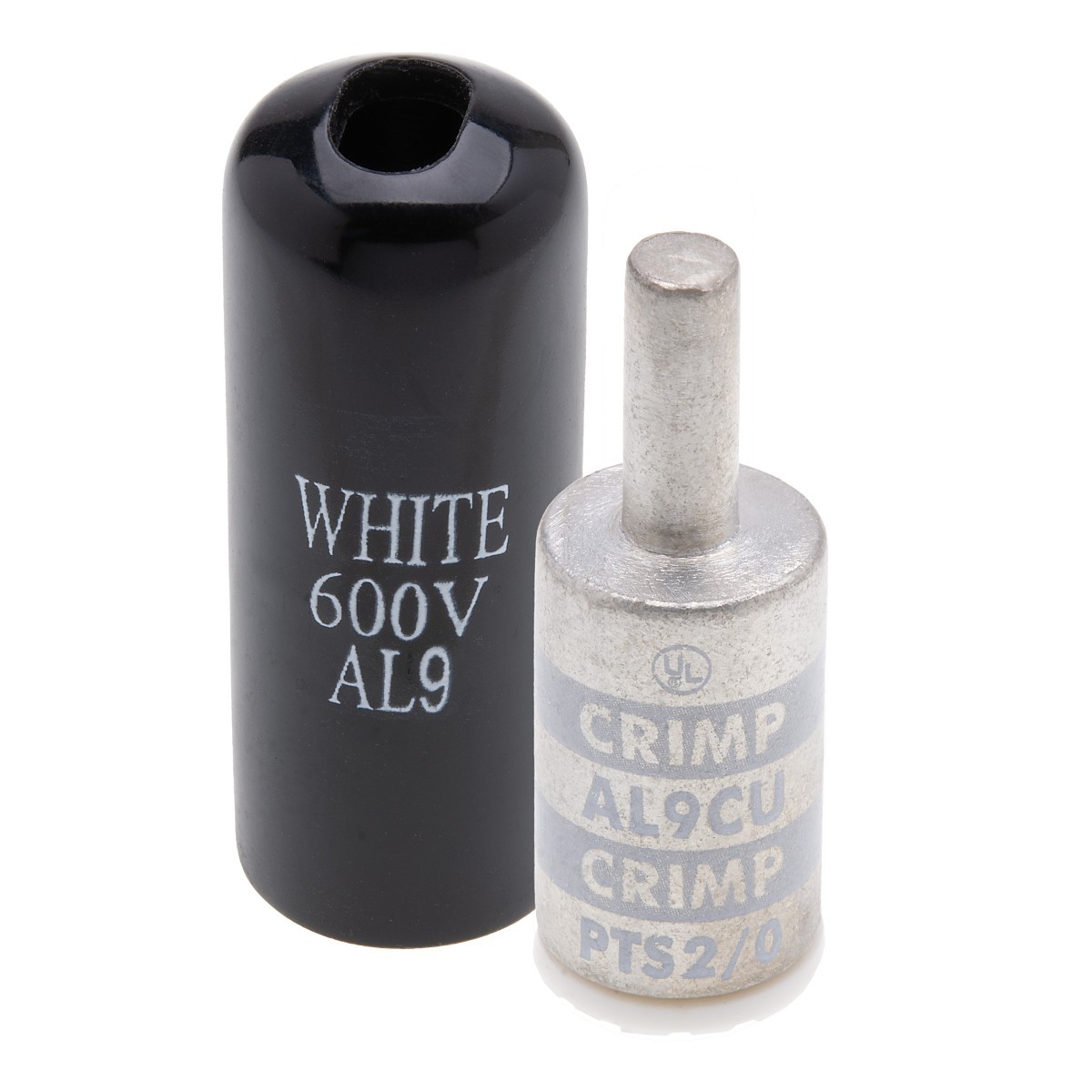

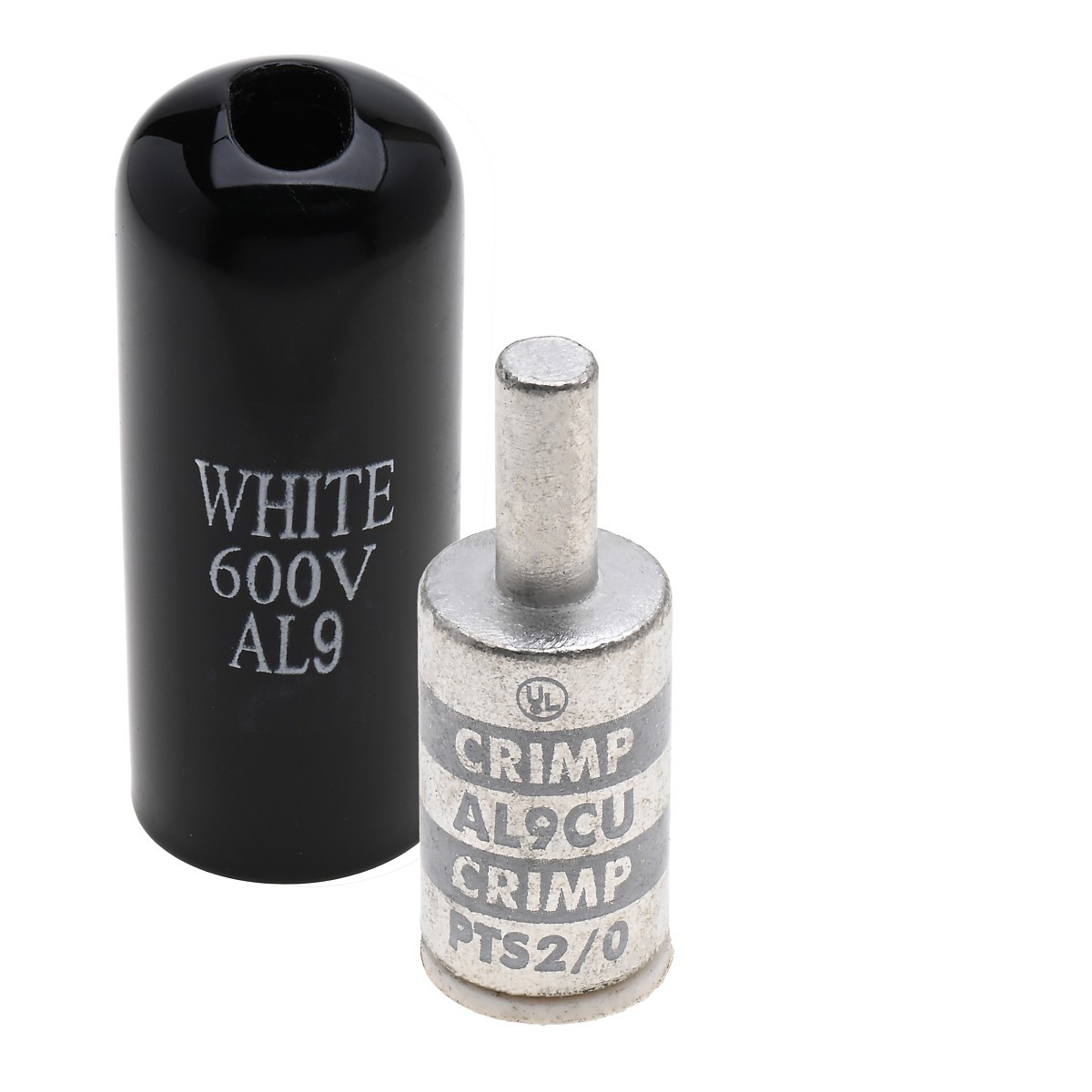

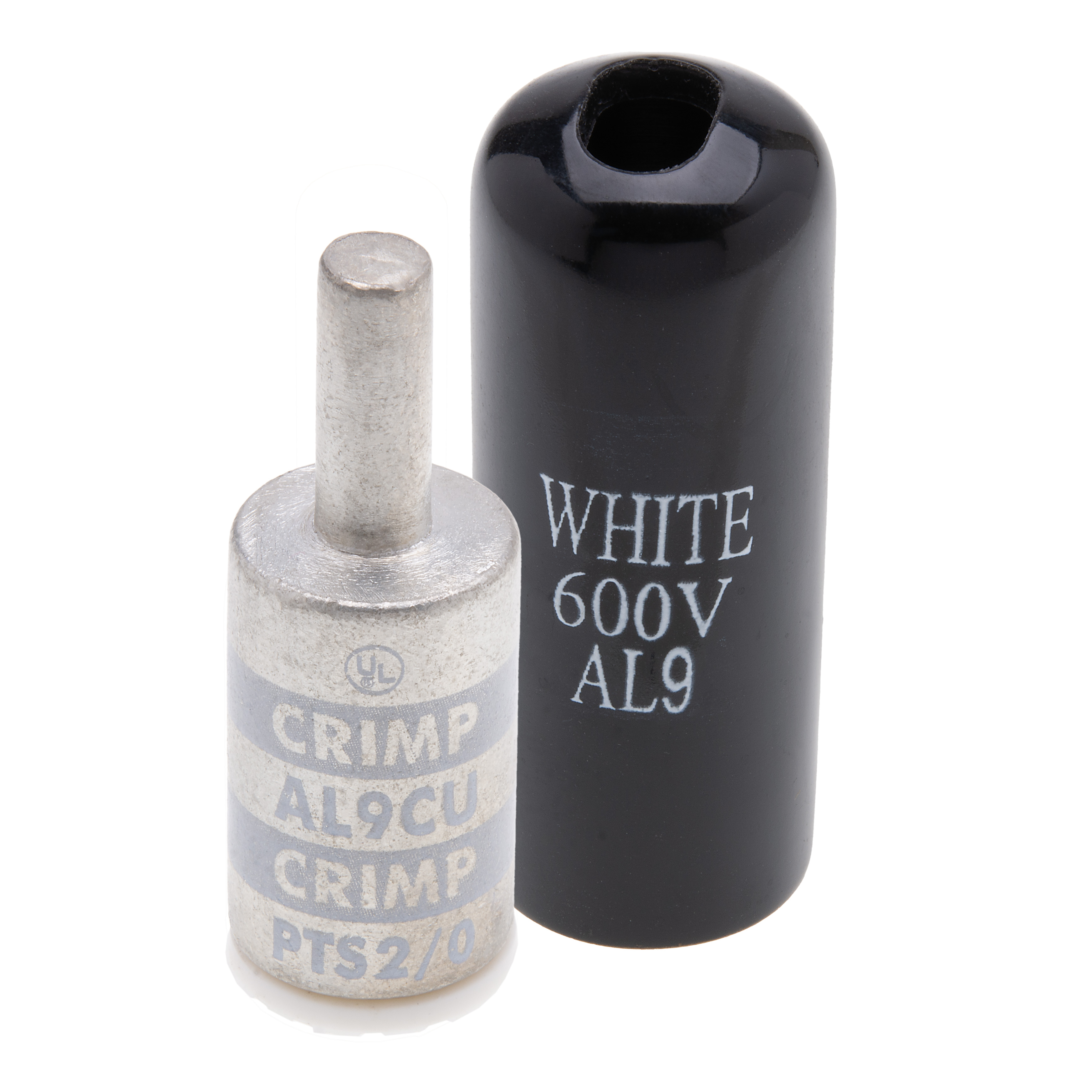

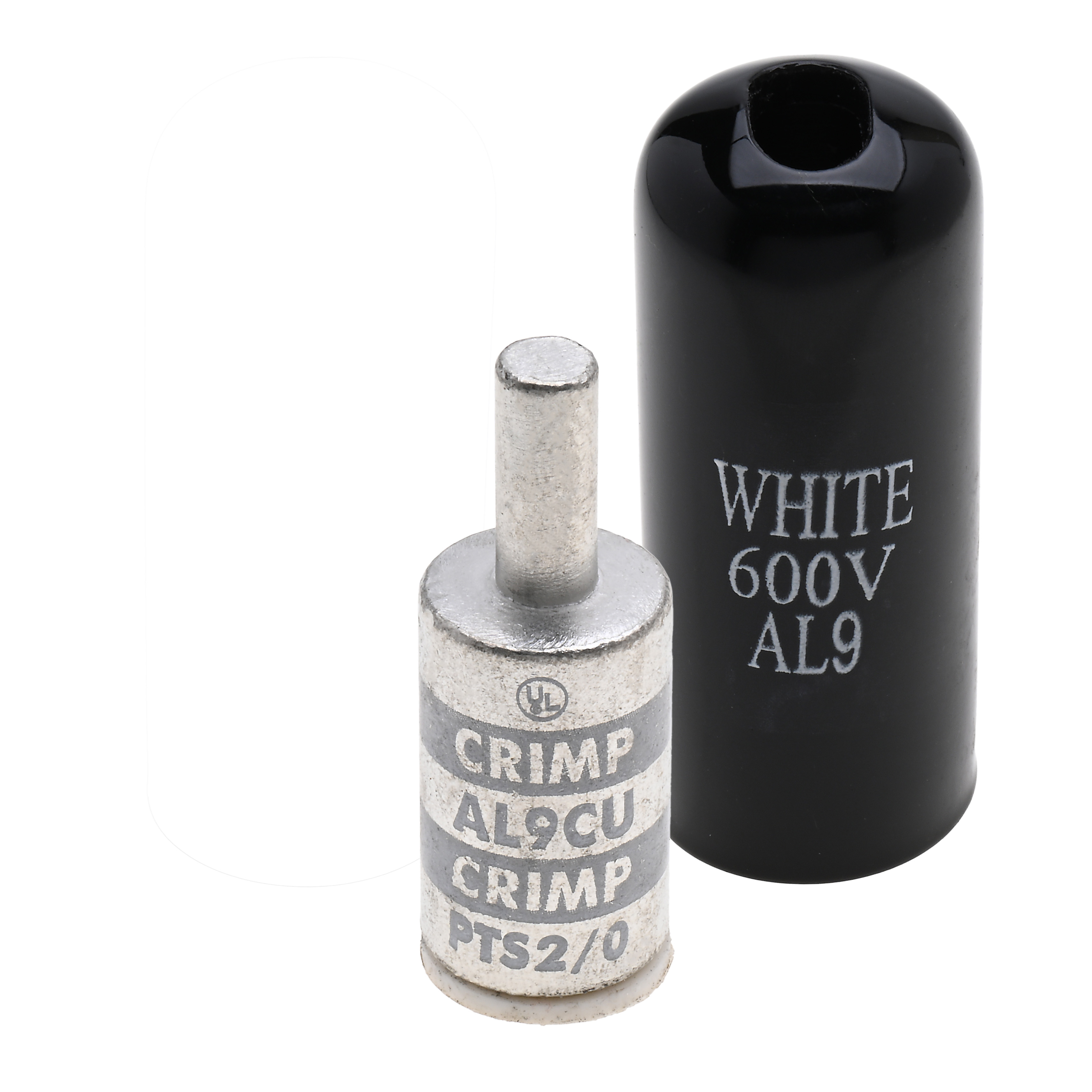

- Cover provided for quick installation
- Prefilled with with oxide inhibitor
- Marked with die index and color coded
Product Information
| Die Color Code | White |
|---|---|
| Assortment | Pin Terminals |
| Material | Aluminum |
| Ul Standard | UL 486A-486B |
| Finish | Tin Plated |
| Barrel Length | 1.3700 |
| Pin Diameter | 0.33 |
| Pin Length | 0.84 |
| Pin Size | 1 AWG |
| Voltage Rating | 35kV |
| Conductor Type | Copper,Aluminum |
| Wire Cable Class | Class B,Class C |
| UNSPSC | 39121432 |
| EAN/UCC-13 | 6.62381E+11 |
| GTIN | 6.62381E+11 |
| Prop 65 Flag | Yes |
| UPC | 662381033451 |
