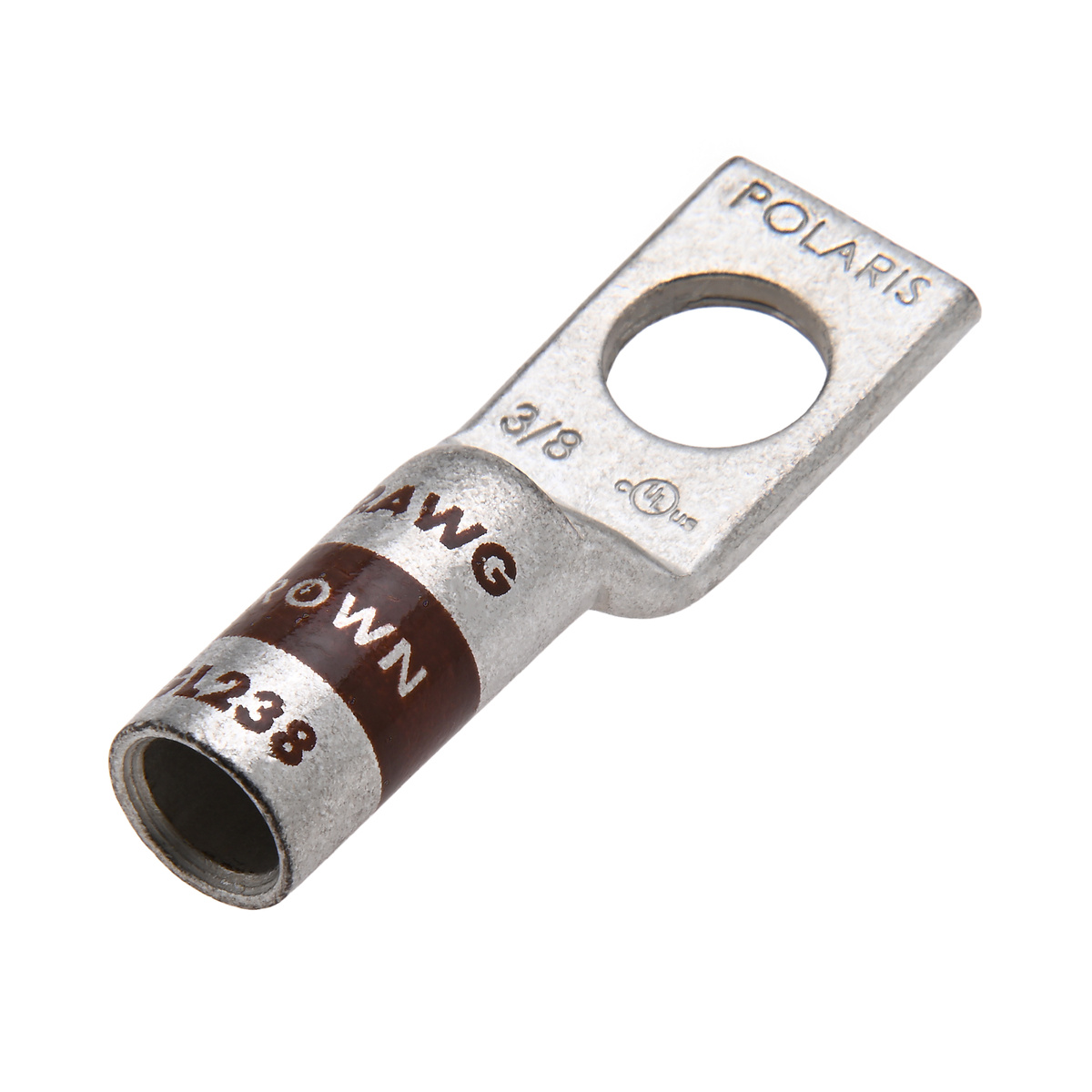

2 AWG 3/8” 1-Hole Copper Short Lug – Brown
#GL238
The POLARIS compression design creates a permanent, vibration-resistant connection that you can rely on with low contact resistance. Suitable for a wide range of applications, including power distribution, grounding and data transmission.
- High conductivity copper tubing and corrosion resistant tin-plated finish
- Peep hole allows easy inspection of the termination
- Marked with die index and color coded
- Flex rated for use with K, H, G, I, M and DLO cable
- Easy Inspection: Peephole allows easy inspection of the termination to assure complete cable insertion
Product Information
| Voltage Rating | 600V |
|---|---|
| Material | Copper |
| Finish | Tin Plated |
| GTIN | 662381036056 |
| UPC | 662381036056 |
| EAN | 0662381036056 |
| UNSPSC | 39121405 |
| Ul Standard | UL 486A-486B, UL467 |
| Barrel Inside Diameter | 0.32 |
| Barrel Outside Diameter | 0.42 |
| Wire Cable Class | Class B, Class C |
| Conductor Type | Copper |
| Tang Thickness | 0.1 |
| Tang Length | 0.81 |
| Wire Range | 2 AWG |
| Assortment | Copper Compression Terminations |
| Expanded Wire Range | 2 AWG – 6 AWG |
| Die Color Code | Brown |
| Mounting Bolt Size | 3/8 |
| Mounting Hole Diameter | 0.41 |
| Barrel Length | 1 |
