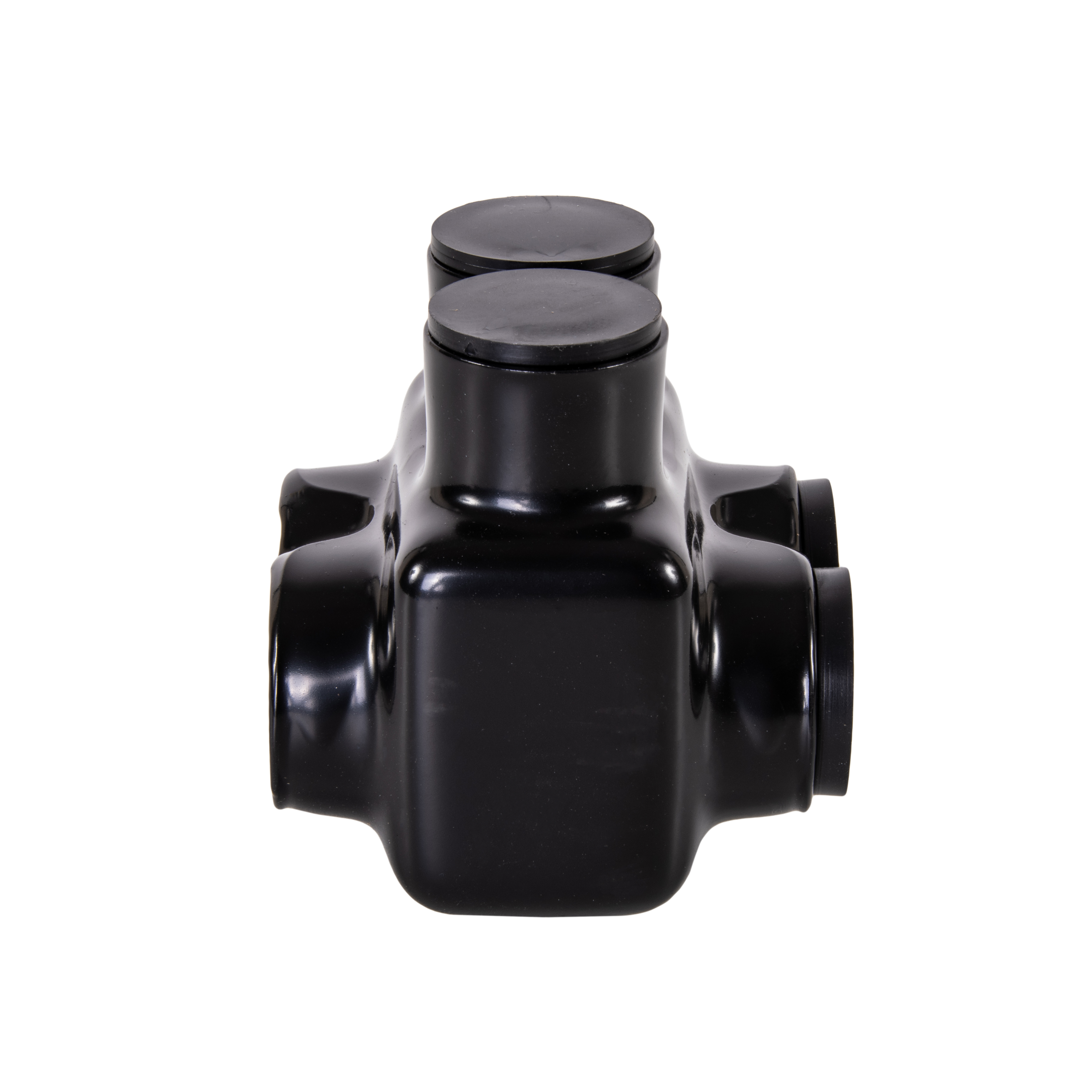

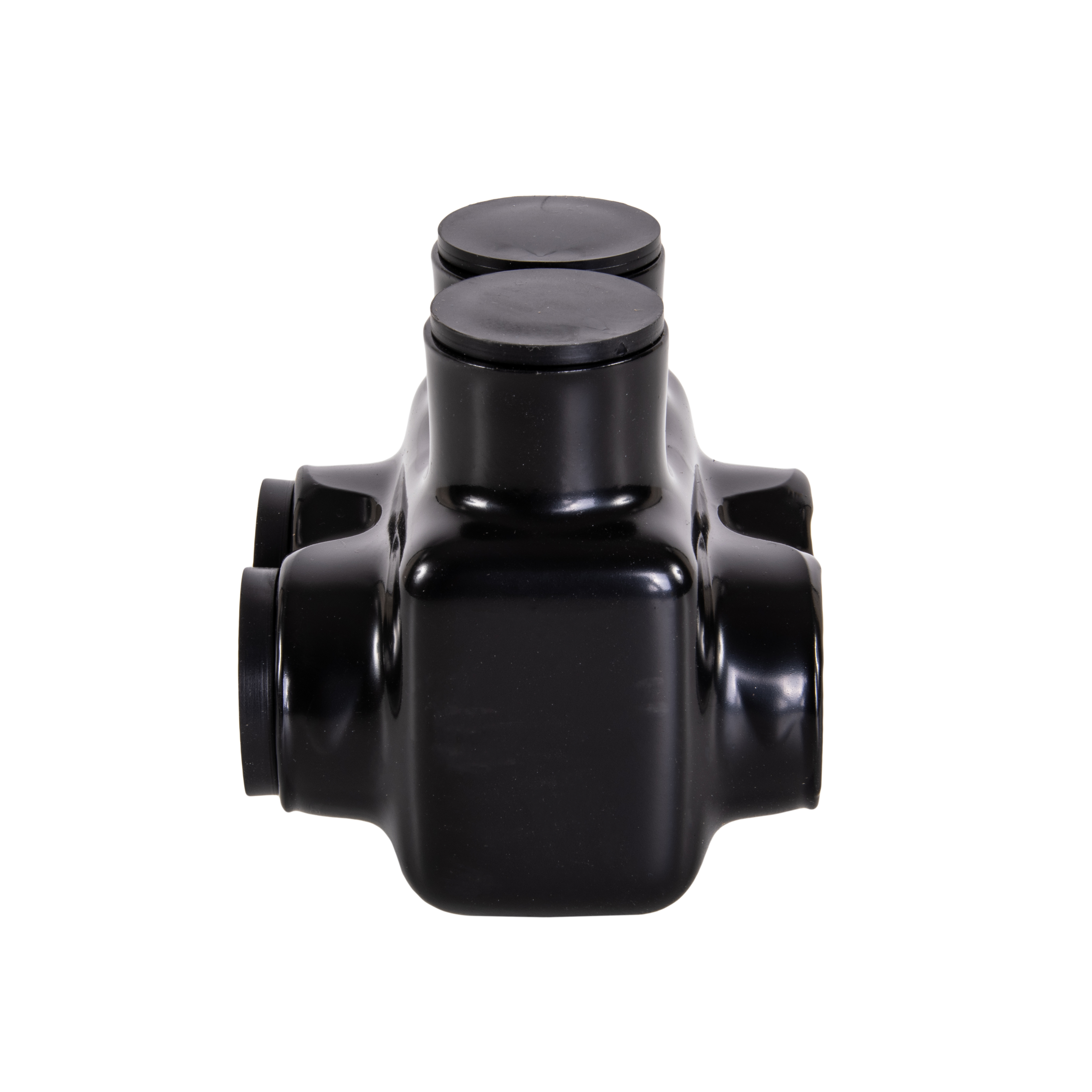

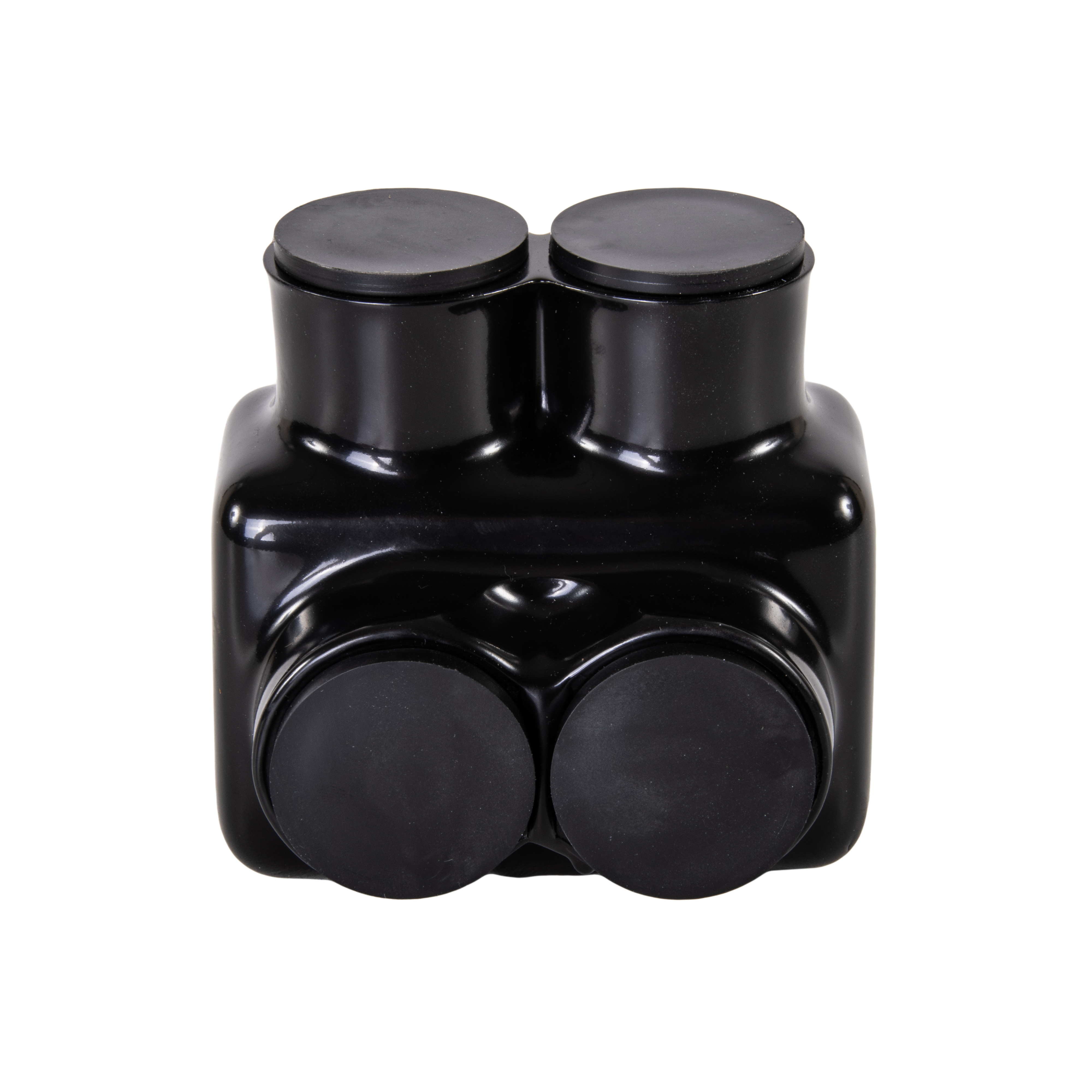

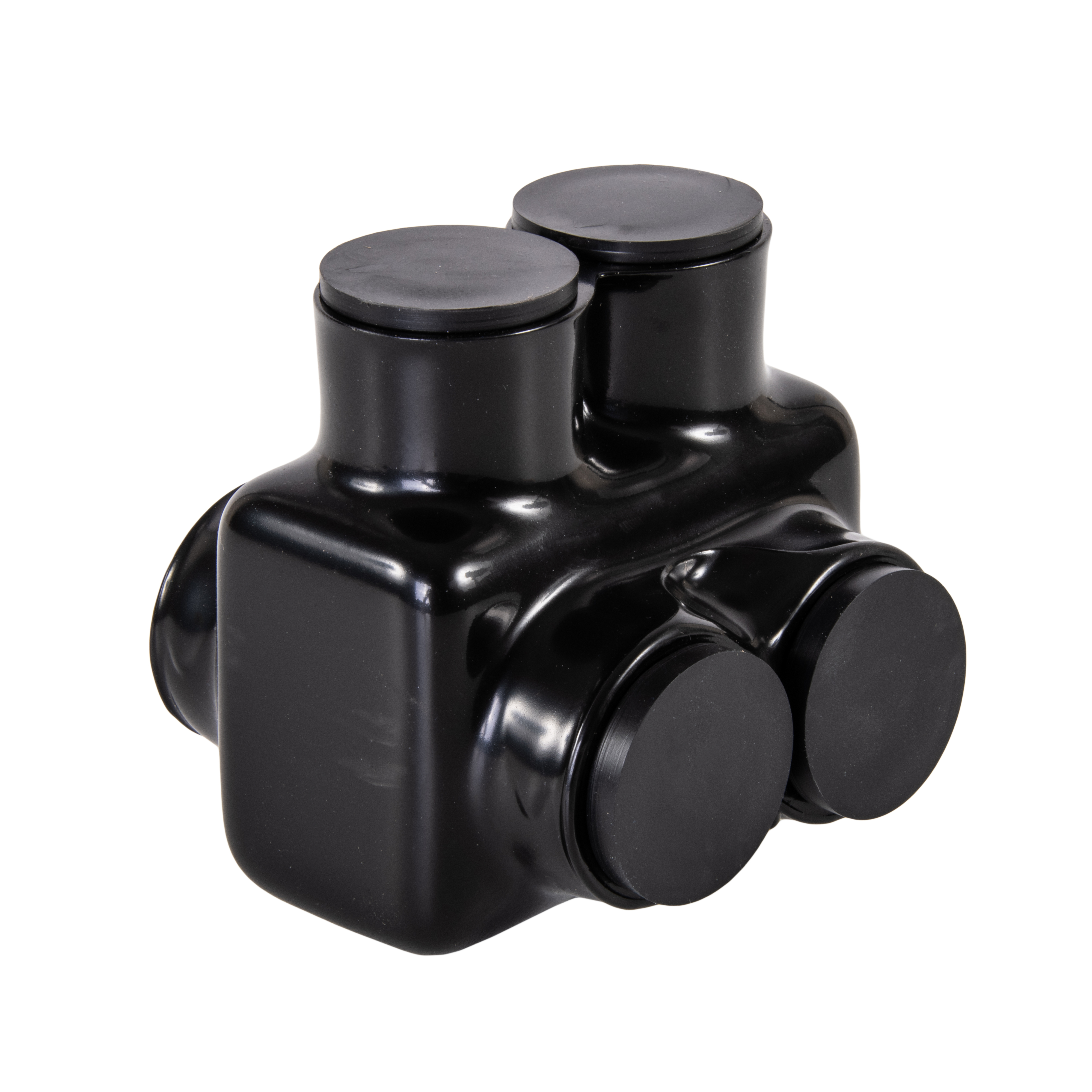

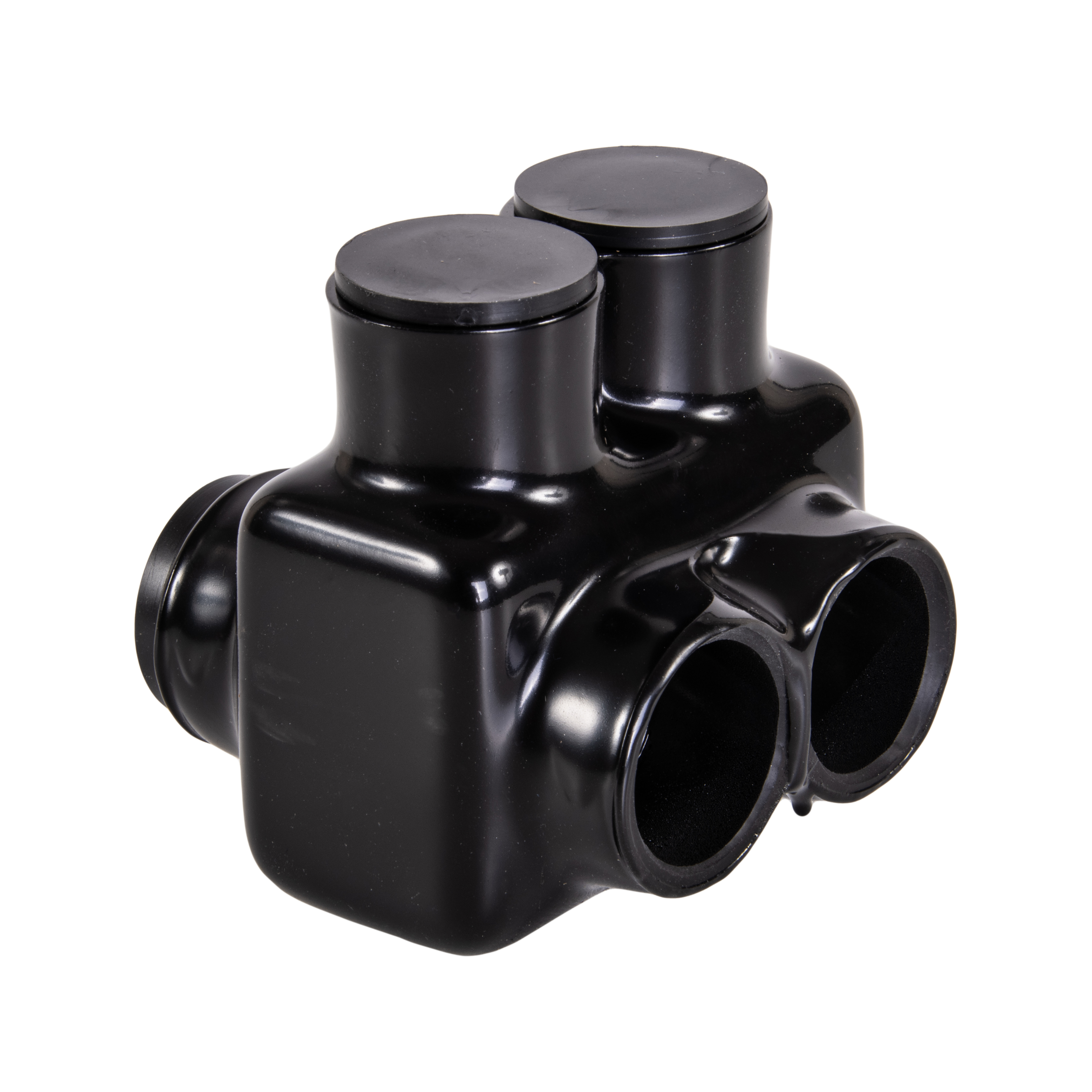

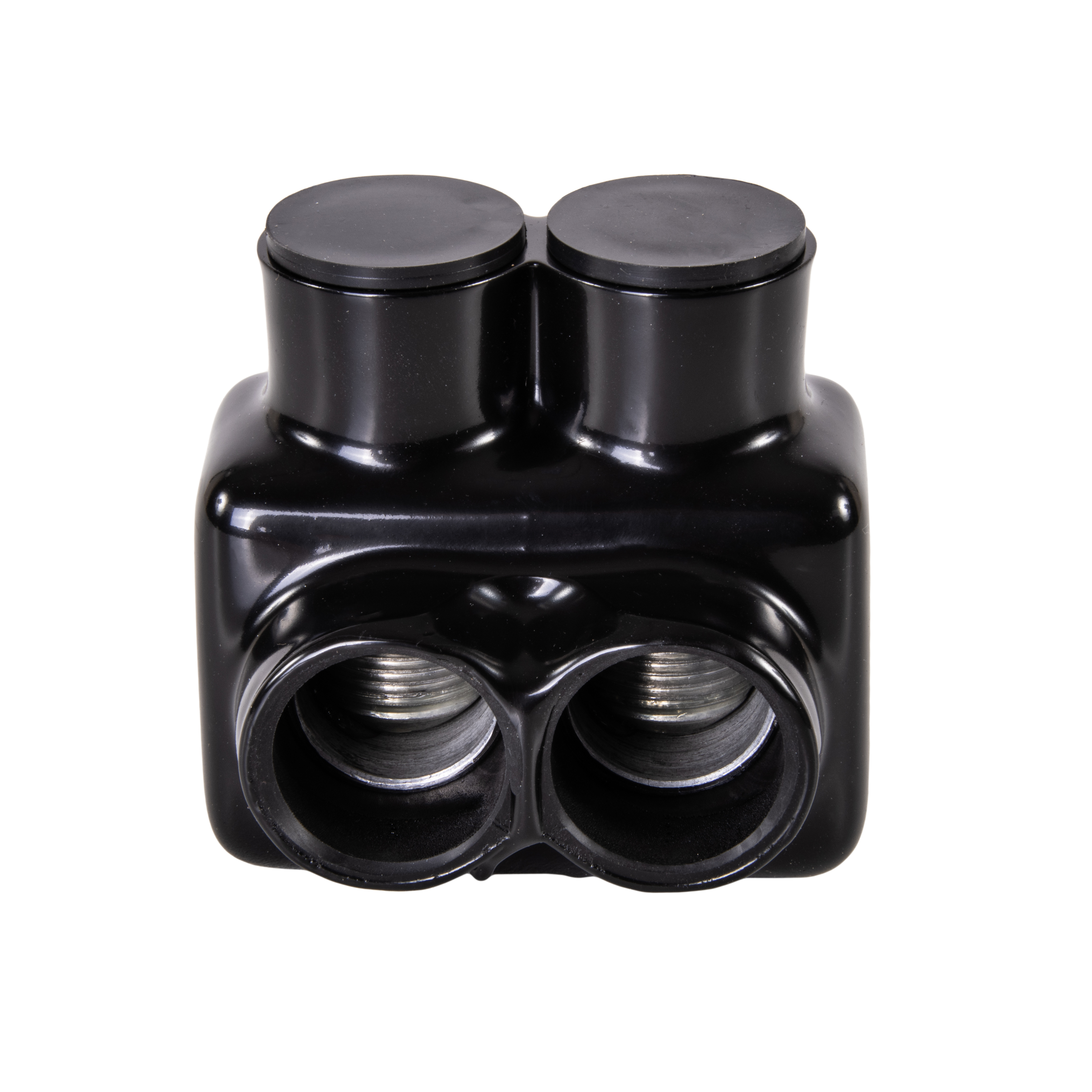

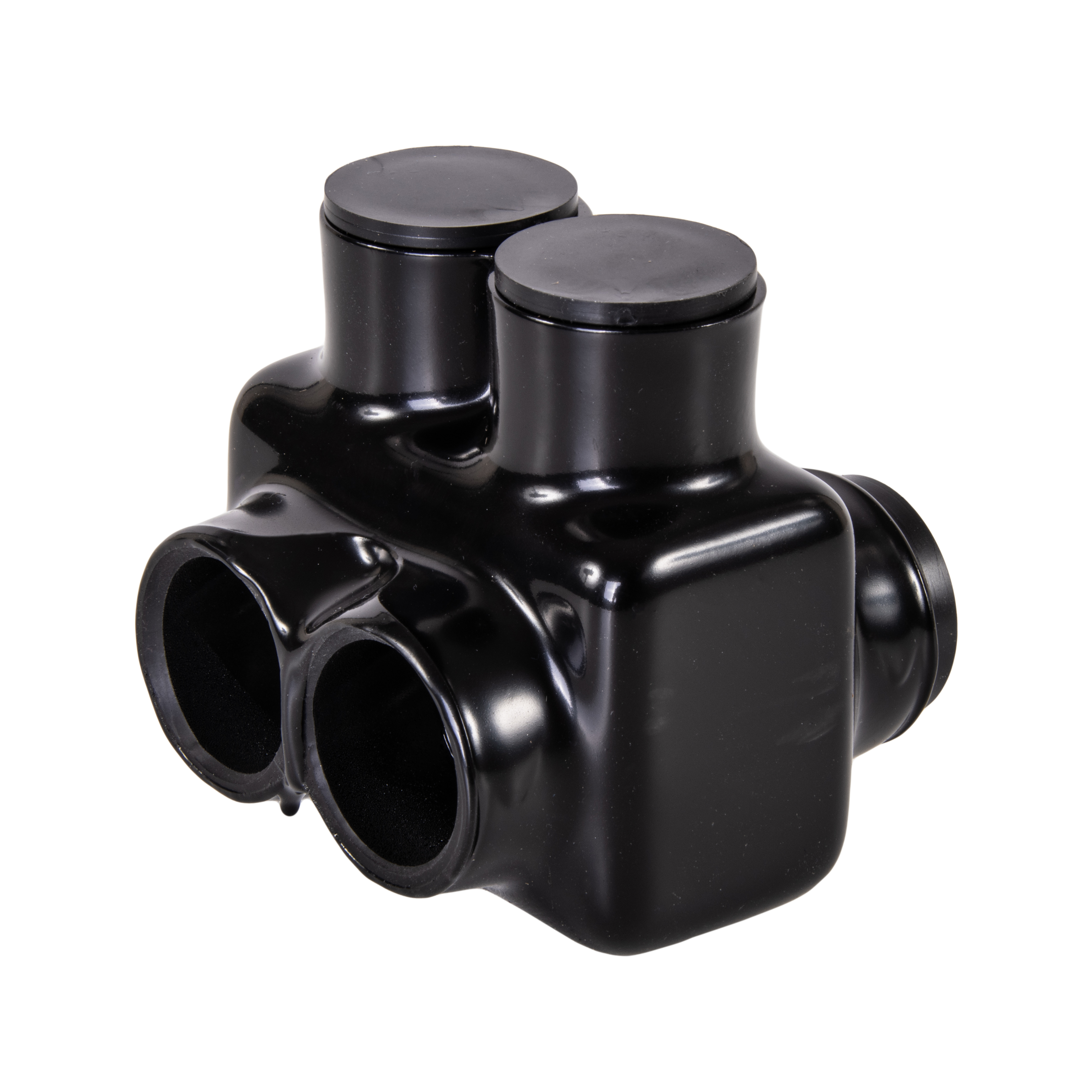

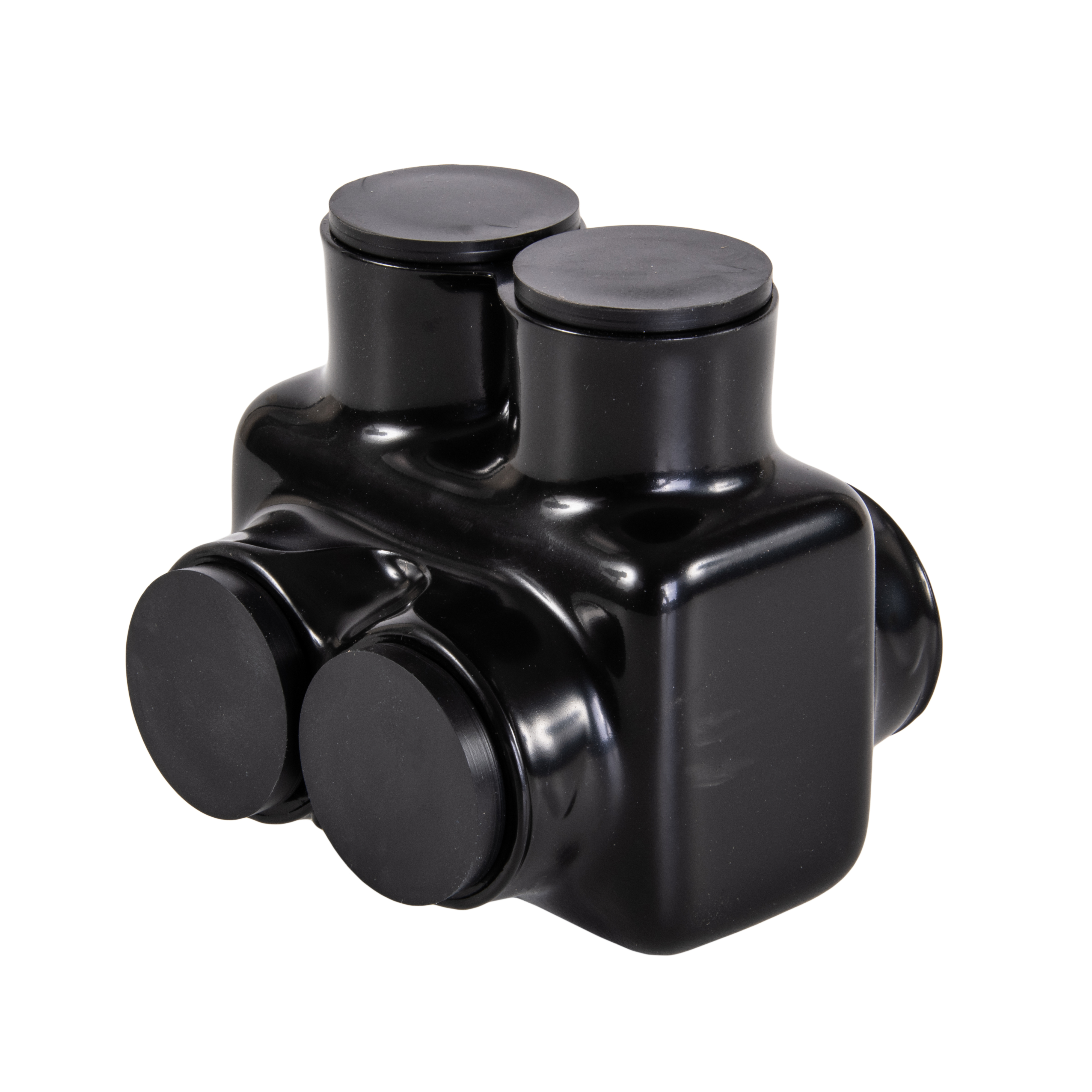

2-Port Black Multi-Tap Pre-Insulated Connector, 600 MCM – 6 AWG
#IT-600
Polaris Black Multi-Tap Connectors form secure connections between multiple conductors with a rounded design and UV-resistant insulation coating. Installs with a hex key and torque wrench, with no need for cover and taping.
- Dual-Side Wire Entry: Form secure connections between 2 conductors quickly using the double-sided entry ports sized for wires between 600 MCM and 6 AWG Suitable for use on the line side of the service equipment as per the NEC article 230.46 requirement. . Suitable for use on the line side of the service equipment as per the NEC article 230.46 requirement. Suitable for use on the line side of the service equipment as per the NEC article 230.46 requirement.
- Ergonomic Design: Rounded corners and a smooth exterior finish over the plastisol insulation make Polaris connectors comfortable to grip
- Removable Plugs: Each port and adjustable set screw is covered by a secure plug to prevent debris, moisture or contaminants from entering the insulated connector
- Pre-filled Oxide Inhibitor: Both dual-side entry ports come pre-filled with an oxide inhibitor gel to prevent corrosion and provide low-contact resistance
- Professional Performance: The durable layer of insulation on each Polaris connector is UV, abrasion and chemical-resistant for reliable performance
Product Information
Voltage Rating | 600 V |
---|---|
Material | Aluminum |
Finish | Plastisol Insulated |
Color | Black |
Pack Qty | 4 |
GTIN | 662381789440 |
UPC | 662381789440 |
EAN | 662381789440 |
UNSPSC | 39121409 |
Origin Country | US |
Certifications | cULus, Meets NEC 230.46 Suitable for Line Side of Service |
Ul Standard | UL 486A/B |
Ul File No | E186991 |
Wire Cable Class | Class B, Class C |
Al Conductor Max Amp | 385 |
Cu Conductor Max Amp | 475 |
Conductor Cu Size Range | 600 MCM – 6 AWG |
Conductor Al Size Range | 600 MCM – 6 AWG |
Conductor Type | Copper, Aluminum |
Temp Rating | 90C, AL9CU |
Conductors Count | 2 |
Hex Wrench Size | 5/16 |
Env Temp | Cold Temperature rated to -45C |
Assortment | Black UV Coated Pre-Insulated Connectors |
Max Torque | 550 |
