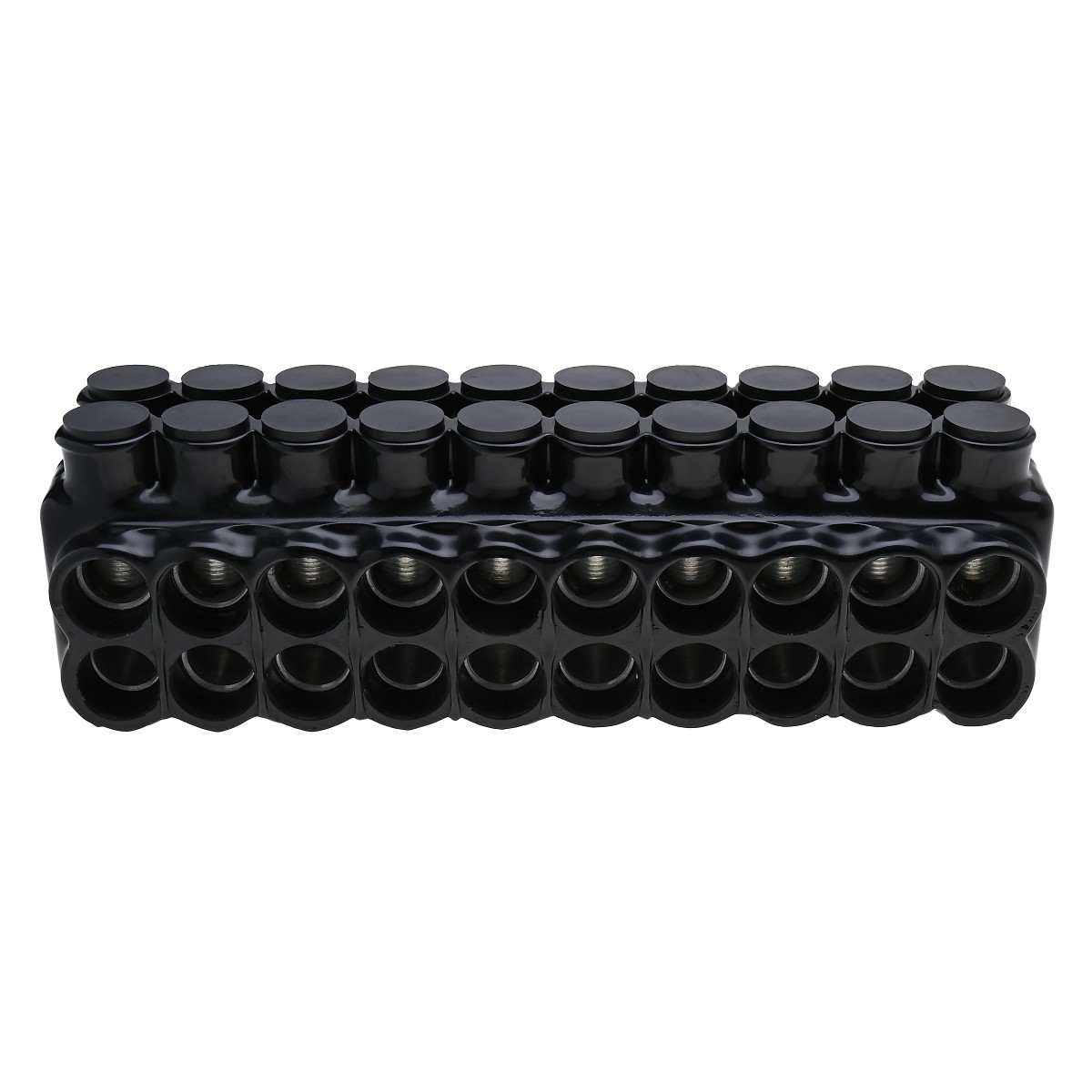

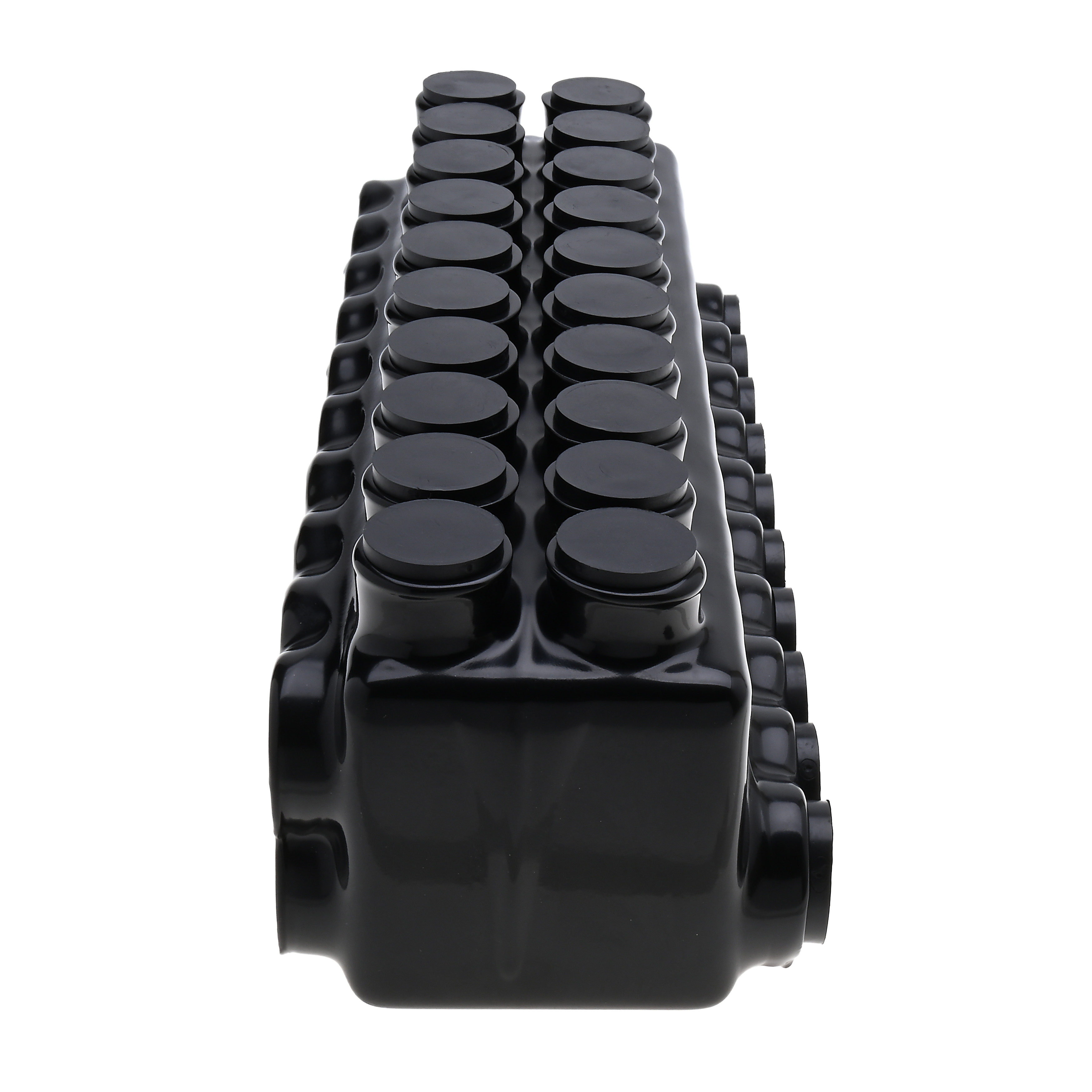

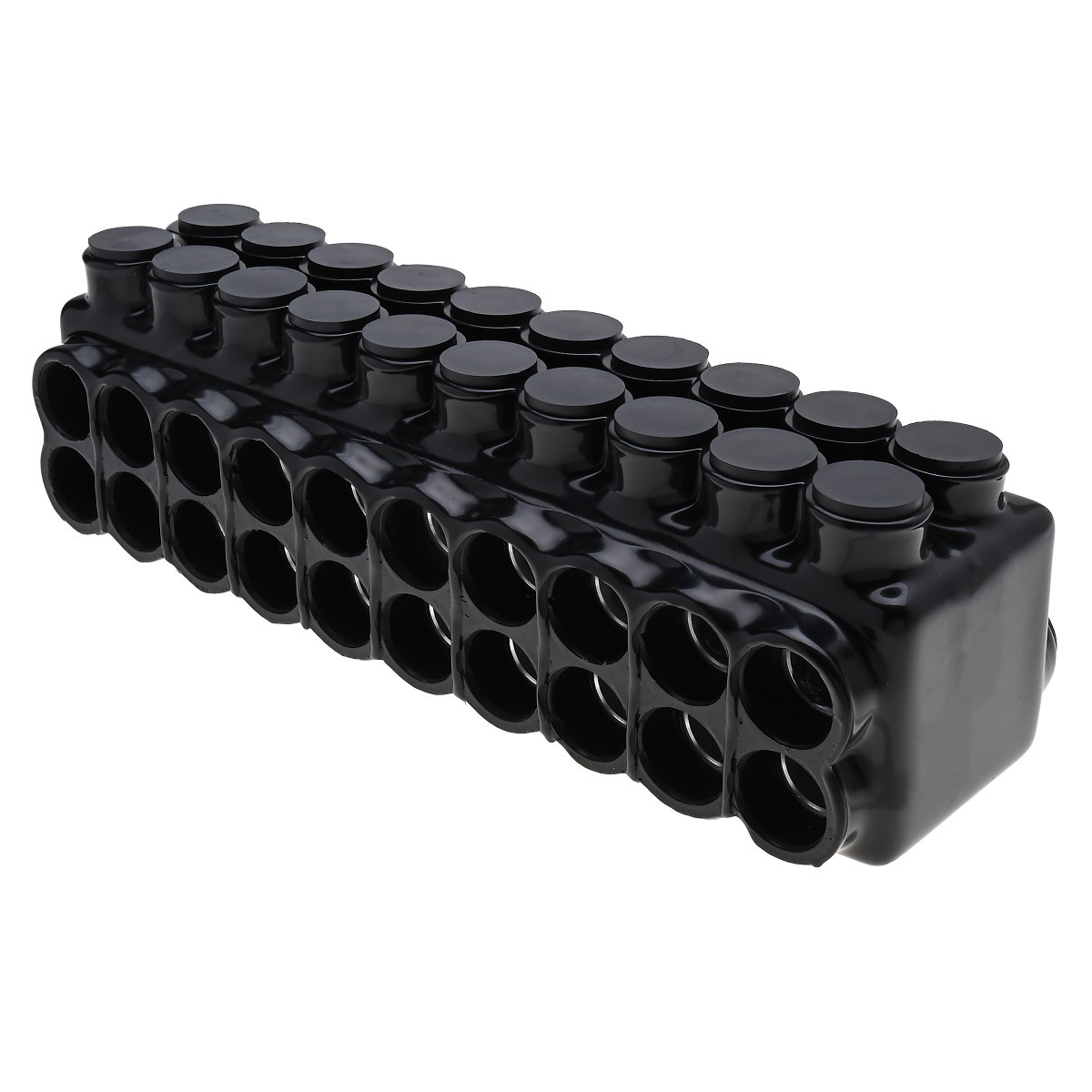

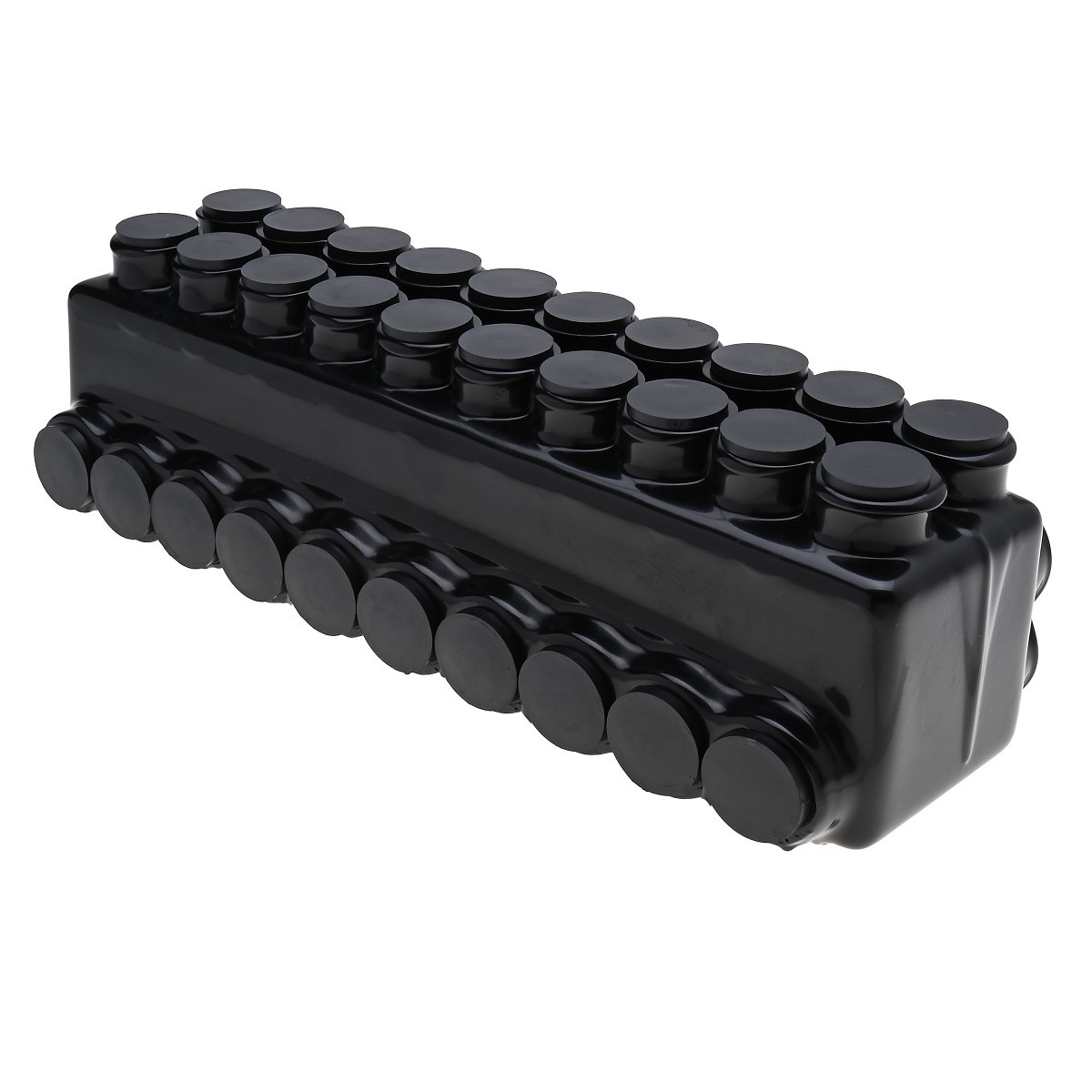

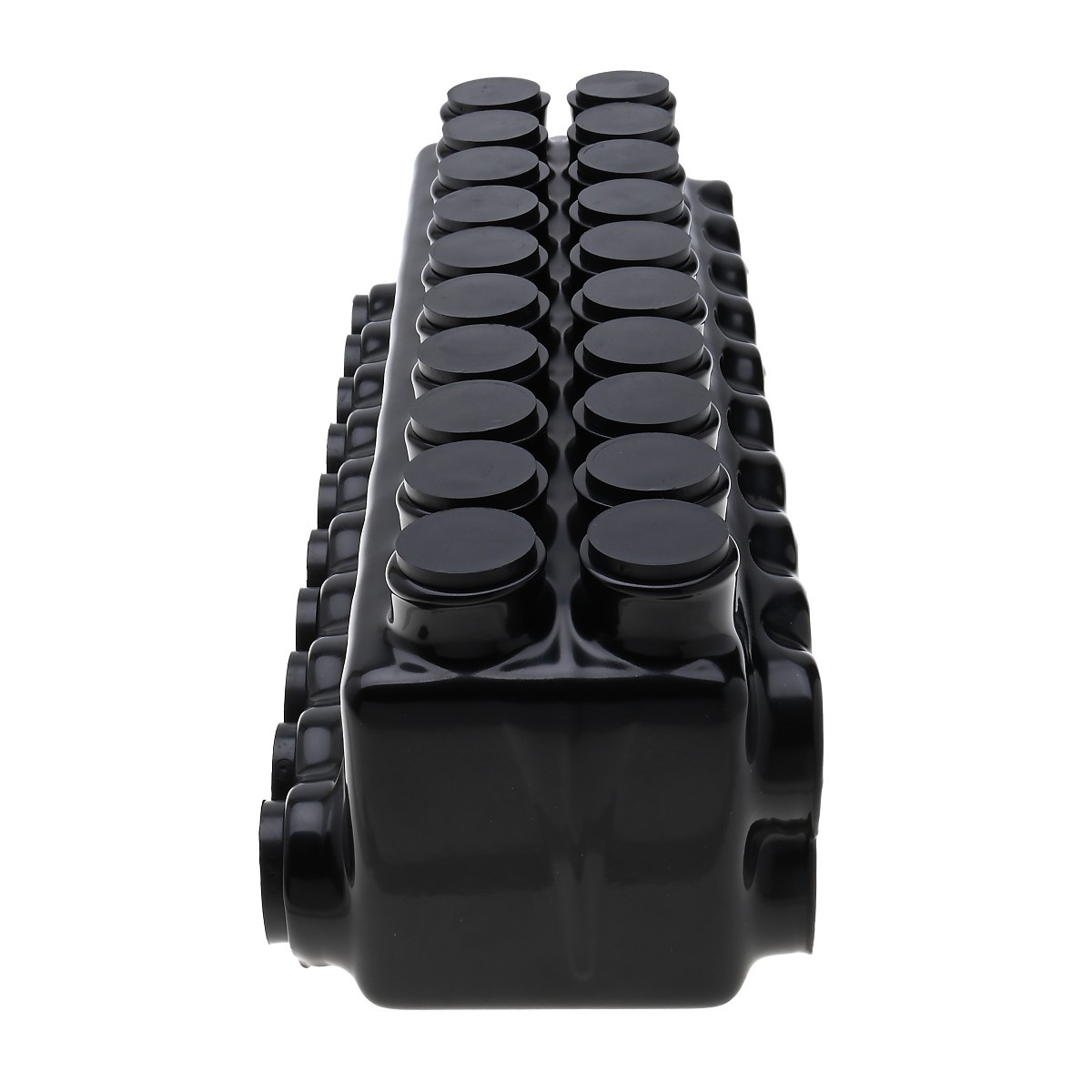

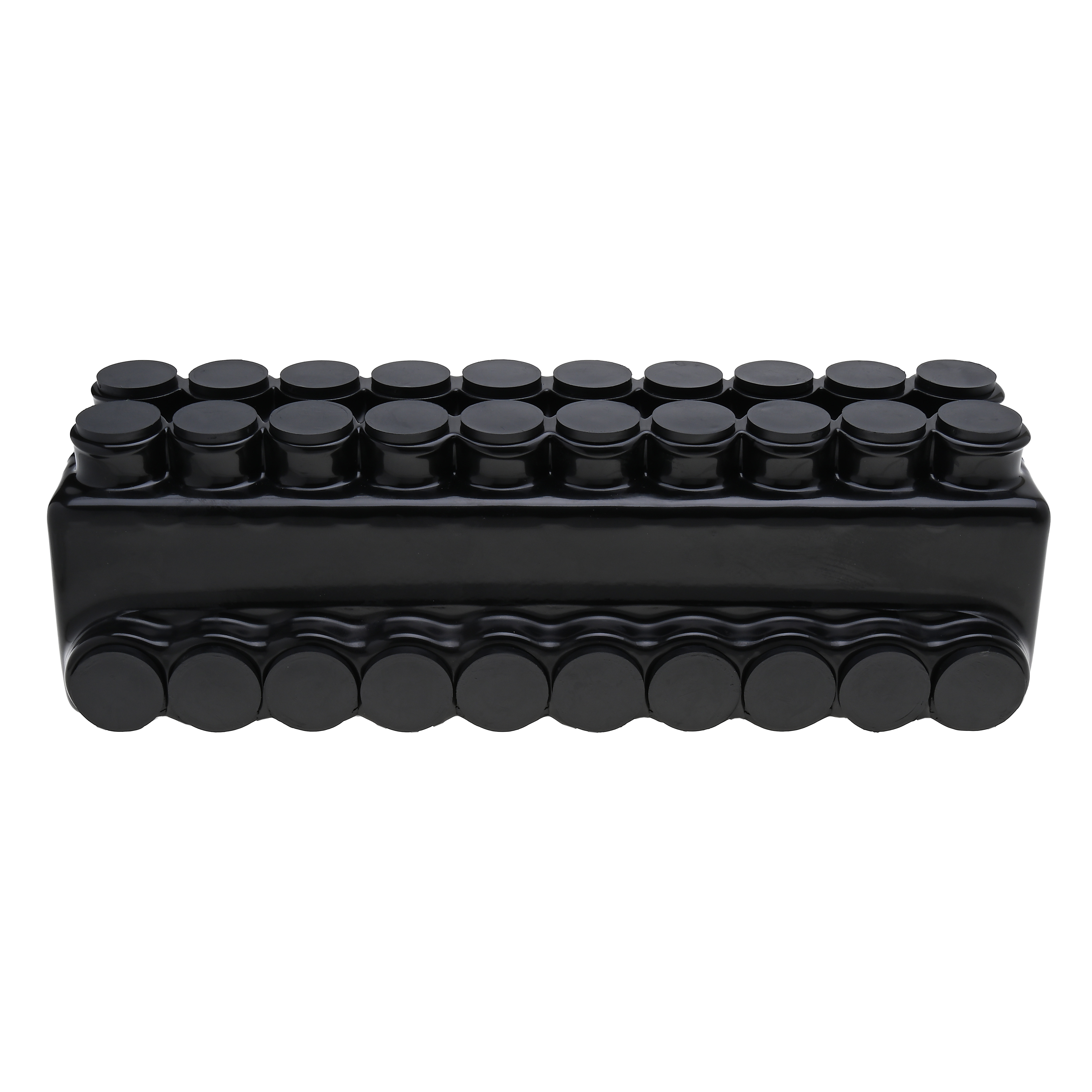

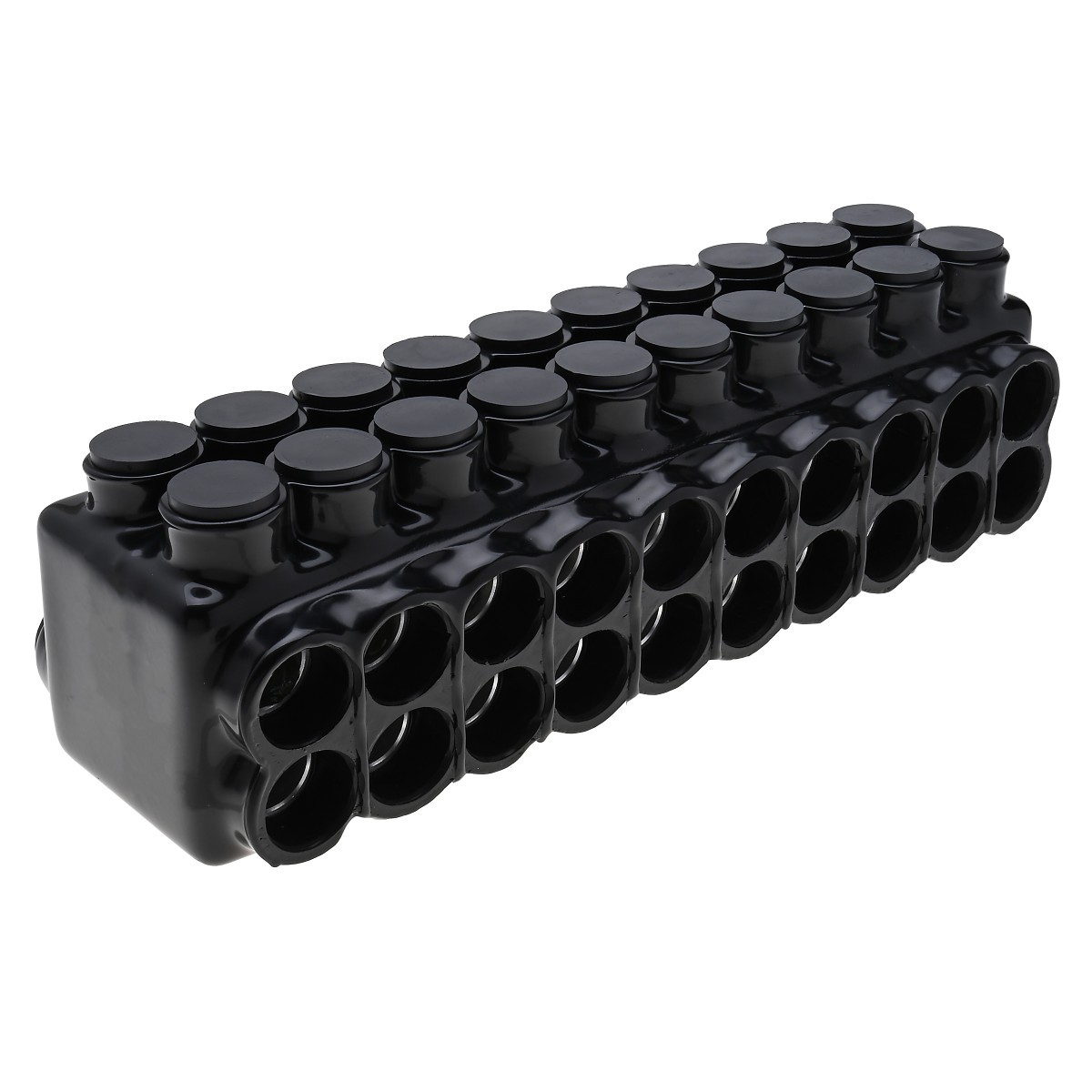

20-Port Black Stacked Pre-Insulated Connector, 750 MCM – 1/0 AWG
Insulated Mechanical Connectors
#IPLDS750-20
Polaris Black Stacked Multi-Tap Connectors form secure connections between multiple conductors with a rounded design and UV-resistant insulation coating. Installs with a hex key and torque wrench, with no need for cover and taping.
- Dual-Sided Wire Entry: Form secure connections between 20 conductors quickly using the double-side entry ports sized for wires between 750 MCM and 1/0 AWG
- Stacked Connector: Stacked wires holes on one side of the connector excel at splicing large wires in tight-fitting spaces like panels or wireways.
- Ergonomic Design: Rounded corners and a smooth exterior finish over the abrasion-resistant plastisol insulation make Polaris connectors comfortable to grip
- Removable Plugs: Each port and set screw comes with a secure plug to prevent debris from entering the insulated connector
- Pre-filled Oxide Inhibitor: All 20 dual-sided entry (DSE) ports come pre-filled with an oxide inhibitor gel to prevent corrosion and provide low-contact resistance
Product Information
Voltage Rating | 600 V |
---|---|
Finish | Plastisol Insulated |
Color | Black |
Pack Qty | 1 |
GTIN | 662381369369 |
UPC | 662381369369 |
EAN | 662381369369 |
UNSPSC | 39121409 |
Ul Standard | UL 486A/B |
Wire Cable Class | Class B, Class C |
Conductor Cu Size Range | 750 MCM – 1/0 AWG |
Conductor Al Size Range | 750 MCM – 1/0 AWG |
Conductor Type | Copper, Aluminum |
Assortment | Black UV Coated Pre-Insulated Connectors |
