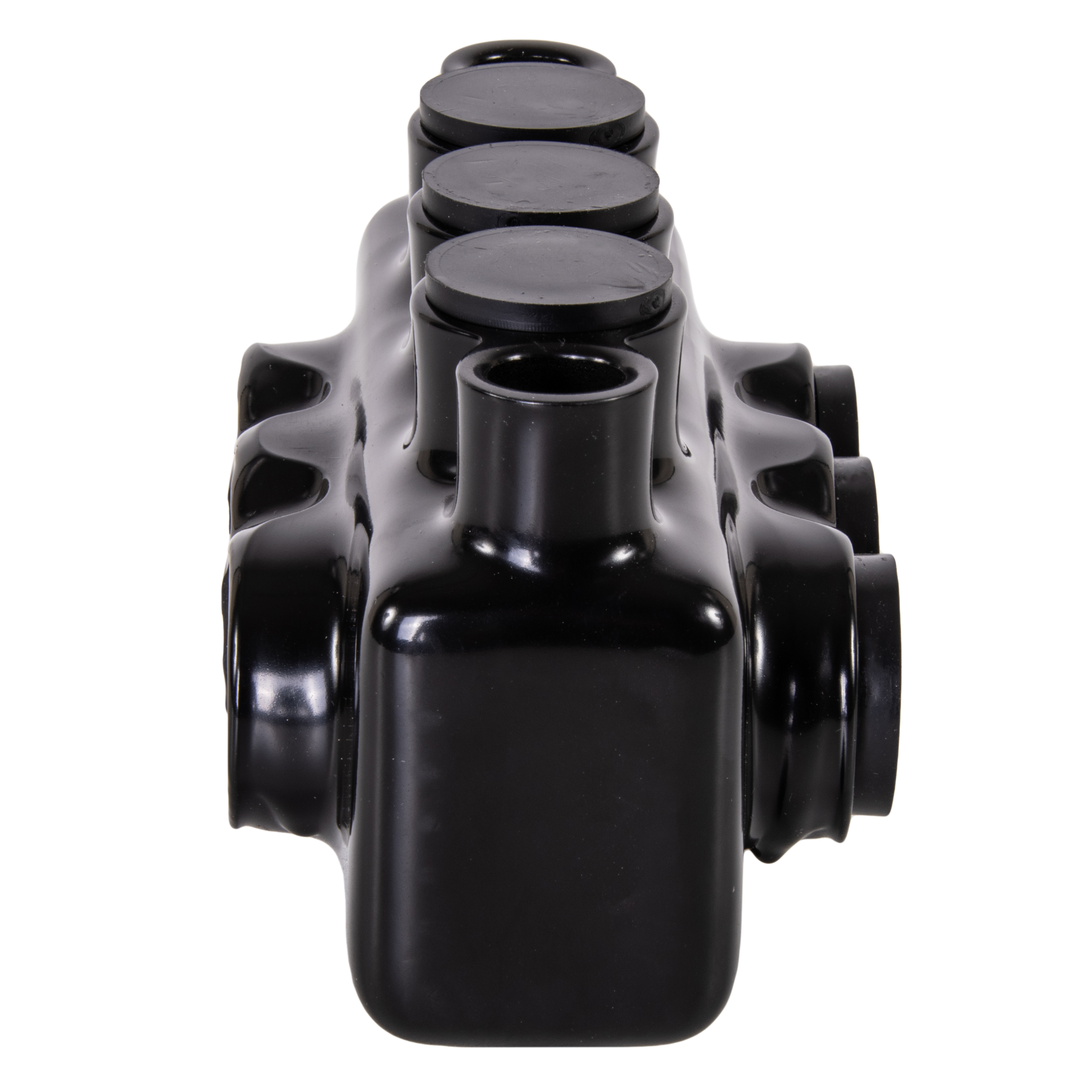

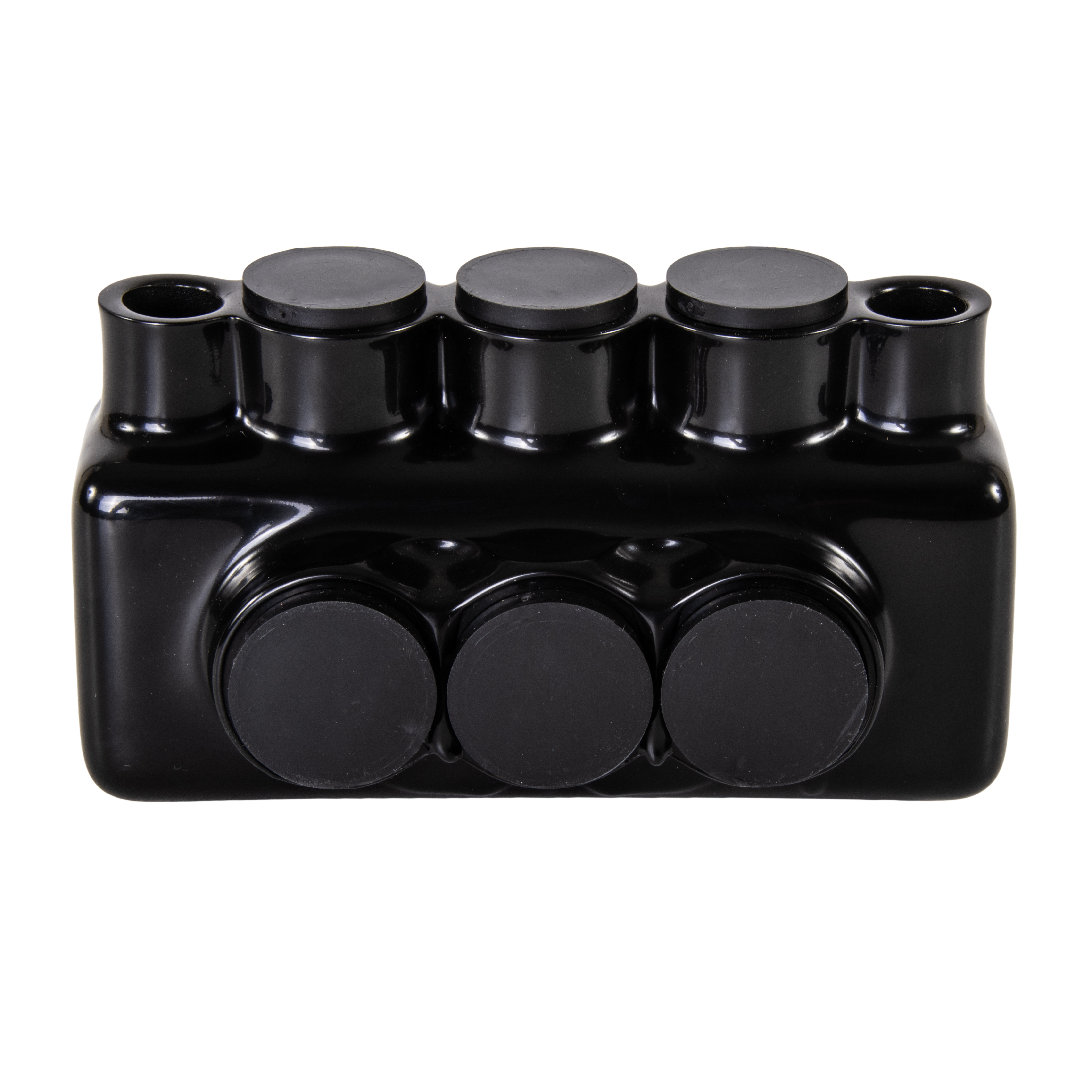

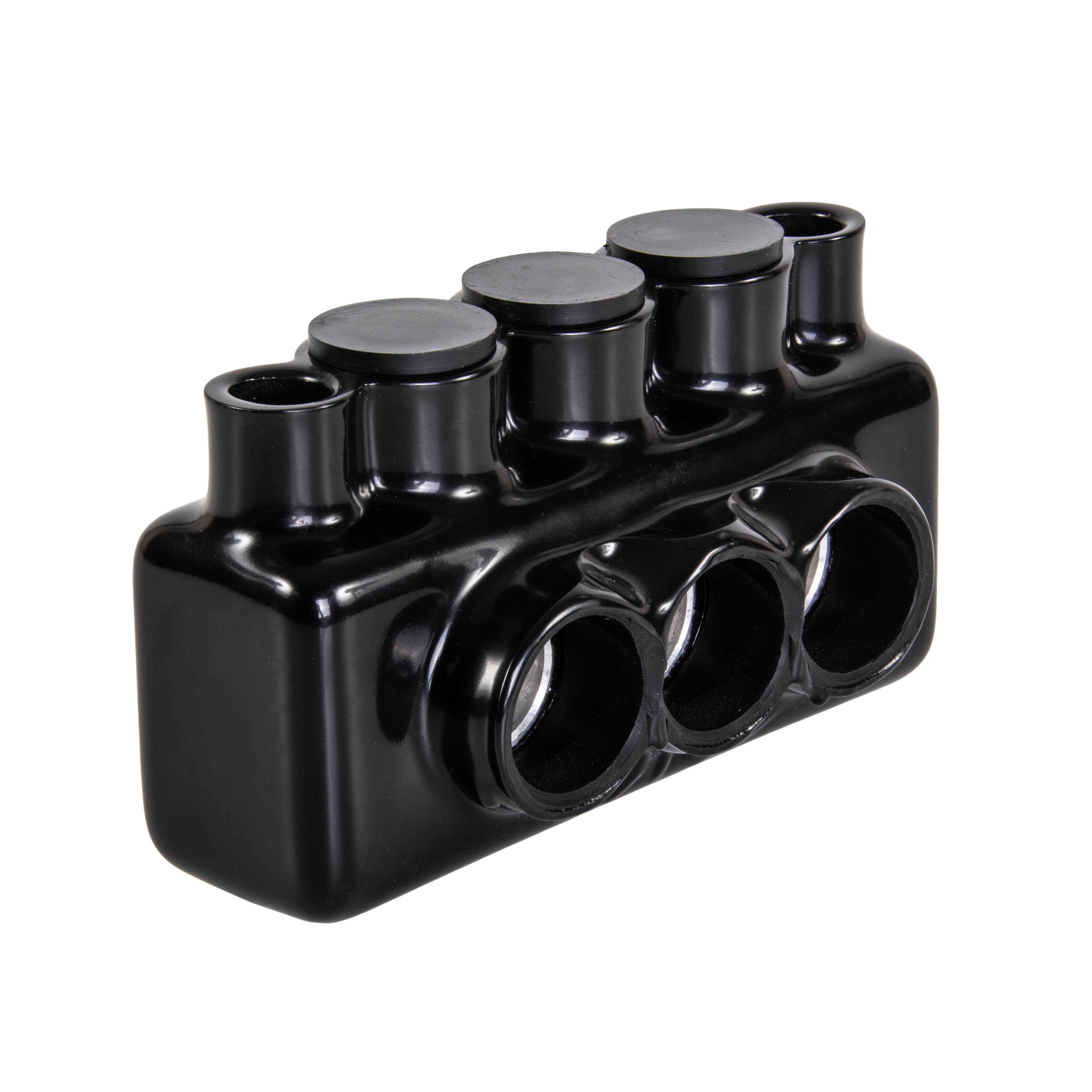

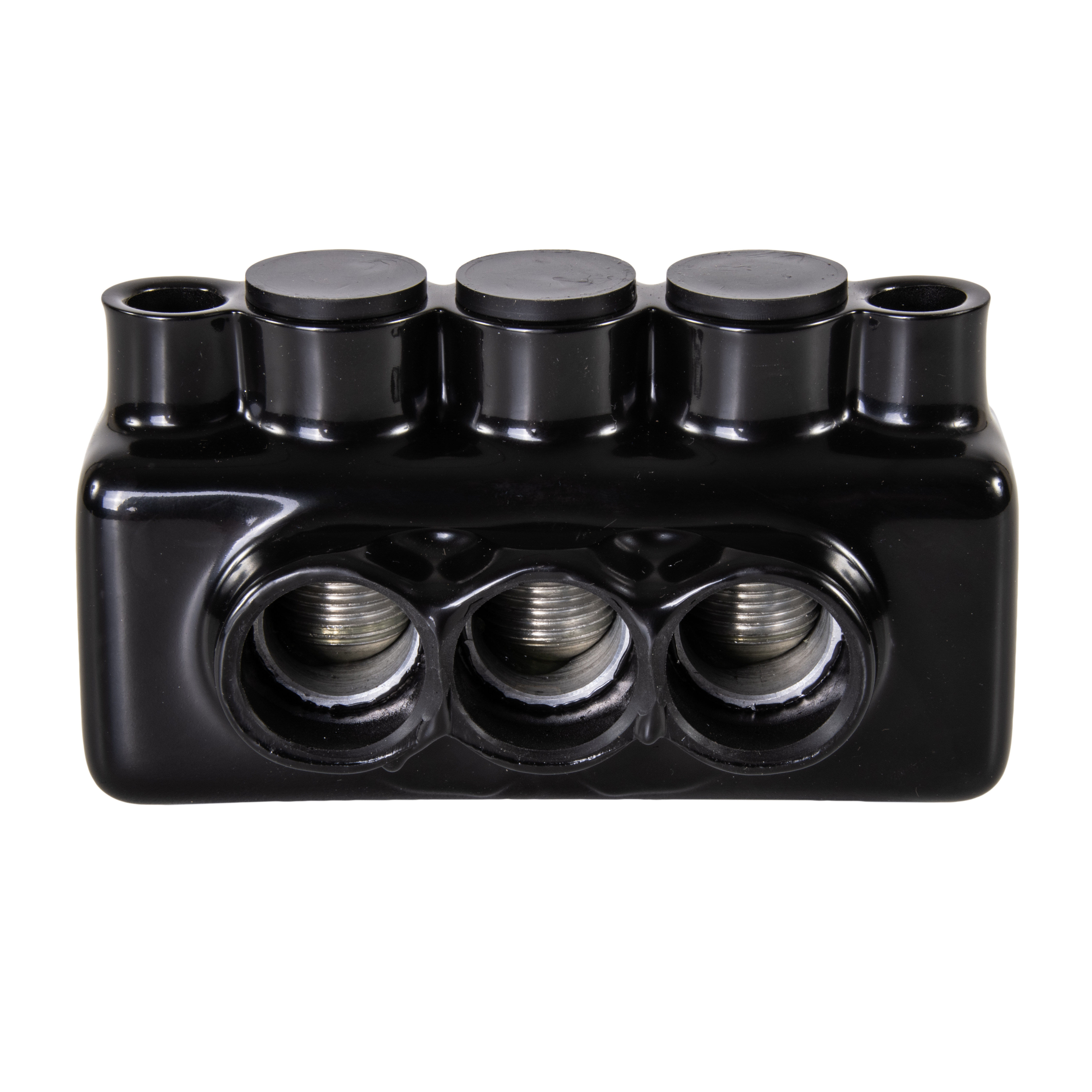

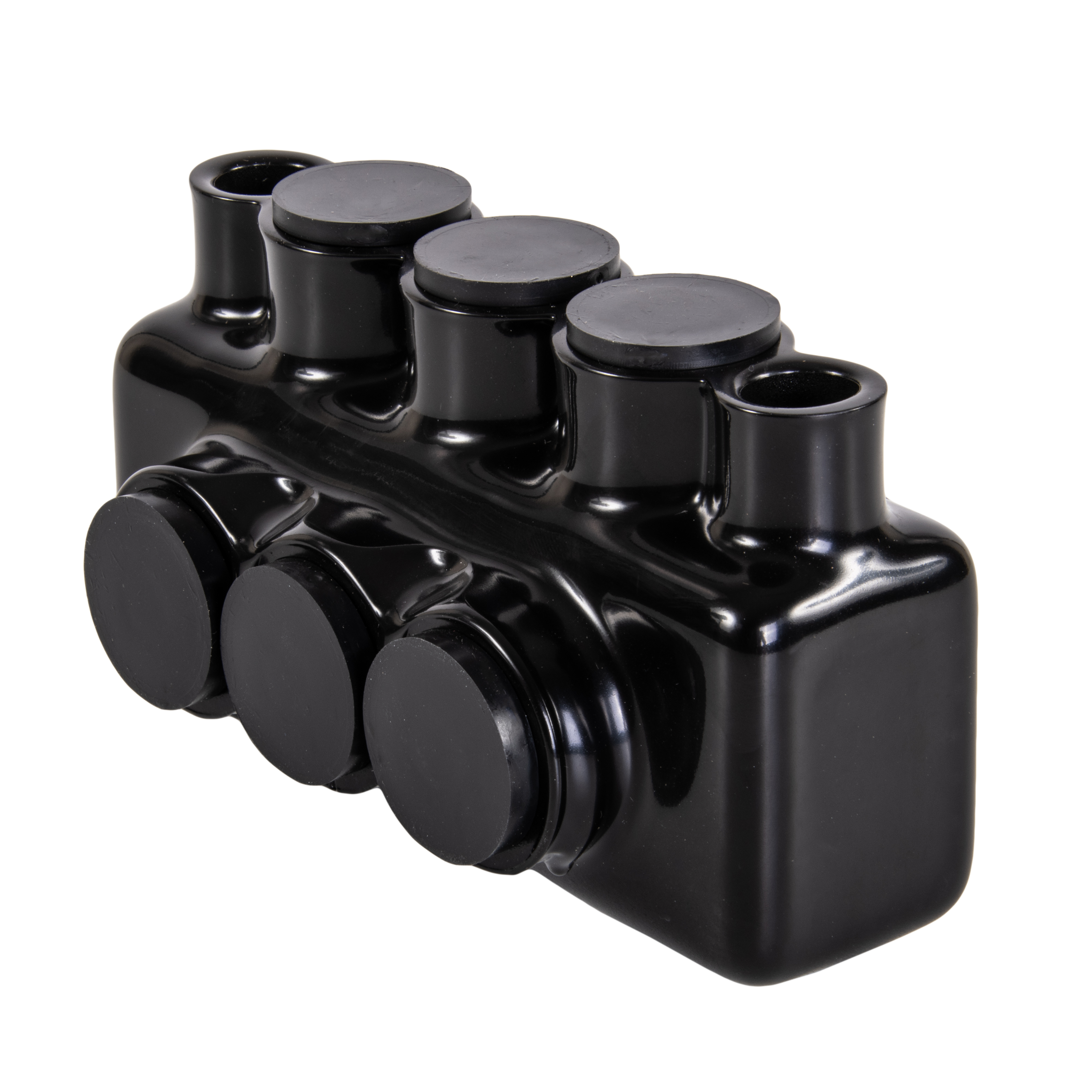

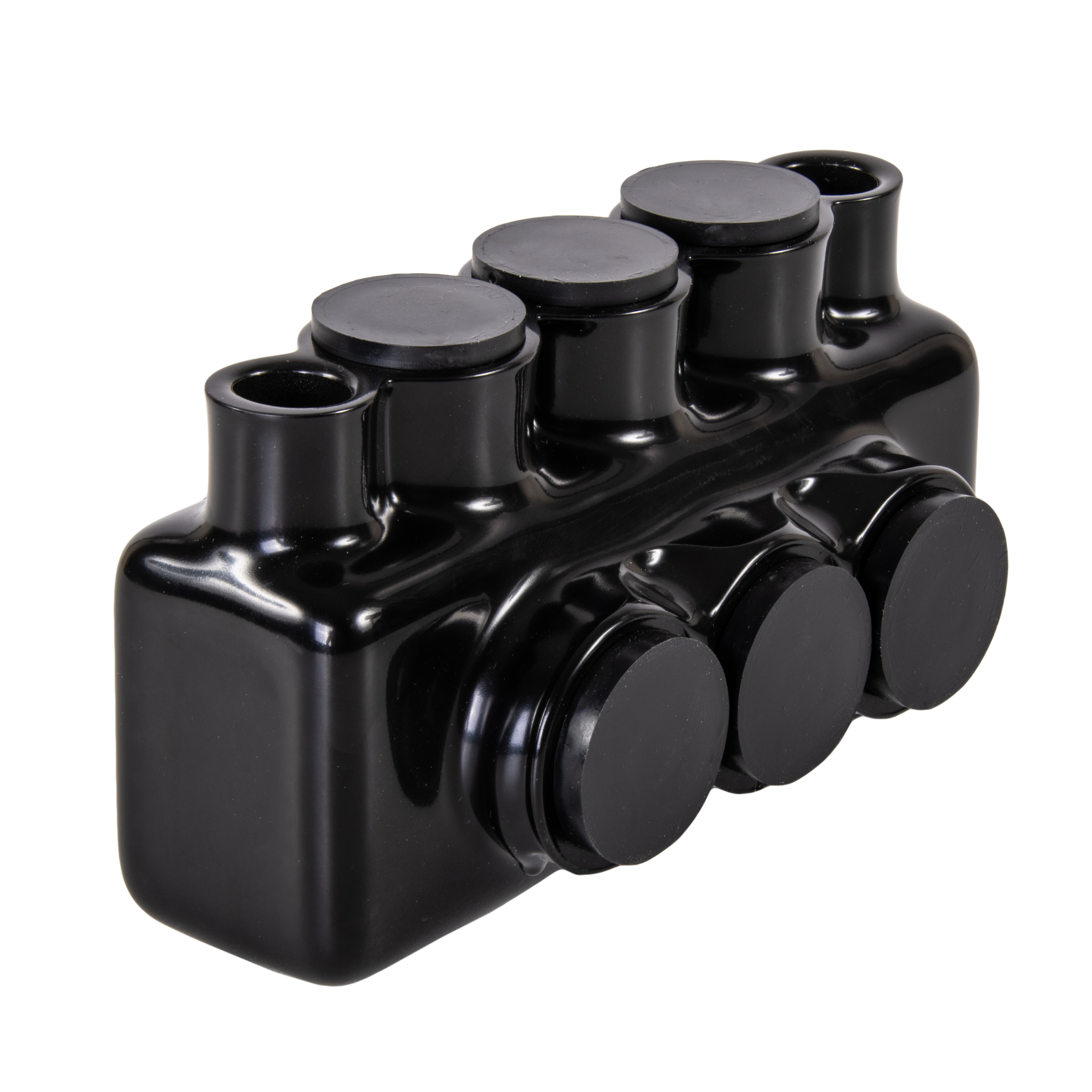

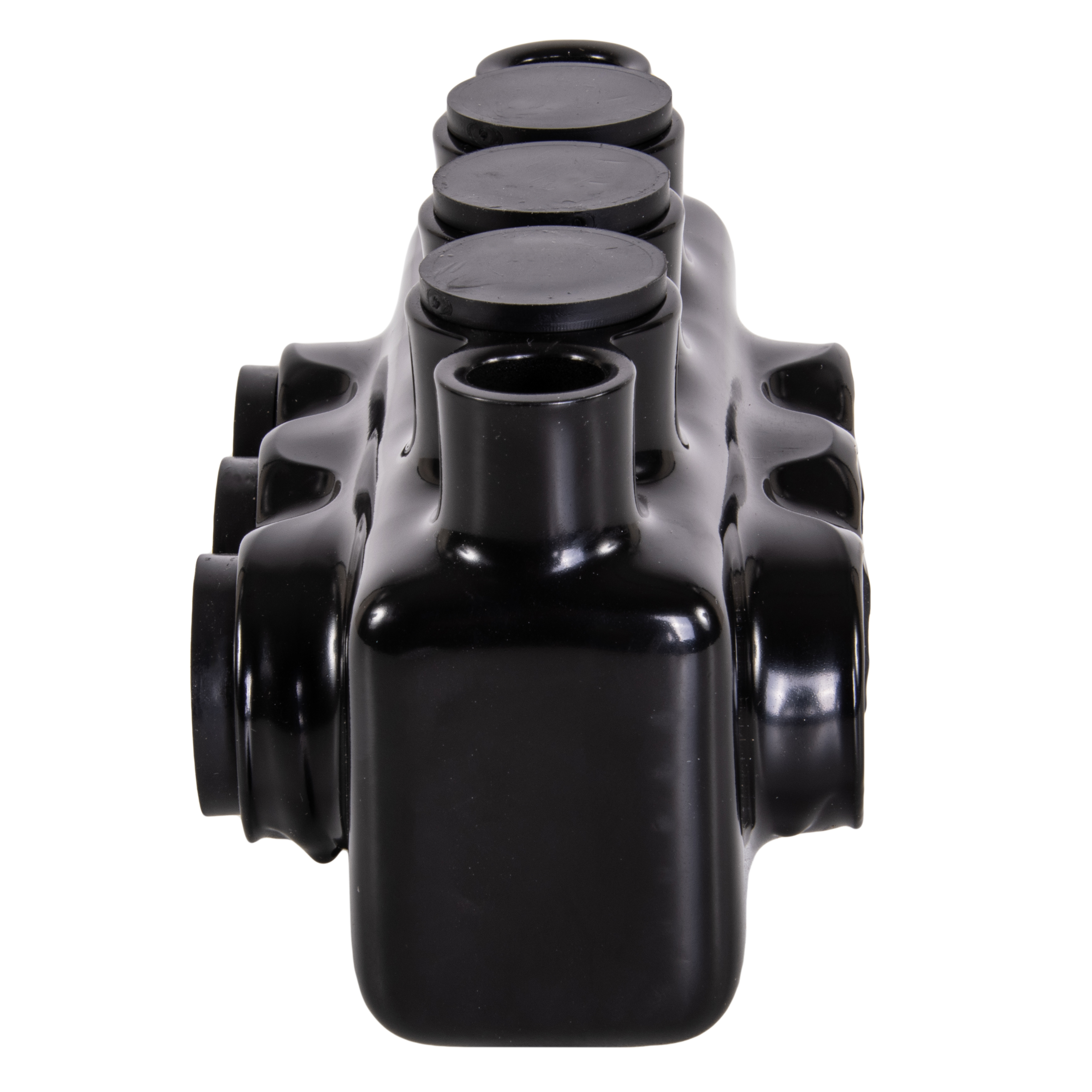

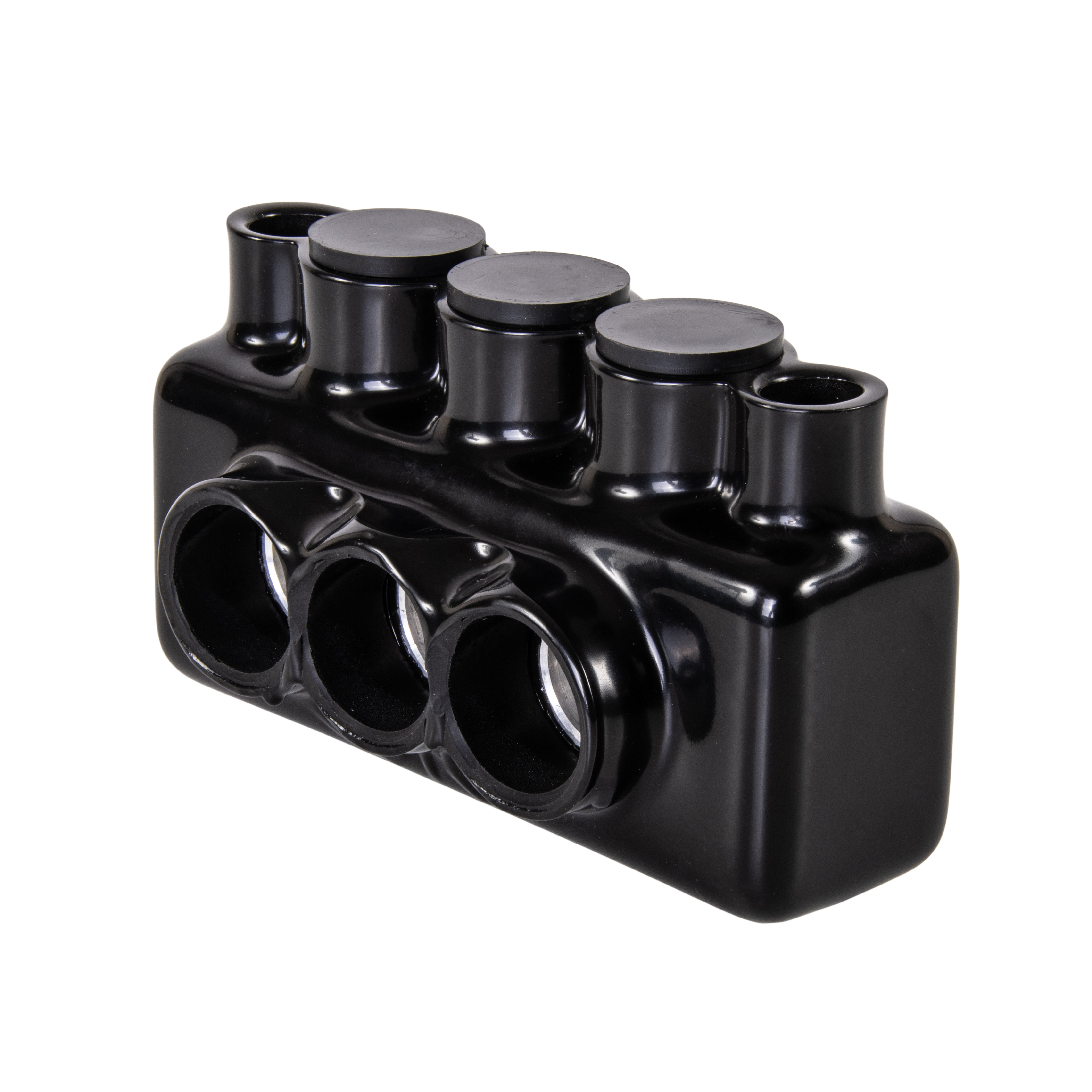

3-Port Black Mountable Pre-Insulated Connector, 3/0 – 6 Gauge
#IPLMD3/0-3
Polaris Black Multi-Tap Mountable Connectors form secure connections between multiple conductors with a rounded design and UV-resistant insulation coating. Installs with a hex key and torque wrench, with no need for cover and taping.
- Dual-Side Wire Entry: Form secure connections between 3 conductors quickly using the double-side entry ports sized for wires between 3/0 and 6 AWG. Suitable for use on the line side of the service equipment as per the NEC article 230.46 requirement. Suitable for use on the line side of the service equipment as per the NEC article 230.46 requirement.
- Mounting Holes: Installation is simple with mounting holes on either side of the connector to attach directly to panels or troughs using 1/4" bolts
- Ergonomic Design: The plastisol insulation features rounded corners for a comfortable grip and is UV, abrasion and chemical-resistant for durable performance
- Removable Plugs: Each port and adjustable set screw is covered by a secure plug to prevent debris, moisture or contaminants from entering the insulated connector
- Pre-filled Oxide Inhibitor: All 3 dual-side entry ports come pre-filled with an oxide inhibitor gel to prevent corrosion and provide low-contact resistance
