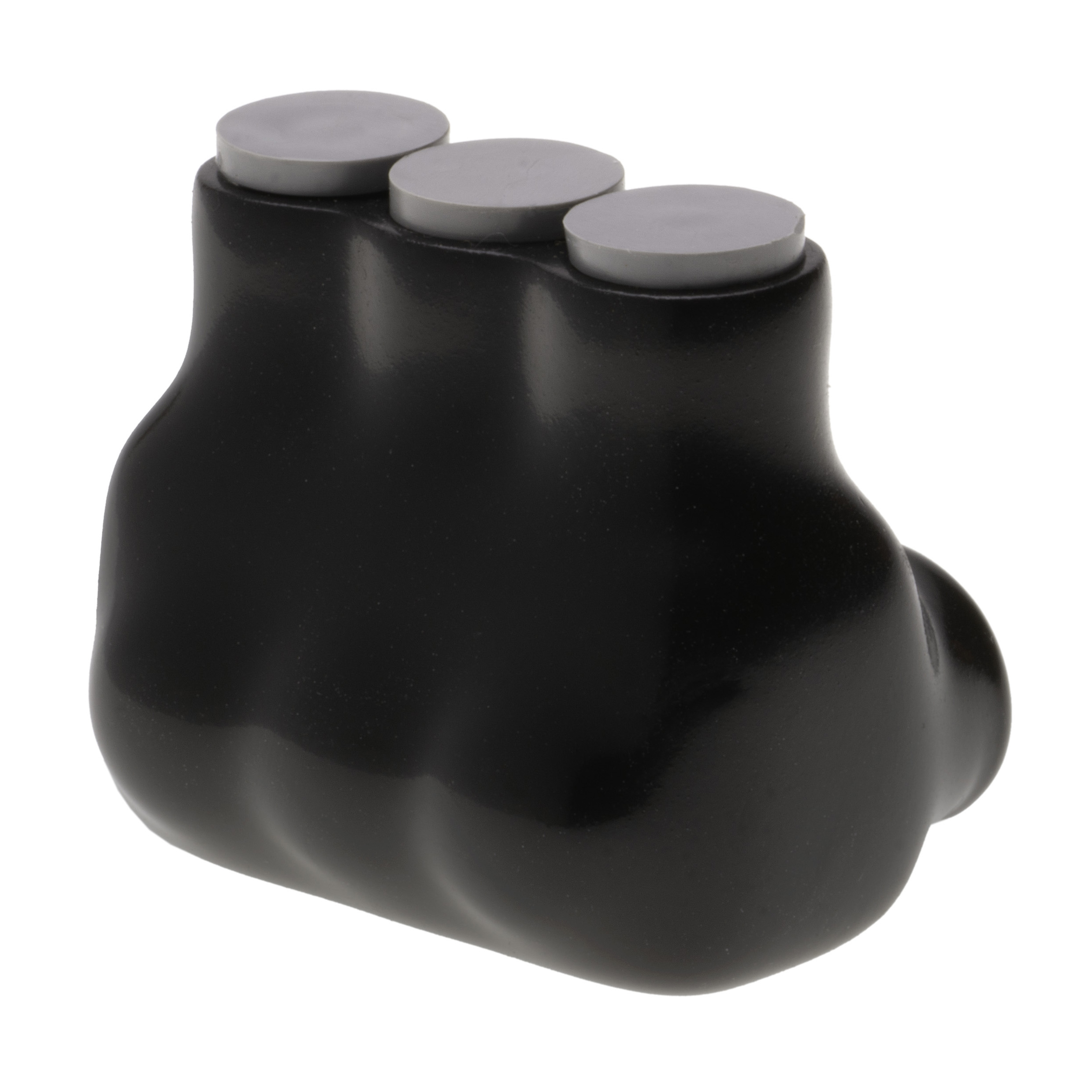

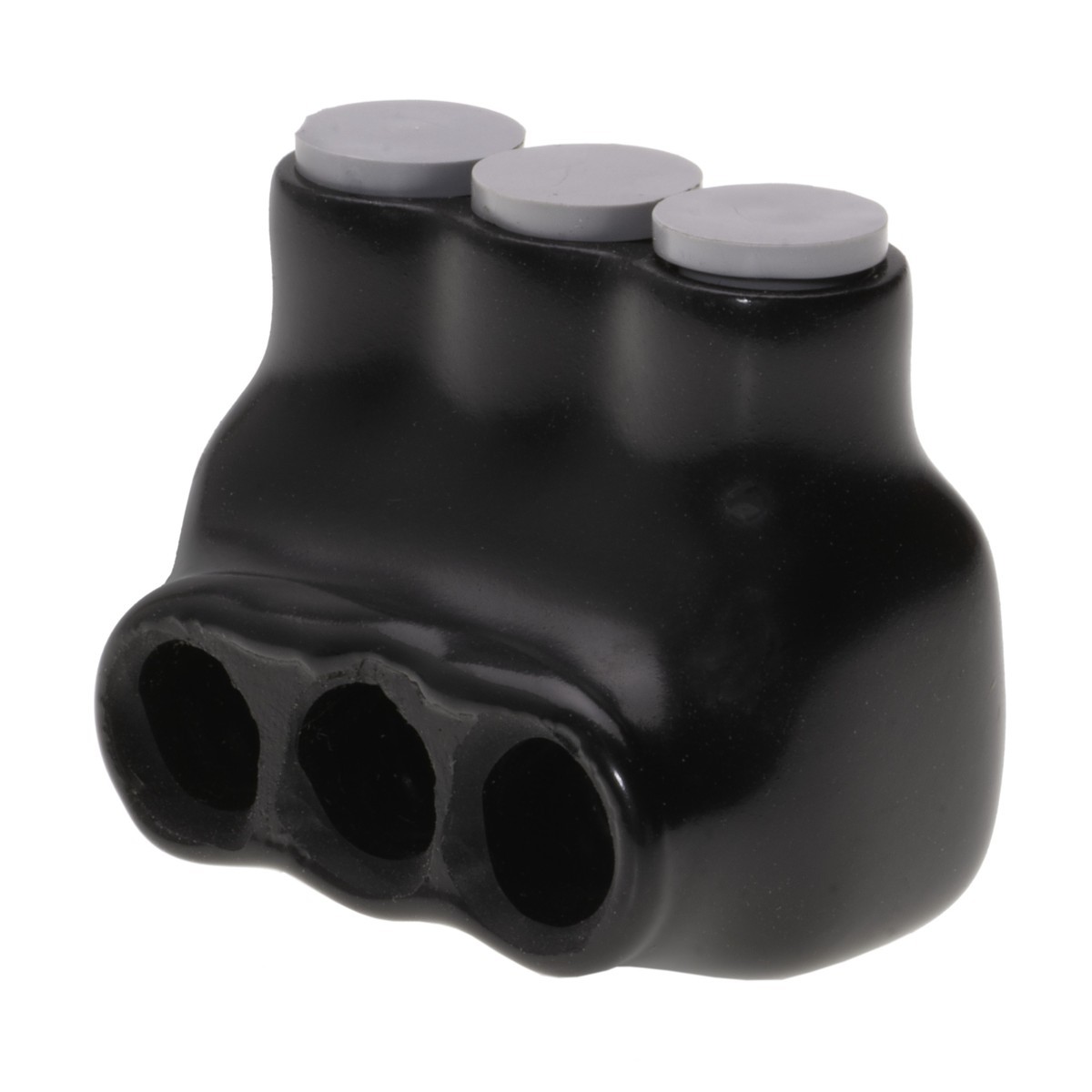

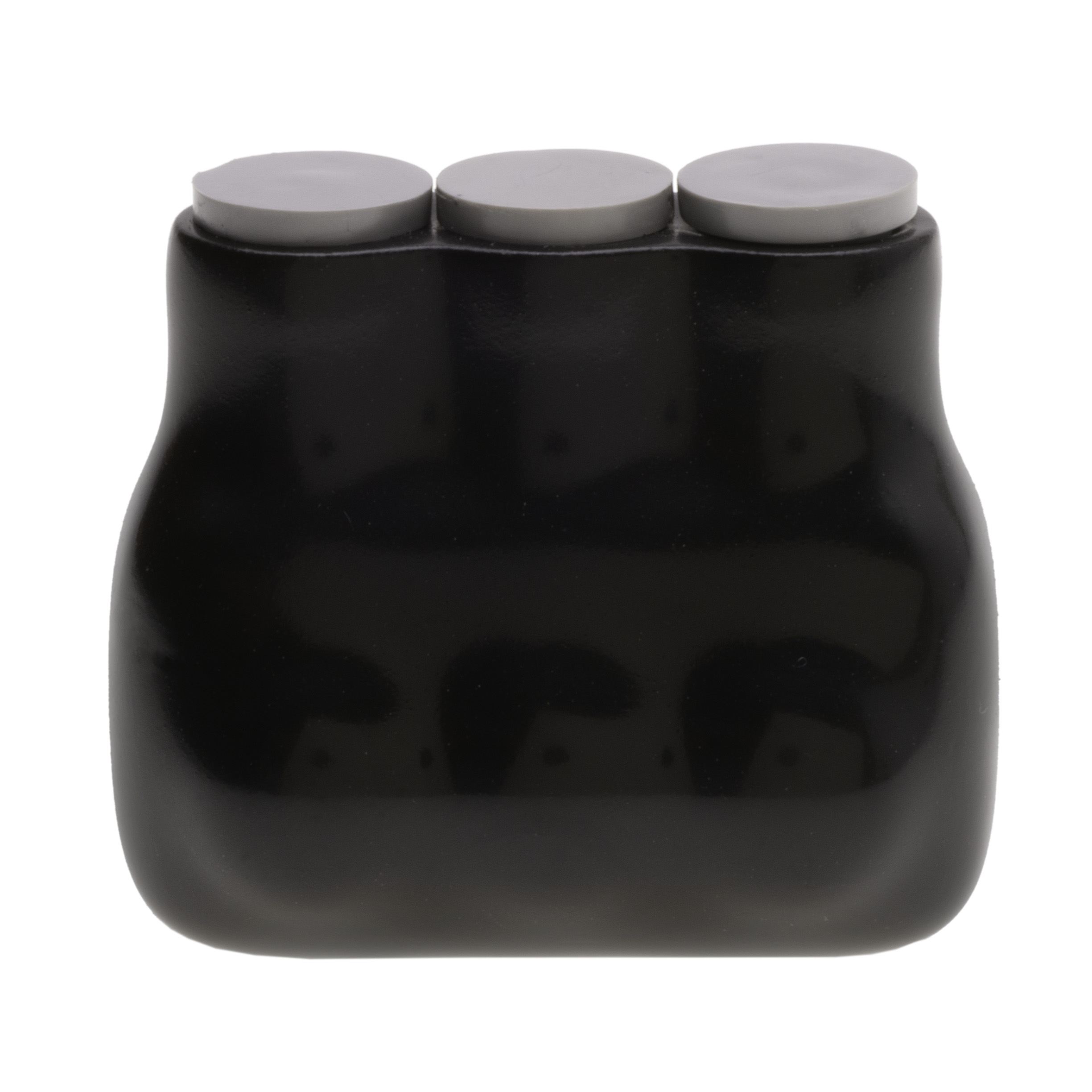

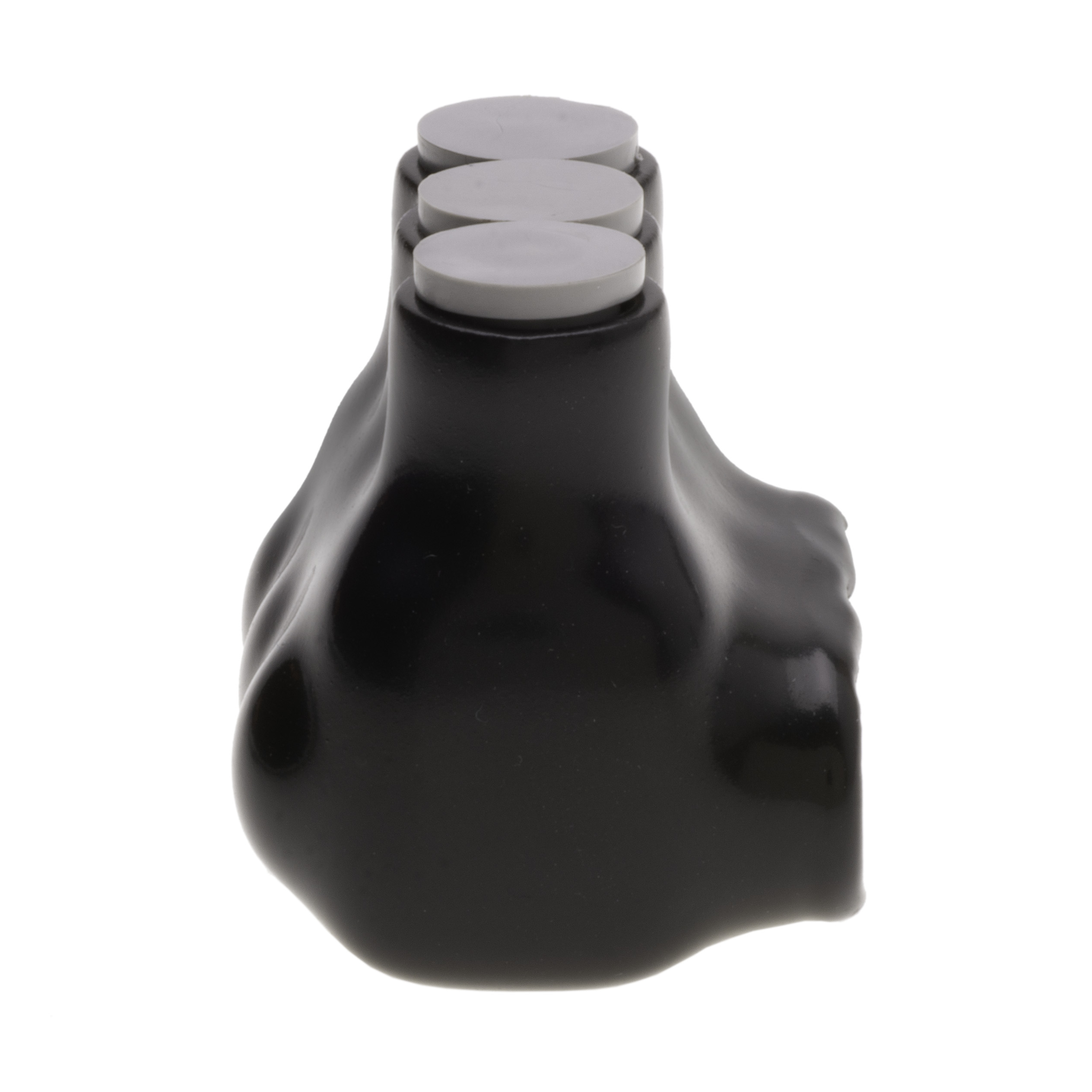

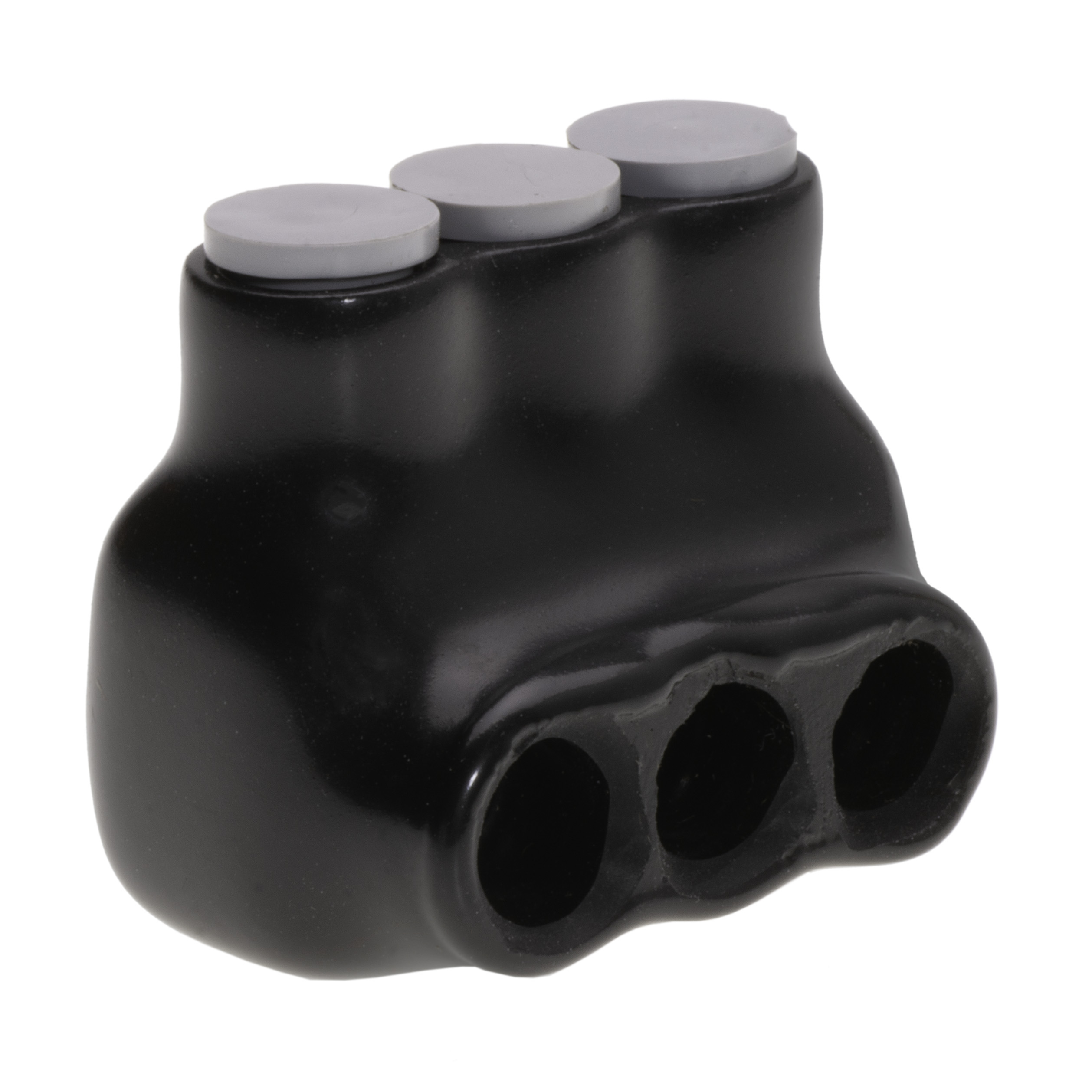

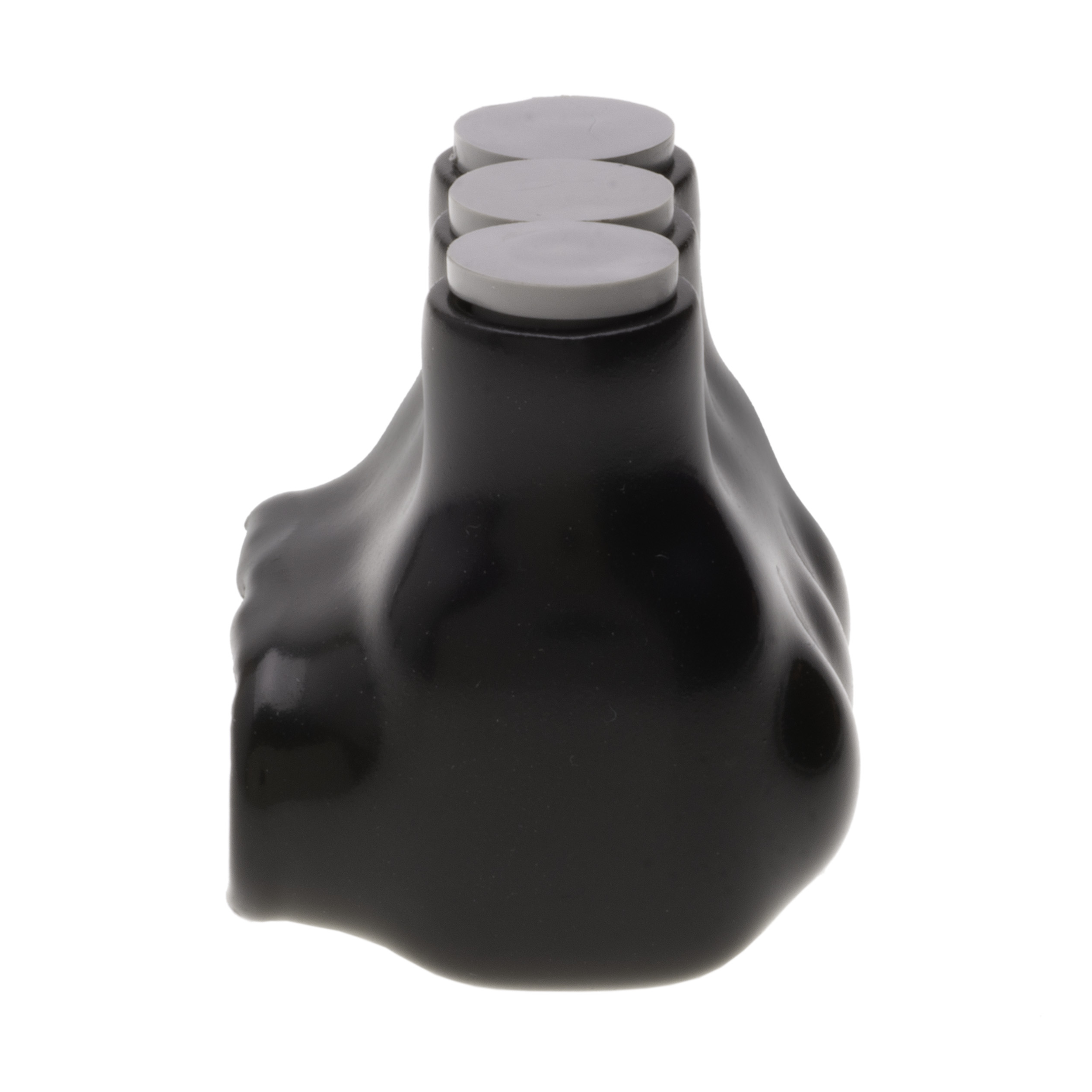

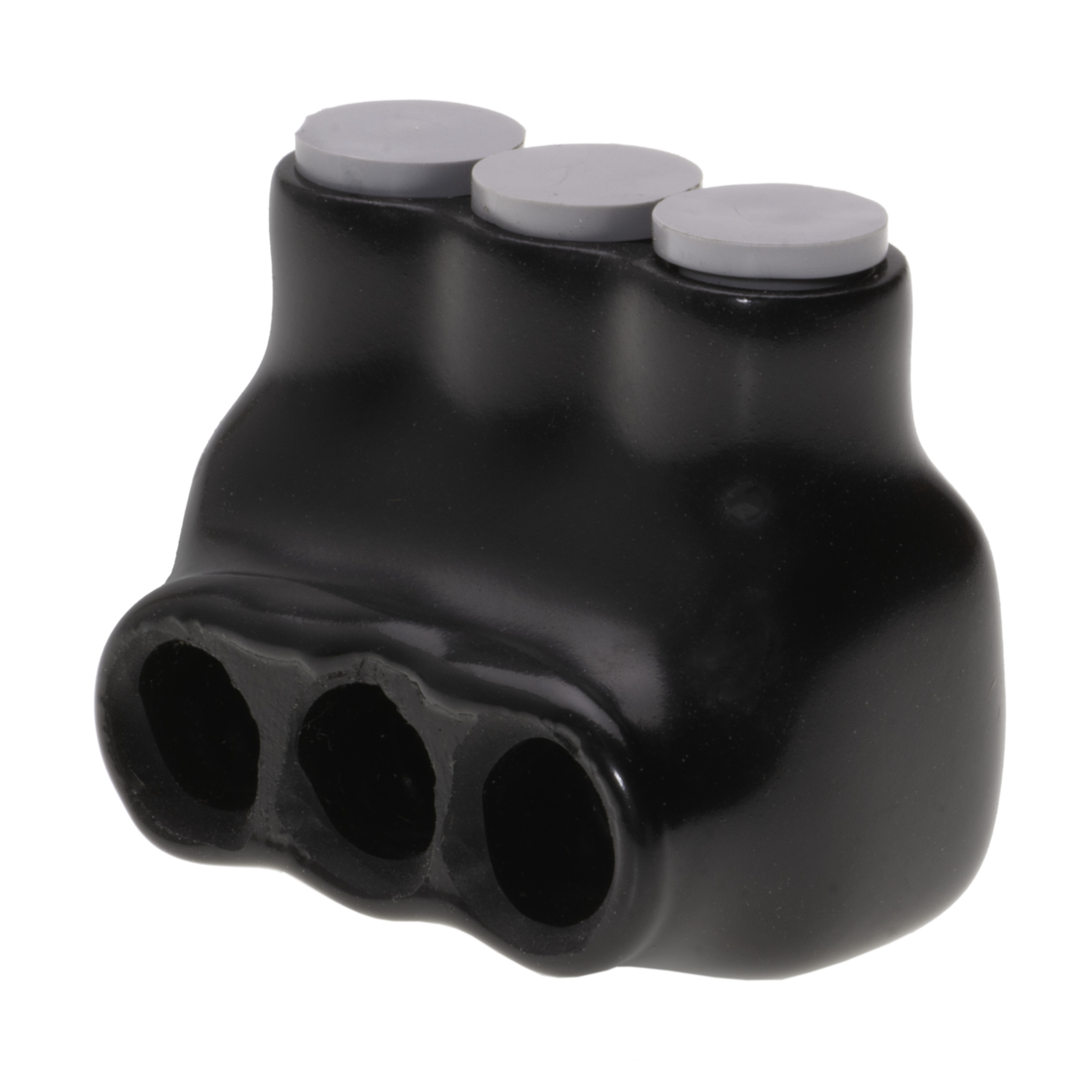

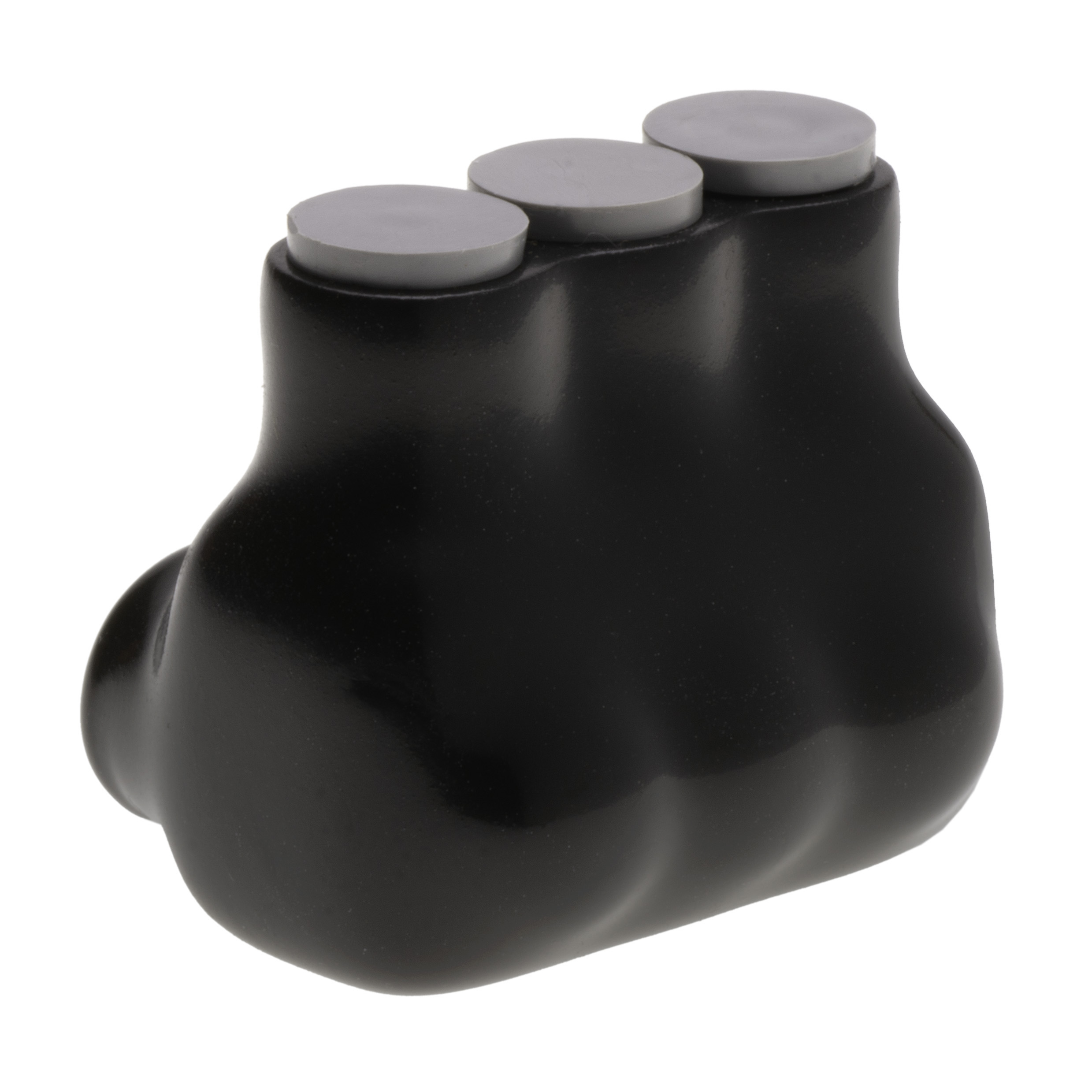

3-Port Grey Multi-Tap Pre-Insulated Connector, 6 – 14 AWG

#IPLG6-3

Polaris Grey Multi-Tap Connectors form secure connections between multiple fine-stranded wire conductors, with a rounded design and UV-resistant insulation coating. Installs with a hex key and torque wrench, no need for cover and taping.

  • One-Side Wire Entry: Form secure connections between 3 conductors quickly using the single-side entry ports sized for wires between 6 and 14 AWG
  • Fine-Stranded Wires: Specially designed to splice fine-stranded, flexible and extra-flexible copper conductors, including DLO cable and motor lead wires
  • Ergonomic Design: Rounded corners and a smooth exterior finish over the plastisol insulation make Polaris connectors comfortable to grip
  • Removable Plugs: Each port and adjustable set screw is covered by a secure plug to prevent debris, moisture or contaminants from entering the insulated connector
  • Tightening Ferrule: The pre-installed tin-plated copper ferrule in each port collapses against fine strands to prevent tearing from the rotation of the screw

Product Information

Voltage Rating 600 V
Material Aluminum
Finish Plastisol Insulated
Color Black with Grey Caps
Pack Qty 12
GTIN 662381951427
UPC 662381951427
EAN 662381951427
UNSPSC 39121409
Ul Standard UL 486A/B
Wire Cable Class Class B, Class C, Class D, Class G, Class H, Class I, Class K, Class M, Class DLO
Conductor Cu Size Range 6-14 AWG (CLASS B, C,D) & 6-14 AWG (Classes G, H, I, K, M, DLO)
Conductor Type Copper
Assortment Fine Stranded Wire Pre-Insulated Connectors

Resources

Documents

  • POL_IPLG6_MCH_ProDraw_DIGITAL.pdf Download
  • POL_GREY_MCH_ProdSheet_DIGITAL.pdf Download
  • POL_GREY_MCH_ProdInstall_DIGITAL.pdf Download
  • POL_PREINSUL_MCH_ProdXRef_DIGITAL.pdf Download
  • POL_PREINSUL_MCH_ProdBro_Digital.pdf Download
