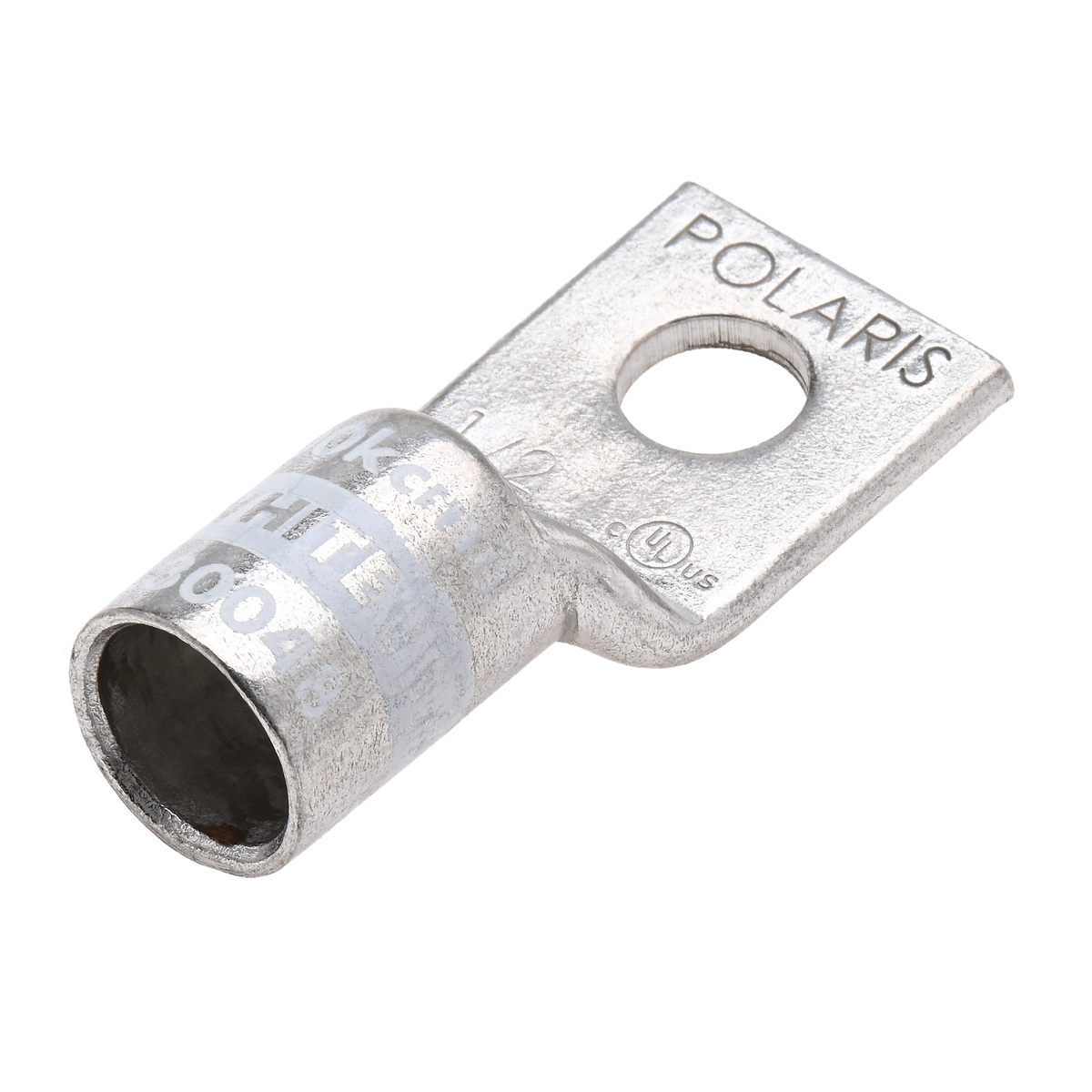

300 MCM 1/2” 1-Hole Copper Short Lug – White

#GL30048

The POLARIS compression design creates a permanent, vibration-resistant connection that you can rely on with low contact resistance. Suitable for a wide range of applications, including power distribution, grounding and data transmission.

  • High conductivity copper tubing and corrosion resistant tin-plated finish
  • Peep hole allows easy inspection of the termination
  • Marked with die index and color coded
  • Flex rated for use with K, H, G, I, M and DLO cable
  • Easy Inspection: Peephole allows easy inspection of the termination to assure complete cable insertion

Product Information

Voltage Rating 600V
Material Copper
Finish Tin Plated
GTIN 662381036155
UPC 662381036155
EAN 0662381036155
UNSPSC 39121405
Ul Standard UL 486A-486B
Barrel Inside Diameter 0.66
Barrel Outside Diameter 0.82
Wire Cable Class Class B, Class C
Conductor Type Copper
Tang Thickness 0.15
Tang Length 1.06
Wire Range 300 MCM
Assortment Copper Compression Terminations
Expanded Wire Range 300 MCM – 2/0 AWG
Die Color Code White
Mounting Bolt Size 1/2
Mounting Hole Diameter 0.51
Barrel Length 1
