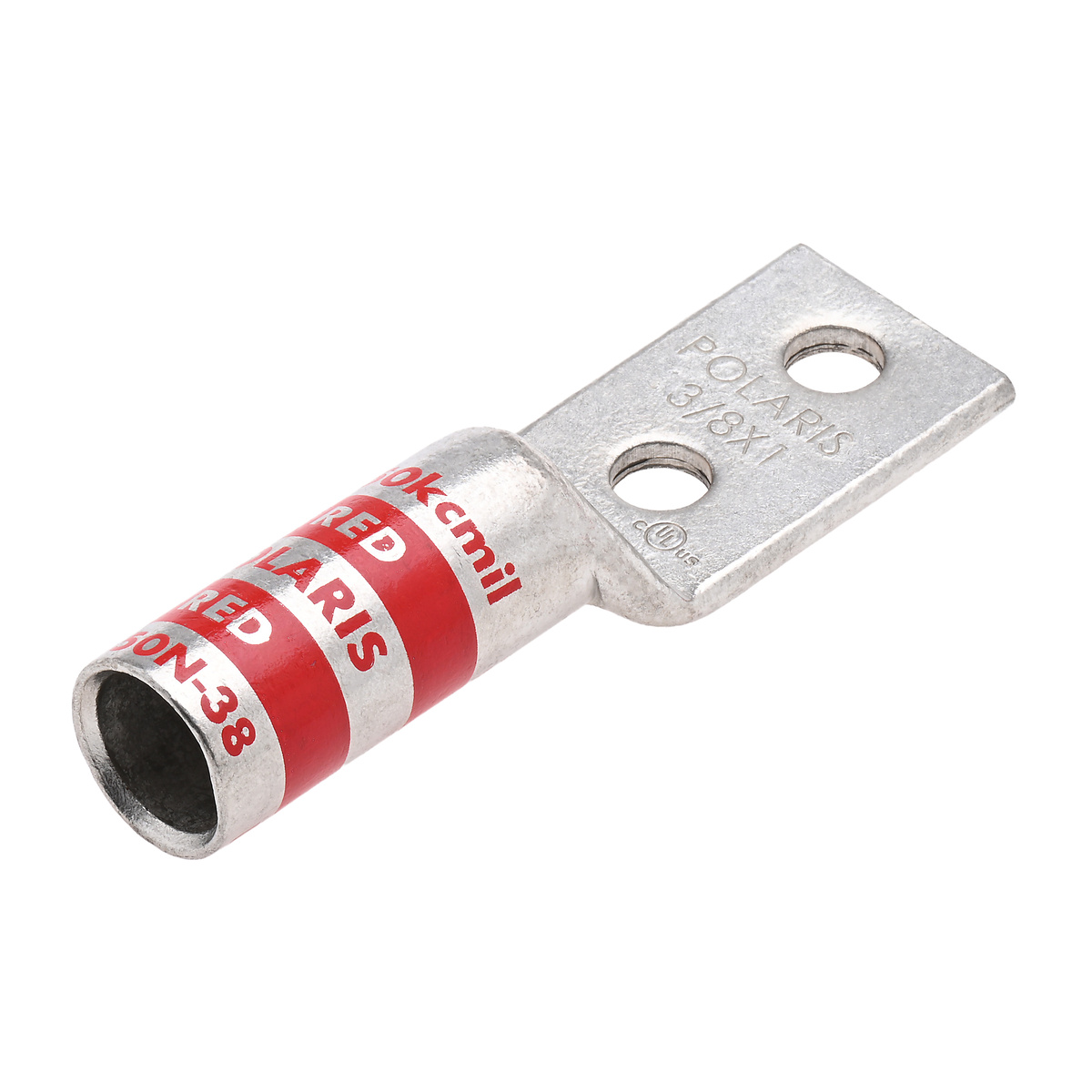

350 MCM 3/8” 2-Hole Copper Long Lug – Red

Name: 350 MCM 3/8'' 2-Hole Copper Long Lug - Red
SKU: L350N-38

Compression Termination

#L350N-38

The POLARIS compression design creates a permanent, vibration-resistant connection that you can rely on with low contact resistance. Suitable for a wide range of applications, including power distribution, grounding and data transmission.

High conductivity copper tubing and corrosion resistant tin-plated finish
Marked with die index and color coded
Flex rated for use with K, H, G, I, M and DLO cable
UL/cULus listed and rated for B/C class wire

Product Information

Voltage Rating	600V
Material	Copper
Finish	Tin Plated
GTIN	662381339232
UPC	662381339232
EAN	0662381339232
UNSPSC	39121405
Origin Country	IN
Certifications	cULus, UL Listed
Ul Standard	UL 486A-486B
Barrel Inside Diameter	0.7
Barrel Outside Diameter	0.87
Ul File No	E155027
Wire Cable Class	Class B, Class C
Conductor Type	Copper
Tang Thickness	0.17
Tang Length	1.81
Temp Rating	90C, 9CU
Mounting Hole Pos	0.38
Hole Count	2
Wire Range	350 MCM
Assortment	Copper Compression Terminations
Expanded Wire Range	350 MCM – 3/0 AWG
Die Color Code	Red
Mounting Bolt Size	3/8
Barrel Length	2
