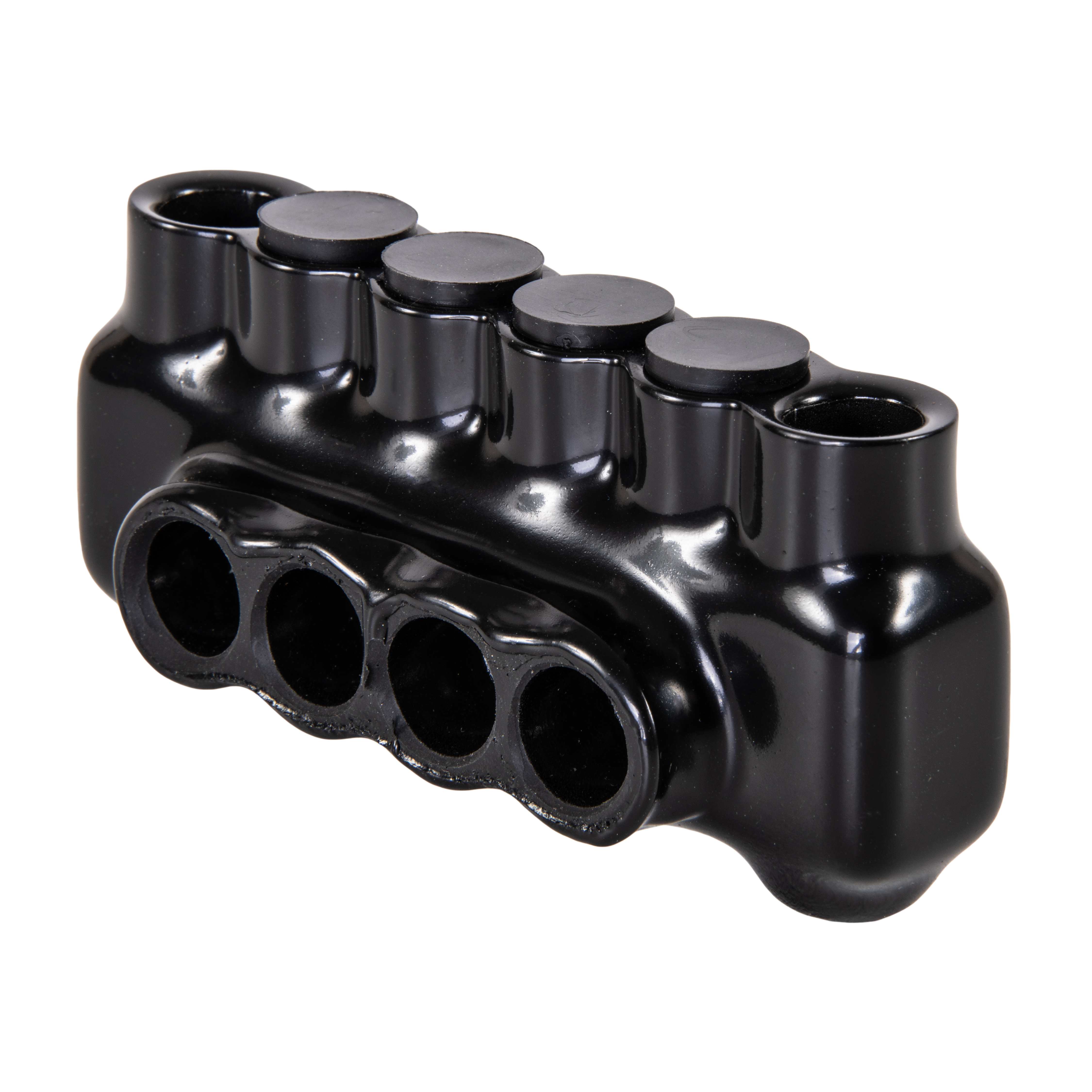

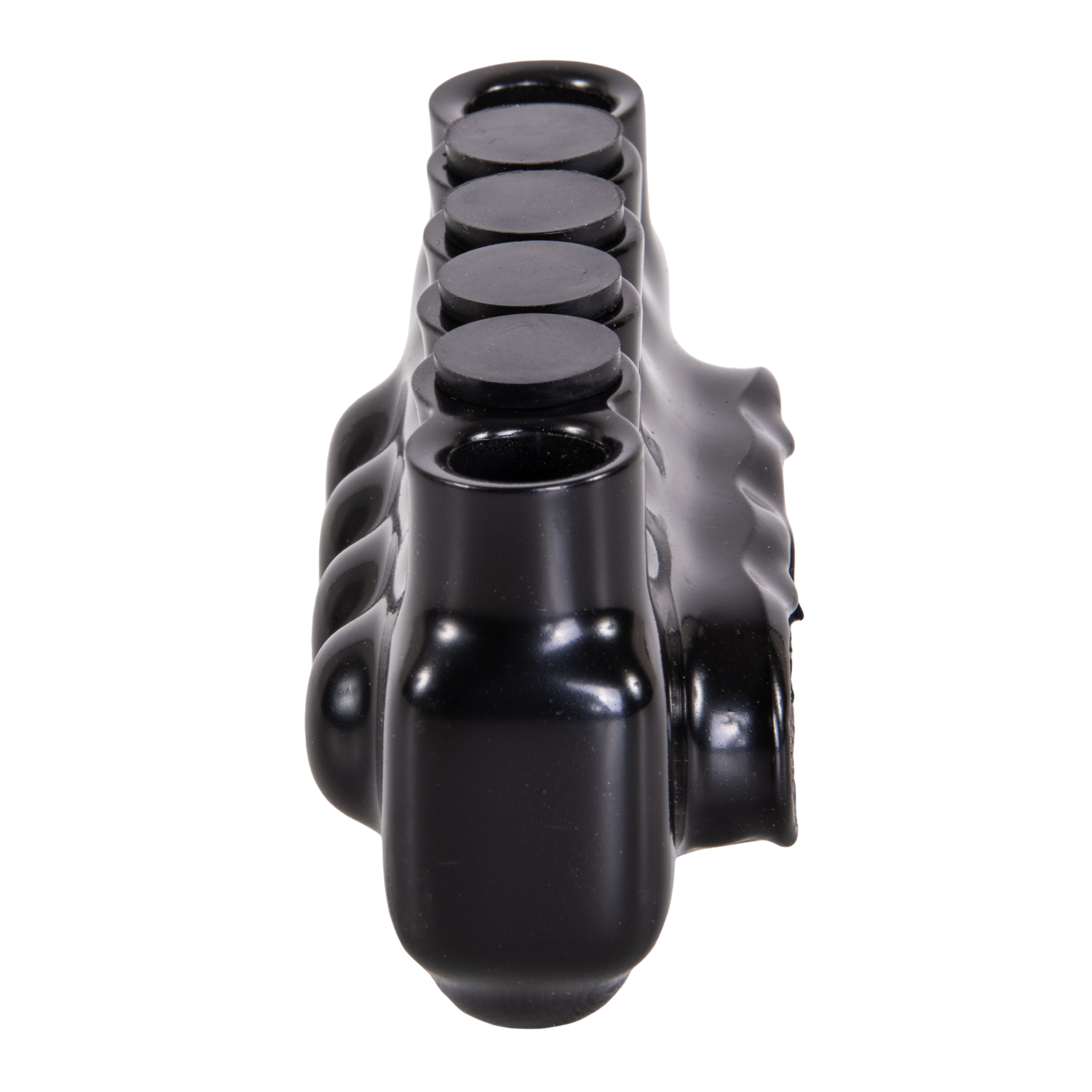

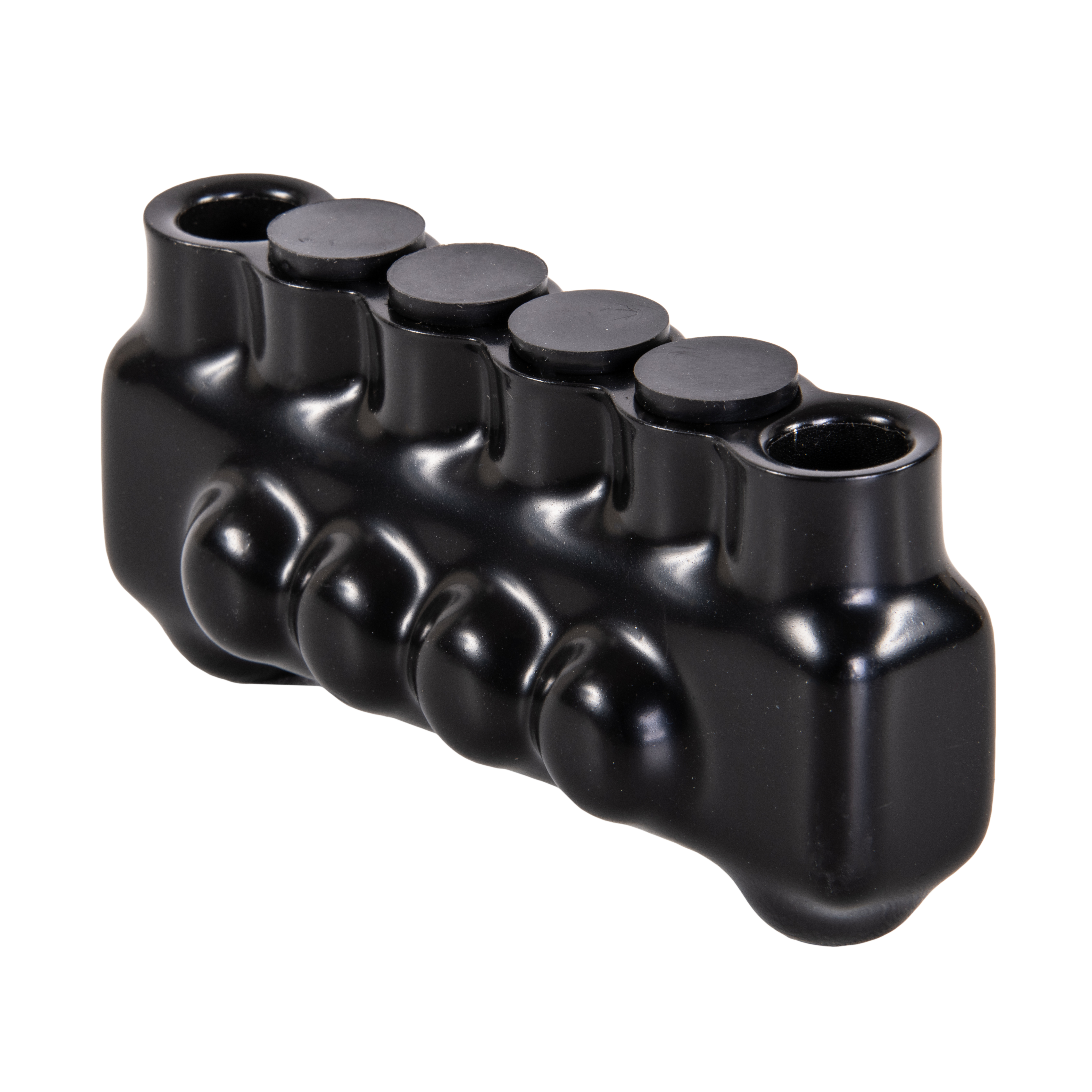

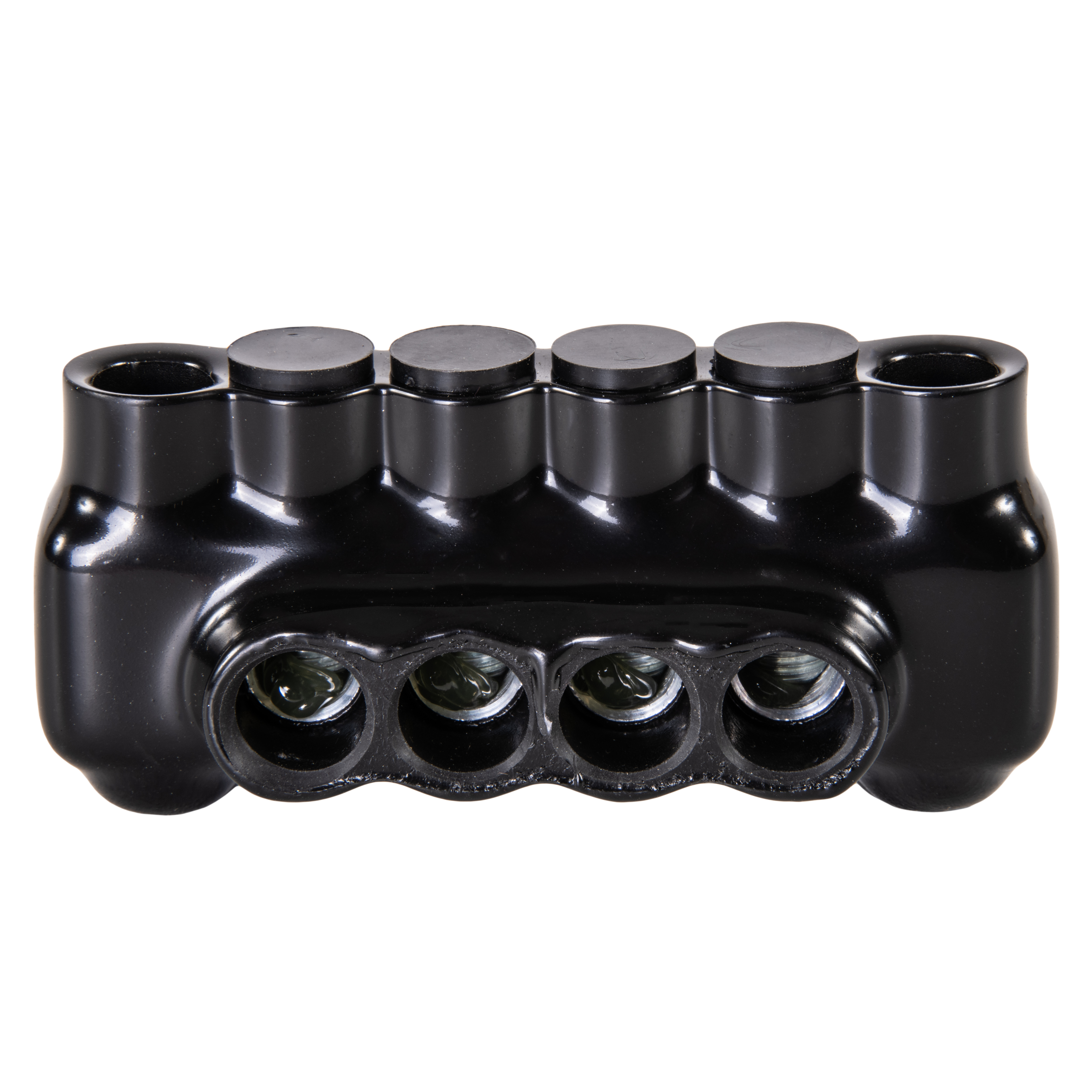

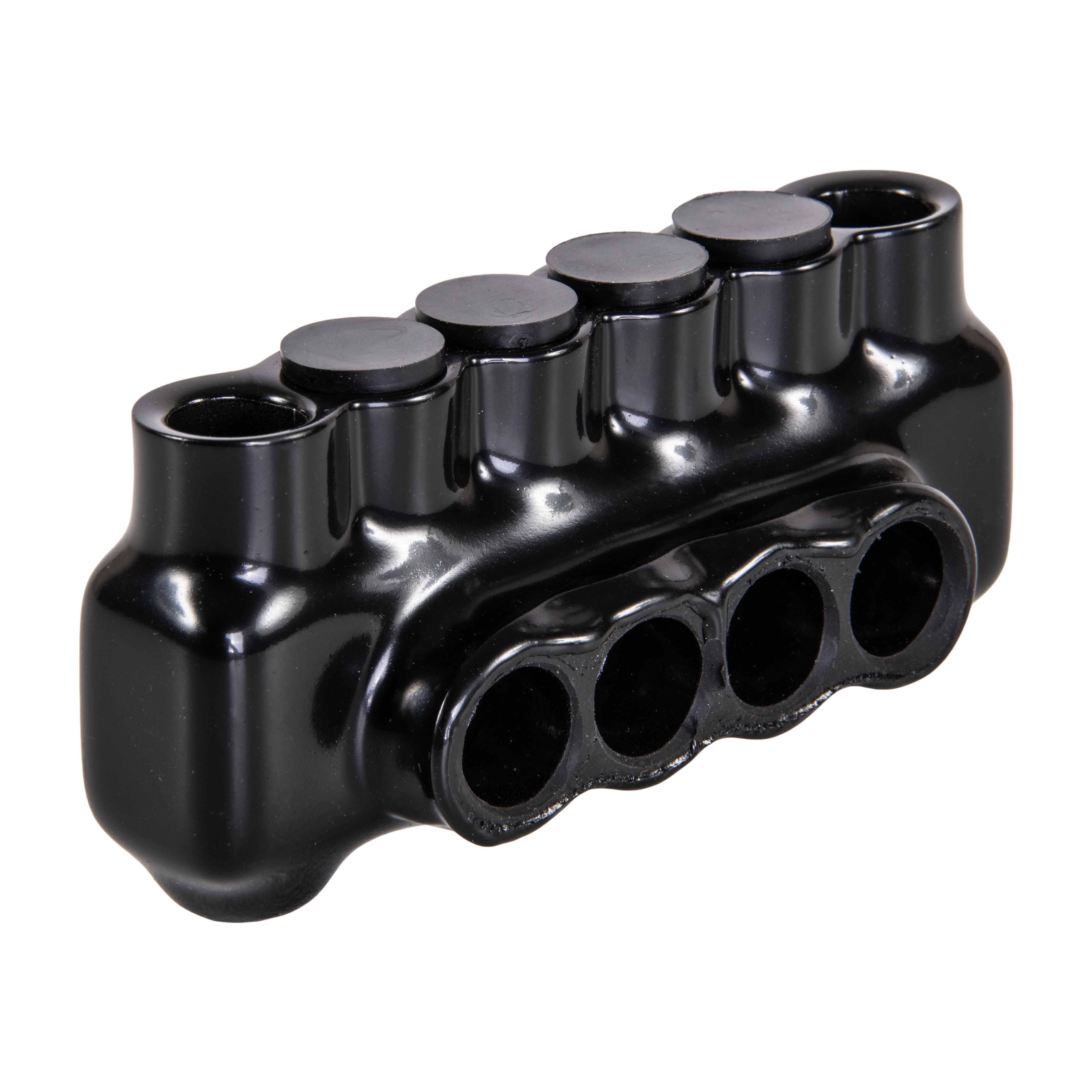

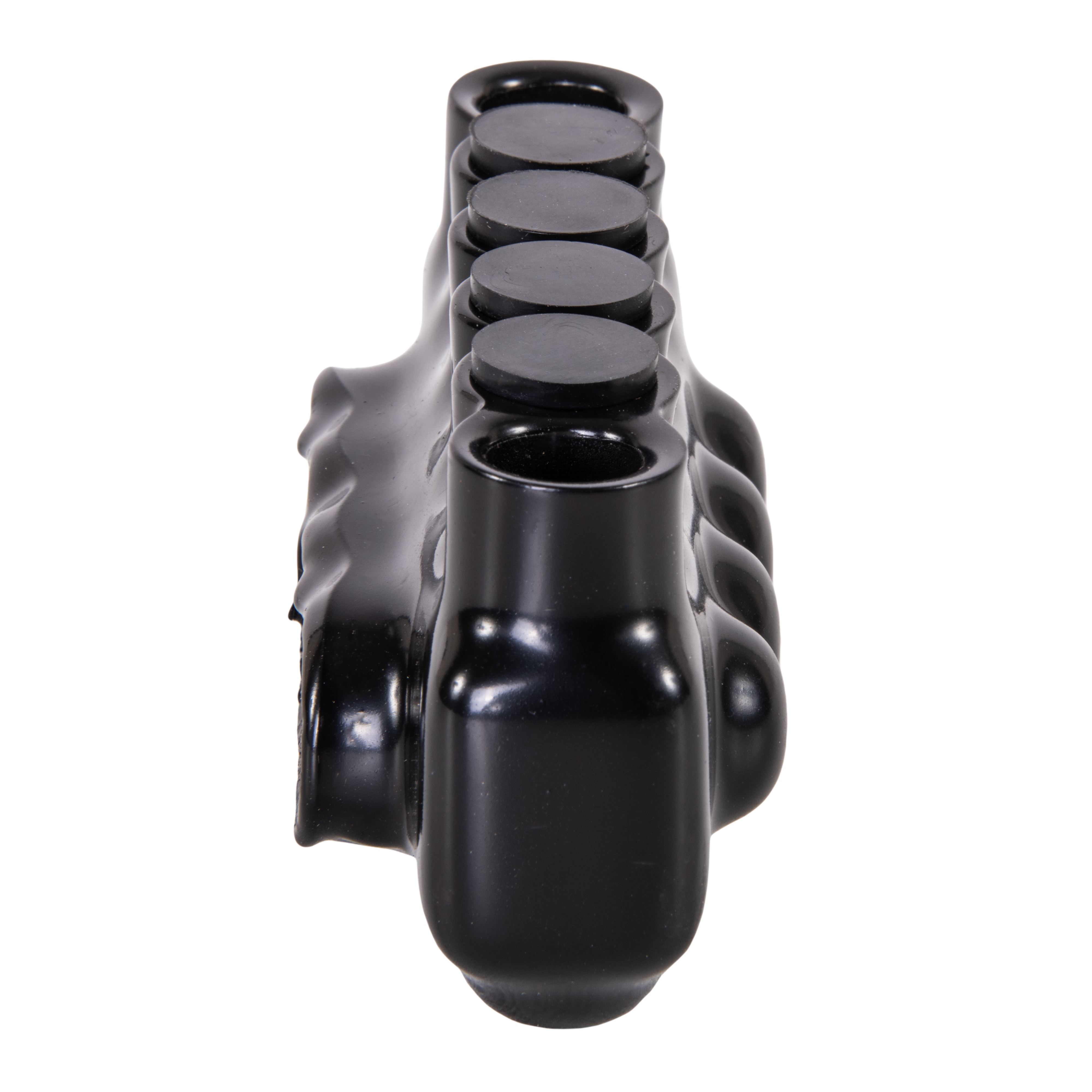

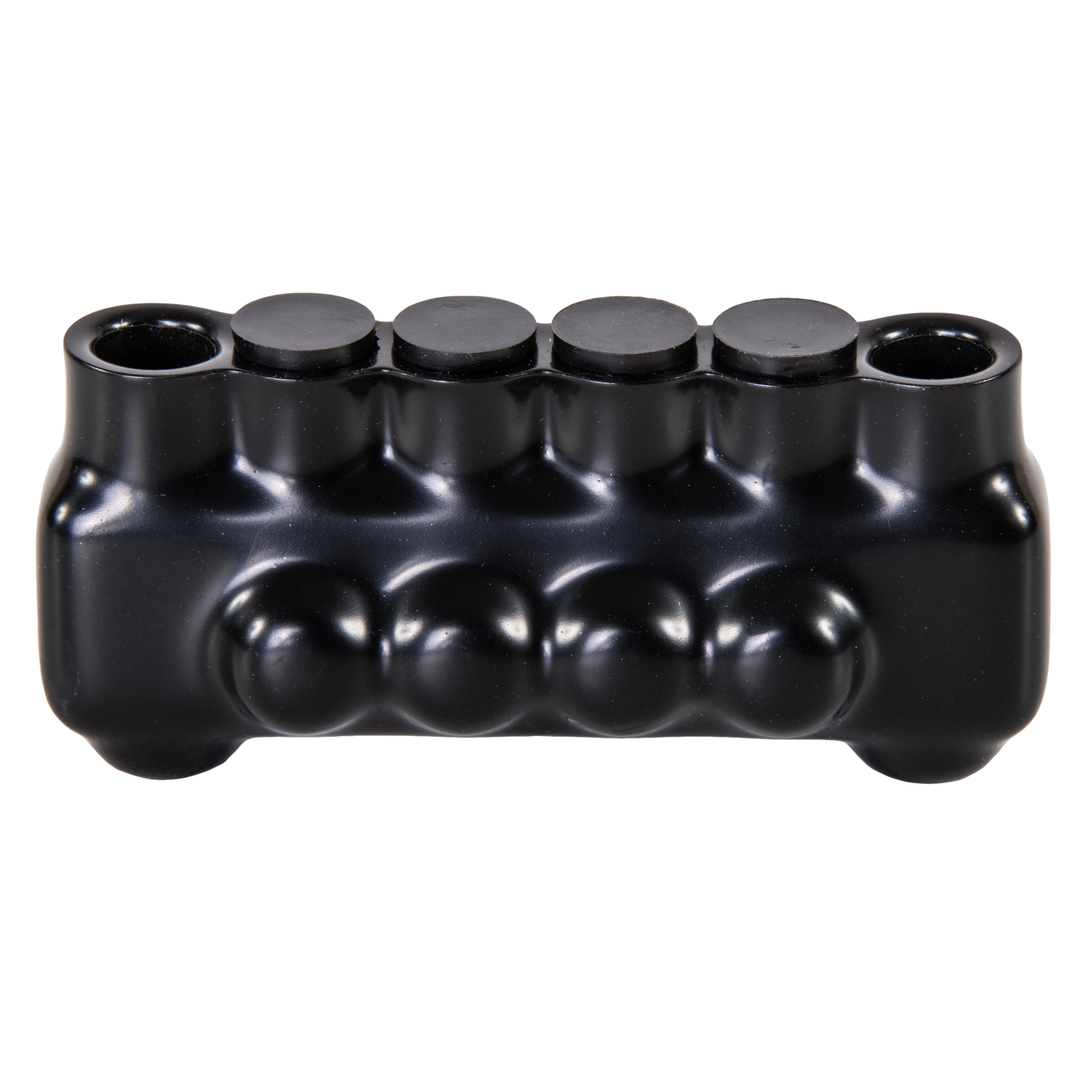

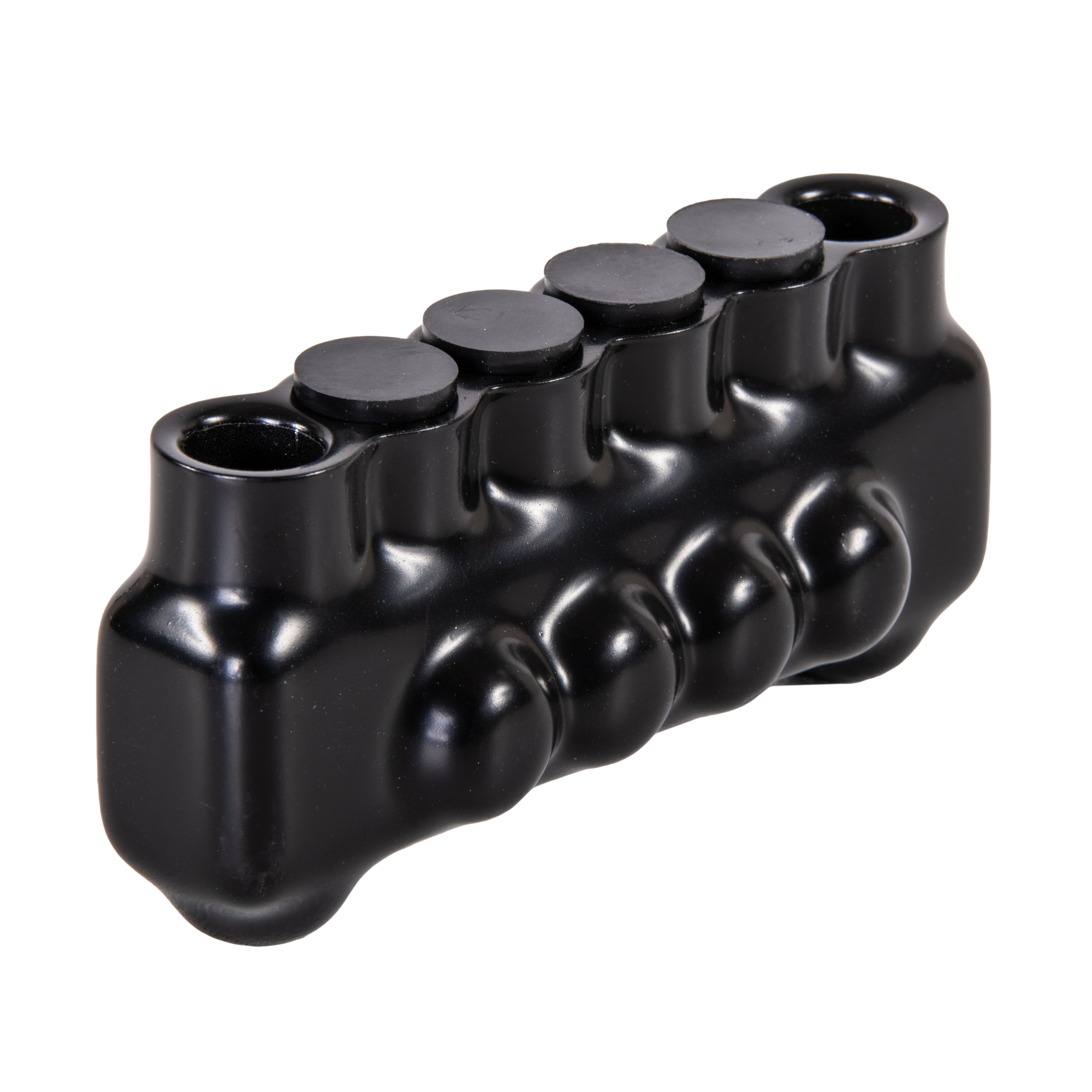

4-Port Black Mountable Pre-Insulated Connector, 4-14 Gauge

#IPLM4-4

Polaris Black Multi-Tap Mountable Connectors form secure connections between multiple conductors with a rounded design and UV-resistant insulation coating. Installs with a hex key and torque wrench, with no need for cover and taping.

  • One-Side Wire Entry: Form secure connections between 4 conductors quickly using the single-side entry ports sized for wires between 4 and 14 AWG Suitable for use on the line side of the service equipment as per the NEC article 230.46 requirement.
  • Mounting Holes: Installation is simple with mounting holes on either side of the connector to attach directly to panels or troughs using 1/4" bolts
  • Ergonomic Design: The plastisol insulation features rounded corners for a comfortable grip and is UV, abrasion and chemical-resistant for durable performance
  • Removable Plugs: Each port and adjustable set screw is covered by a secure plug to prevent debris, moisture or contaminants from entering the insulated connector
  • Pre-filled Oxide Inhibitor: All 4 single-side entry ports come pre-filled with an oxide inhibitor gel to prevent corrosion and provide low-contact resistance

Product Information

Voltage Rating 600 V
Material Aluminum
Finish Plastisol Insulated
Color Black
Pack Qty 6
GTIN 662381930026
UPC 662381930026
EAN 662381930026
UNSPSC 39121409
Ul Standard UL 486A/B
Wire Cable Class Class B, Class C
Conductor Cu Size Range 4 AWG – 14 AWG
Conductor Al Size Range 4 AWG – 12 AWG
Conductor Type Copper, Aluminum
Assortment Black UV Coated Pre-Insulated Connectors
