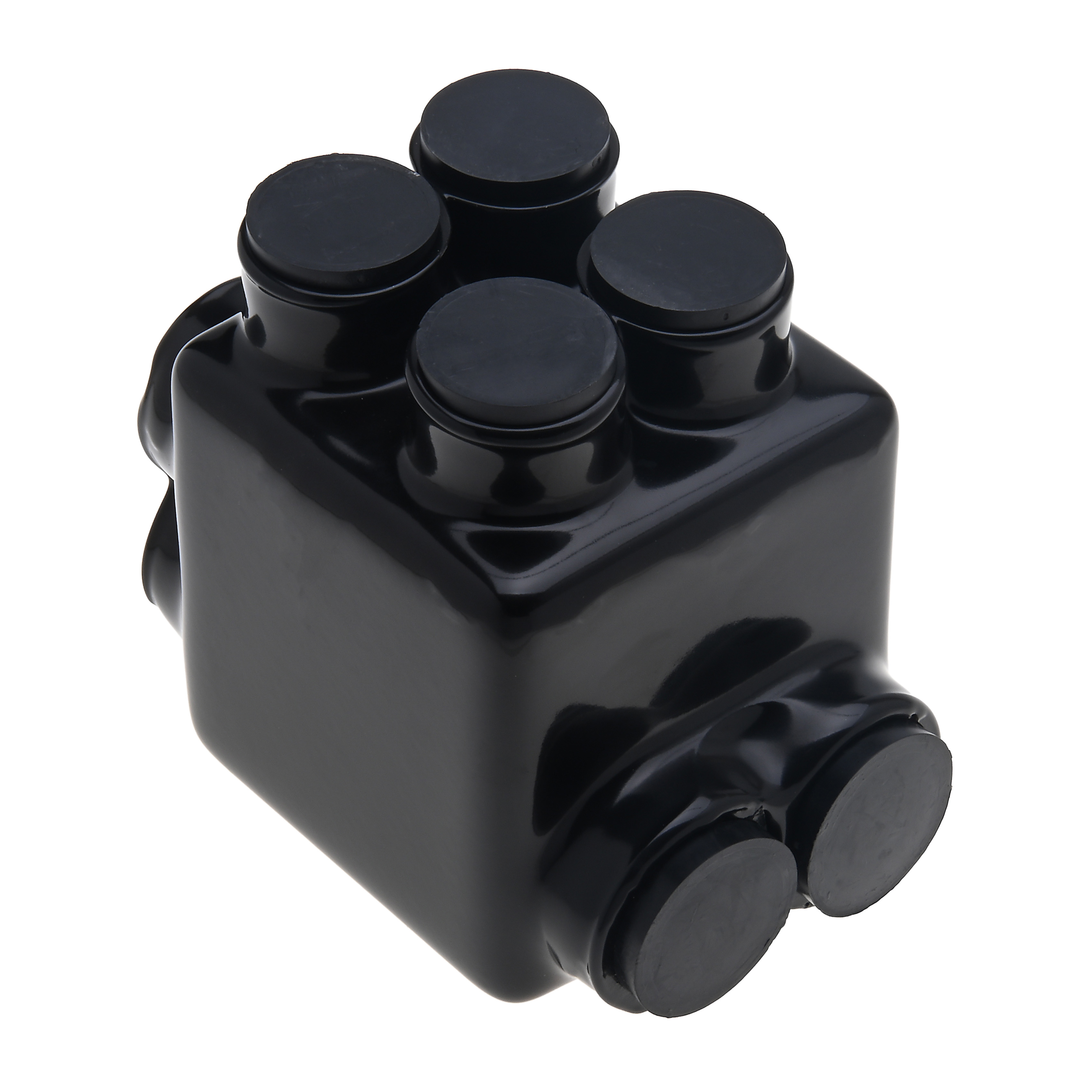

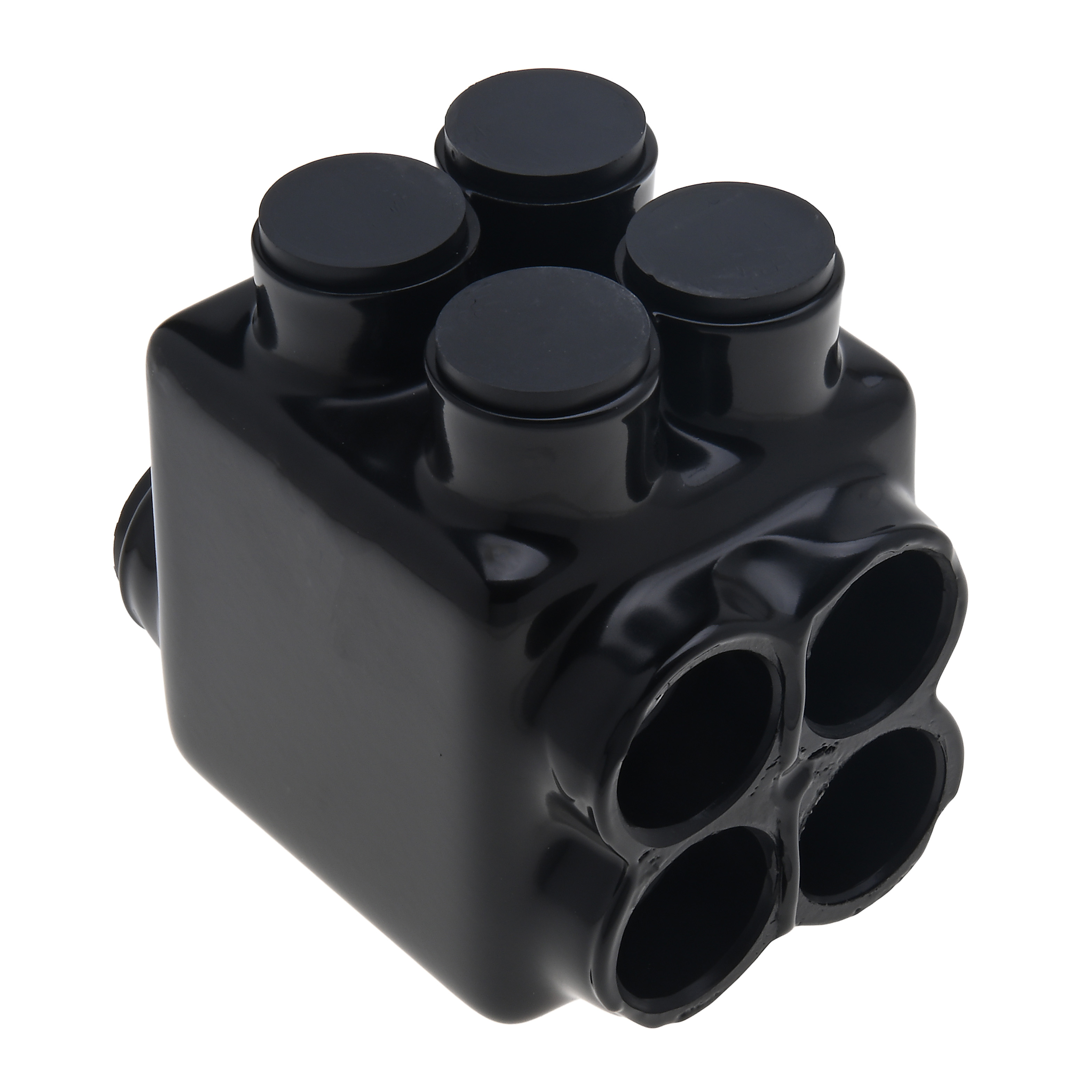

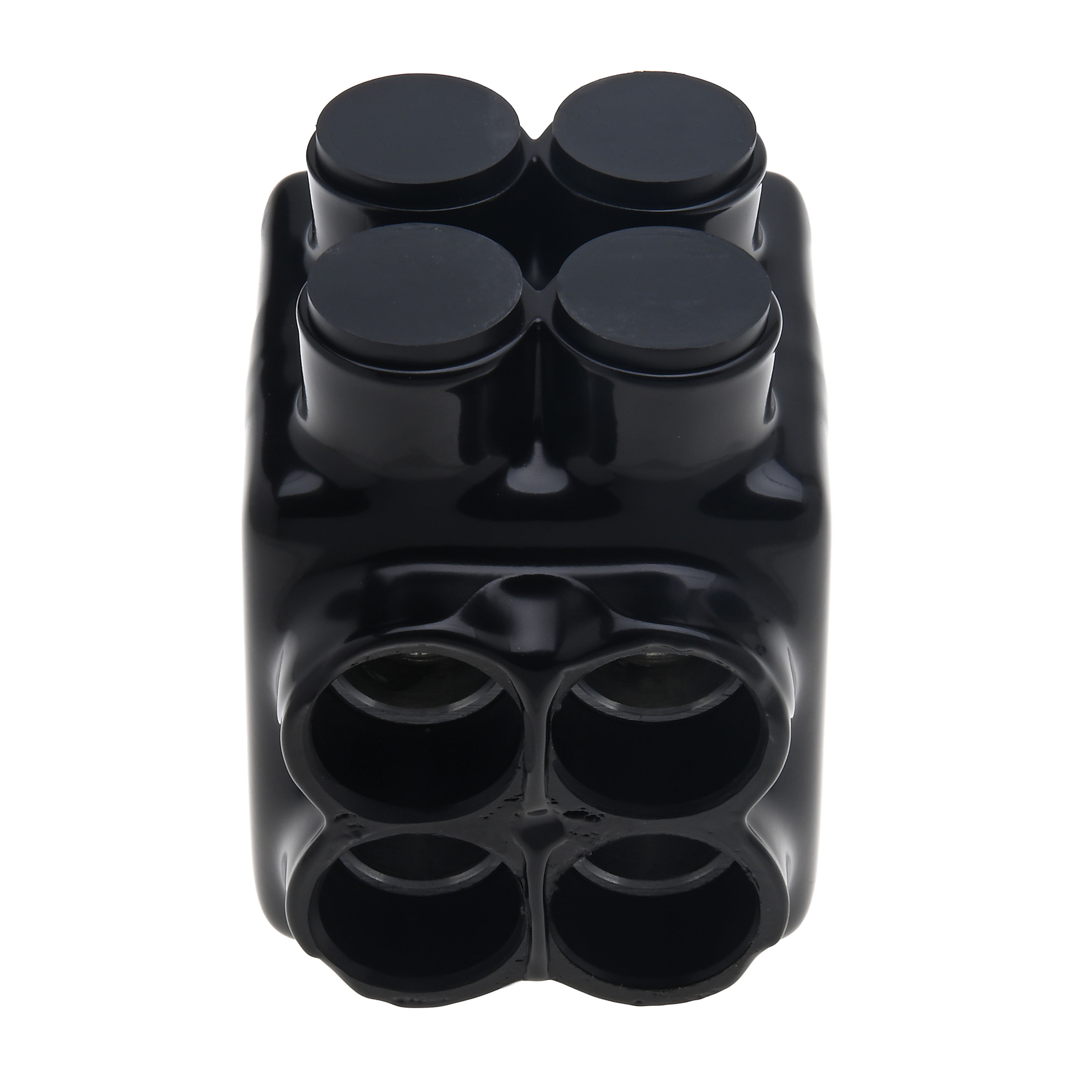

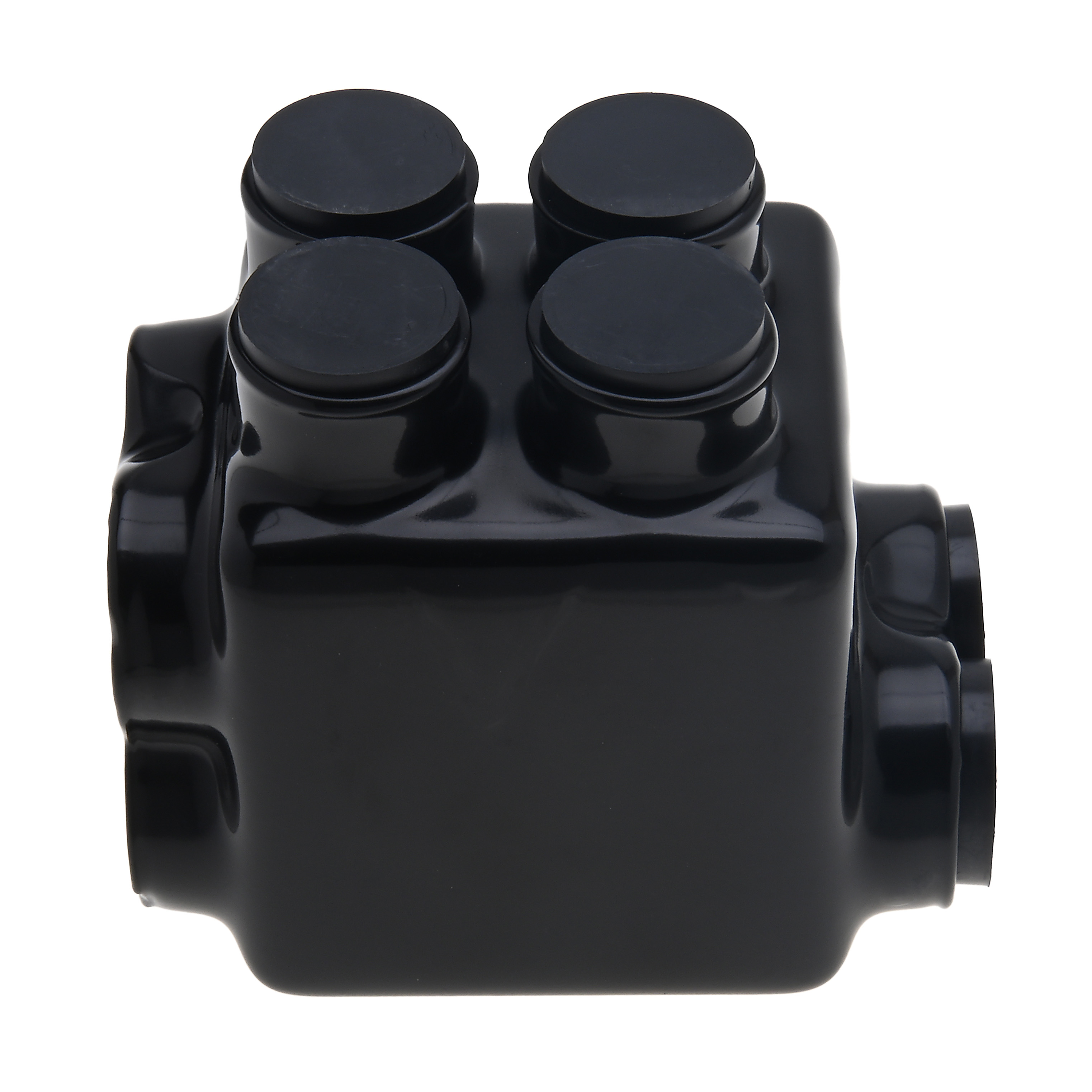

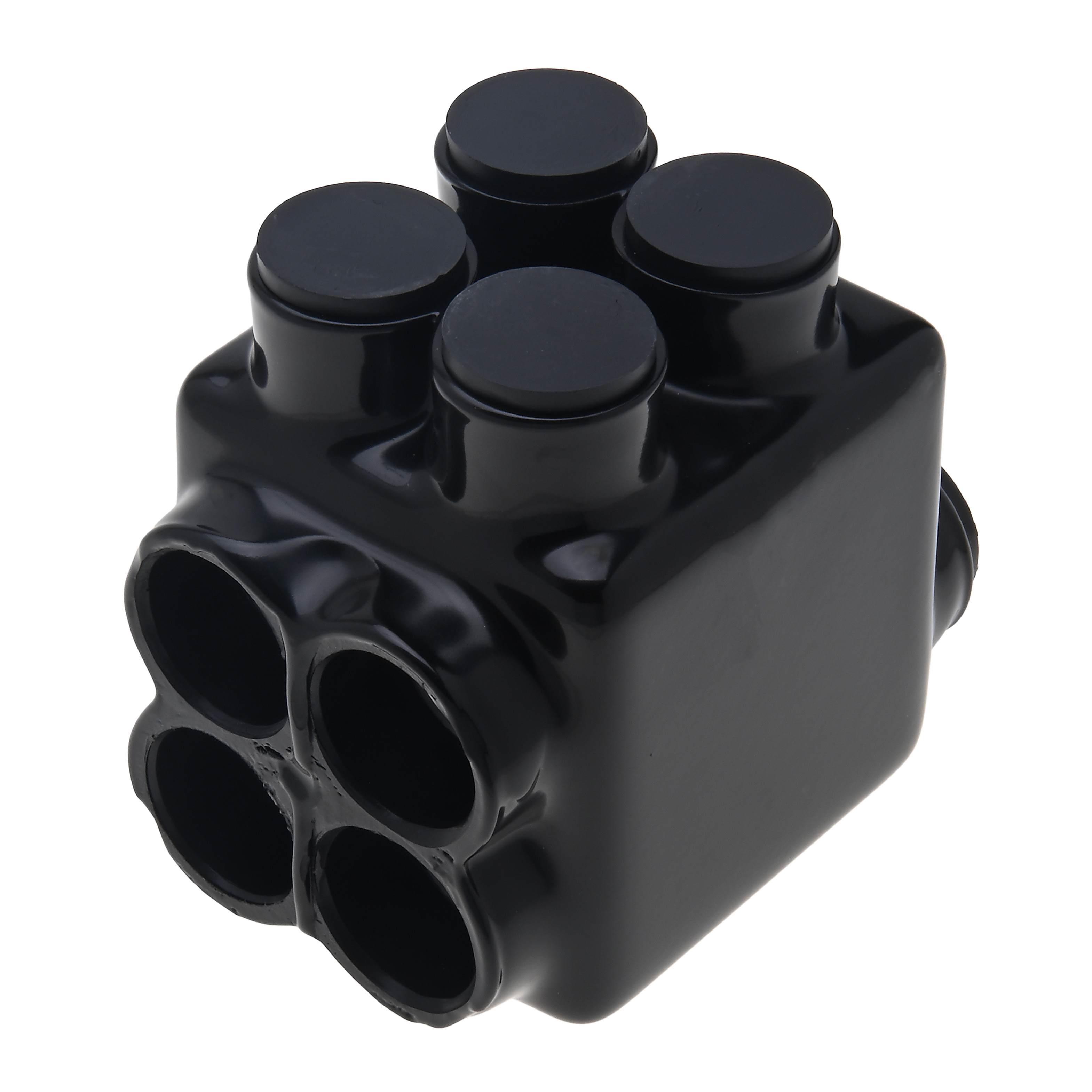

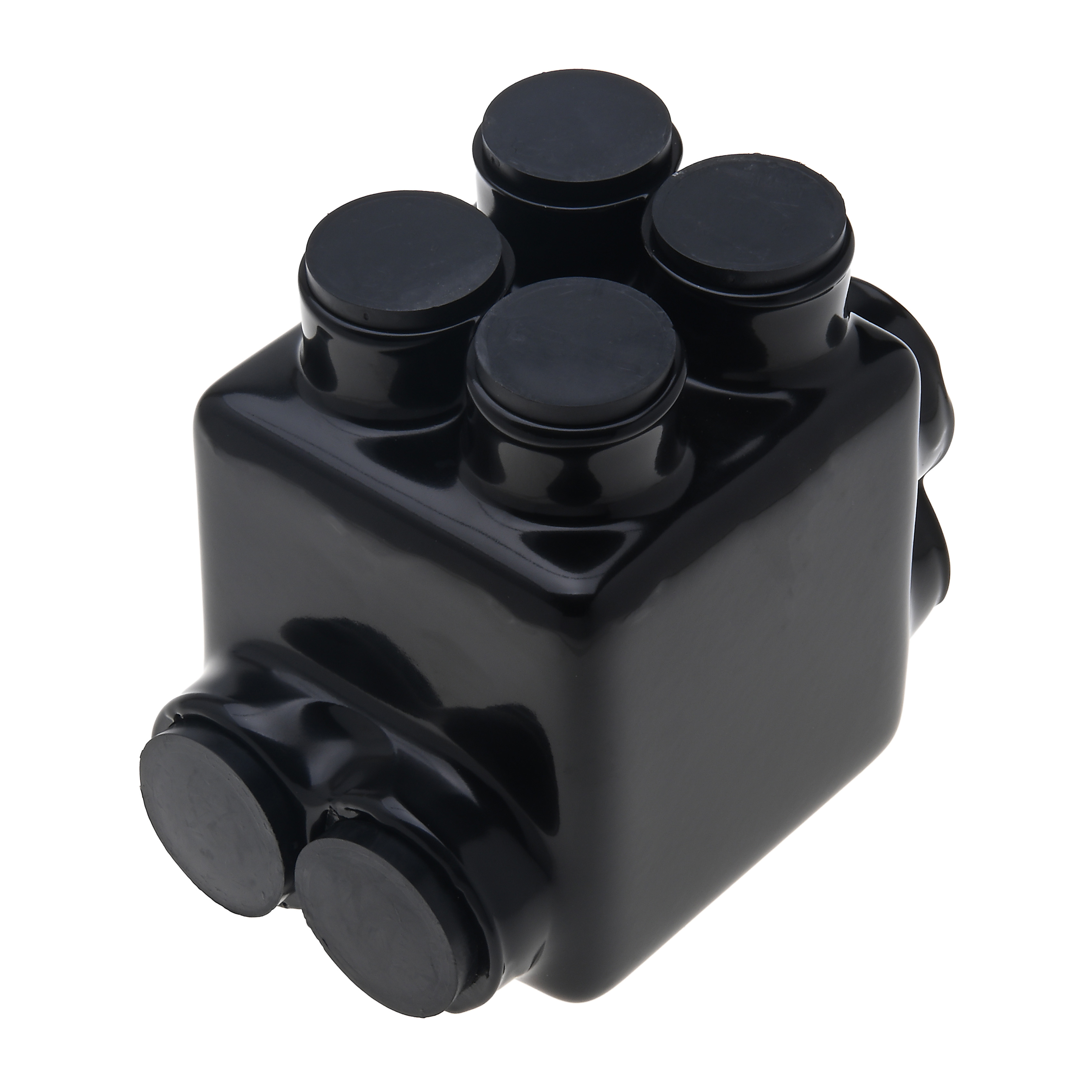

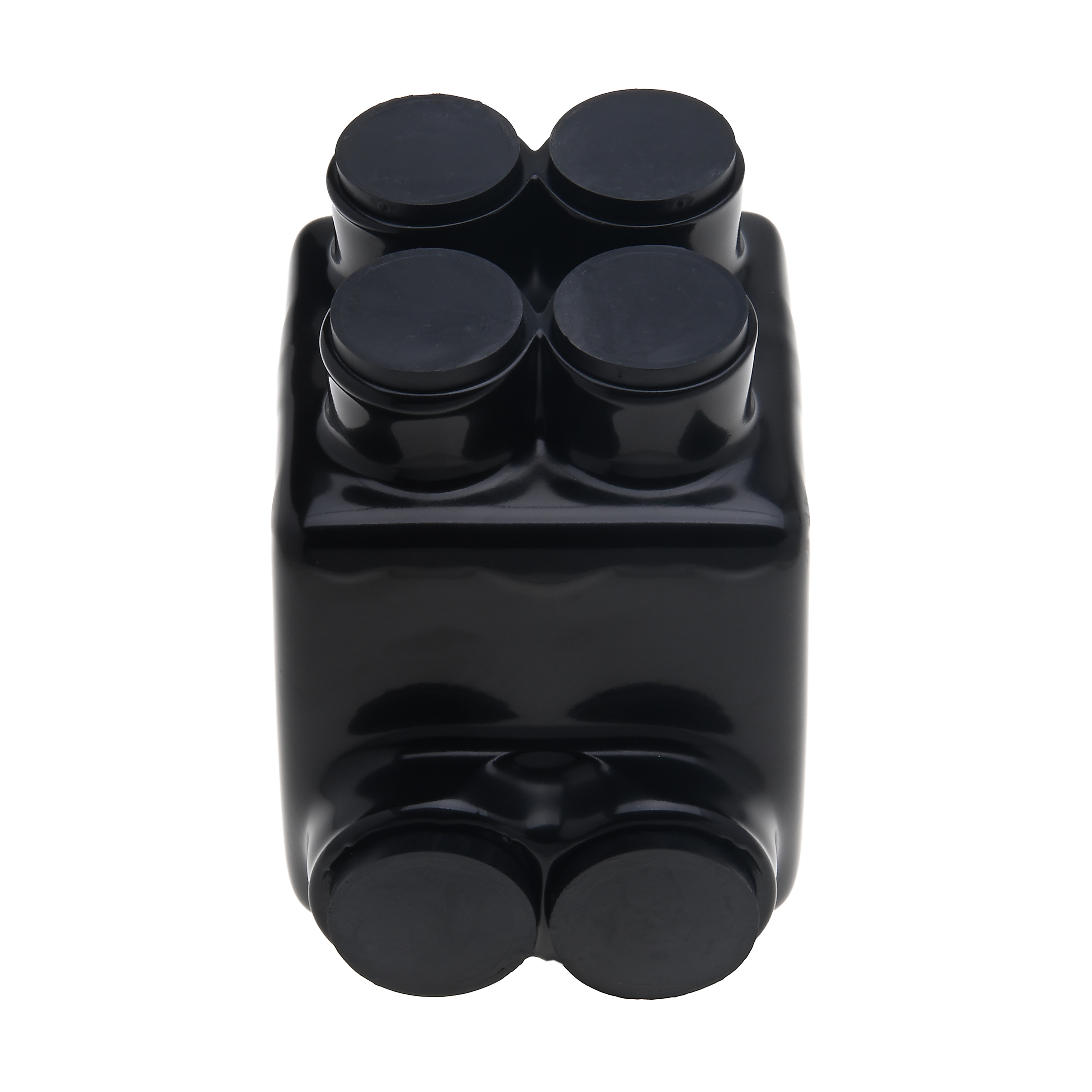

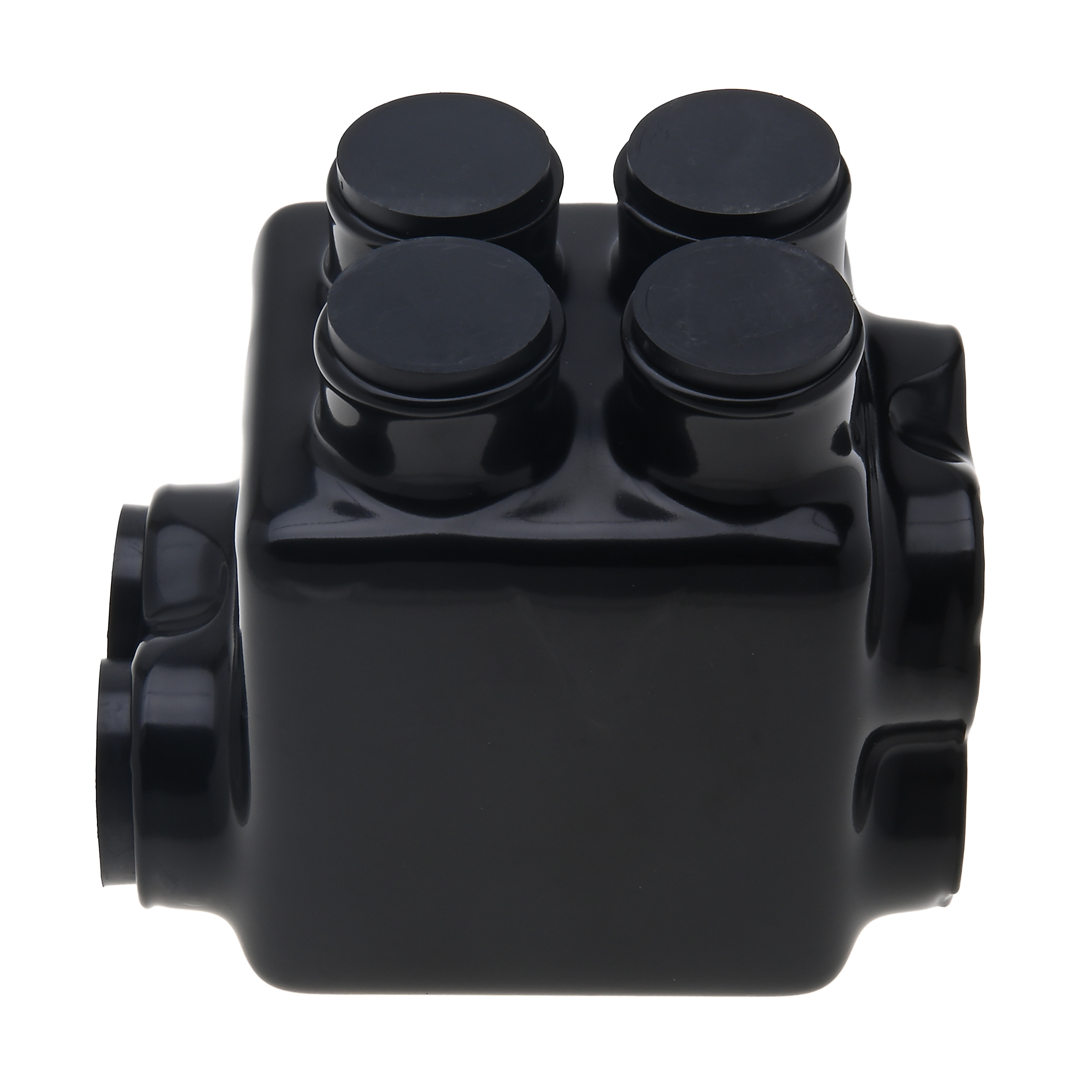

4-Port Black Stacked Pre-Insulated Connector, 600 MCM – 6 AWG

Name: 4-Port Black Stacked Pre-Insulated Connector, 600 MCM - 6 AWG
SKU: IPLDS600-4

Insulated Mechanical Connectors

#IPLDS600-4

Polaris Black Stacked Multi-Tap Connectors form secure connections between multiple conductors with a rounded design and UV-resistant insulation coating. Installs with a hex key and torque wrench, with no need for cover and taping.

Dual-Sided Wire Entry: Form secure connections between 4 conductors quickly using the double-side entry ports sized for wires between 600 MCM - 6 AWG
Stacked Connector: Stacked wires holes on one side of the connector excel at splicing large wires in tight-fitting spaces like panels or wireways.
Ergonomic Design: Rounded corners and a smooth exterior finish over the abrasion-resistant plastisol insulation make Polaris connectors comfortable to grip
Pre-filled Oxide Inhibitor: All 4 dual-sided entry (DSE) ports come with secure plugs and pre-filled with an oxide inhibitor gel to prevent corrosion or debris
Parallel Rated: This connector is specifically designed and rated for parallel installation, providing a safe and secure way to handle larger projects

Product Information

Voltage Rating	600 V
Material	Aluminum
Finish	Plastisol Insulated
Color	Black
Pack Qty	1
GTIN	662381369277
UPC	662381369277
EAN	662381369277
UNSPSC	39121409
Certifications	cULus
Ul Standard	UL 446A/B
Ul File No	E186991
Wire Cable Class	Class B, Class C
Al Conductor Max Amp	810
Cu Conductor Max Amp	1035
Conductor Cu Size Range	600 MCM-6 AWG
Conductor Al Size Range	600 MCM-6 AWG
Conductor Type	Copper, Aluminum
Temp Rating	90C, AL9CU
Conductors Count	4
Hex Wrench Size	5/16
Env Temp	Cold Temperature rated to -45C
Assortment	Black UV Coated Pre-Insulated Connectors
Max Torque	450
