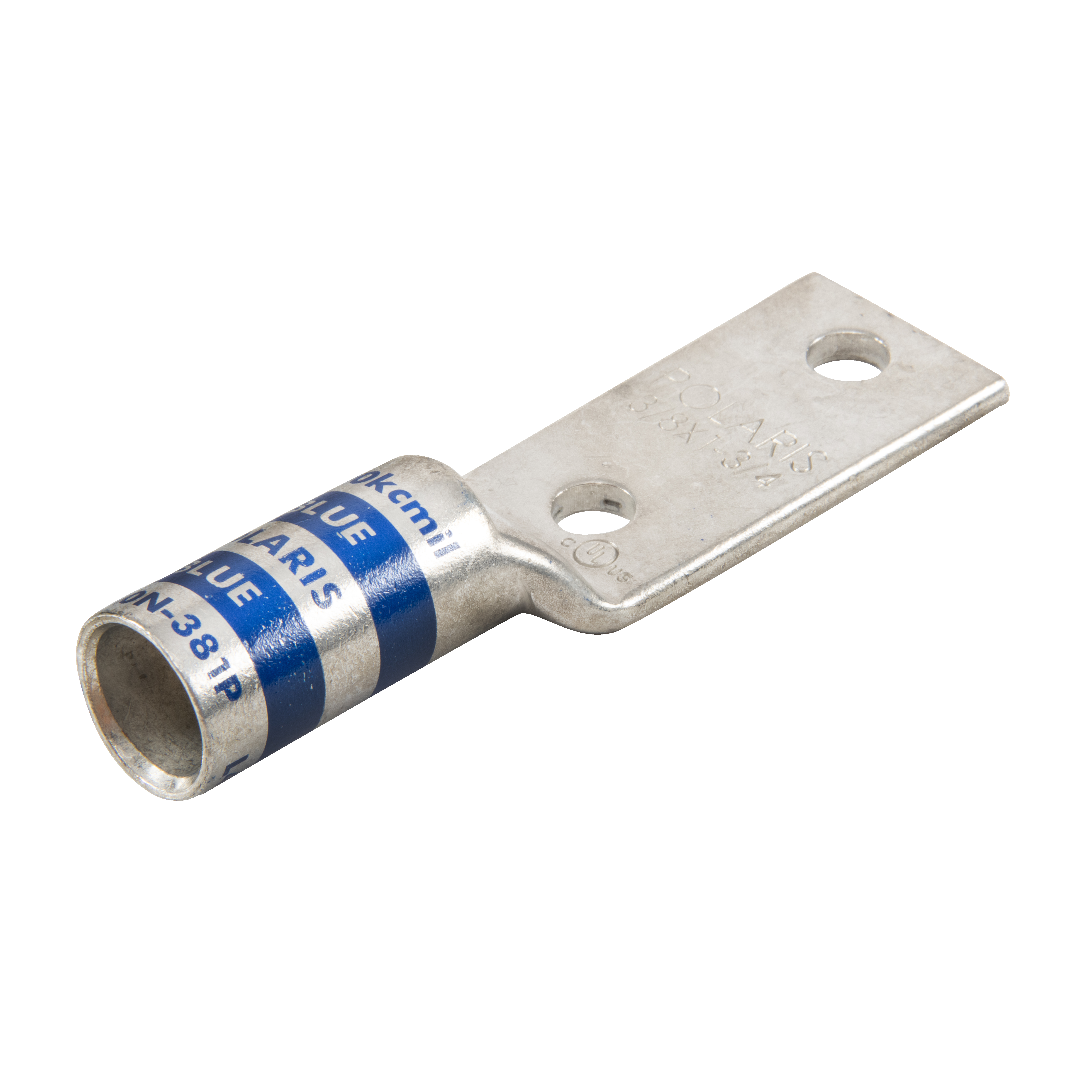

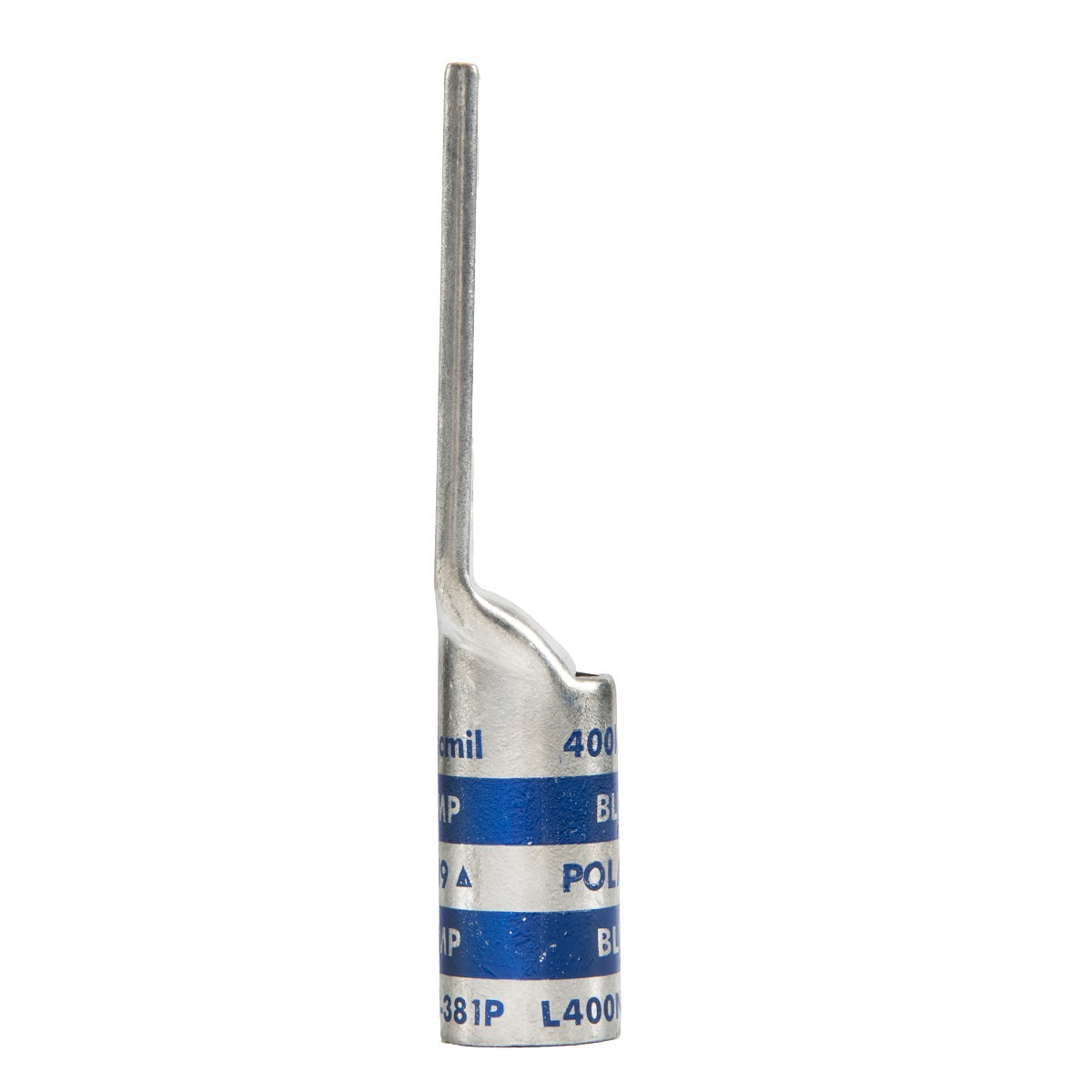

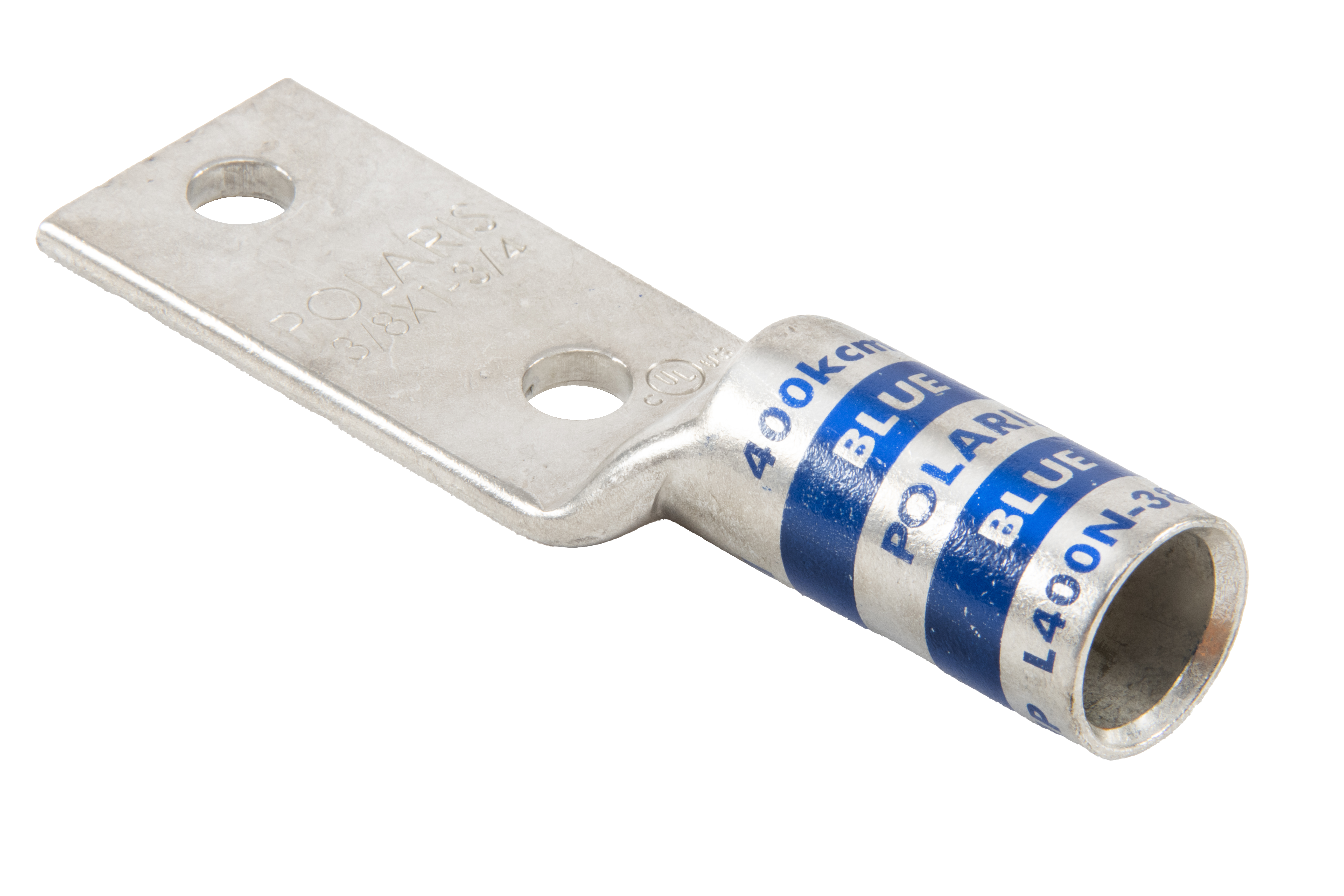

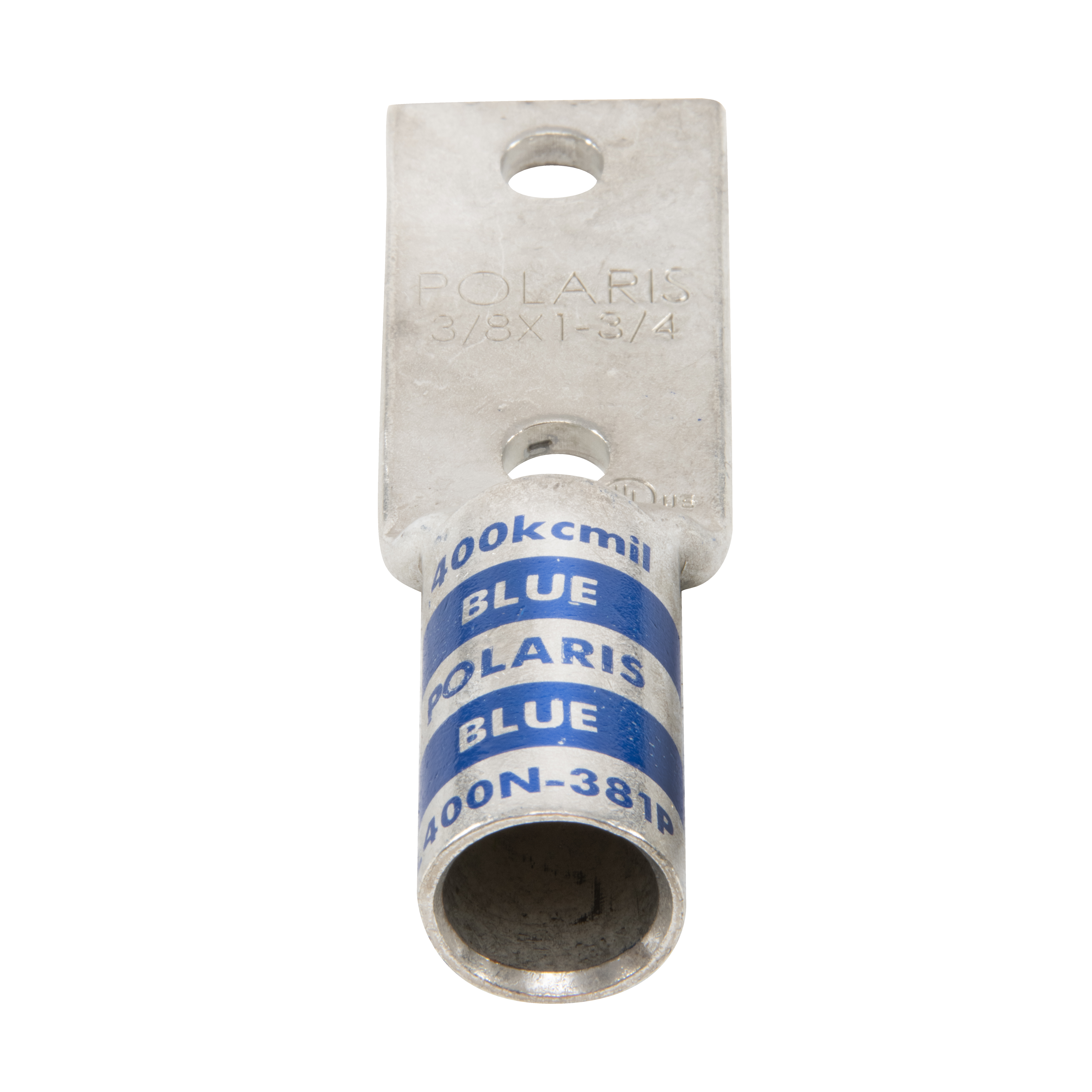

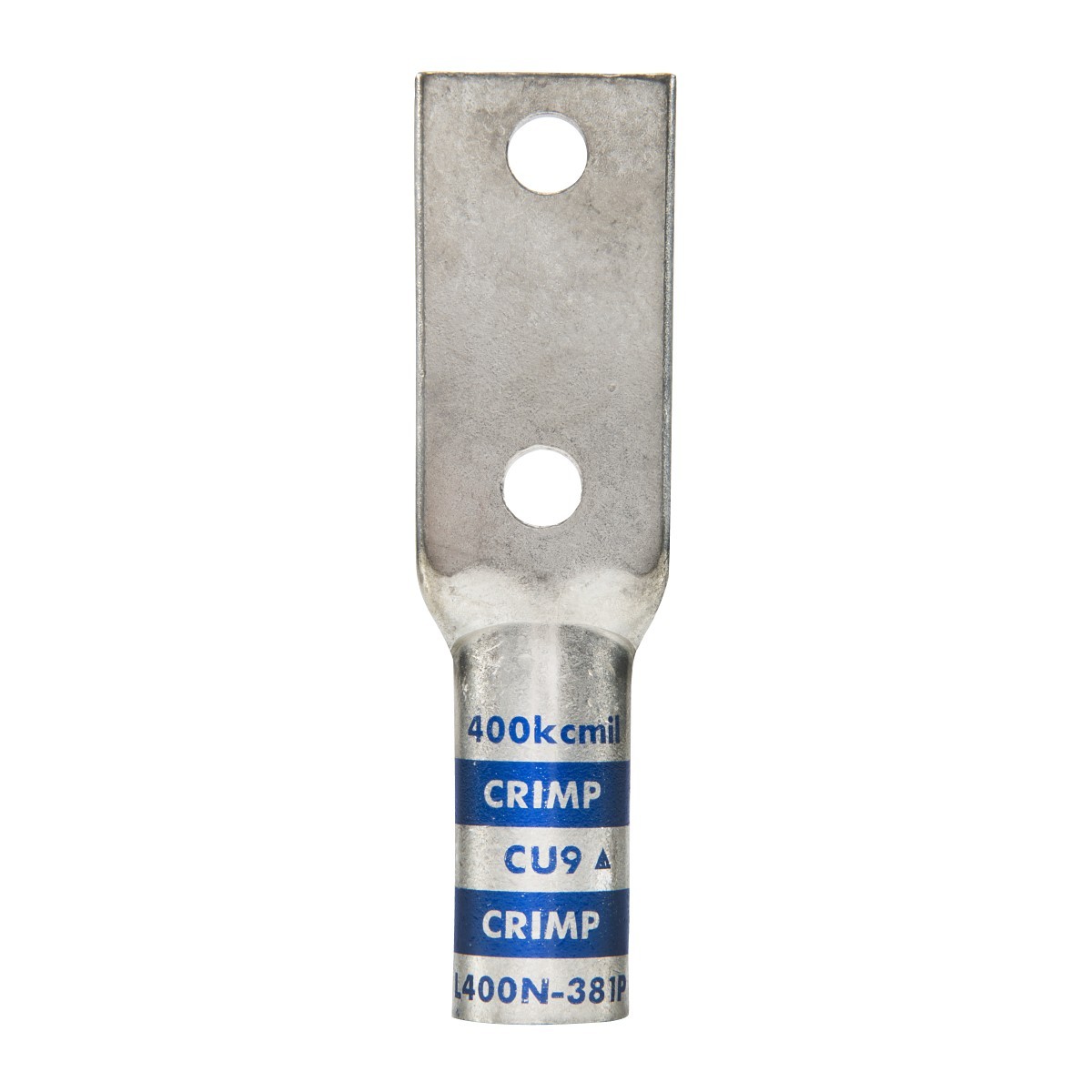

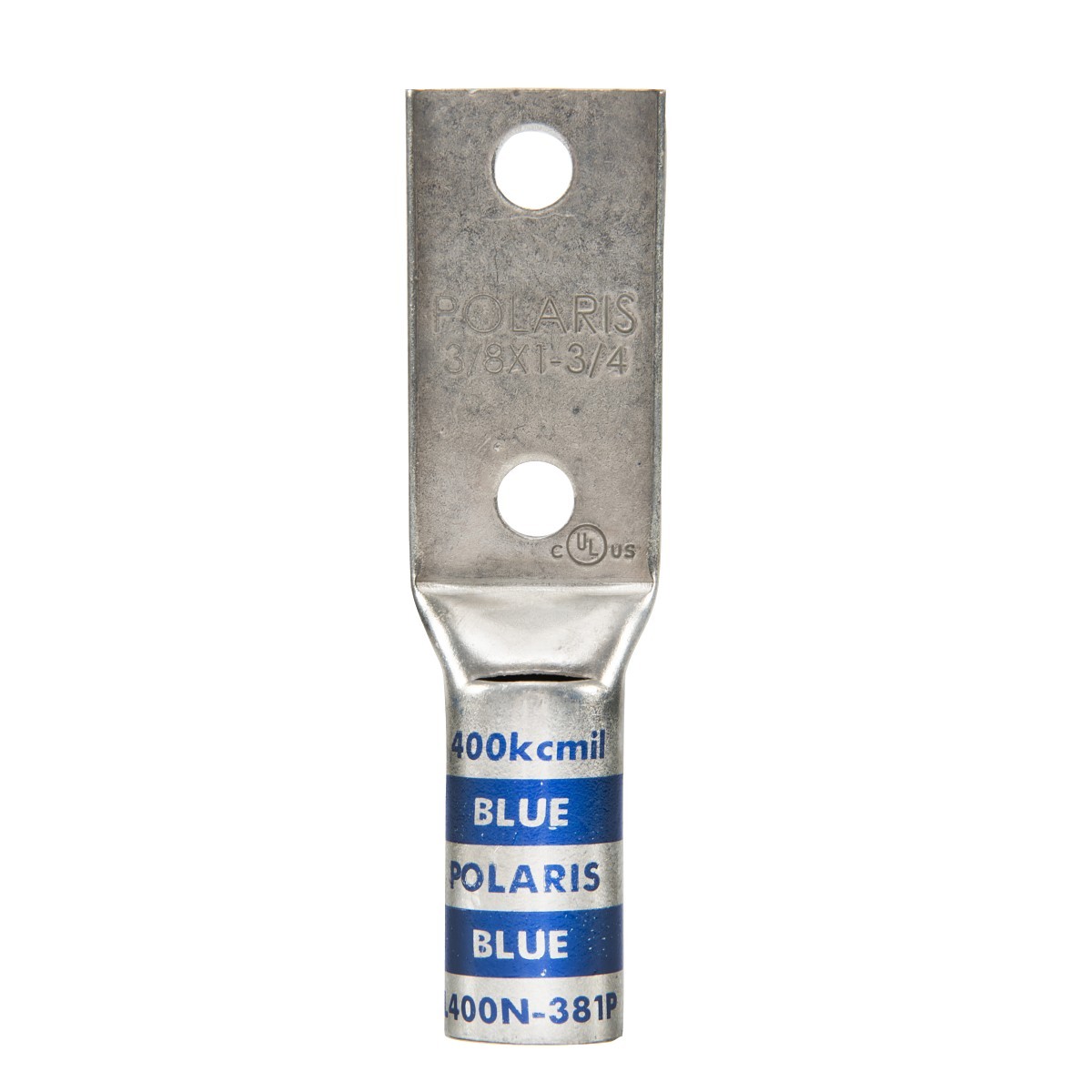

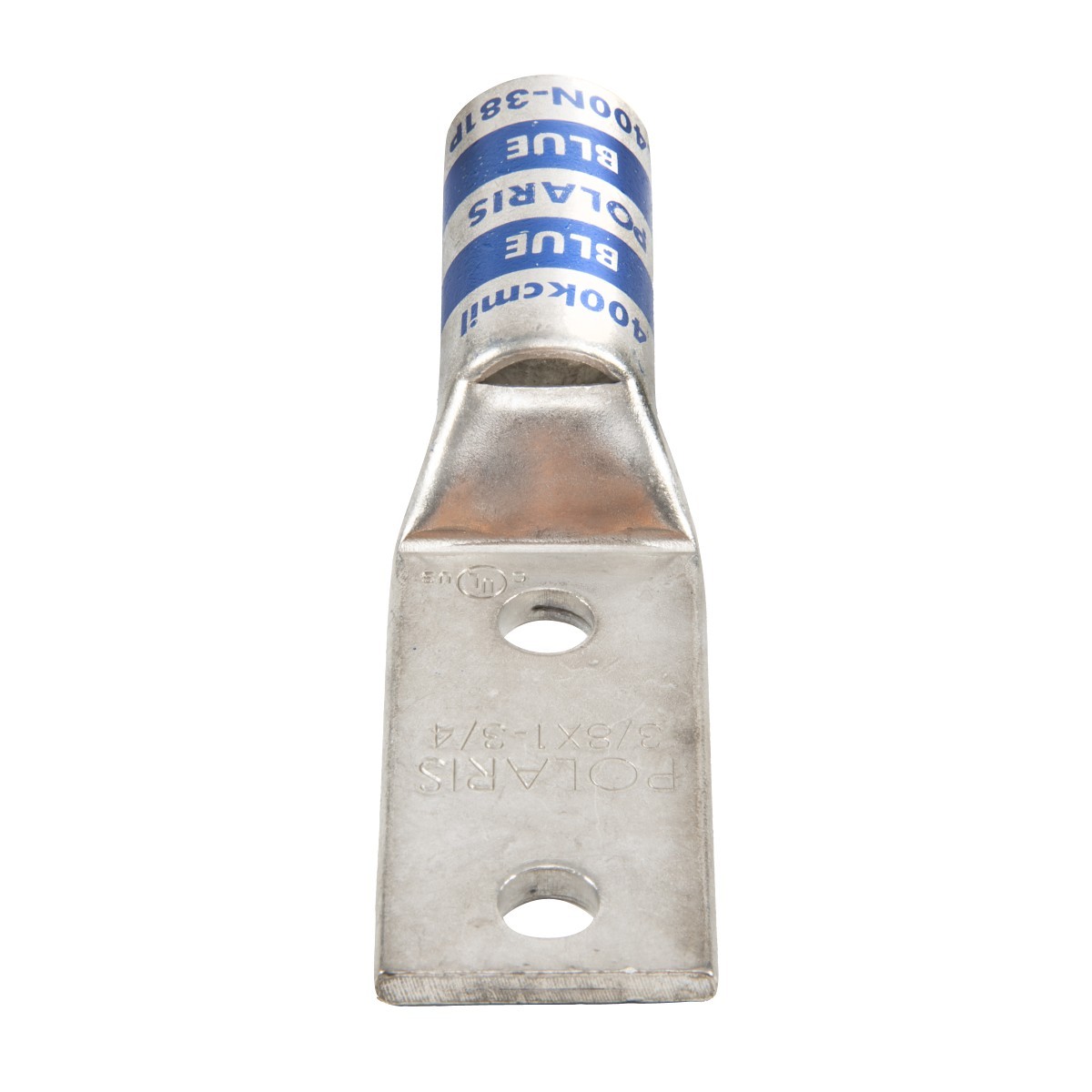

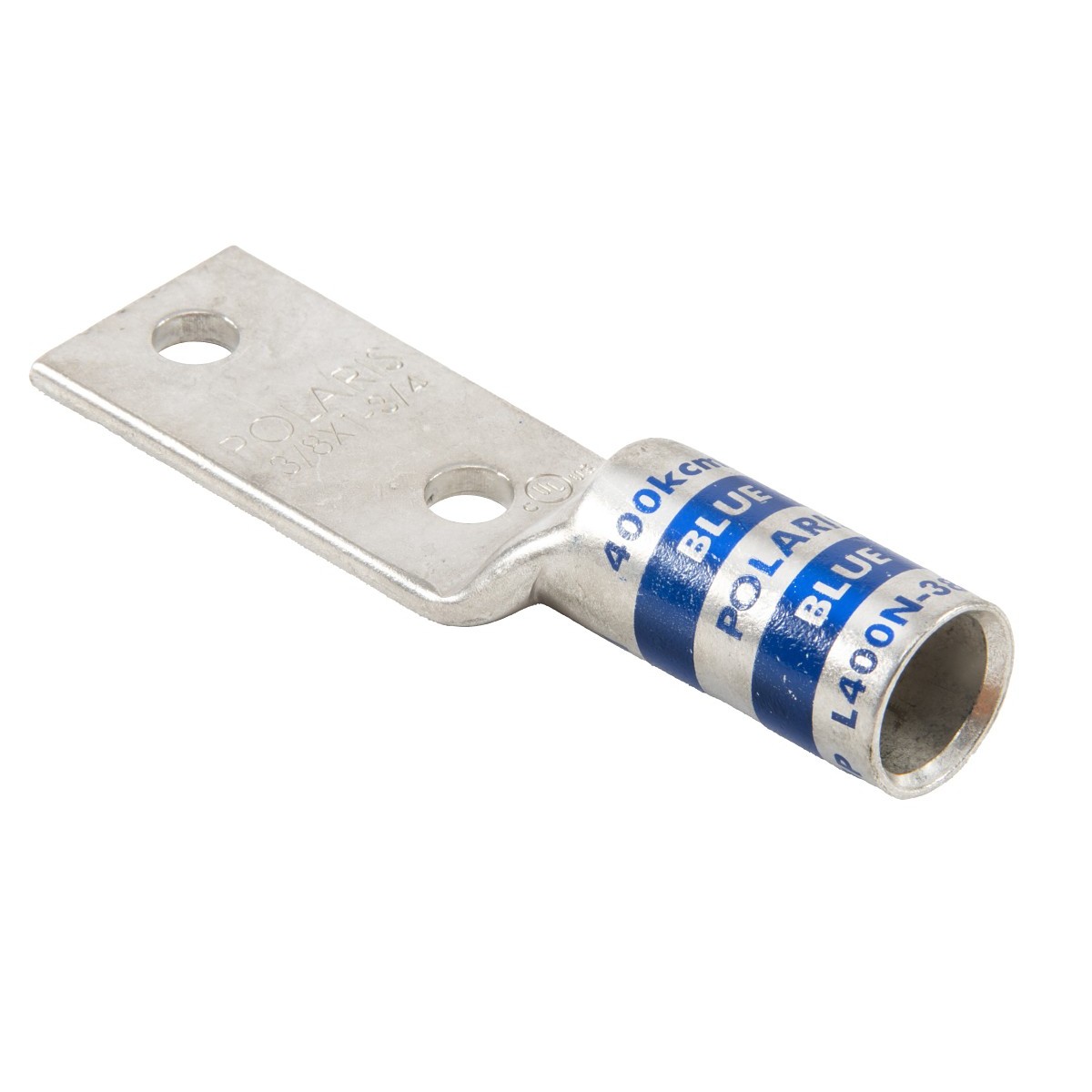

Polaris L400N-381P 400 MCM Cu Compression Lug, 3/8 IN 2 Hole, 1-3/4 IN Spacing, Inspection Window

Name: Polaris L400N-381P 400 MCM Cu Compression Lug, 3/8 IN 2 Hole, 1-3/4 IN Spacing, Inspection Window
Brand: Polaris
SKU: L400N-381P

Compression Connectors

#L400N-381P

Provides reliable termination for copper conductors in switchgear, panelboards, and power distribution equipment. Inspection window allows visual confirmation of conductor insertion before crimping. Two mounting holes provide secure mounting and alignment.

High conductivity copper tubing and corrosive resistant tin-plated finish
Marked with die index and color coded
Flex rated , see product sheet for details
For applications greater than 2000V, install to cable manufacturer voltage stress relief instructions.
UL listed to 35kV when properly installed to cable manufacturer’s specifications

Product Information

Mounting-bolt-size-in	3/8
Barrel Length	1.9700
Expanded Wire Range	400 MCM
Die Color Code	Blue
Assortment	Copper Compression Terminations
Material	Copper
Finish	Tin-Plated
Voltage Rating	35kV
Conductor Type	Copper
Conductor Cu Size Range	400 MCM (Code), 300/313 MCM (Flex)
Prop 65 Flag	Yes
UPC	662381999313
