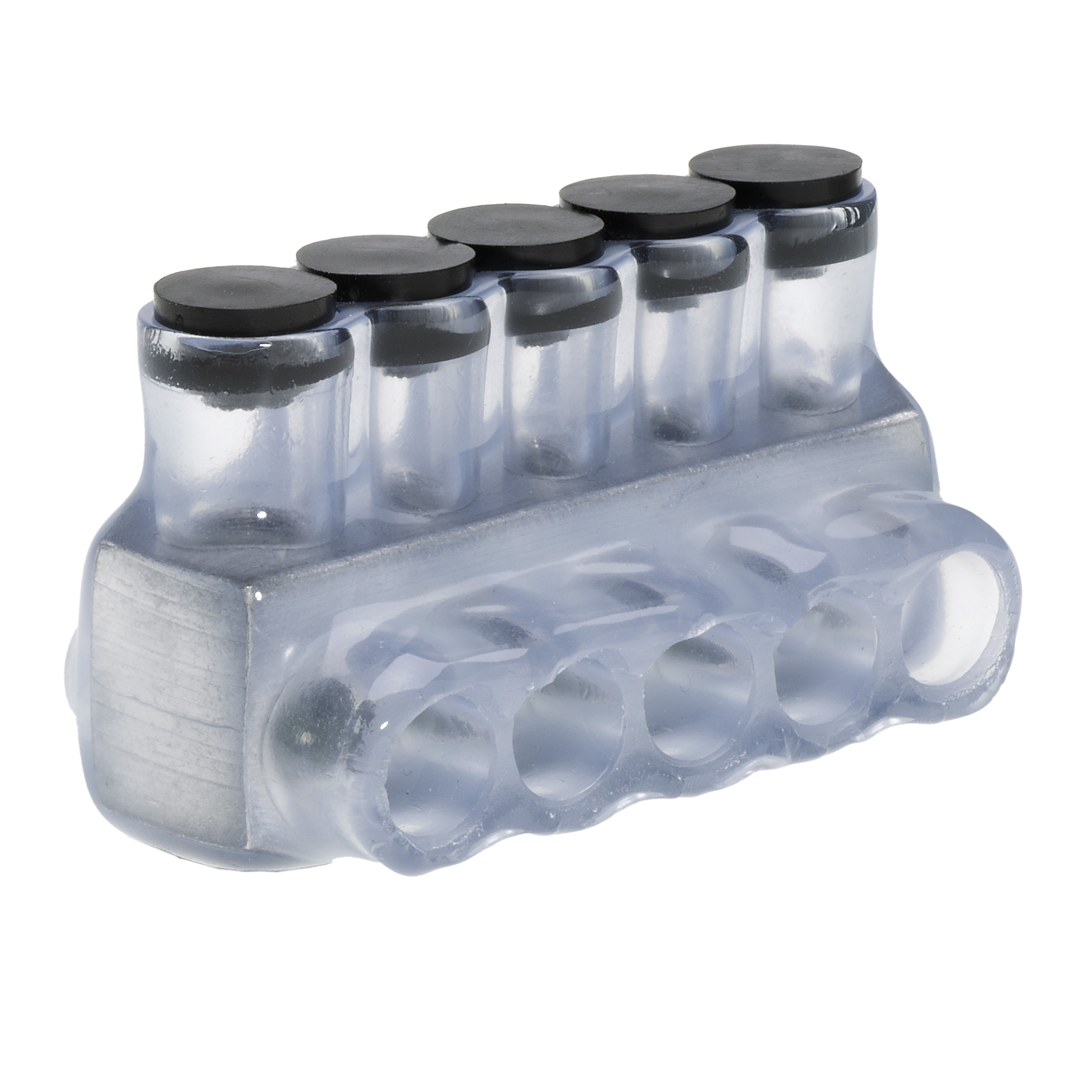

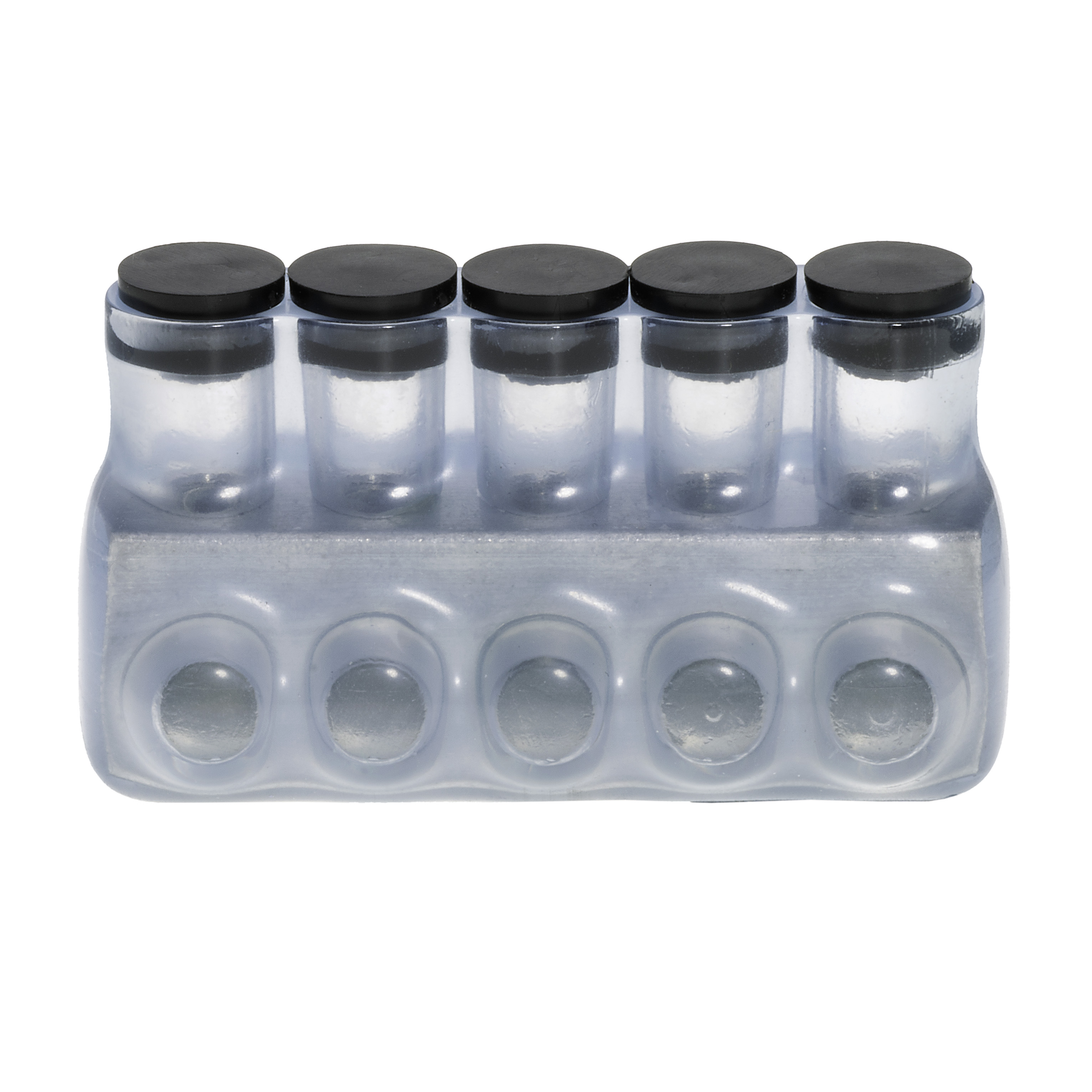

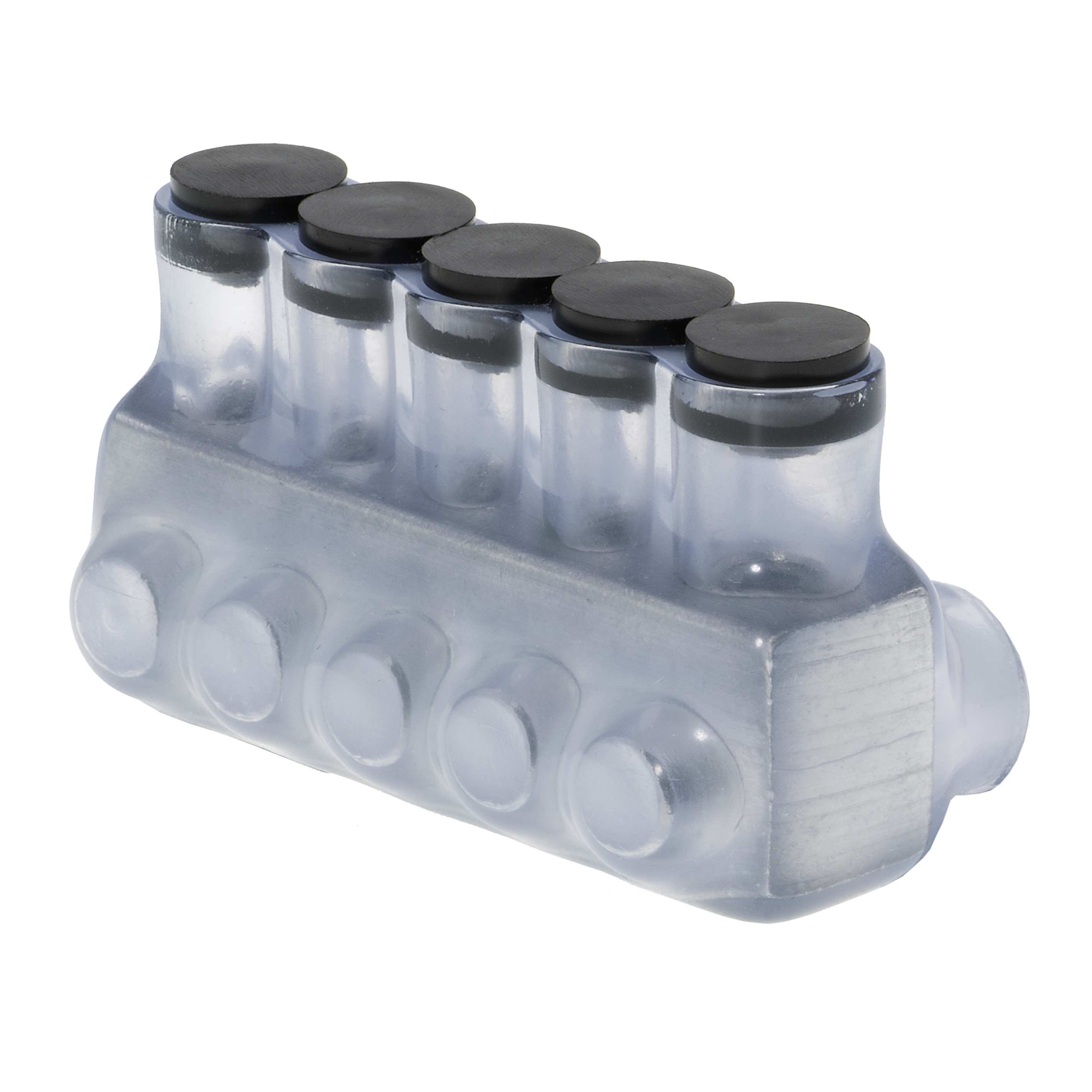

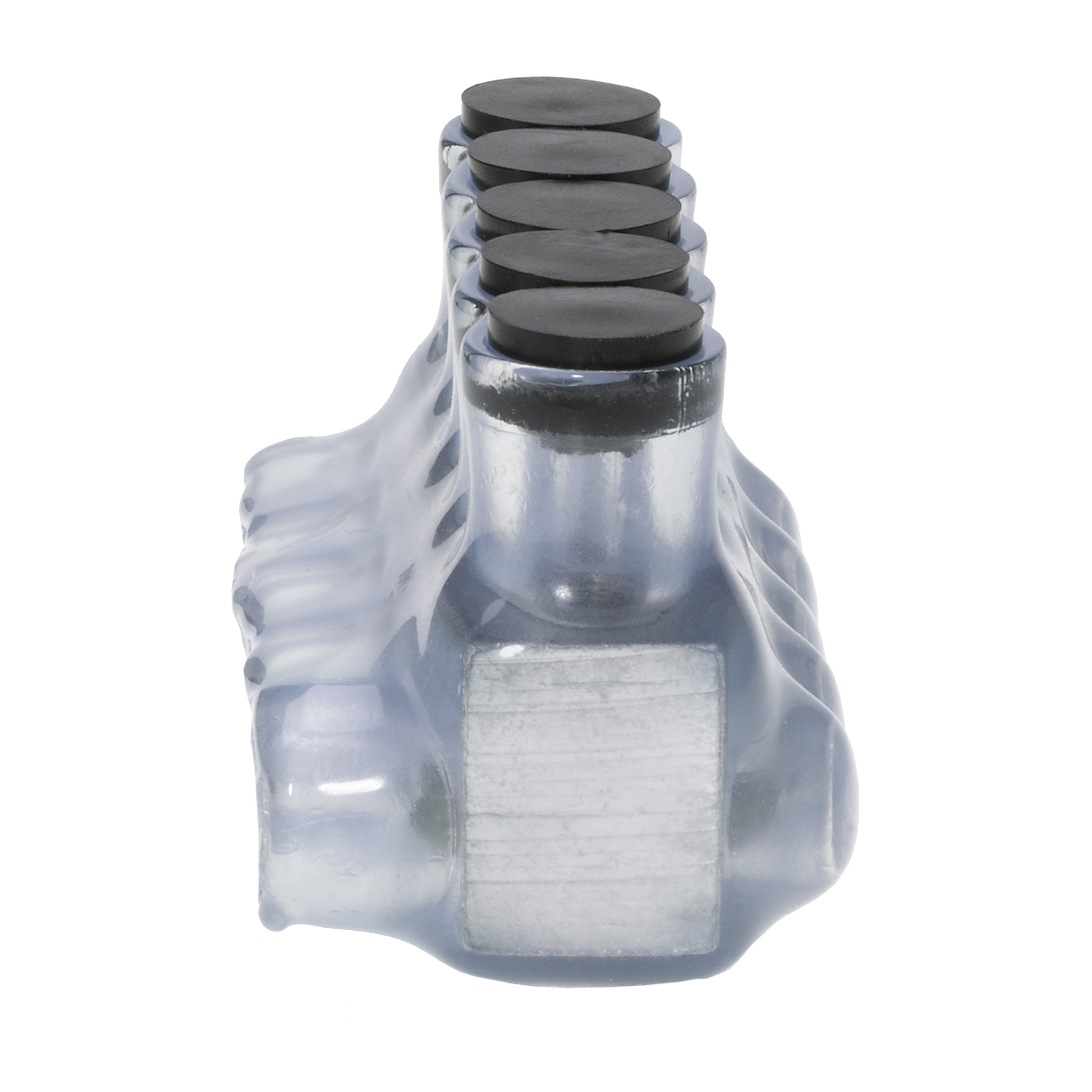

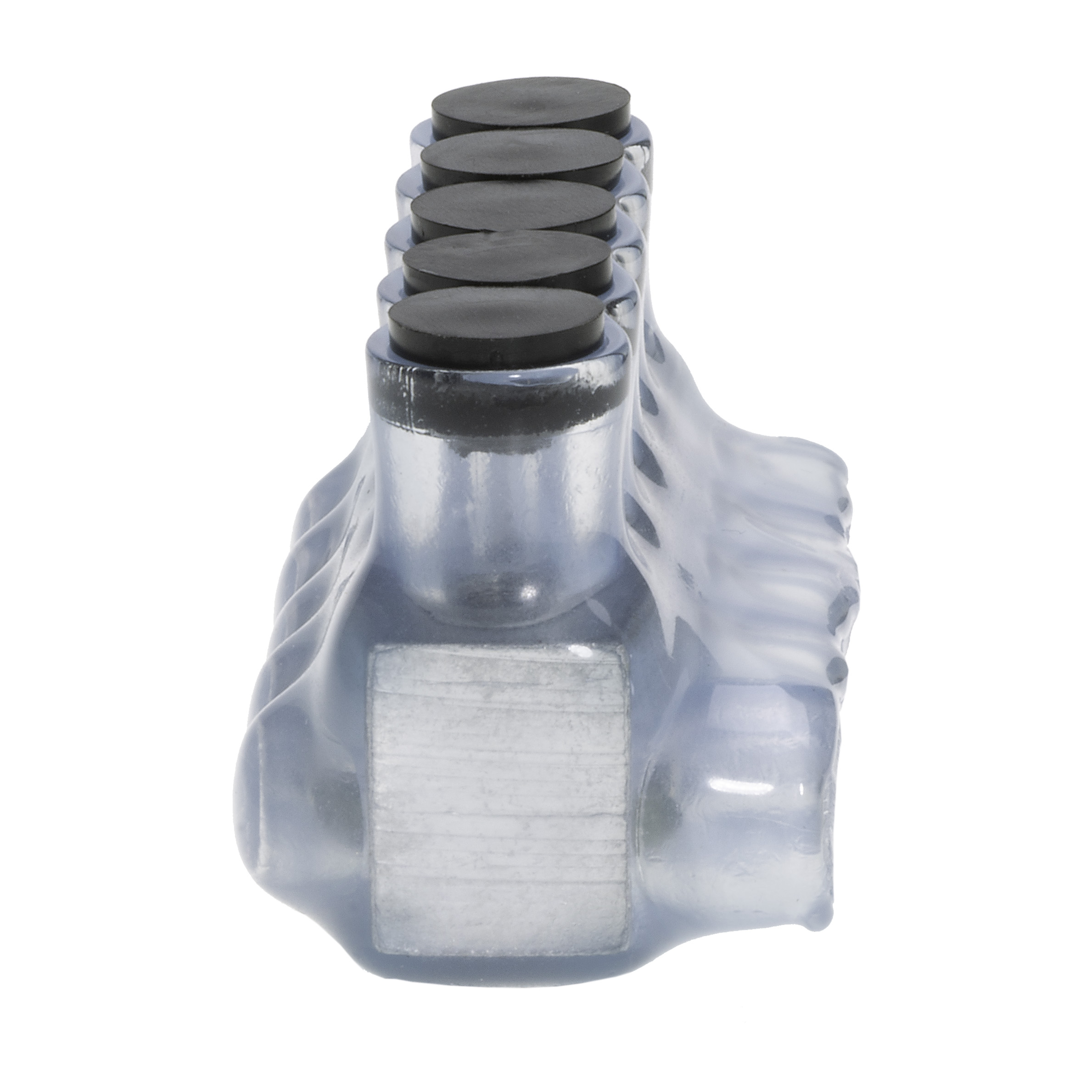

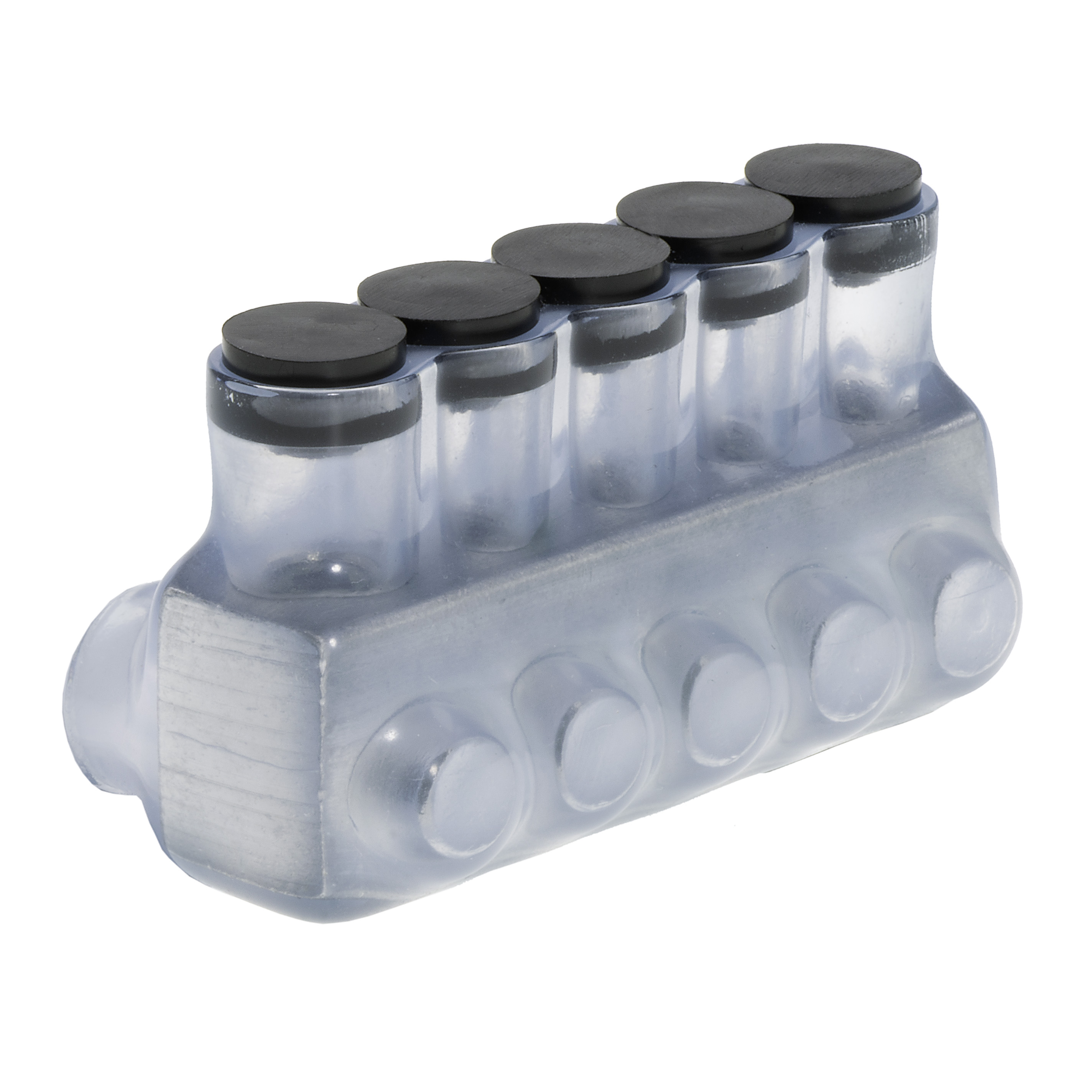

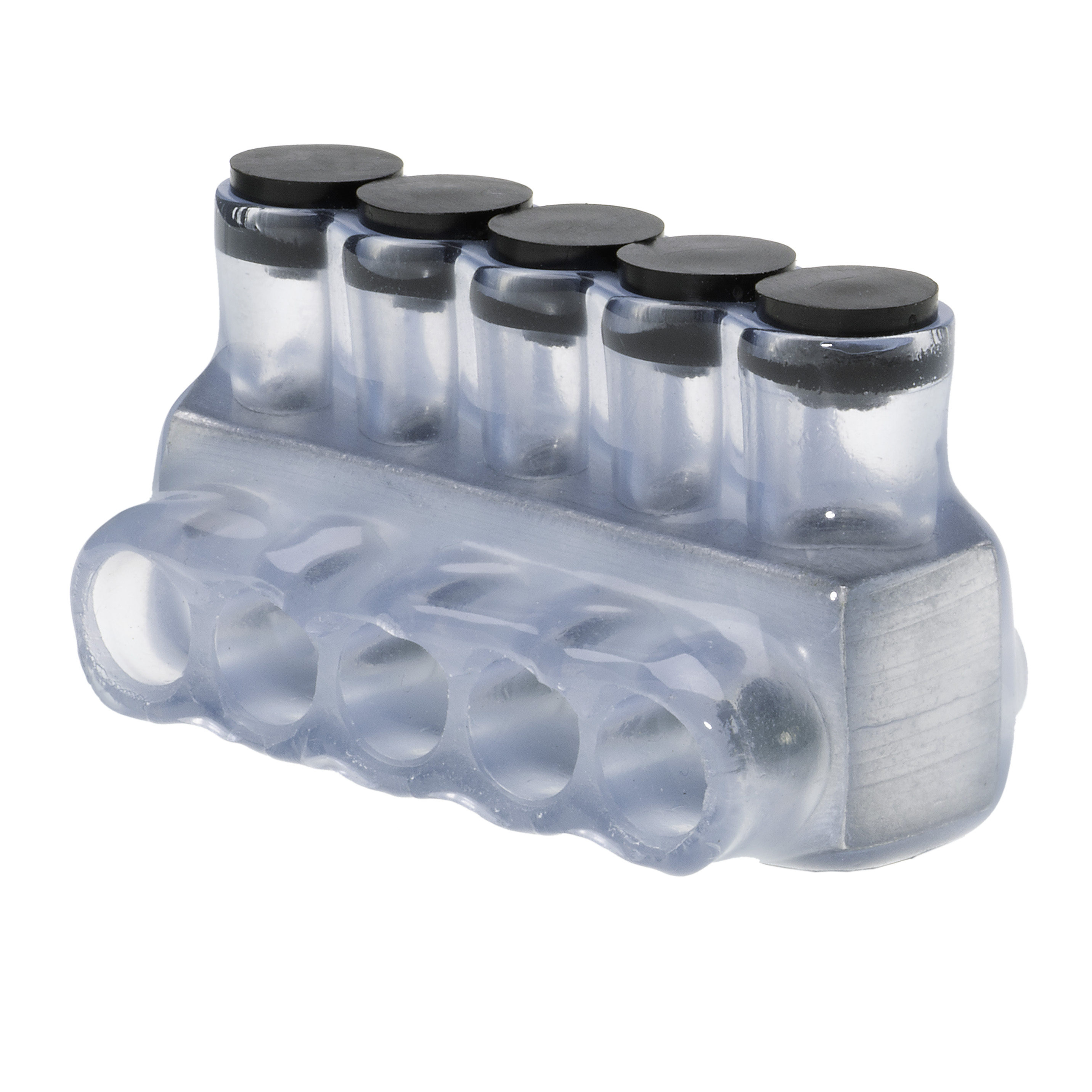

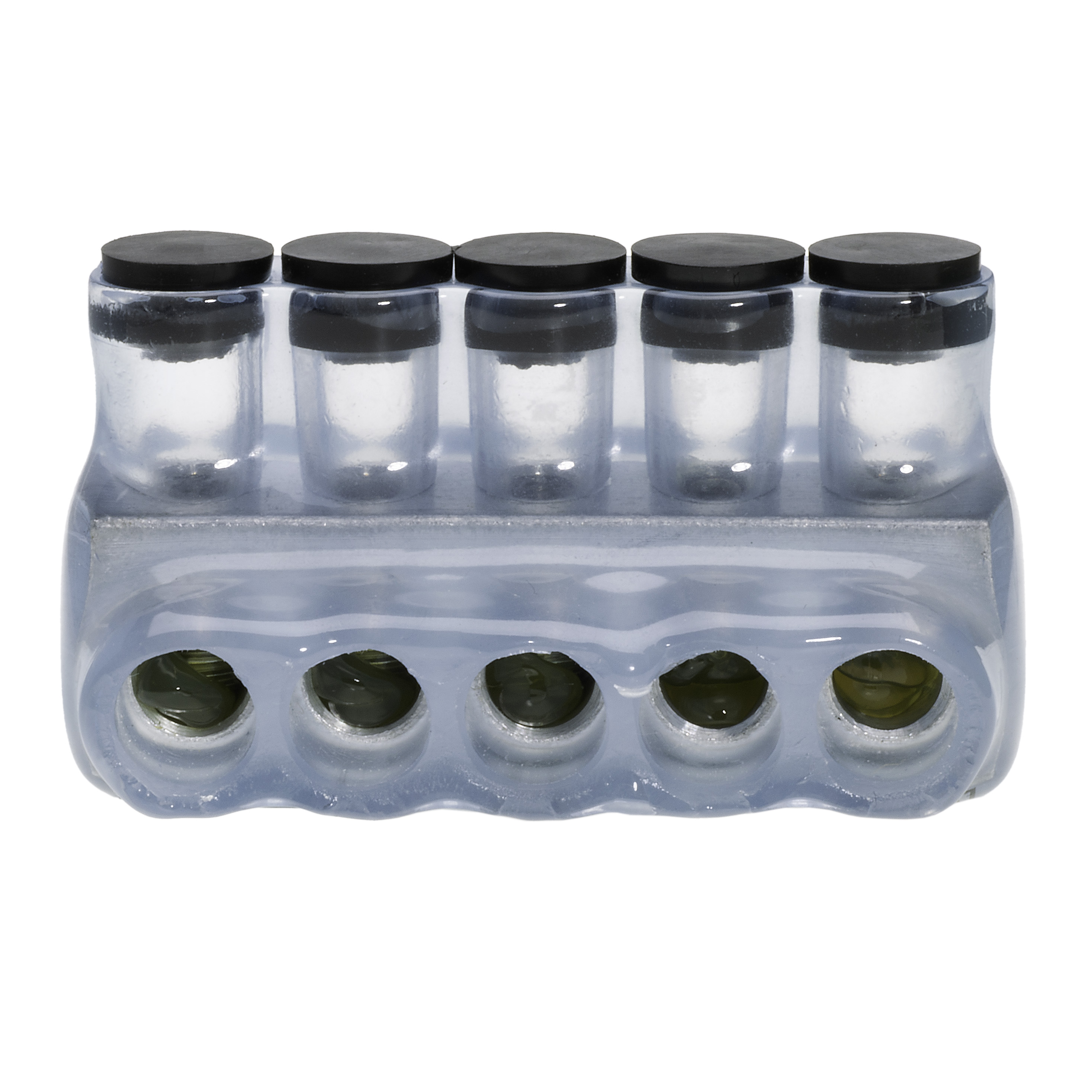

5-Port Clear Multi-Tap Pre-Insulated Connector, 4-14 Gauge

Name: 5-Port Clear Multi-Tap Pre-Insulated Connector, 4-14 Gauge
SKU: IPL4-5C

Uncategorized

#IPL4-5C

Polaris Vision Tap Multi-Tap Connectors form secure connections between multiple conductors with a transparent rounded design and chemical-resistant insulation coating. Installs with a hex key and torque wrench, with no need for cover and taping.

Clear Exterior: Vision Tap transparent design lets users see their work to ensure ideal conductor placement and the most secure connection Suitable for use on the line side of the service equipment as per the NEC article 230.46 requirement.
Ergonomic Design: Rounded corners and a smooth exterior finish over the plastisol insulation make Polaris connectors comfortable to grip
Removable Plugs: Each port and adjustable set screw is covered by a secure plug to prevent debris, moisture or contaminants from entering the insulated connector
Pre-filled Oxide Inhibitor: All 5 single-side entry ports come pre-filled with an oxide inhibitor gel to prevent corrosion and provide low-contact resistance
Professional Performance: The durable layer of insulation on each Polaris connector is abrasion and chemical-resistant for reliable performance

Product Information

Voltage Rating	600 V
Material	Aluminum
Finish	Plastisol Insulated
Color	Clear
Pack Qty	1
GTIN	662381996800
UPC	662381996800
EAN	662381996800
UNSPSC	39121409
Origin Country	US
Certifications	cULus, Meets NEC 230.46 Suitable for Line Side of Service
Ul Standard	UL 486A/B
Ul File No	E186991
Wire Cable Class	Class B, Class C
Al Conductor Max Amp	75
Cu Conductor Max Amp	95
Conductor Cu Size Range	4-14 AWG
Conductor Al Size Range	4-12 AWG
Conductor Type	Copper, Aluminum
Temp Rating	90C, AL9CU
Conductors Count	5
Hex Wrench Size	1/8
Env Temp	Cold Temperature rated to -45C
Assortment	Clear Coated Pre-Insulated Connectors
Max Torque	35
