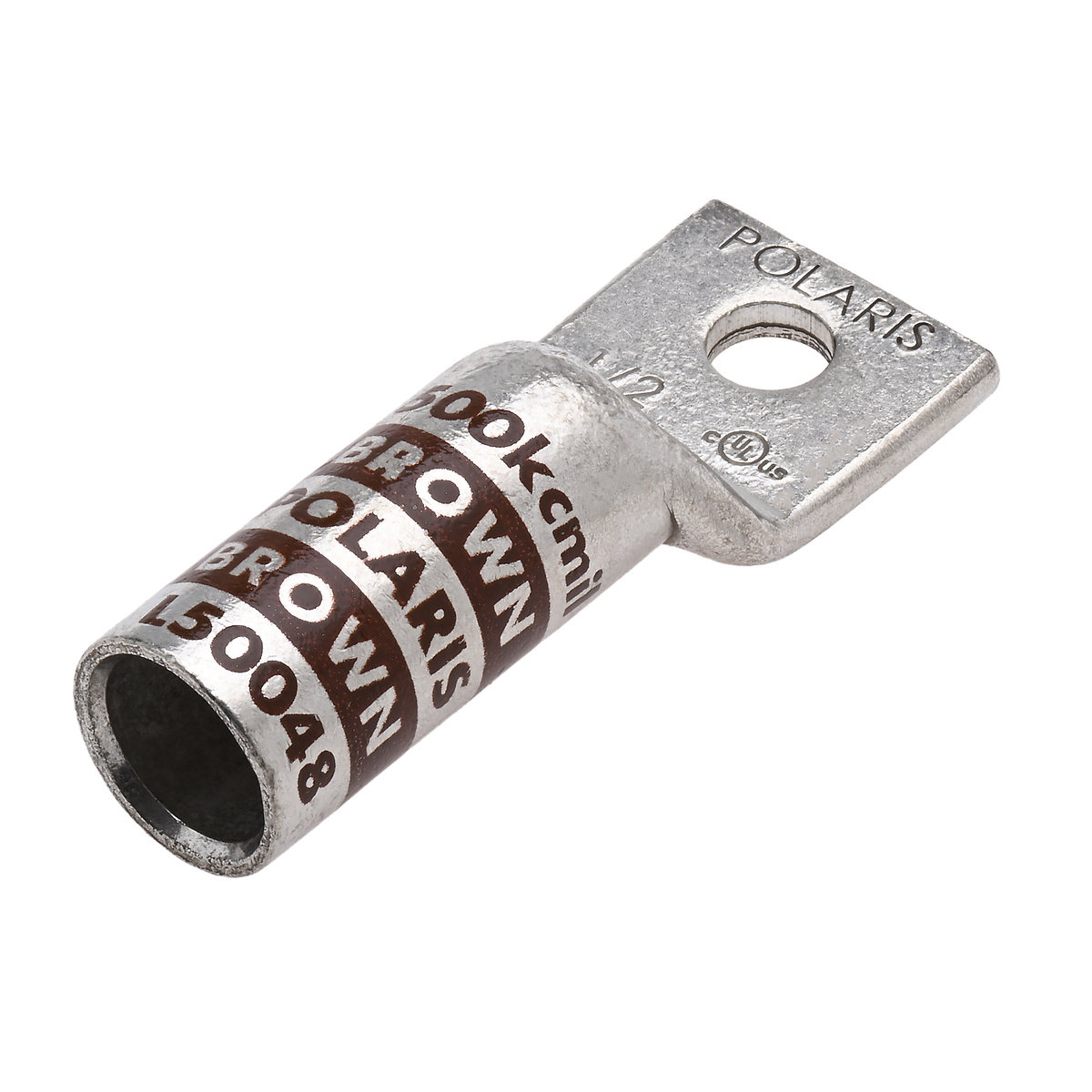

500 MCM 1/2” 1-Hole Copper Long Lug – Brown
#L50048
The POLARIS compression design creates a permanent, vibration-resistant connection that you can rely on with low contact resistance. Suitable for a wide range of applications, including power distribution, grounding and data transmission.
- High conductivity copper tubing and corrosion resistant tin-plated finish
- Marked with die index and color coded
- Flex rated for use with K, H, G, I, M and DLO cable
- UL/cULus listed and rated for B/C class wire
Product Information
| Voltage Rating | 600V |
|---|---|
| Material | Copper |
| Finish | Tin Plated |
| GTIN | 662381034175 |
| UPC | 662381034175 |
| EAN | 0662381034175 |
| UNSPSC | 39121405 |
| Ul Standard | UL 486A-486B |
| Wire Cable Class | Class B, Class C |
| Conductor Type | Copper |
| Tang Thickness | 0.22 |
| Tang Length | 1.38 |
| Wire Range | 500 MCM |
| Assortment | Copper Compression Terminations |
| Expanded Wire Range | 500 MCM – 250 MCM |
| Die Color Code | Brown |
| Mounting Bolt Size | 1/2 |
| Mounting Hole Diameter | 0.51 |
| Barrel Length | 2 |
