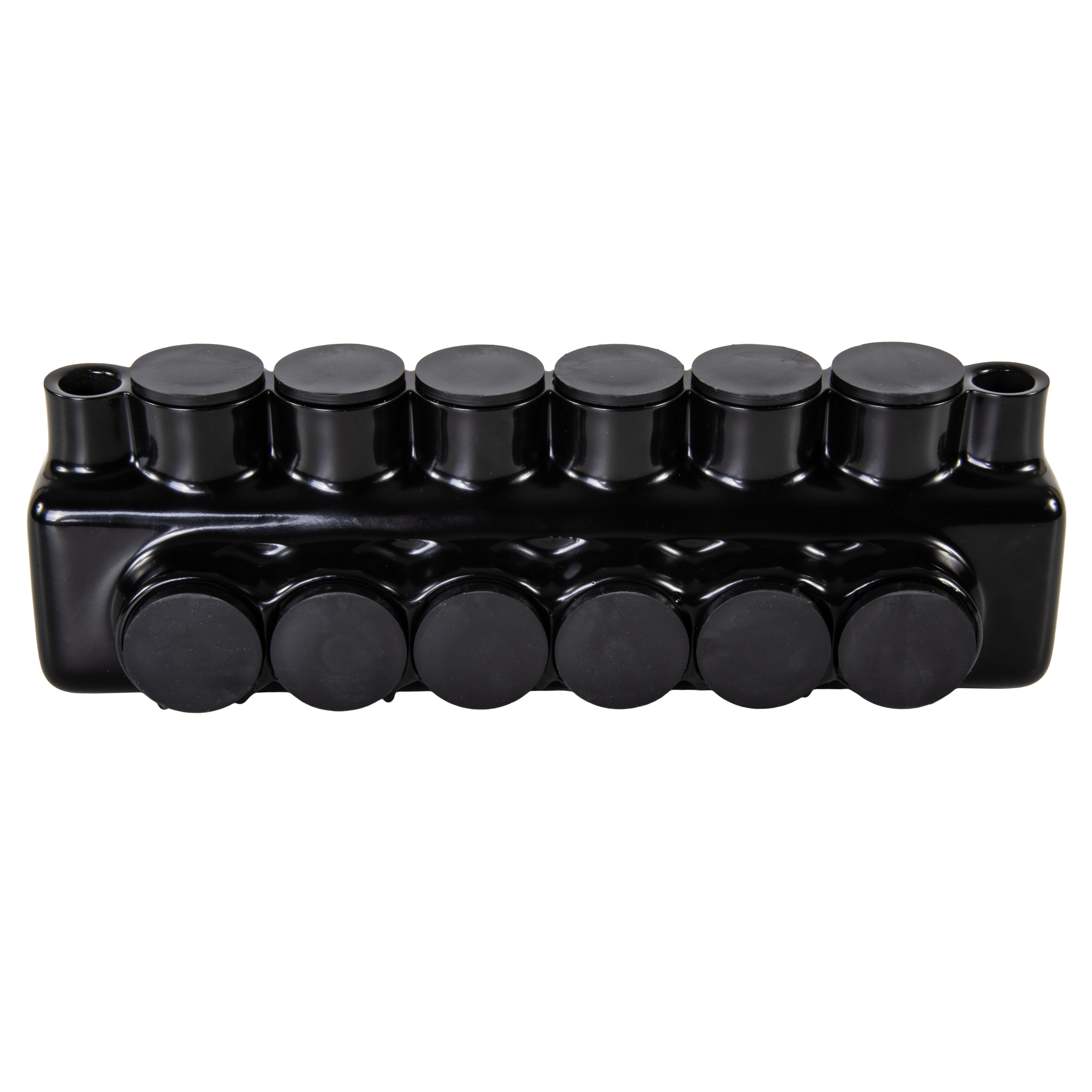

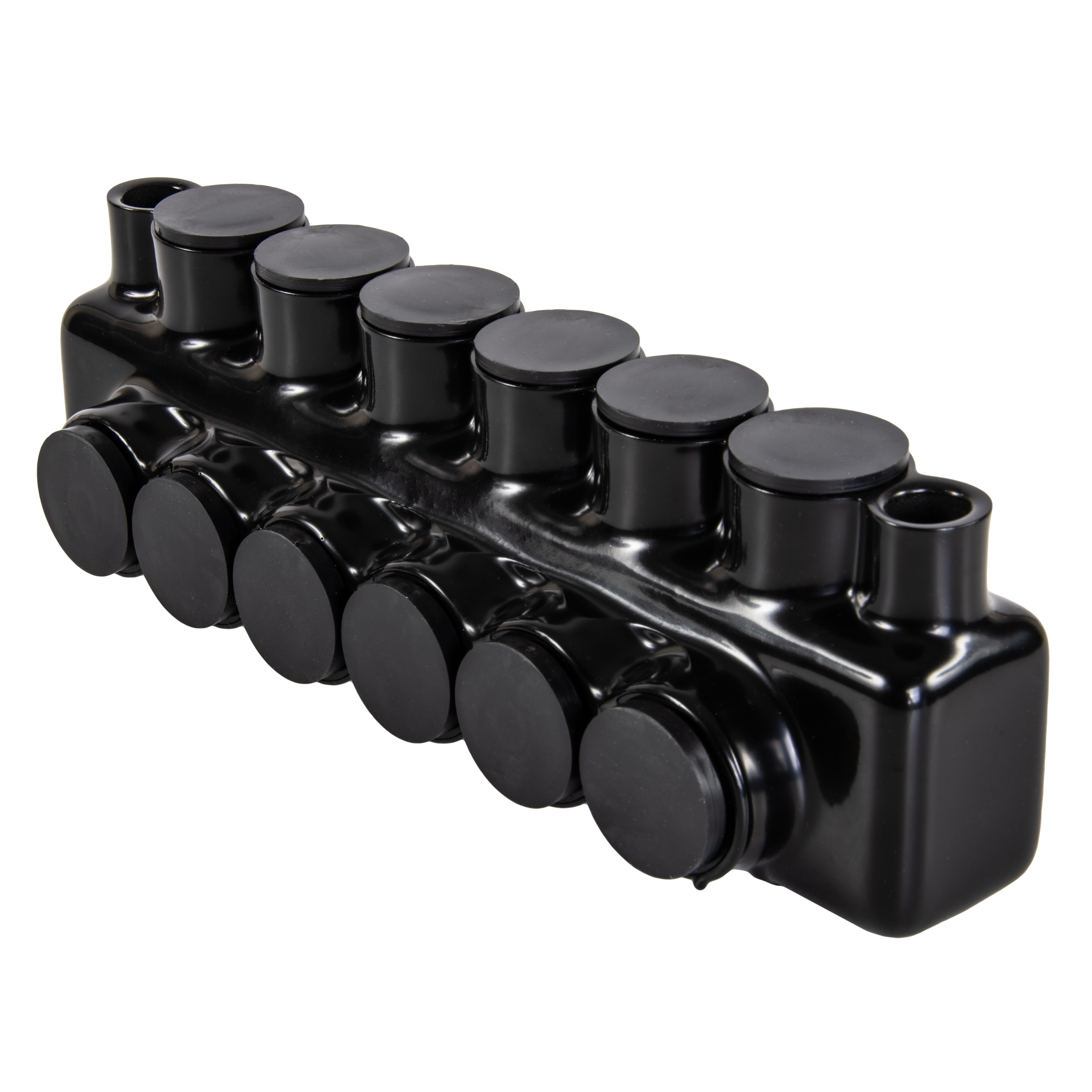

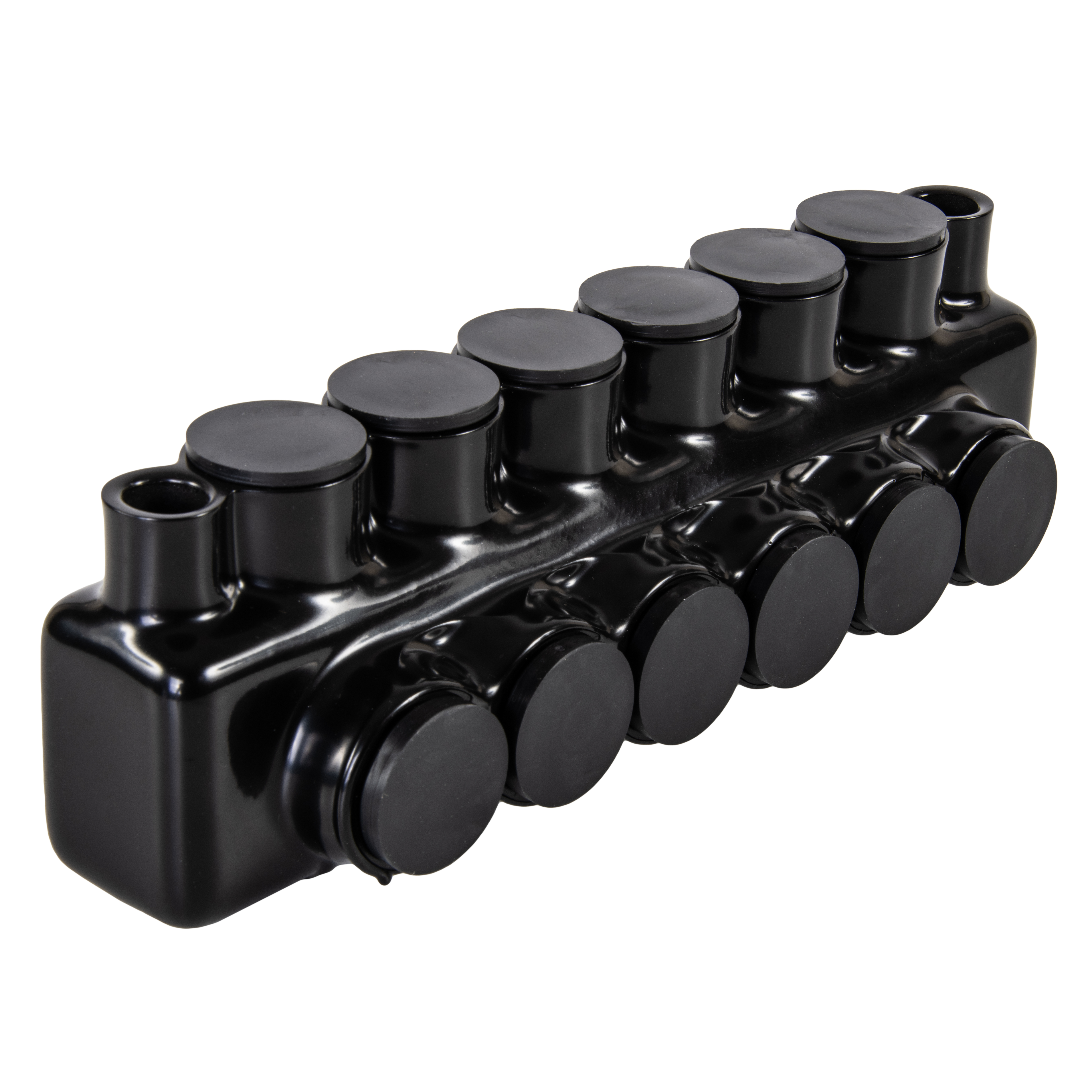

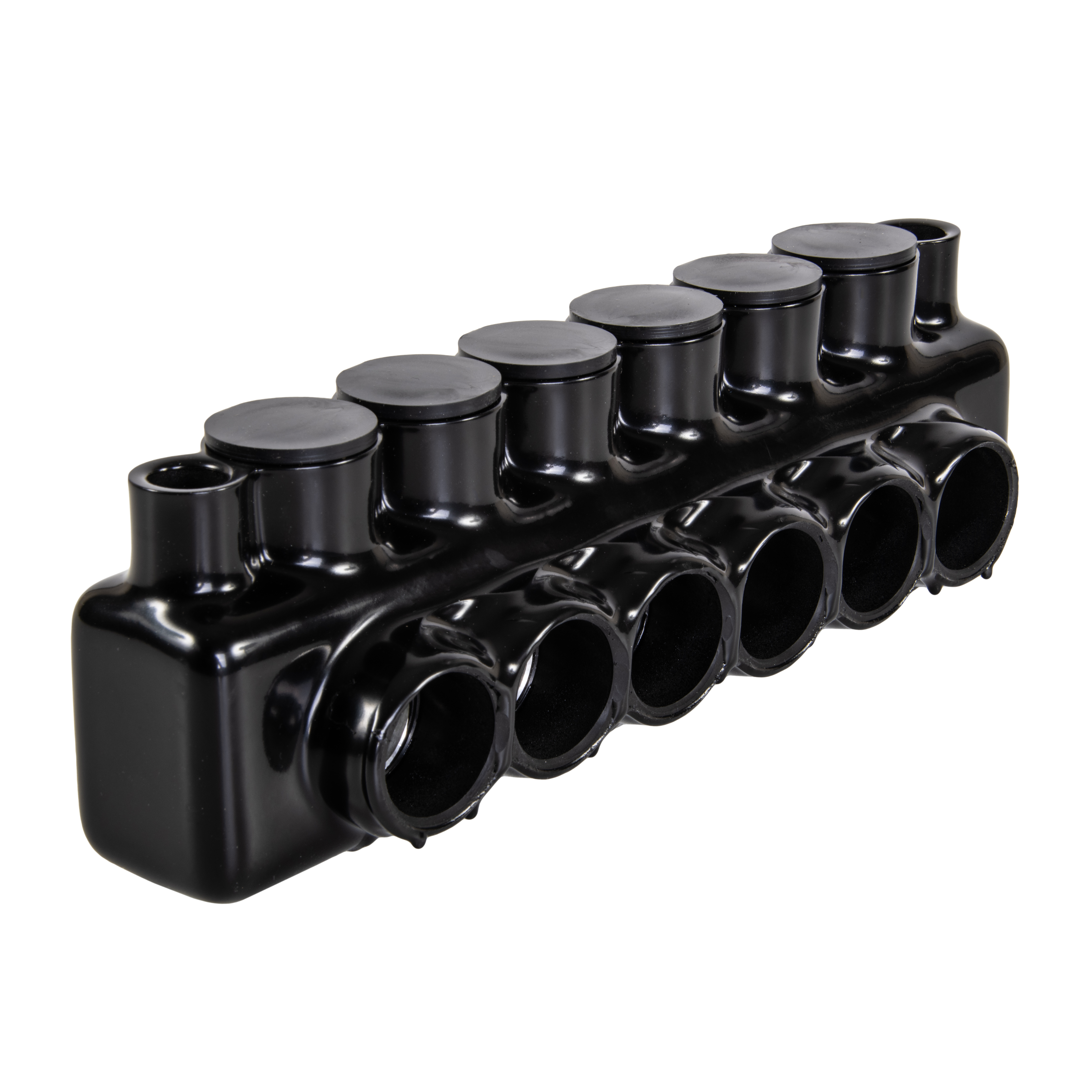

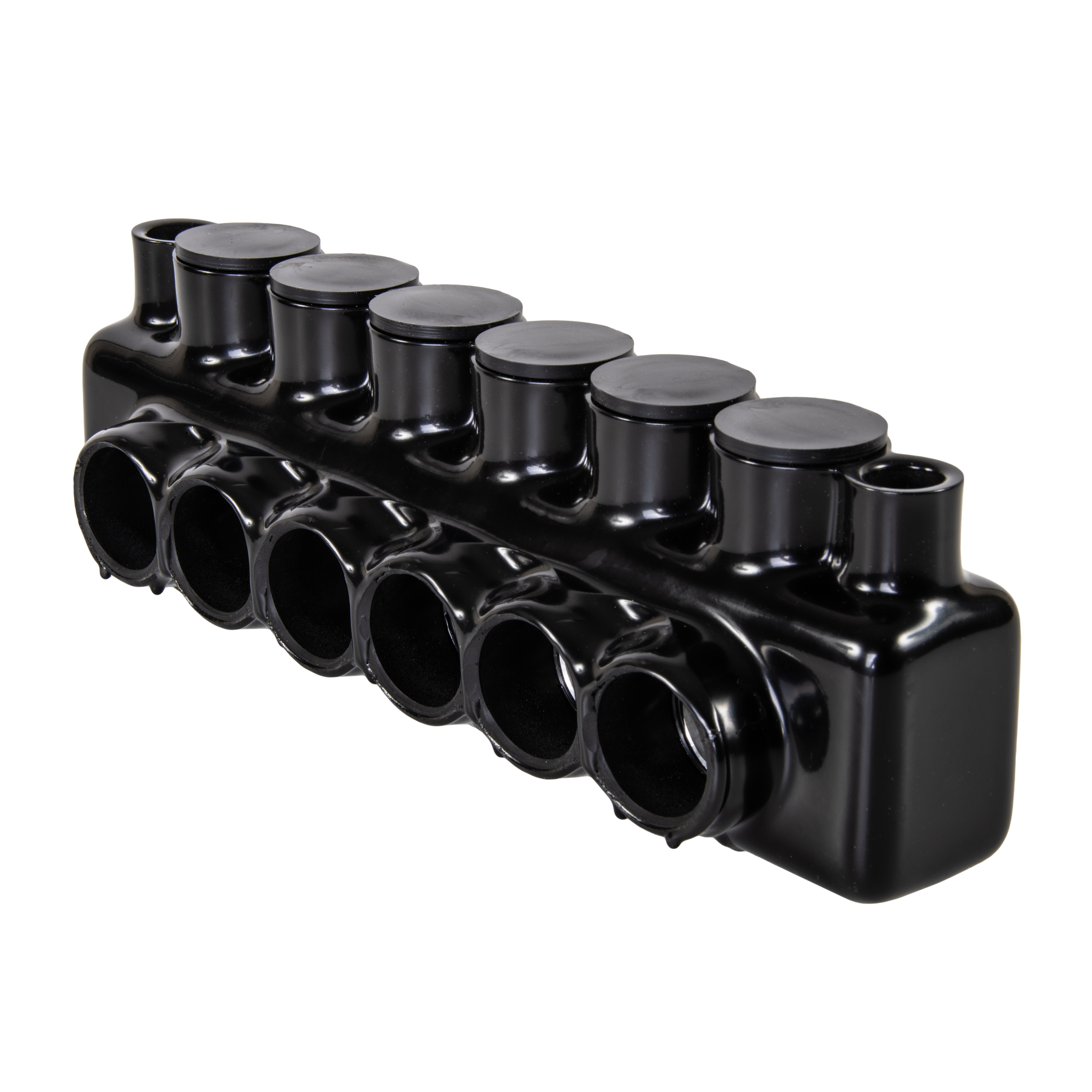

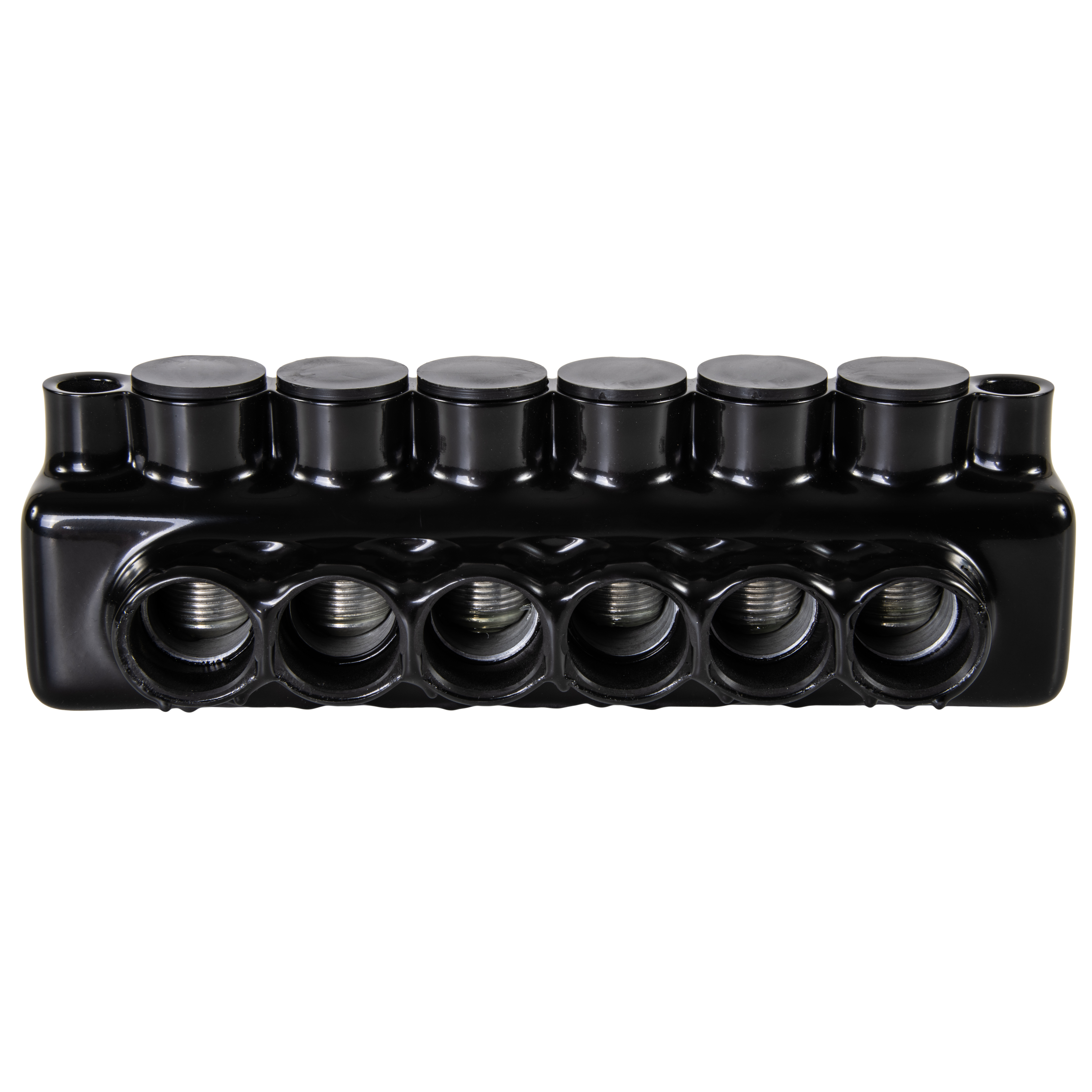

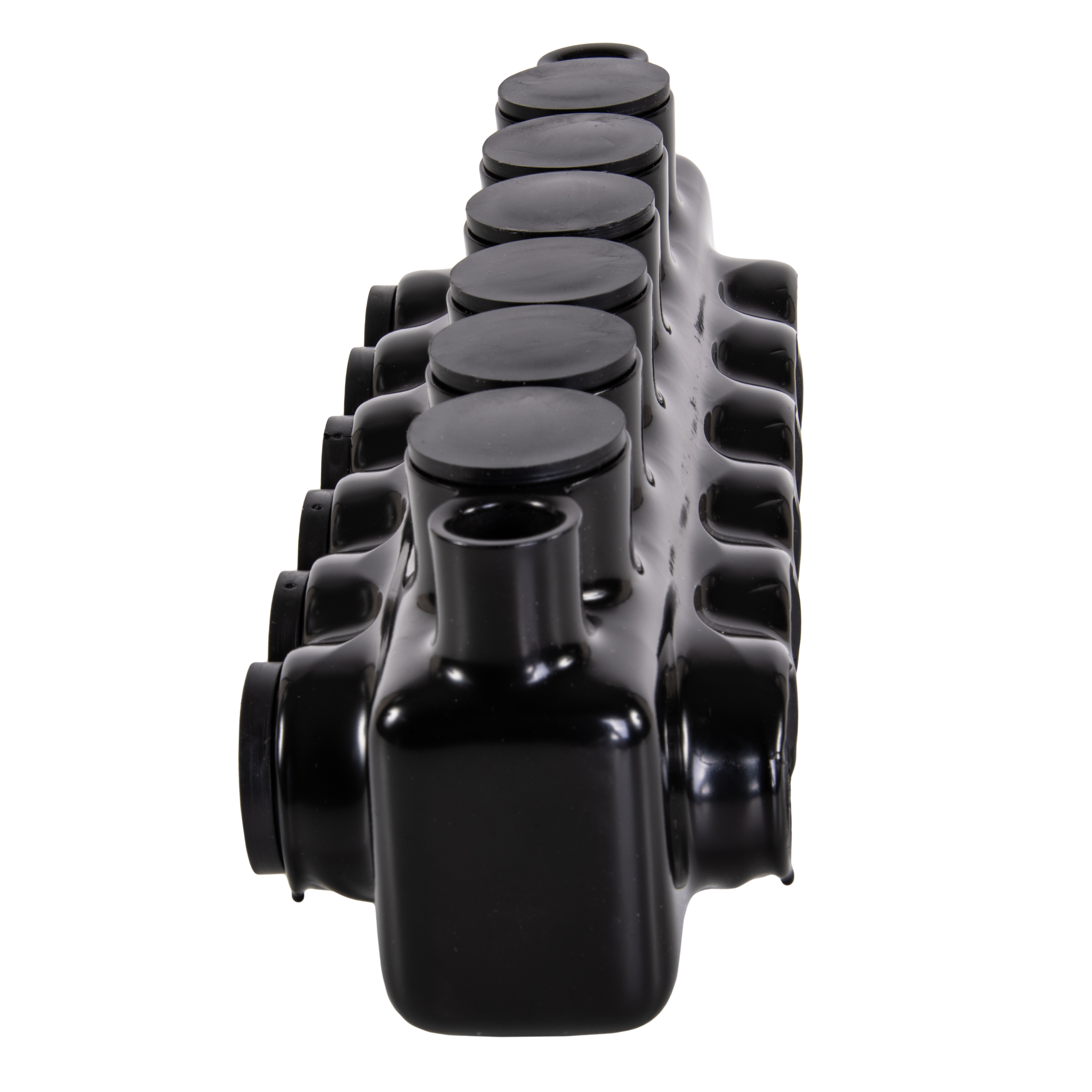

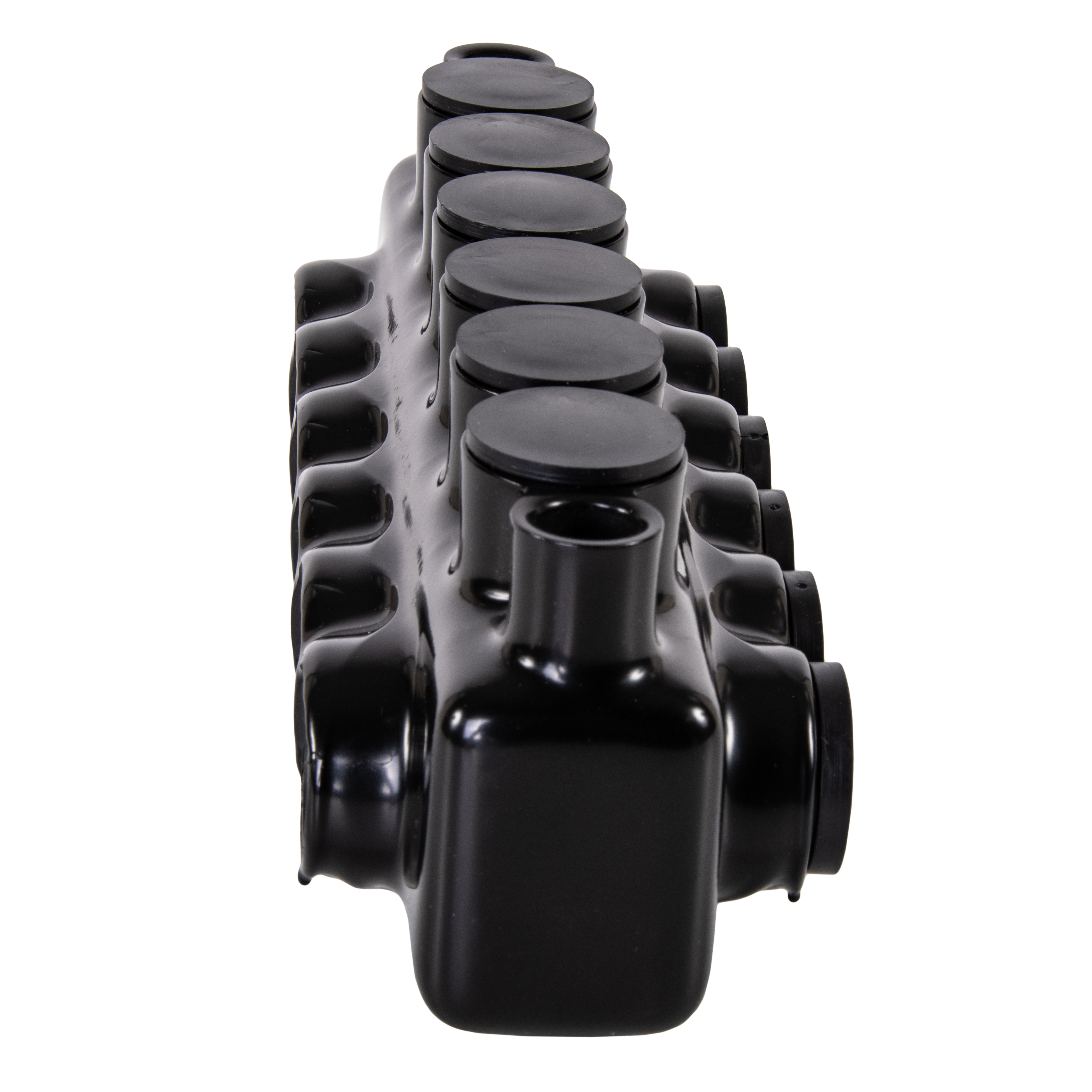

Polaris IPLMD500-6 500 Mcm – 4 Awg Polaris Insulated Multi-Tap Conn 6 Port (Dual Sided Entry & Mountable)

Insulated Connectors

#IPLMD500-6

Polaris Black Multi-Tap Mountable Connectors form secure connections between multiple conductors with a rounded design and UV-resistant insulation coating. Installs with a hex key and torque wrench, with no need for cover and taping.

• Dual-Side Wire Entry: Form secure connections between 6 conductors quickly using the double-side entry ports sized for wires between 500 MCM and 4 AWG. Suitable for use on the line side of the service equipment as per the NEC article 230.46 requirement.
• Mounting Holes: Installation is simple with mounting holes on either side of the connector to attach directly to panels or troughs using 1/4" bolts
• Ergonomic Design: The plastisol insulation features rounded corners for a comfortable grip and is UV, abrasion and chemical-resistant for durable performance
• Pre-filled Oxide Inhibitor: All 6 dual-side entry ports are covered by removable plugs and pre-filled with an oxide inhibitor gel to prevent corrosion or contamination
• Parallel Rated: This connector is specifically designed and rated for parallel installation, providing a safe and secure way to handle larger projects
