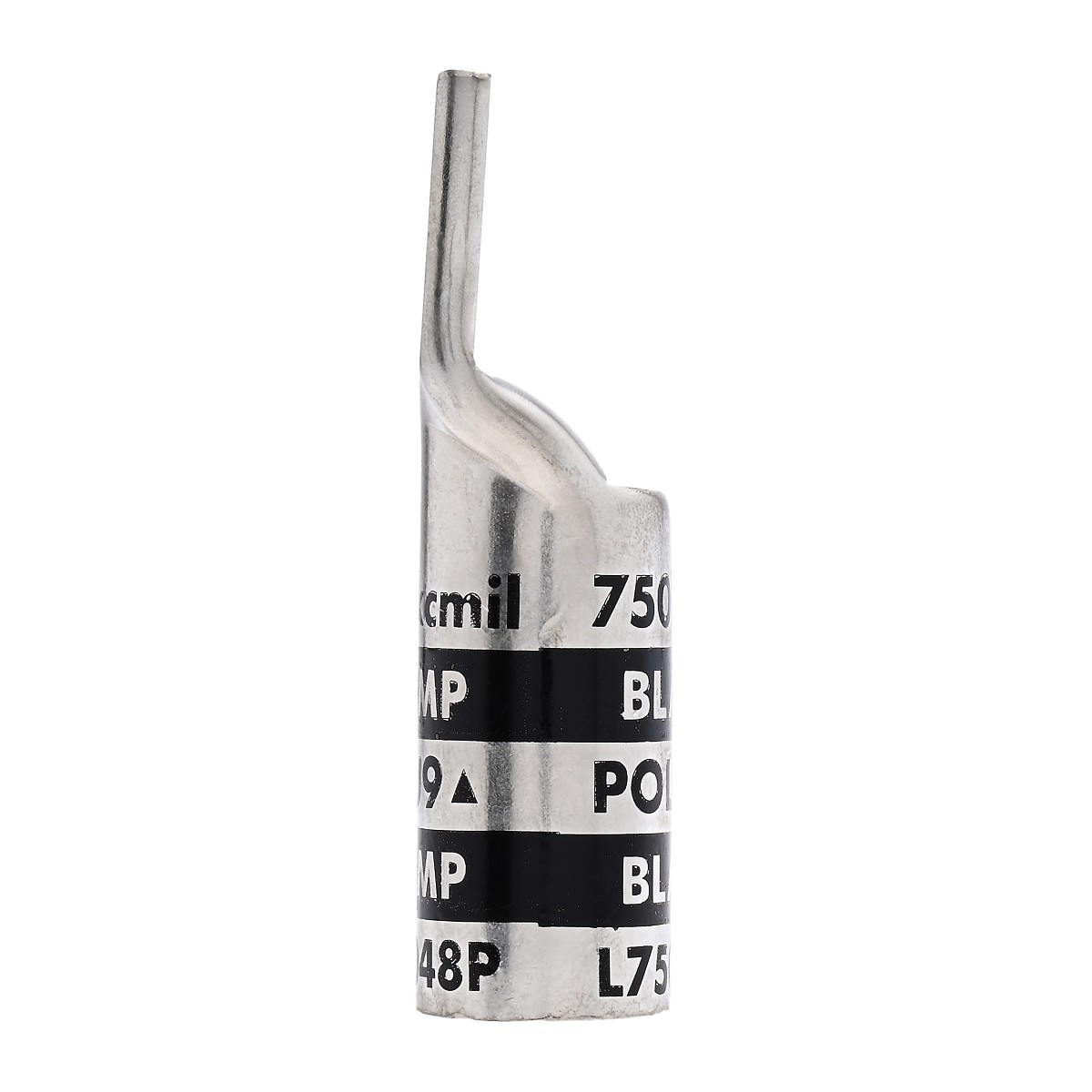

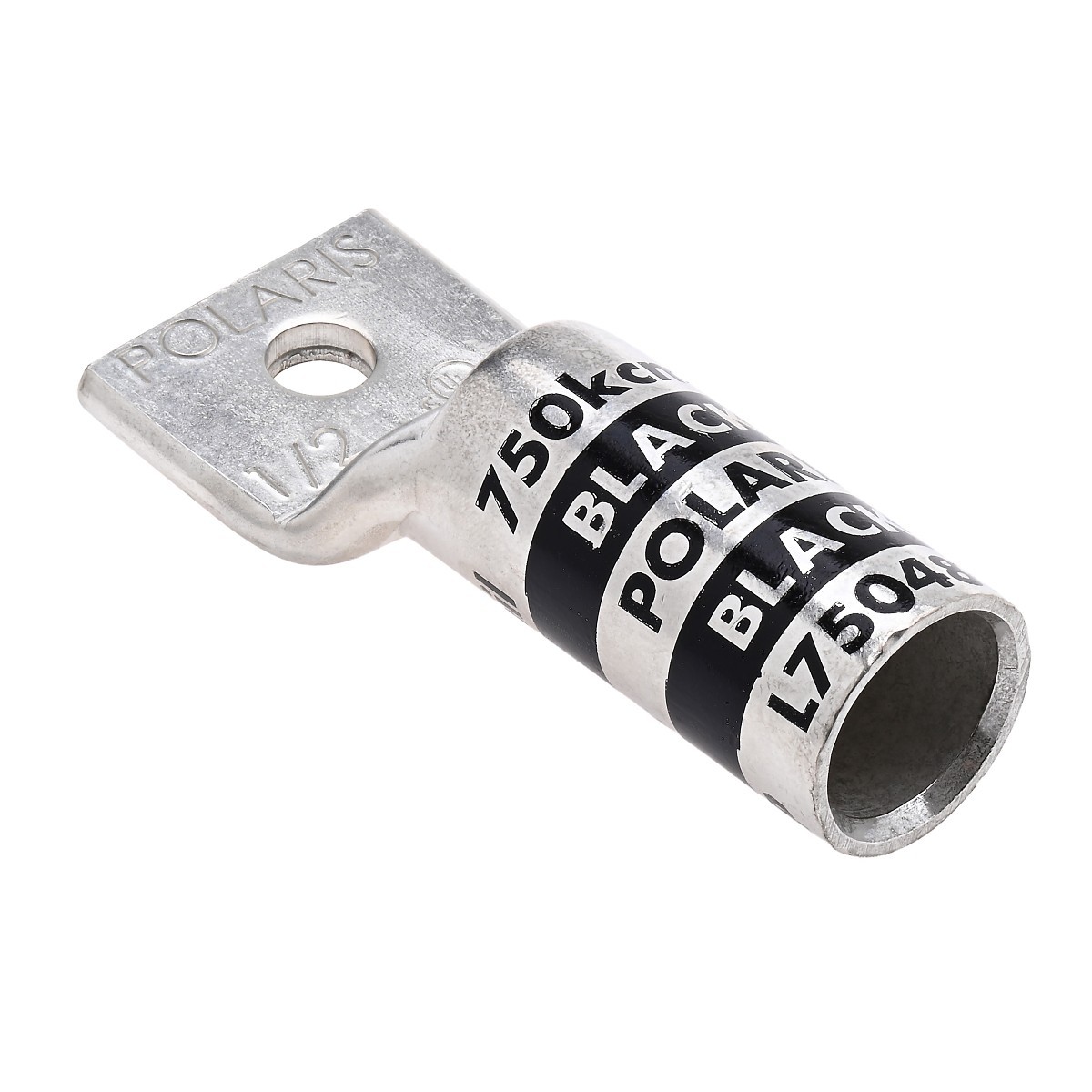

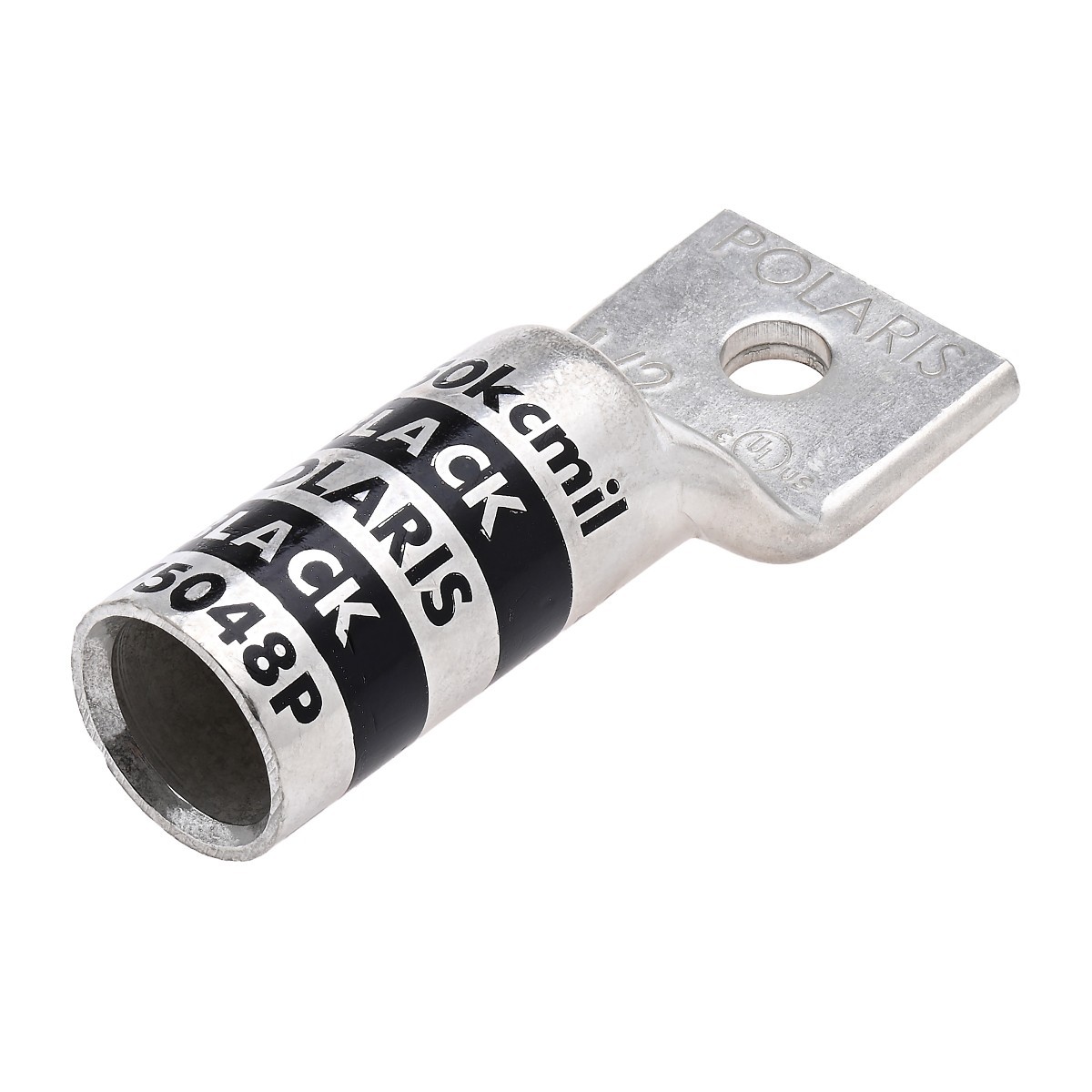

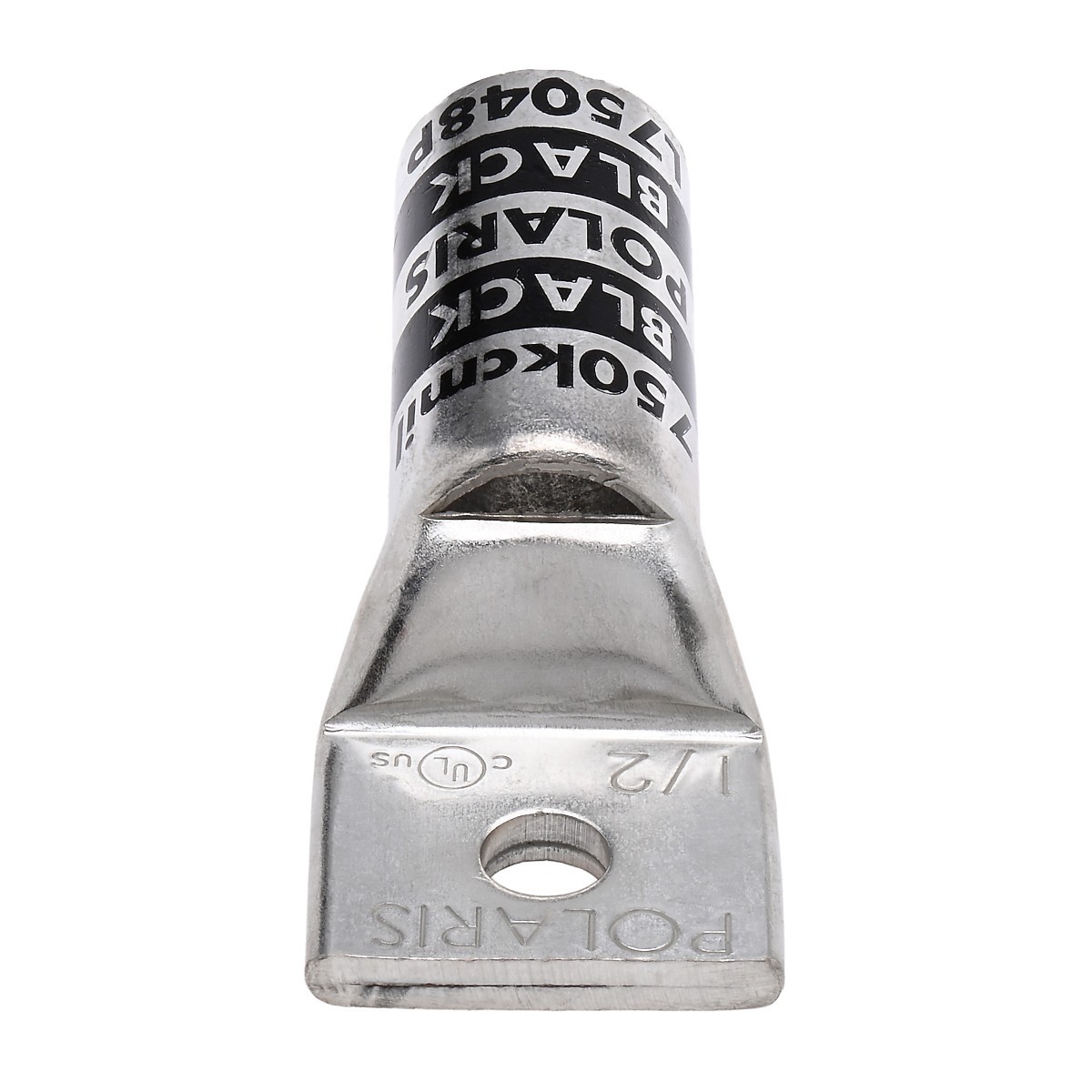

750 MCM Cu Compression Lug, 1/2 IN 1 Hole, Inspection Window
#L75048P
Terminate with confidence using Polaris lugs in a wide range of applications, including power distribution, grounding and data transmission. Each connector is clearly color-coded and can be affixed with any standard crimp tool.
- High conductivity aluminum tubing and corrosive resistant tin-plated finish
- Marked with die index and color coded
- Flex rated for use with K, H, G, I, M and DLO cable
- UL/cULus listed and rated for B/C class wire
- Inspection Window allows easy inspection of the termination
- UL listed to 35kV when properly installed to cable manufacturer’s specifications,
Product Information
| Voltage Rating | 35kV |
|---|---|
| Material | Copper |
| Finish | Tin Plated |
| UPC | 662381997326 |
| Wire Cable Class | Class B, Class C, Class G, Class H, Class I, Class K, Class M, Class DLO |
| Conductor Type | Copper |
| Tang Thickness | 0.27 |
| Tang Length | 1.44 |
| Assortment | Copper Compression Terminations |
| Expanded Wire Range | 750 MCM – 500 MCM |
| Die Color Code | Black |
| Mounting Bolt Size | 1/2 |
| Barrel Length | 2.64 |
