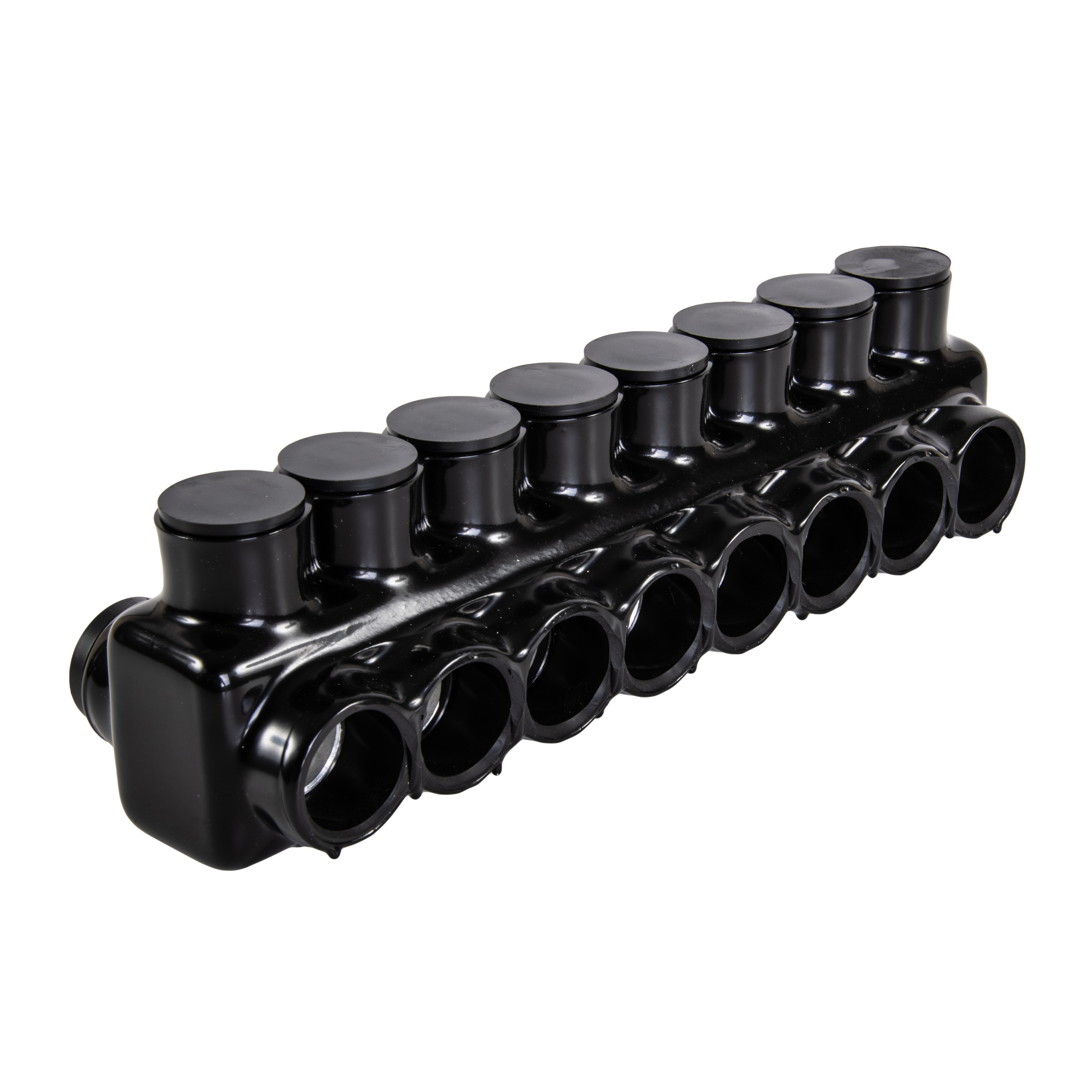

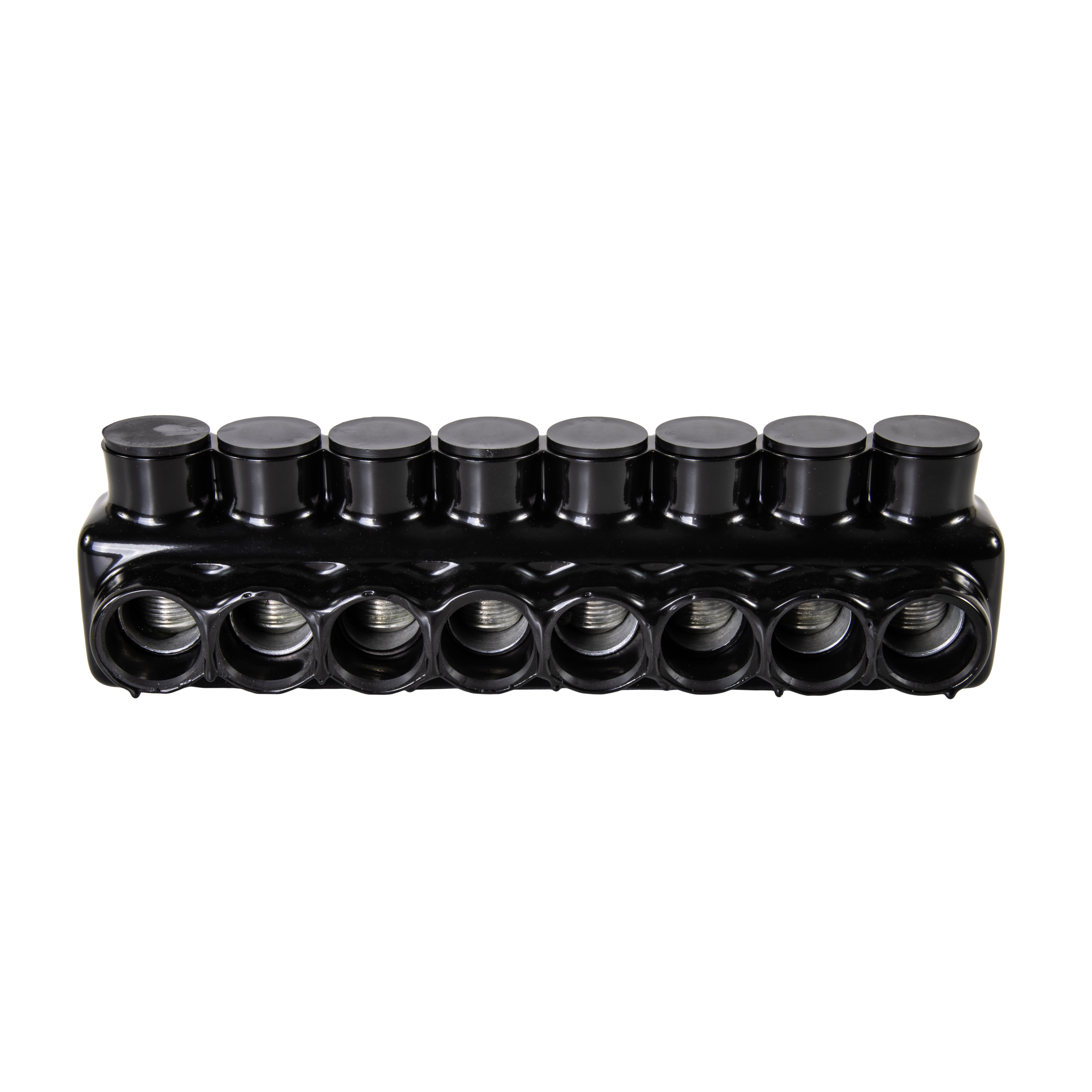

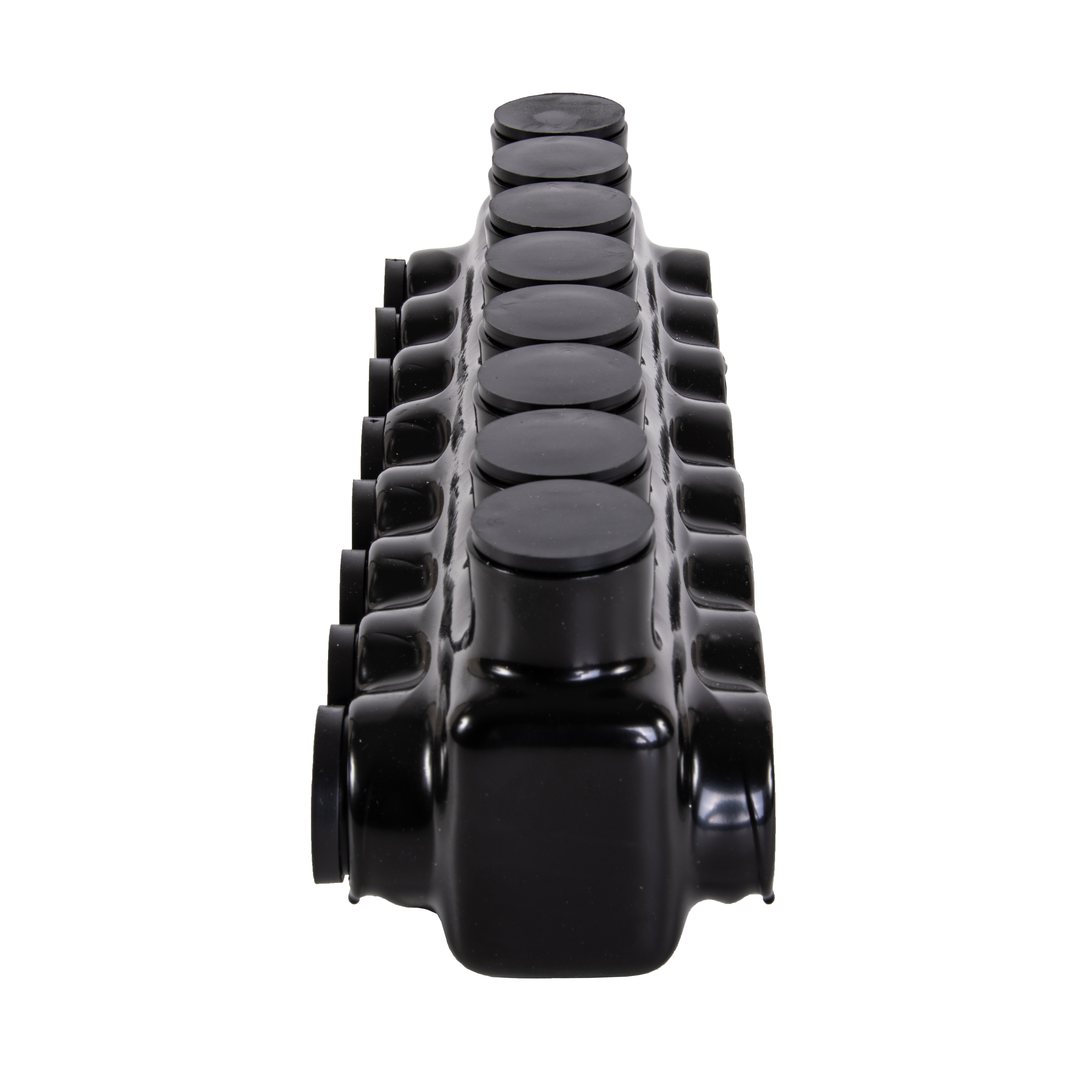

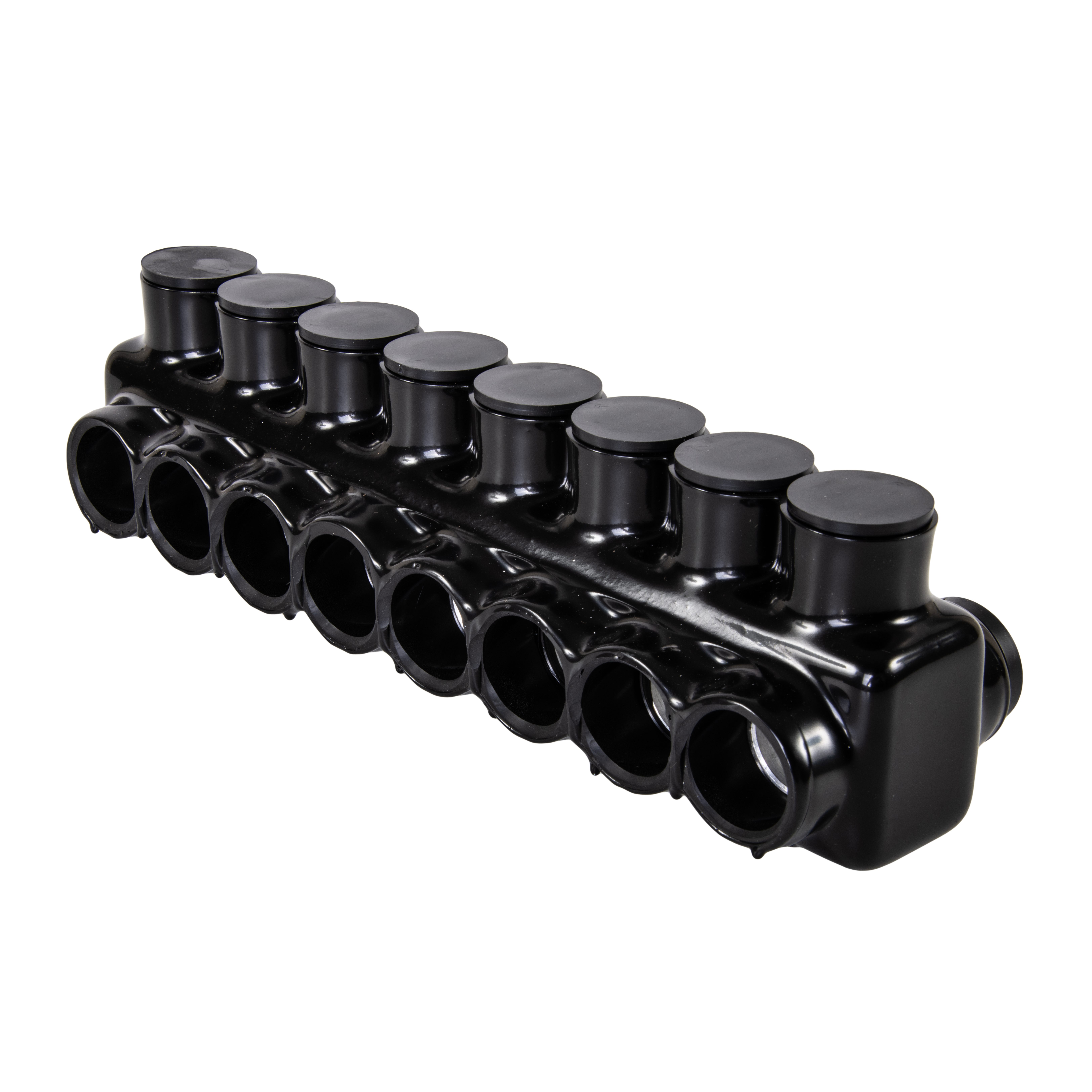

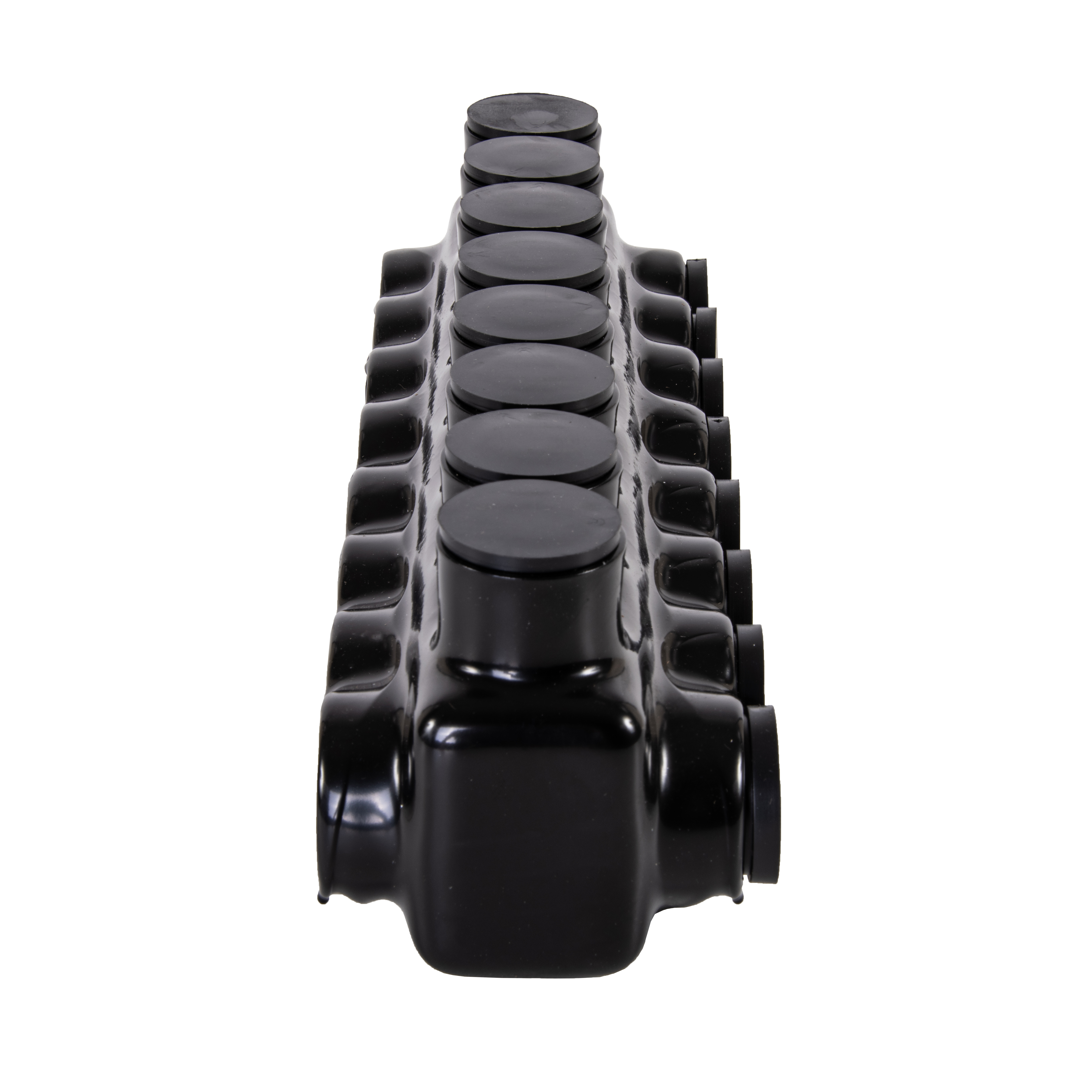

8-Port Black Multi-Tap Pre-Insulated Connector, 500 MCM – 4 AWG
Insulated Mechanical Connectors
#IPLD500-8
Polaris Black Multi-Tap Connectors form secure connections between multiple conductors with a rounded design and UV-resistant insulation coating. Installs with a hex key and torque wrench, with no need for cover and taping.
- Dual-Sided Wire Entry: Form secure connections between 8 conductors quickly using the double-side entry ports sized for wires between 500 MCM and 4 AWG. Suitable for use on the line side of the service equipment as per the NEC article 230.46 requirement. Suitable for use on the line side of the service equipment as per the NEC article 230.46 requirement.
- Ergonomic Design: Rounded corners and a smooth exterior finish over the abrasion-resistant plastisol insulation make Polaris connectors comfortable to grip

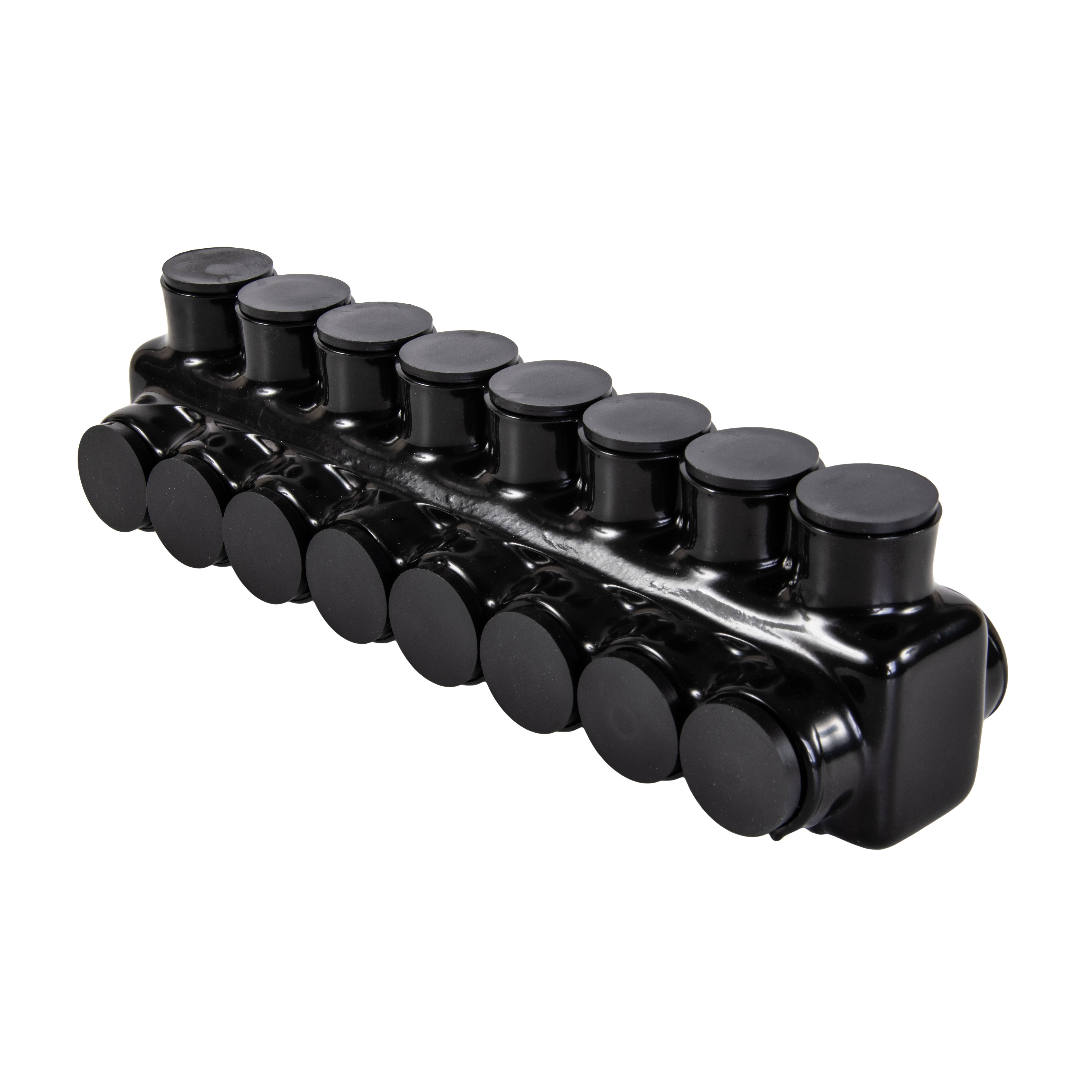

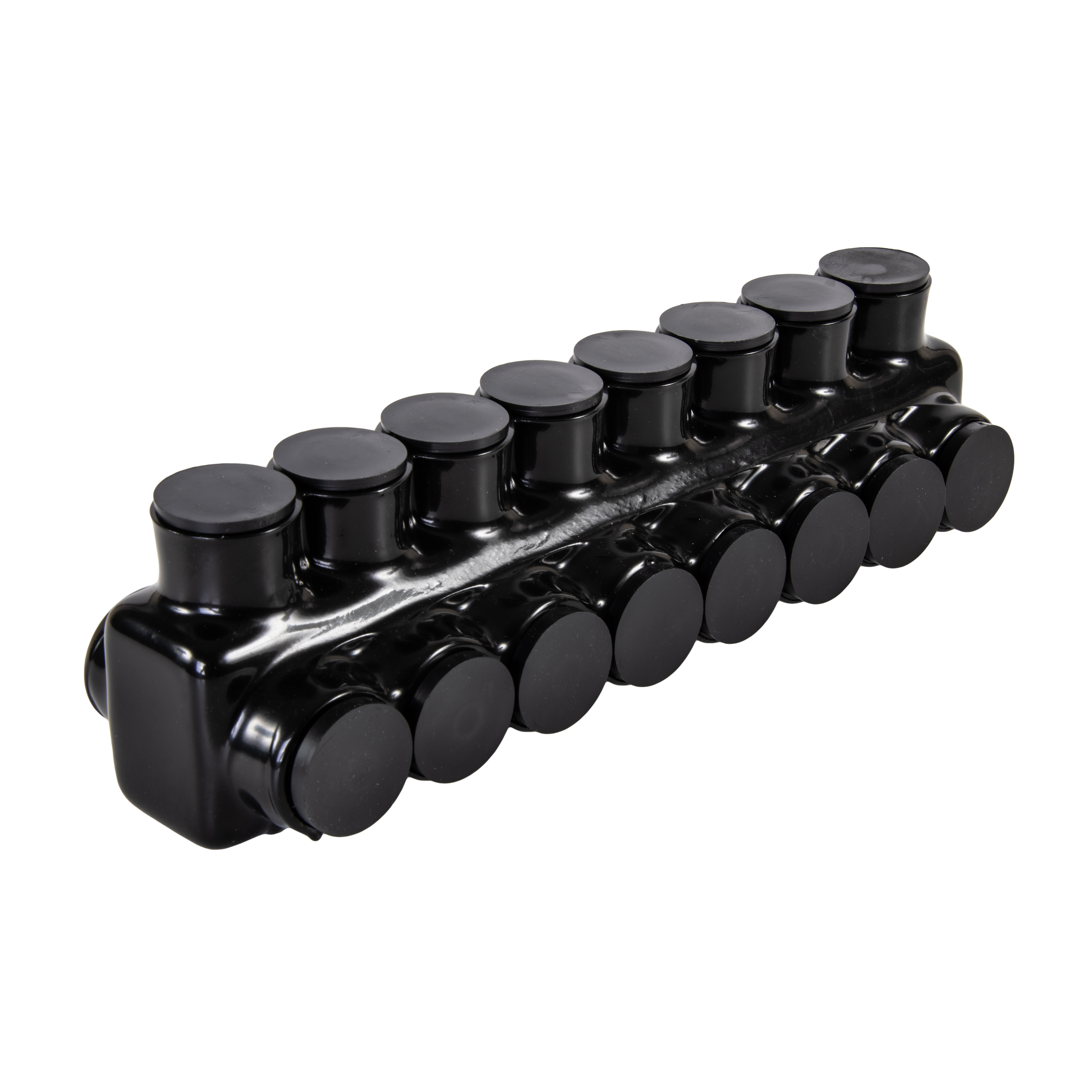

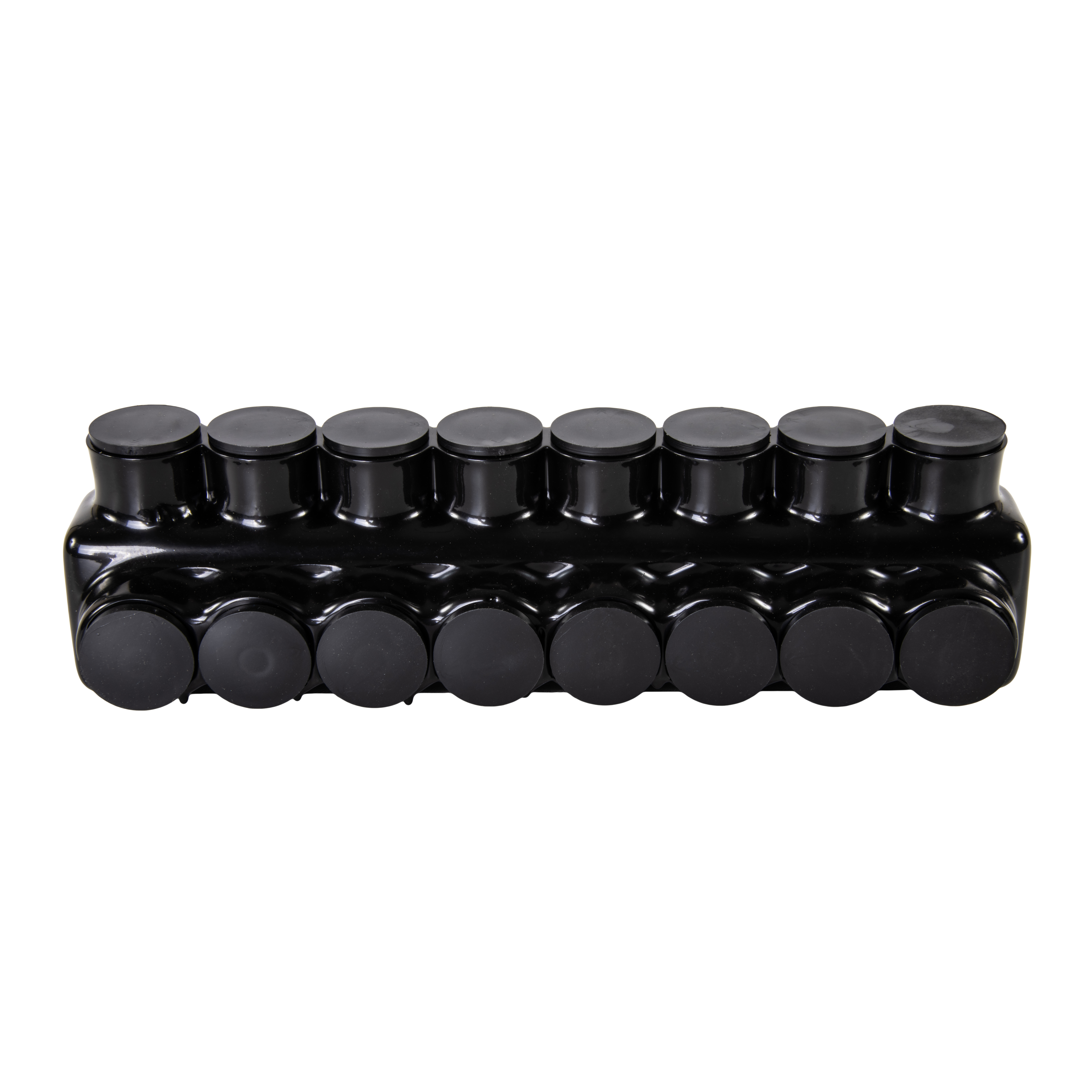

- Removable Plugs: Each port and set screw comes with a secure plug to prevent debris from entering the insulated connector
- Pre-filled Oxide Inhibitor: All 8 dual-sided entry ports come pre-filled with an oxide inhibitor gel to prevent corrosion and provide low-contact resistance
- Parallel Rated: This connector is specifically designed and rated for parallel installation, providing a safe and secure way to handle larger projects
Product Information
Voltage Rating | 600 V |
---|---|
Material | Aluminum |
Finish | Plastisol Insulated |
Color | Black |
Pack Qty | 2 |
GTIN | 662381925060 |
UPC | 662381925060 |
EAN | 662381925060 |
UNSPSC | 39121409 |
Origin Country | US |
Certifications | cULus, Meets NEC 230.46 Suitable for Line Side of Service |
Ul Standard | UL 486A/B |
Ul File No | E186991 |
Wire Cable Class | Class B, Class C |
Al Conductor Max Amp | 1262 |
Cu Conductor Max Amp | 1612 |
Conductor Cu Size Range | 500 MCM-4 AWG |
Conductor Al Size Range | 500 MCM-4 AWG |
Conductor Type | Copper, Aluminum |
Temp Rating | 90C, AL9CU |
Conductors Count | 8 |
Hex Wrench Size | 5/16 |
Env Temp | Cold Temperature rated to -45C |
Assortment | Black UV Coated Pre-Insulated Connectors |
Max Torque | 450 |
