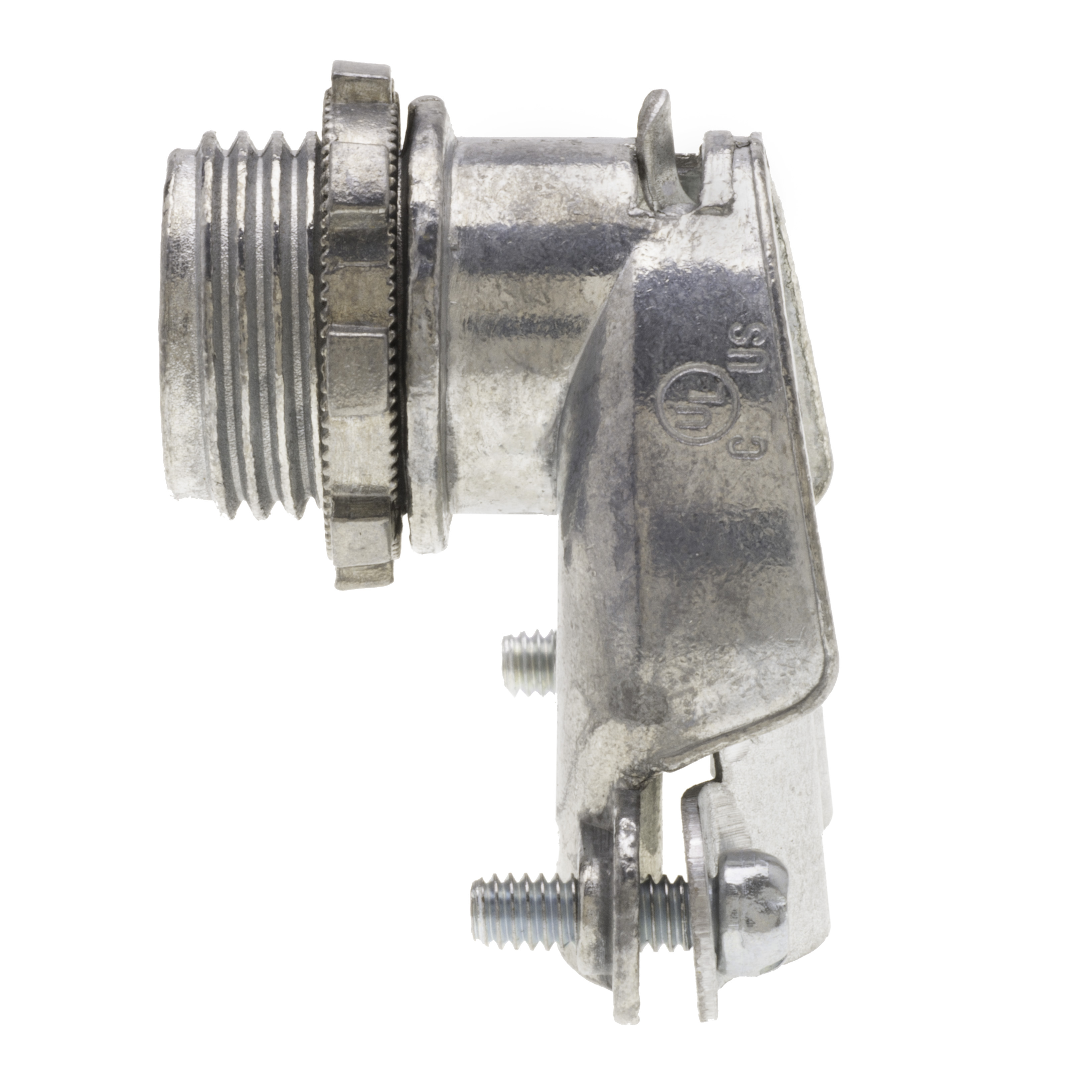

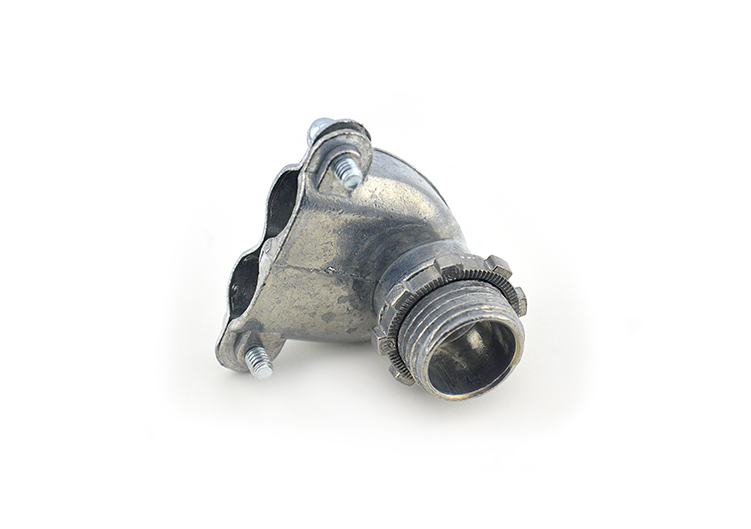

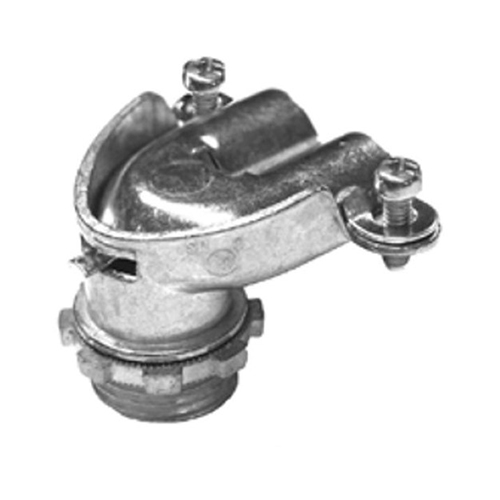

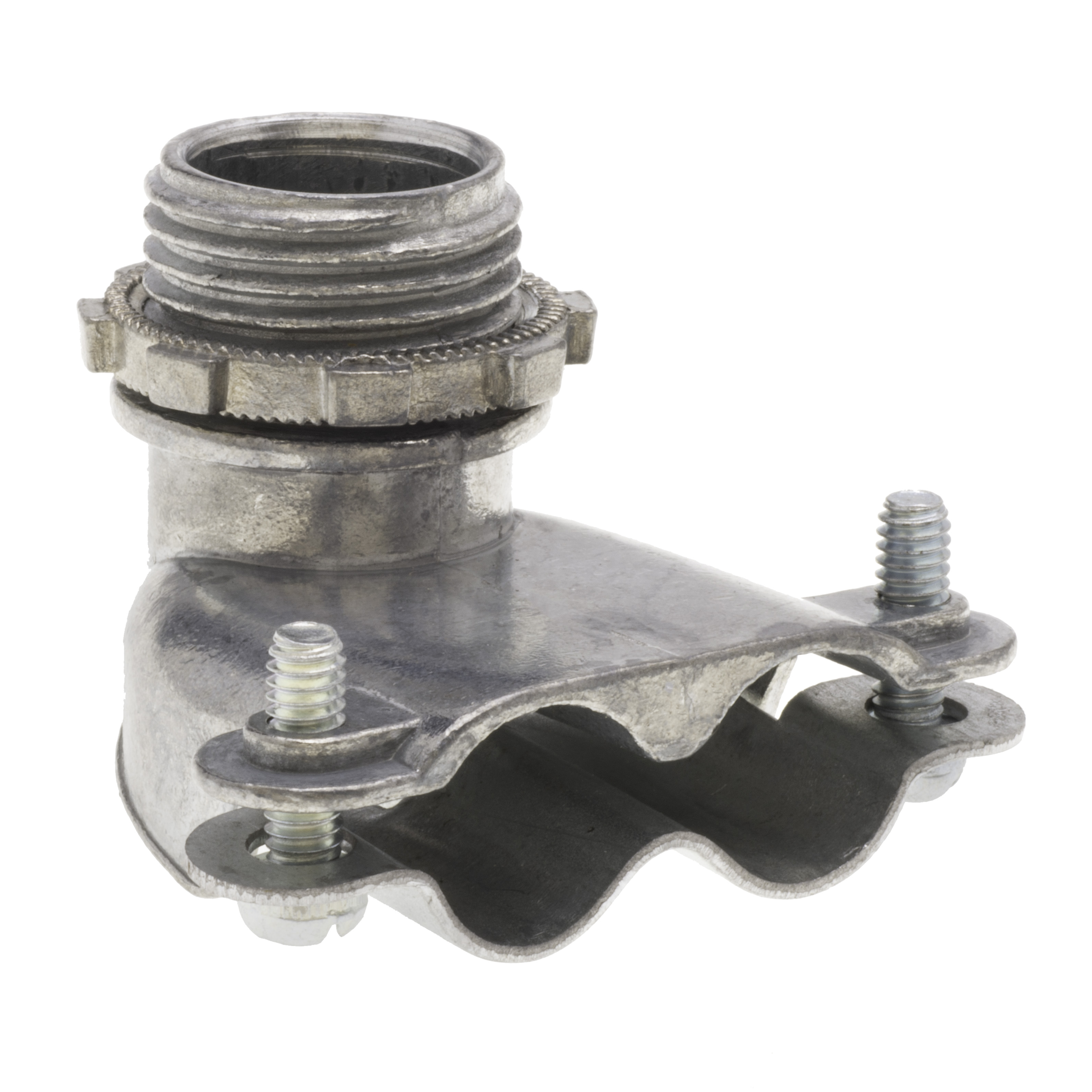

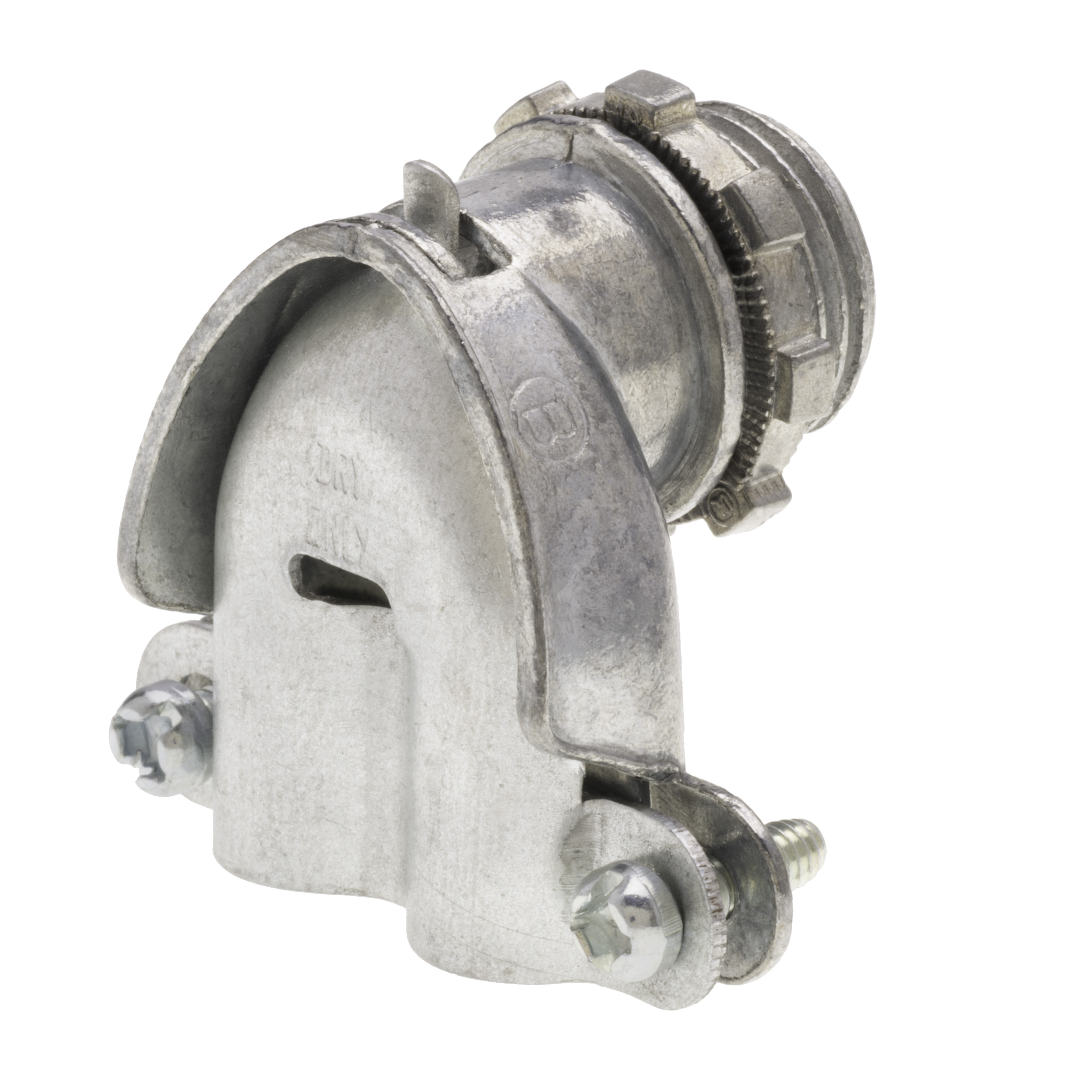

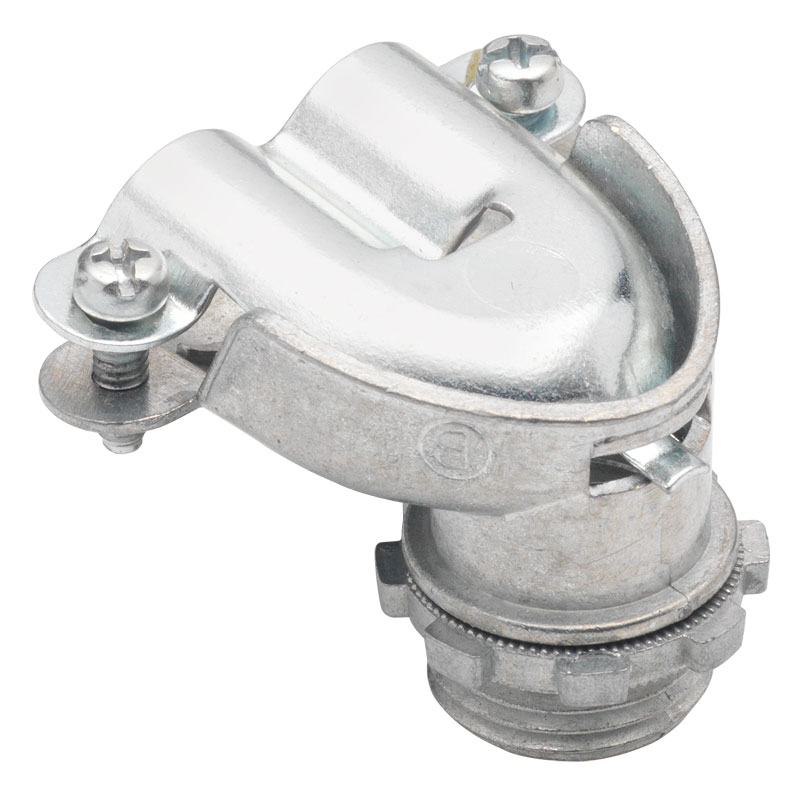

90-Degree Duplex Connector 3/8″, Die Cast Zinc
#830-DC2
Use Bridgeport 90-degree duplex connectors to join two individual lengths of flexible metal conduit or AC/MC/HCF cable to an electrical box or enclosure at a 90-degree angle. The duplex design secures two conduit runs to a single knockout.
- Sizing: Use to join flex trade size 3/8" flexible metal conduit or 12/2 to 10/3 (.44" to .61") AC/MC/HCF cable to a 1/2" knockout
- Duplex Design: Able to secure two individual runs of conduit or cable to an electrical box or enclosure through a single knockout
- 90-Degree Connections: For connecting flexible metal conduit to an electrical box or enclosure at a 90-degree angle
- Zinc Body: Die cast zinc connectors have a precise fit and finish with excellent corrosion resistance for use in harsh environments
- Steel Cover: A steel cover and two-screw design secures and protects the inner cable
Product Information
| Material | Zinc Die Cast |
|---|---|
| Finish | Ball Burnish, Mirror Smooth |
| Pack Qty | 100 |
| GTIN | 00781747158307 |
| UPC | 781747158307 |
| EAN | 0781747158307 |
| UNSPSC | 39121419 |
| Origin Country | CN |
| Ul Standard | UL-514B |
| Ul File No | E20534 |
