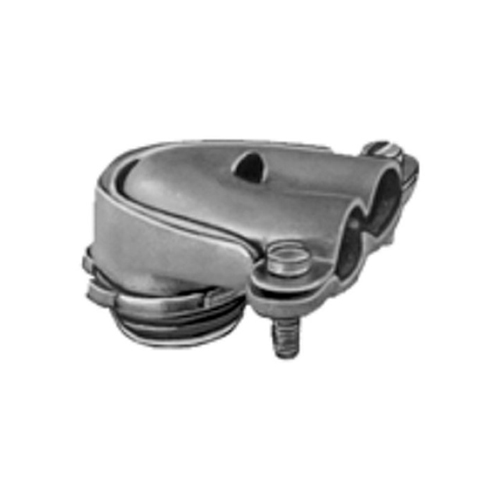

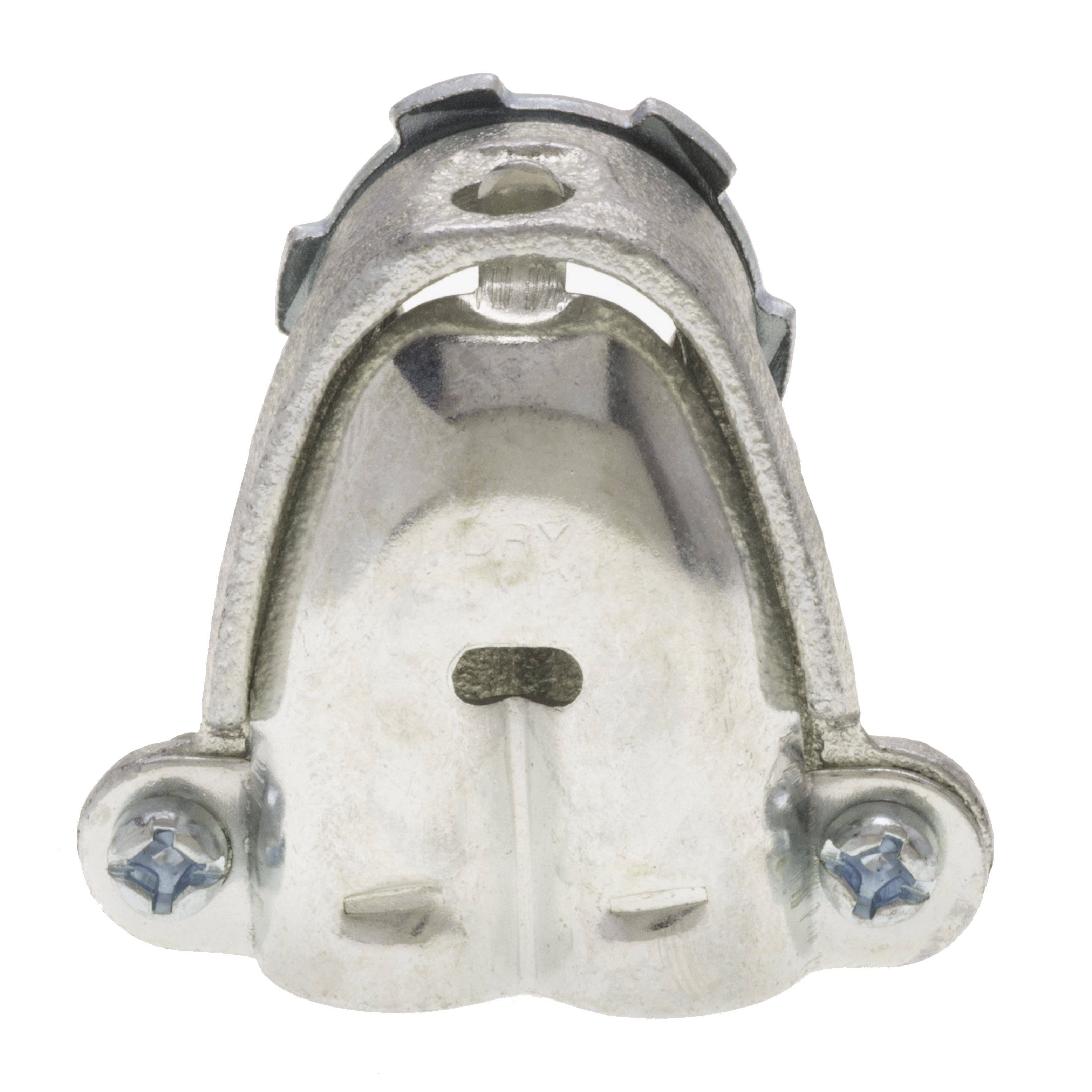

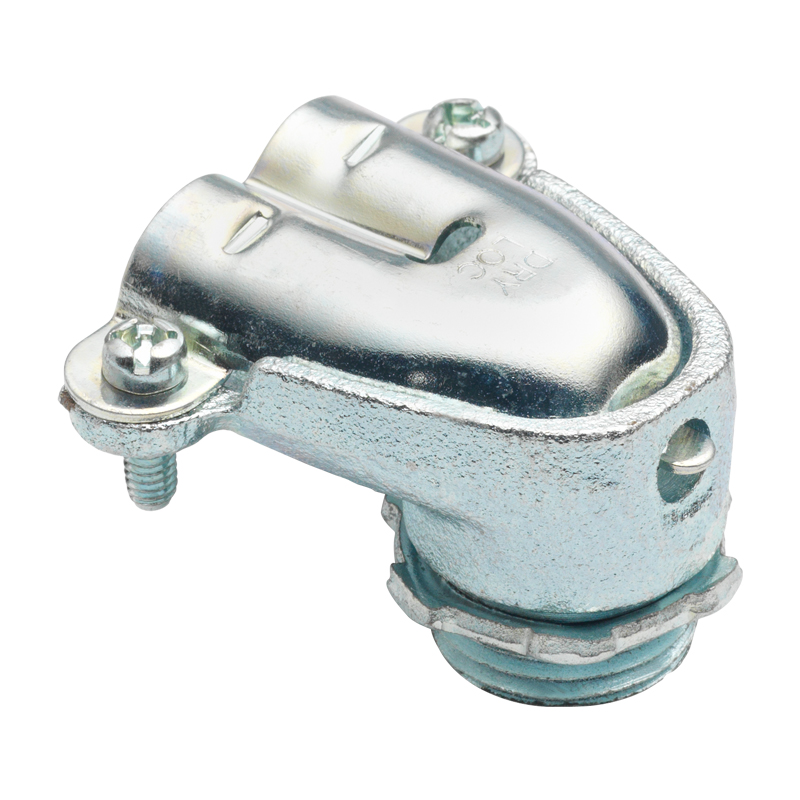

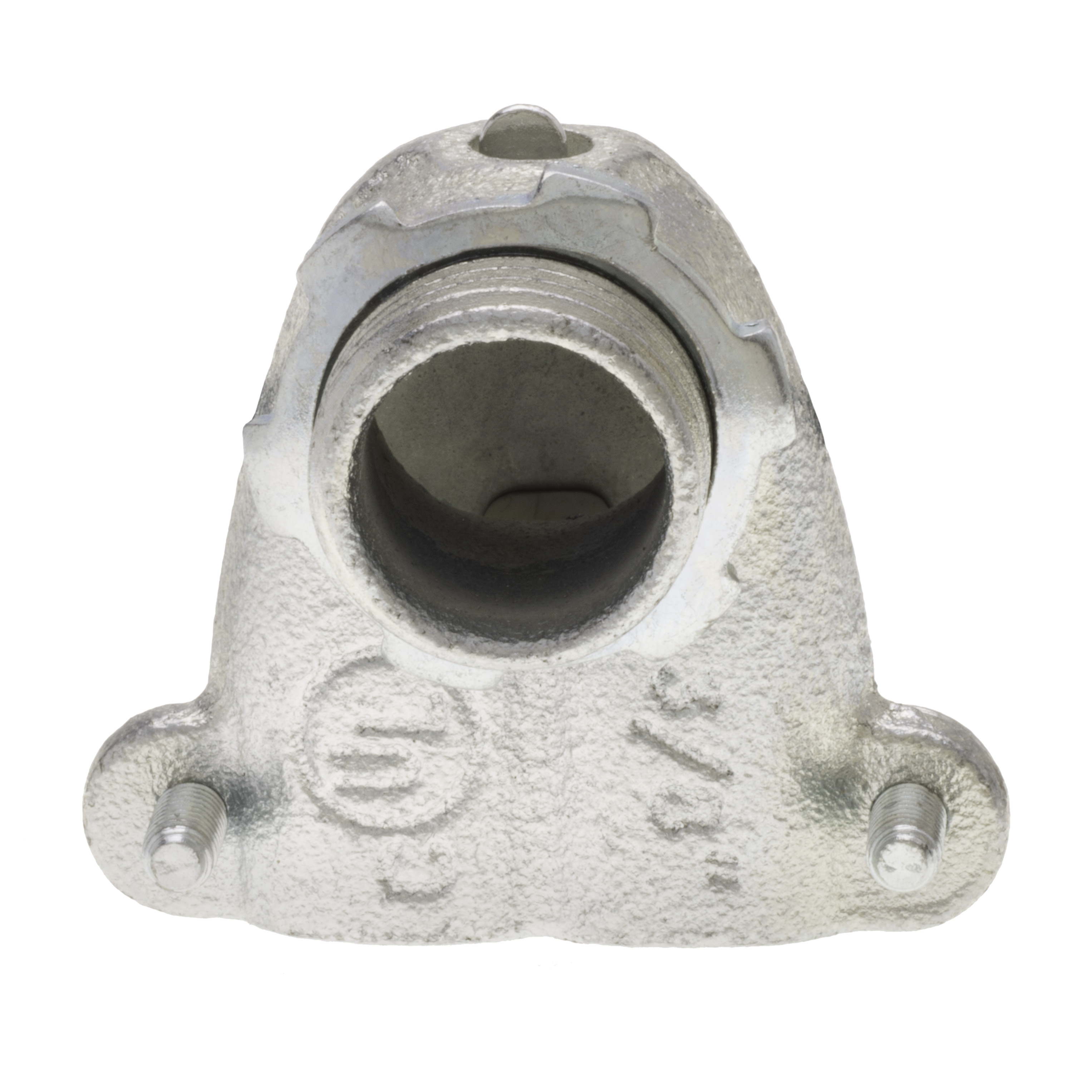

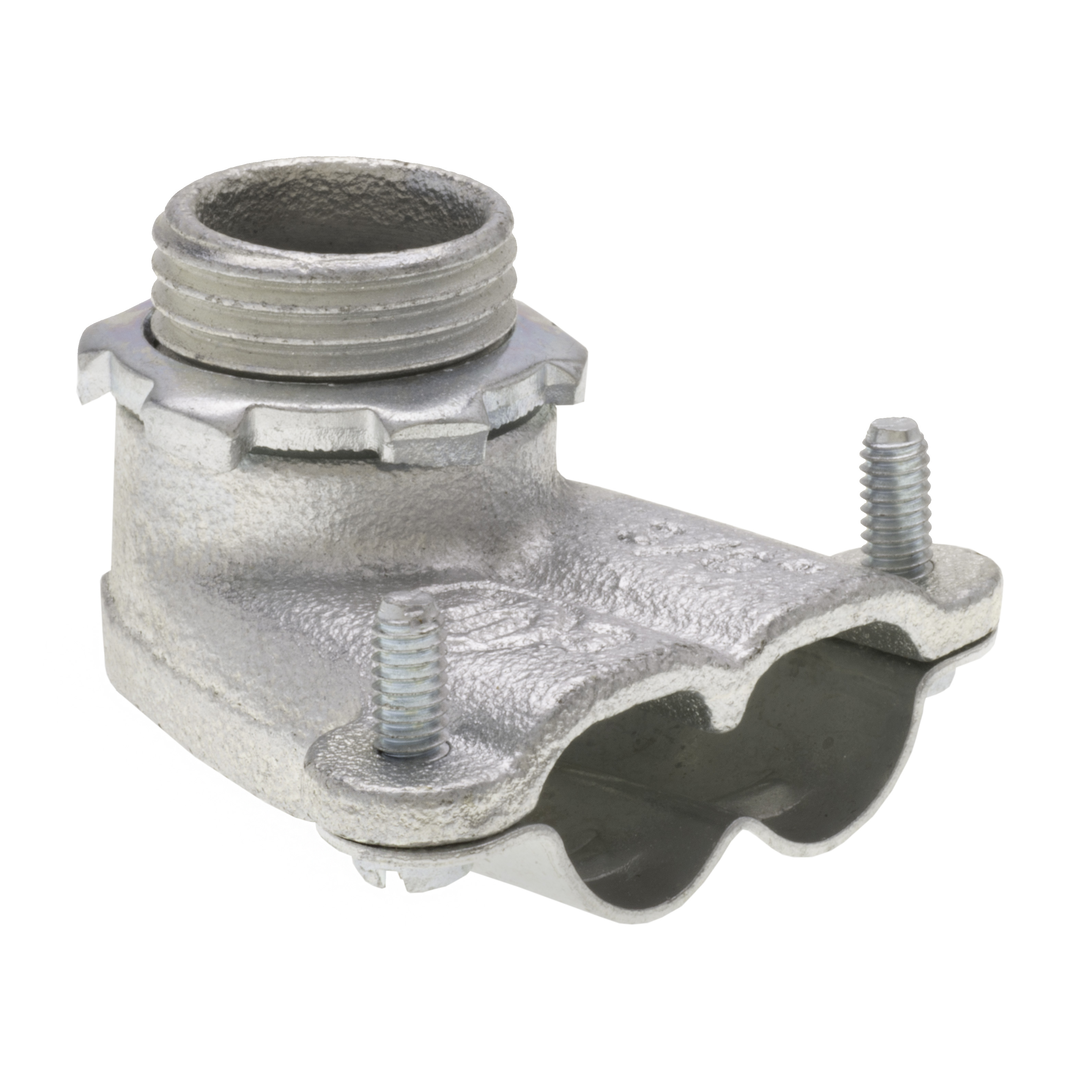

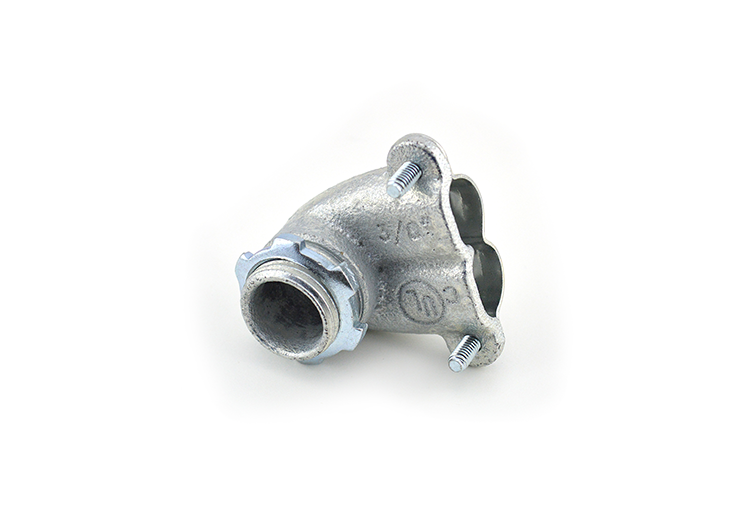

Bridgeport 830 3/8 IN 90 Deg Duplex Conn., Box of 25
Flexible Metal Conduit Fittings
#830
Use Bridgeport 90-degree duplex connectors to join two individual runs of flexible metal conduit to an electrical box or enclosure at a 90-degree angle. Duplex design allows for two conduit runs to be connected to a single knockout.
- Sizing: For use with flex trade size 3/8" flexible metal conduit when installing through a 1/2" knockout
- Duplex Design: Able to secure two individual runs of conduit to an electrical box or enclosure through a single knockout
- 90-Degree Connections: For connecting flexible metal conduit to an electrical box or enclosure at a 90-degree angle
- Malleable Iron: The heaviest-duty solution. Due to its strength, rigidity and ability to flex without breaking, malleable iron offers good fracture toughness and high corrosion resistance
- Steel Cover: A steel cover and two-screw design secures and protects the inner cable
Product Information
| Finish | Zinc Plated |
|---|---|
| Ul Standard | UL-514B |
| Material | Malleable Iron |
| UNSPSC | 39121419 |
| EAN/UCC-13 | 0781747008305 |
| GTIN | 30781747008306 |
| Prop 65 Flag | No |
| UPC | 781747008305 |
Resources
Documents
- BPT_830_ProDraw.pdf Download
