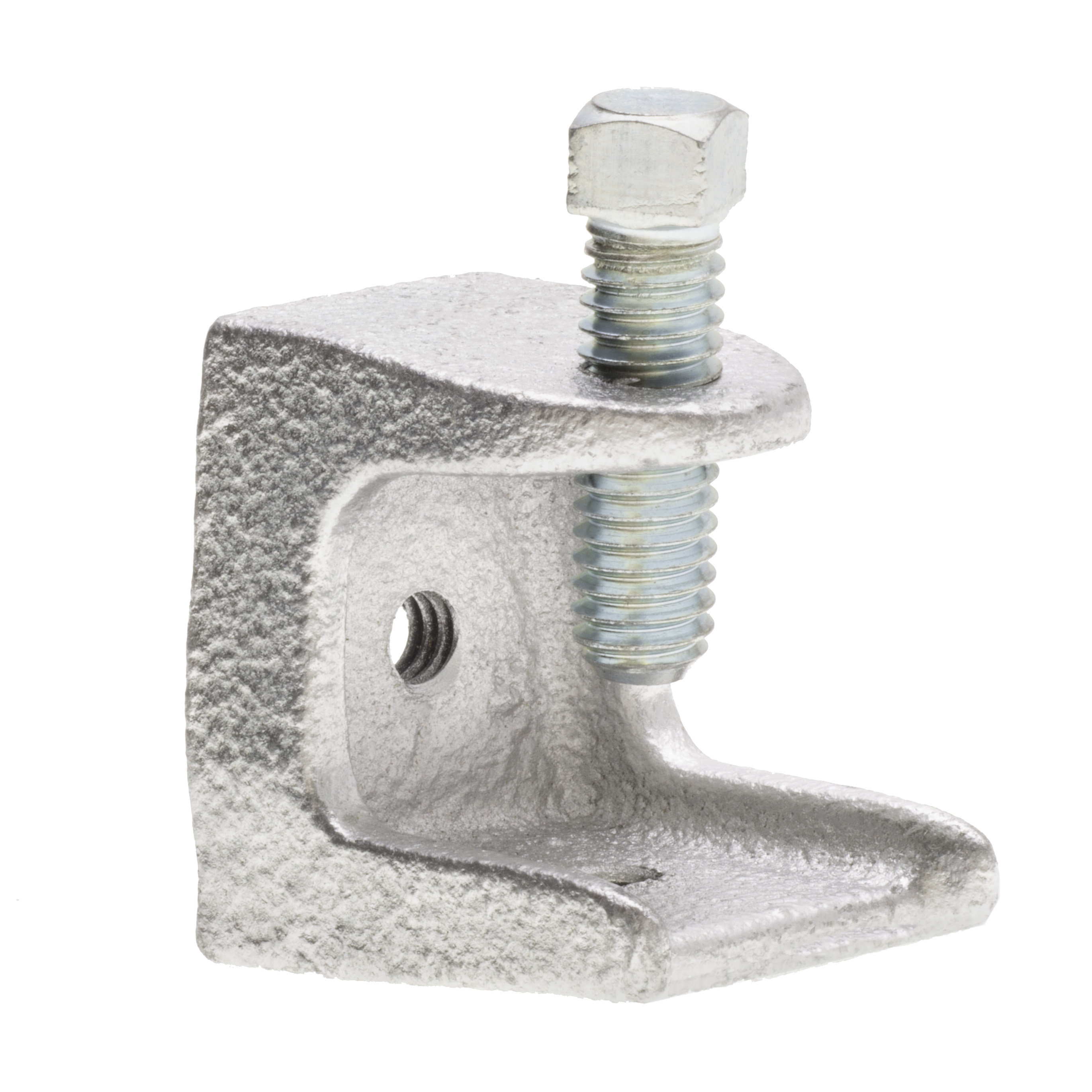

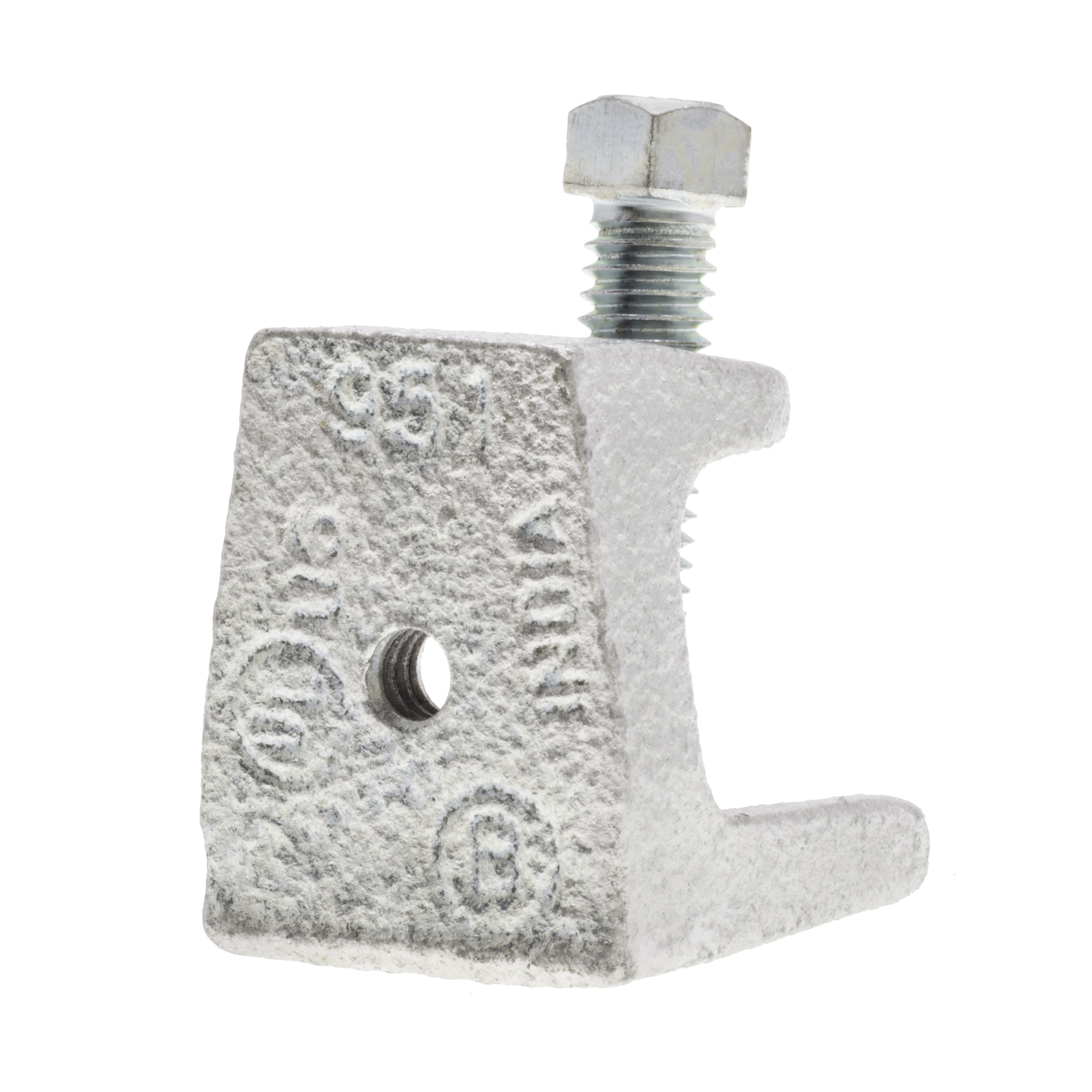

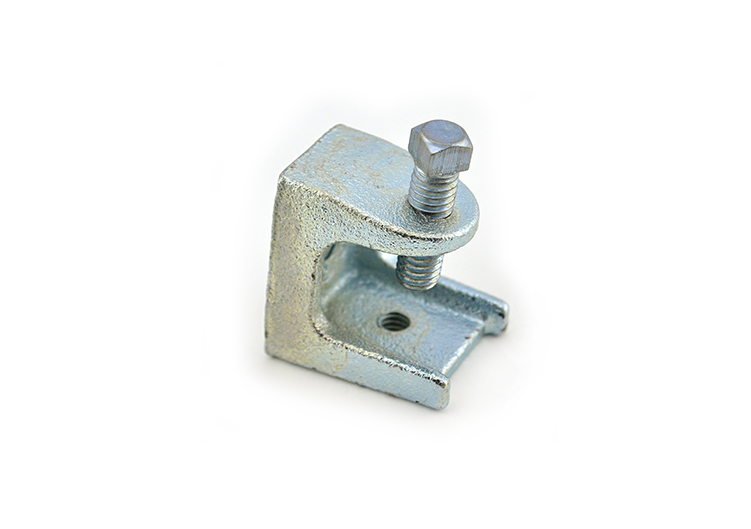

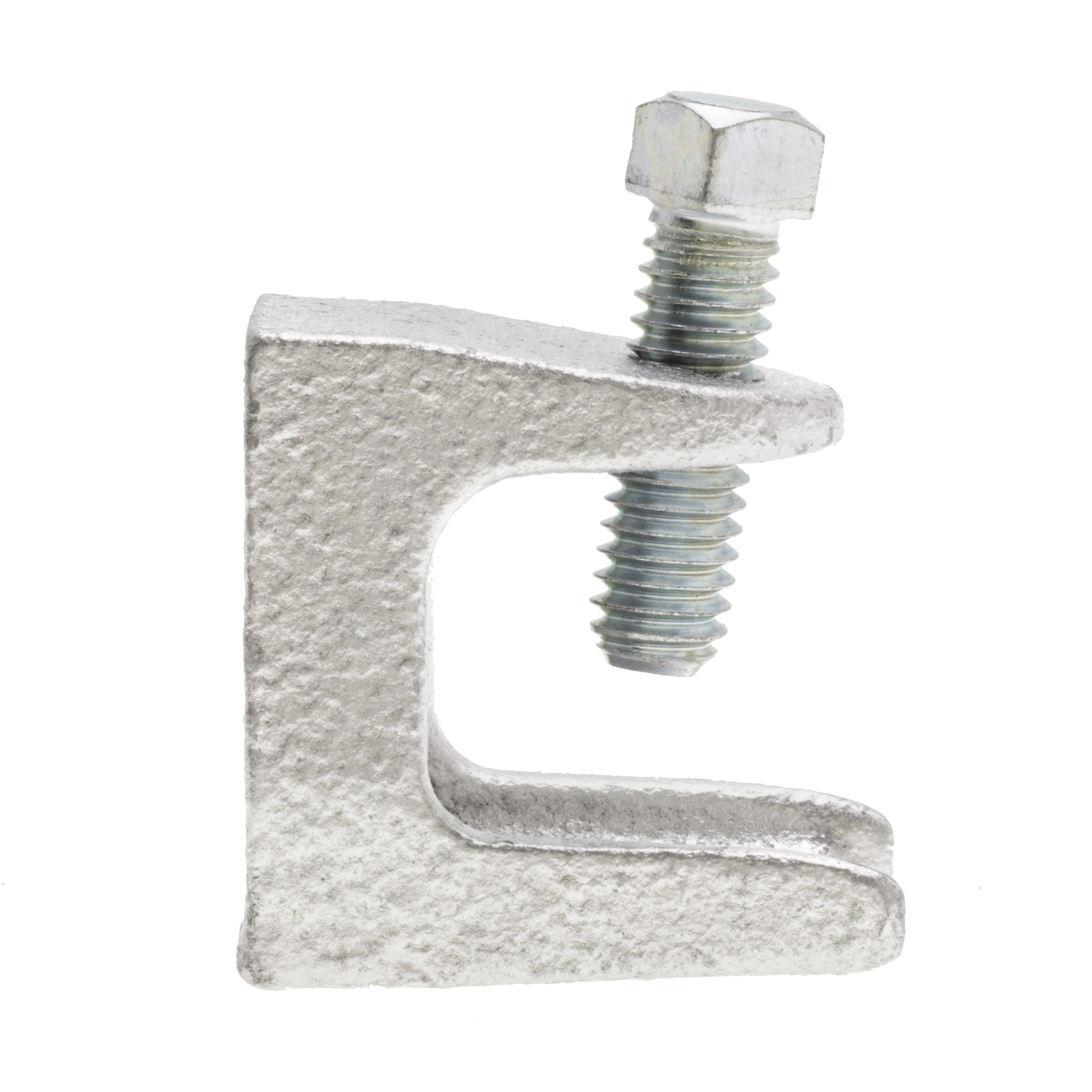

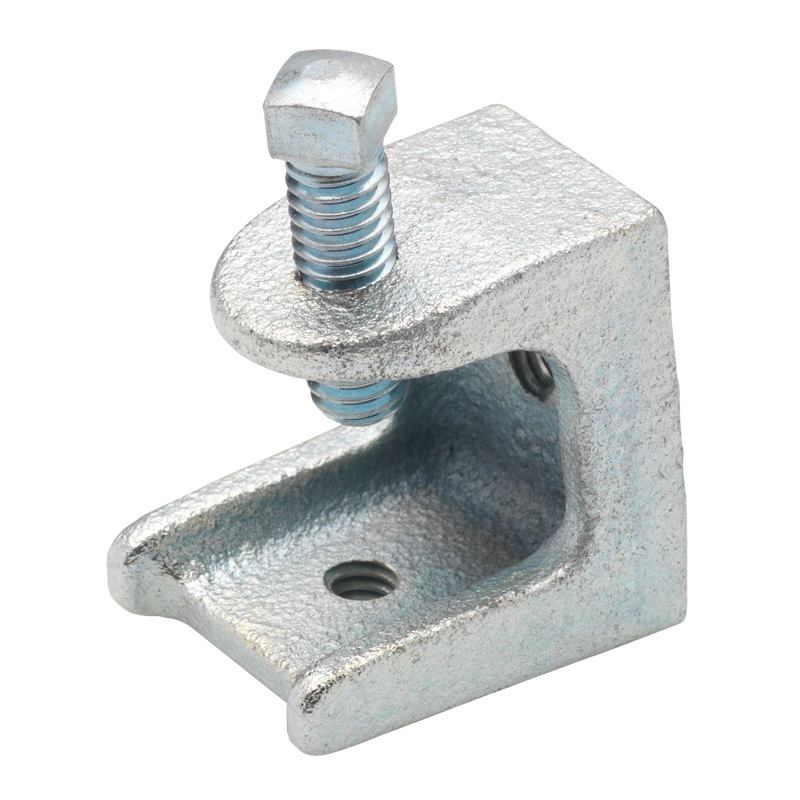

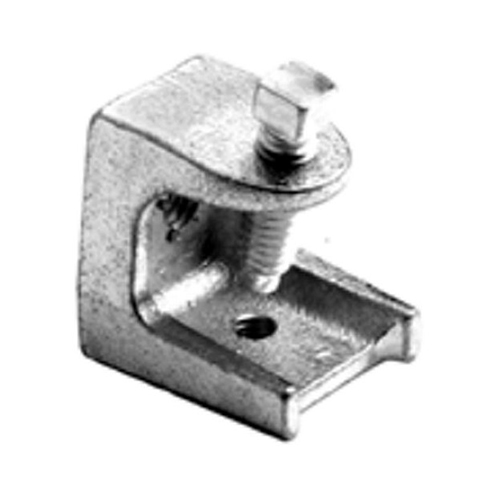

Bridgeport 951 1 IN Beam Clamp, Box of 25

Conduit Hangers

#951

Bridgeport Beam Clamps make quick connections to structural steel without the need for drilling or welding. Single screw clamps with two threaded holes can be used for a variety of support, lifting and rigging applications.

• Quick and Easy: Beam clamps are easier and faster to install than welding or drilling holes – both of which require specialized labor, equipment and engineer analysis
• Malleable Iron: The heaviest-duty solution. Due to its strength, rigidity and ability to flex without breaking, malleable iron offers good fracture toughness and high impact resistance
• Sizing: 1” Beam Clamp with a tap size (UNC) of 1/4 - 20. Jaw opening is approximately .750”
• Max. Load: 125 lb Max. Load
• Compliance Standards: Bridgeport straps are RoHS compliant, REACH compliant and LEED compliant
