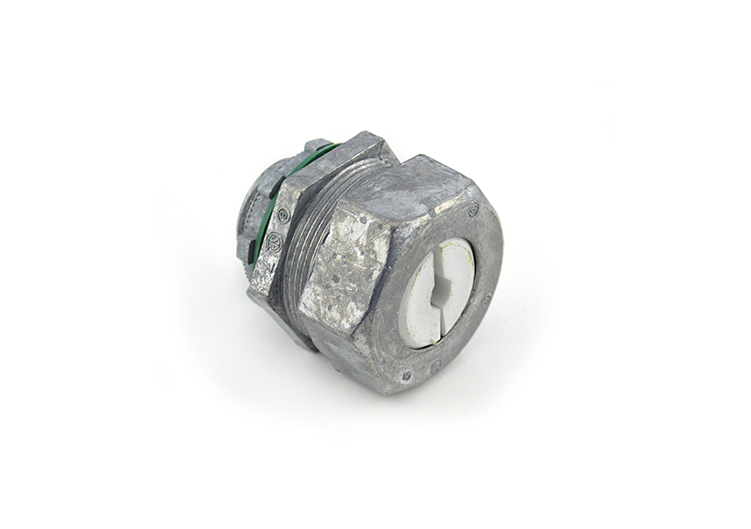

Cord Grip Connector, 3/4″, Zinc for 0.250″ to 0.375″ Cord
#771-32
Use the Bridgeport 3/4″ Die Cast Zinc Straight Cord Grip Connector with a 3/4″ KO and NPT tapered threads to provide watertight protection for any flexible 0.250″ to 0.375″ diameter portable cord.
- Die Cast Zinc Construction: Zinc is inherently lightweight, corrosion-resistant and dimensionally accurate, resulting in a product that is easy to install and lasts a lifetime
- Type 4 Watertight Protection: Constructed for either indoor or outdoor use, NEMA Type 4 protects against rain, sleet, snow, dirt, dust, and splashing or hose-directed water.
- Polyethylene Knockout Gasket: The low cost polyethylene gasket maintains impact, chemical and corrosion-resistance
- Professional Performance:Â All Bridgeport fittings meet OSHA-recognized NRTL-listed electrical standards and the stringent bonding and grounding requirements of 514B or 467 cULus
Product Information
Material | Zinc Die Cast |
---|---|
Color | White |
Pack Qty | 50 |
GTIN | 00781747771322 |
UPC | 781747771322 |
EAN | 0781747771322 |
UNSPSC | 39121431 |
Origin Country | US |
Ul Standard | UL-514B |
Ul File No | E11259 |
Application | Straight connector for use with portable cord. Provides liquid tight and watertight protection. Tapered (NPT) threads with gasket and locknut. Supplemental UL listing: Type 4 watertight. |
Resources
Documents
- BPT_771-32_ProDraw.pdf Download
