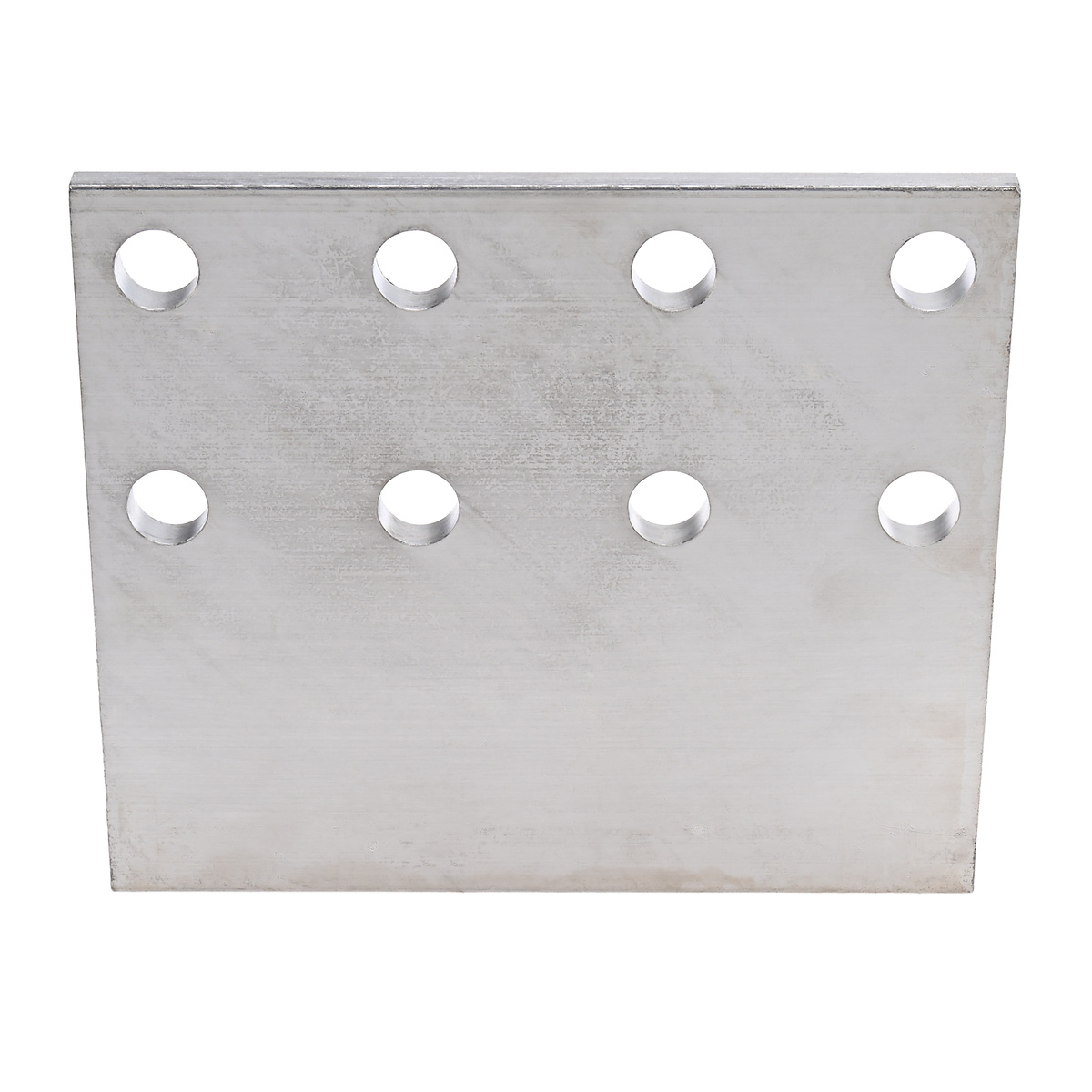

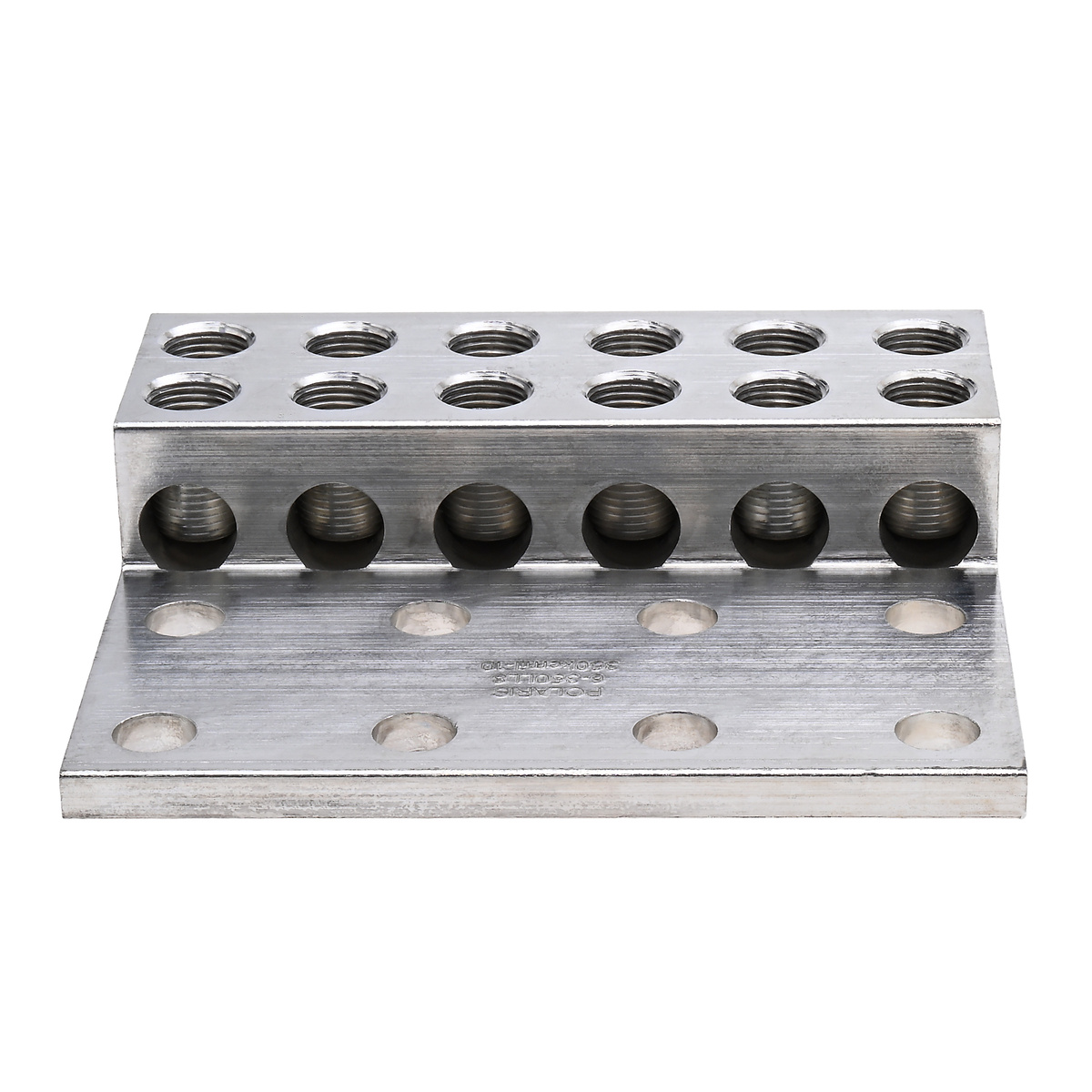

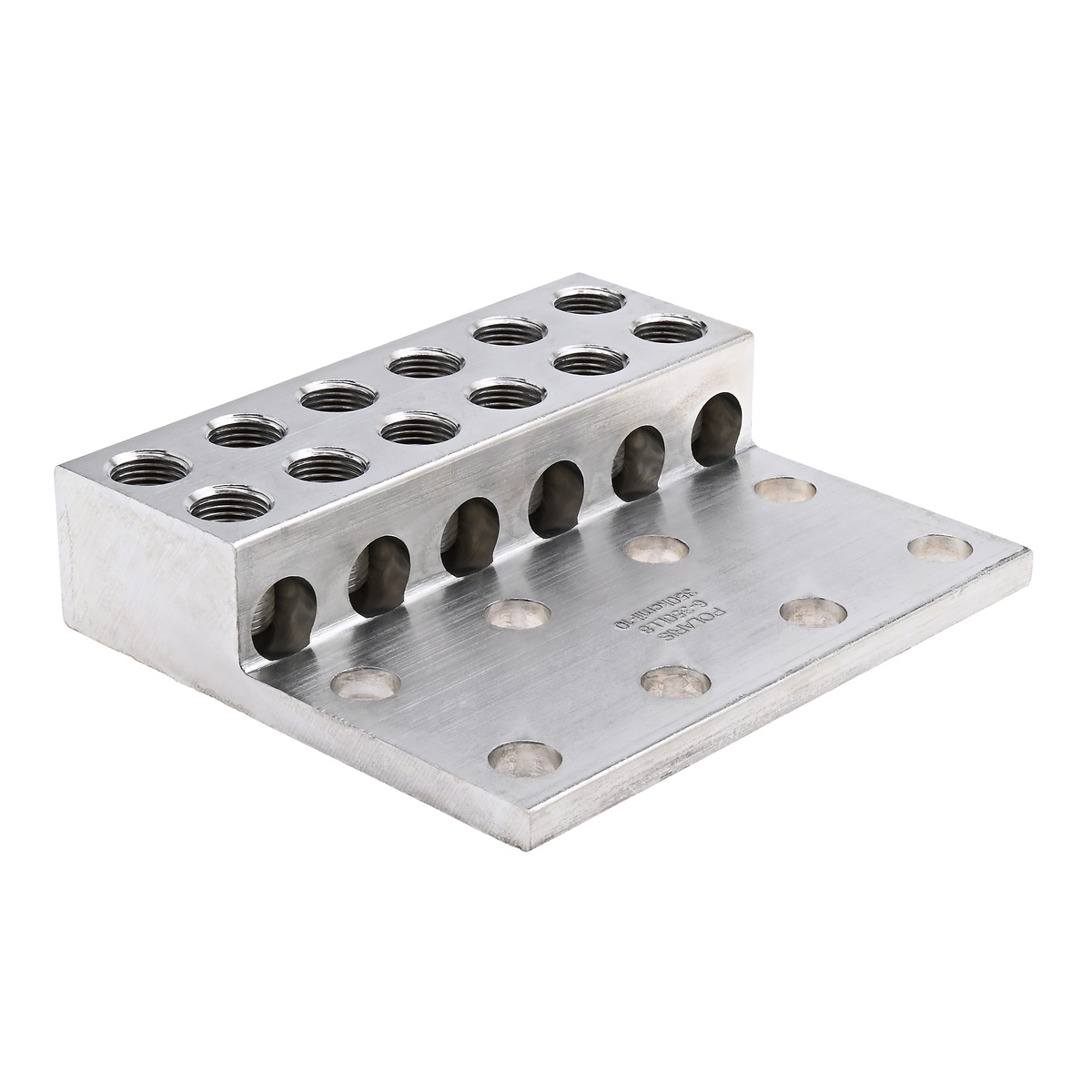

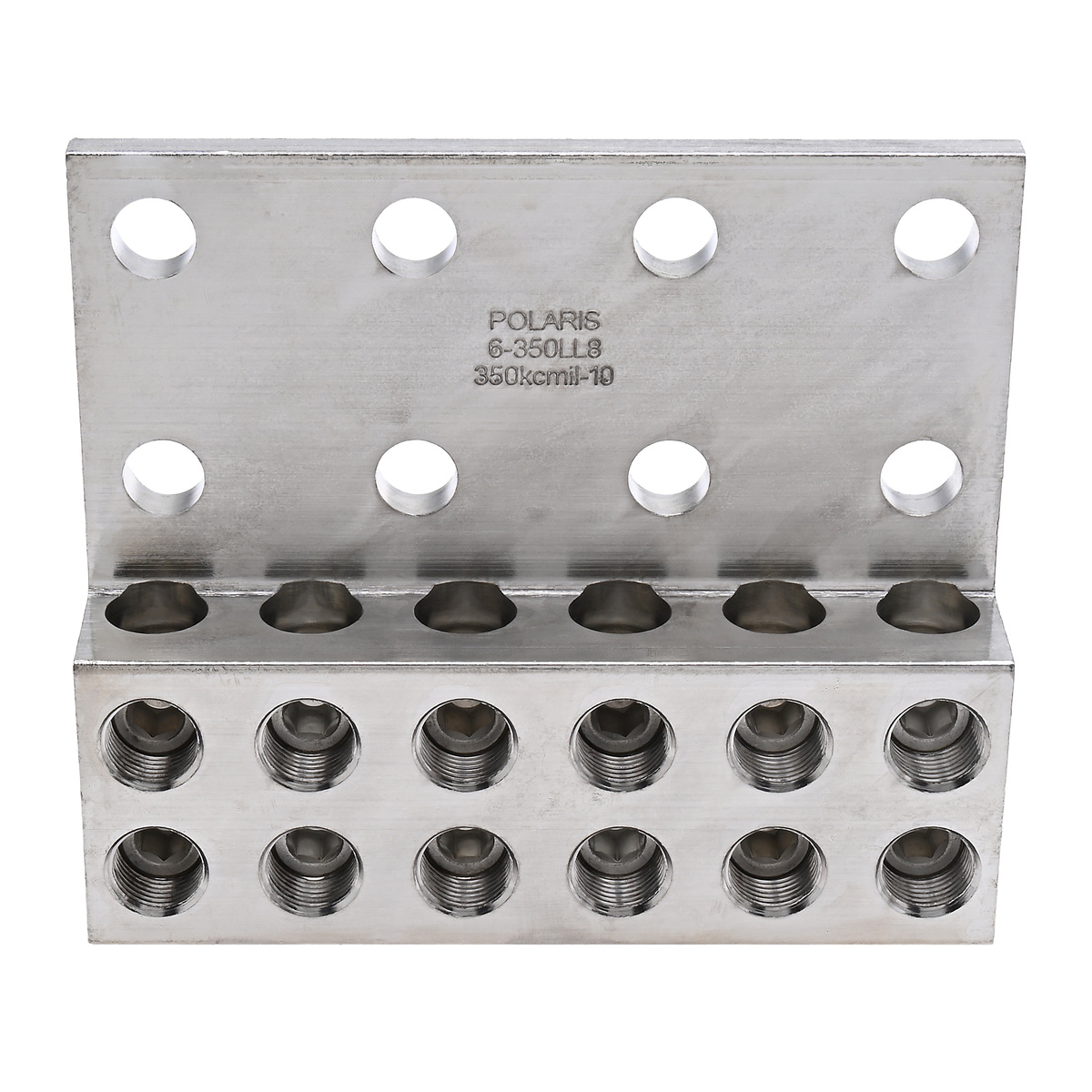

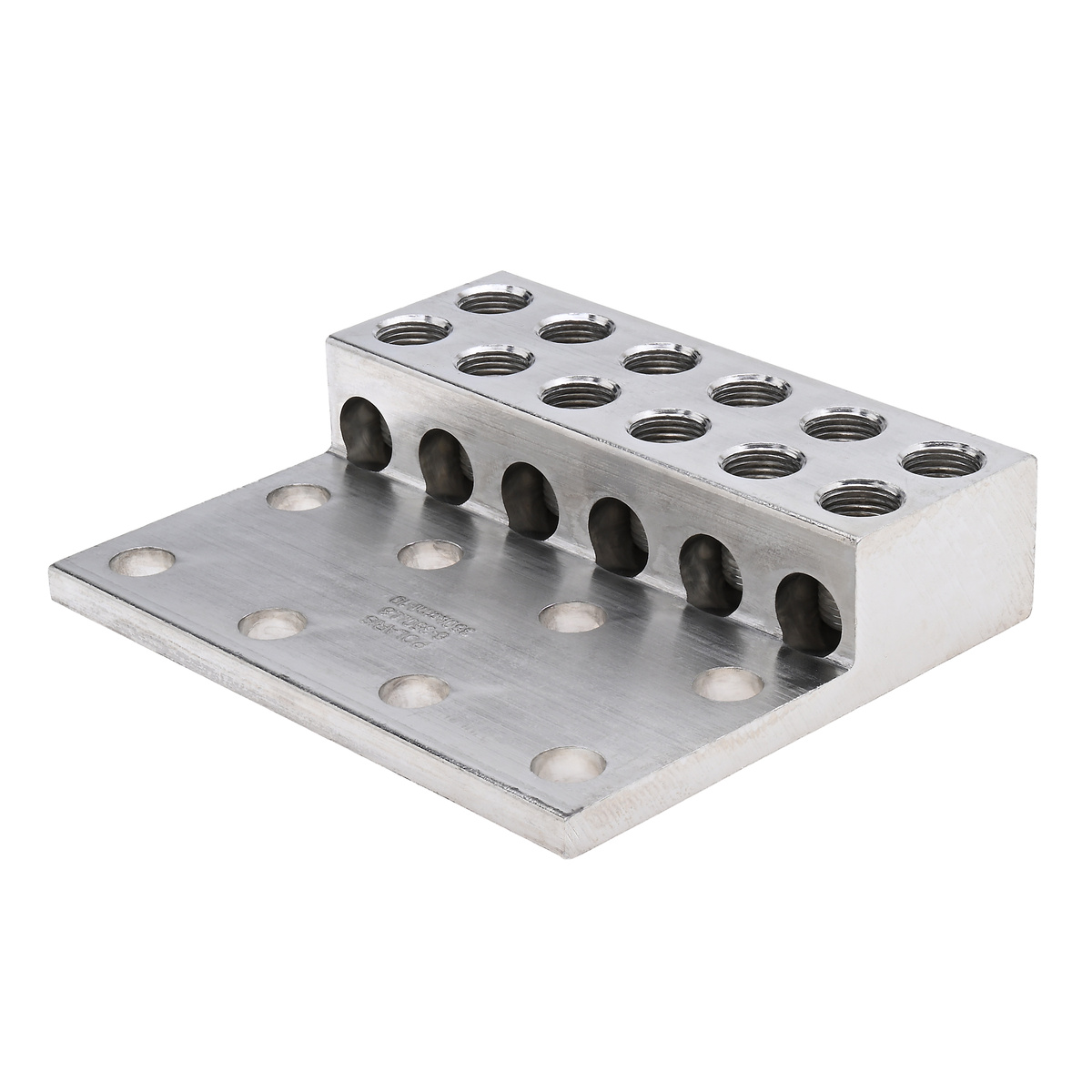

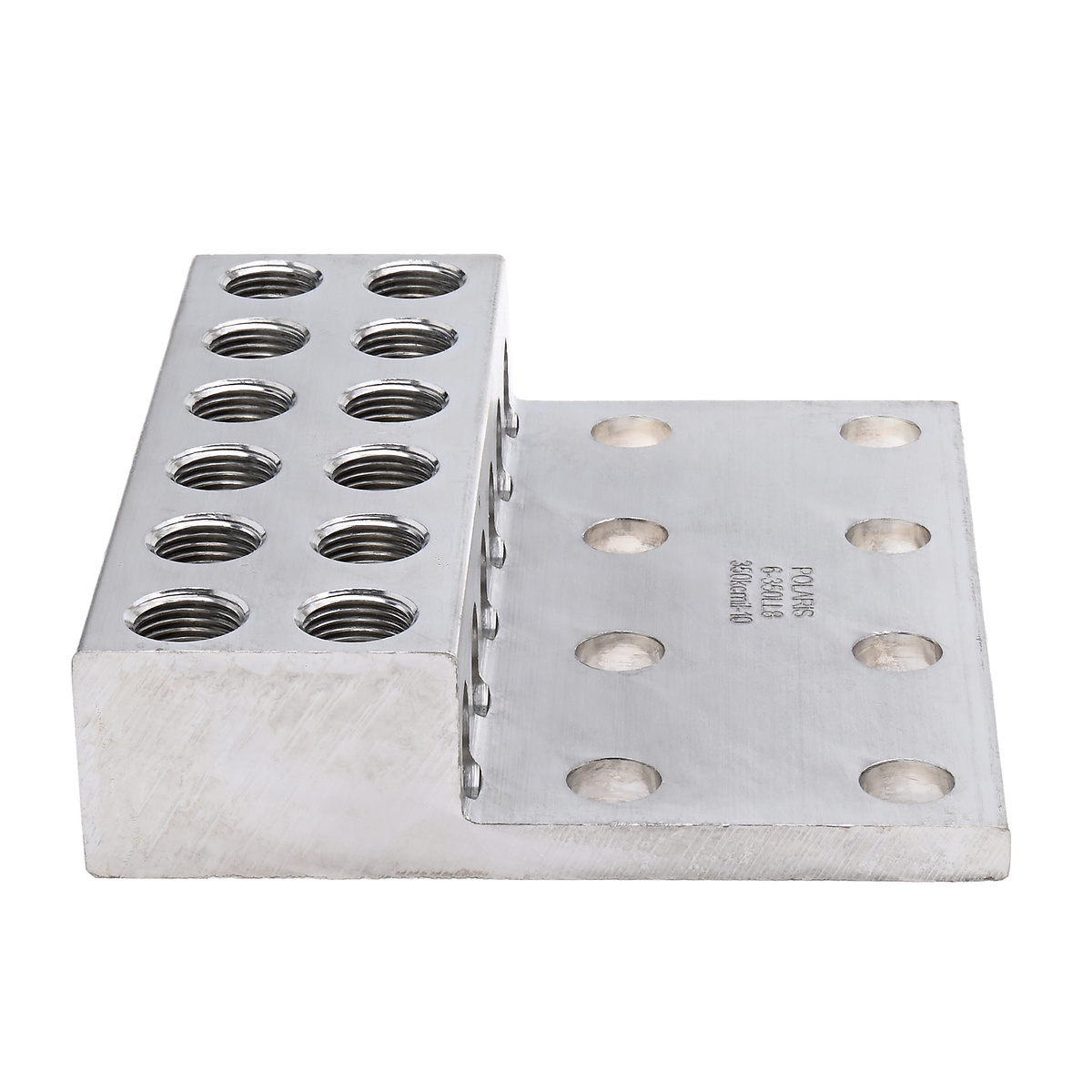

Dble Screw Lug (6) 350-6 AWG 8 Mtg Holes
#6-350LL8
Dble Scrw Lug 6 350-6 AWG 8 Mtg Holes
- Versatile and reusable set-screw connectors made from high strength 6061-T6 aluminum alloy for superior electrical and mechanical performance
- Two set-screws per wire hole ensure an exceptional connection
- Electro-tin plated for low contact resistance
- For use with copper or aluminum conductors
- Mounting hole spacing is NEMA 1 3/4" spacing
Product Information
| Voltage Rating | 600 V |
|---|---|
| Material | 6061T-6 Aluminum Alloy |
| Finish | Tin Plated |
| Pack Qty | 1 |
| GTIN | 662381027092 |
| UPC | 662381027092 |
| EAN | 0662381027092 |
| UNSPSC | 39121466 |
| Ansi | ANSI C119.4 Class A |
| Conductor Type | Copper, Aluminum |
| Tang Thickness | 0.38 |
| Tang Length | 3.25 |
| Hole Spacing | 1.75 |
| Wire Range | 350 MCM – 6 AWG |
| Assortment | Aluminum Mechanical Terminations |
| Application | Terminate |
