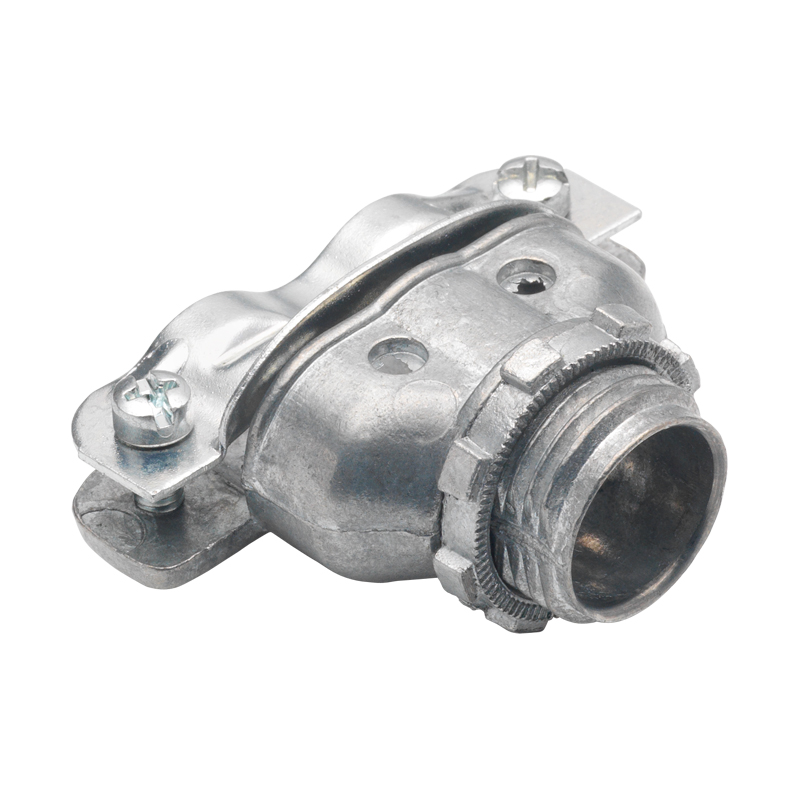

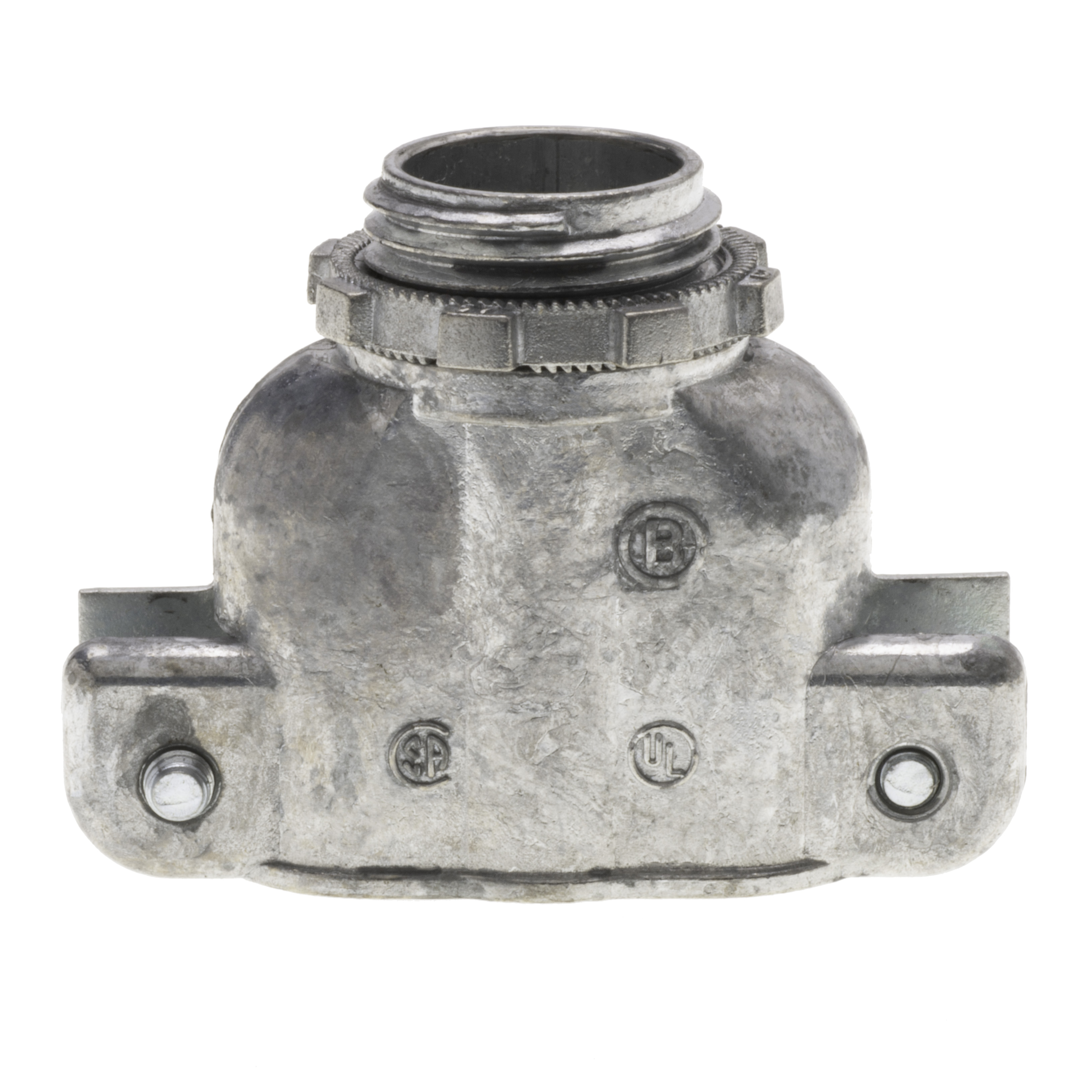

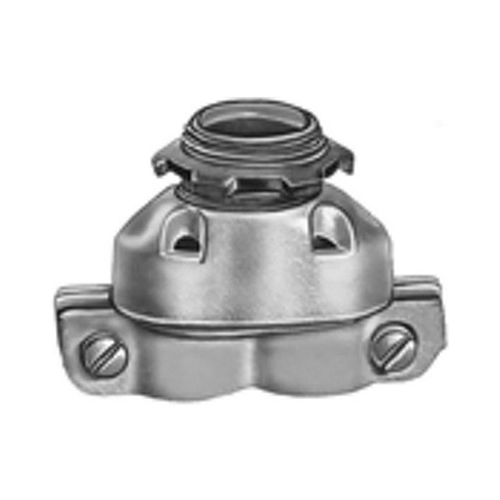

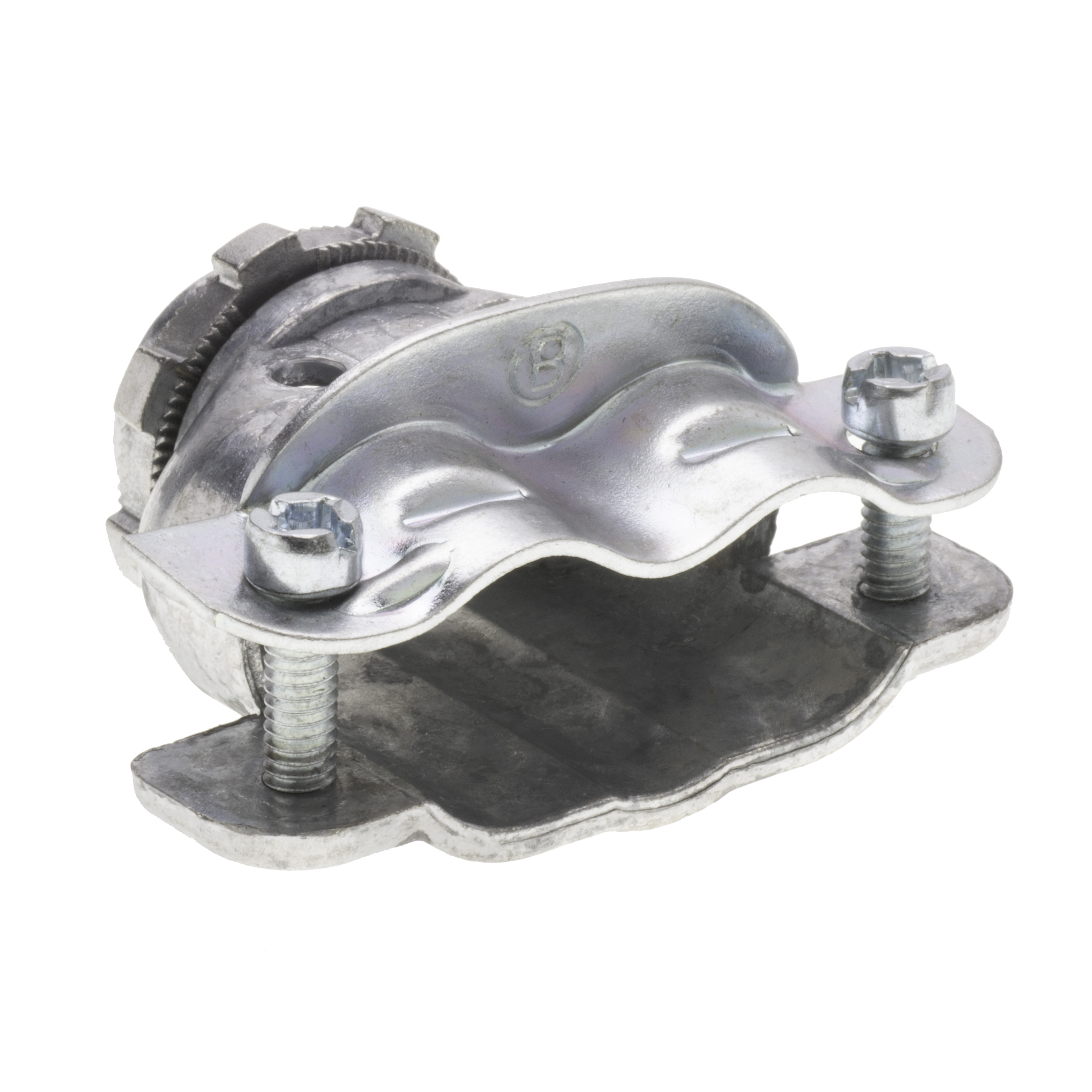

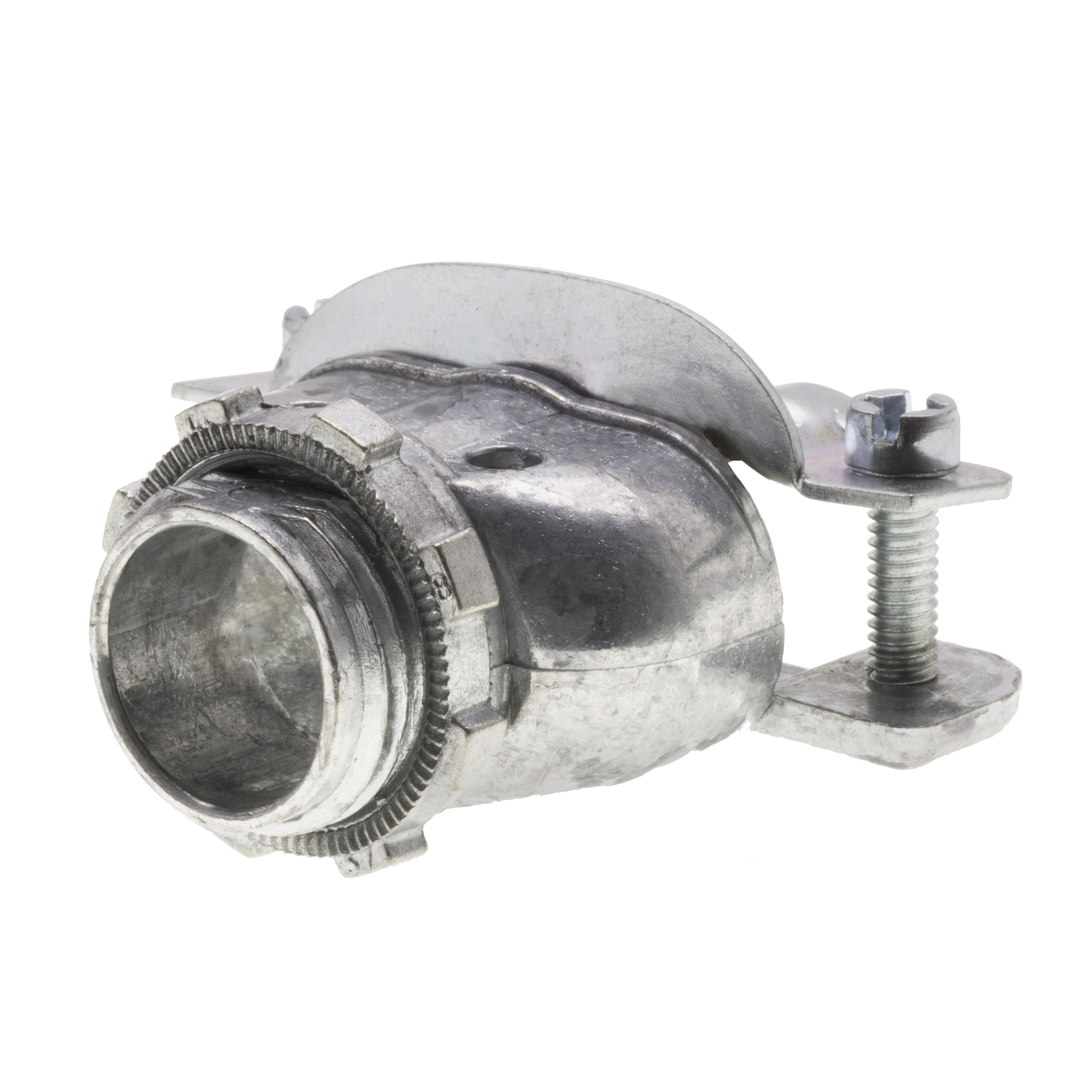

Duplex Connector 3/8″, Die Cast Zinc
#630-DC2
Use Bridgeport’s strap type duplex connectors to connect two individual lengths of flexible metal conduit or armored cable to an electrical box or enclosure using a single knockout.
- Duplex Style: Connects two lengths of flexible metal conduit or armored cable into a single knockout
- Zinc Body: Die cast zinc connectors have a precise fit and finish for a trouble-free performance and excellent corrosion resistance when used in harsh environments
- Two-Screw Strap: Use the 2-way Phillips/slotted head screws to tighten down strap and secure conduit or cable in place
- Sizing: For use with flex trade size 3/8" flexible metal conduit when installing into a 1/2" knockout
- Safety Compliance: Duplex strap connector is UL listed and RoHS compliant
Product Information
Material | Zinc Alloy |
---|---|
Finish | Ball Burnished Mirror Smooth |
Pack Qty | 200 |
GTIN | 00781747156303 |
UPC | 781747156303 |
EAN | 0781747156303 |
UNSPSC | 39121419 |
Ul Standard | UL-514B |
Resources
Documents
- BPT_630-DC2_ProDraw.pdf Download
