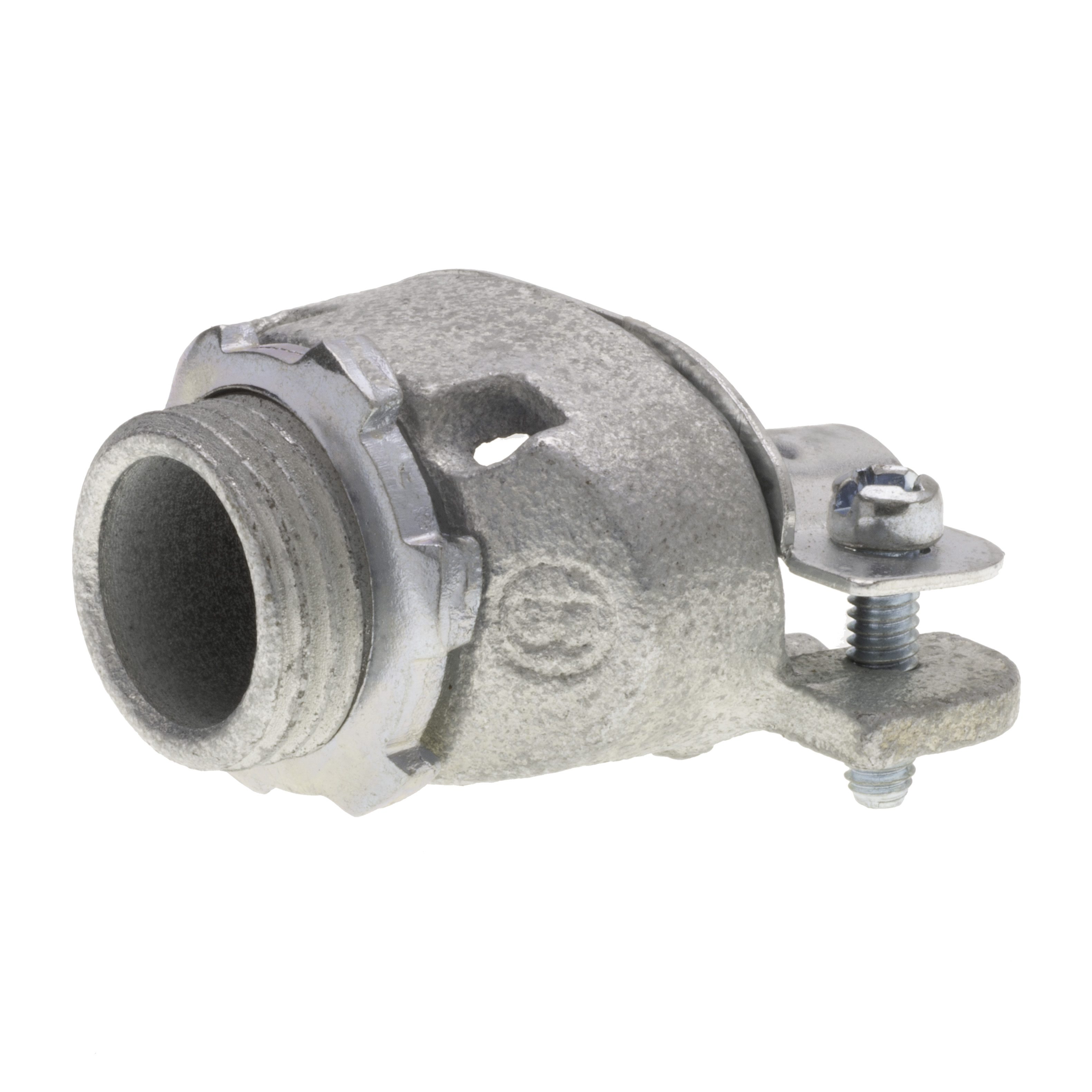

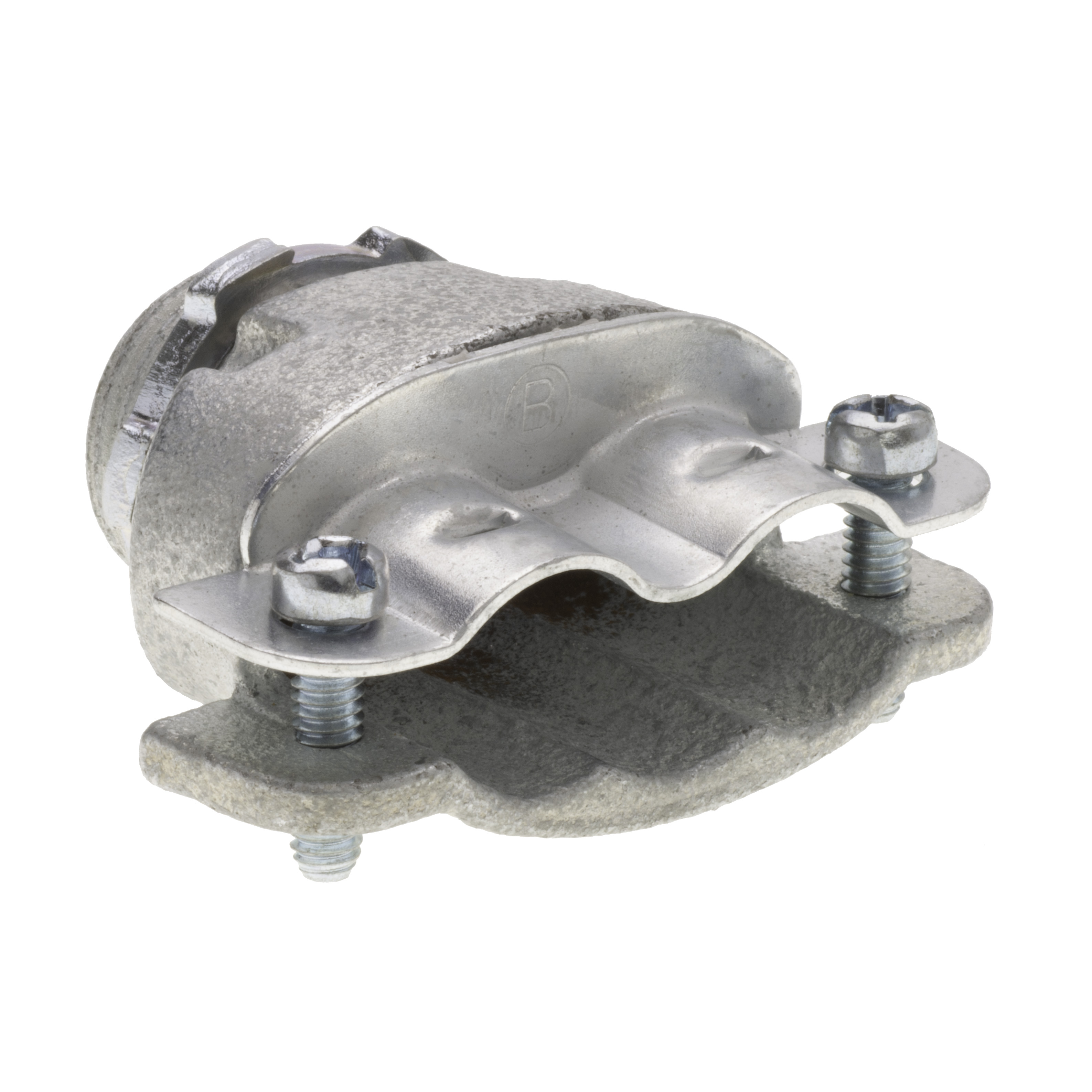

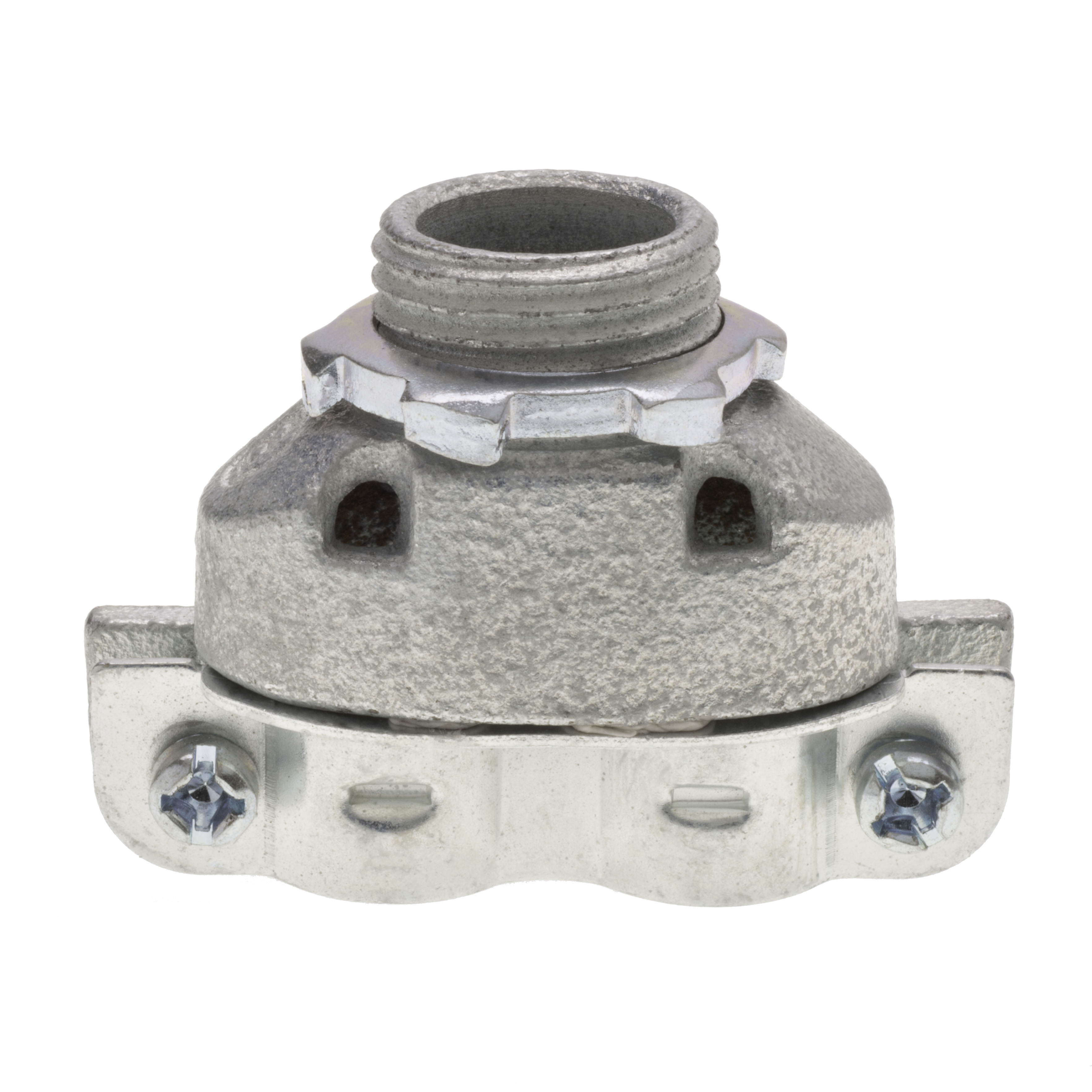

Duplex Connector 3/8″, Malleable Iron

#630

Use Bridgeport’s strap type duplex connectors to connect two individual lengths of flexible metal conduit or armored cable to an electrical box or enclosure using a single knockout.

  • Duplex Style: Connects two lengths of flexible metal conduit or armored cable into a single knockout
  • Malleable Iron: Heavy-duty malleable iron has the strength, rigidity, ability to flex without breaking, fracture toughness and impact resistance for use in tough environments
  • Two-Screw Strap: Use the 2-way Phillips/slotted head screws to tighten down strap and secure conduit or cable in place
  • Sizing: For use with flex trade size 3/8" flexible metal conduit or 14/2 to 10/3 (.430" to 610") armored cable when installing into a 1/2" knockout
  • Safety Compliance: Duplex strap connector is UL listed and RoHS compliant

Product Information

Material Malleable Iron
Finish Zinc Plated
Pack Qty 200
GTIN 00781747006301
UPC 781747006301
EAN 0781747006301
UNSPSC 39121419
Ul Standard UL-514B
