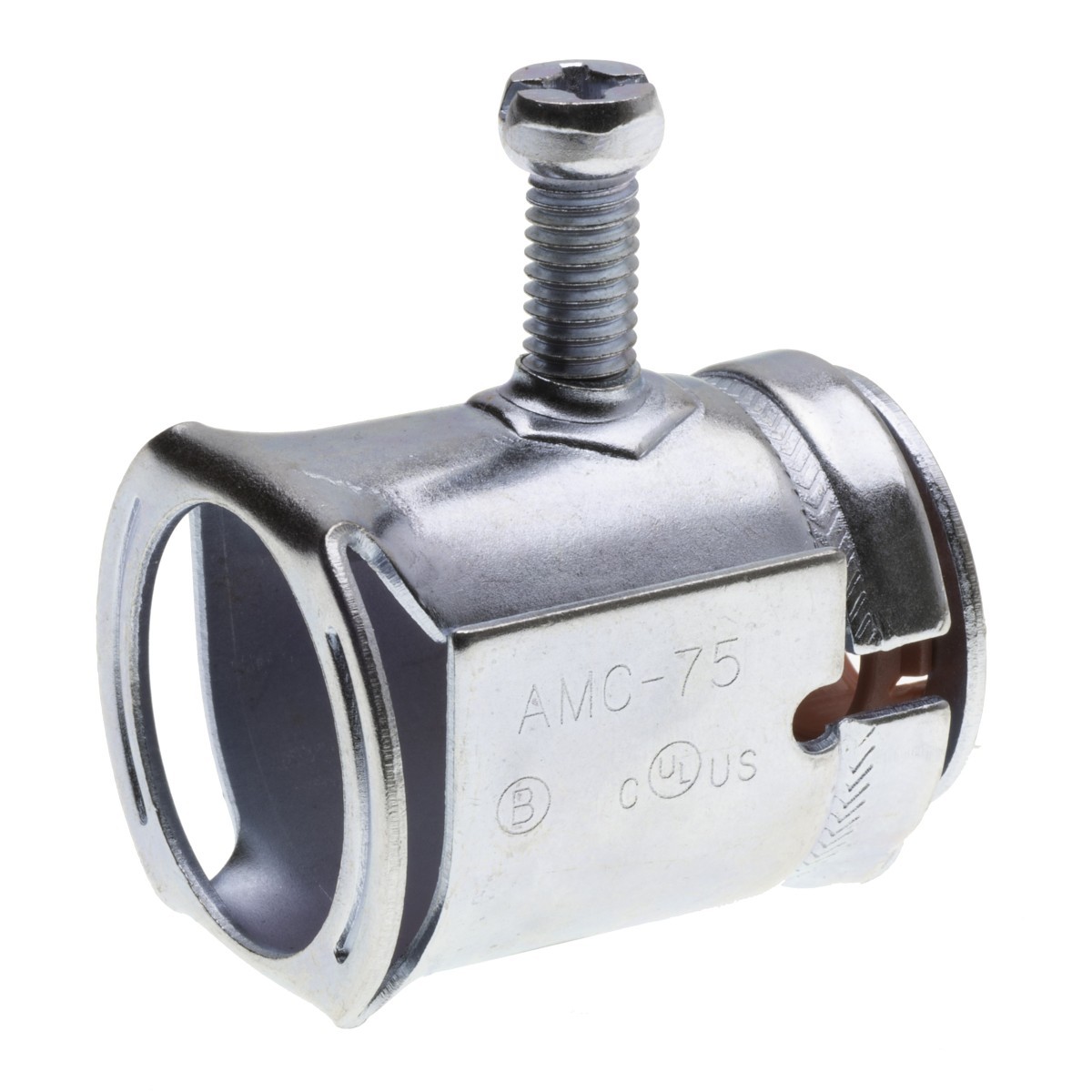

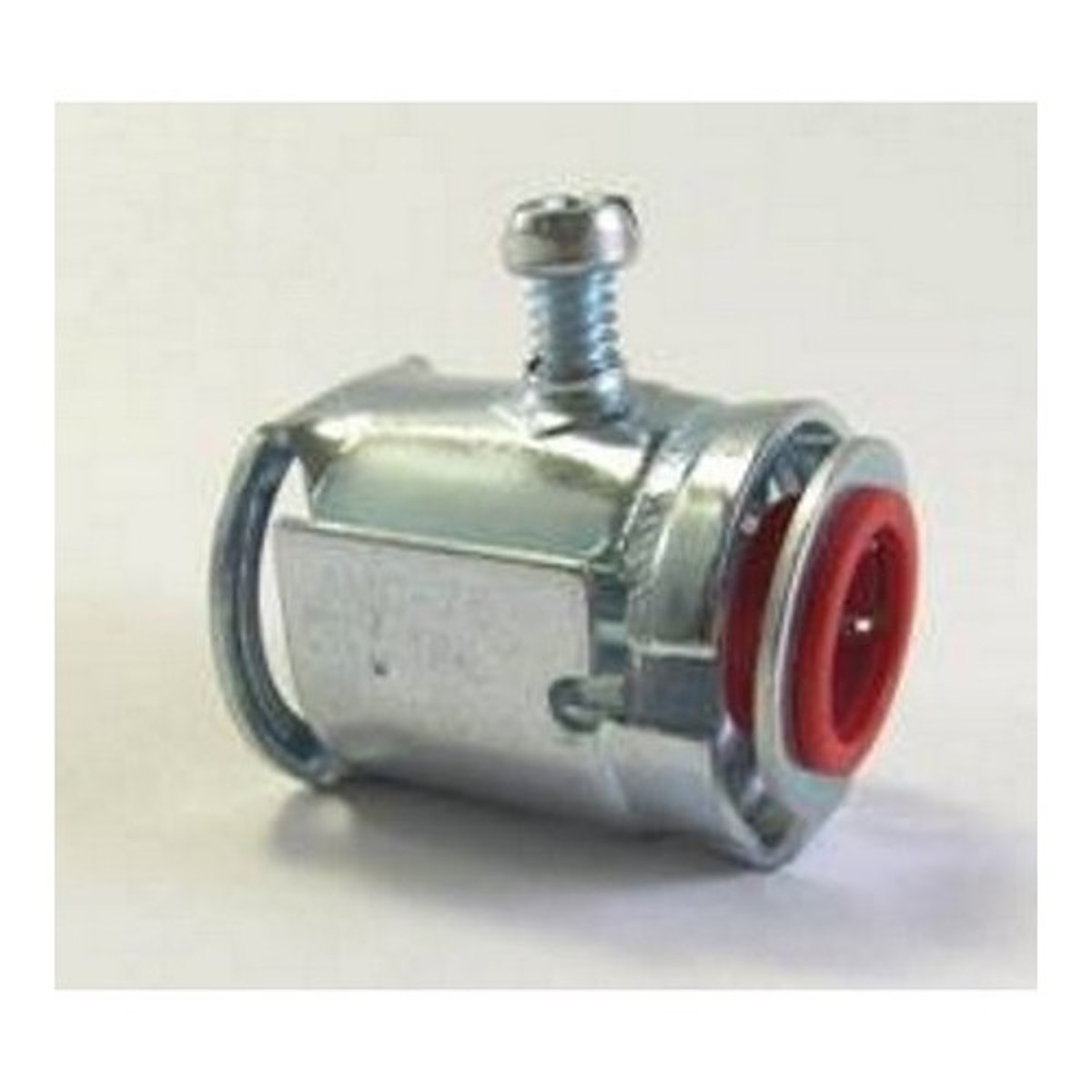

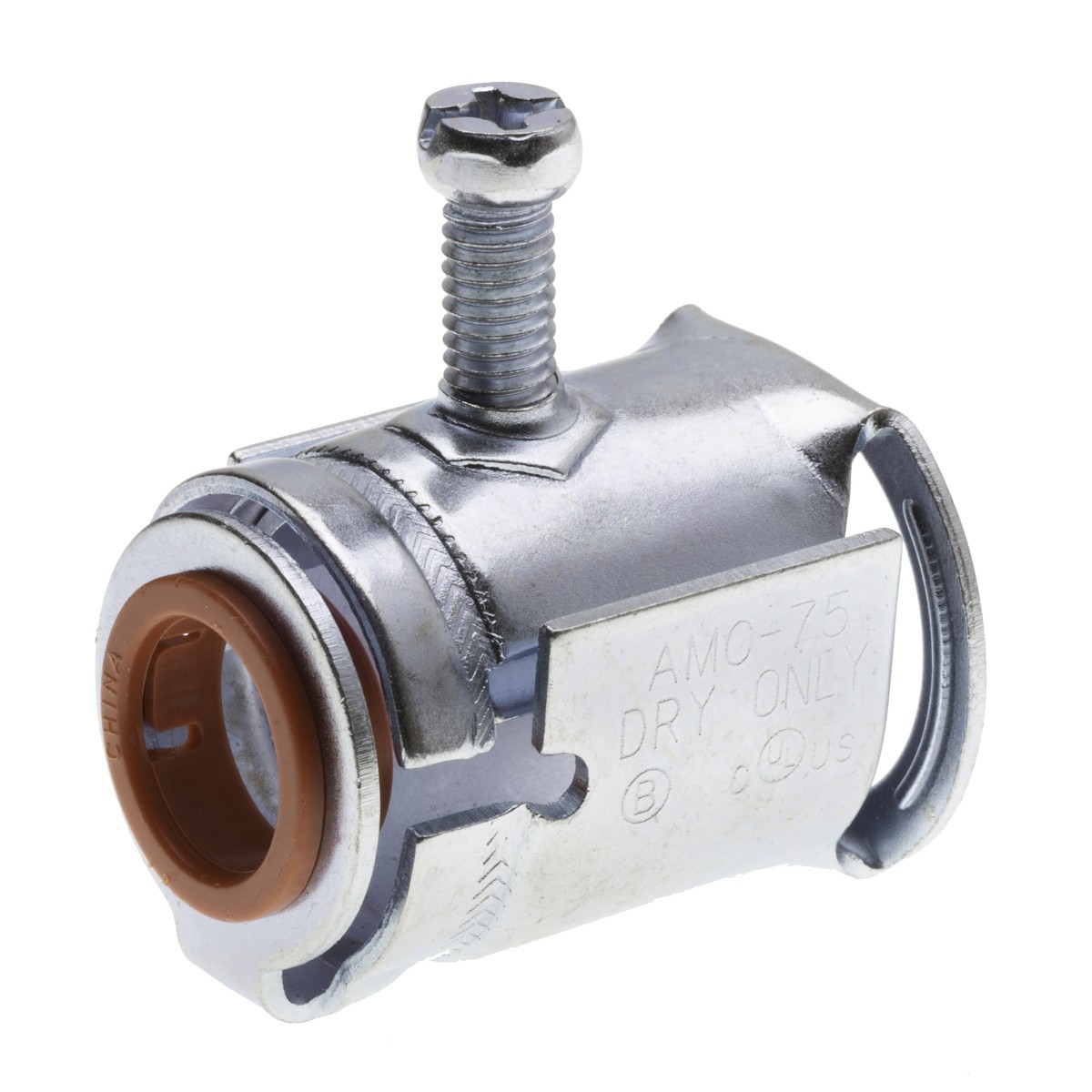

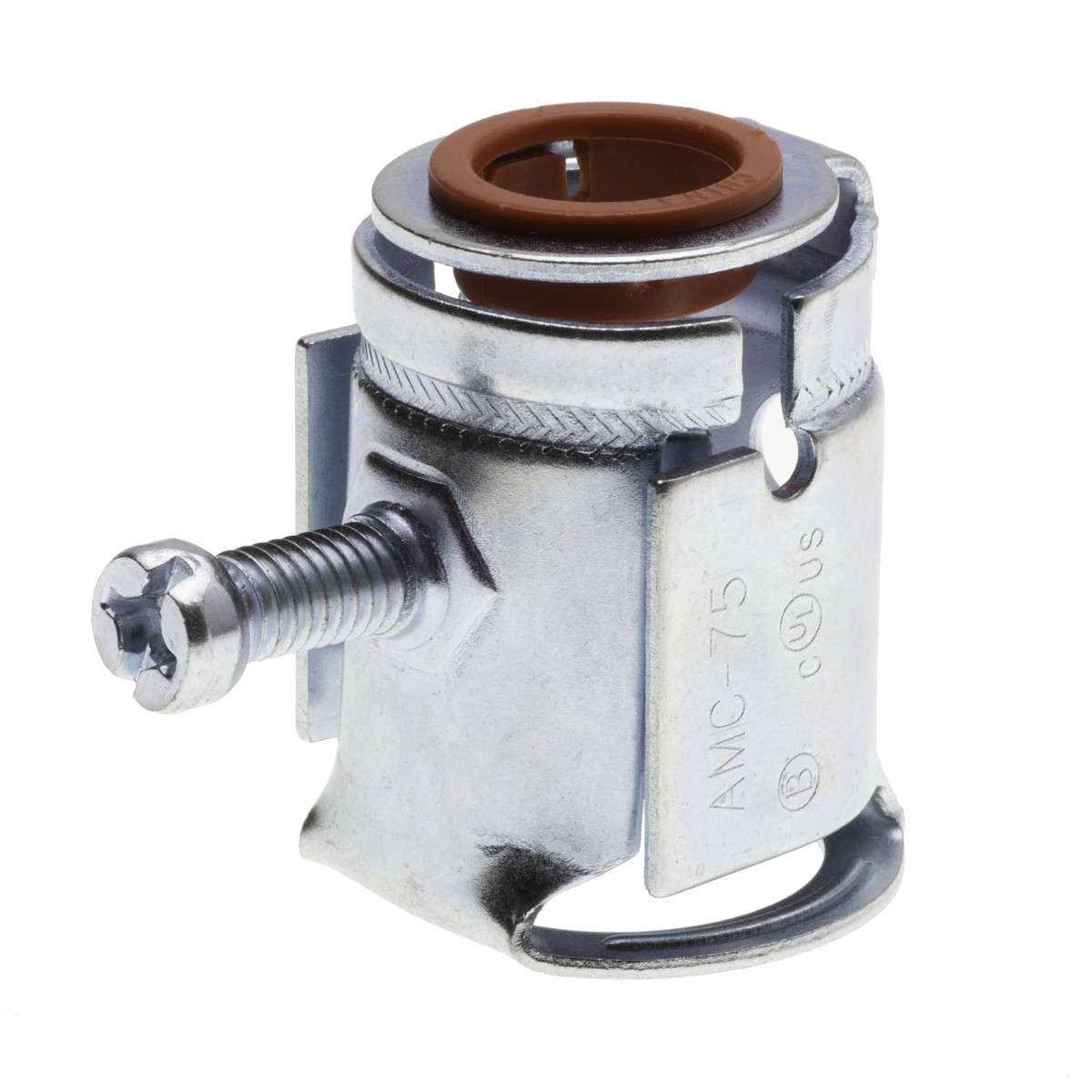

E-Z Lock® AC/MC Connector 3/4″, Steel, .560″ Insulated Throat
#AMC-75
Use Bridgeport AC/MC connectors to connect AC/MC cable or flexible metal conduit to an electrical box or enclosure. A snap-in front end and single set screw design makes connecting to the knockout quick and easy. Also listed for MC-PCS cable.
- Strong and Durable: Cable connector is made from heavy-duty steel and is zinc plated for additional corrosion resistance in harsh environments
- Snap-In Front: Making secure connections is easier than ever with the snap-in design of E-Z Lock®, built to instantly snap the front end of the connector into the knockout
- Insulated Throat: A .560" insulated throat offers superior protection against cable abrasion and is rated up to 105℃
- Professional Performance: All Bridgeport fittings are NRTL listed and meet the stringent bonding and grounding requirements of UL-514B
- Buy American: When you buy Bridgeport, you buy from an American manufacturing company
Product Information
| Material | Steel |
|---|---|
| Finish | Zinc Coated |
| Pack Qty | 100 |
| GTIN | 00781747205711 |
| UPC | 781747205711 |
| EAN | 0781747205711 |
| UNSPSC | 39121419 |
| Origin Country | CN |
| Ul Standard | UL-514B |
| Ul File No | E20534 |
Resources
Video resources
- BPT_EZLock30s-BOTH_AMC_Video.mp4 View video
- BPT_EZLockBrandOverview-BOTH_AMC_Video.mp4 View video
- BPT_EZLock15s-BOTH_AMC_Video.mp4 View video
- BPT_EZLockInstall-BOTH_AMC_Video.mp4 View video
