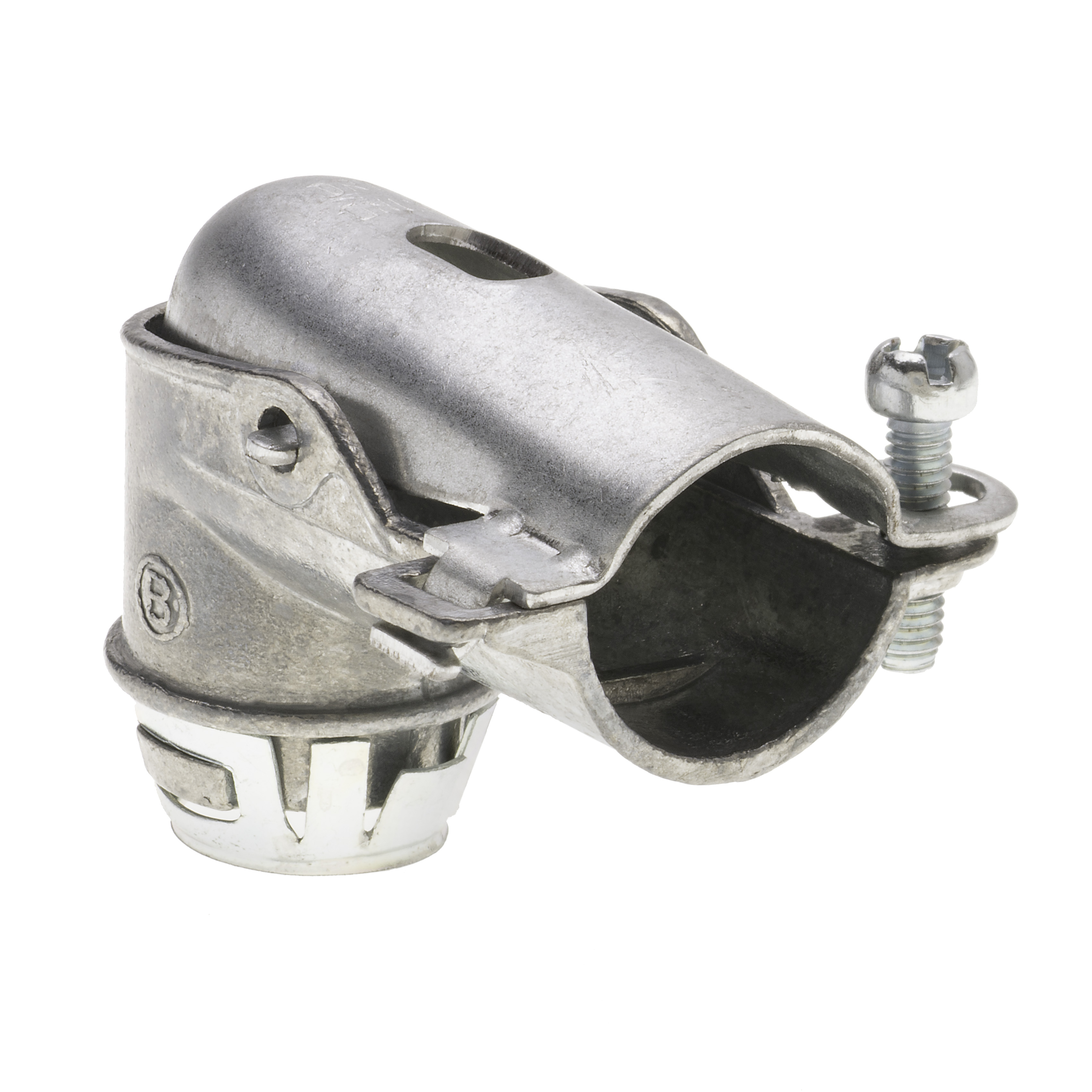

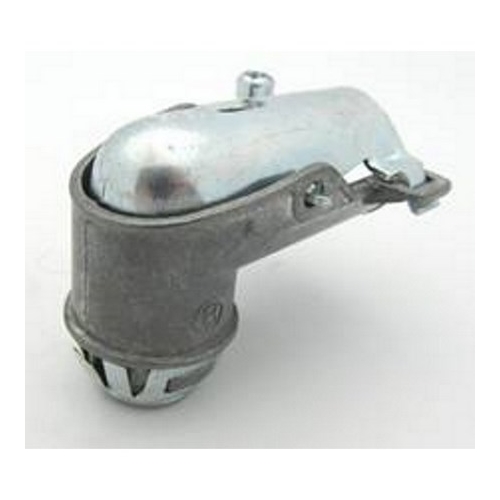

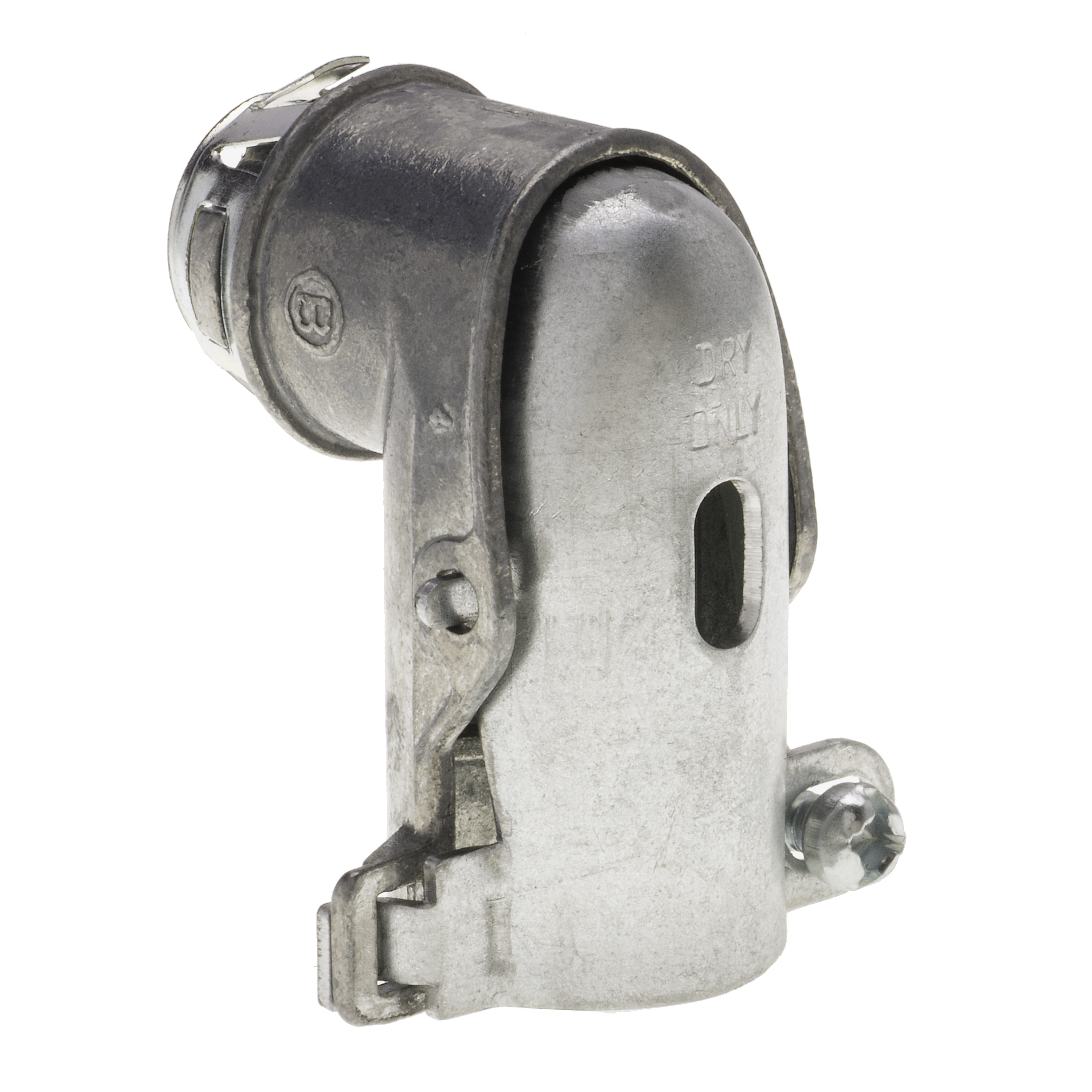

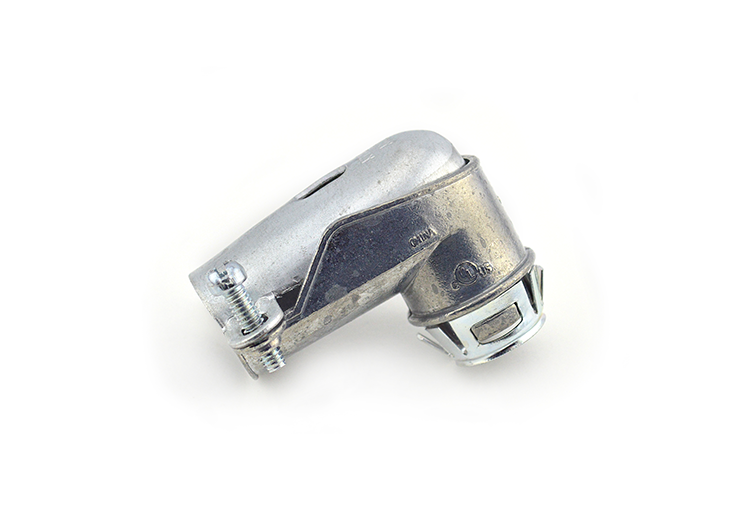

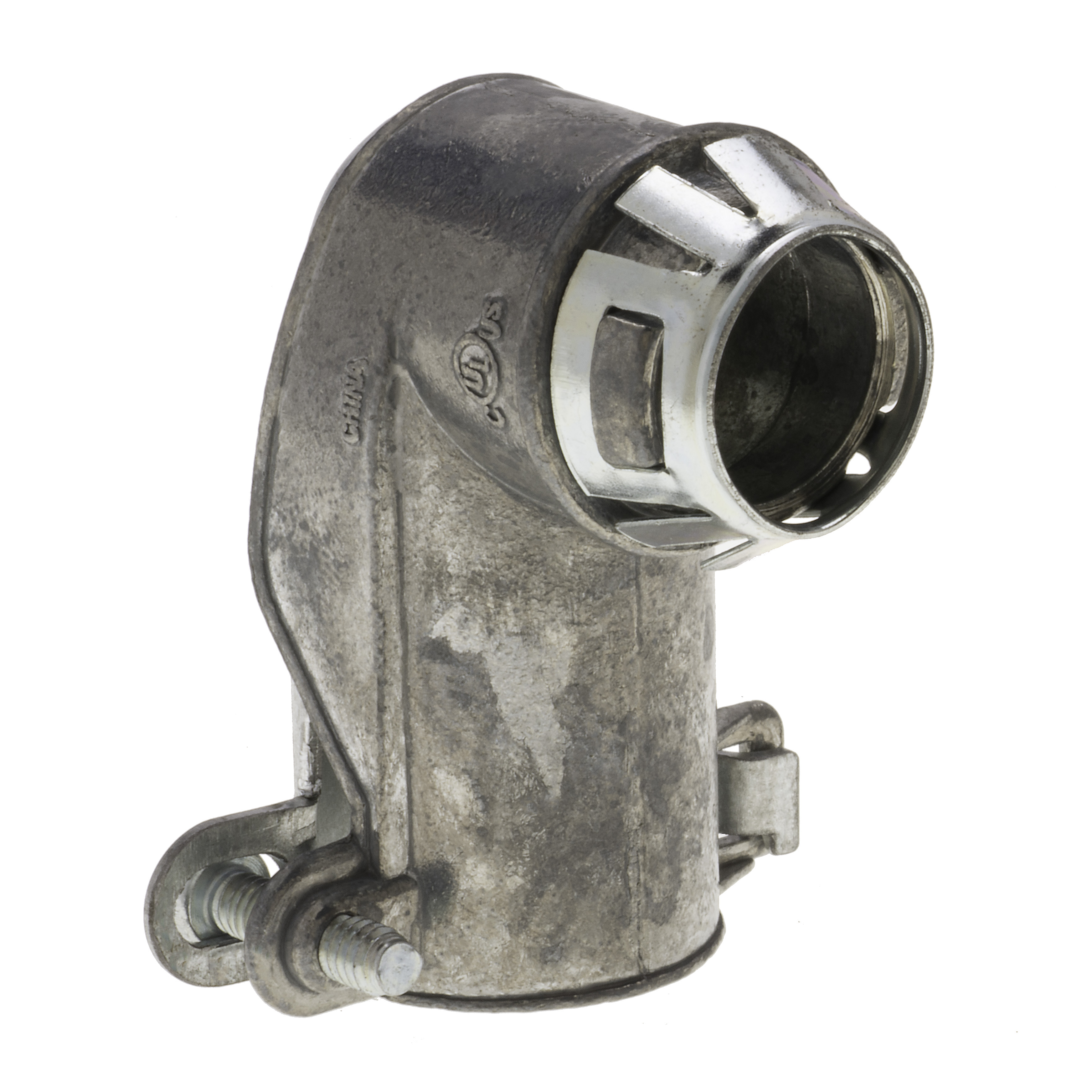

E-Z Lock® 90-Degree Snap-In Connector with Hinged Strap 1/2″
Flexible Metal Snap-In Connectors
#851SP
Use Bridgeport 90-degree connectors to join flexible metal conduit to an electrical box or enclosure at a 90-degree angle. This connector features a steel cover and snap-in design for attaching to the knockout.
- Sizing: For connecting flex trade size 1/2" flexible metal conduit to an electrical box or enclosure through a 1/2" knockout
- Snap-In Front: Making secure connections is easier than ever with the snap-in design of E-Z Lock connectors
- Hinged Strap: Single screw, hinged-strap design makes securing conduit to connector quick and easy
- Zinc Body: Die cast zinc connectors have a precise fit and excellent corrosion resistance when used in harsh environments
- Safety Compliance: Snap-in connectors are UL listed and RoHS compliant
Product Information
Pack Qty | 100 |
---|---|
GTIN | 00781747708519 |
UPC | 781747708519 |
EAN | 0781747708519 |
UNSPSC | 39121438 |
Ul Standard | UL-514B |
Resources
Documents
- BPT_851SP_ProDraw.pdf Download
Video resources
- BPT_EZLock30s-BOTH_AMC_Video.mp4 View video
- BPT_EZLockBrandOverview-BOTH_AMC_Video.mp4 View video
- BPT_EZLock15s-BOTH_AMC_Video.mp4 View video
- BPT_EZLockInstall-BOTH_AMC_Video.mp4 View video
