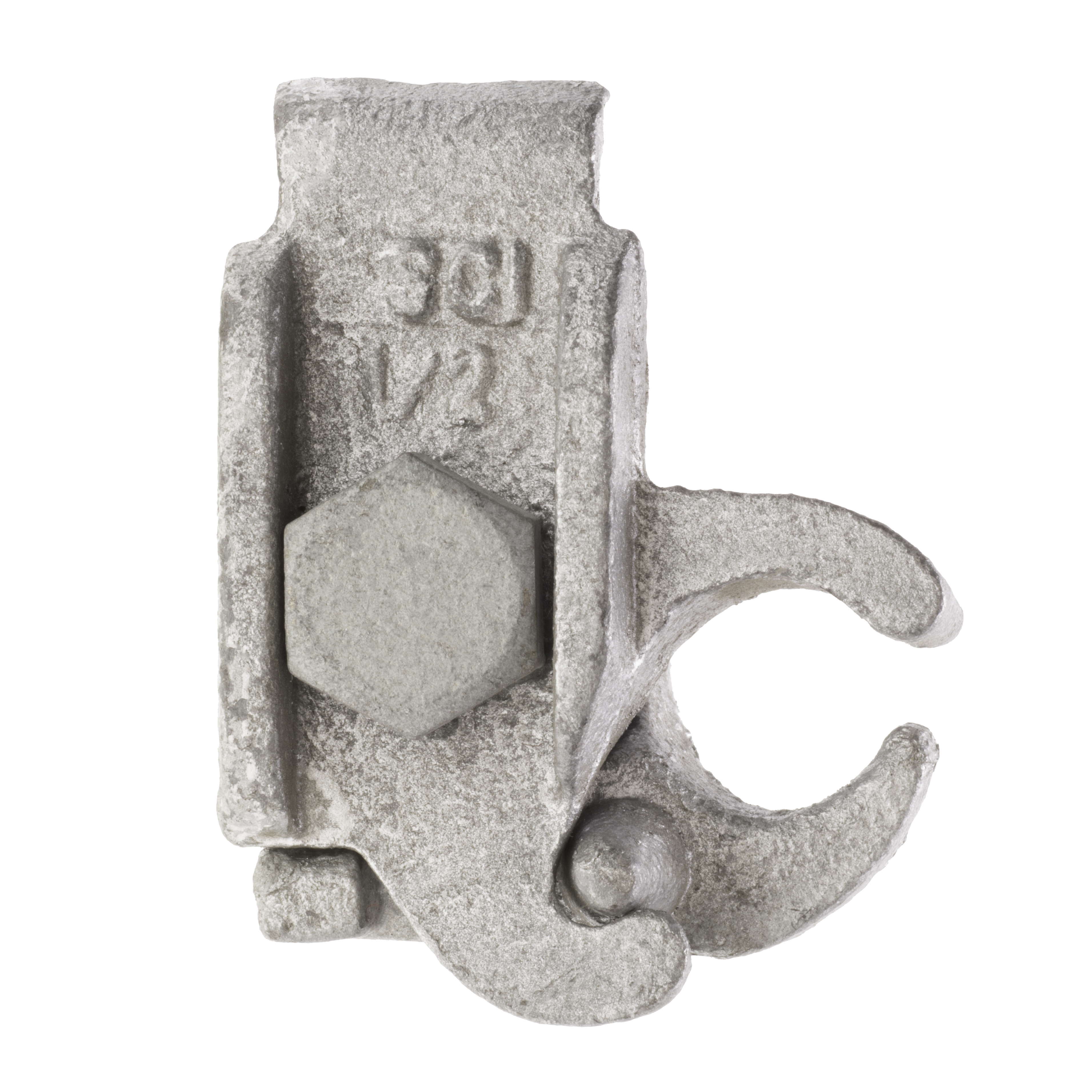

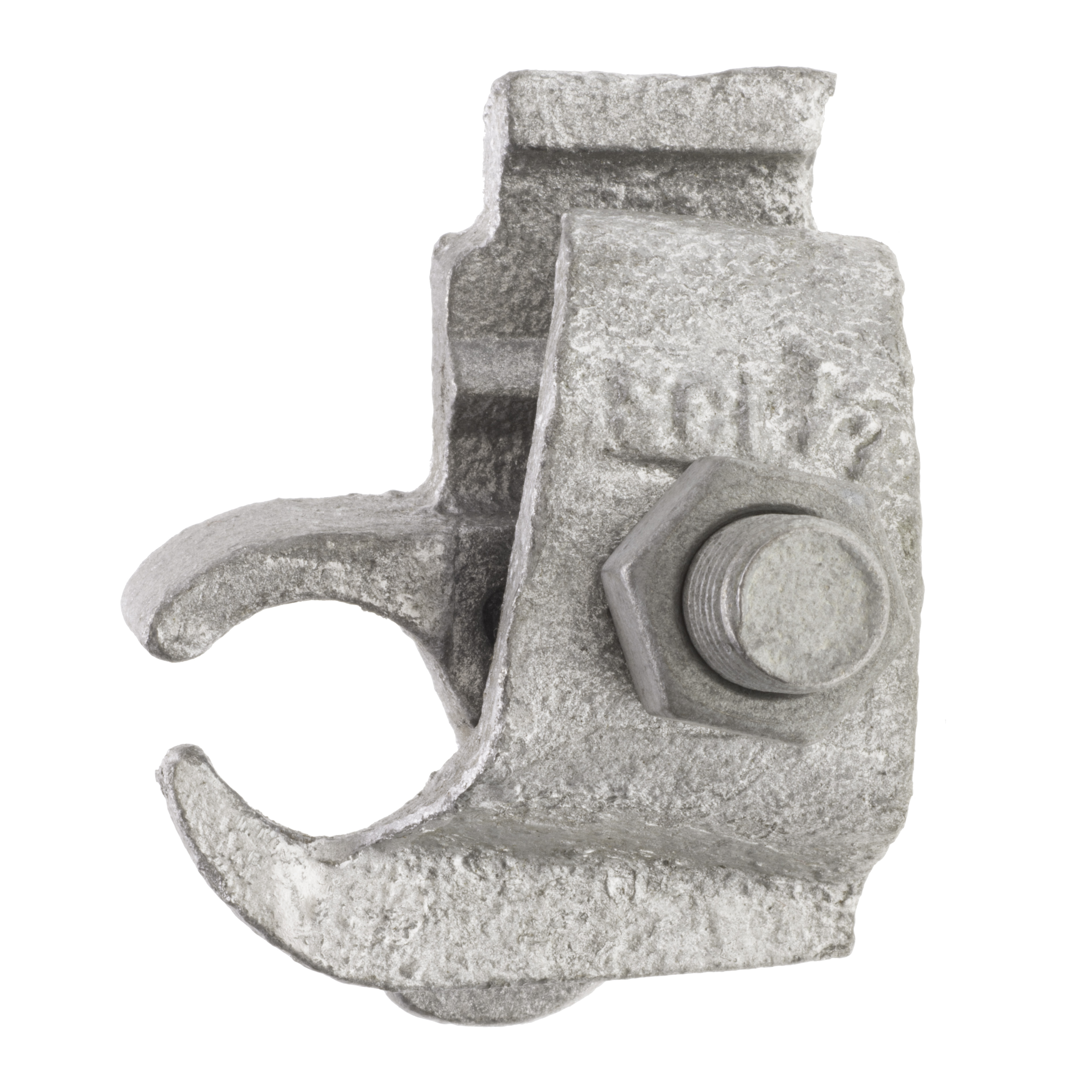

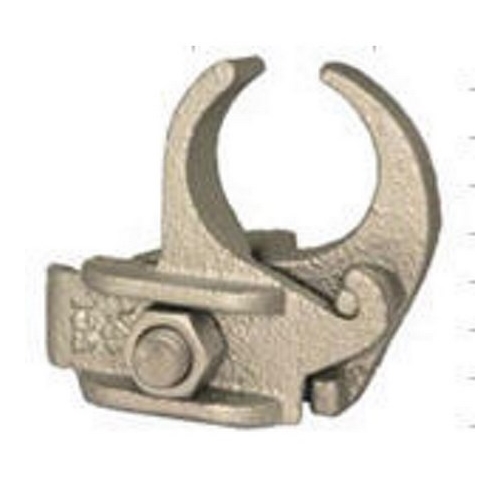

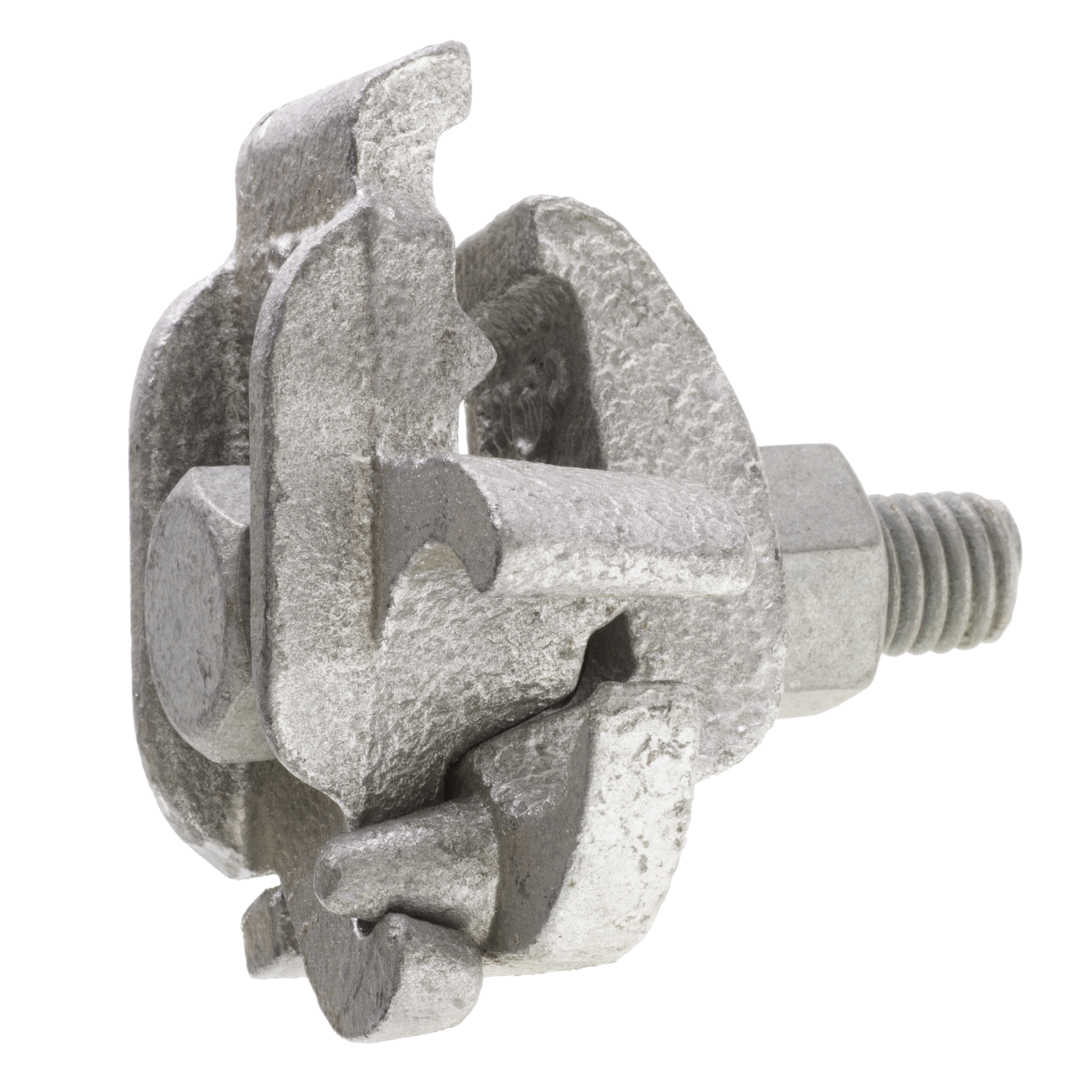

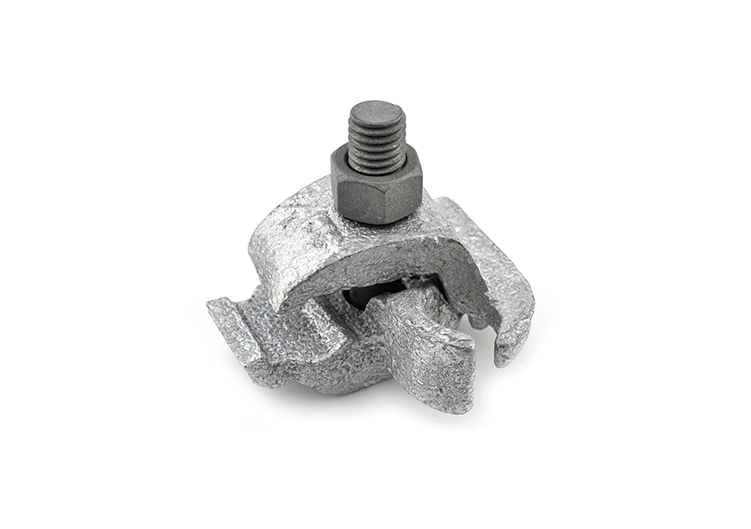

Edge Type Conduit Clamp 1/2″, Malleable Iron
#971
Bridgeport Edge Type Conduit Clamps are used for running rigid, intermediate metal conduit (IMC) and electrical metallic tubing (EMT) across or perpendicular to beam, channel and angle supports.
- Flexible Installation: Edge Type Conduit Clamps can secure rigid conduit, IMC and EMT across or perpendicular to beam, channel or angle supports
- Sizing: Edge Type Conduit Clamp for 1/2" rigid conduit, IMC and EMT
- Malleable Iron: The heaviest-duty solution. Due to its strength, rigidity and ability to flex without breaking, malleable iron offers good fracture toughness and high impact resistance
- Compliance Standards: Bridgeport straps are RoHS compliant, REACH compliant and LEED compliant
Product Information
Material | Malleable Iron Clamps, Steel Bolt and Nut |
---|---|
Pack Qty | 50 |
GTIN | 00781747097101 |
UPC | 781747097101 |
EAN | 0781747097101 |
UNSPSC | 31162906 |
Origin Country | CN |
Ul Standard | UL-2239 |
Ul File No | E161206 |
Application | Used to secure Rigid/IMC or EMT conduit across or perpendicular to beam, channel and angle supports. |
Resources
Documents
- BPT_971_ProDraw.pdf Download
