EZ-RJ45 Pass-Through RJ45 Connectors, CAT5E/6 Shielded with External Ground — 50pcs in Jar
Pass-Through (EZ) RJ45 Connectors
#202022J
EZ-RJ45 Pass-Through RJ45 Connectors, CAT5E/6 Shielded with External Ground — 50pcs in Jar

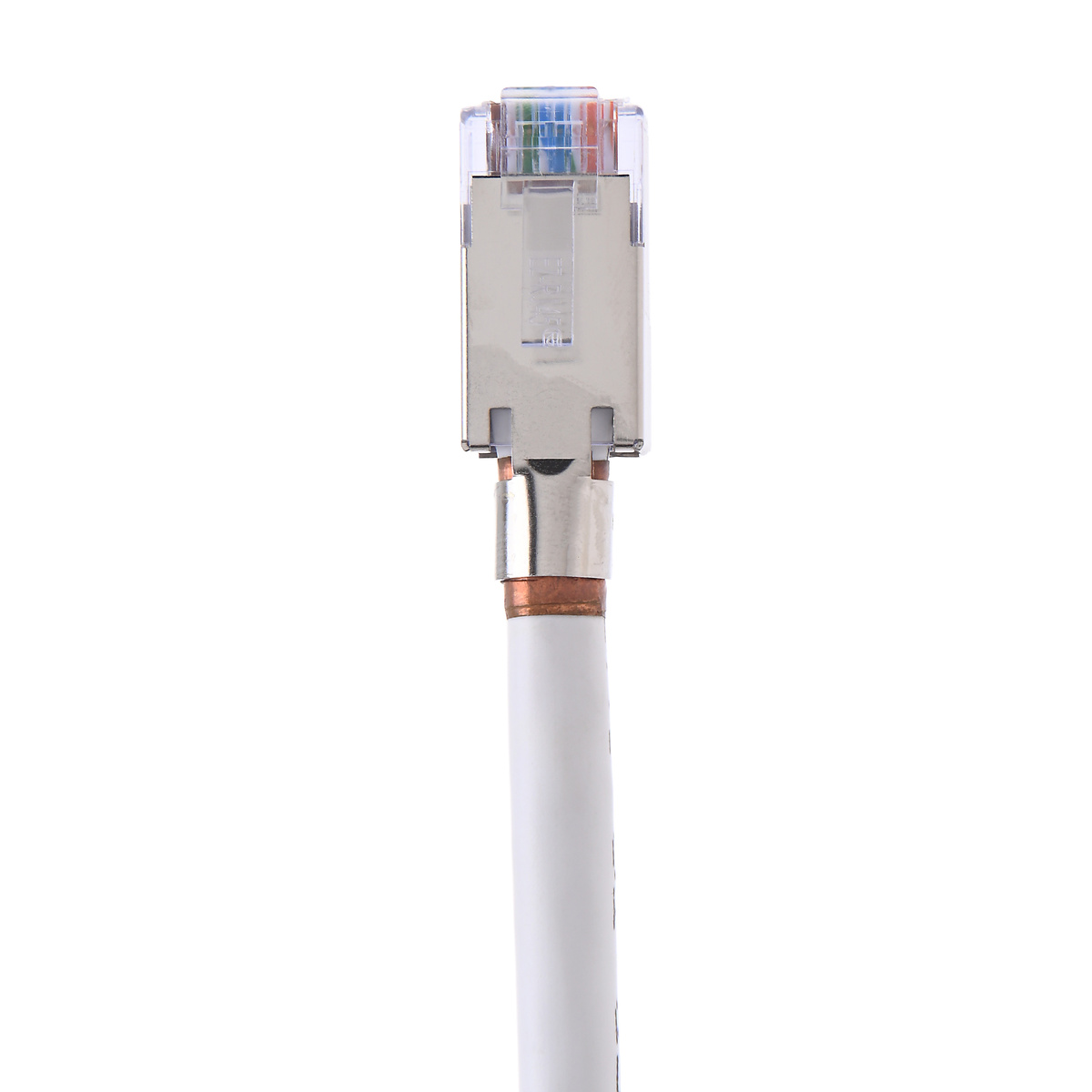

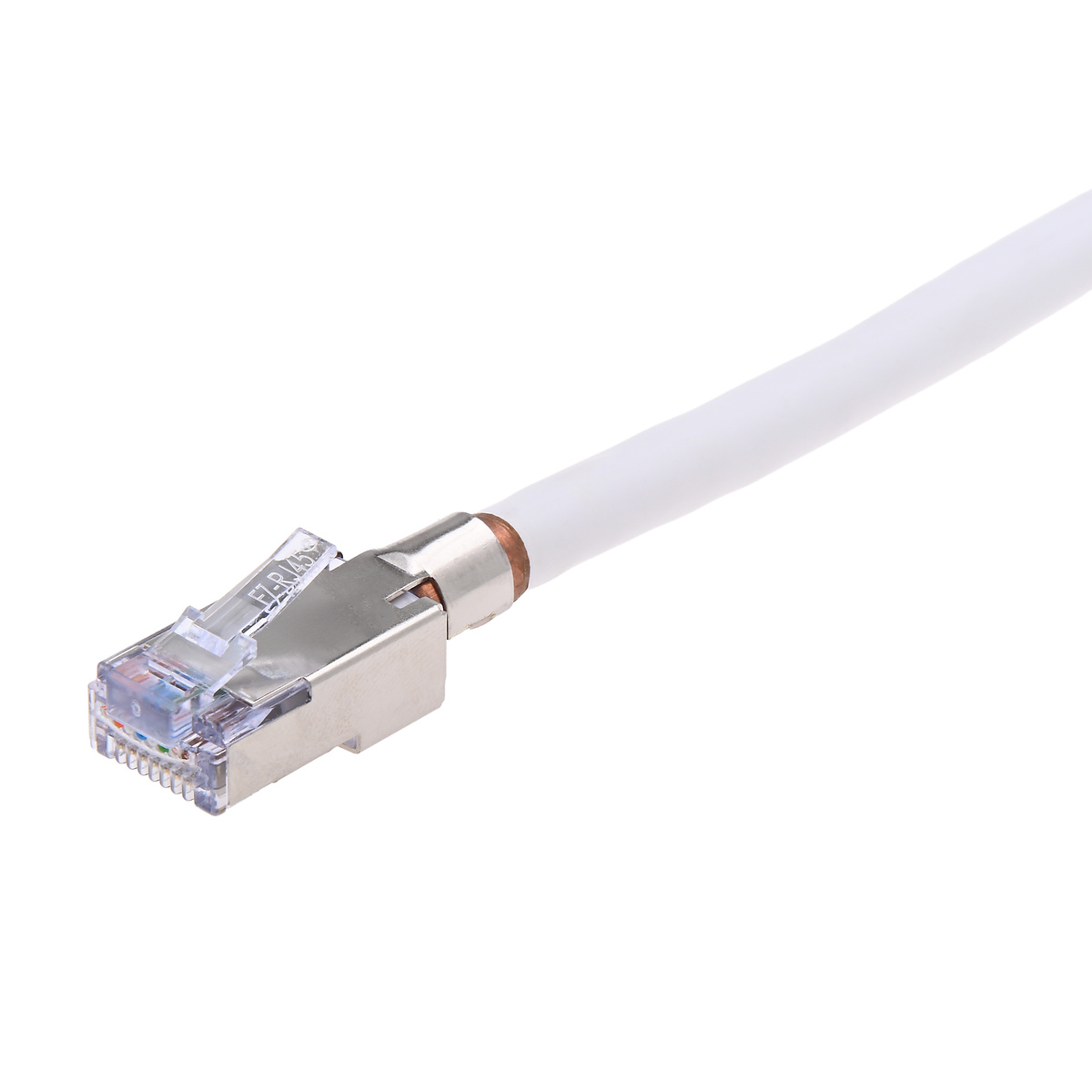

- EZ-RJ45 pass-through RJ45 connectors

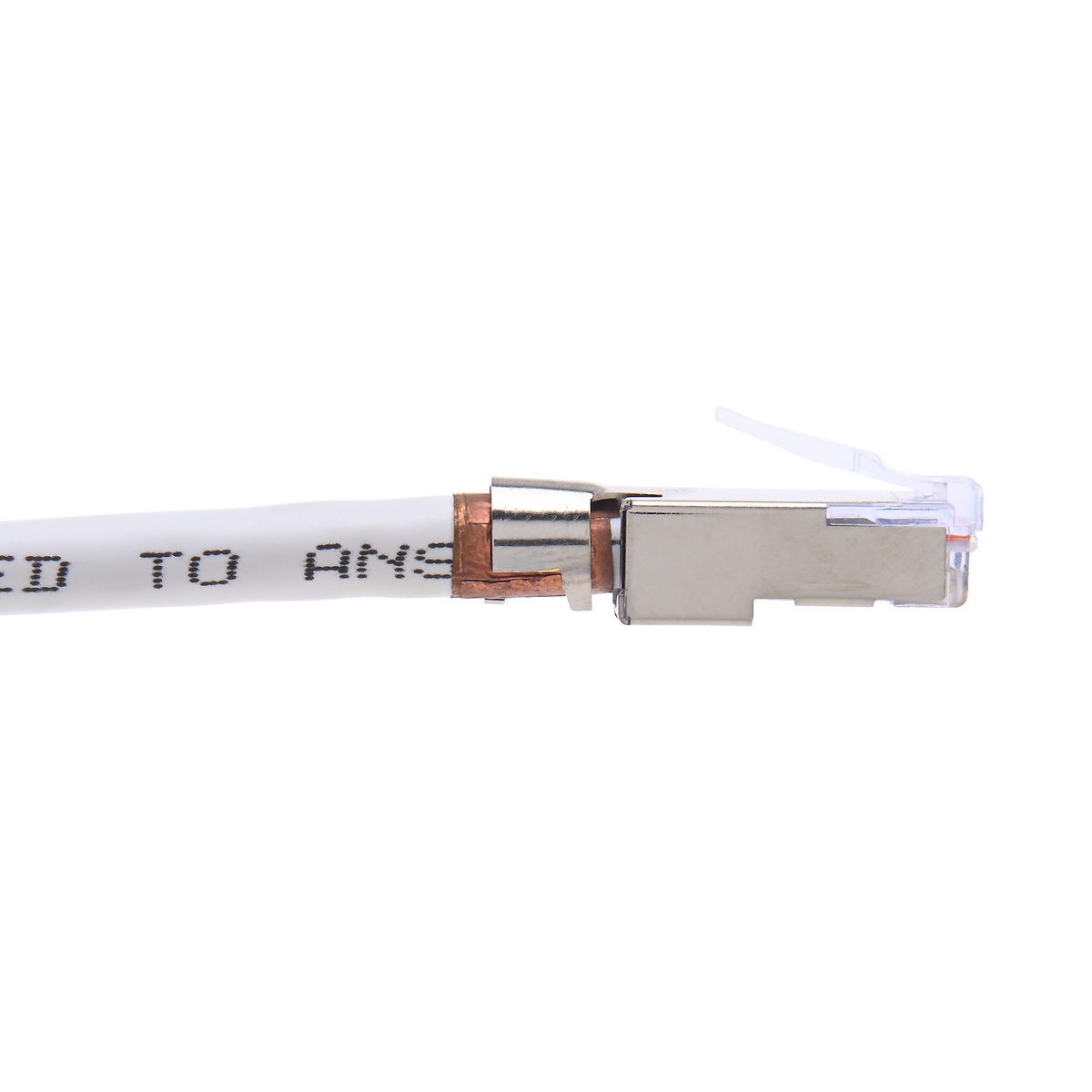

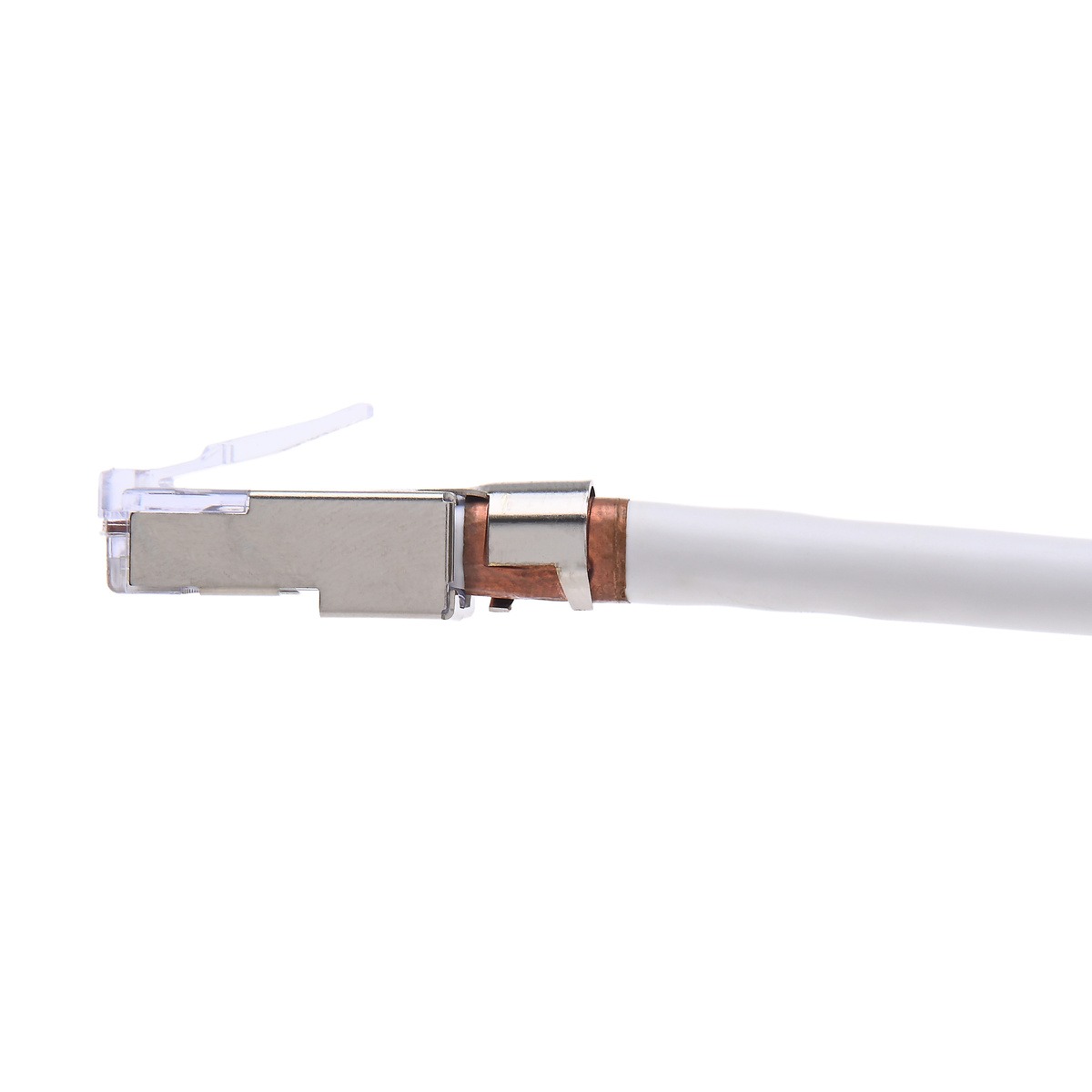

- Shielded with external ground
- Package includes 50 pieces

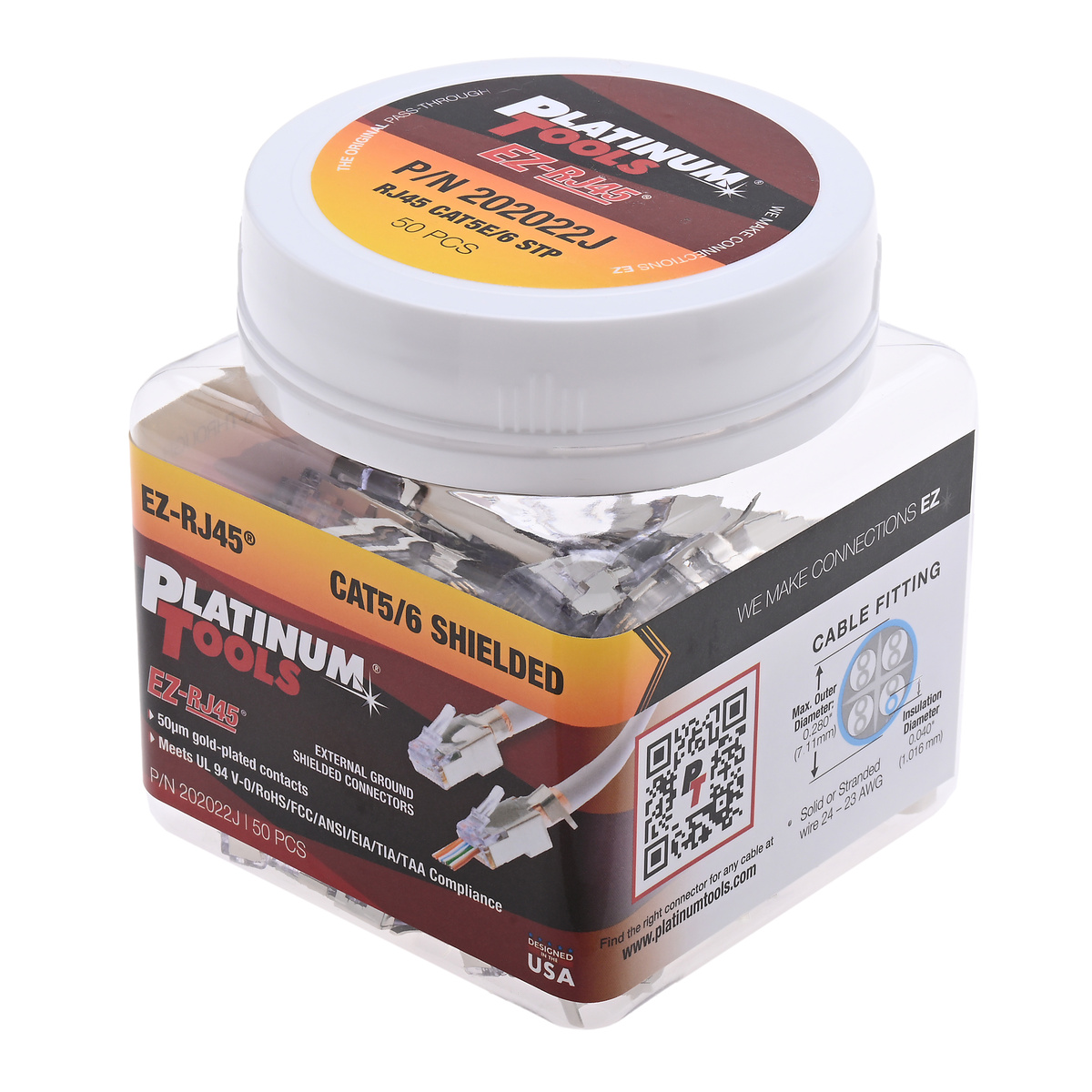

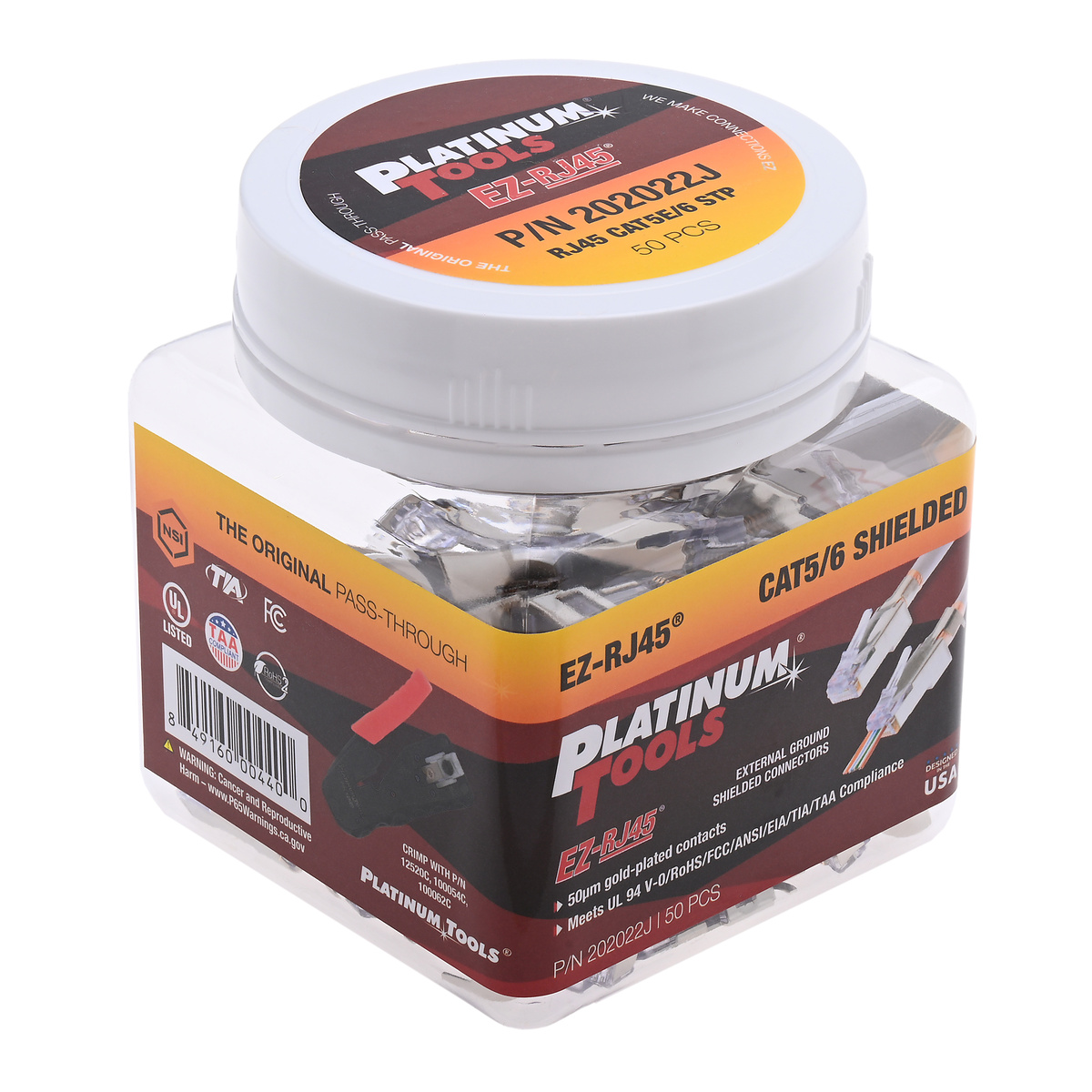

- Jar with screw-lid packaging
- 0.280" (7.11mm) max cable outer diameter
- 0.040” (1.016mm) max insulation diameter (conductors)
- Compatible with solid or stranded 24 - 23AWG twisted pair cable
- 50 micron gold plated contacts
- Substantially improve noise immunity at all frequencies, especially above 30 MHz when cable balance starts to significantly degrade
- Fully shielded products provide reduced pair-to-pair crosstalk, alien crosstalk, and considerably improved immunity to noise at all frequencies
- Maintaining the twists to the point of termination significantly decreases crosstalk and markedly increases performance

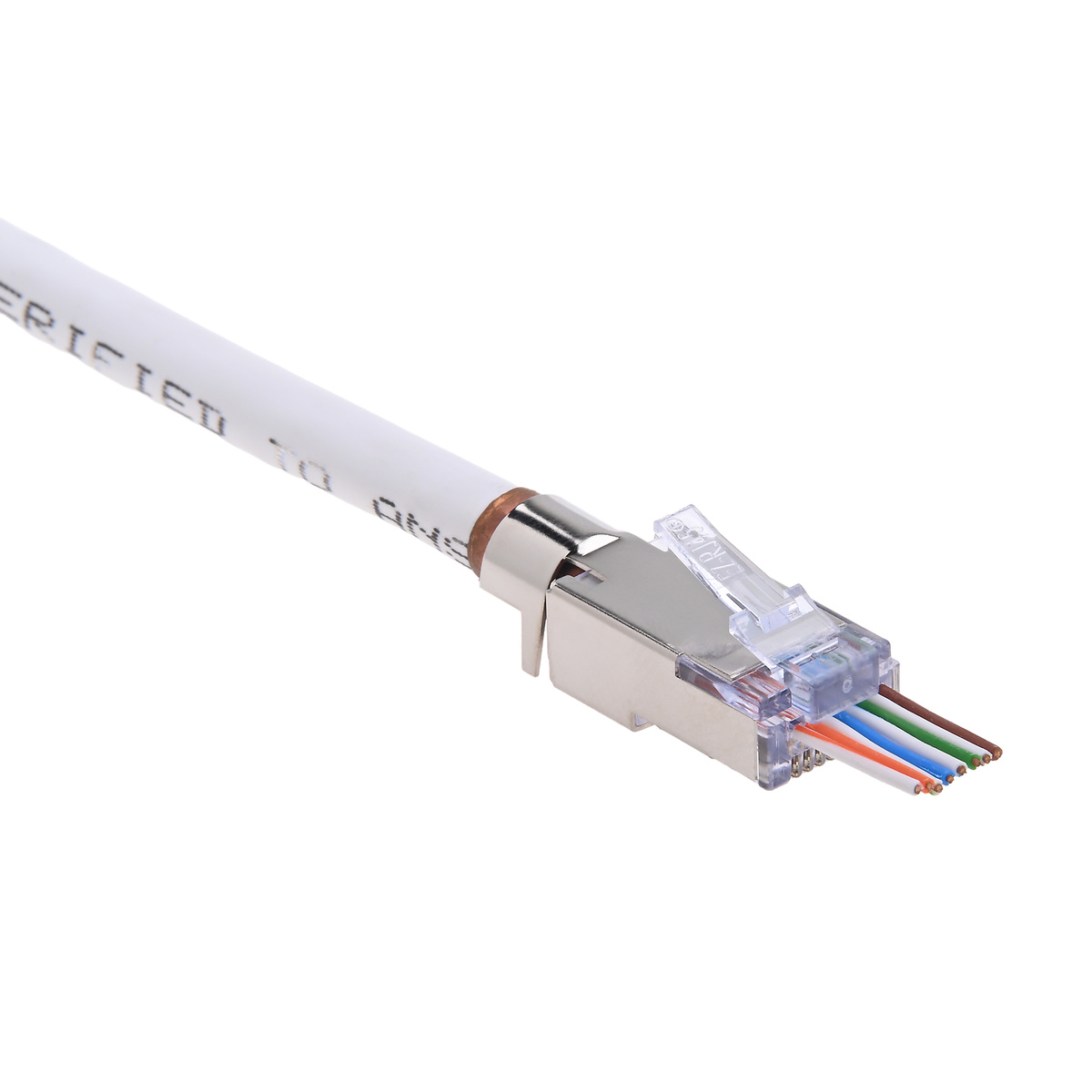

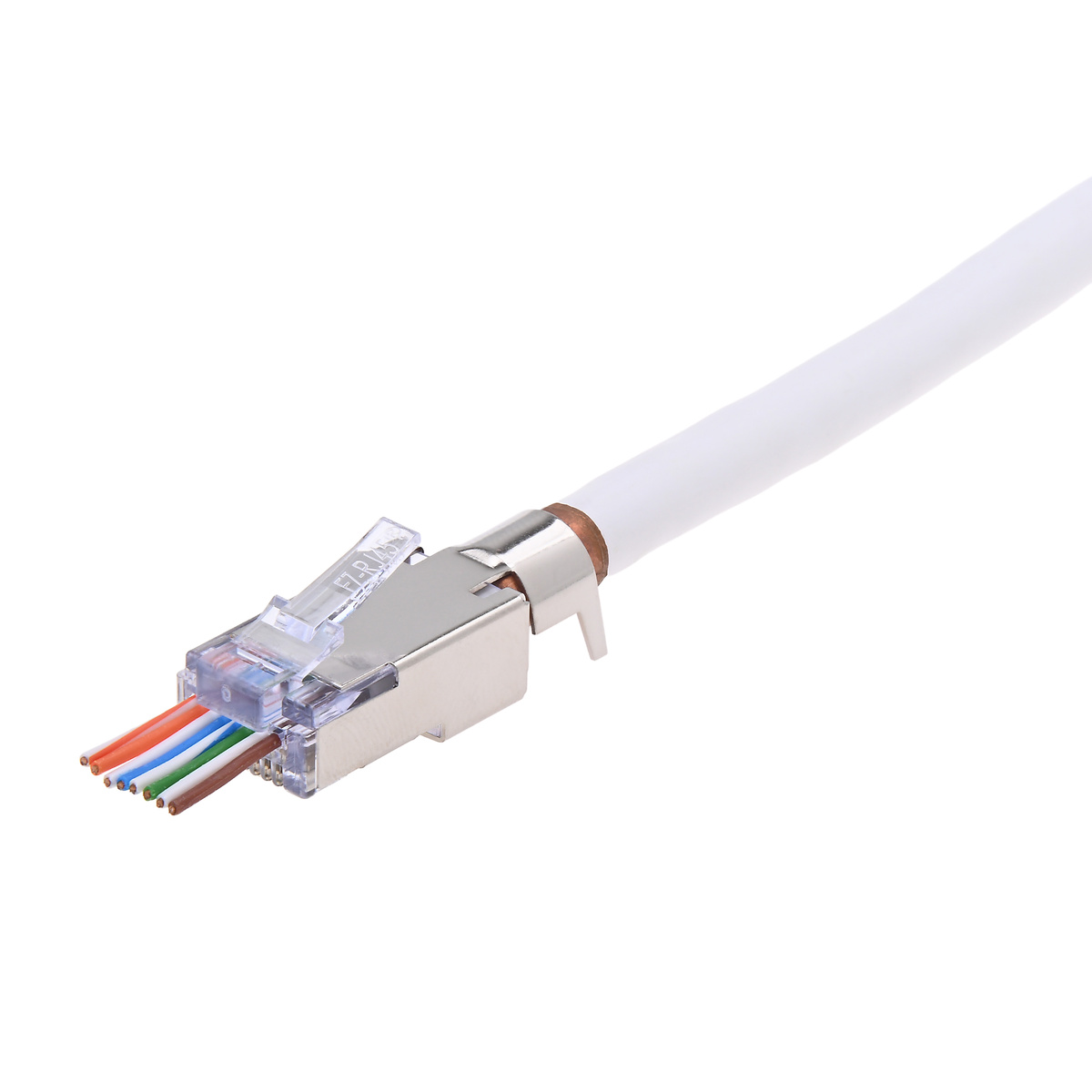

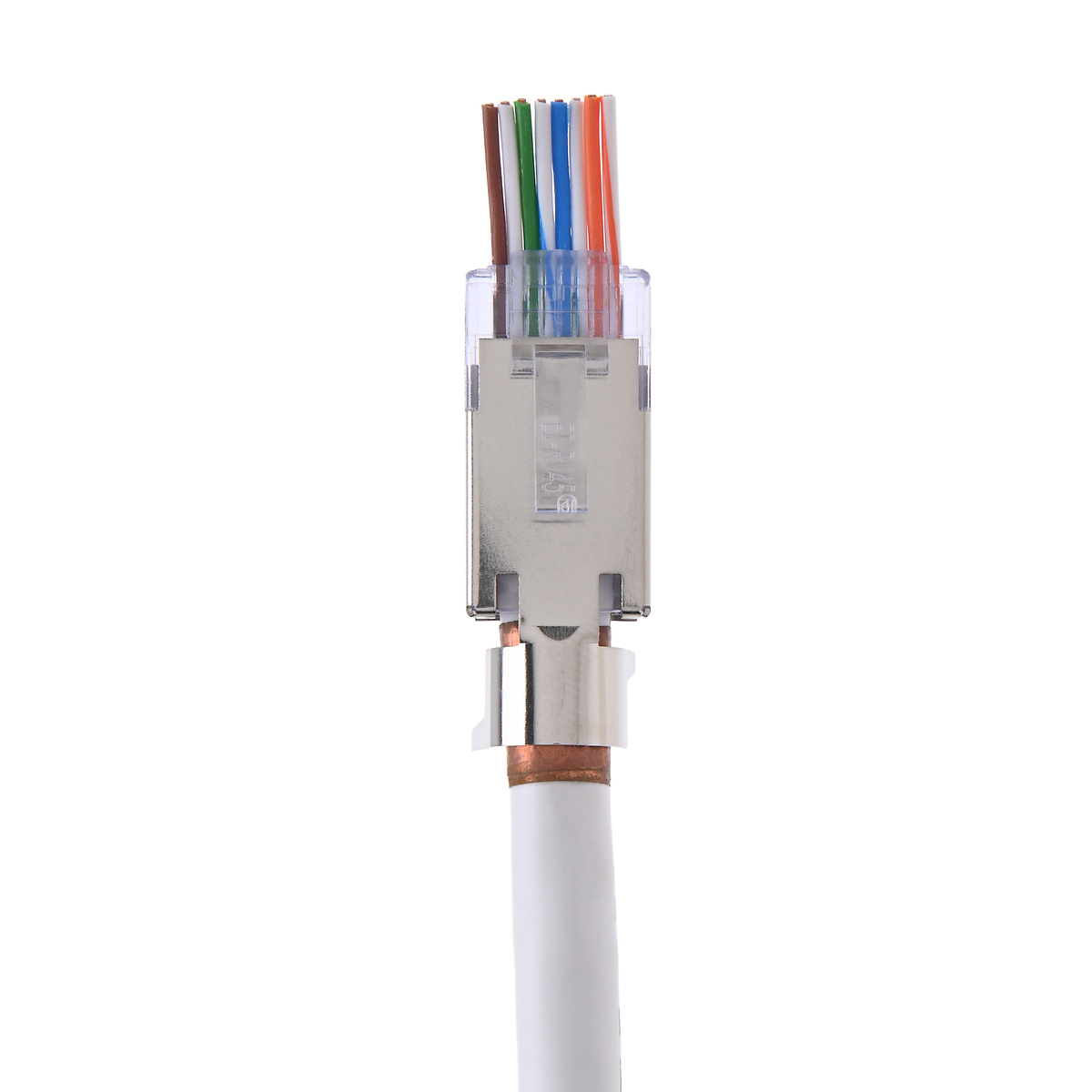

- Connector design allows the wires to pass through the connector so the twists in each pair can be pulled closer to the contacts than conventional plugs
- Recommended for data applications only
- Not recommended for PoE applications
- Rated for up to 1G bandwidth
- Category 6 performance per EIA/TIA B.2. FCC compliant, UL rated. RoHS compliant
- Recommended crimp tools: 100062, 100054 or 100004
Product Information
Material | Polycarbonate |
---|---|
Color | Metal |
Pack Qty | 50 |
GTIN | 00849160004400 |
UPC | 849160004400 |
EAN | 0849160004400 |
UNSPSC | 39121444 |
Origin Country | US |
Certifications | RoHS and UL |
Cable Type | CAT6 |
Connector Style | Shielded |
Connector Termination | Crimp |
Connector Type | RJ45 |
Resources
Documents
- 1597930640EZ_RJ45_Shielded_PF_LoRes.pdf Download
