Field-Installable RJ45 CAT6A Connector, 8P8C, PoE Type 4 — 1pc in Bulk Bag
#106260
Field-Installable RJ45 CAT6A Connector, 8P8C, PoE Type 4 — 1pc in Bulk Bag

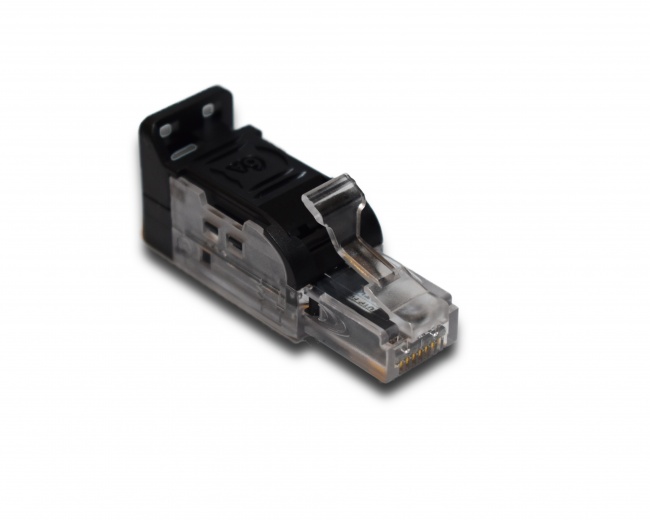

- RJ45 CAT6A field-installable connector

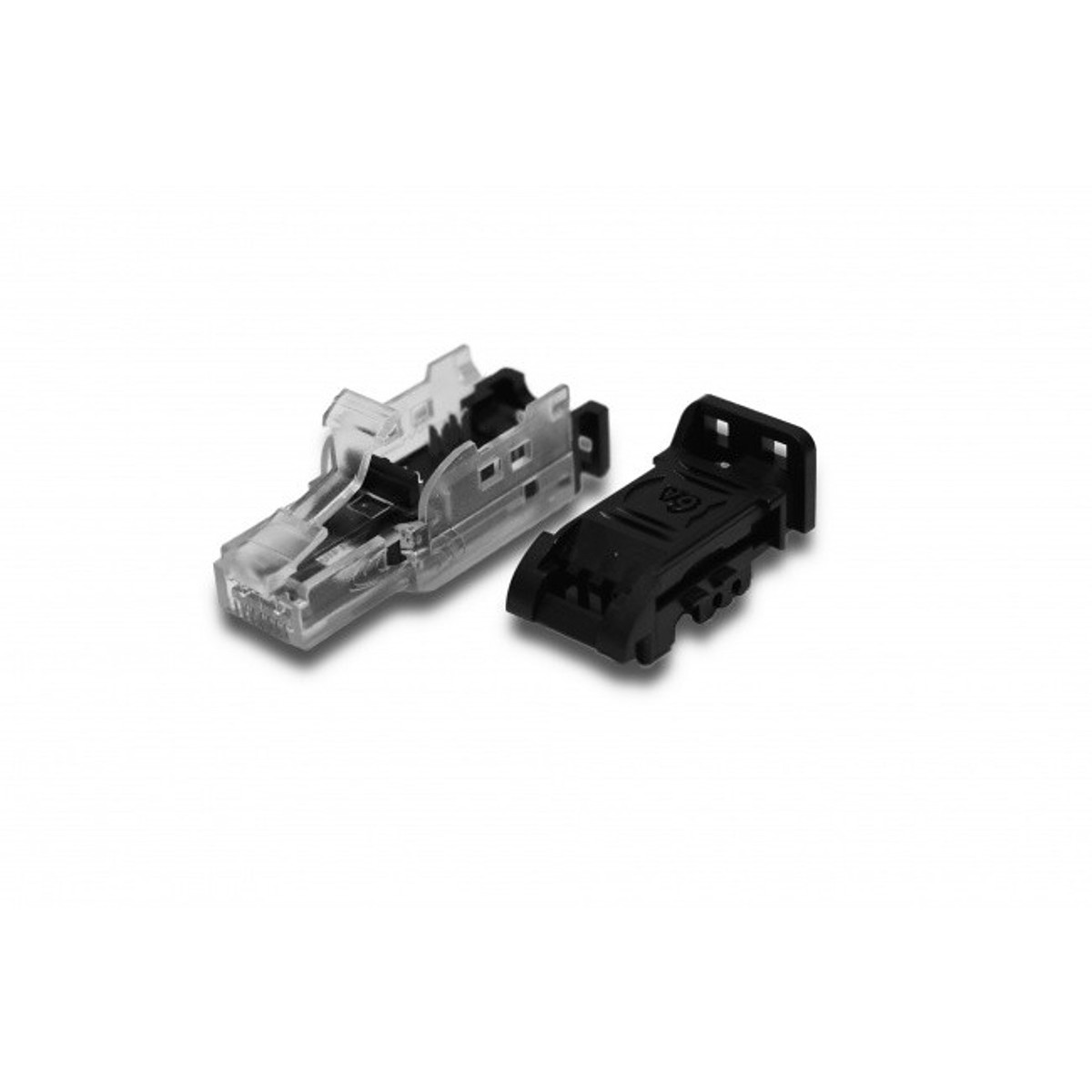

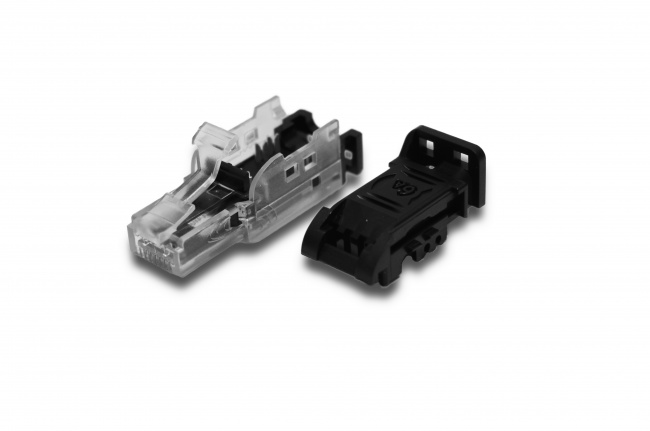

- Field-installable design requires minimal tools (no crimp tool required)
- Designed for PoE Type 4 (up to 90W) or less
- Compatible with CAT5E and CAT6
- Compatible with solid and stranded cable
- Compatible with 26 - 23AWG conductors
- Frequency rated up to 1GHz and 10G certified
- PoE Type 4 rated (up to 90W)
- Meets ANSI/EIA/TIA/TAA specifications
- UL and RoHS compliant
- UL 94V0 rated housing
- Bulk bag packaging
Product Information
| Color | Clear |
|---|---|
| UNSPSC | 43222631 |
| Origin Country | China |
| Certifications | RoHS |
| Style | Unshielded |
| Cable Type | CAT6A |
| Connector Style | Unshielded |
| Connector Termination | Field Install |
| Connector Type | RJ45 |
| POE | 90W |
Resources
Documents
- 1679613302Cat6A-20PoE-20Type-204-20Connector.pdf Download
