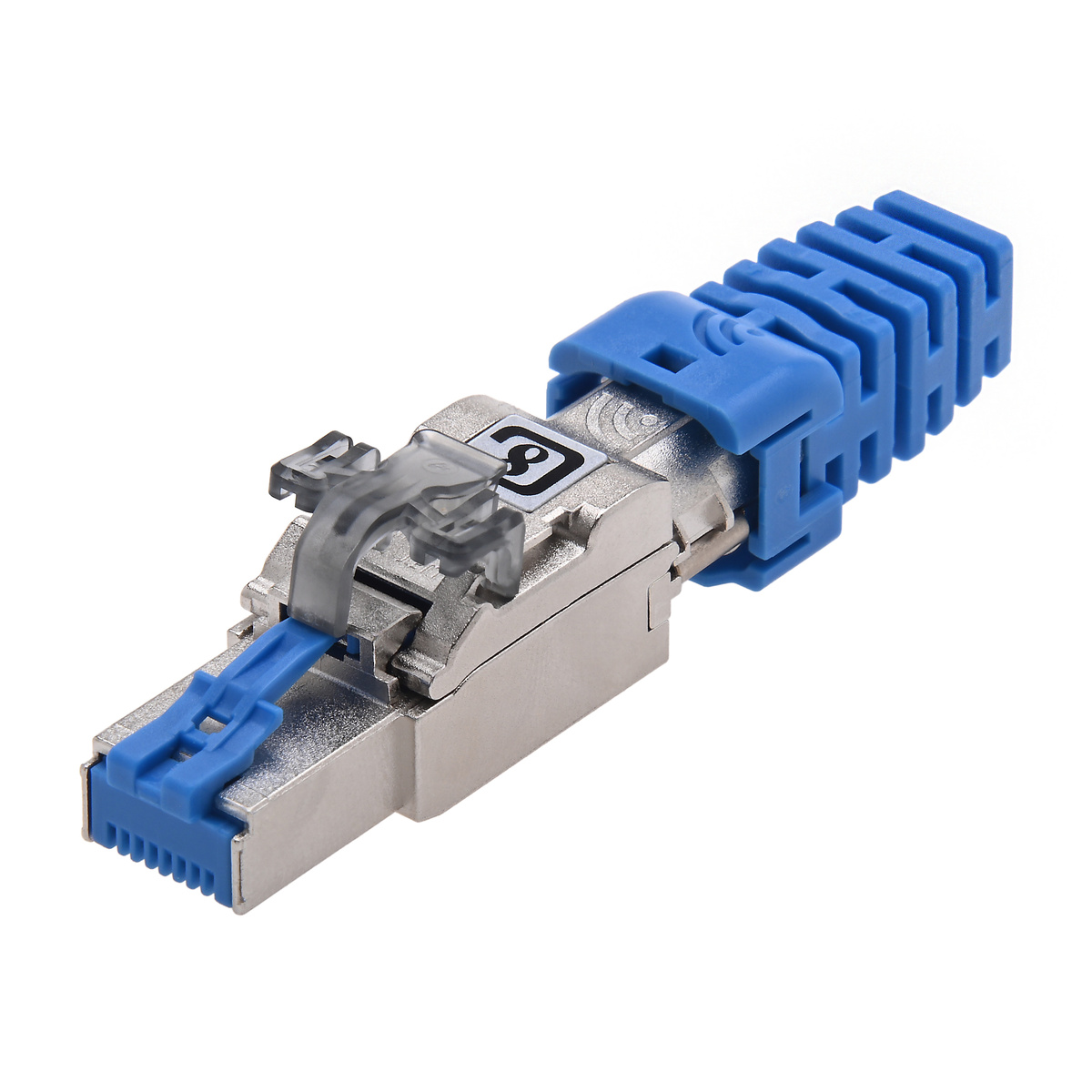

Field-Installable RJ45 CAT8 Connector, 8P8C, Shielded with Internal Ground – 1pc per Bag

Standard RJ45 Connectors

#106270

Field-Installable RJ45 CAT8 Connector, 8 Position 8 Contact, Shielded with Internal Ground, 26 – 23AWG conductors

• RJ45 CAT6A/7/8 field-installable connector
• Field-installable design requires minimal tools (no crimp tool required)
• Shielded with internal ground
• Compatible with CAT6
• Compatible with solid and stranded cable
• Compatible with 26 - 23AWG conductors
• Frequency rated up to 2GHz
• PoE type 4 rated
• 0.197” - 0.39” (5.0mm - 9.9mm) cable jacket outer diameter range
• 0.032” - 0.057” (0.8mm - 1.47mm) cable insulation diameter range
• Gold plated contacts provide reliable performance and long life
• UL and RoHS compliant
