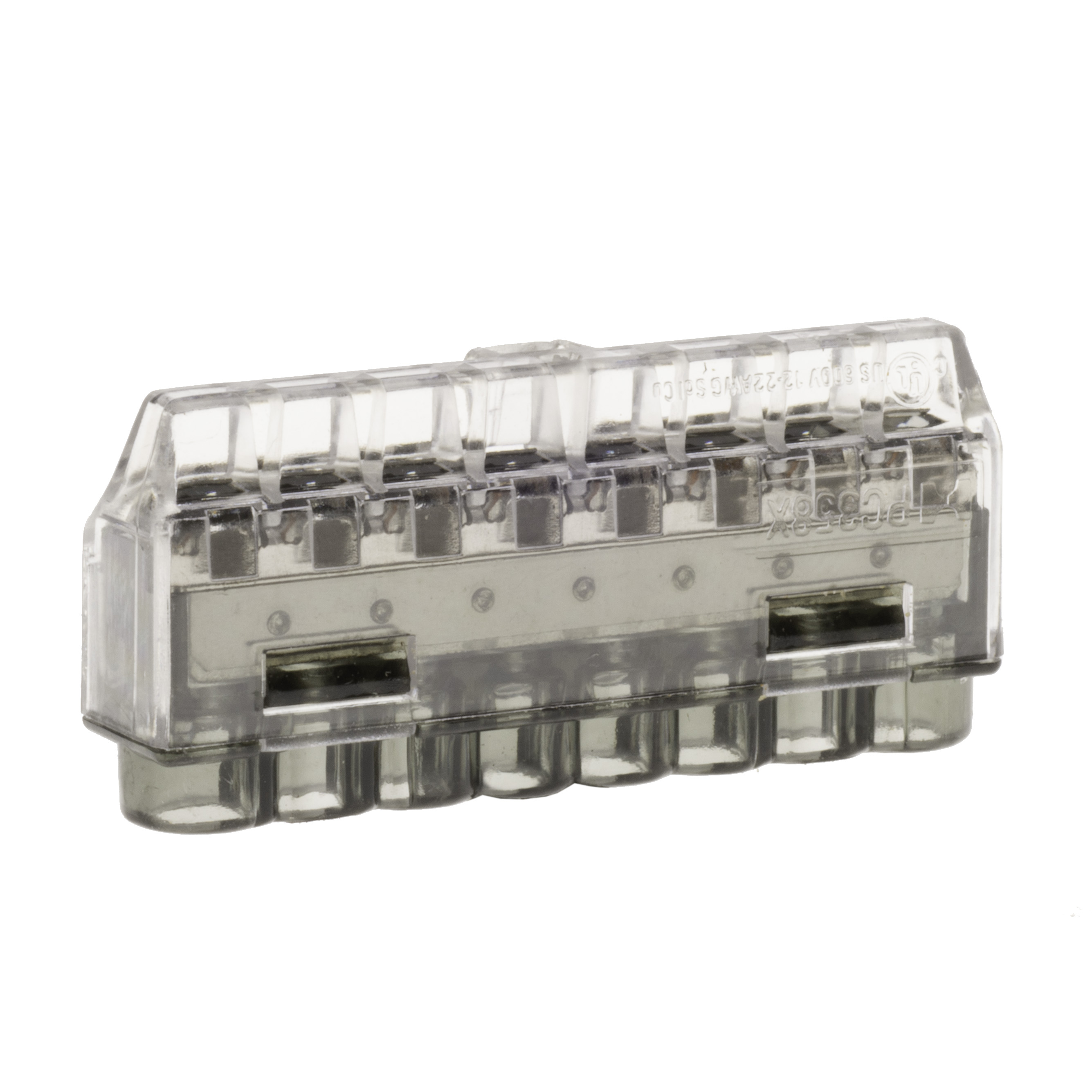

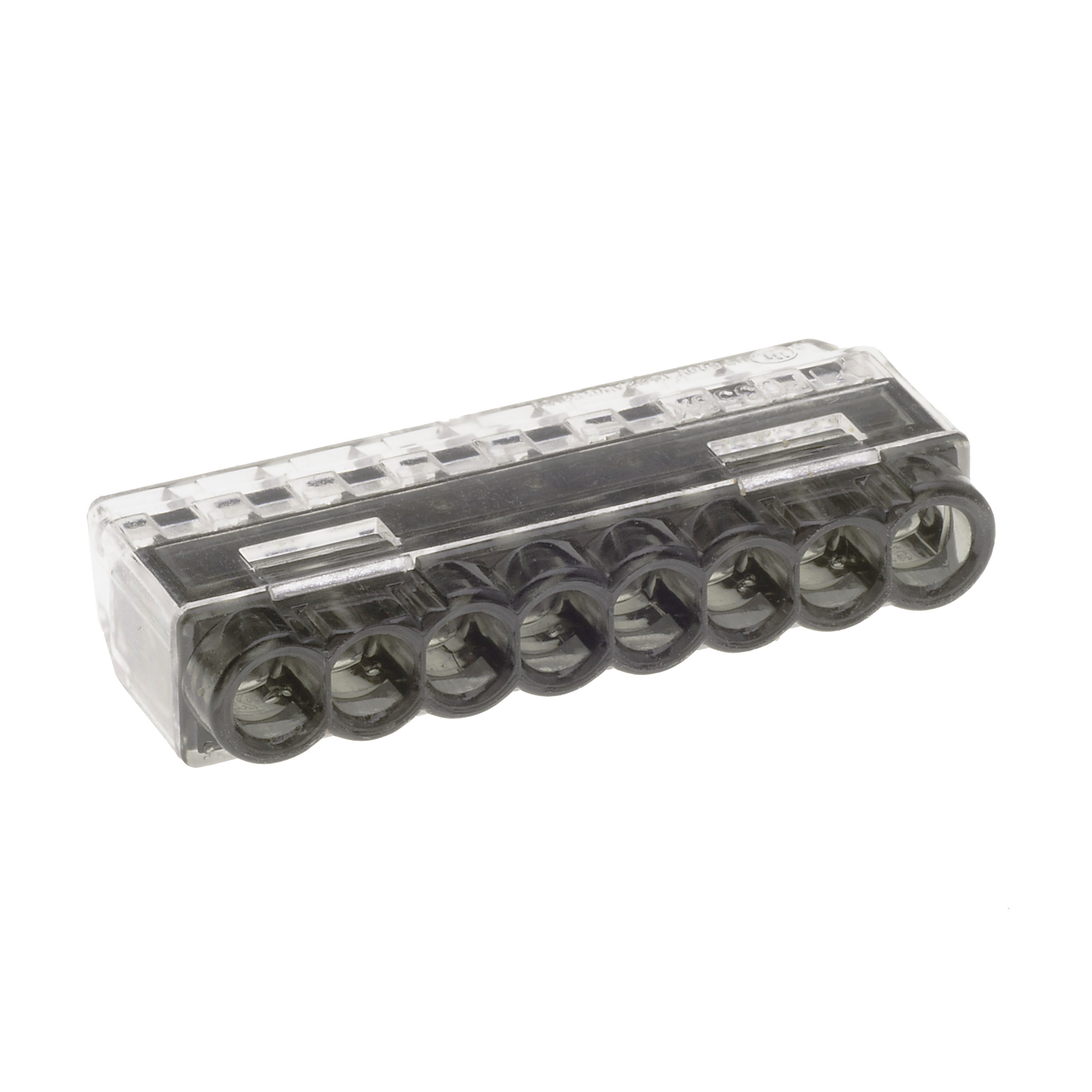

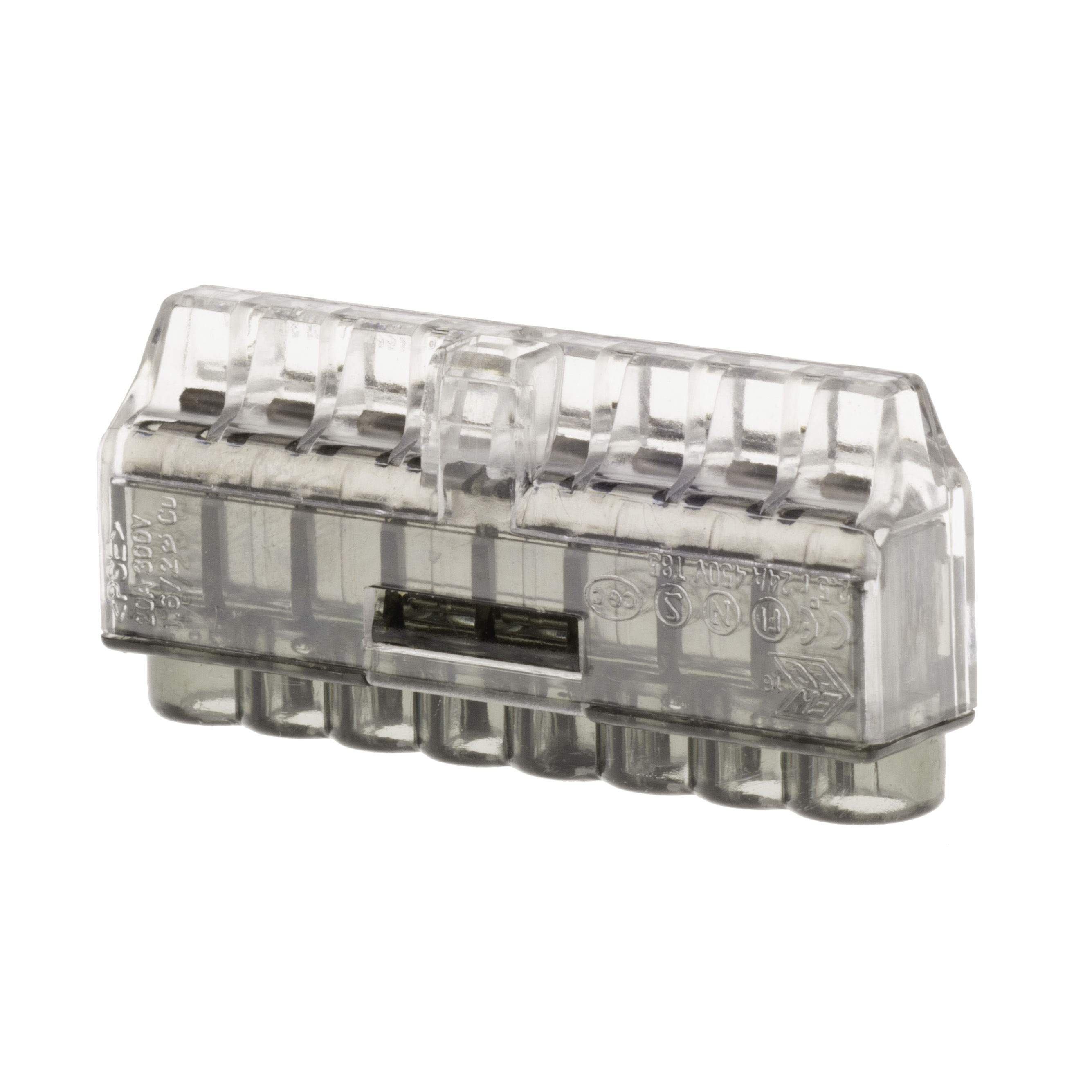

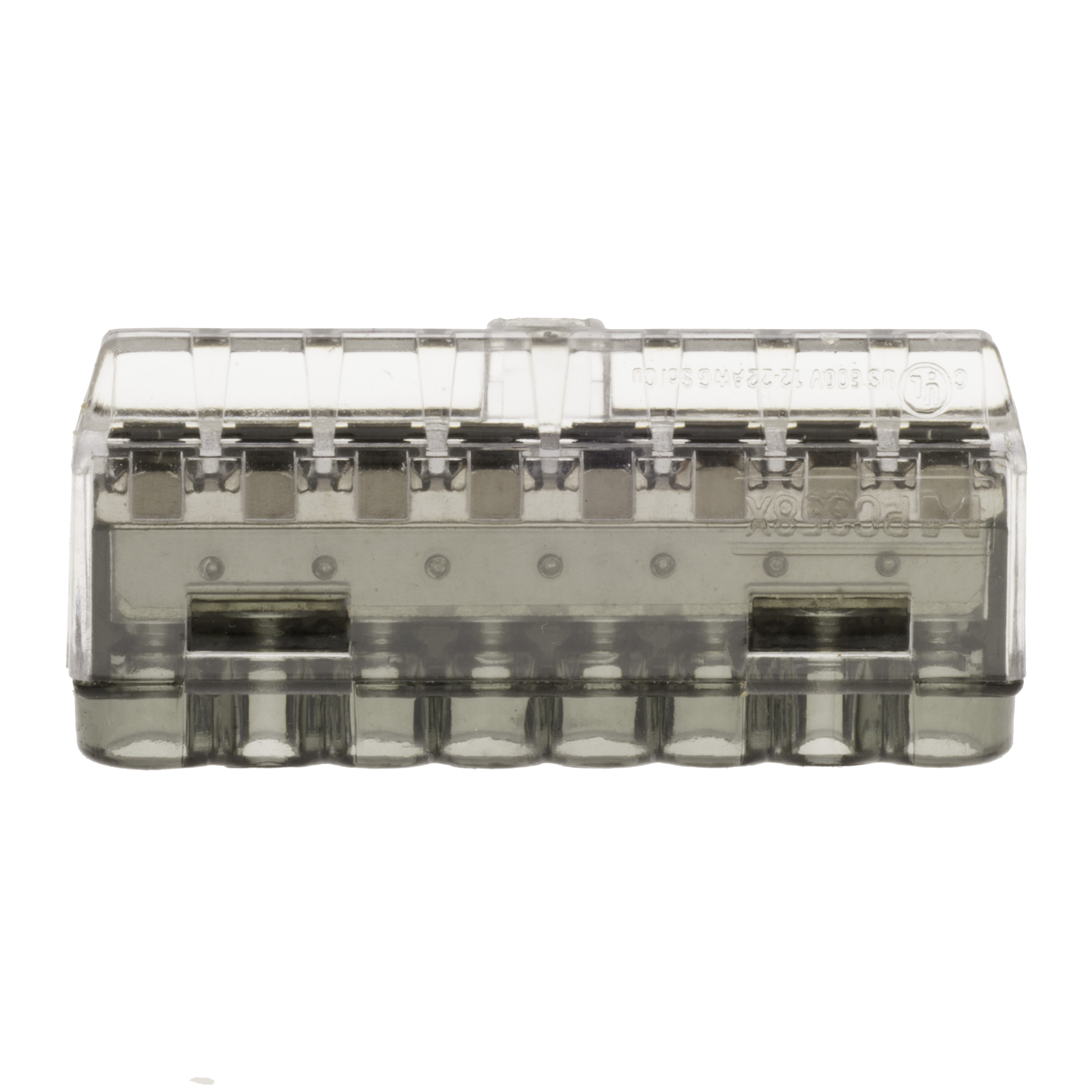

Grey 8-Wire Push-In Wire Connector, Solid or Stranded, 200 Bag

#PIWC-8-B

Easy-Twist wire connectors are the professional choice for forming quick, secure connections between wires in the field. The push-in connector design forms strong connections quickly using a two-blade construction.

  • [Speed and Convenience] Push-in connectors with clear construction excel in environments where speed, visual inspection and convenience are required

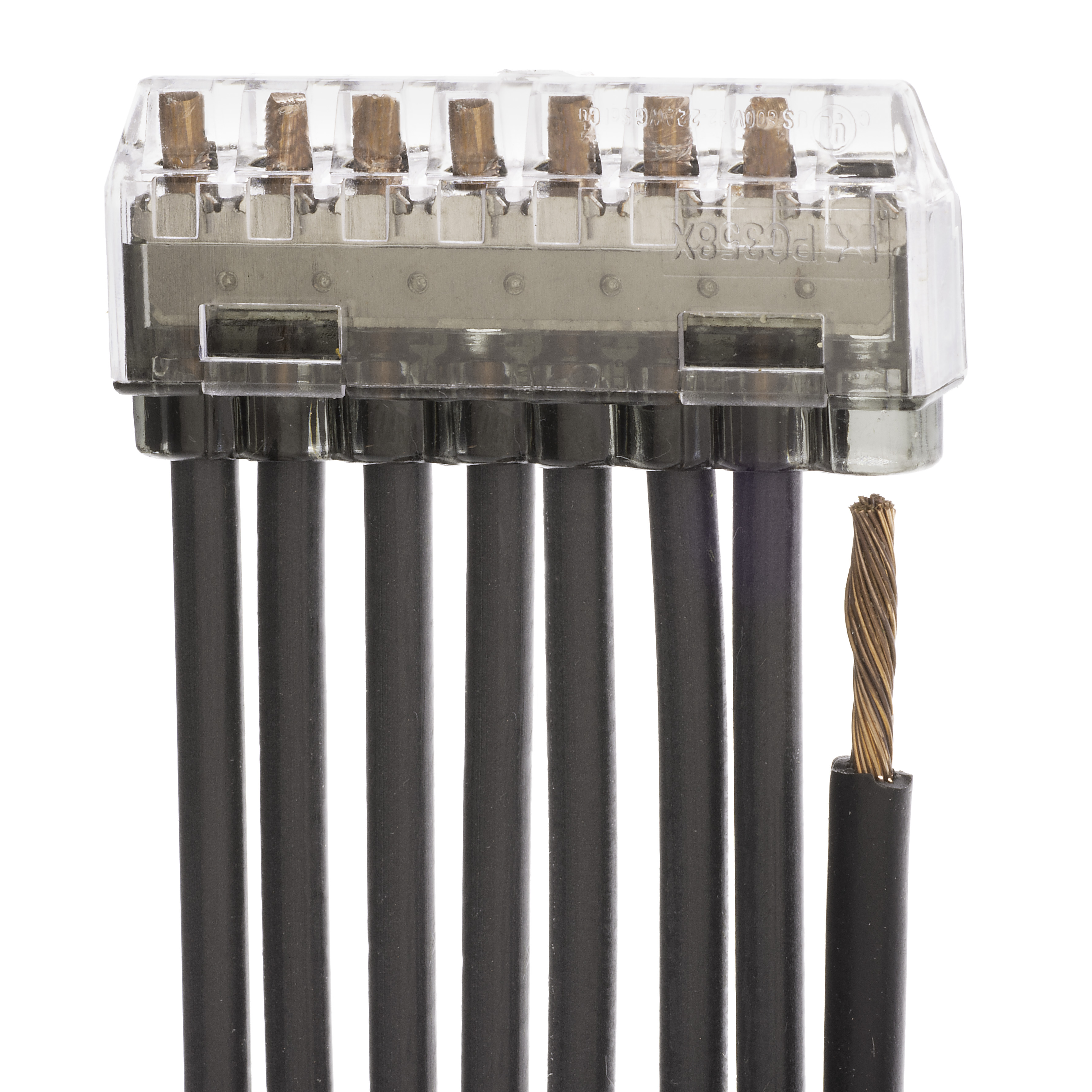

  • [Fast, Reliable Install] No need to twist or tape conductors—just strip the wires and insert one per opening to guarantee a tight connection
  • [Fits Many Wires] Grey 8-wire connectors are color-coded for easy identification and fit solid or stranded wires in the 22-12 AWG size range,
  • [Compact Design] In-line construction and compact shape provide flexibility for working inside boxes or other tight spaces

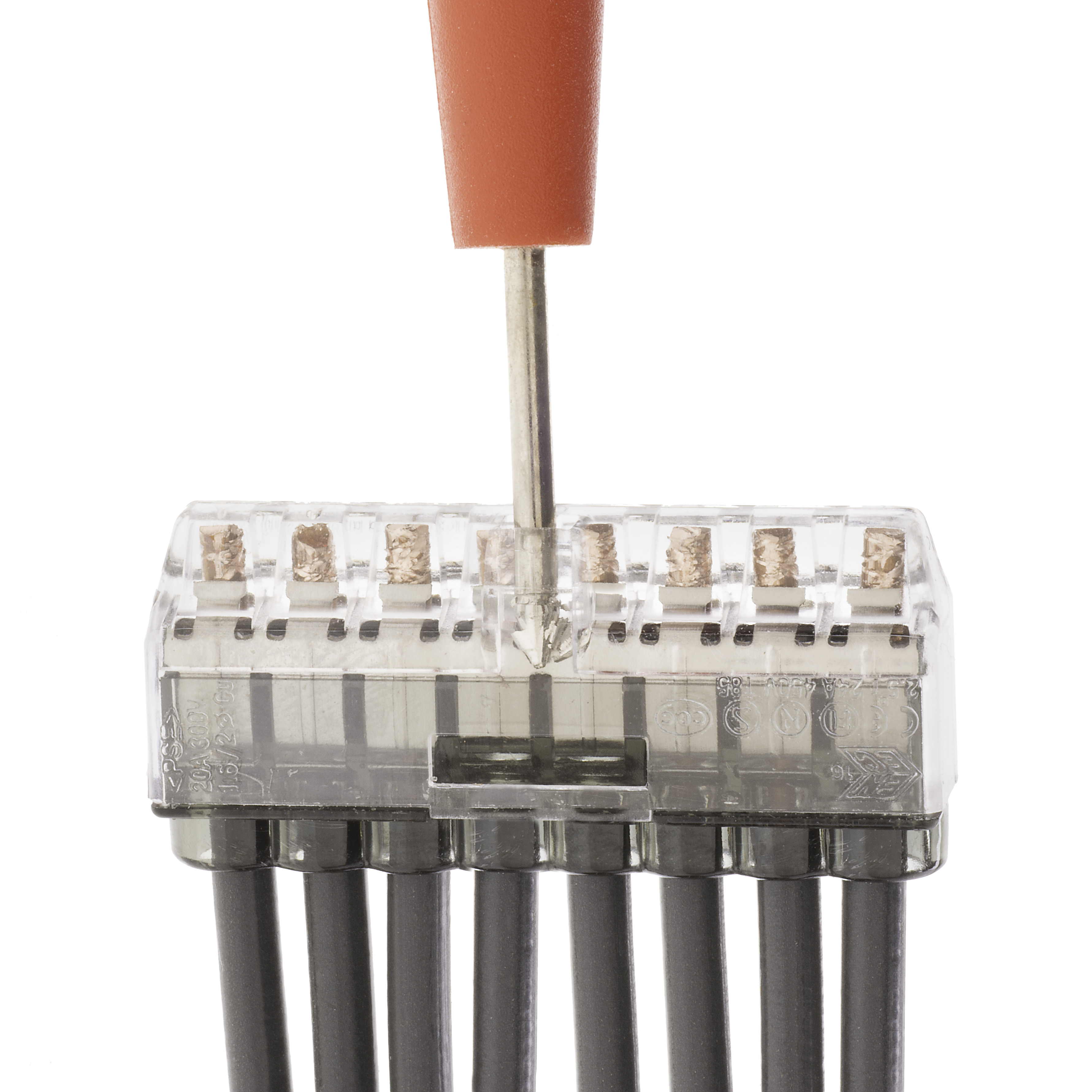

  • [Professional Quality] Comes packed with key features for professionals, including an integrated test port, flame retardant polycarbonate body and stainless steel spring

Product Information

Voltage Rating 600V
Material Polycarbonate
Color Gray
Pack Qty 200
GTIN 662381159755
UPC 662381362070
EAN 0662381159755
UNSPSC 39121445
Origin Country CN
Certifications CE, CSA, UL Listed, PROP65 https://www.p65warnings.ca.gov/
Ul Standard UL 486C
Ul File No E155027
Wire Type Copper Wire Only
Temp Rating -30C to 105C/-40F to 221F
Wire Range 22 AWG – 12 AWG

Resources

Documents

  • ETW_PIWC_WRC_ProdInstall_DIGITAL.pdf Download
  • ETW_PIWC_WRC_ProdSheet_DIGITAL.pdf Download
