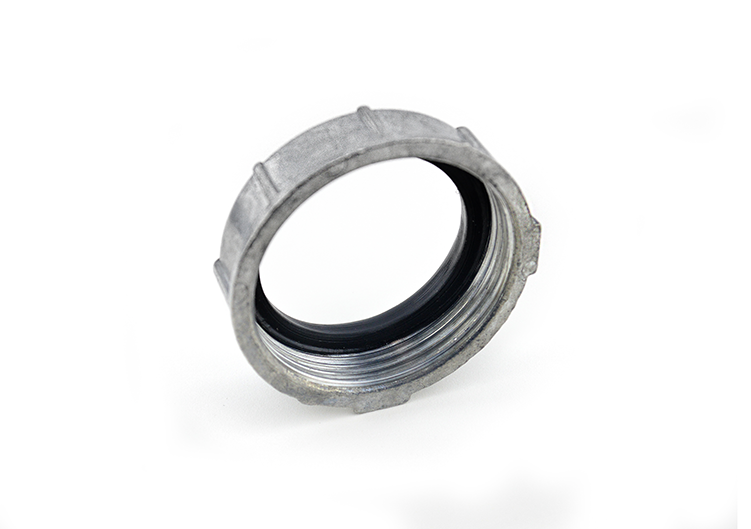

Insulated Bushing, 1-1/2″, Zinc Die Cast to Protect Conductors
#365-DC
The Bridgeport 1-1/2″ Zinc Die Cast Insulated Bushing can terminate threaded rigid or IMC to a box using a simple locknut. It features a plastic metaliner that prevents damage to wire insulation.
- Eco-Friendly: The byproducts of zinc casting can be melted down and recast to make new metals without property degradation
- Heat Rating: The bushing is temperature rated to 150°C for use in industrial environments
- Easy to Use: The threaded coupling makes easy connections for rigid or IMC conduits
- Professional Performance: All Bridgeport fittings meet OSHA-recognized, NRTL-certified electrical standards and meets the stringent bonding and grounding requirements of 514B cULus
Product Information
| Material | Zinc Die Cast |
|---|---|
| Color | Grey with Black Insulator |
| Pack Qty | 100 |
| GTIN | 00781747093653 |
| UPC | 781747093653 |
| EAN | 0781747093653 |
| UNSPSC | 39121312 |
| Ul Standard | UL-514B |
| Application | Used with locknut to protect conductors inside threaded rigid or IMC conduit entering a box. Plastic liner prevents damage to wire insulation. Plastic Metaliner – 150 Degree |
